Breakout for 6-pin JST SH-Style Connector - Top Entry

PololuSKU: POL-4770
Price:
Sale price £1.20
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

PololuBreakout for 6-pin JST SH-Style Connector - Side Entry
Sale price £1.20 incl. VAT excl. VAT
The Pi HutJST-SH cable - 6 pin (pack of 4)
Sale priceFrom £3 incl. VAT excl. VAT
PimoroniMicro Metal Motor Encoder (MMME) (pack of 2)
Sale price £7.50 incl. VAT excl. VAT
PimoroniMotor 2040 - Quad Motor Controller
Sale price £24 incl. VAT excl. VAT
PimoroniInventor 2040 W (Pico W Aboard)
Sale price £34.50 incl. VAT excl. VAT
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT

This is a breakout board for a 6-pin male JST SH-type connector that provides access to each pin on a row of 0.1″-pitch through holes, making it compatible with standard solderless breadboards. The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers, which are available separately.

This version features a top-entry connector, and is individually packaged and fully tested.

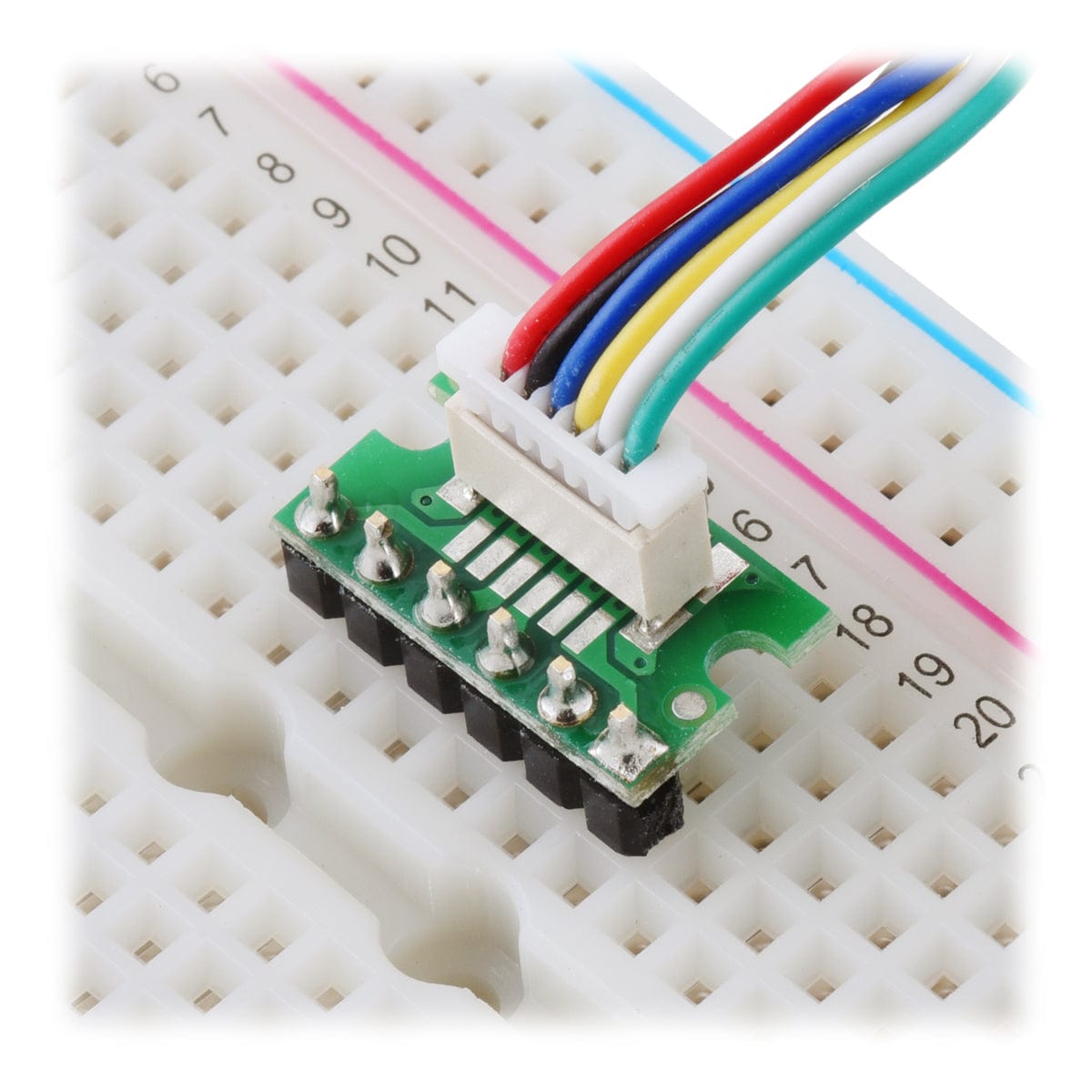

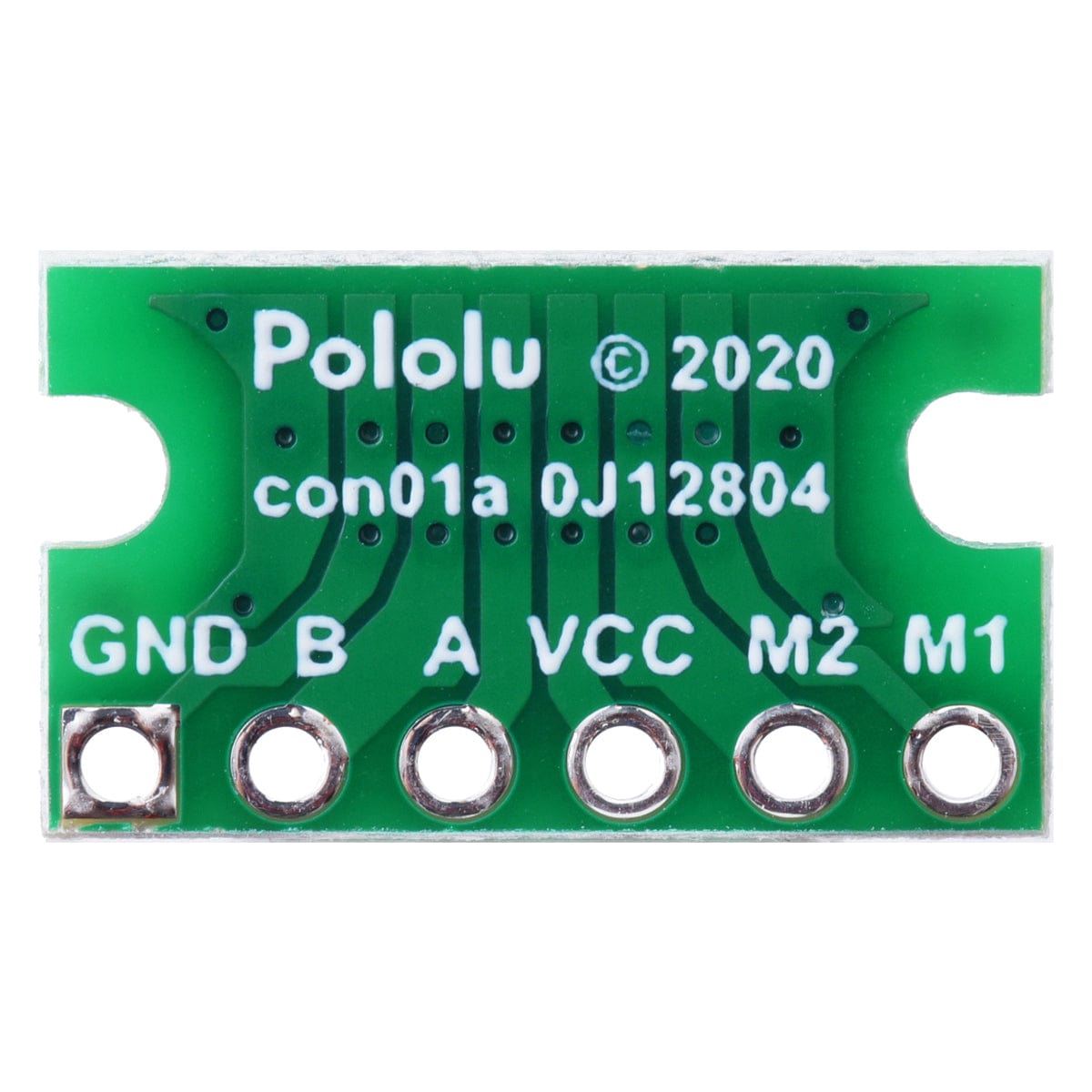

This board can be used with the Pololu Micro Metal Gearmotor Encoders with top-entry connector or with side-entry connector, along with a female-female JST SH-style cable. When used this way, the breakout provides convenient access to the motor and encoder pins on a breadboard, and the pins are labelled on the board’s bottom silkscreen with this application in mind.

Alternatively, this board can serve as a general-purpose breakout for other applications; for example, a pair of connector breakouts with a female-female cable could be used as a removable general-purpose interconnect between different parts of a modular system.

These breakouts should also work well with Pimoroni JST-SH encoders and related boards such as the Motor 2040.

We also stock a side-entry version.

Use with Micro Metal Gearmotor Encoders

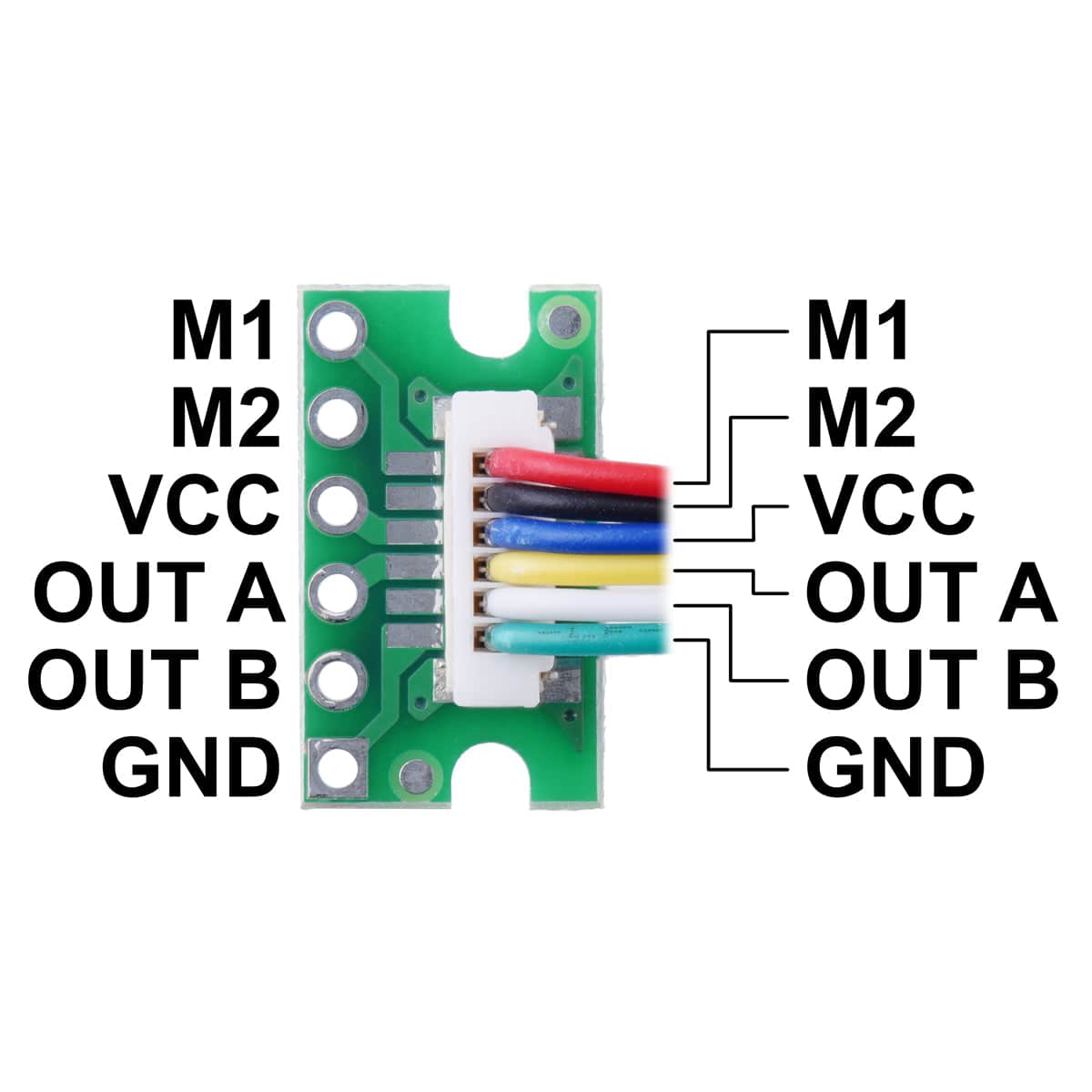

When used with our encoders and JST SH-style cables, the wire colour scheme is as follows:

Colour Function
Red motor power (connects to one motor terminal)
Black motor power (connects to the other motor terminal)
Blue encoder Vcc
Yellow encoder A output
White encoder B output
Green encoder GND

Specifications

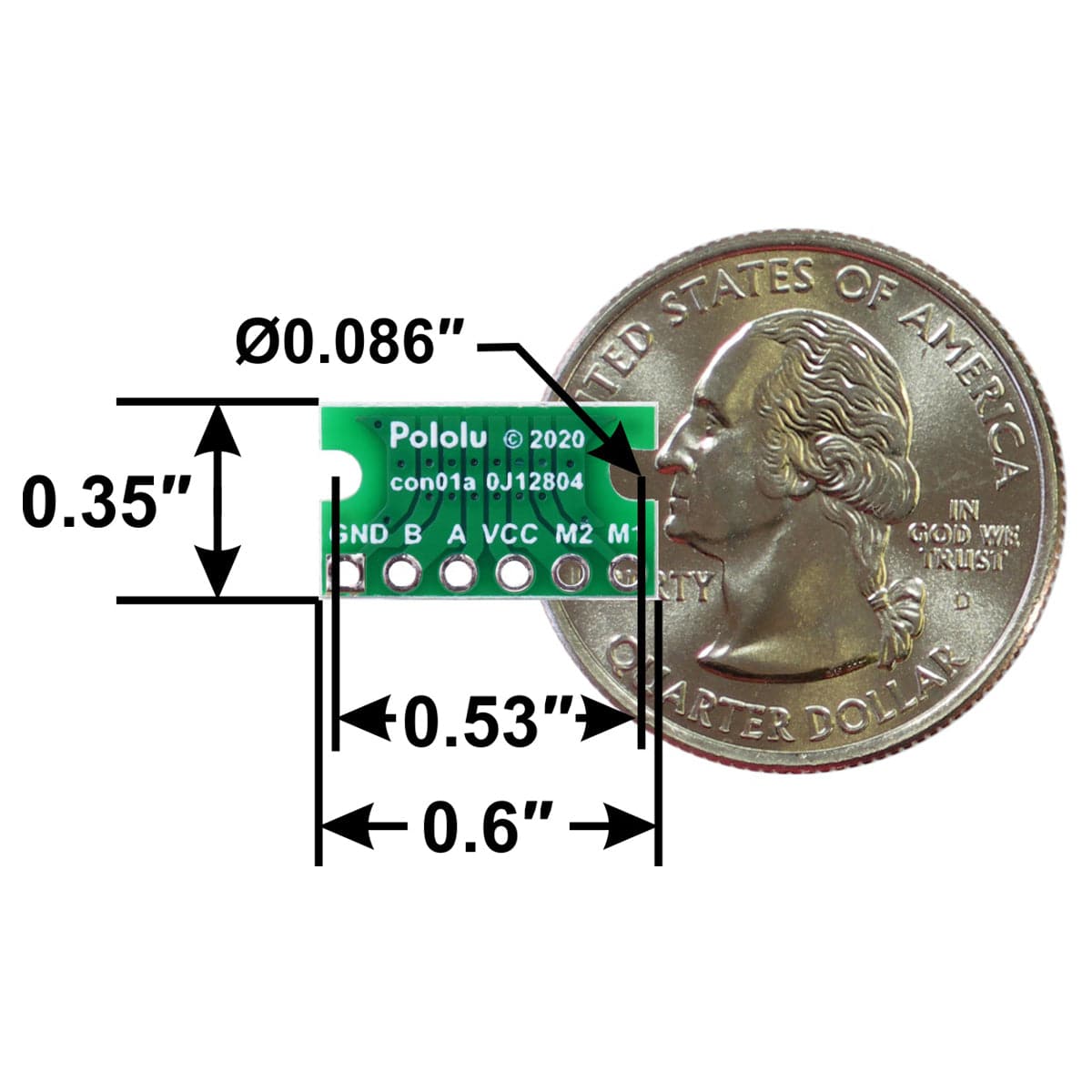

Size 0.6″ × 0.35″ × 0.21″
Weight 0.5 g
Connector top-entry, 6-pin male, JST SH-type
