Pololu Magnetic Encoder Kit with Side-Entry Connector for Micro Metal Gearmotors (12 CPR, 2.7-18V)

PololuSKU: POL-4761
Price:
Sale price £7.40
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

PololuBreakout for 6-pin JST SH-Style Connector - Side Entry
Sale price £1.20 incl. VAT excl. VAT
PololuBreakout for 6-pin JST SH-Style Connector - Top Entry
Sale price £1.20 incl. VAT excl. VAT
The Pi HutJST-SH cable - 6 pin (pack of 4)
Sale priceFrom £3 incl. VAT excl. VAT
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT

Add quadrature encoders to your micro metal gearmotors (extended back shaft version required) with this Pololu kit that uses a magnetic disc and Hall effect sensors to provide 12 counts per revolution of the motor shaft.

The sensors operate from 2.7 V to 18 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit. These encoders have a side-entry, 6-pin male JST SH-type connector.

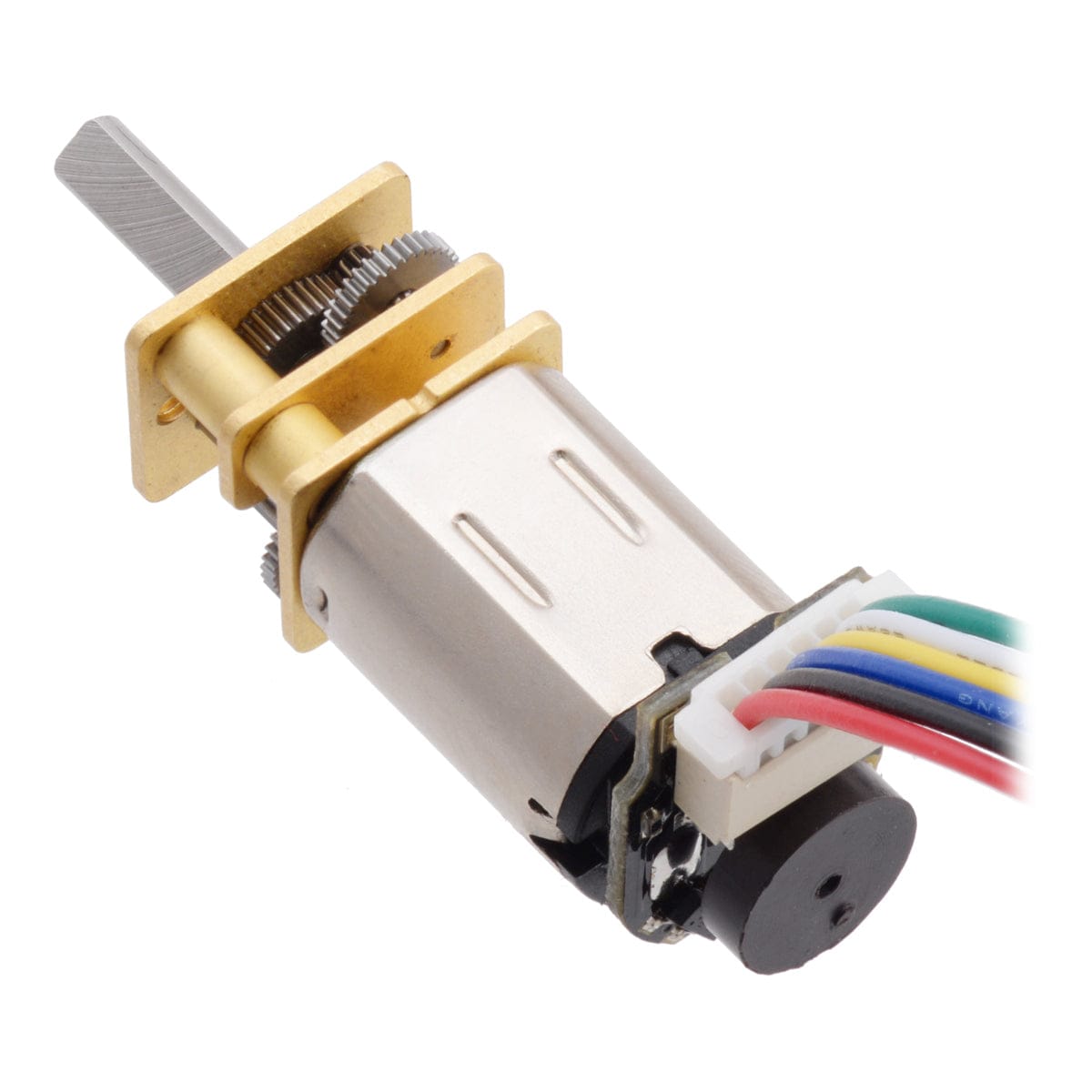

This module is compatible with all Pololu dual-shaft, extended back shaft micro metal gearmotors, including the HPCB versions.

Motors not included.

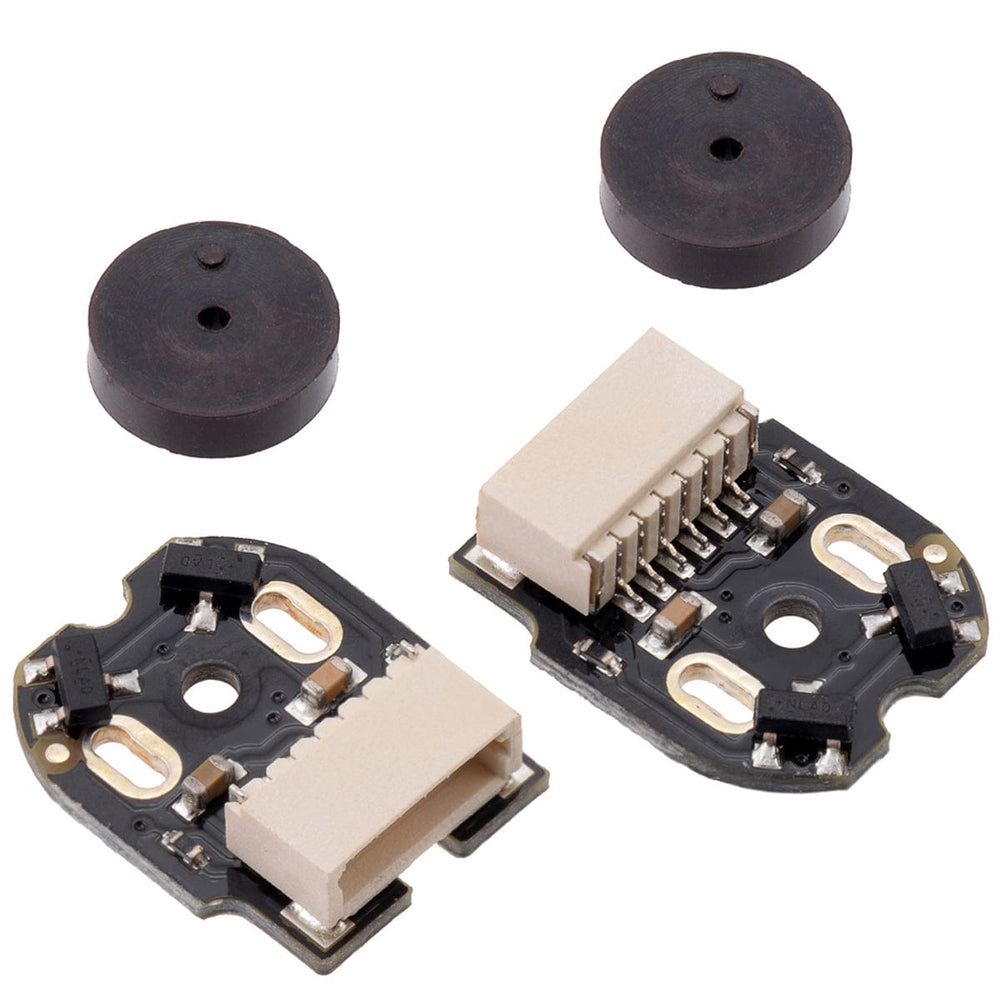

This kit includes two dual-channel Hall effect sensor boards and two 6-pole magnetic discs that can be used to add quadrature encoding to two micro metal gearmotors with extended back shafts (motors and cables are not included with this kit). The encoder board senses the rotation of the magnetic disc and provides a resolution of 12 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output shaft, multiply the gear ratio by 12. This compact encoder solution fits within the 12 mm × 10 mm cross-section of the motors on three of the four sides, and it extends 2.8 mm past the edge of the fourth side.

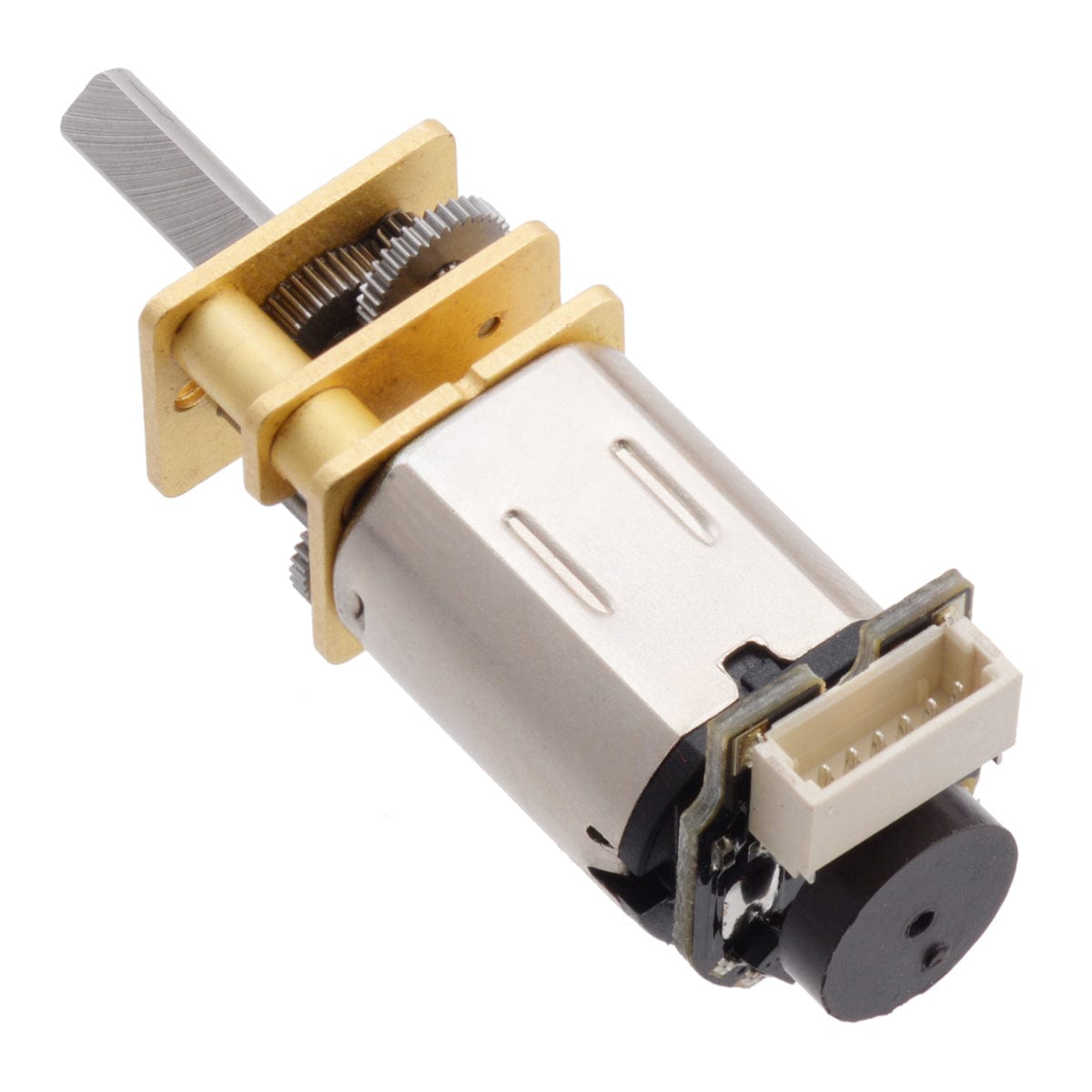

The encoders include a side-entry, 6-pin male JST SH-type connector. We also carry a version of this encoder with a top-entry connector.

Note: This sensor system is intended for users comfortable with the physical encoder installation. It only works with micro metal gearmotors that have extended back shafts.

Pinout and installation

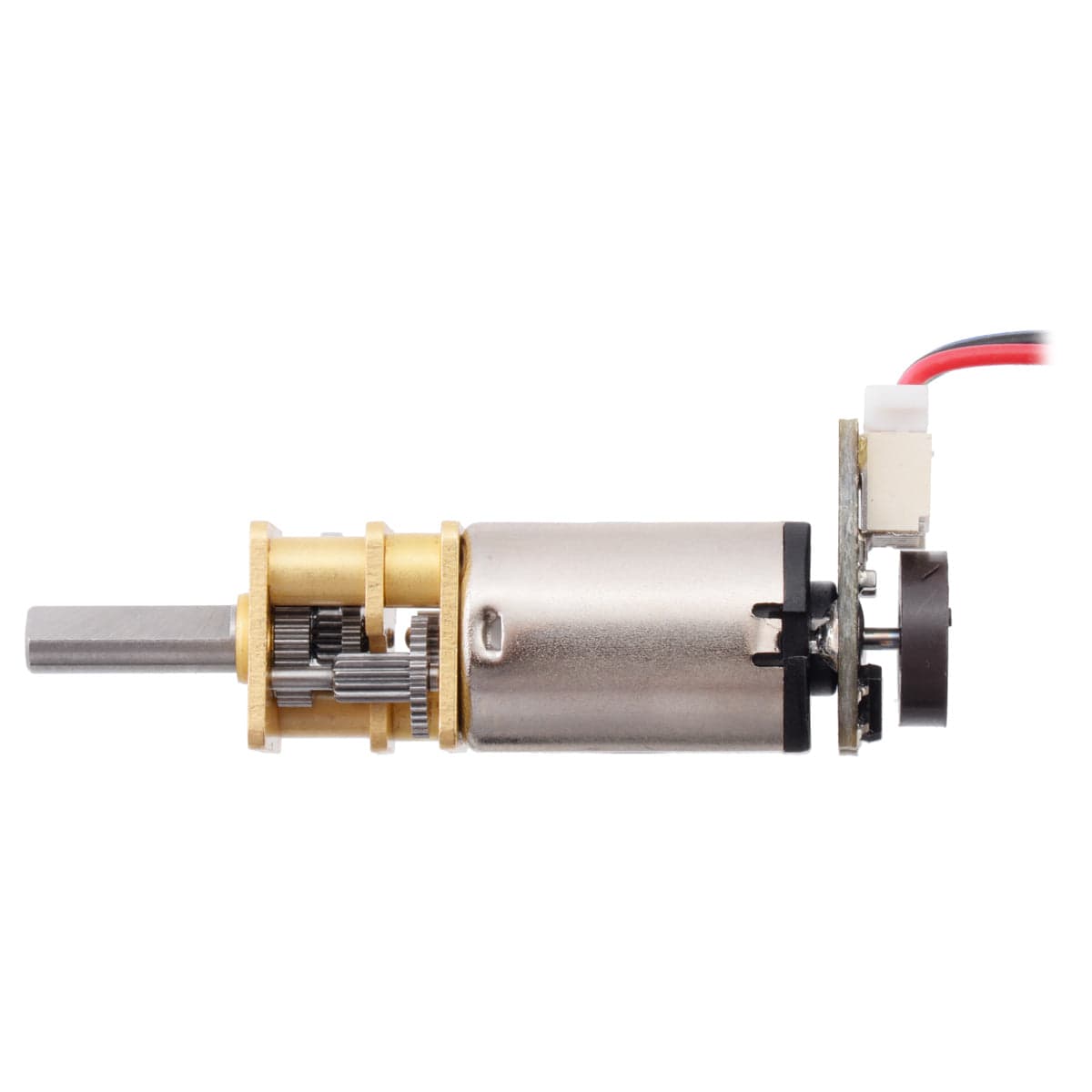

The encoder board is designed to be soldered directly to the back of the motor, with the back shaft of the motor protruding through the hole in the middle of the circuit board.

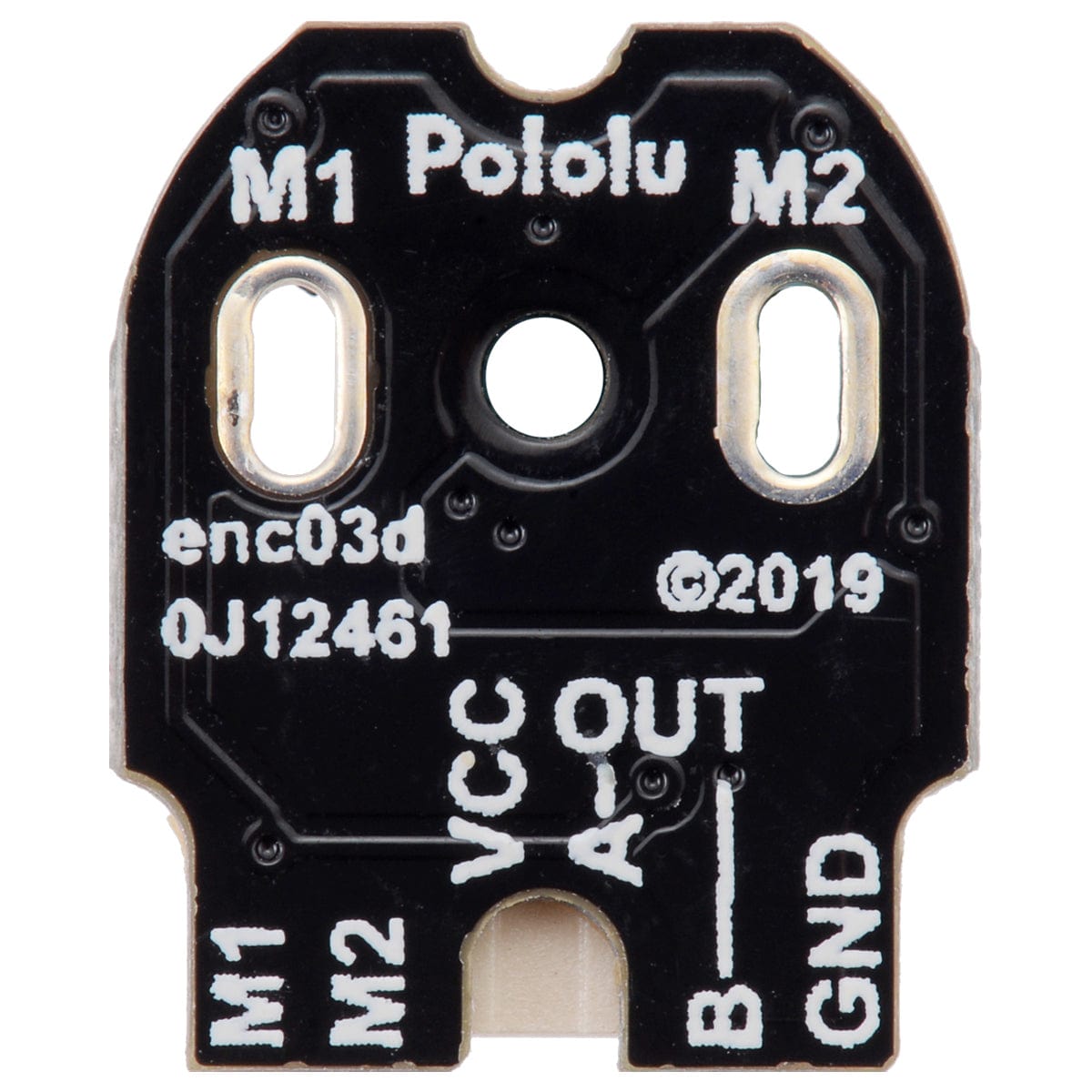

One way to achieve good alignment between the board and the motor is to tack down the board to one motor pin and to solder the other pin only when the board is flat and well aligned. Be careful to avoid prolonged heating of the motor pins, which could deform the plastic end cap of the motor or the motor brushes. Once the board is soldered down to the two terminals, the motor leads are connected to the M1 and M2 connector pins as labelled below, and they can be accessed via the red and black wires when used with corresponding Pololu JST cables (we sell our own versions here). The remaining four connector pins are used to power the sensors and access the two quadrature outputs:

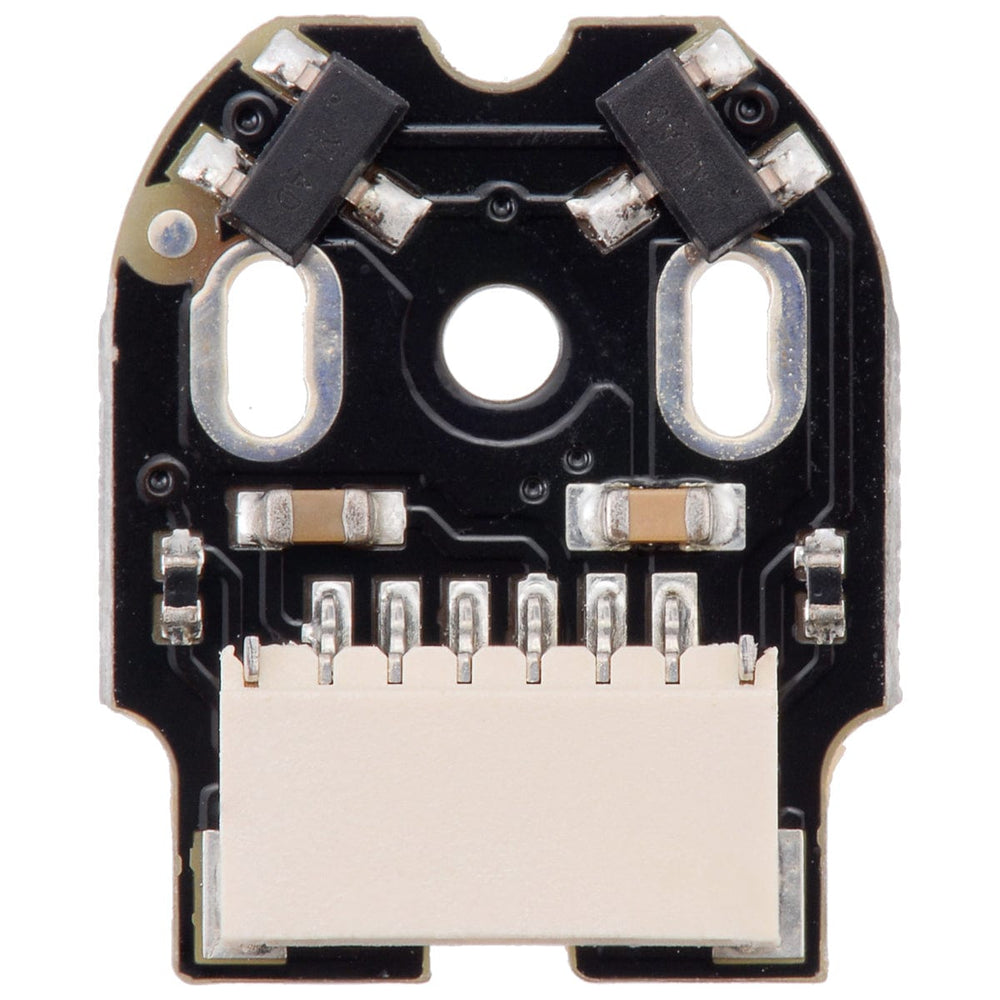

The sensors are powered through the VCC (blue wire) and GND (green wire) pins. VCC can be 2.7 V to 18 V, and the quadrature outputs A and B (yellow and white wires) are digital signals that are either driven low (0 V) by the sensors or pulled to VCC through 10 kΩ pull-up resistors, depending on the applied magnetic field. The sensor's comparators have built-in hysteresis, which prevents spurious signals in cases where the motor stops near a transition point.

Specifications

Minimum operating voltage 2.7 V
Maximum operating voltage 18 V
Connector Side-entry, 6-pin male, JST SH-type

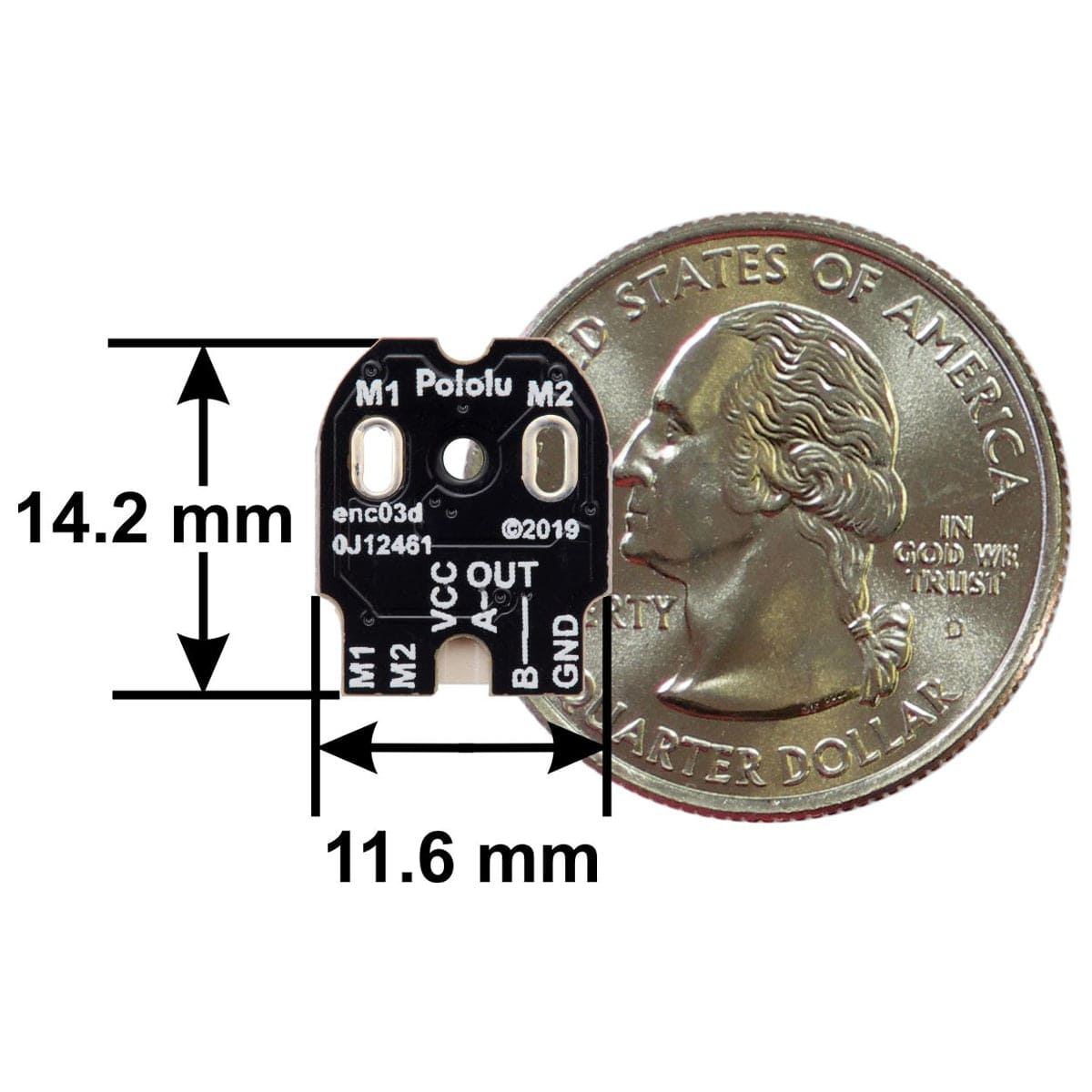

Size 14.2 mm × 11.6 mm
Weight 1.5 g

Resources

Package Contents

  • 2x Side-entry encoders
  • 2x Magnetic discs

Motors not included
