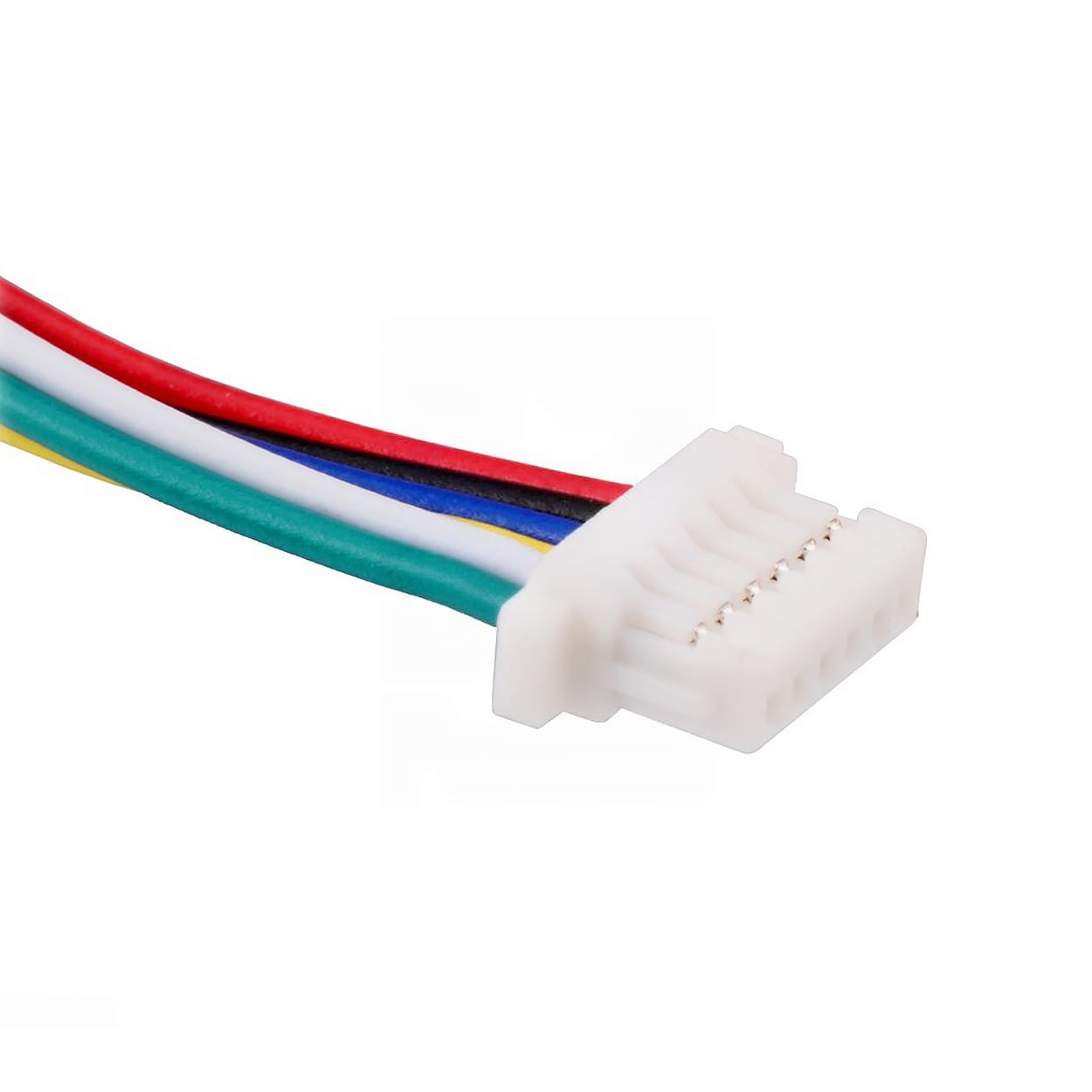

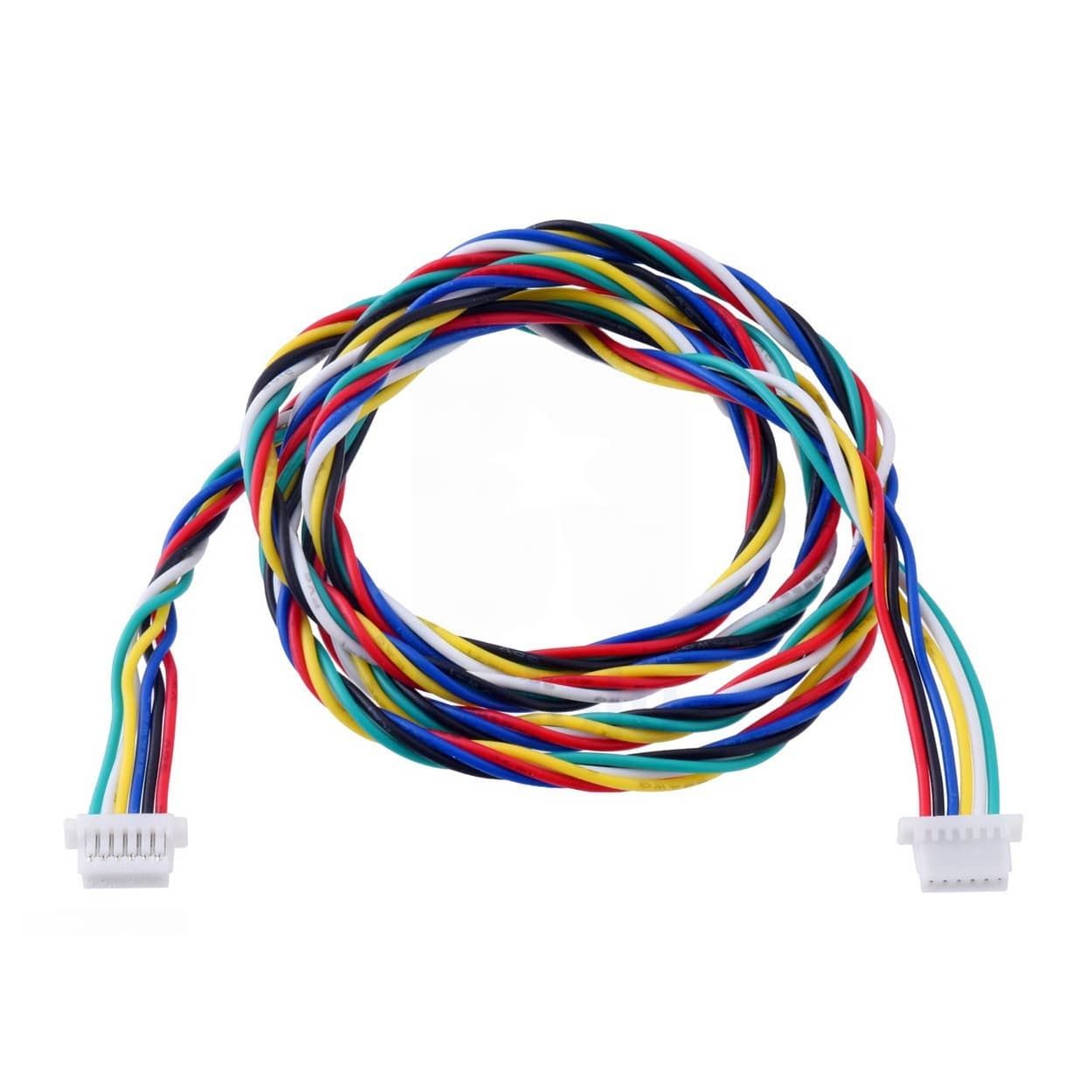

This 6-pin 63cm JST-SH cable is designed to work with Pololu encoders for micro metal gearmotors, which are available with top-entry connector and with side-entry connector. It consists of six twisted 28 AWG color-coded wires that are terminated on both ends by female JST SH-type connectors.

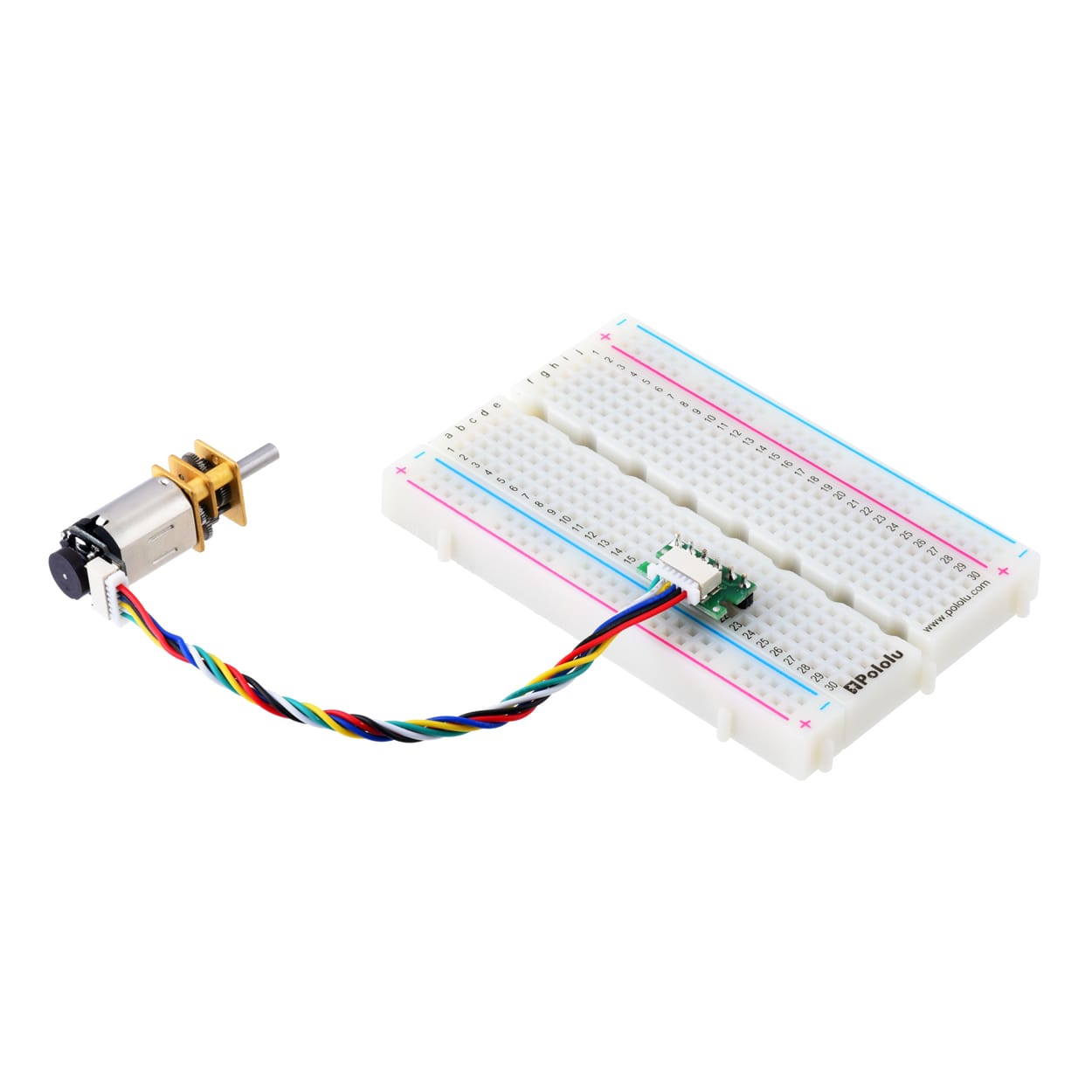

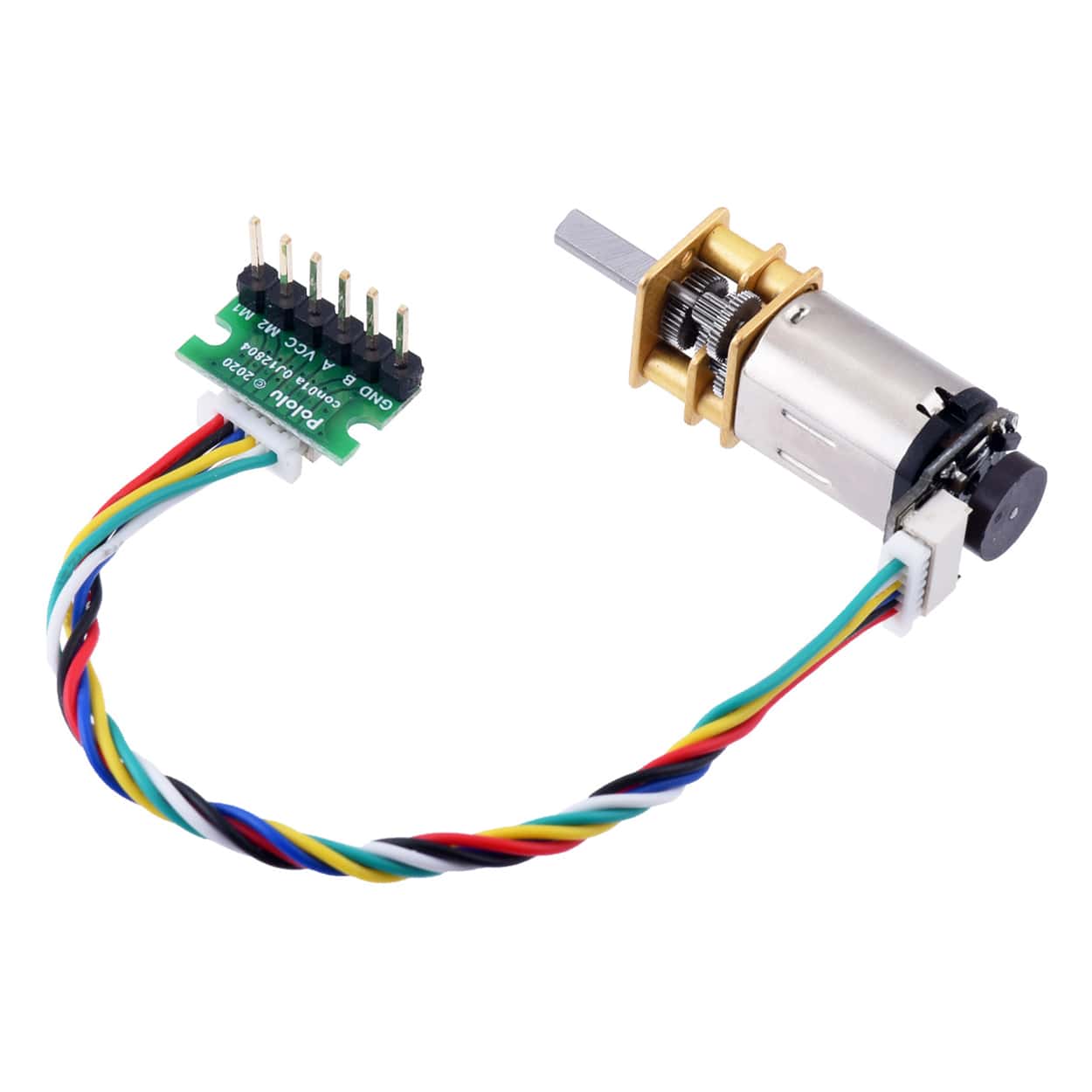

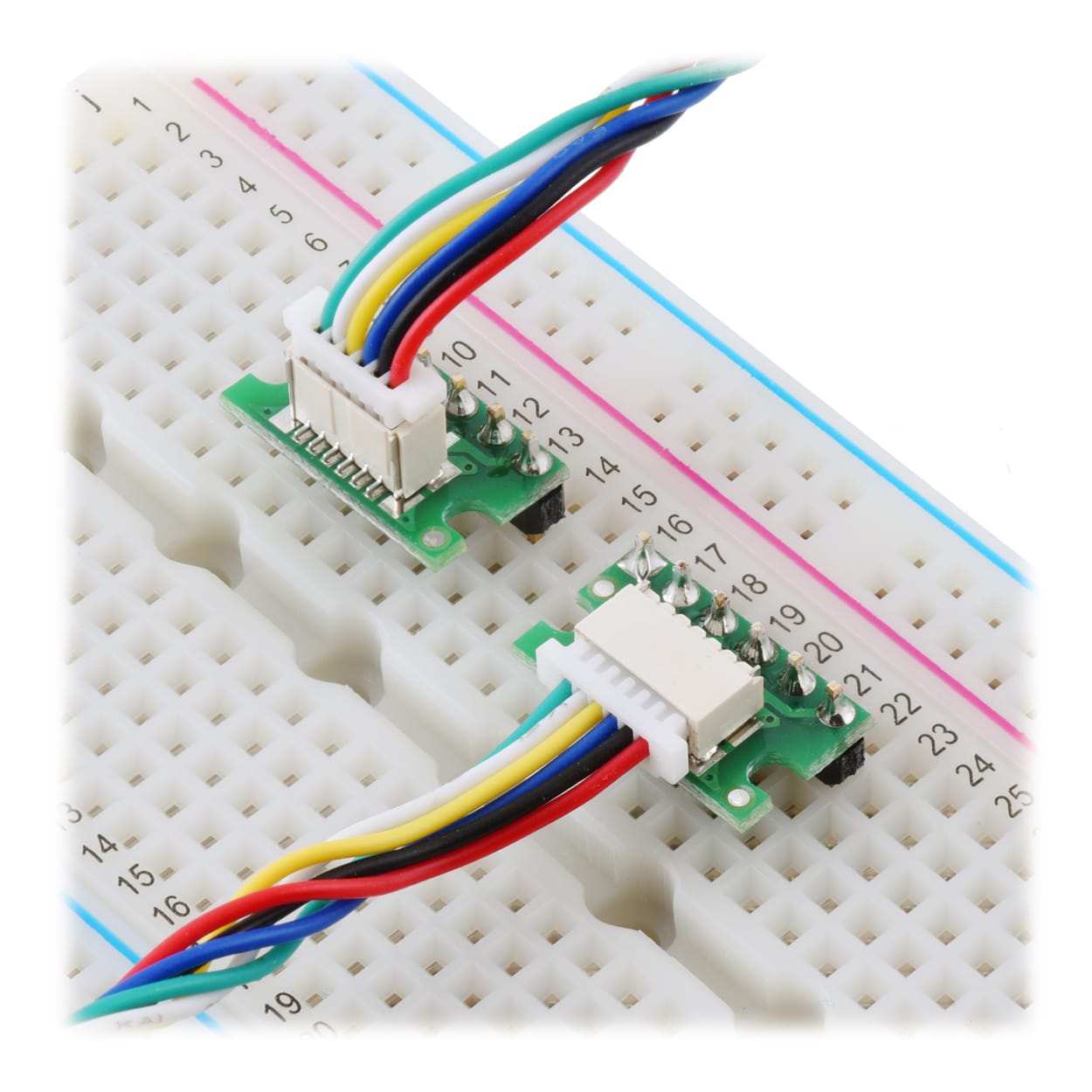

You can use the cable to connect an encoder to our JST SH-style connector breakout board (available in top-entry and side-entry versions), allowing you to easily access the motor and encoder pins on a standard solderless breadboard. Alternatively, using this cable with two connector breakout boards could serve as a removable general-purpose interconnect between different parts of a modular system.
Motors, encoders and breakout boards not included
Use with Micro Metal Gearmotor Encoders
When used with our encoders, the wire color scheme is as follows:
Pin
Wire colour
Function
1
Green
Encoder GND
2
White
Encoder channel B output
3
Yellow
Encoder channel A output
4
Blue
Encoder Vcc (2.7 V to 18 V)
5
Black
Motor power M2 (other terminal)
6
Red
Motor power M1 (“+” terminal)
Specifications
Pins
1×6
Pitch
1 mm
Length
63 cm
Weight
6.5 g
Gender
Female-Female
Wire gauge
28 AWG
Current rating
1 A
Voltage rating
50 V
Connector
JST SH-type
Terminations & length
Double-ended, 63 cm
Package Contents
1x 63cm JST SH 6-Pin Cable for Micro Metal Gearmotor Encoders
Motors, encoders and breakout boards not included
