ADS-B setup need a boost? Look no further than our filtered preamps, designed to improved ADS-B Reception! This SAW based unit is a cost effective solution to give excellent performance gains.
This preamplifier is compatible with most USB SDR Dongles including our FlightAware USB sticks, and many others such as Airspy, Fun Cube etc. You can power them from either bias tee (This item is 100% compatible with the Airspy bias-tee) or a simple mini-USB input using a USB to mini-USB cable (Not Included). Bias tee/USB voltage is 5V max. This filter features female SMA connectors, so you may require an SMA to SMA coupler (or two!) to connect to your devices.
This unit is a small filter and preamp designed to go between a software defined radio receiver and an antenna. Using a SAW or ceramic bandpass filter and a low noise amplifier (LNA), it stops out of band intermodulation while providing additional gain for increased sensitivity. The LNA is before the SAW filter. This particular model is tuned for use with ADS-B frequencies (1090Mhz).
The LNA used is a MiniCircuits PSA4-5043+ which provides at least 16dB of gain @ 1090Mhz. To stop out-of-band intermodulation, a 1090Mhz SAW bandpass filter is fitted. The insertion loss of this filter is approximately 2.3dB, which does increase the overall noise figure of the unit to 0.75dB, which means the overall gain of the unit is at least 14dB. Connectors are SMA female both sides.

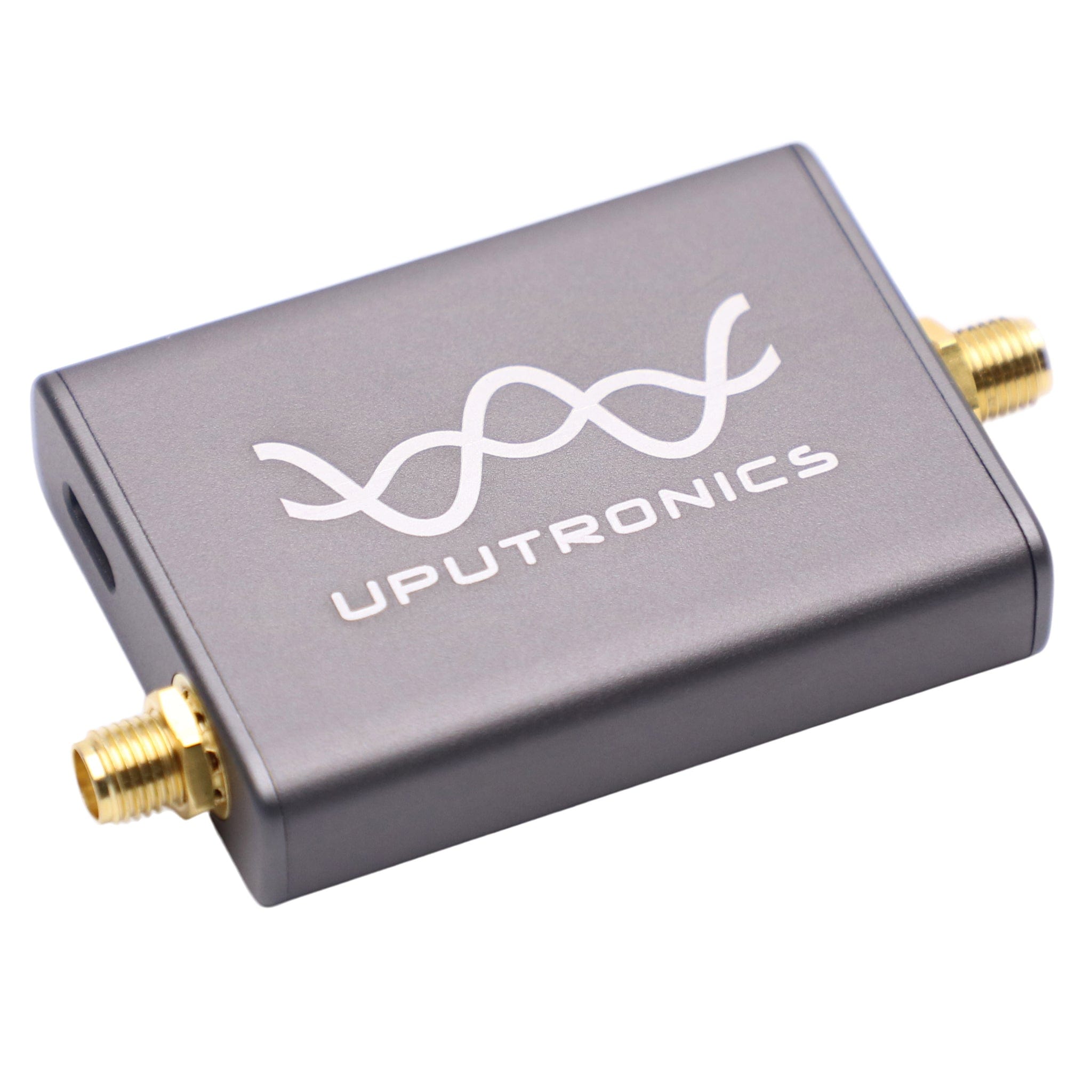

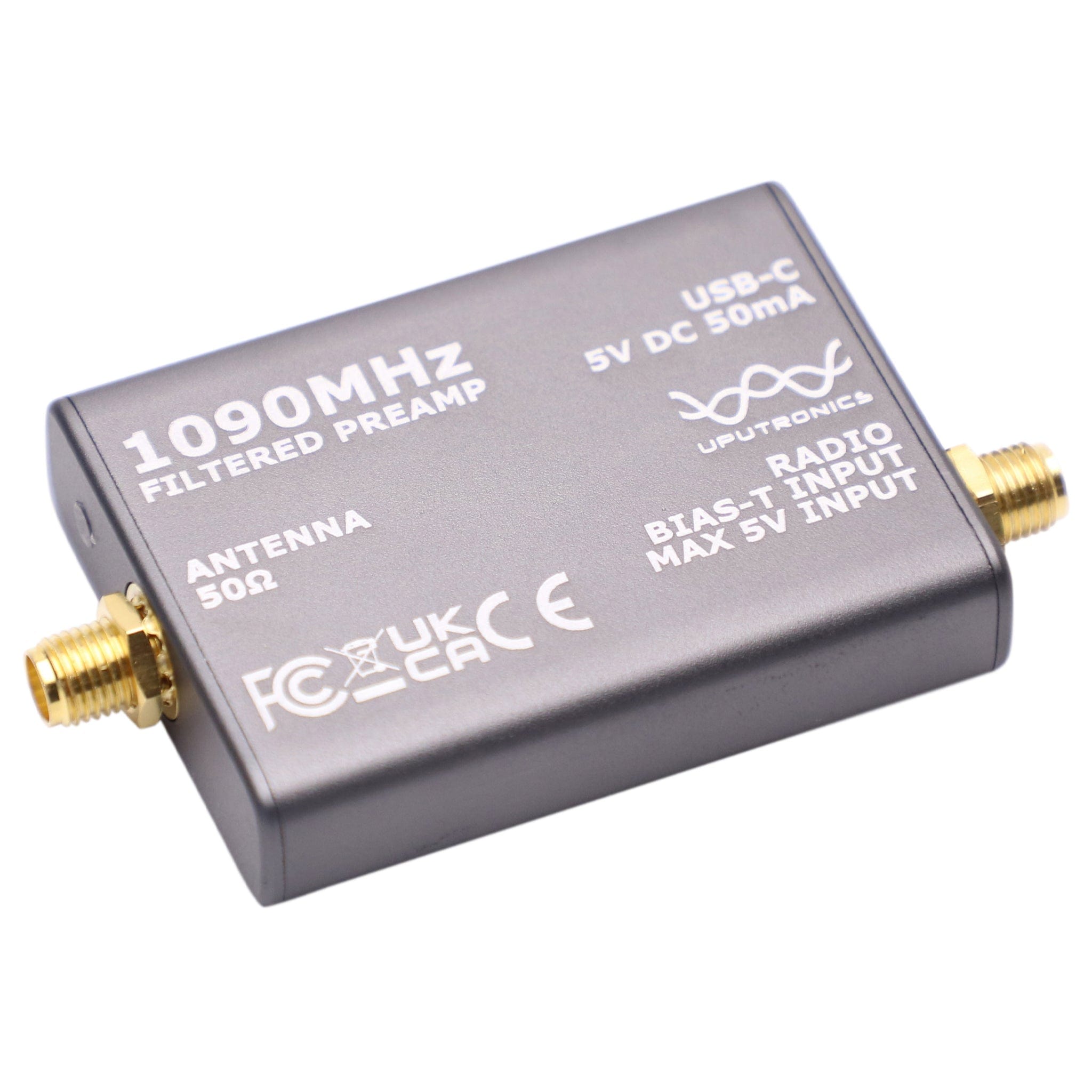

- 1090MHz ADS-B Filtered Preamplifier
- Connectors SMA Female (Both Sides)
- Gain: Min 14dB
- NF 0.75dB
- Supply Voltage: 5V
- Current Draw: 56mA approx.
- Supplied Assembled in Metal Case
- Dimensions: 63.5mm x 63.5mm x 30mm
1090Mhz ADS-B SAW Filter & Preamp For Dongles Datasheet (Outdated - awaiting updated version from supplier for Match 2020 design)
