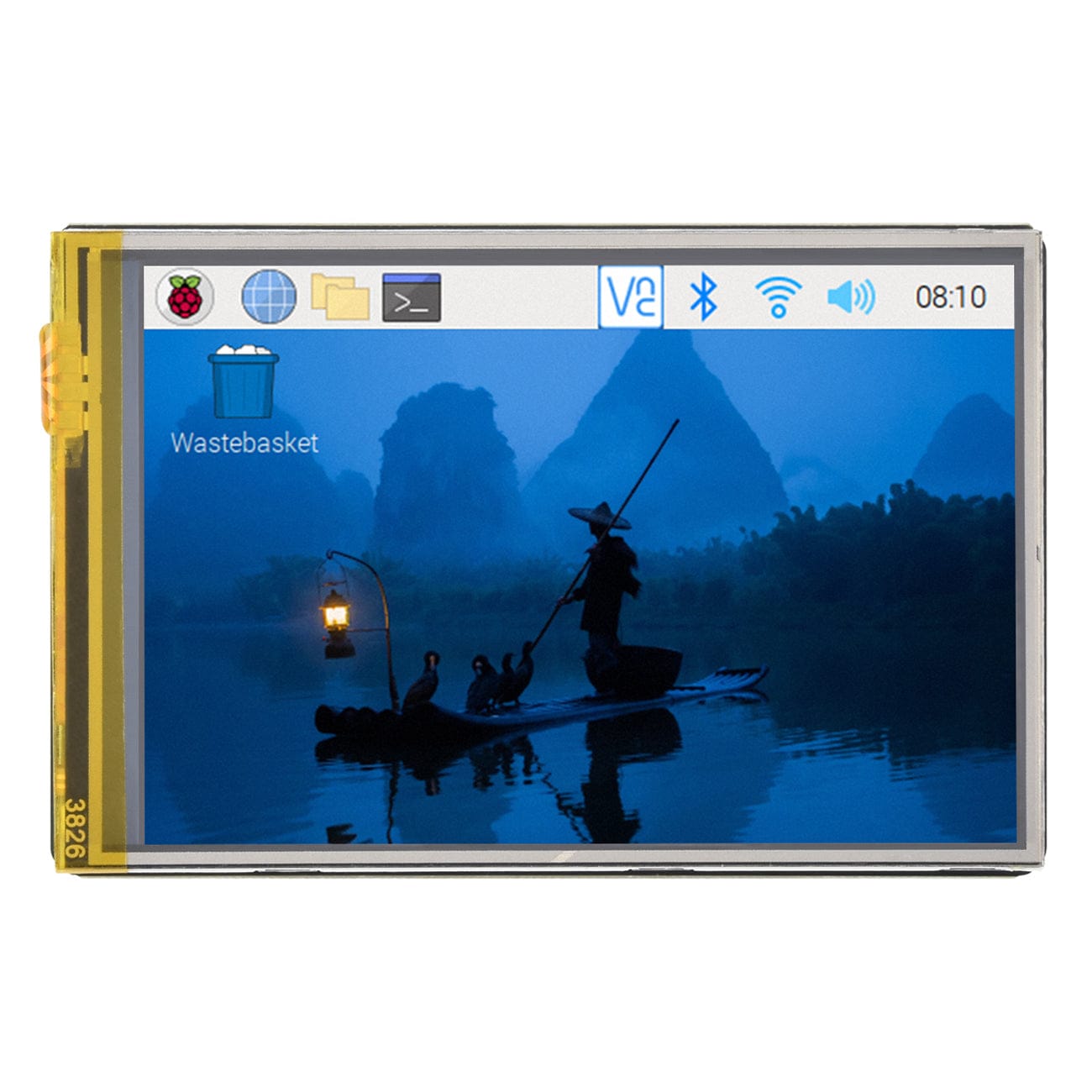

3.5" Resistive Touch Display (G) for Raspberry Pi (320x480)
Price:
Sale price
£15.40
Stock:
Quantity:
Awesome Extras
Resistive?! Yep - you don't see many resistive touch displays for the Raspberry Pi these days, however they have a place in certain projects/scenarios, and they cost less than their more-common capacitive counterparts - so this might be ideal for your project!

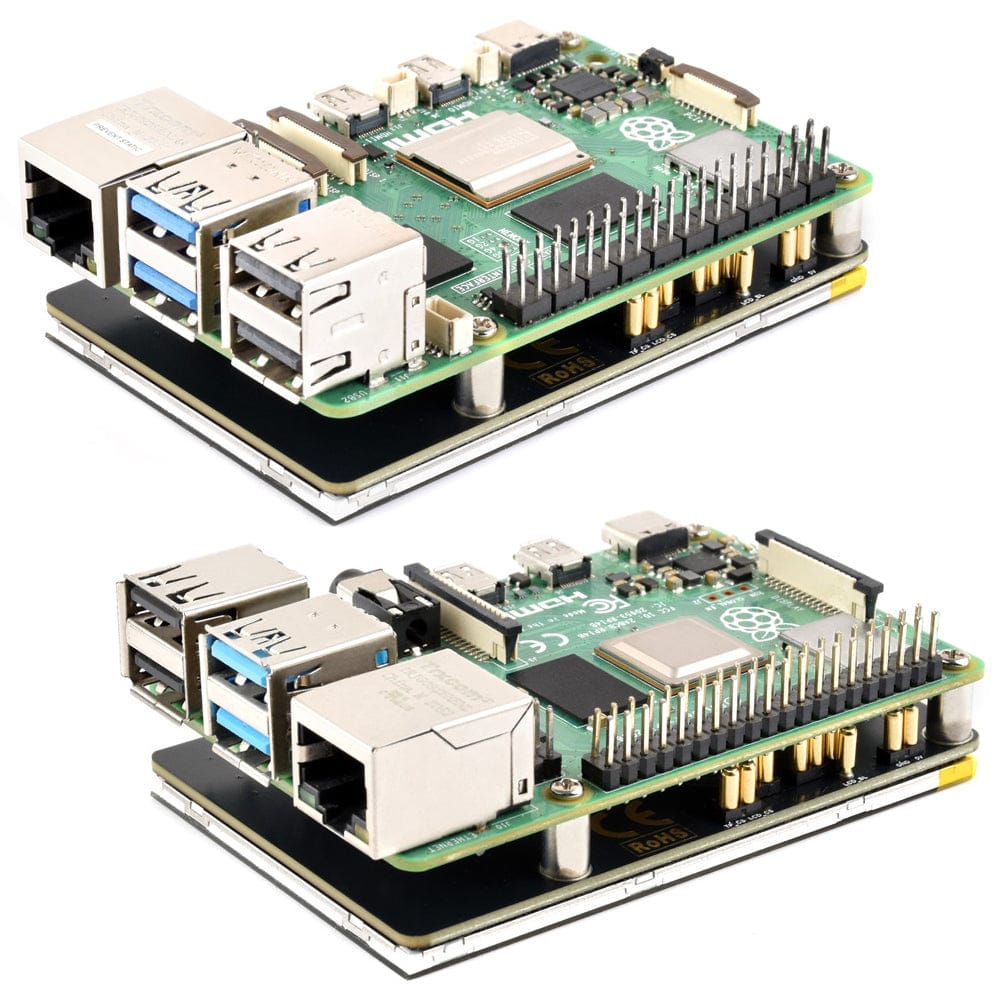

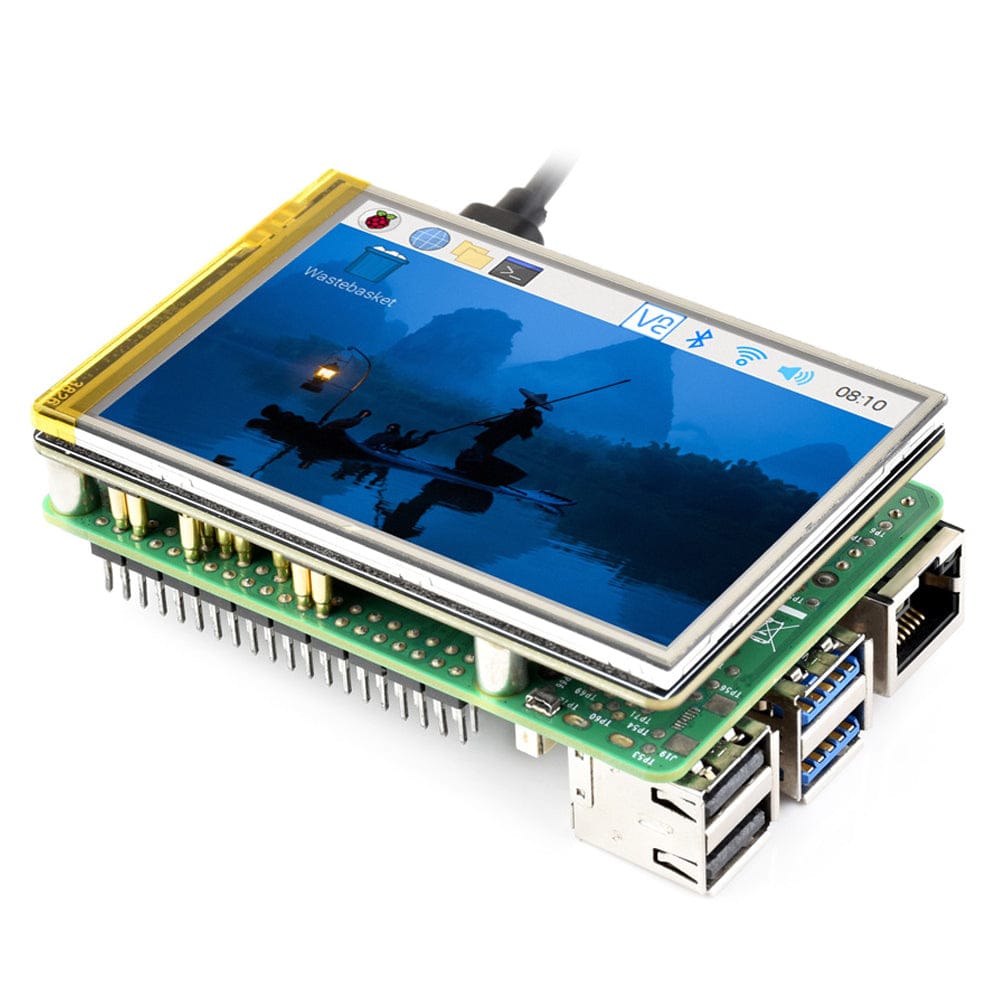

It's a 3.5" IPS panel with a 320x480 resolution offering 262K colours, 170° viewing angles and 60Hz refresh rate - all controlled via SPI. It features resistive single-point touch and mounts to the rear of your Raspberry Pi using pogo pins, which keeps your GPIO header and top of the board completely free for HATs and coolers.

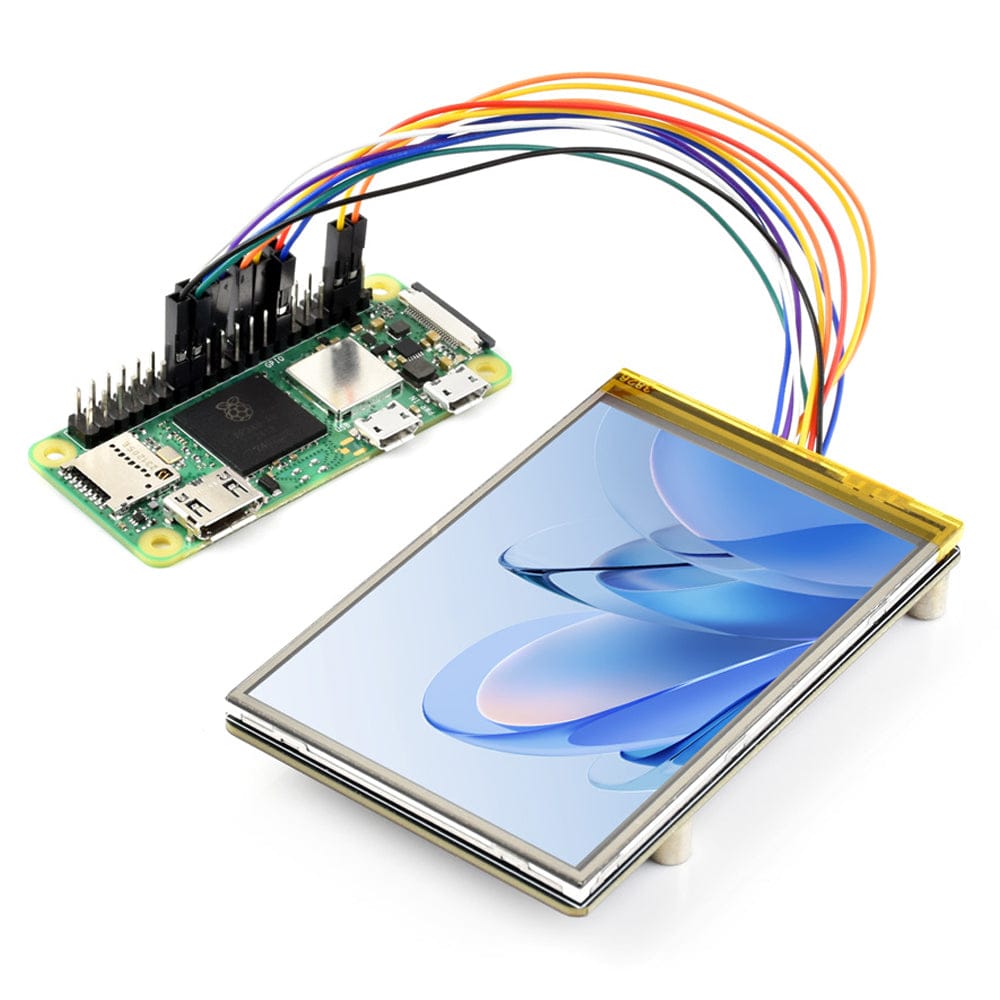

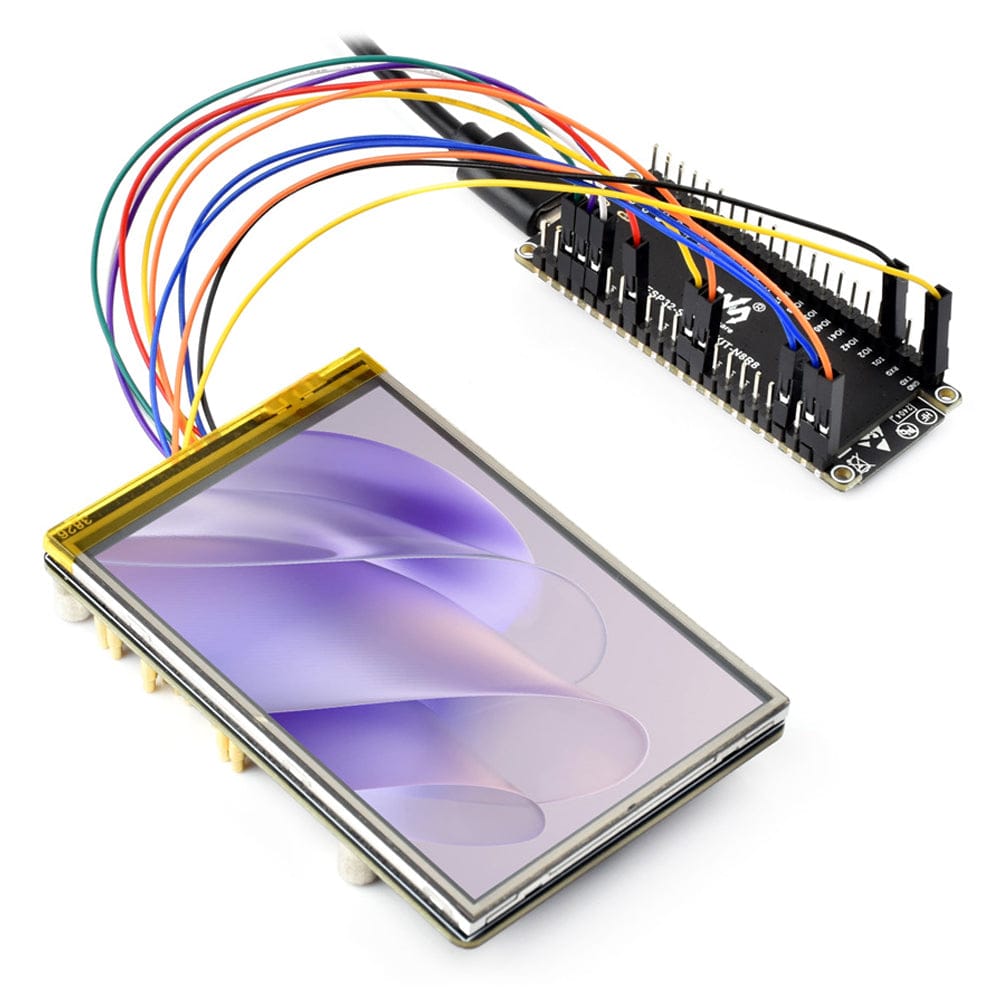

A connector on the rear of the display can be used with the included GH1.25 11-pin cable to use this display with other development boards, with ESP32-S3 examples provided in the product wiki.
It's an interesting combo of OG resistive touch technology combined with a modern 60Hz IPS panel, SPI communication and pogo in mounting.
Note: The display orientation is portrait by default, 320x480 resolution (H×V). Change the software config for landscape display.
Raspberry Pi not included.
Features

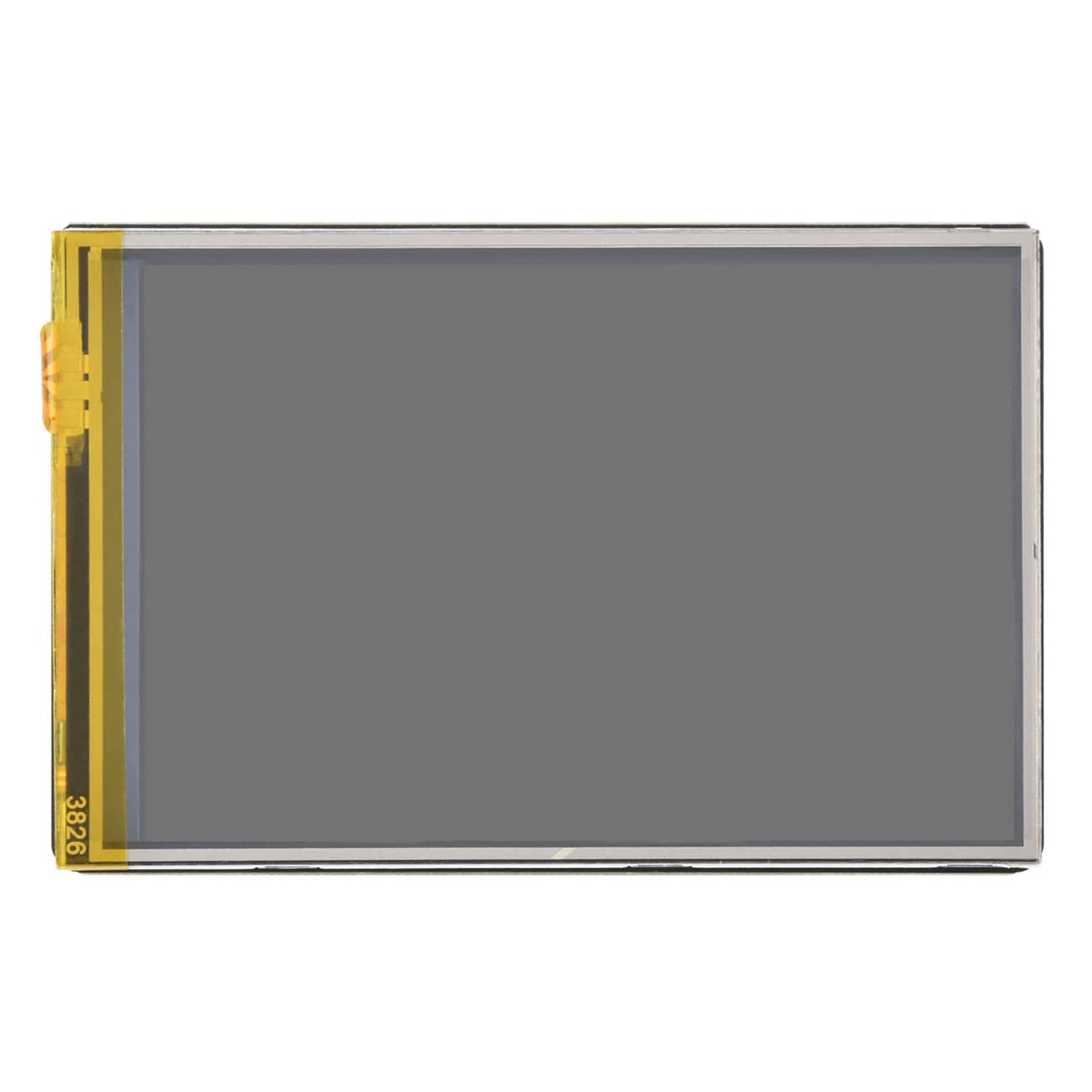

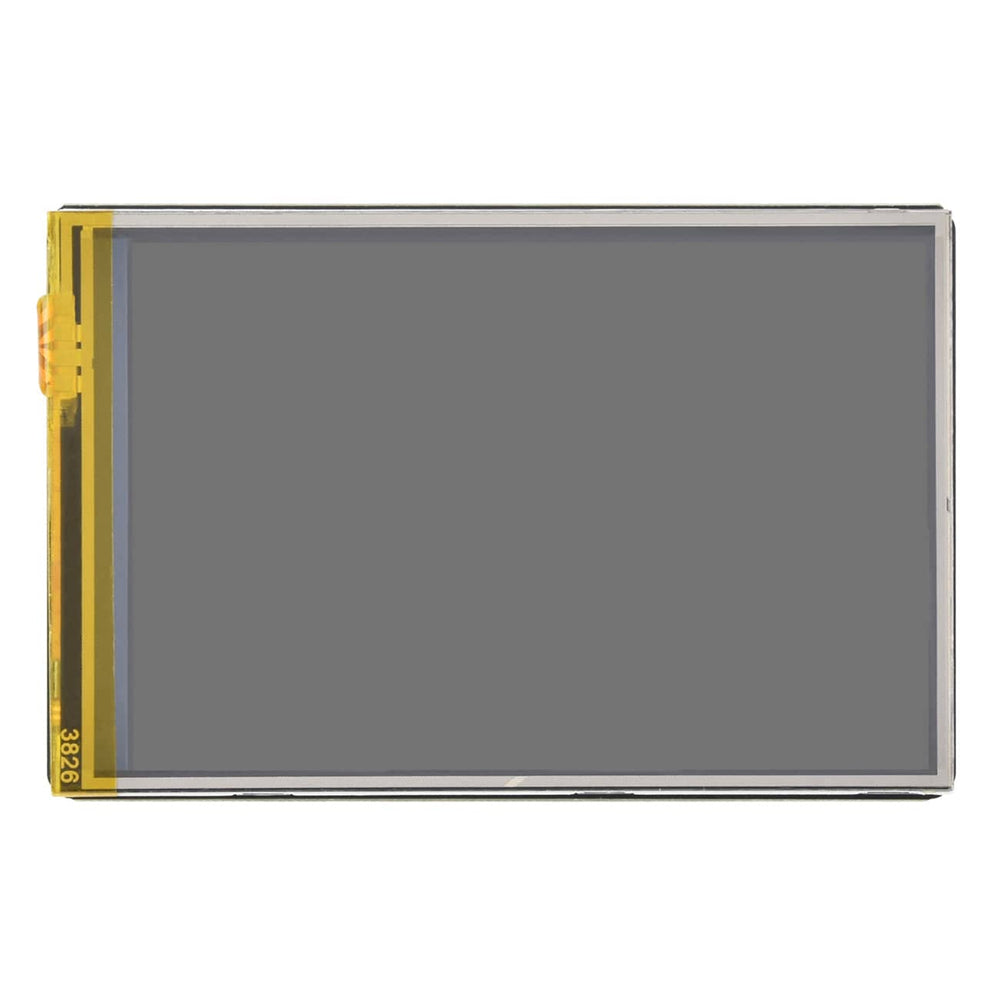

- 3.5" IPS display compatible with Raspberry Pi
- 320x480 resolution, 262K colours and 170° viewing angles
- 60Hz refresh rate for smooth display performance
- Single-point resistive touch using XPT2046 controller
- ST7796S display driver with SPI interface to minimise GPIO usage

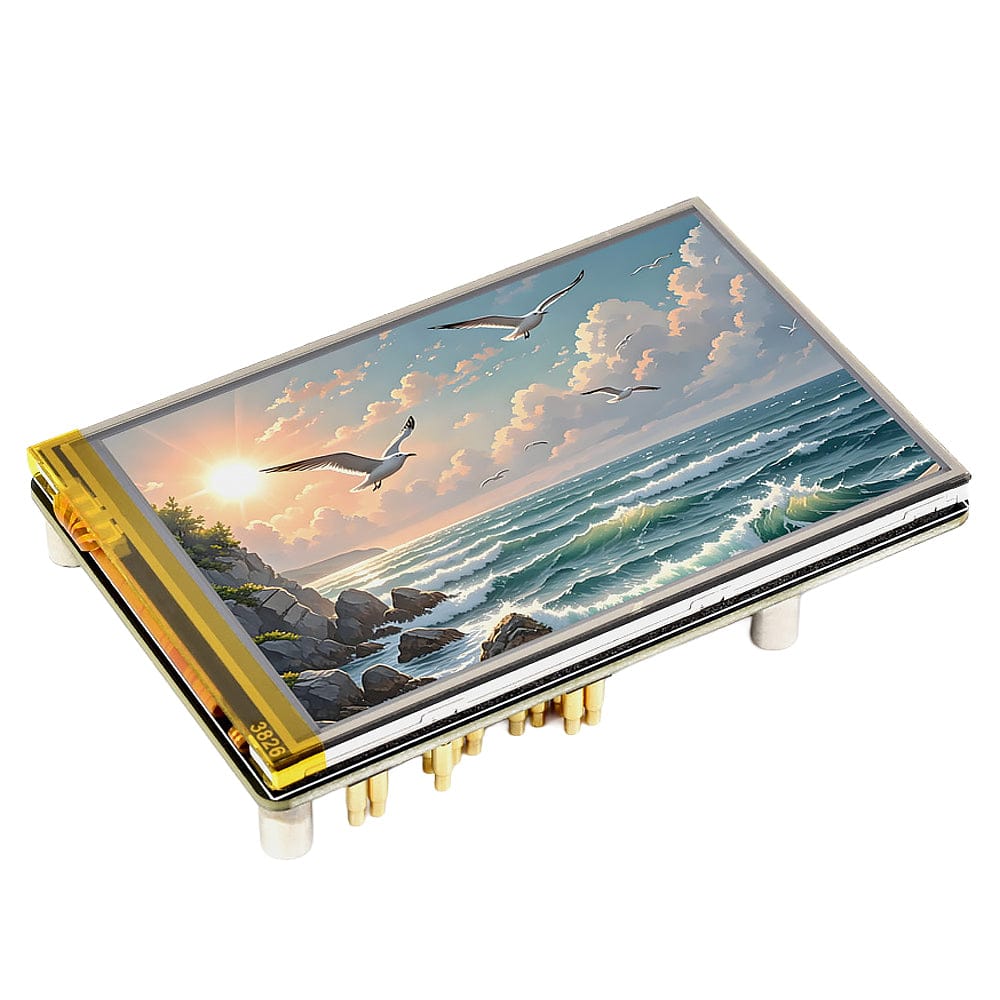

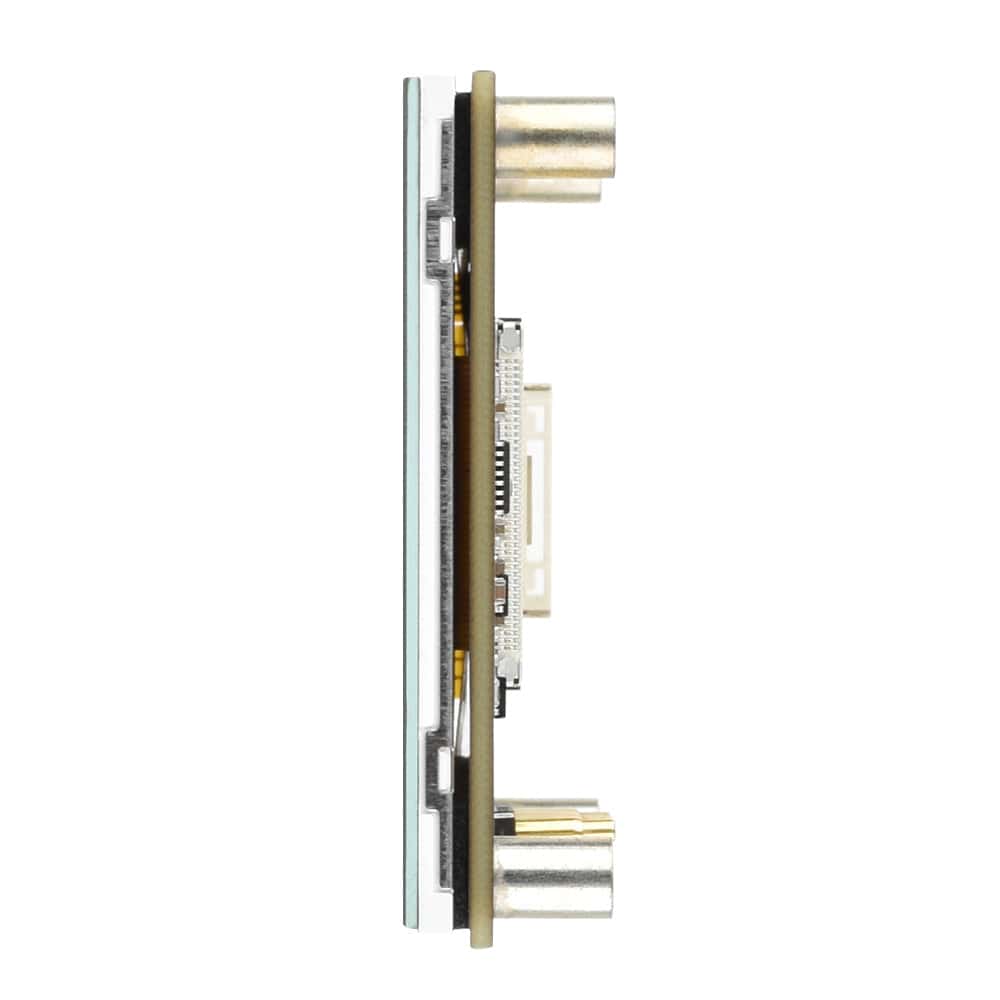

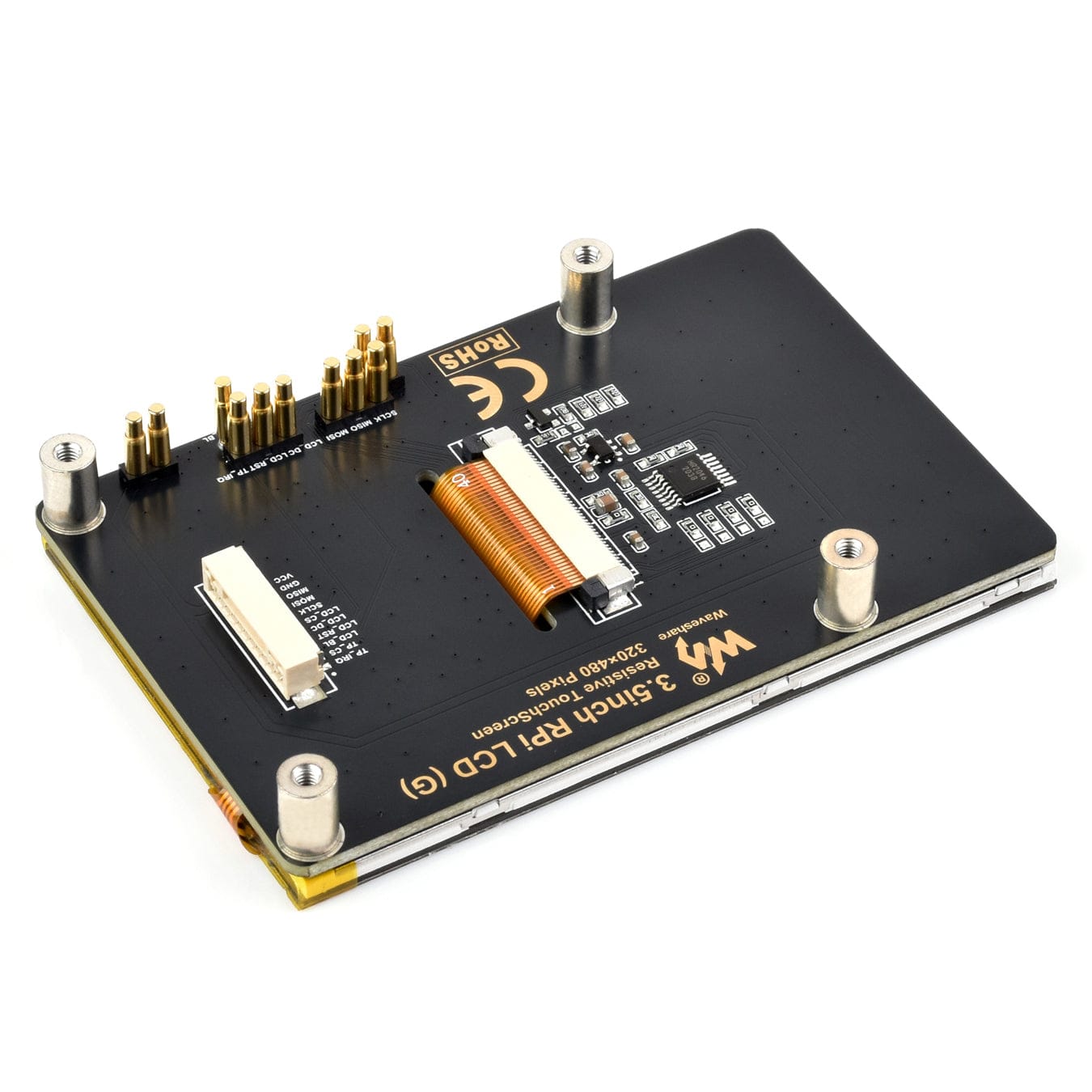

- Pogo pin mounting connects underneath the Raspberry Pi, keeping the GPIO header free
- Additional GH1.25 11-pin connector for use with other development boards
- Portrait orientation by default (320x480); software configurable for landscape
- Immersion gold PCB finish for improved durability
Specifications
| Operating voltage | 5V |
| Logic level | 3.3V |
| Display driver | ST7796S |
| Touch driver | XPT2046 |
| Display interface | 4-wire SPI |
| Touch interface | SPI |
| Display panel | IPS |
| Display size | 3.5" |
| Touch type | Resistive |
| Touch points | Single-point touch |

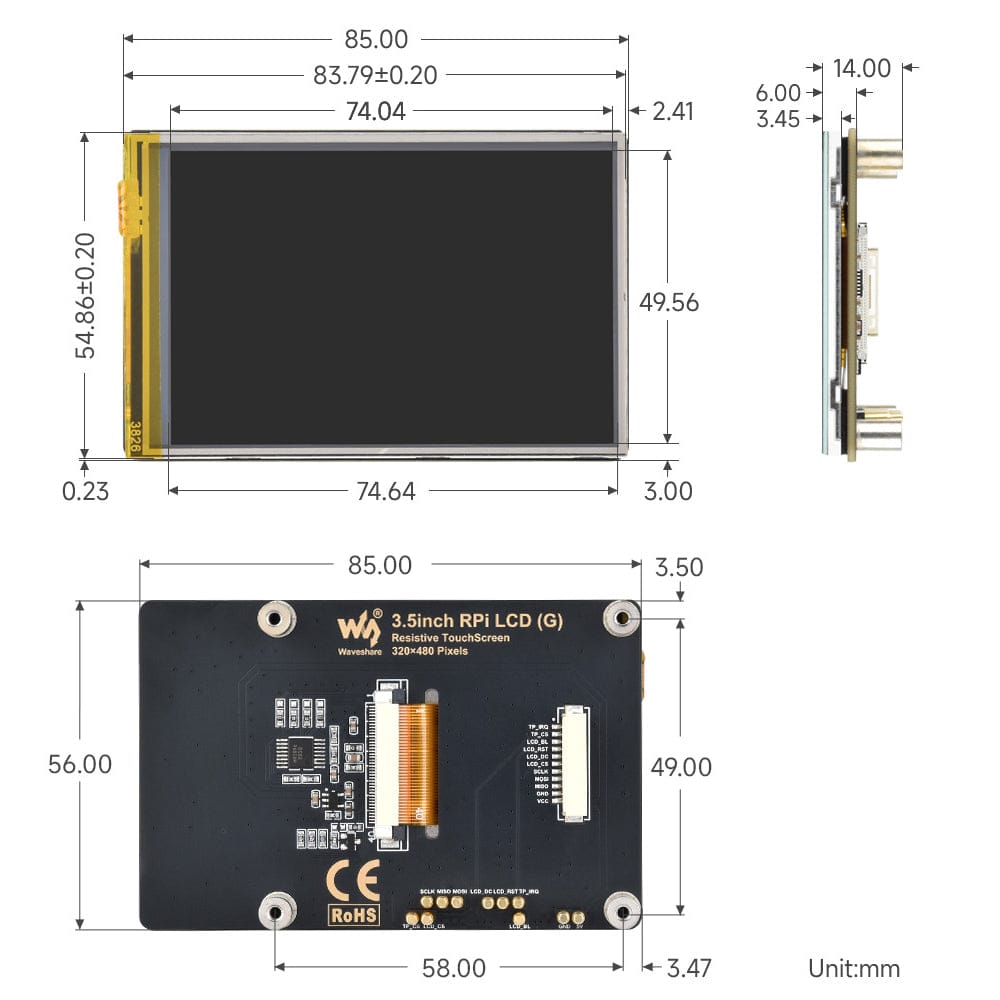

| Display active area | 49.56 × 74.04 mm |
| Touch panel size | 54.86 × 83.79 mm |
Resources

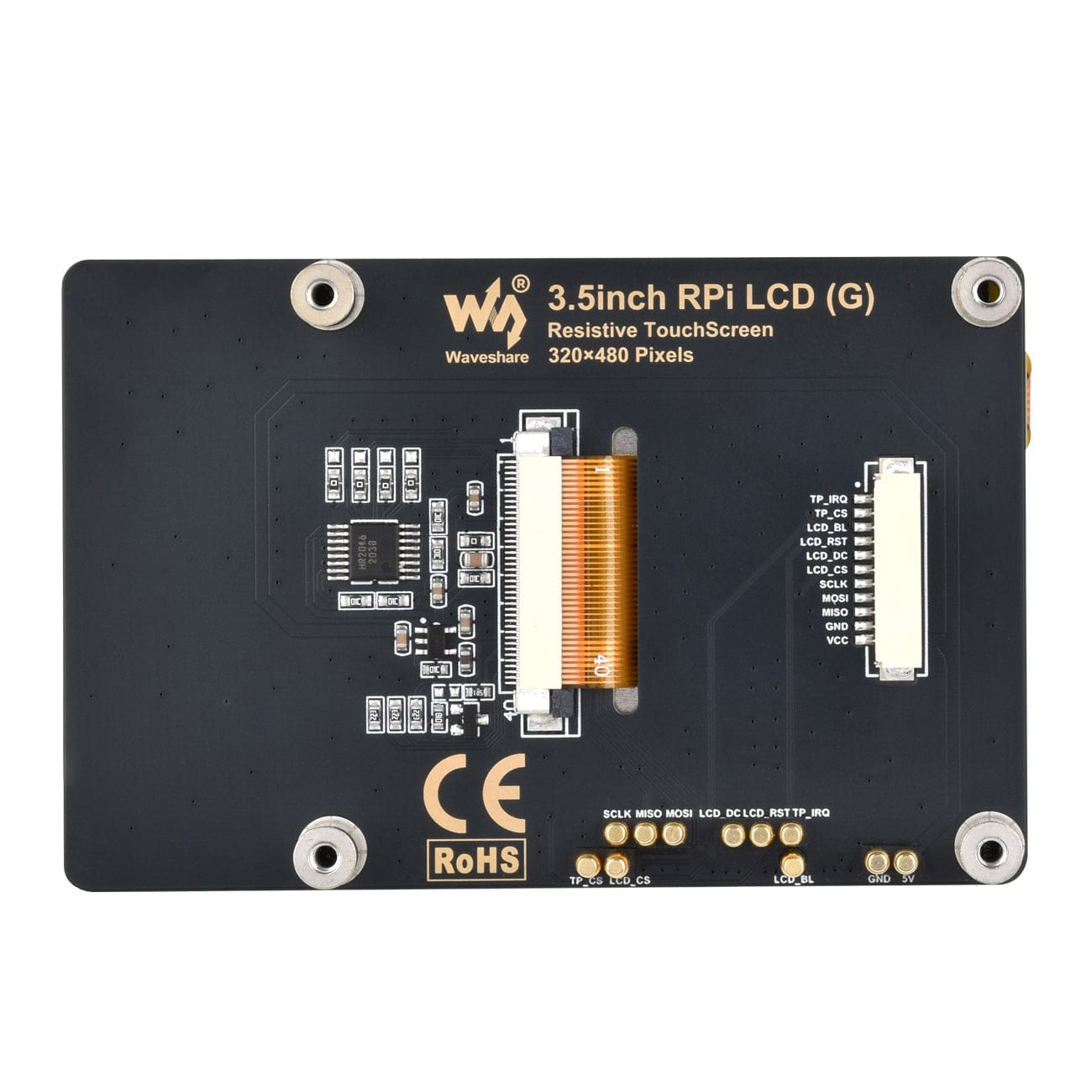

Pinout
| Pin | Description | Connector |
| TP_IRQ | Touch panel interrupt pin | 1 |
| TP_CS | Touch panel chip select | 2 |
| LCD_BL | LCD backlight pin | 3 |
| LCD_RST | LCD reset pin (active low) | 4 |
| LCD_DC | LCD data/command select (high = data, low = command) | 5 |
| LCD_CS | LCD chip select (active low) | 6 |
| SCLK | SPI clock pin | 7 |
| MOSI | SPI MOSI pin | 8 |
| MISO | SPI MISO pin | 9 |
| GND | Ground | 10 |
| VCC | 5V power input | 11 |
Package Contents
- 1x 3.5" Resistive Touch Display (G) for Raspberry Pi (320x480)

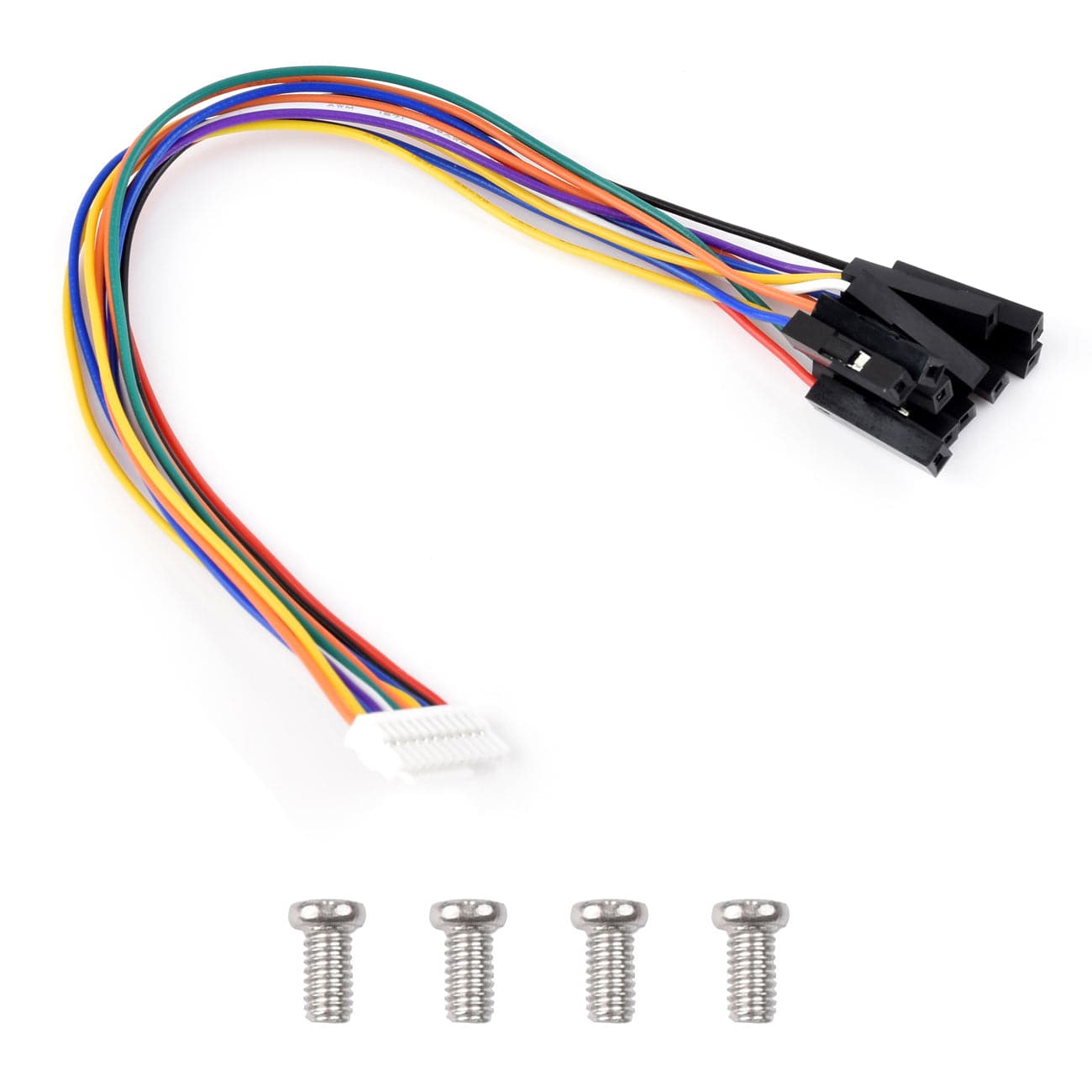

- 1x GH1.25 11-pin cable
- 1x Screw pack
Raspberry Pi not included.
