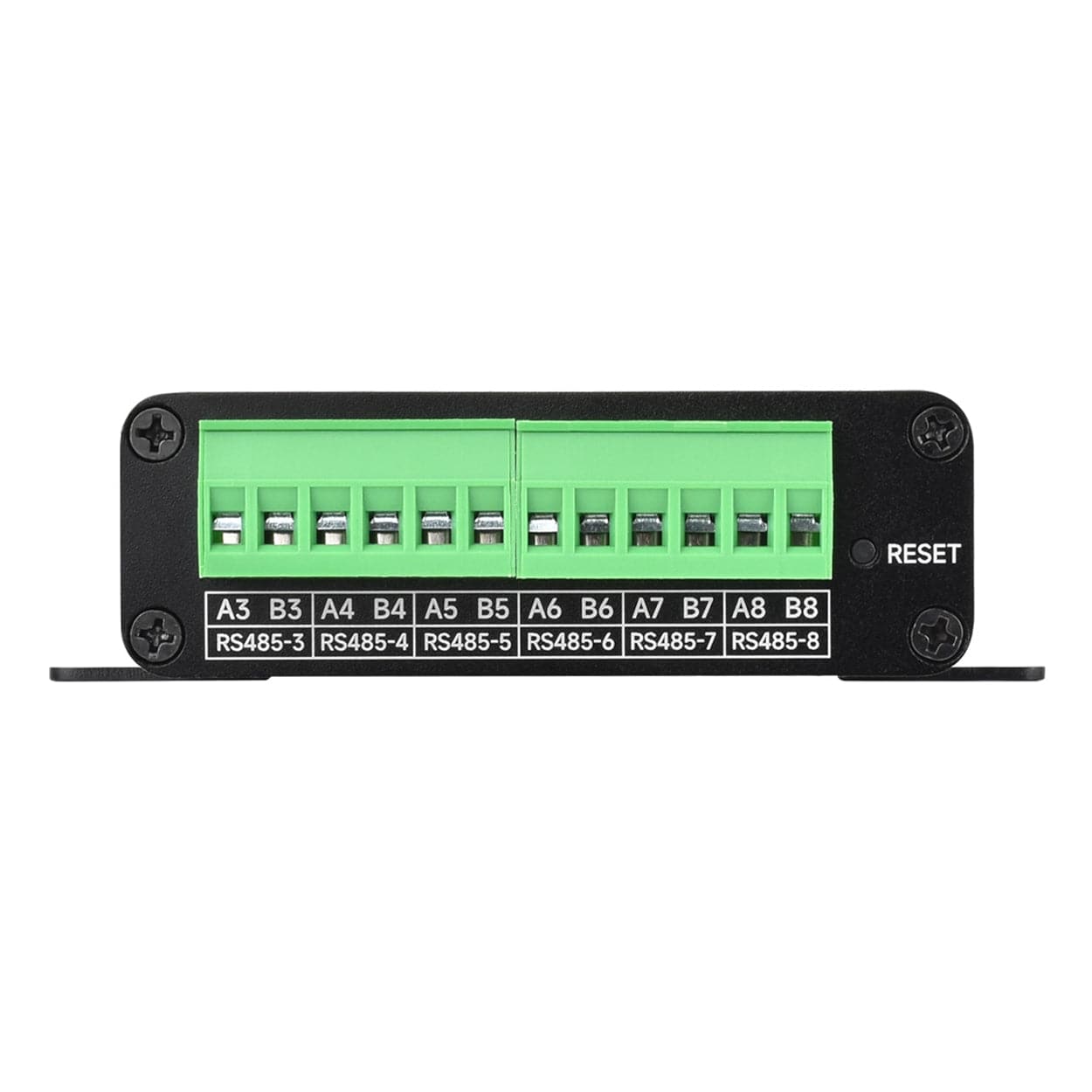

This is an industrial-grade serial data acquisition unit and IoT gateway. With eight independent RS485 channels and dual Ethernet ports (802.3af PoE optional - select variant before adding to cart), it provides a compact platform for applications such as data acquisition, industrial monitoring, safety and security systems, and IoT gateways. Each RS485 channel operates independently withconfigurable baud rates, ensuring stable communication without cross-interference.

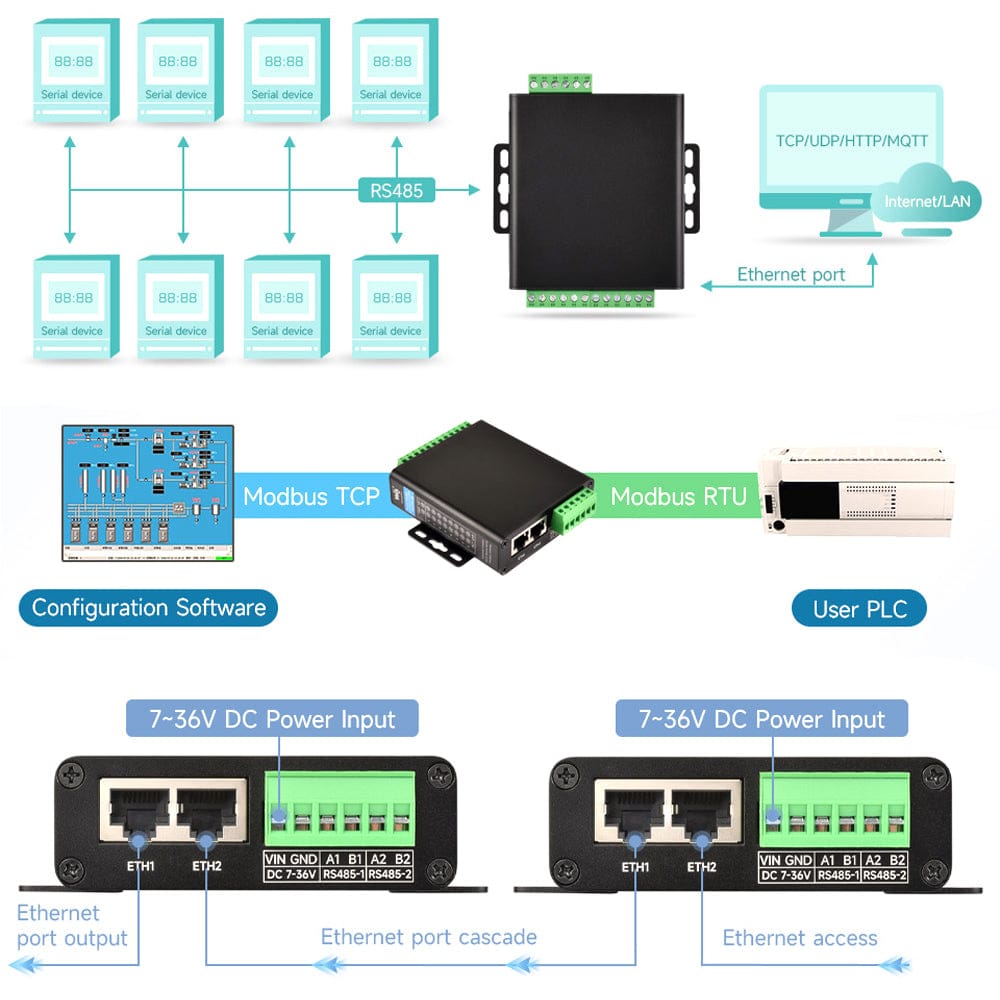

The device supports a wide range of communication modes, including TCP server, TCP client, UDP, and UDP multicast, and combines multiple roles in a single unit. It can operate as a serial server, Modbus gateway, MQTT gateway, or perform RS485-to-JSON conversion. Dual Ethernet ports allow network cascading or segmented communication, while screw-terminal power input and optionalPoEsupport provide flexible power options.

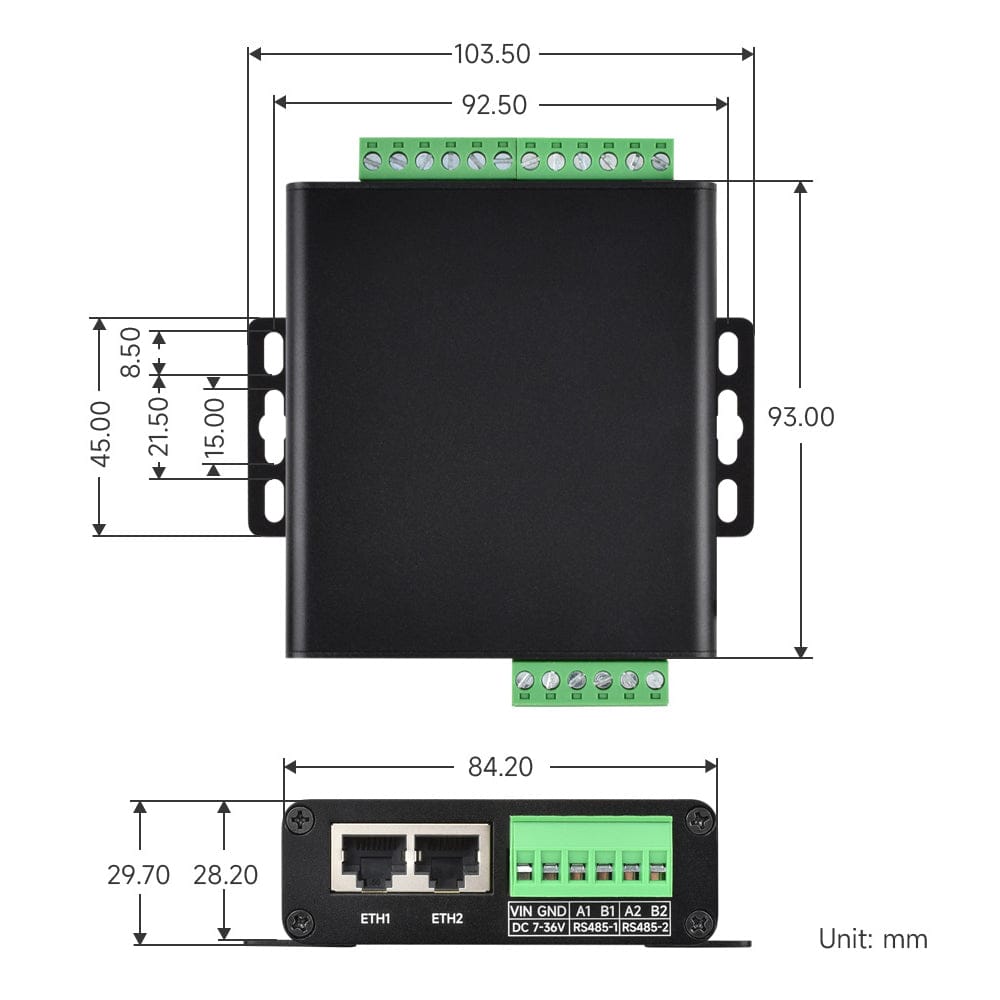

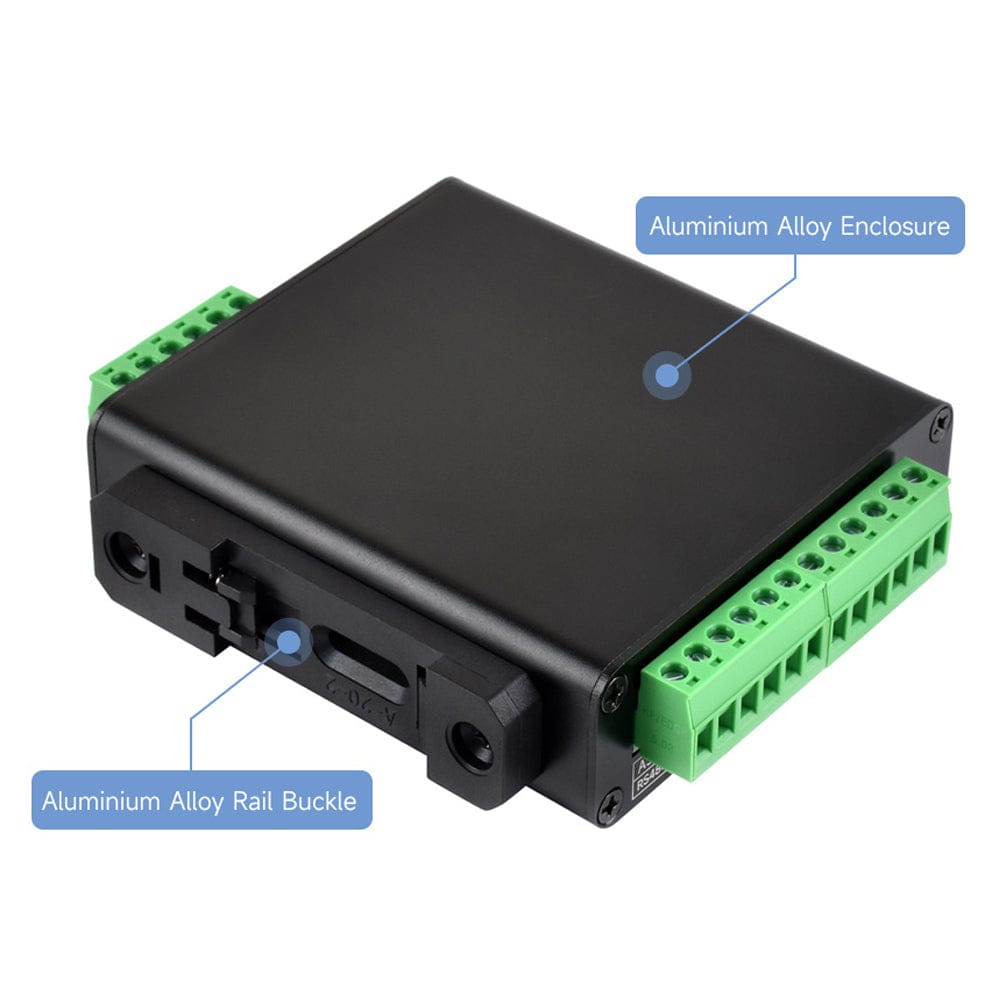

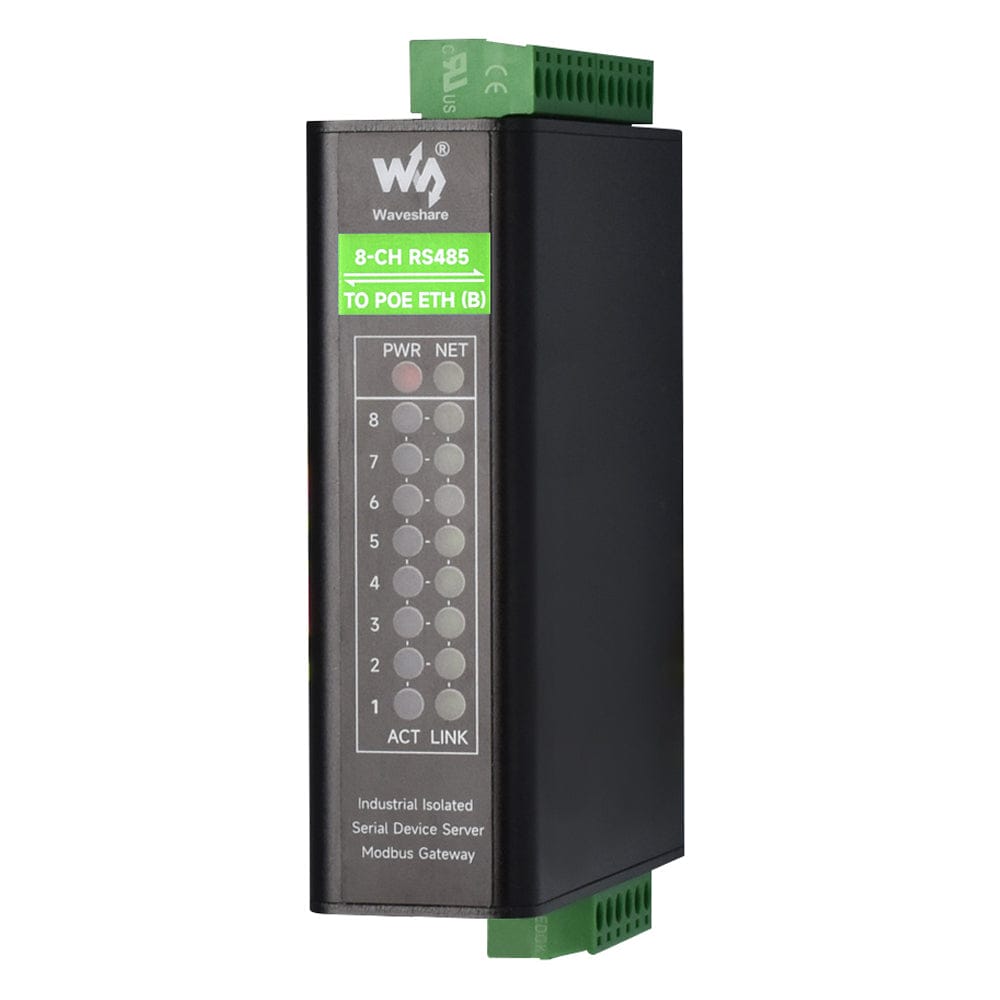

The unit features onboard power and signal isolation, surge and ESD protection, and multiple status LEDs for real-time monitoring. The aluminium alloy enclosure offers durability and effective heat dissipation, and the compact housing supports bothwall-mount and DIN-rail installation for quick deployment and easy expansion in industrial control cabinets or field installations.
Power supply not included.
Features
8-channel independent RS485 ports, each configurable with different baud rates and operating without interference
Supports TCP server, TCP client, UDP, and UDP multicast modes
Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.
