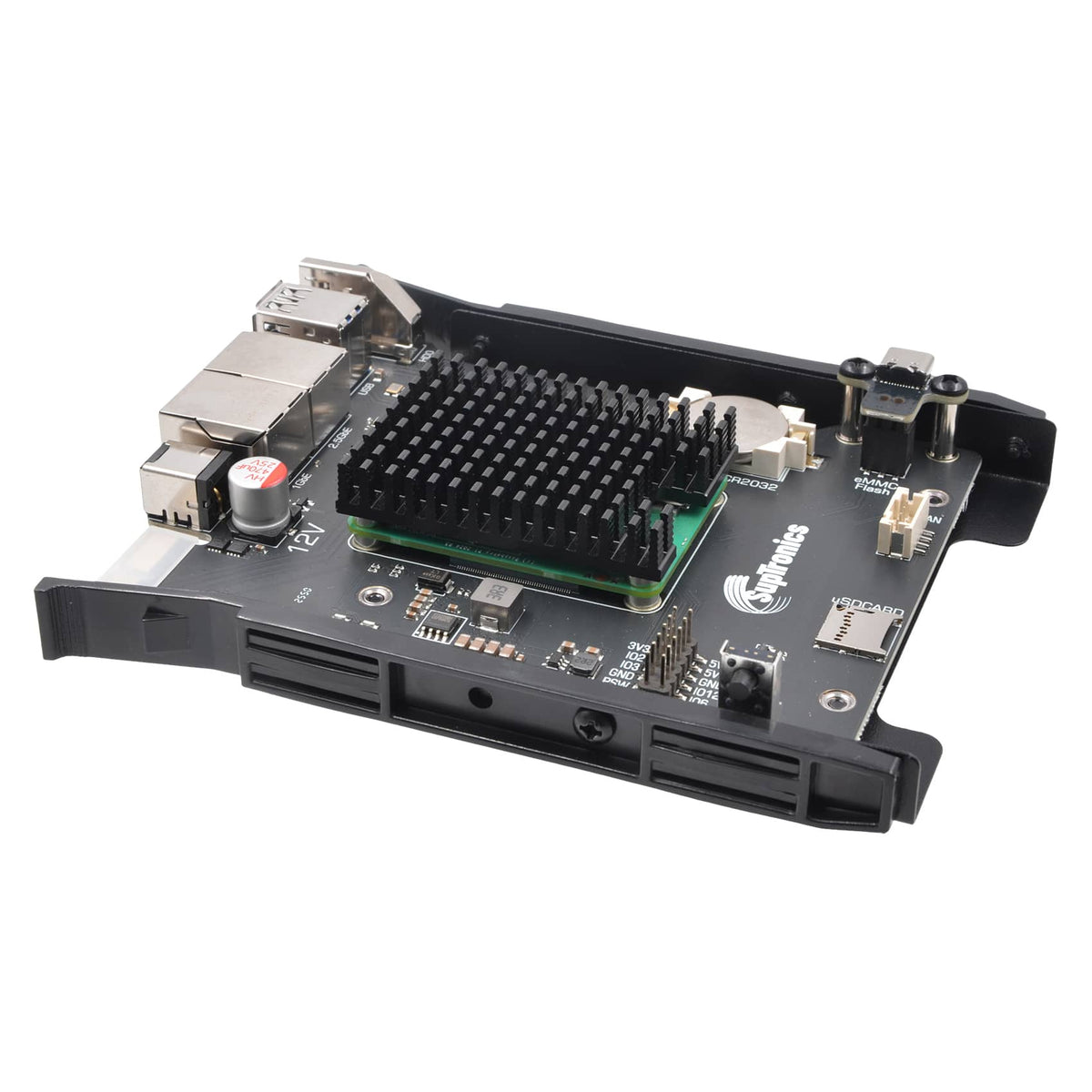

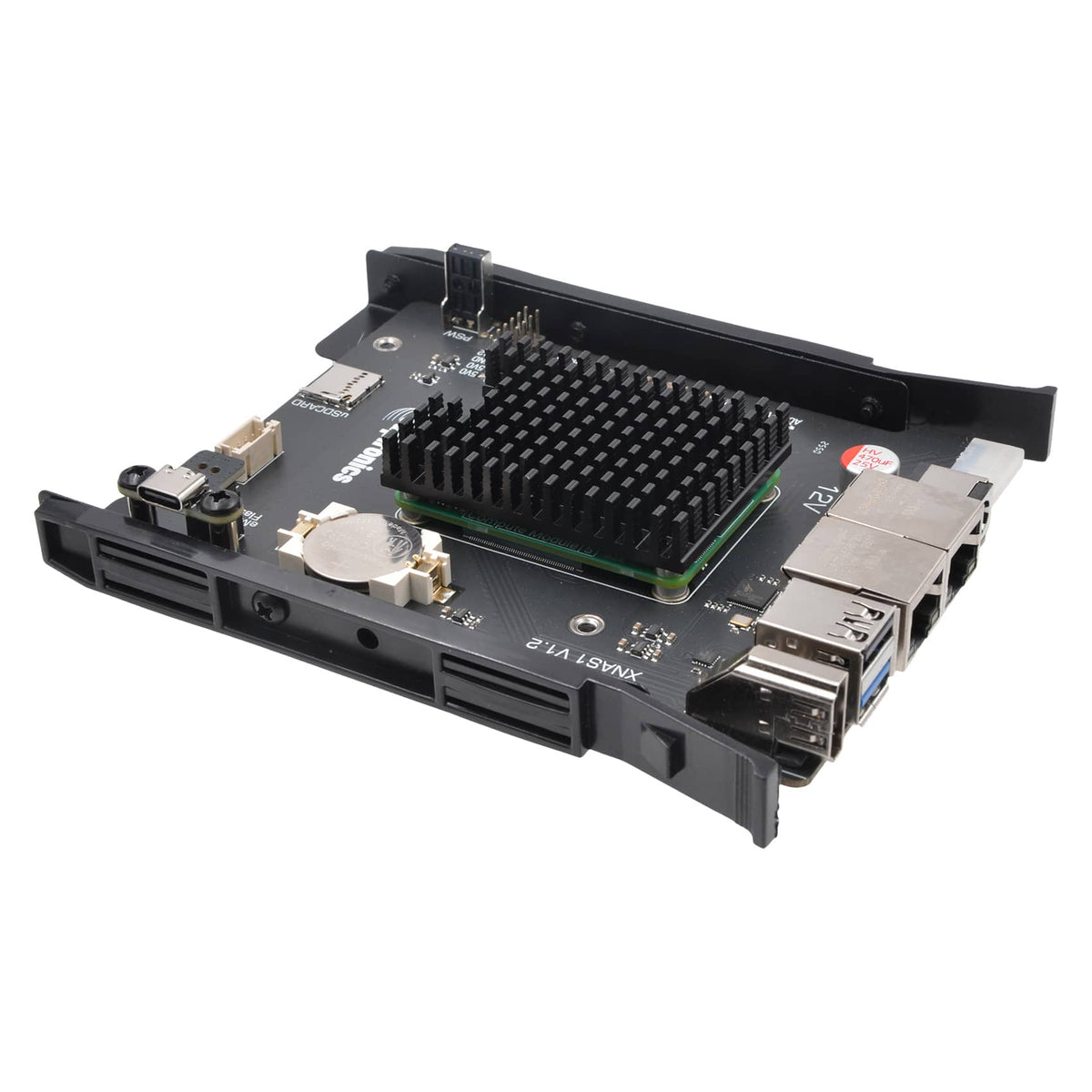

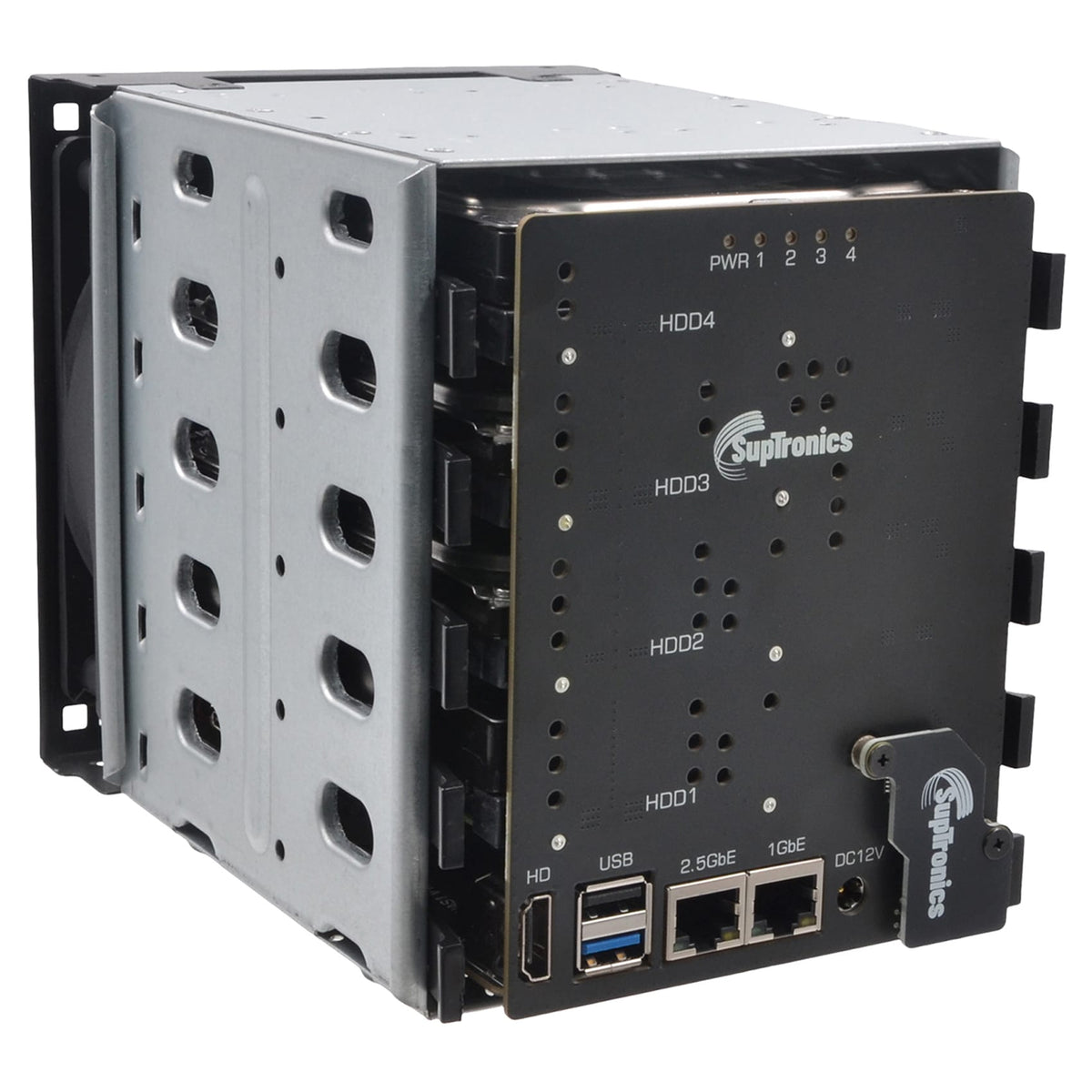

The SupTronics XNAS1 is an industrial-style NAS enclosure built around the Raspberry Pi Compute Module 5. It supports four 3.5" SATA hard drives with a total capacity of up to 88TB, based on 22TB per drive. An integrated PCIe Gen 3 x1 to four-port SATA 6Gbps bridge provides fast data transfer and supports software RAID for added data redundancy.
Both 1GbE and 2.5GbE ethernet ports are included for flexible network connectivity. CM5 Lite models can boot from a microSD card, while the USB-C port allows an operating system to be written directly to the eMMC storage of compatible CM5 variants.
Cooling is provided by a PWM-controlled 120mm fan with up to 63.7CFM airflow. The enclosure also features a stainless steel drive cage, vibration-dampening drive mounts and LED status indicators. It is compatible with openmediavault and other operating systems, making it suitable for file sharing, backups, private cloud storage and surveillance footage.
Features
Low Cost Professional Grade Network Attached Storage: Optimized to organize, store, share, and back up your important and everyday files.
Next-Generation Platform: Built on the powerful Raspberry Pi Compute Module 5, delivering enhanced performance and efficiency.

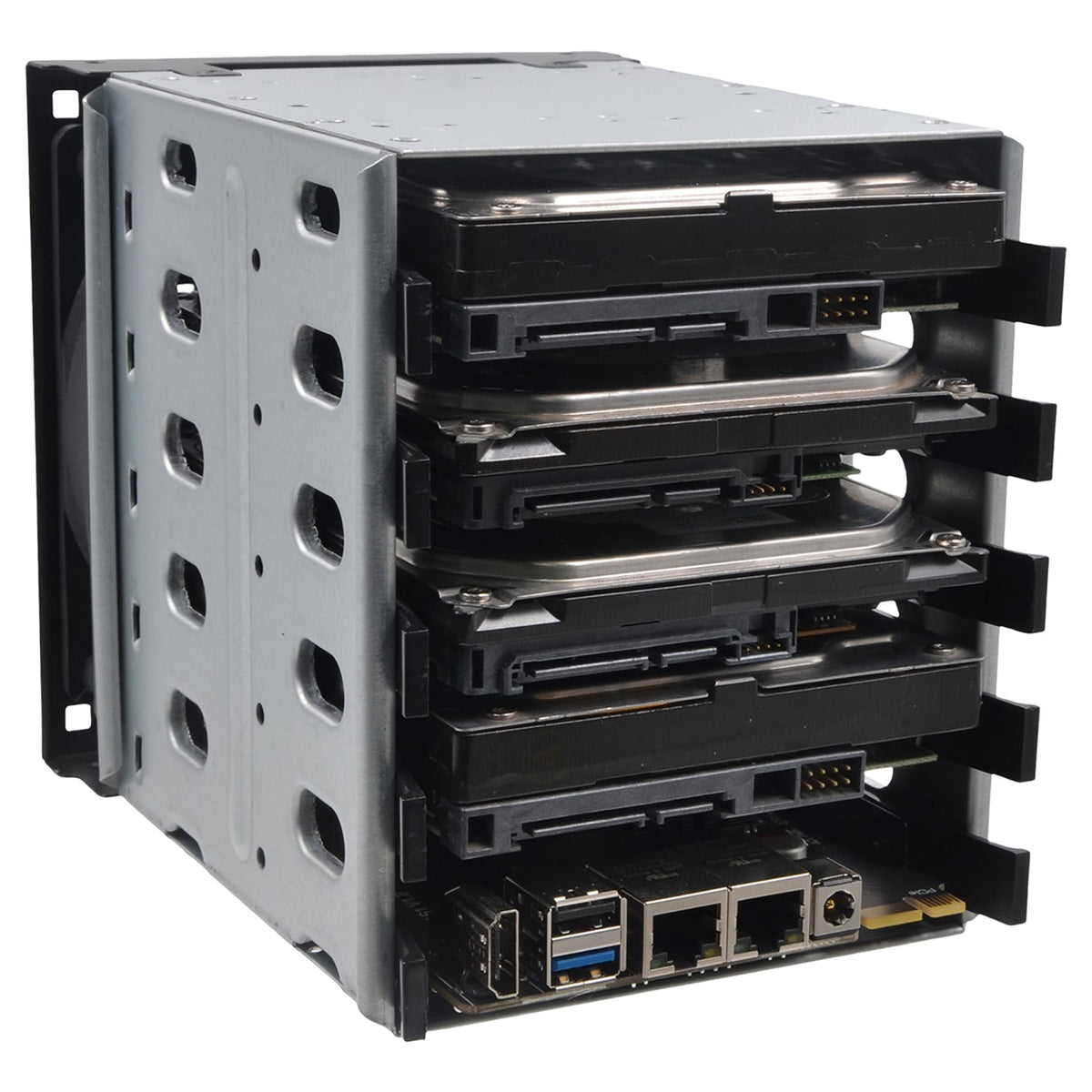

High-Capacity Storage: 4-bay 3.5" HDD enclosure supports up to 88TB total capacity (22TB per drive).

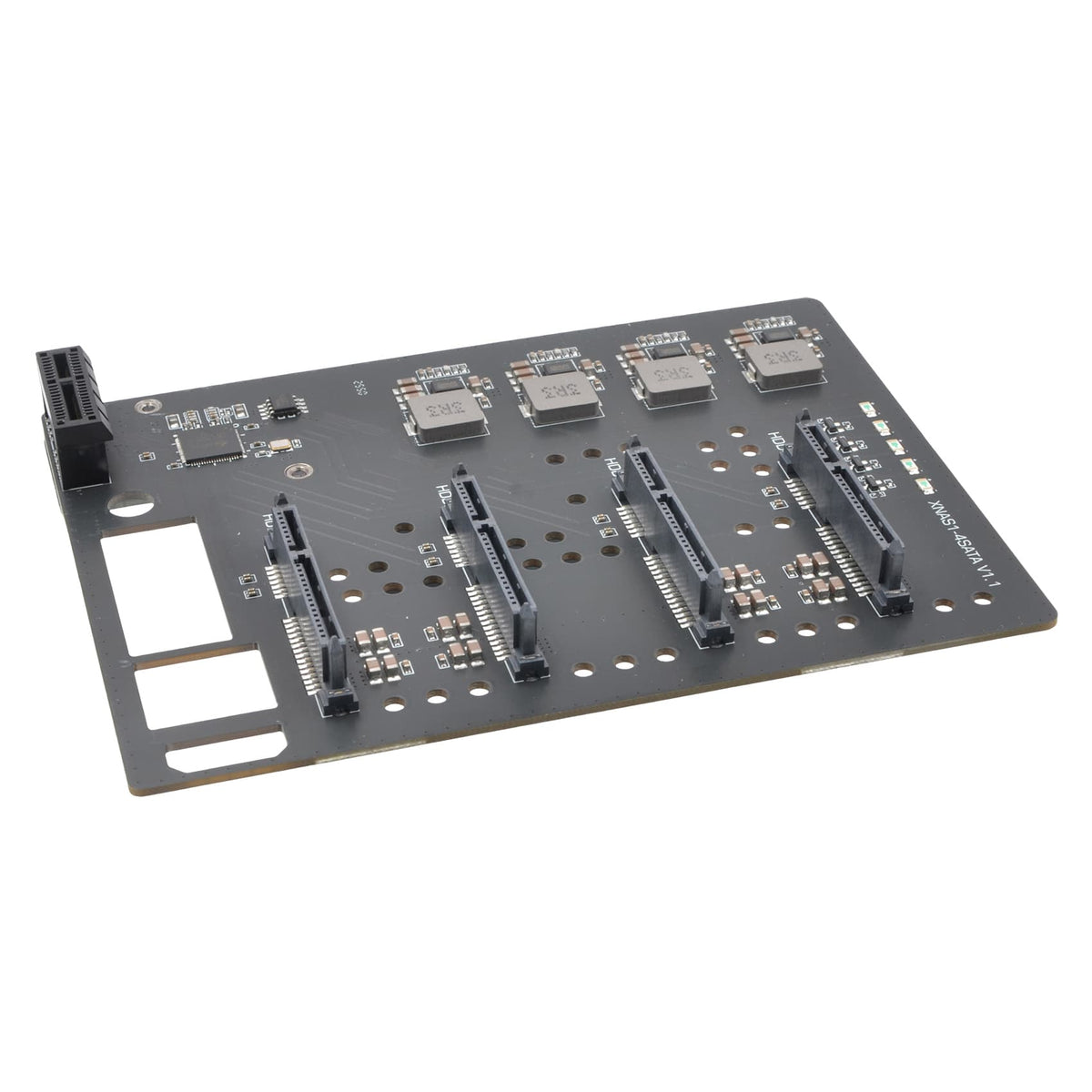

Advanced SATA Interface: Integrated PCIe Gen3x1 to 4× SATA 6Gb/s Bridge with RAID support via software, ensuring fast and reliable data transfer with data redundancy options.
Dual Ethernet Connectivity: Equipped with both 1GbE and 2.5GbE ports, offering flexible and high-speed networking options

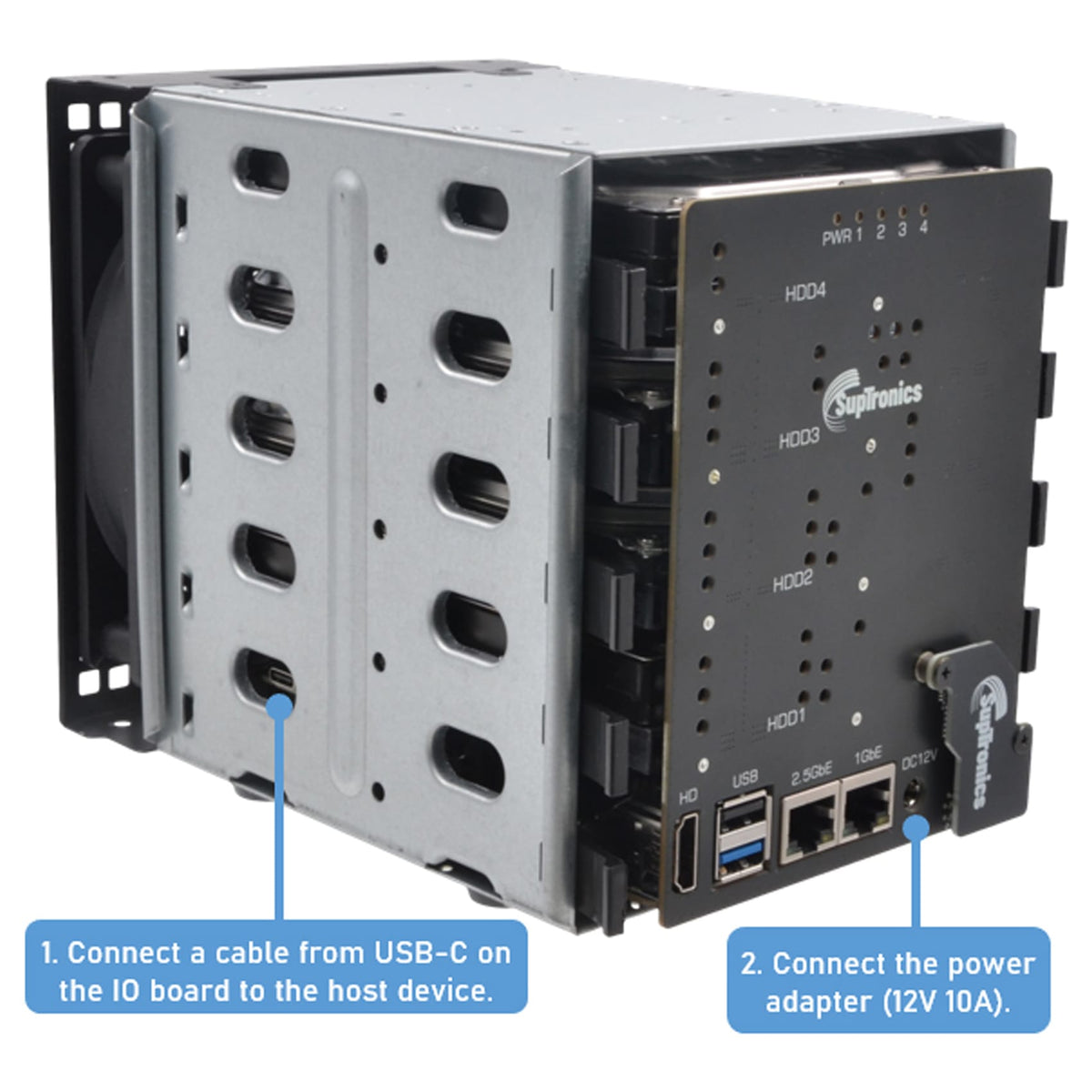

Flexible Boot Options: Includes a MicroSD card slot for use with CM5 Lite variants, and a USB-C port for direct OS imaging to the CM5 eMMC.

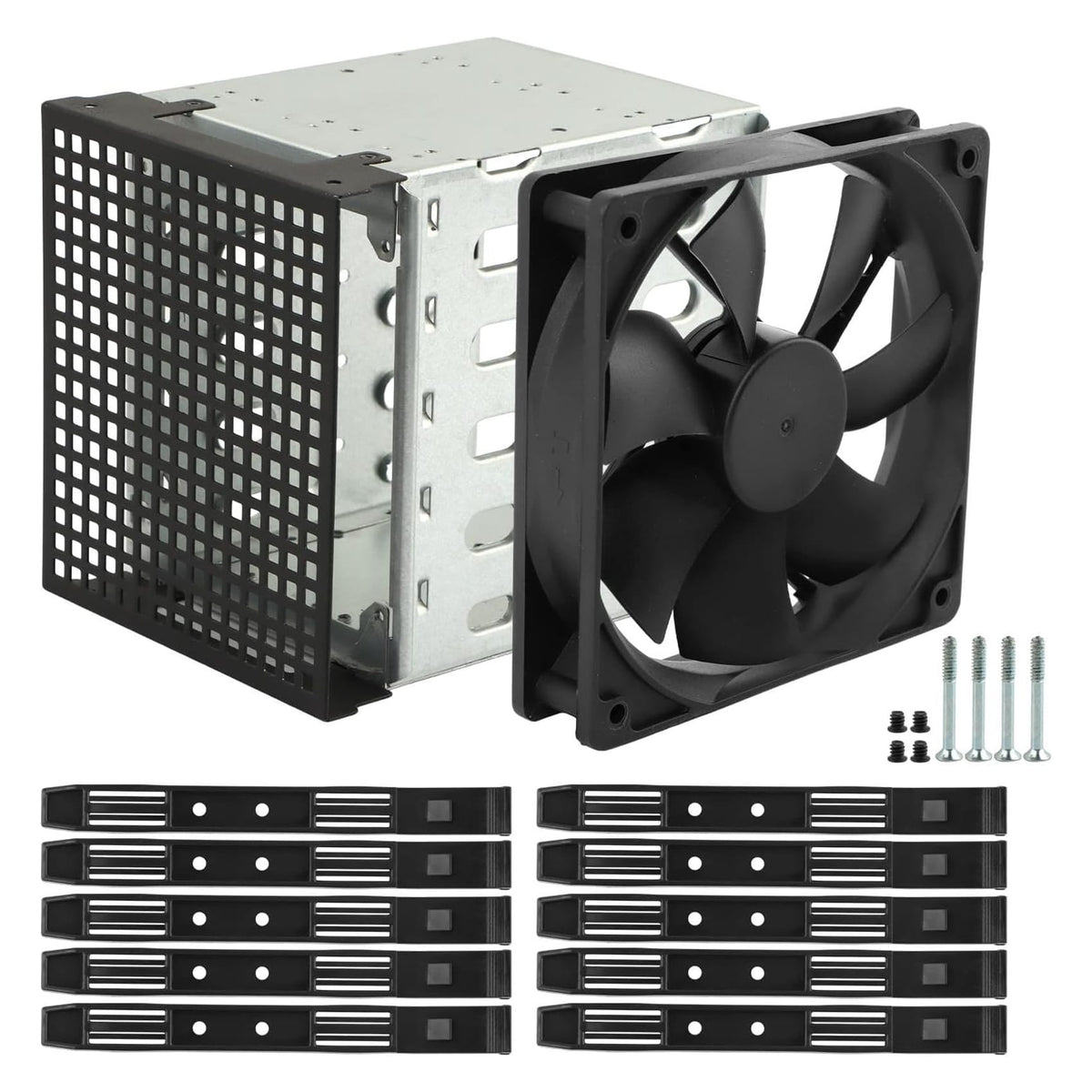

Superior Thermal Design: Powered by a 120×120mm PWM-controlled fan with up to 63.7CFM airflow, enabling dynamic cooling and consistent performance
Open-Source Ready: Fully compatible with openmediavault (OMV) and other advanced operating systems for customizable NAS solutions.

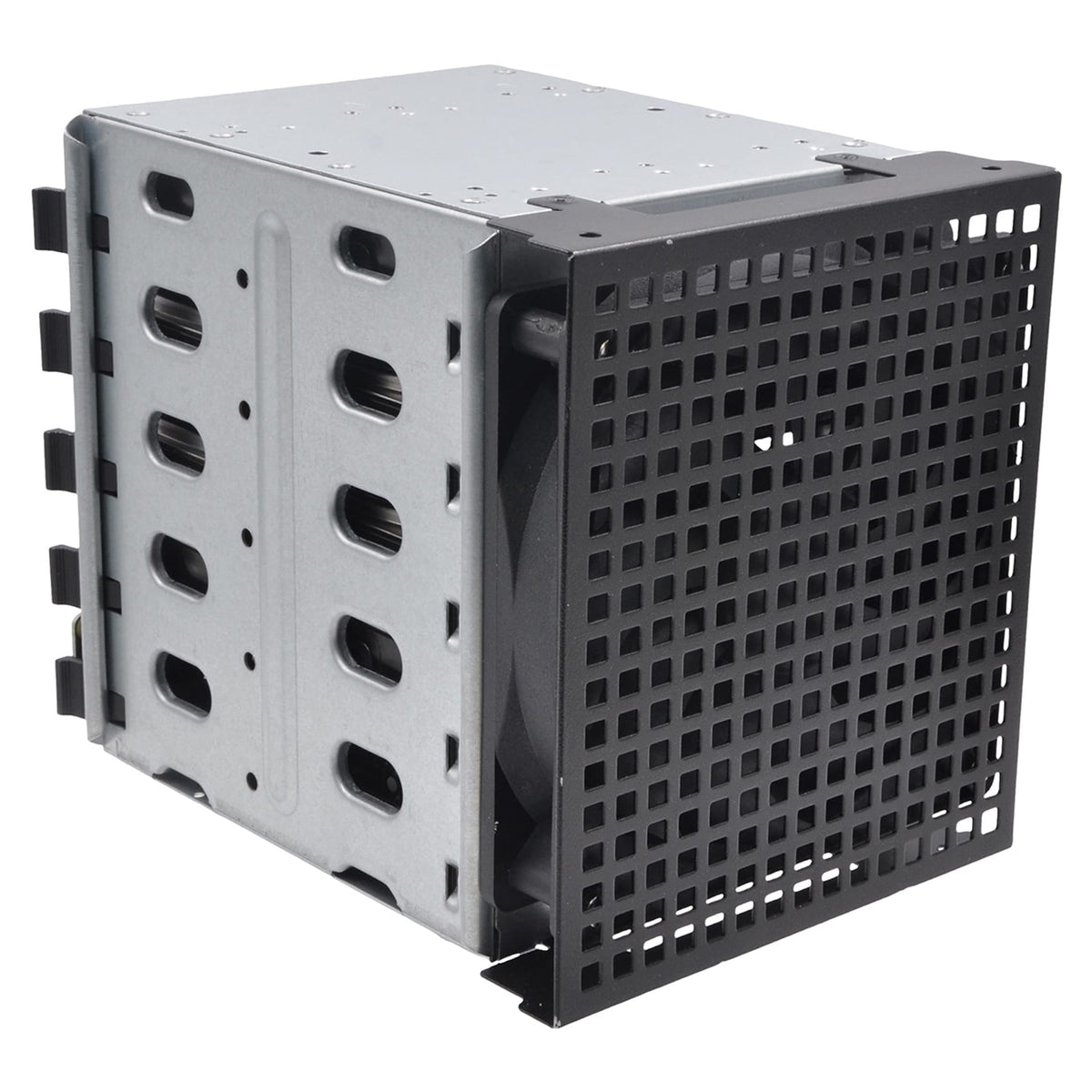

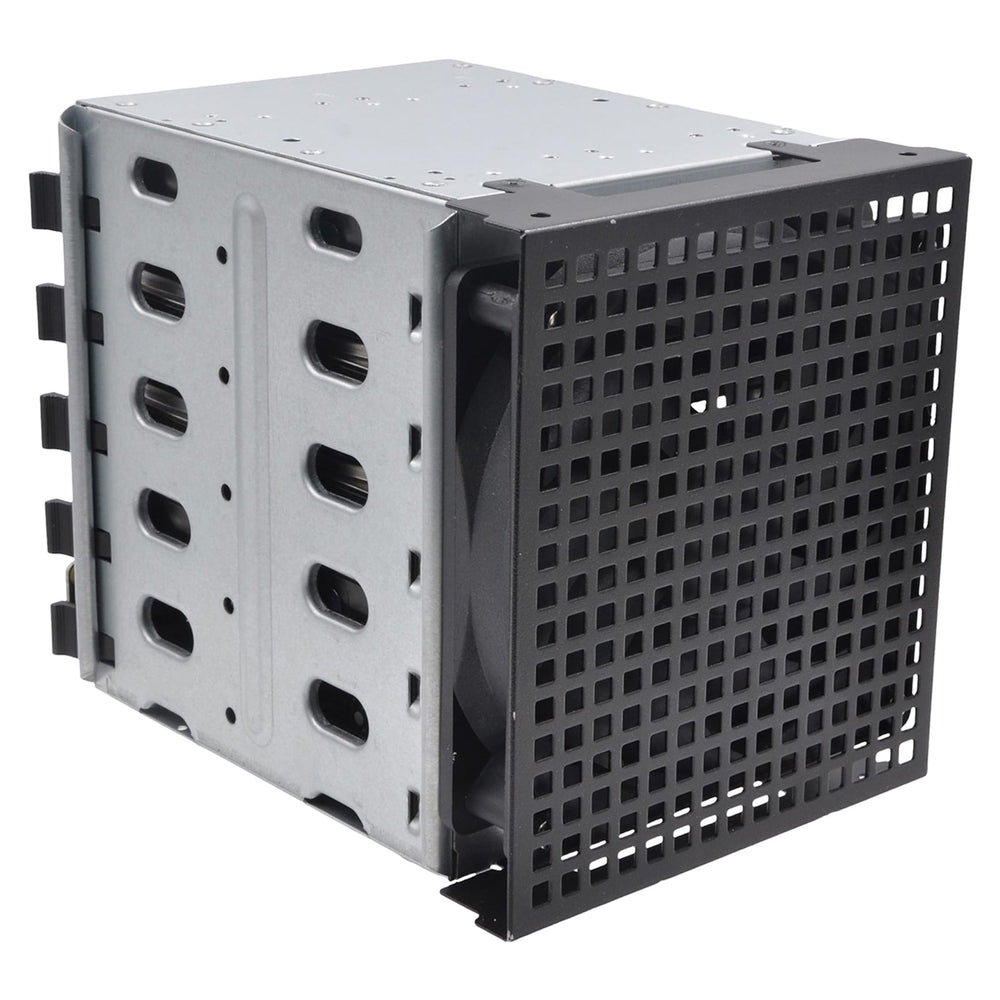

Professional-Grade Construction: Stainless steel hard drive cage with vibration-dampening drive mounts, LED status indicators, and desktop placement flexibility.
Specifications
Power supply
12Vdc +/-5% 10A
Connectivity:

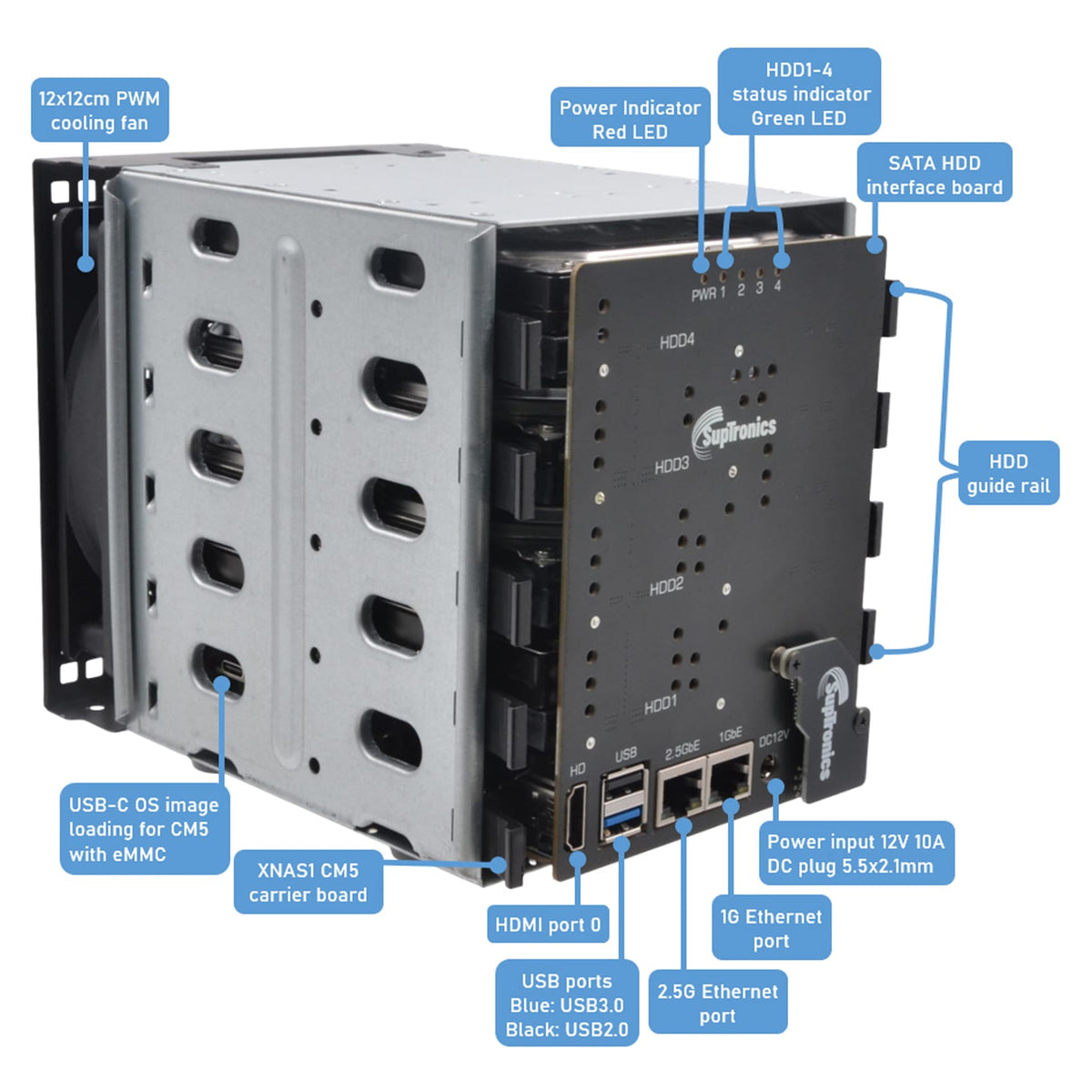

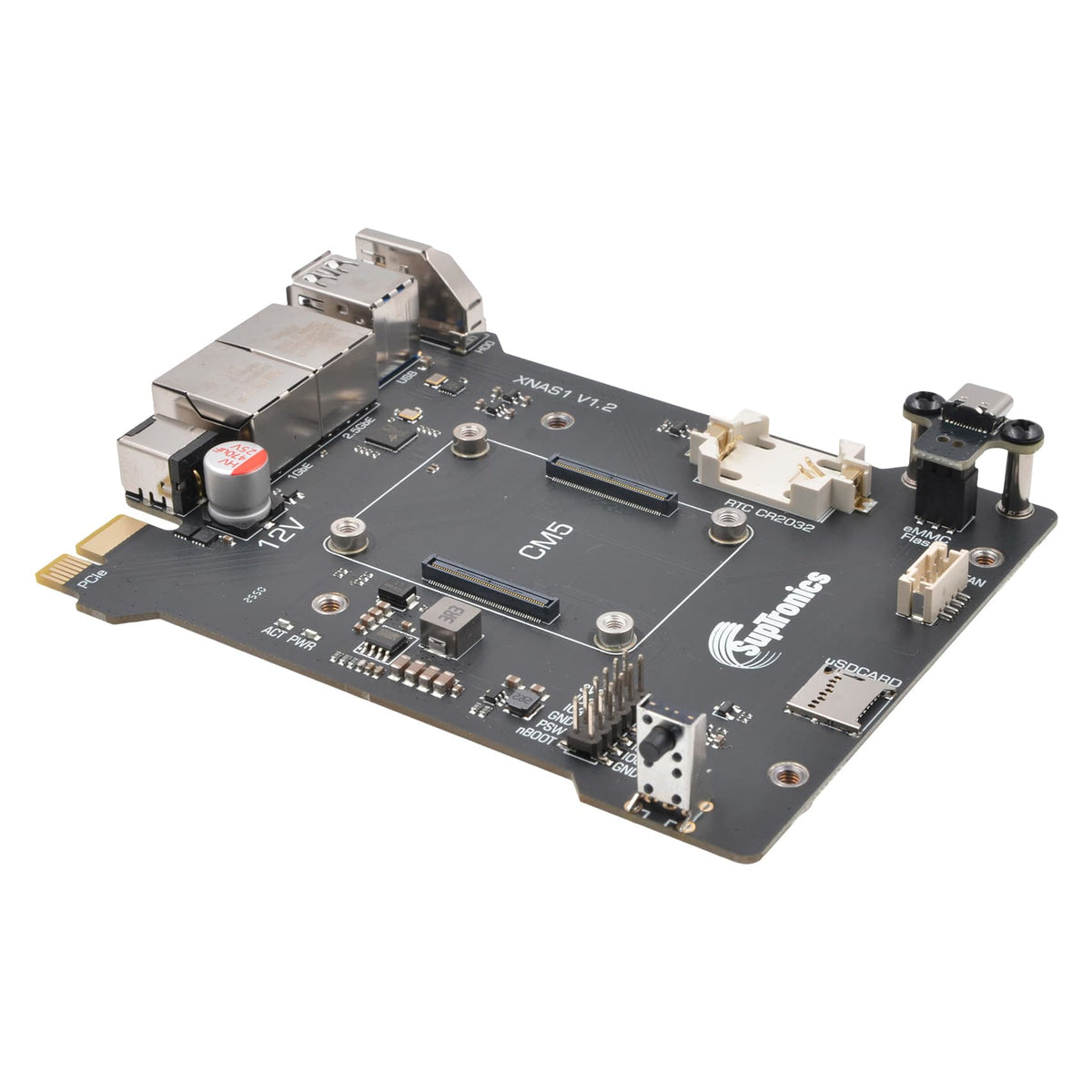

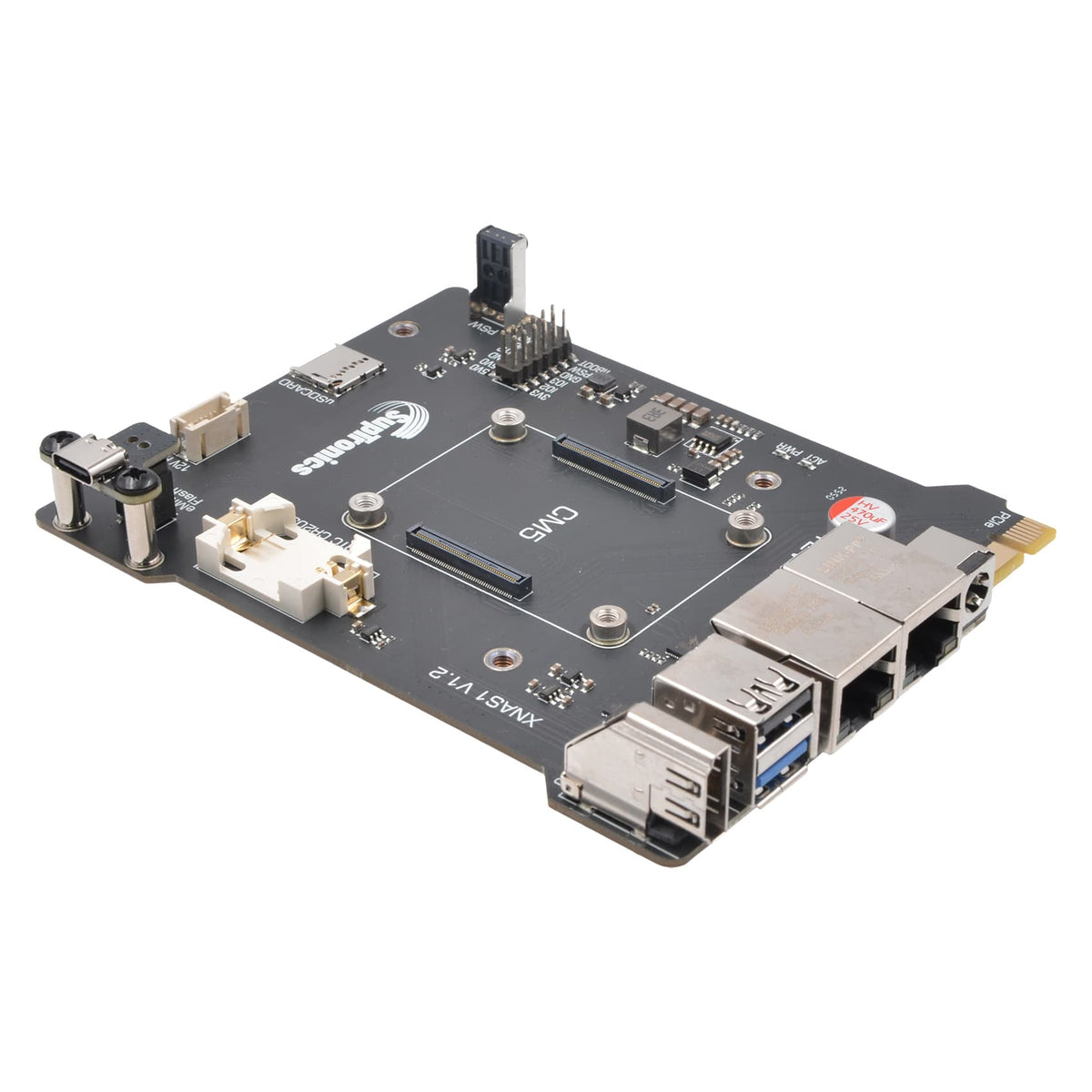

USB-C (OS image loading for CM5 eMMC version) 1Gigabit RJ45 Ethernet 2.5 Gigabit RJ45 Ethernet USB2.0 Type-A USB3.0 Type-A microSD card socket for Compute Module 5 Lite modules PH2.0 4-pin PWM fan connector 6-pin GPIO header RTC CR2032 battery socket 36pin PCIex1 slot 4 x 22pin SATA connector
Video:
Full-size HDMI 2.0 connector
Input power:

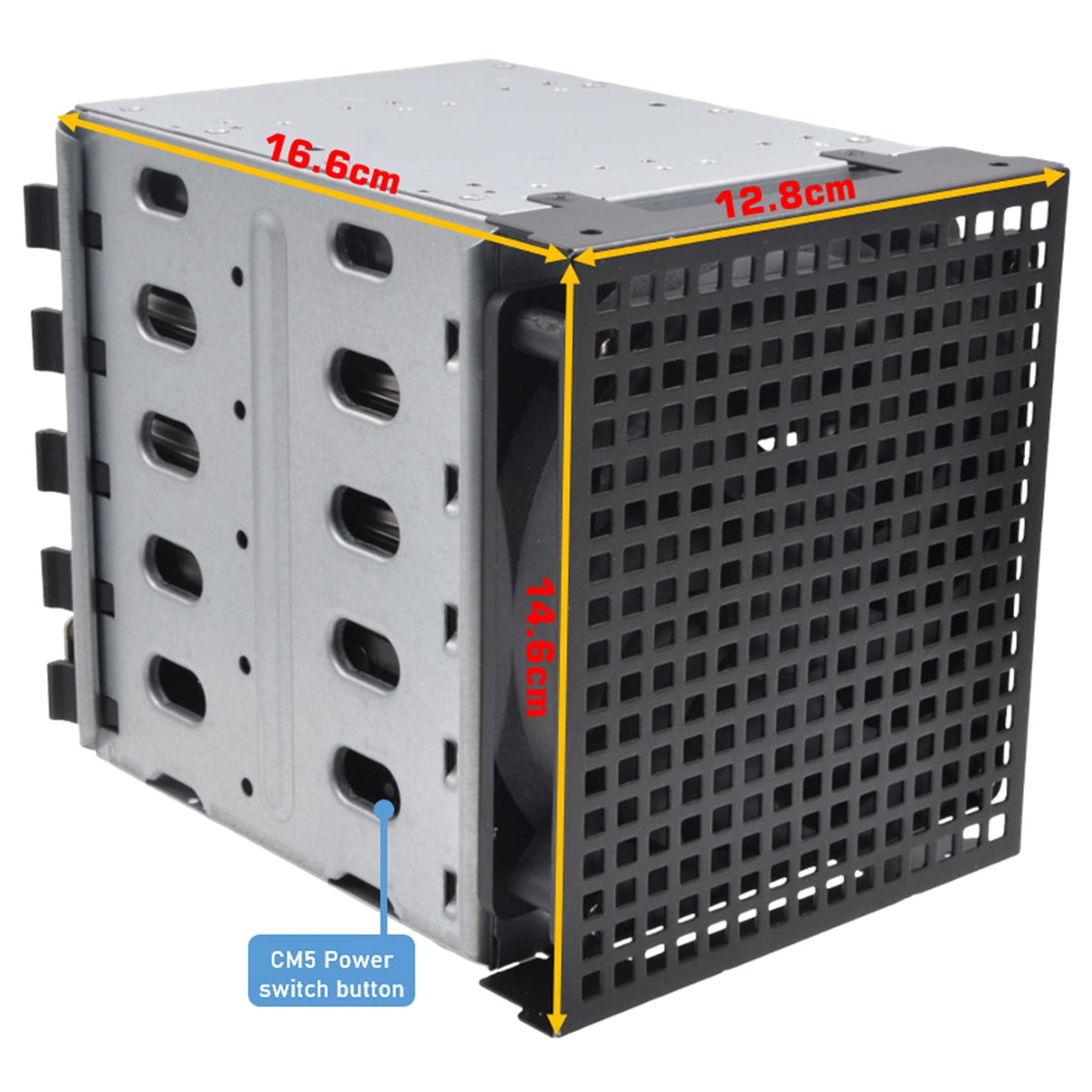

DC power jack x1- 5.5x2.1mm Power button to wake and shut down Compute Module 5
