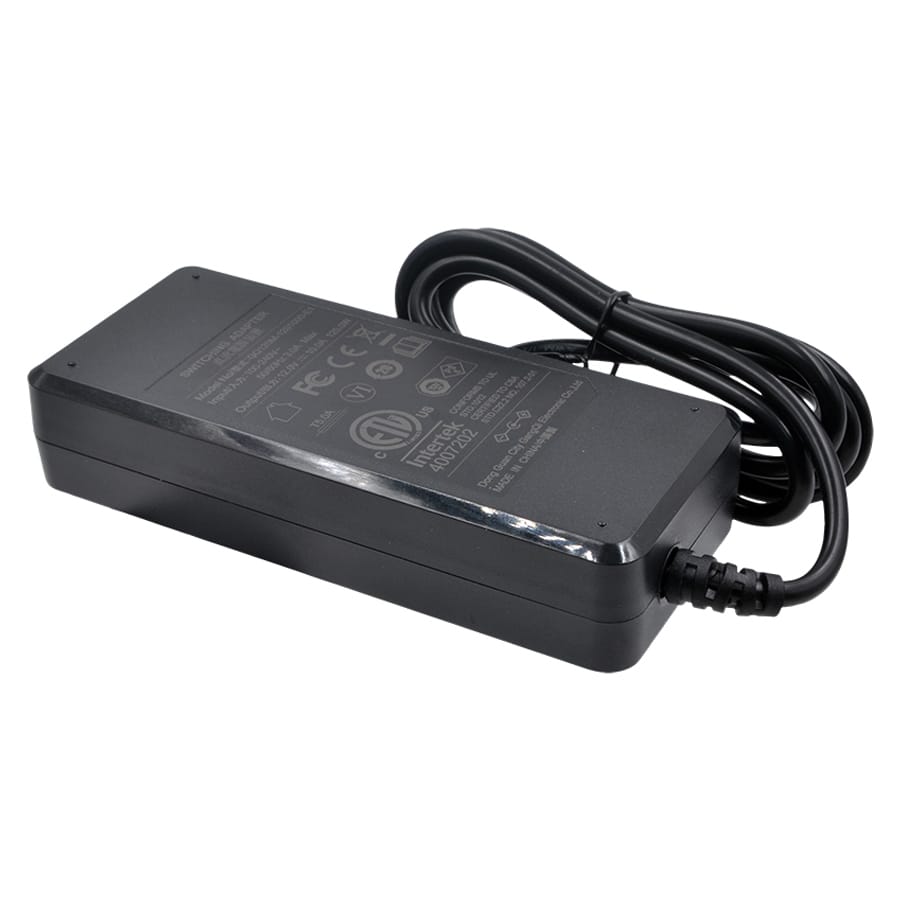

The SupTronics120W Industrial Power Supply provides a regulated 12V DC output at up to 10A for compatible X-Series hardware, including X-NAS, X15xx I/O and X12xx UPS products. It accepts a 100V to 240V AC input at 50Hz to 60Hz, making it suitable for powering connected boards, drives and other system components.

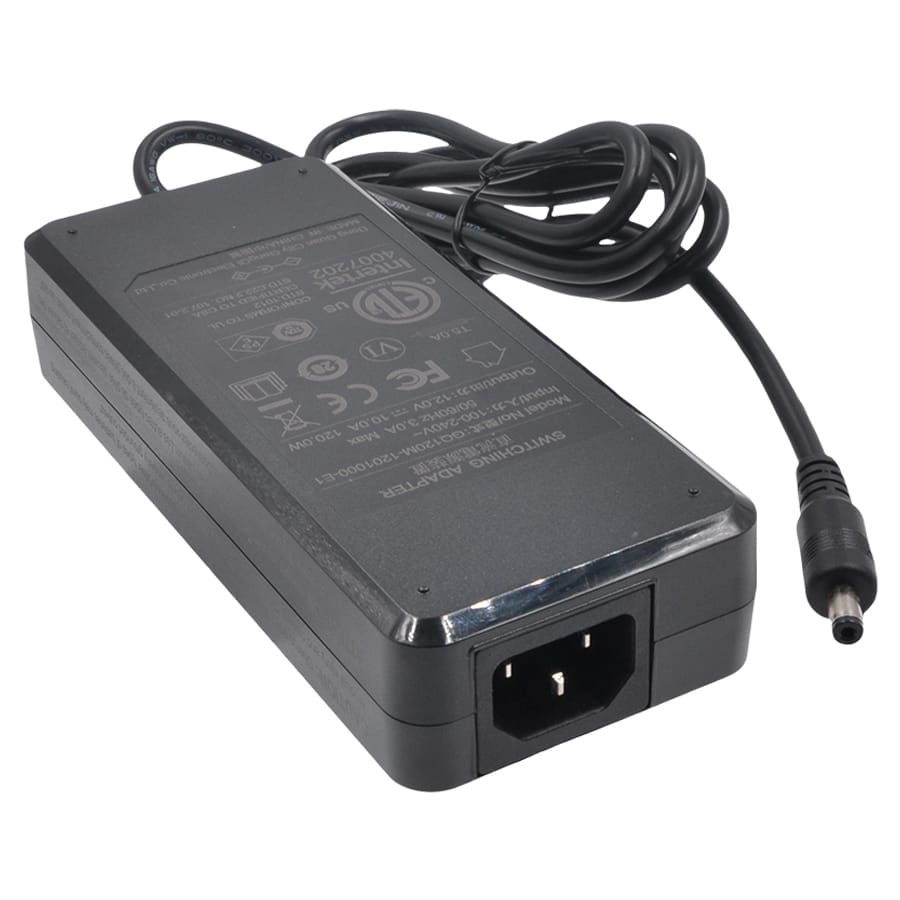

The power supply has a centre-positive 5.5mm x 2.1mm x 11mm barrel connector with a 1.5m 16AWG cable and an IEC320/C14 AC inlet. The case measures 153.5mm x 66.2mm x 32.4mm.
Features
120W regulated 12V DC output at up to 10A
Compatible with X-Series hardware including X-NAS, X15xx I/O and X12xx UPS products
Accepts 100V to 240V AC input at 50Hz to 60Hz
Centre-positive 5.5mm x 2.1mm x 11mm barrel connector
1.5m 16AWG cable included
IEC320/C14 AC inlet
Compact case dimensions: 153.5mm x 66.2mm x 32.4mm
Specifications
Input voltage:
100 – 240Vac
Input AC frequency:
50-60Hz
Output voltage:
12Vdc ± 5%
Output current:
10A
Output power:
120W
Connector:
Barrel connector, 5.5mm × 2.1mm × 11mm, Centre positive
Cable:
1.5m 16AWG, black
Plug types:
IEC320/C14 ac inlet
Case size:
L:153.5*W:66.2*H:32.4mm
Compatible products
X-NAS1 - Network Attached Storage Devices
X1001-Max - PCIe3.0 M.2 HAT for RPi5
X1502 - CM5 IO board
X1503 - CM5 IO board
X1505 - CM5 IO board
X1008 - PCIe3.0 to SATA 2.5+3.5 HDD board for Raspberry Pi 5
X1009 - PCIe3.0 to 5 SATA board for Raspberry Pi 5
X1016 - PCIe3.0 to 4 M.2 NVMe board for Raspberry Pi 5
X1202 - 4-cell 18650 UPS board for Raspberry Pi 5
X1203 - UPS board for Raspberry Pi 5
X1205 - 2-cell 21700 UPS board for Raspberry Pi 5
X1206 V2.0 - 4-cell 21700 UPS board for Raspberry Pi 5 (not compatible with X1206 V1.0)
Package Contents
1x SupTronics 120W Industrial Power Supply (12V/10A)
