The SupTronics X1008 3.5" + 2.5" SATA HDD Expansion for Raspberry Pi 5 supports one 3.5" SATA HDD and one 2.5" SATA HDD/SSD at up to 5Gbps via PCIe. Powered via 12V DC jack with onboard step-down converters, it simplifies NAS and media storage setups.

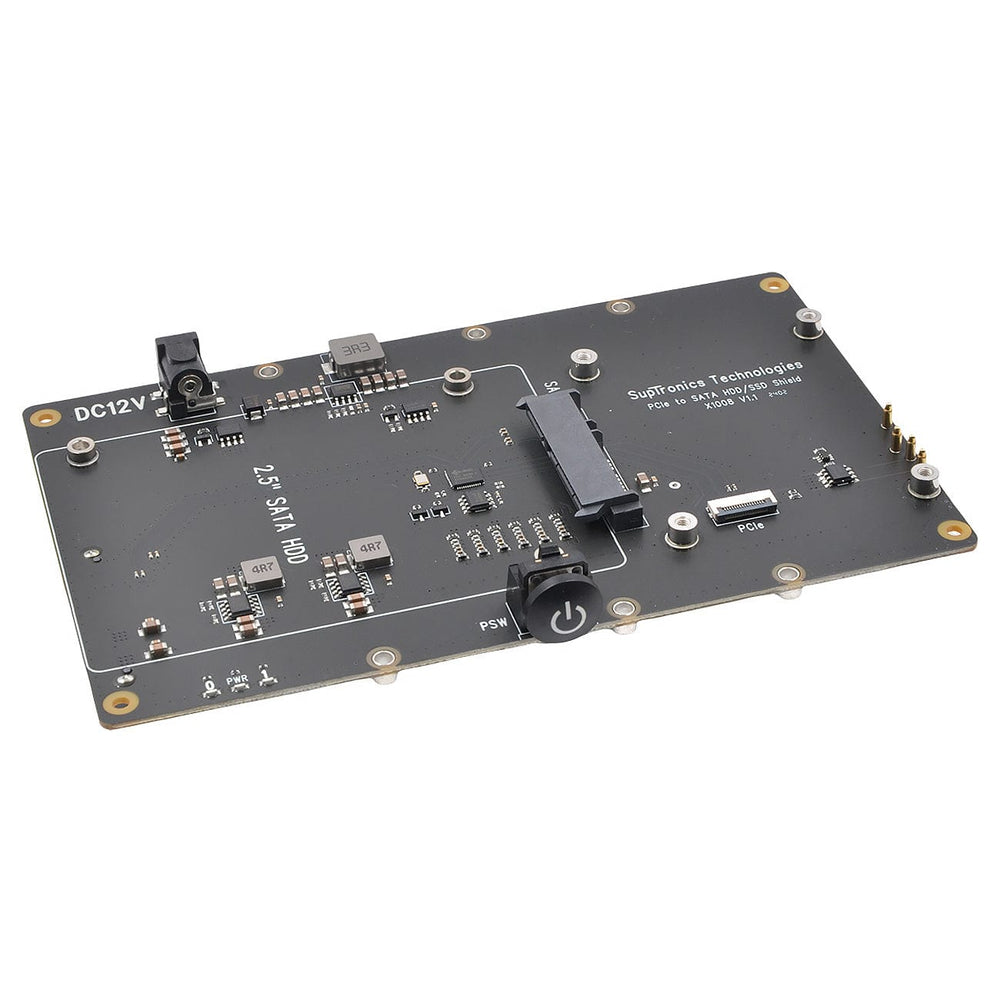

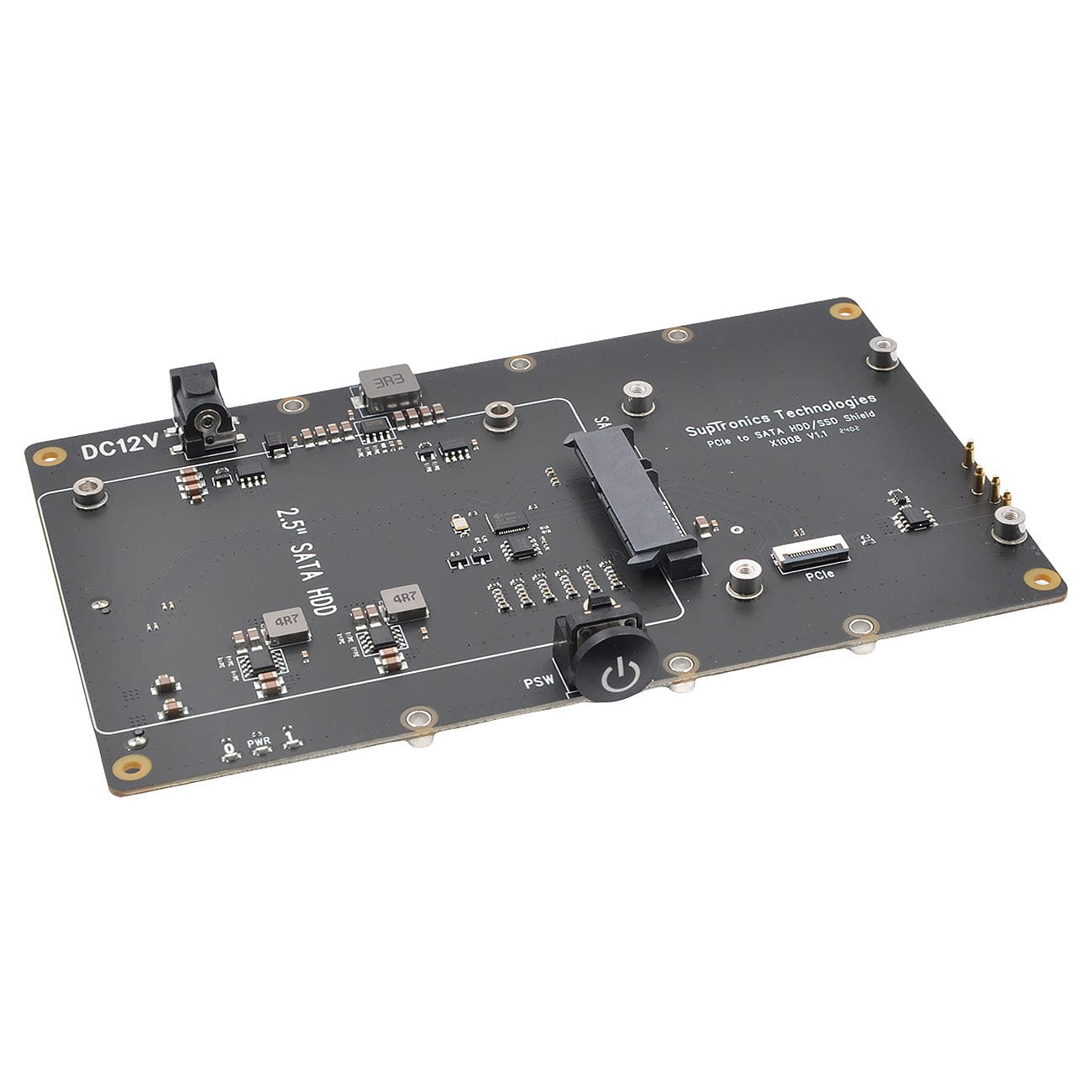

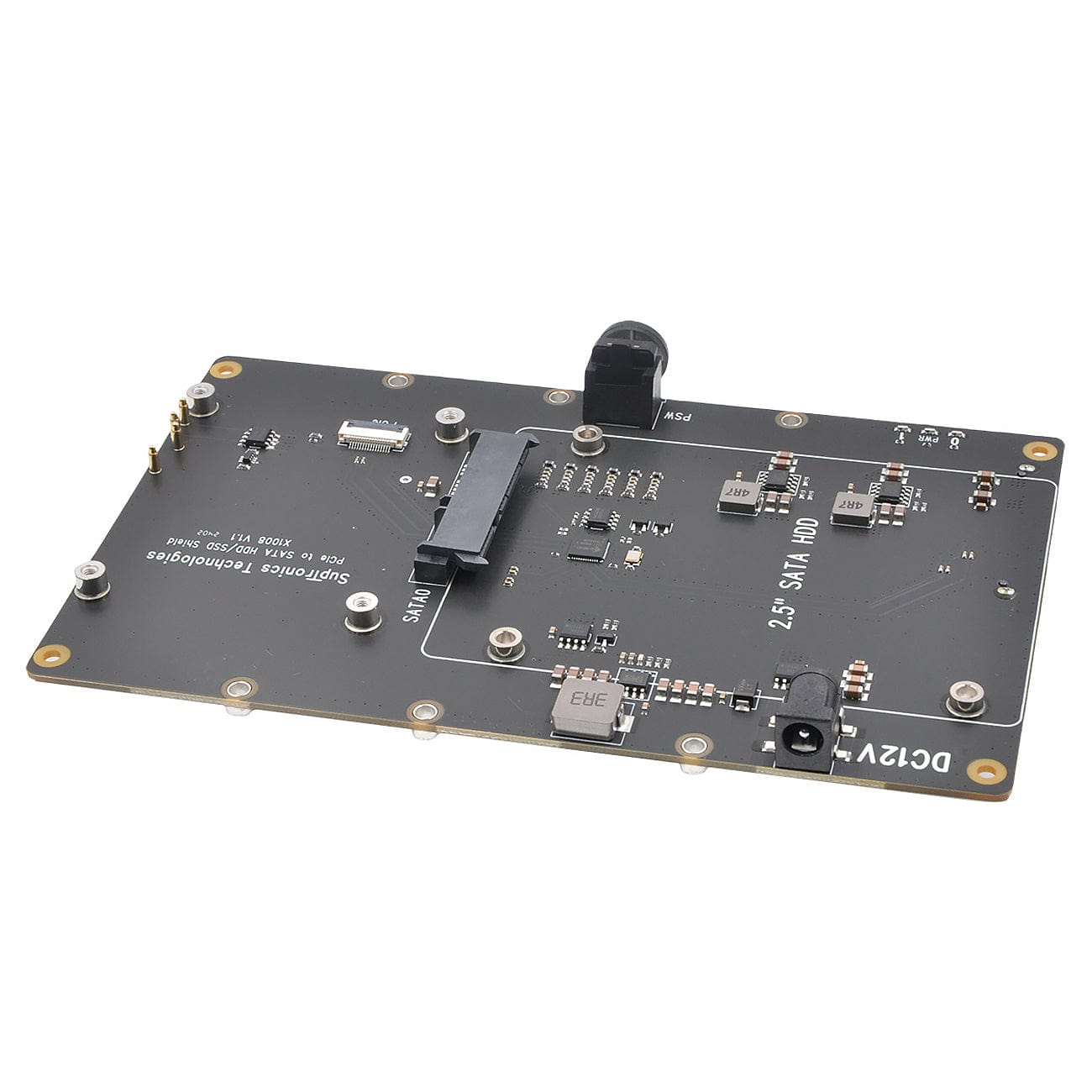

Introducing the SupTronicsX1008 3.5" + 2.5" SATA HDD Expansion, designed to provide a mass-capacity storage and high-speed storage solution via PCIe, for your Raspberry Pi 5. This board facilitates the simultaneous connection of a 3.5" HDD and a 2.5" HDD/SSD, with SATA 3.0 interface speeds reaching up to 5Gbps.
With support for 12V 3A input via a standard DC jack(power supply not included) and equipped with high-efficiency DC/DC step-down converters, the X1008 efficiently powers both your Raspberry Pi 5 and HDDs from a single power source, simplifying your setup. Do not power your Pi 5 via USB-C at the same time as the barrel jack!
The X1008 serves as the perfect storage solution for establishing a home media centre or constructing a network-attached storage (NAS) system.
SSD/HDD, Raspberry Pi, Active Cooler and power supply not included.
Features
Compatible with Raspberry Pi 5

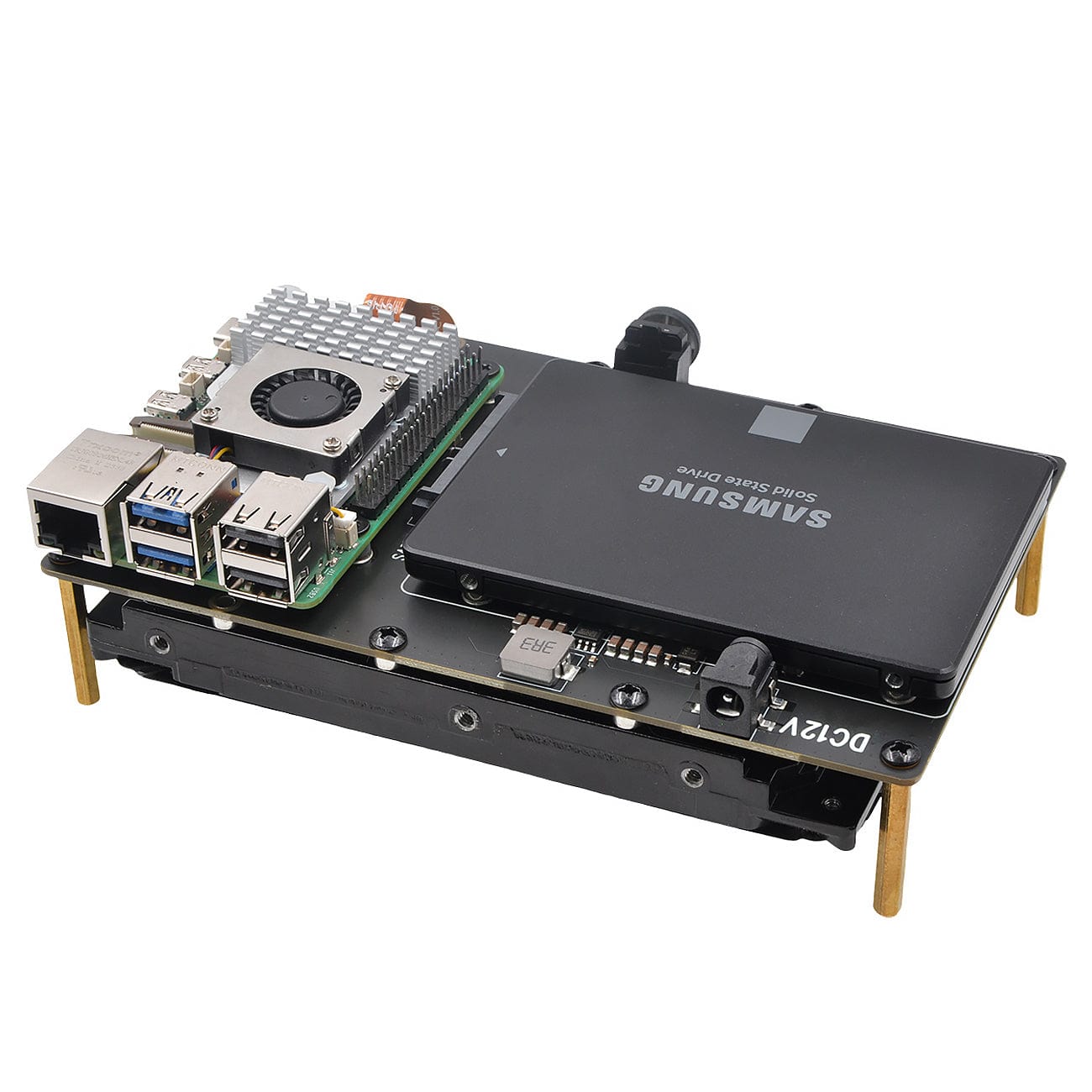

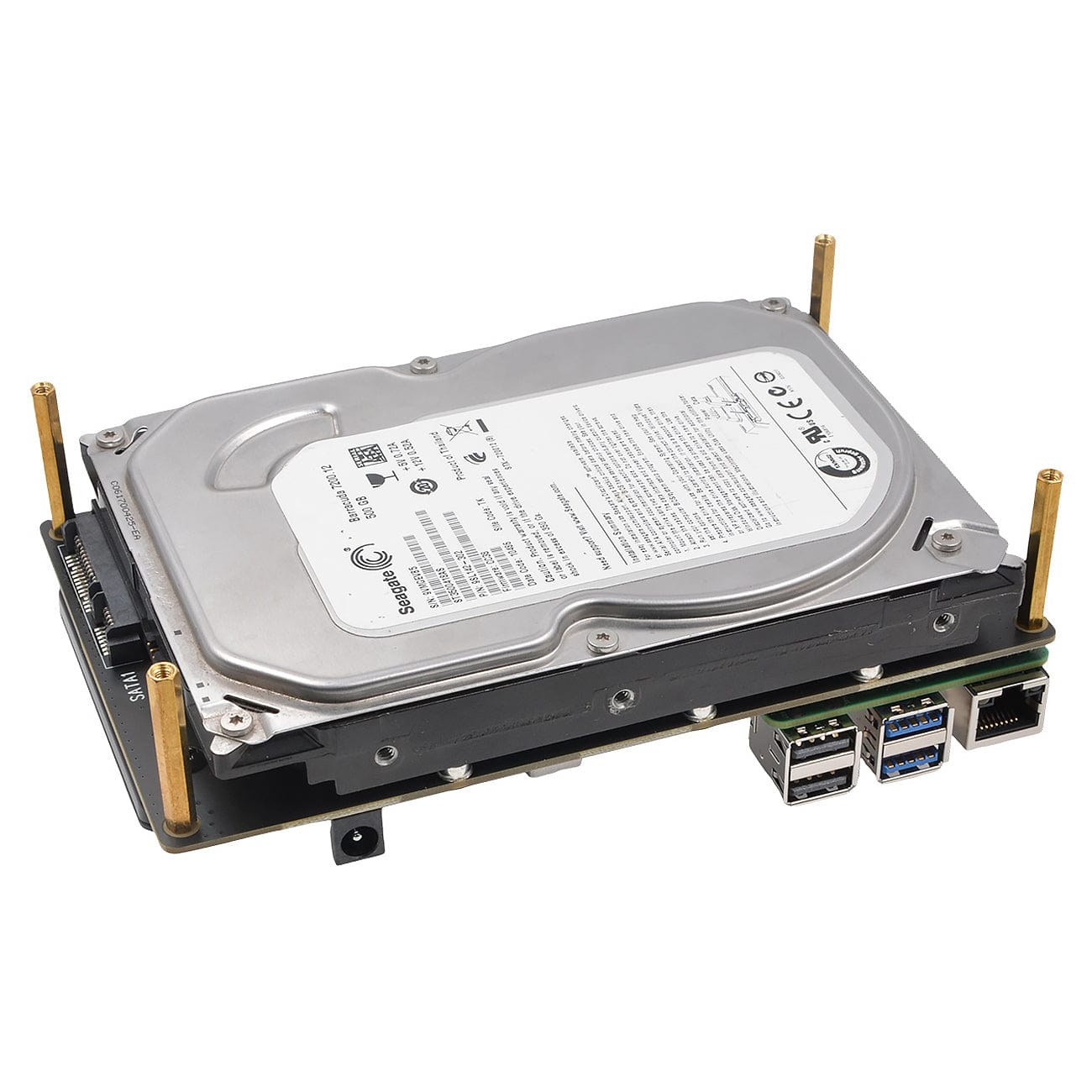

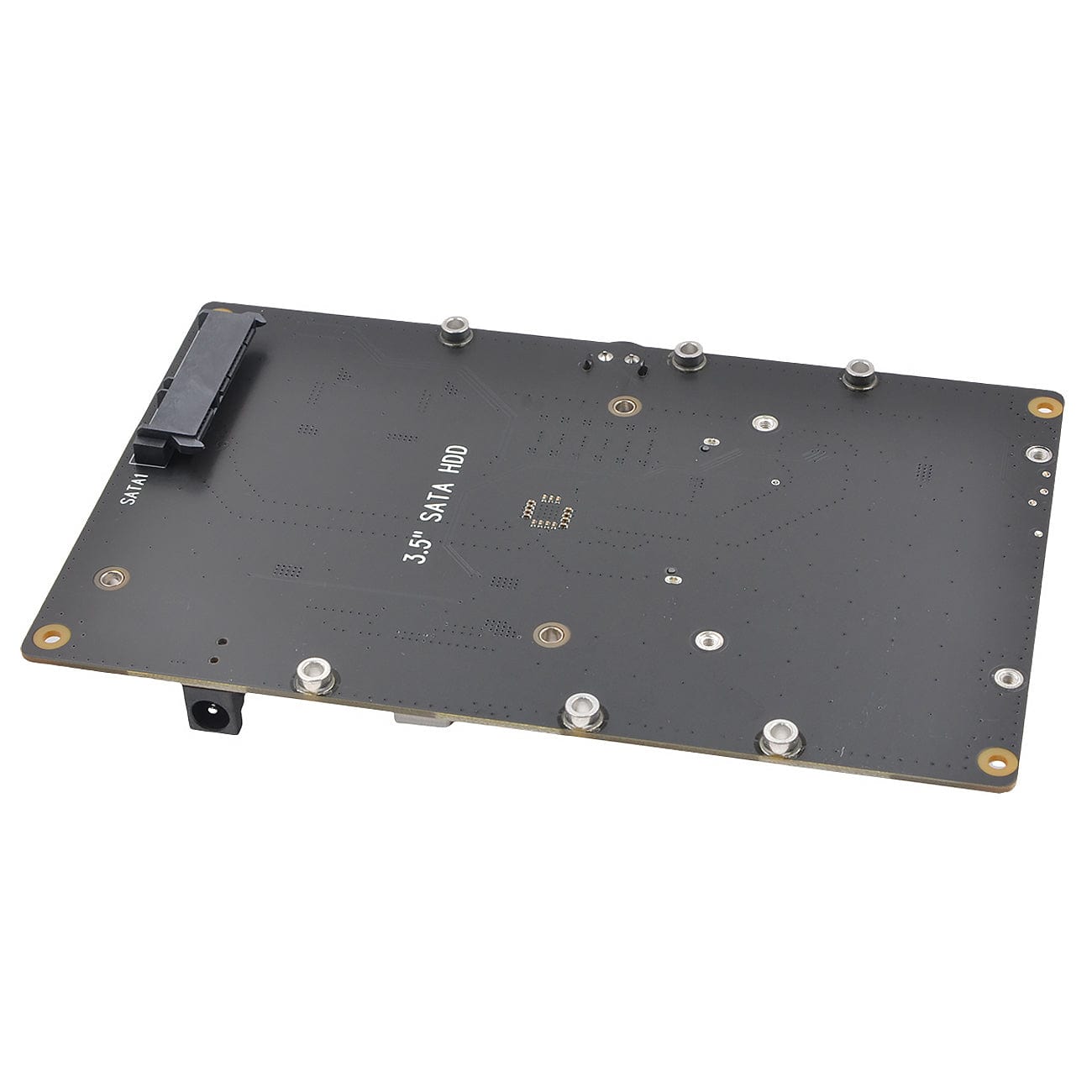

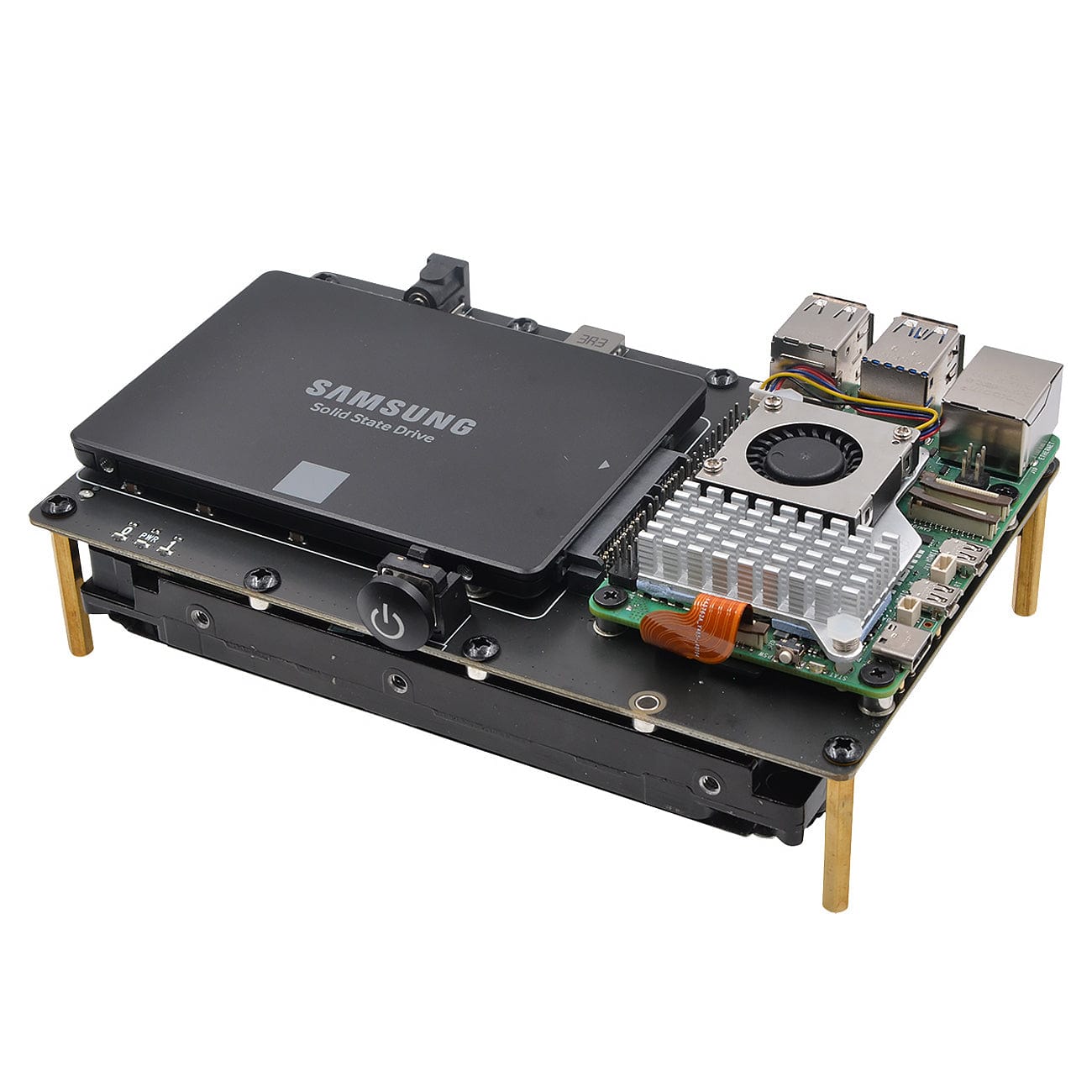

Supports the connection of a 3.5" SATA HDD and a 2.5" HDD/SSD to your Pi 5 simultaneously
Supports up to 16TB (3.5" HDD) + 4TB (2.5" HDD/SSD) SATA disk drives
Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
Compatible with SATA 6G, 3G, and 1.5G hard drives
LED indicators display power and drive status
High-efficiency DC/DC step-down converter to power both your Raspberry Pi 5 and SATA devices simultaneously
12V Barrel Jack power supply not included
Efficient power delivery to the Raspberry Pi 5 via pogo pins
On-board push button performs the same actions as the Pi's power button
Compatible with the Raspberry Pi Active Cooler without compromising cooling performance
Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down
The X1008 is designed for data storage purposes and does not currently support booting from HDD/SSD with the existing firmware.
Do not power the X1008 via the DC power jack and the Raspberry Pi 5 via USB-C at the same time.
