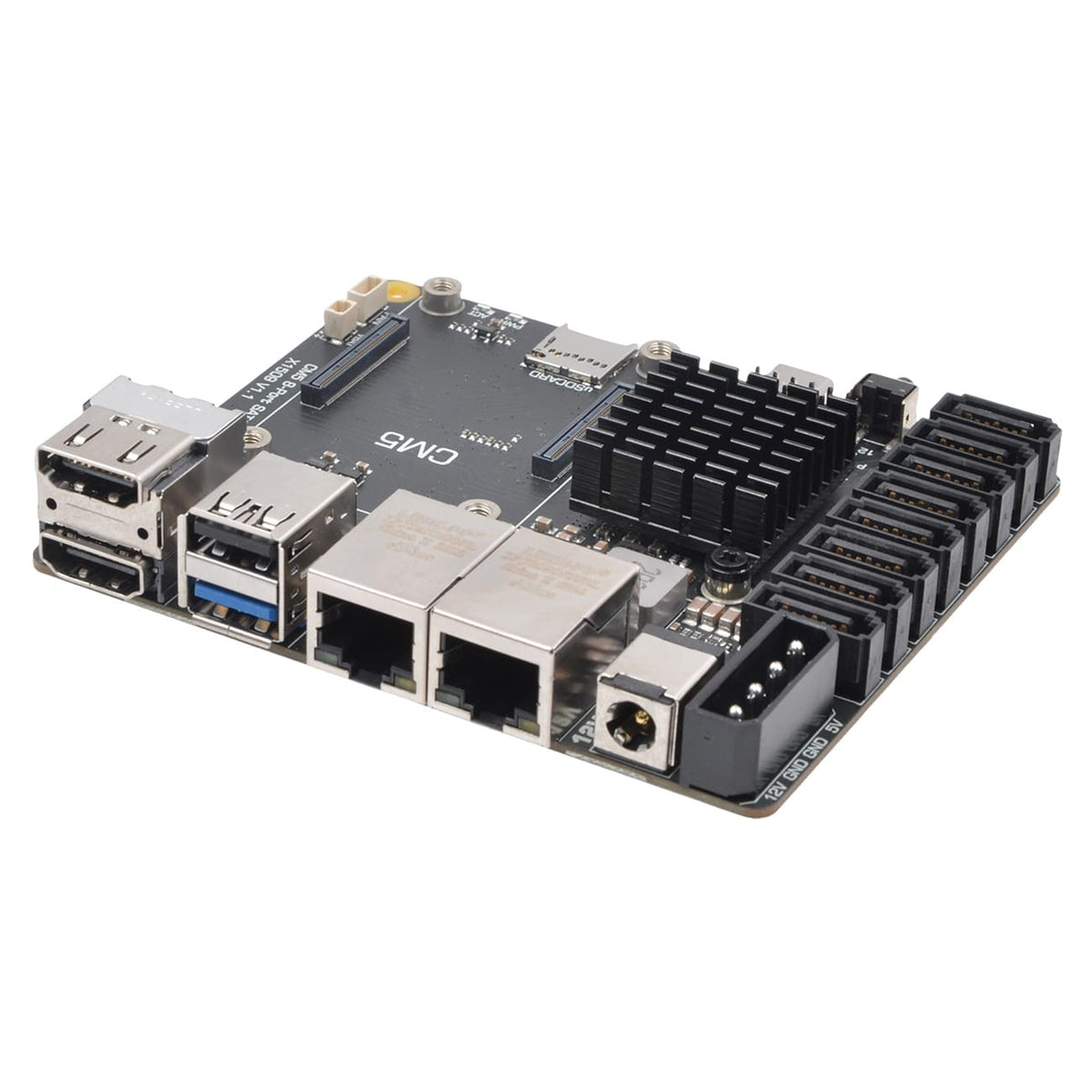

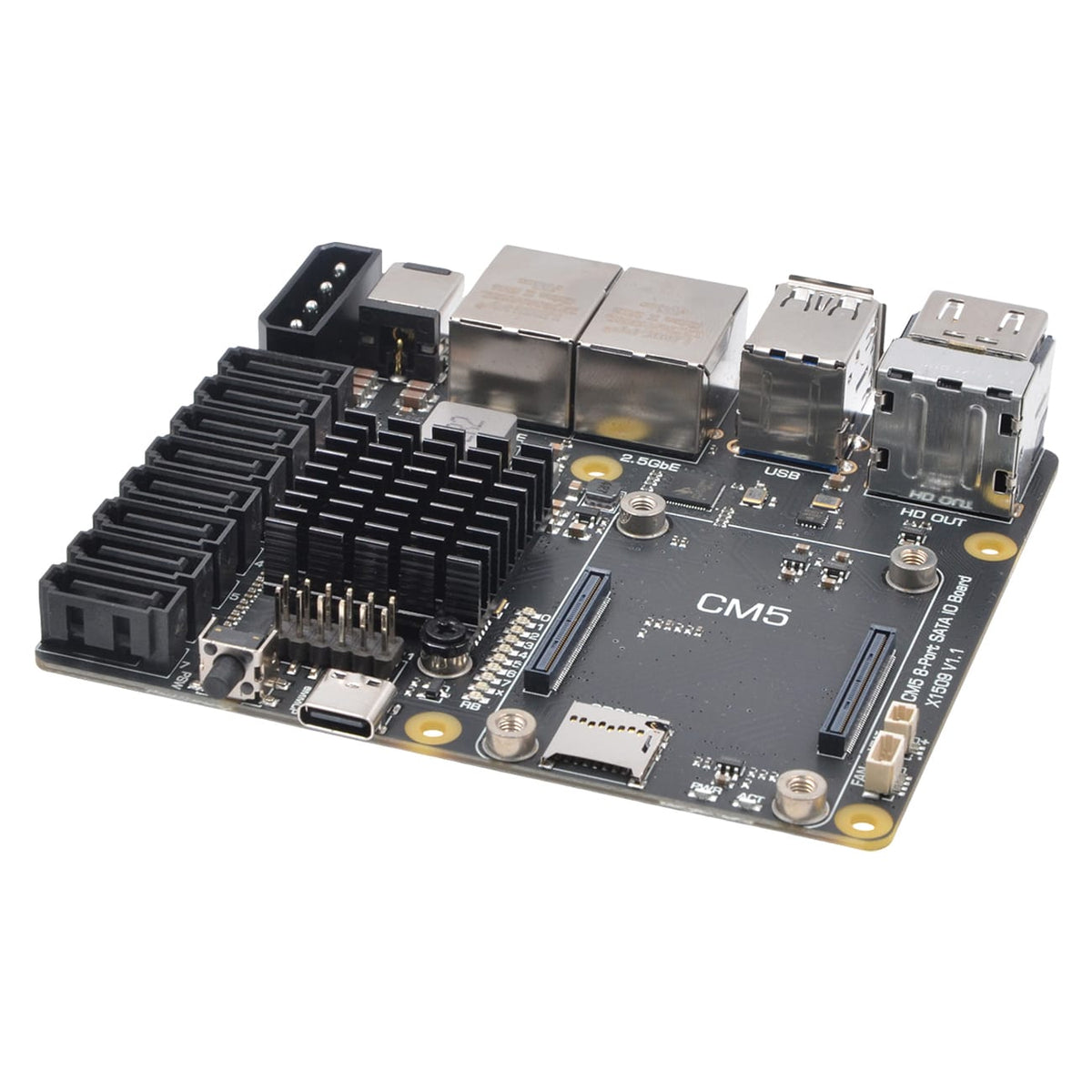

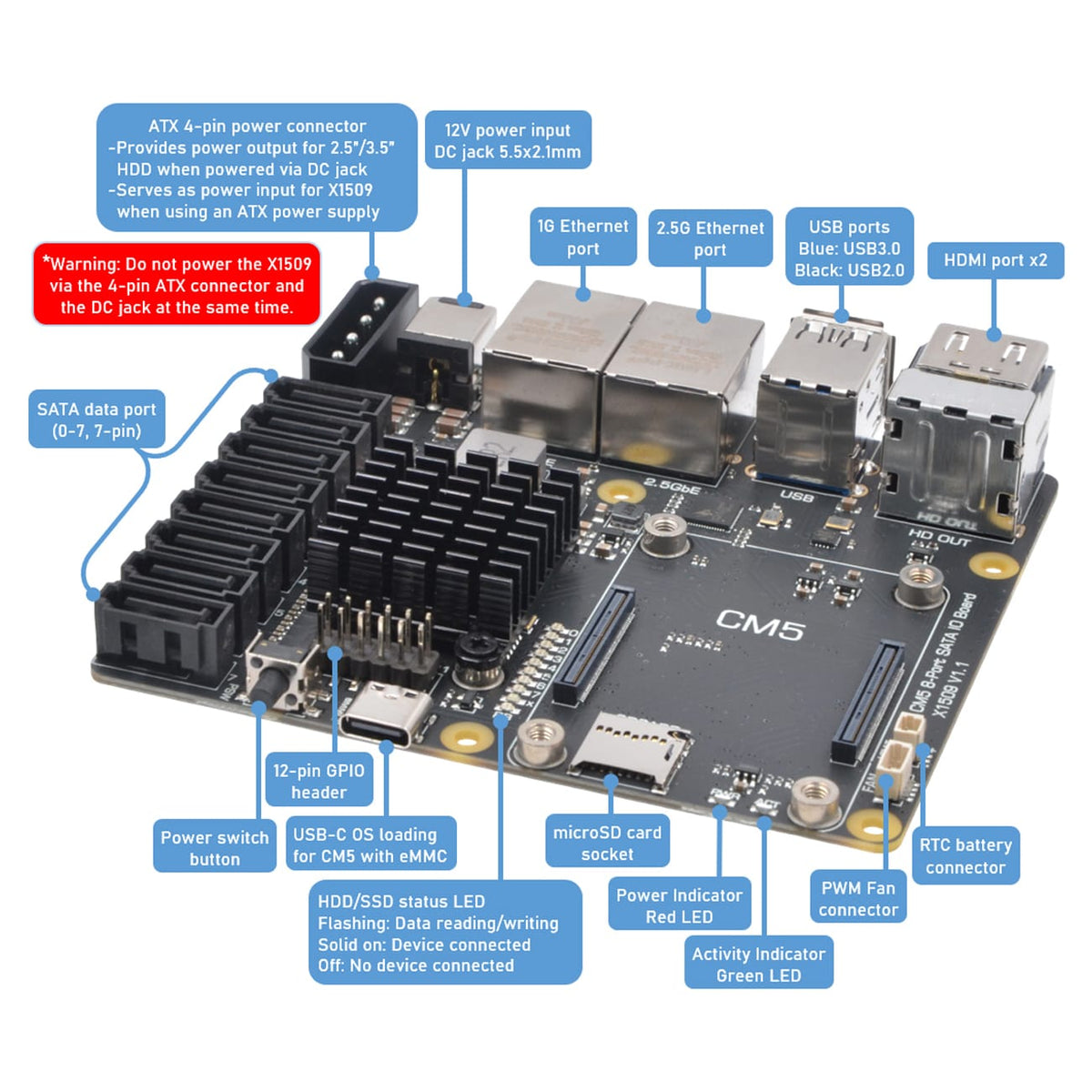

The SupTronicsX1509 is a carrier board designed for all Raspberry Pi Compute Module 5 variants. It provides eight SATA 3.0 ports for connecting SATA 6G, 3G and 1.5G drives, with support for up to 176TB of storage based on eight 22TB drives. Drive status LEDs are included for easy monitoring.
The board has 1GbE and 2.5GbEEthernet ports, dual HDMI 2.0 outputs for two 4K displays, dual 22-pin MIPI CSI/DSI connectors, USB ports and a microSD card slot for CM5 Lite models. A functional header also provides I/O connections for an external power button and a 12V PWM fan.
Power can be supplied through a 12V DC jack or 4-pin ATX connector, although ATX could be a better option for power users as most barrel-jack PSUs max out around 8A due to the limits on the connector.
The DC/DC converter provides up to 12A to power the CM5 and connected SATA drives from one supply, with an eight-drive SATA power splitter cable included. When using the DC jack, the board automatically cuts power to the SATA drives when the CM5 shuts down. This function is not available when using the ATX connector.
The X1509 has been tested with Raspberry Pi OS 64-bit and OpenMediaVault, making it suitable for home media servers, NAS systems and CCTV storage.
Compute Module 5 and power supply not included.
Features

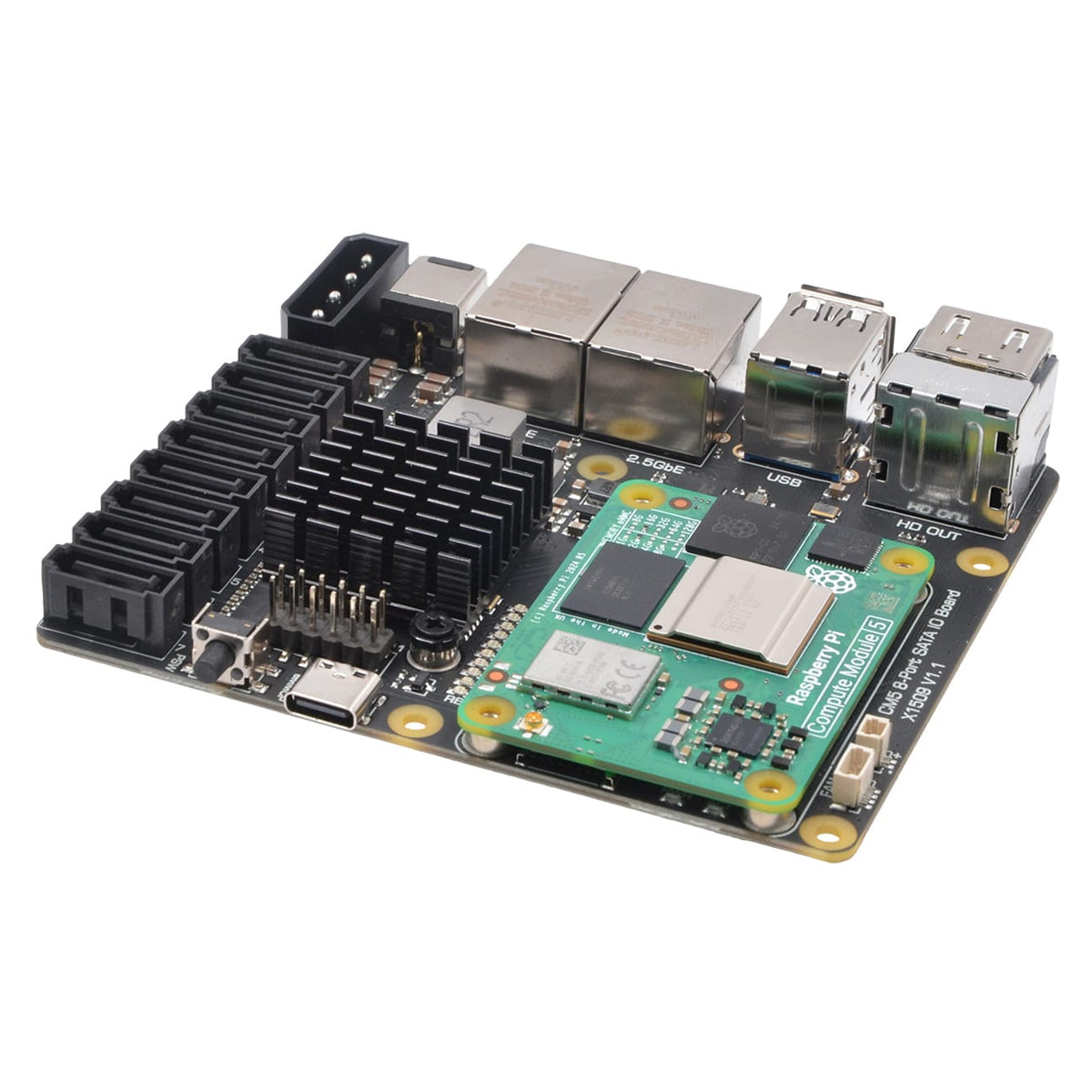

Fully compatible with all Raspberry Pi Compute Module 5 variants
Dual Ethernet Ports: Features both 1GbE and a 2.5GbE port capable of speeds up to 2500Mbps (2.5Gbps) for high-performance networking.
8x SATA 3.0 Ports: Connect up to eight SATA devices simultaneously to your Raspberry Pi CM5
High-Capacity Storage: Supports up to 176TB total capacity (22TB per drive).
Wide Drive Compatibility: Works with SATA 6G, 3G, and 1.5G hard drives
Multi-Speed Support: Supports communication speeds of 5.0, 3.0, and 1.5 Gbit/s
Plug & Play: Simple setup with LED indicators for drive status
Flexible Power Input: Accepts 12V power via DC jack or ATX 4-pin connector
Unified Power Delivery: High-efficiency DC/DC converter delivers up to 12A to power both CM5 and SATA drives from a single source
Automatic Drive Power Cut-off: Cuts power to SATA devices when CM5 shuts down (DC jack only; not supported with ATX 4-pin)

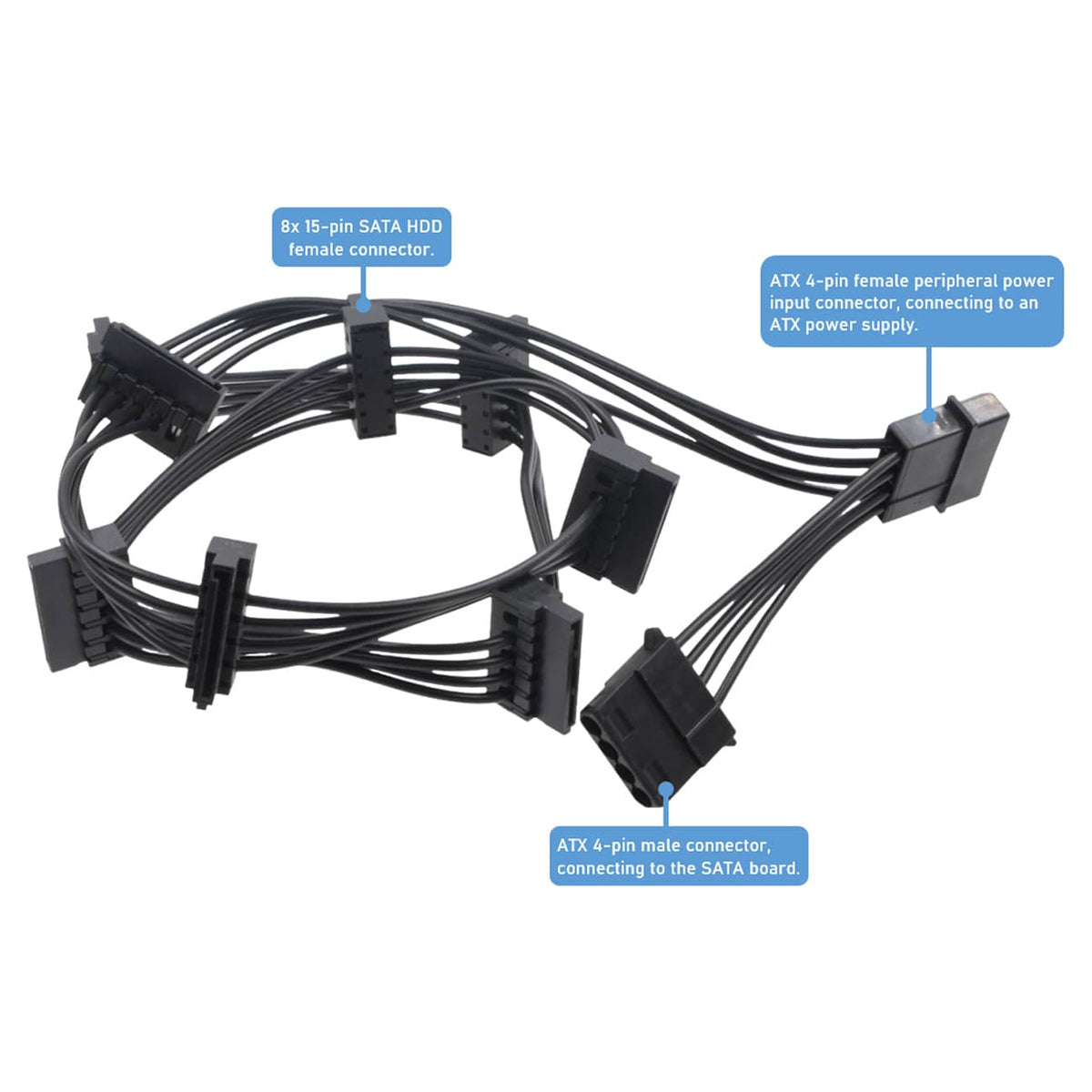

Splitter Cable Included: Comes with a power SATA splitter cable to support up to 8 drives
Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.

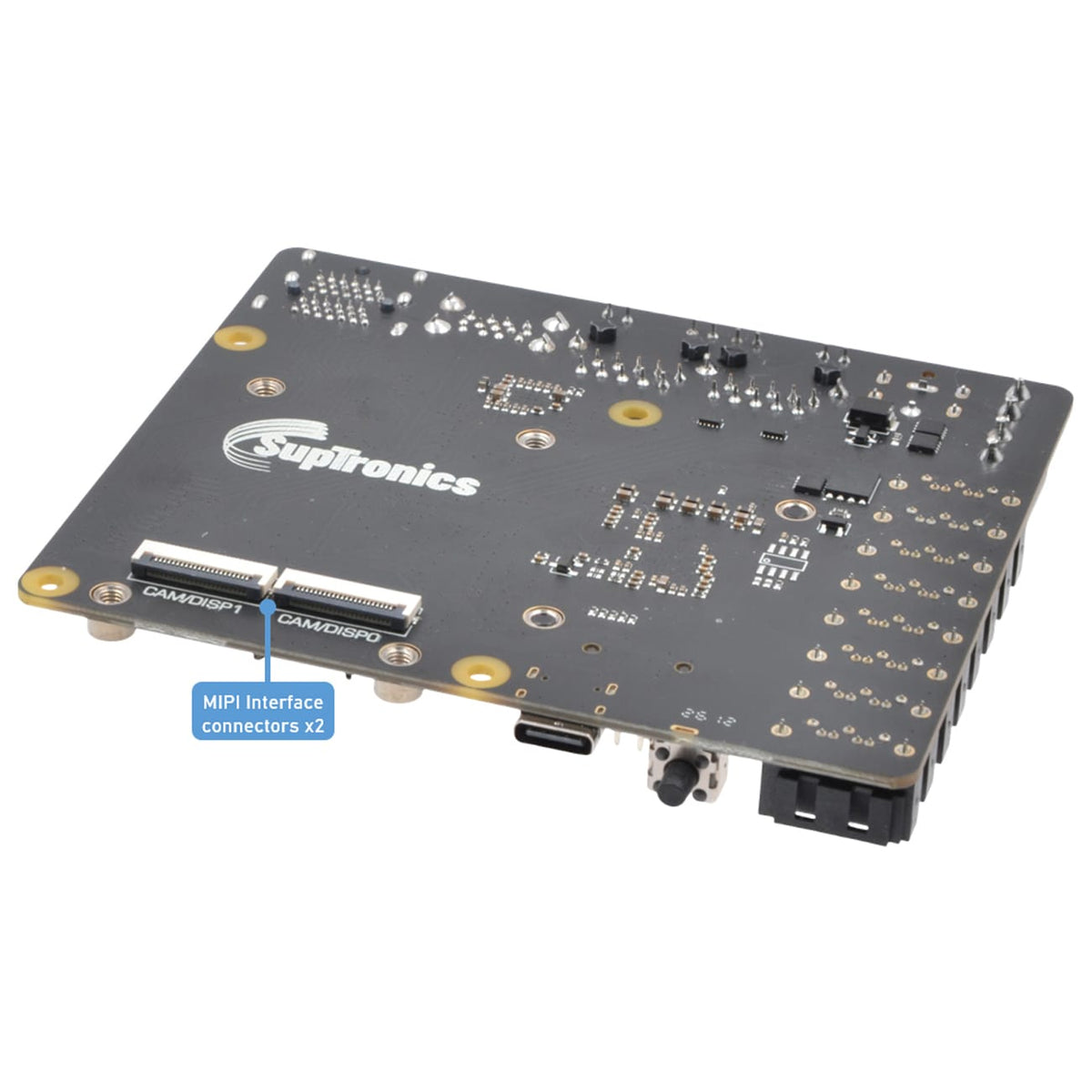

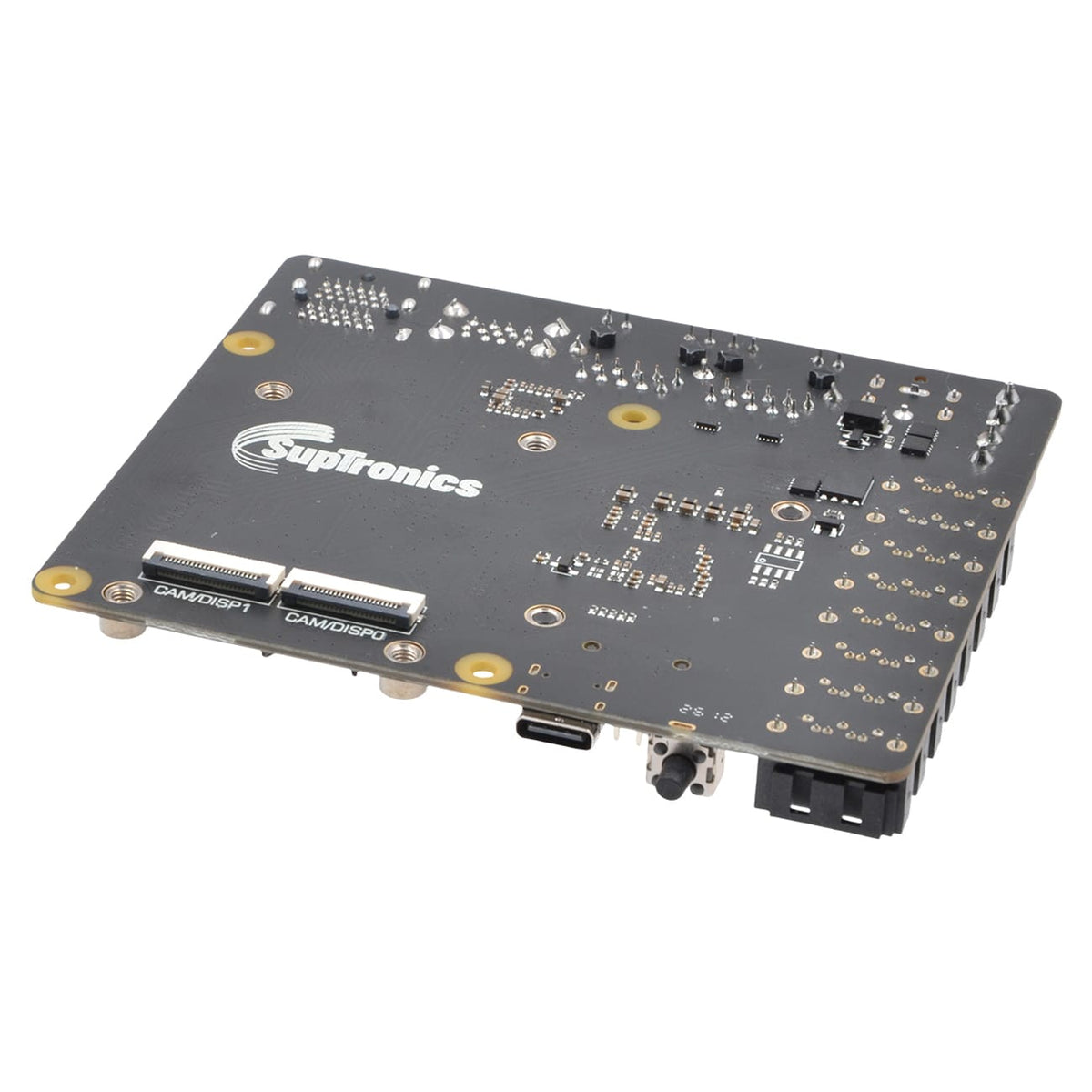

Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.
Functional Header: I/O ports, external power button, and 12V PWM fan - DIY your perfect case and cooling

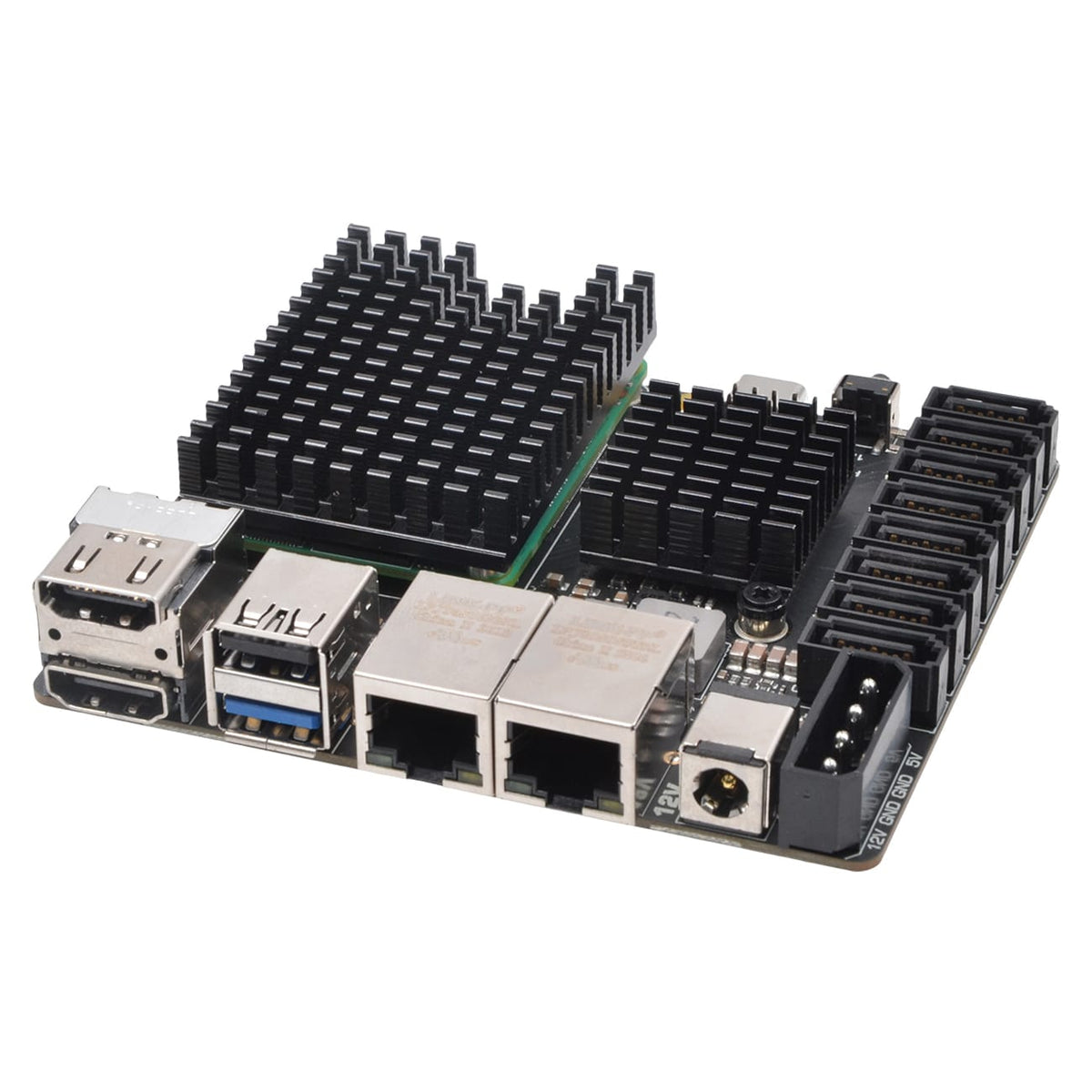

Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.
Tested and supported operating systems: Raspberry Pi OS (64-bit), OpenMediaVault (OMV)

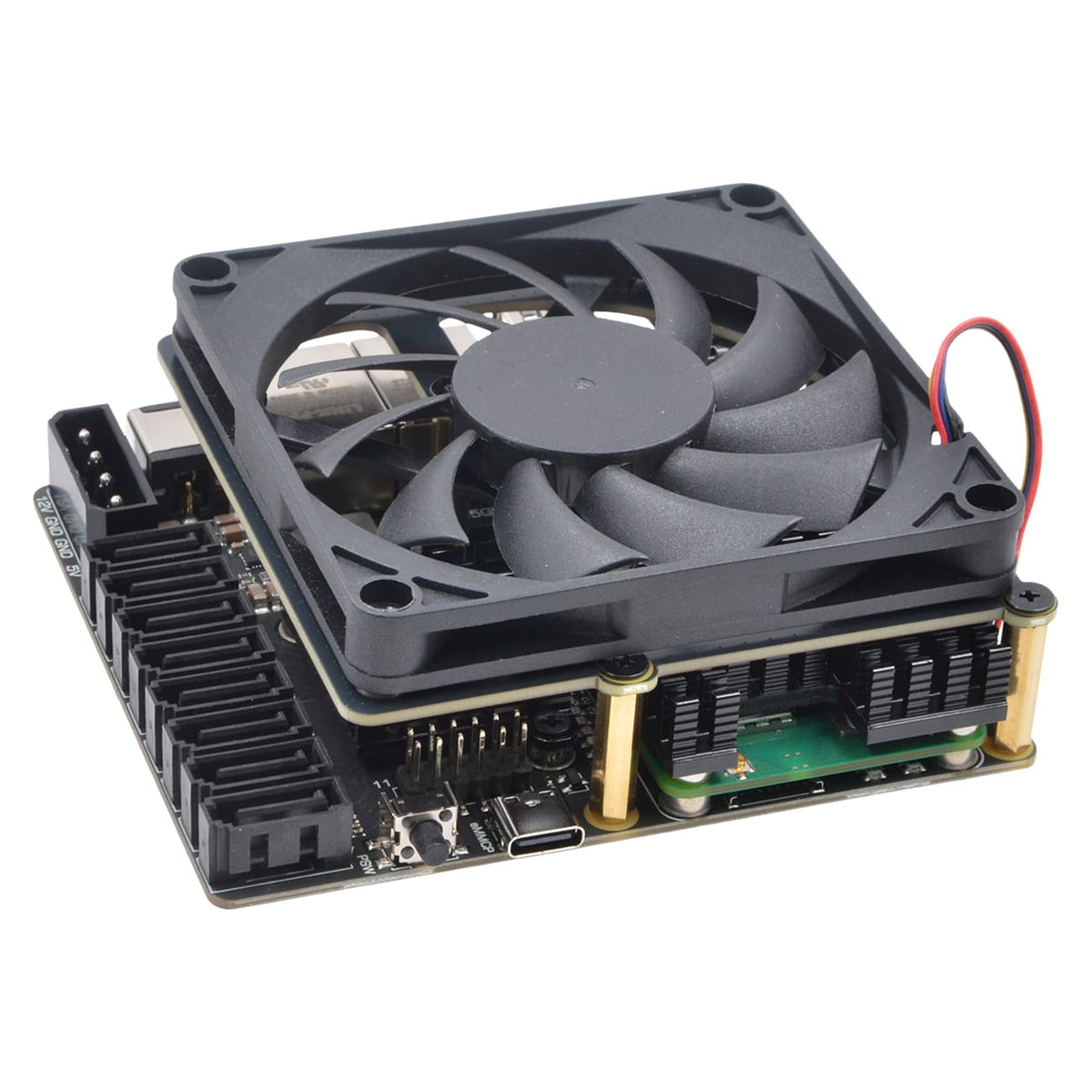

Compatible Accessories: PA12V10A power adapter, X15-F10 8010 PWM-controlled fan
Specifications
Power input:
12Vdc ± 5% (Warning: Over-voltage will damage your HDDs!) Iutput Ripple & Noise: 200mVp-p Max Recommended power supply via DC jack: 8 x SATA 2.5" HDD/SSD : 12V 10A adapter 4 x SATA 3.5" HDD : 12V 10A adapter Recommended power supply via 4-pin ATX connector: 12V 20A (Warning: Only one power source should be connected at a time.)
CM5 Power Supply:
5.1V ±5%
Connectivity:
DC power input jack (5.5x2.1mm) ATX 4-PIN power in/out connector x1 USB-C (OS image loading) USB2.0 Type-A USB3.0 Type-A 1Gigabit RJ45 Ethernet 2.5 Gigabit RJ45 Ethernet microSD card socket for Compute Module 5 Lite modules 8 x 7-PIN SATA ports 2-pin RTC battery connector 4-pin fan connector 2 x MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable) 12-pin functional header
Video:
2 x full-size HDMI 2.0 connectors Power button to wake and shut down Compute Module 5 and SATA devices
