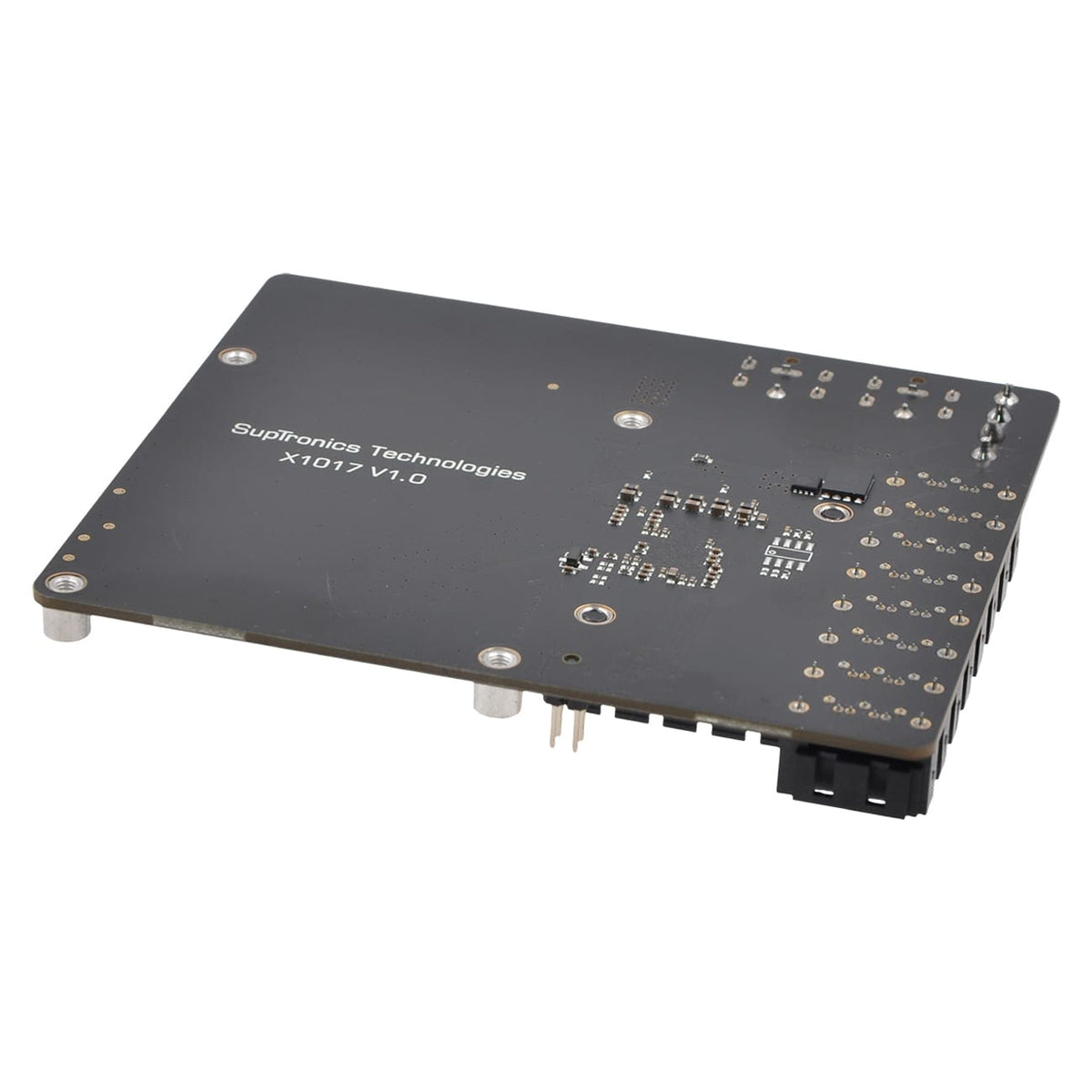

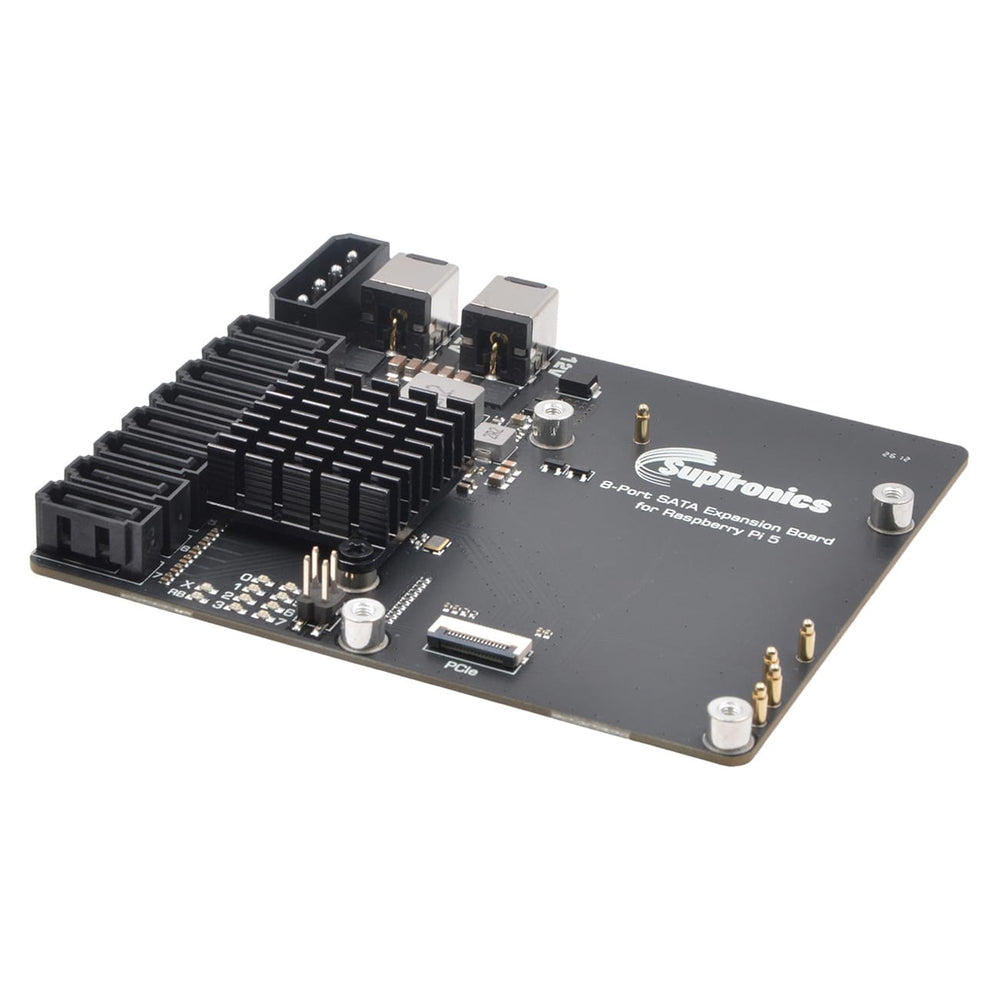

The SuptronicsX1017 is a PCIe 3.0 to eight-port SATA expansion board designed for Raspberry Pi 5. It supports simultaneous access to eight SATA 6G, 3G or 1.5G drives, with transfer speeds of up to 5Gbps and a total storage capacity of up to 176TB, based on eight 22TB drives. Individual LED indicators show the status of each connected drive.

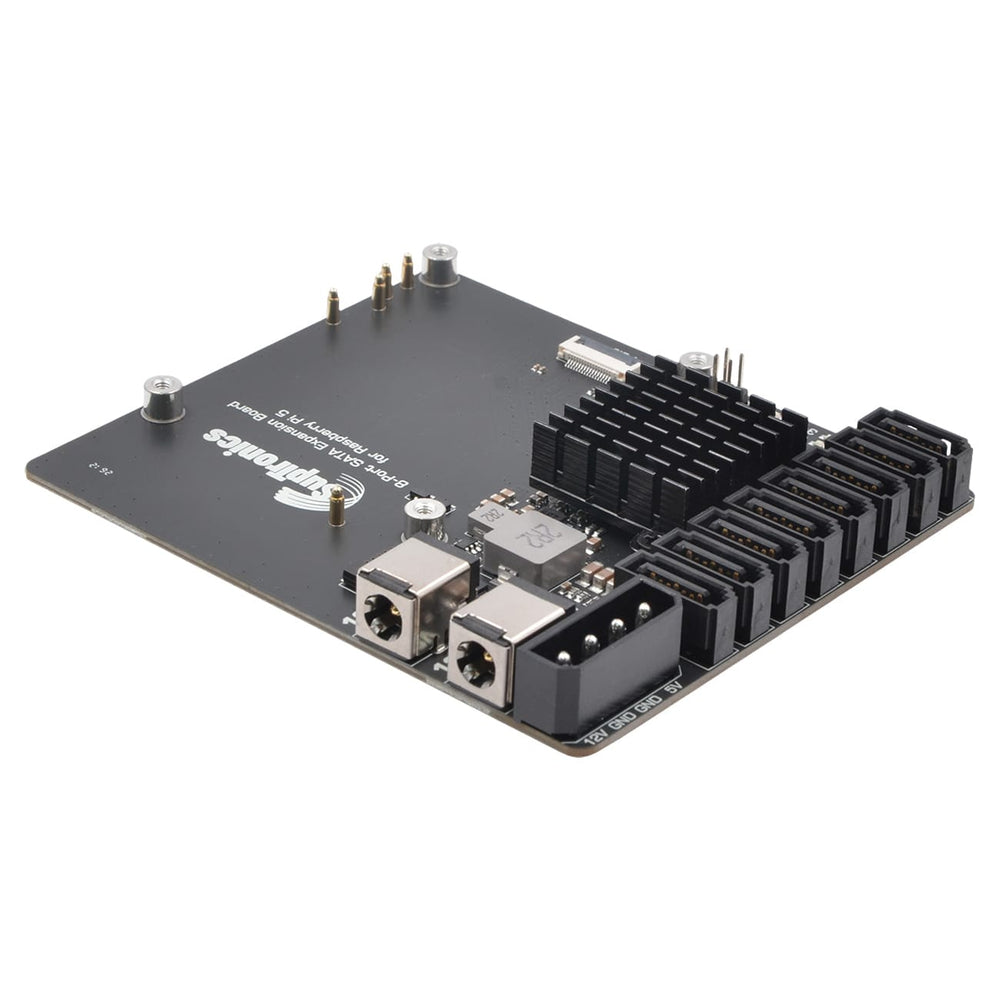

The board accepts 12V power through two DC jacks or a 4-pin ATX connector. Its DC/DC converter provides up to 12A to power the Raspberry Pi 5 and connected SATA drives from a single supply, while pogo pins deliver power directly to the Pi. When a DC jack is used, power to the SATA drives is automatically cut when the Pi shuts down. This function is not supported when using the ATX connector. An eight-drive SATA powersplitter cable is included.

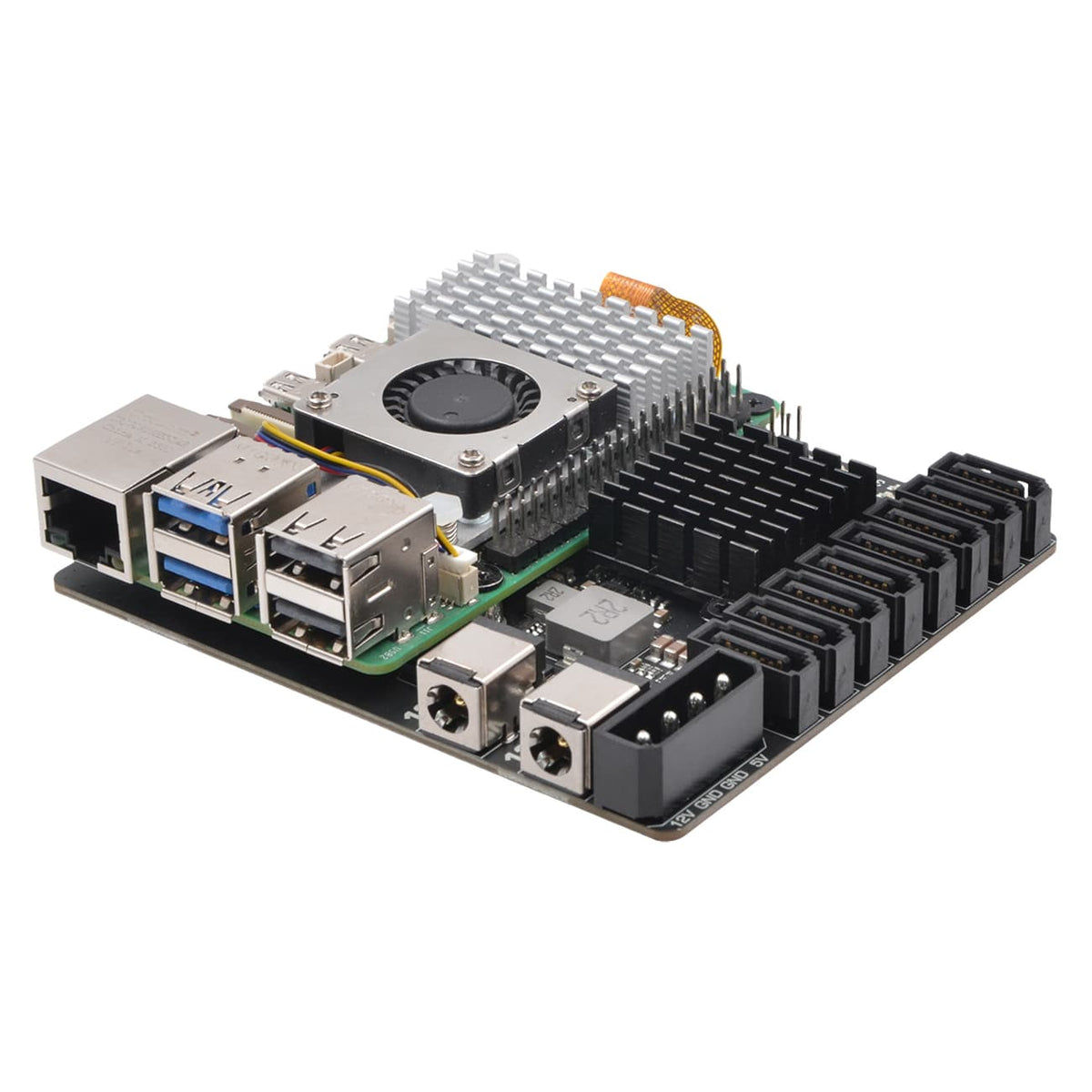

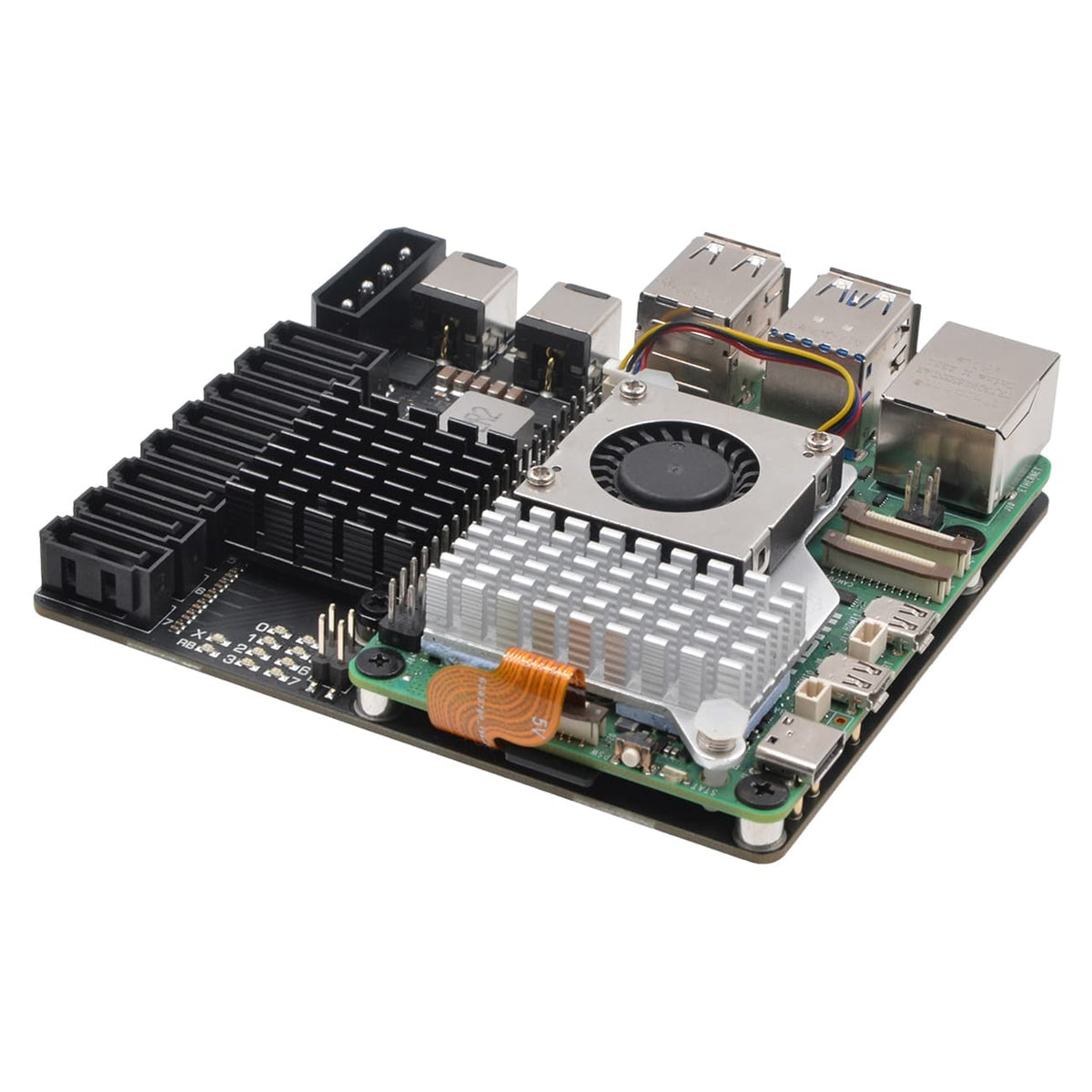

The X1017 mounts beneath the Raspberry Pi 5, leaving space above for a HAT. It also includes headers for an external power button and a 12V PWM fan (not included). The board has been tested with Raspberry Pi OS 64-bit and OpenMediaVault, making it suitable for NAS systems, home media servers and CCTV storage.
SSD/HDD, Raspberry Pi, Active Cooler/fan and power supply not included.
Warning: Do not power the X1017 via the 4-pin ATX connector and the DC jack at the same time.
Features
8x SATA 3.0 Ports: Connect up to eight SATA devices simultaneously to your Raspberry Pi 5
High-Capacity Storage: Supports up to 176TB total capacity (22TB per drive).
Wide Drive Compatibility: Works with SATA 6G, 3G, and 1.5G hard drives
Multi-Speed Support: Supports communication speeds of 5.0, 3.0, and 1.5 Gbit/s
Plug & Play: Simple setup with LED indicators for drive status
Flexible Power Input: Accepts 12V power via DC jack or ATX 4-pin connector
Unified Power Delivery: High-efficiency DC/DC converter delivers up to 12A to power both Pi 5 and SATA drives from a single source
Pogo Pin Power to Pi 5: Powers your Raspberry Pi 5 directly via pogo pins; no separate power supply needed
Automatic Drive Power Cut-off: Cuts power to SATA devices when Pi 5 shuts down (DC jack only; not supported with ATX 4-pin)
Splitter Cable Included: Comes with a power SATA splitter cable to support up to 8 drives
HAT-Friendly Design: Mounts on the bottom of the Pi 5, allowing you to use your favourite HATs alongside it
External Power Button Header: Easy DIY case integration

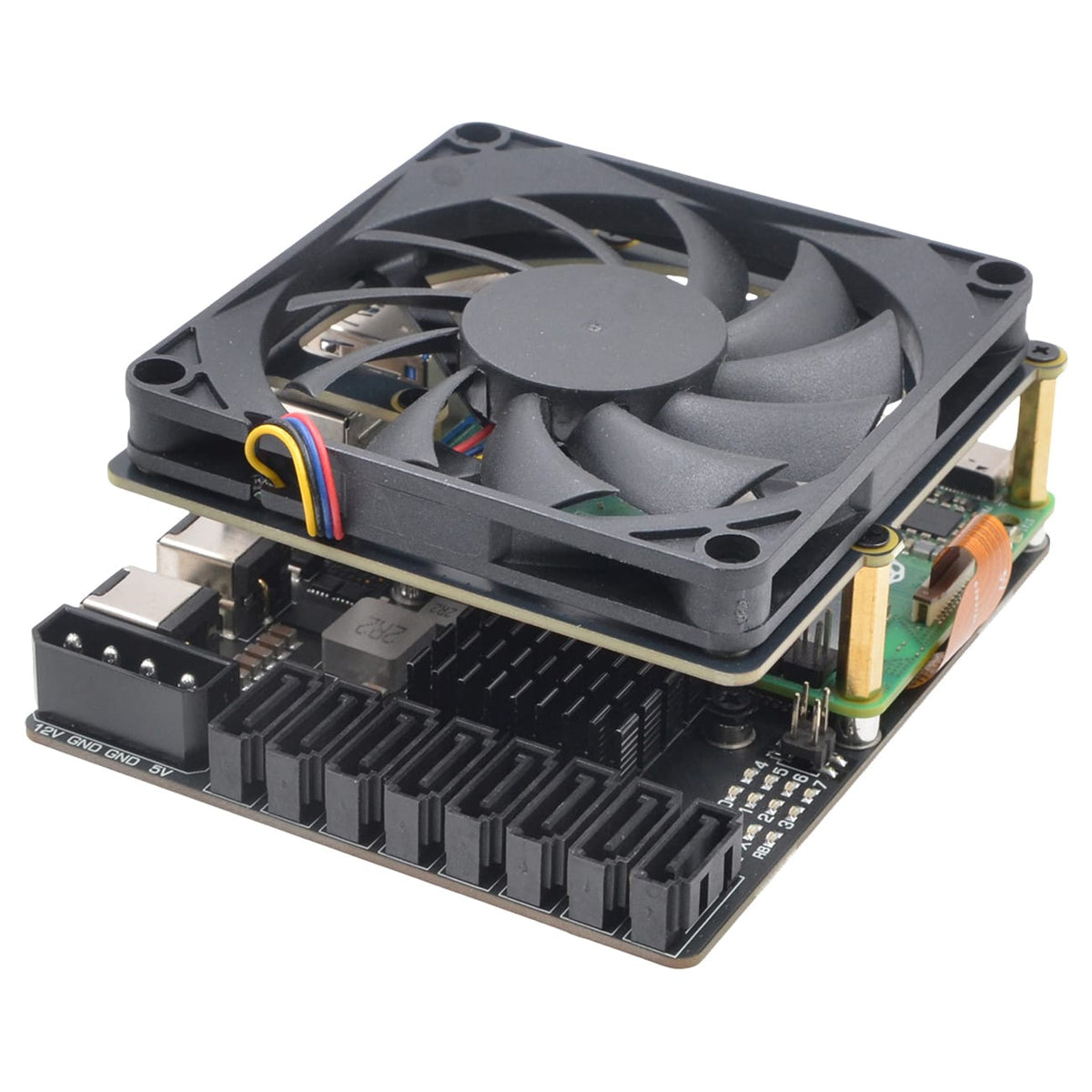

12V PWM Fan Header: Perfect for your custom cooling setup
Tested and supported operating systems: Raspberry Pi OS (64-bit), OpenMediaVault (OMV)
12Vdc ± 5% (Warning: Over-voltage will damage your HDDs!) Output Ripple & Noise: 200mVp-p Max Recommended power supply via DC jack: 8 x SATA 2.5" HDD/SSD : 12V 10A adapter x1 4 x SATA 3.5" HDD : 12V 10A adapter x1 8 x SATA 3.5" HDD : 12V 10A adapter x2 Recommended power supply via 4-pin ATX connector: 12V 20A (Warning: Only one power source should be connected at a time.)
RPi 5 Power Supply
5.1V ±5%
Ports & Connectors
DC power jack 5.5x2.1mm x2 ATX 4-PIN power in/out connector x1 PCIe connector - 16-pin pitch0.5mm 7-pin SATA data connector x8 4-pin function header x1
