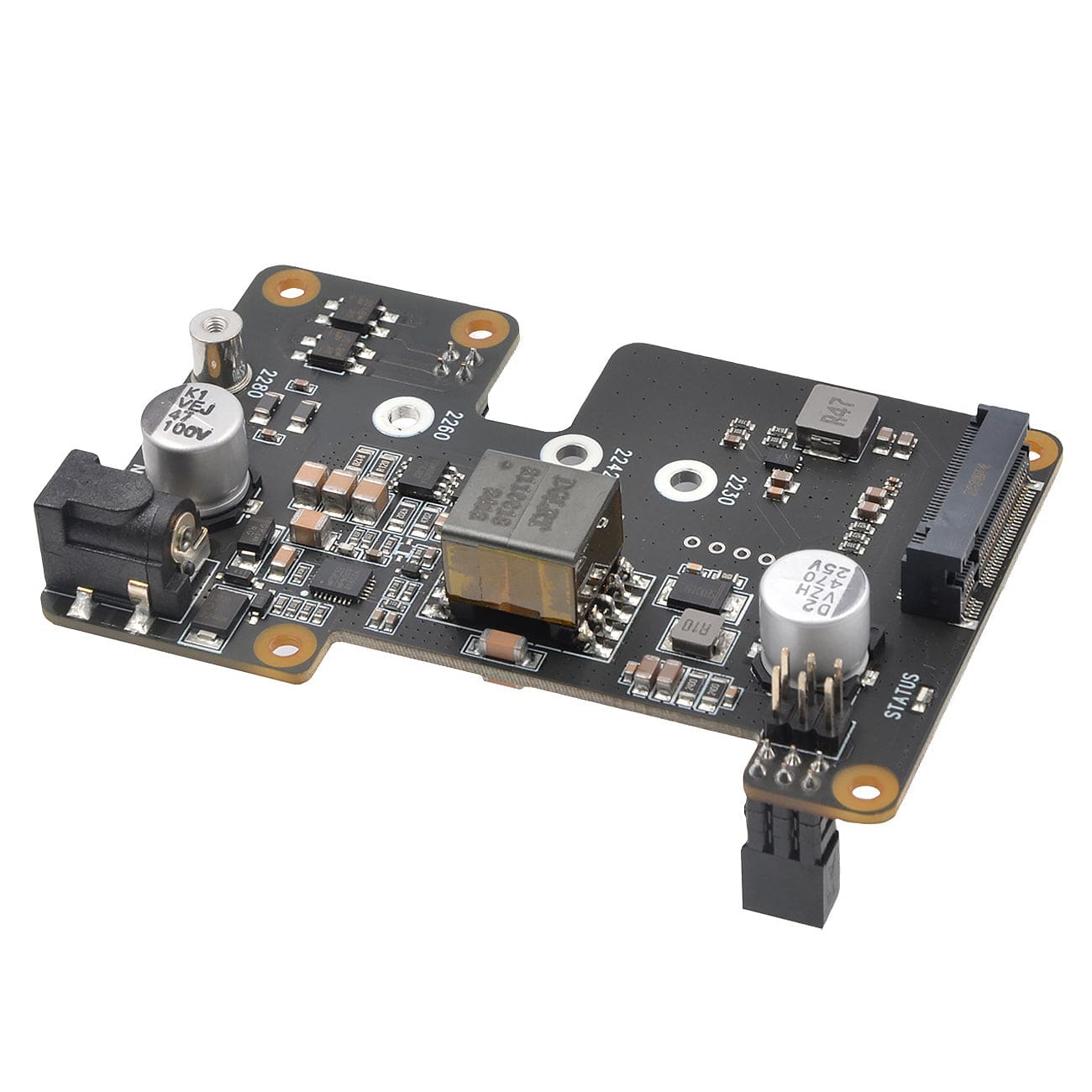

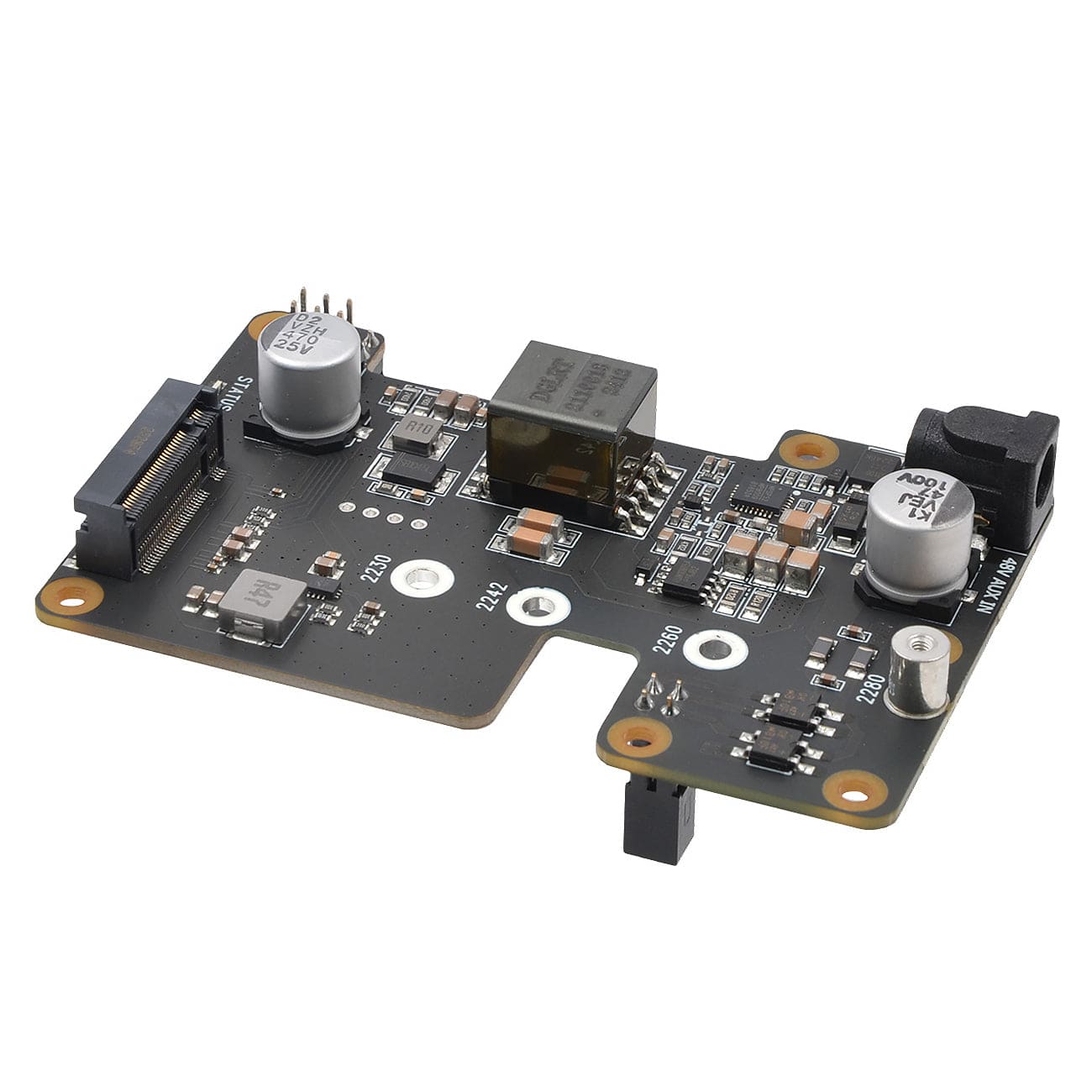

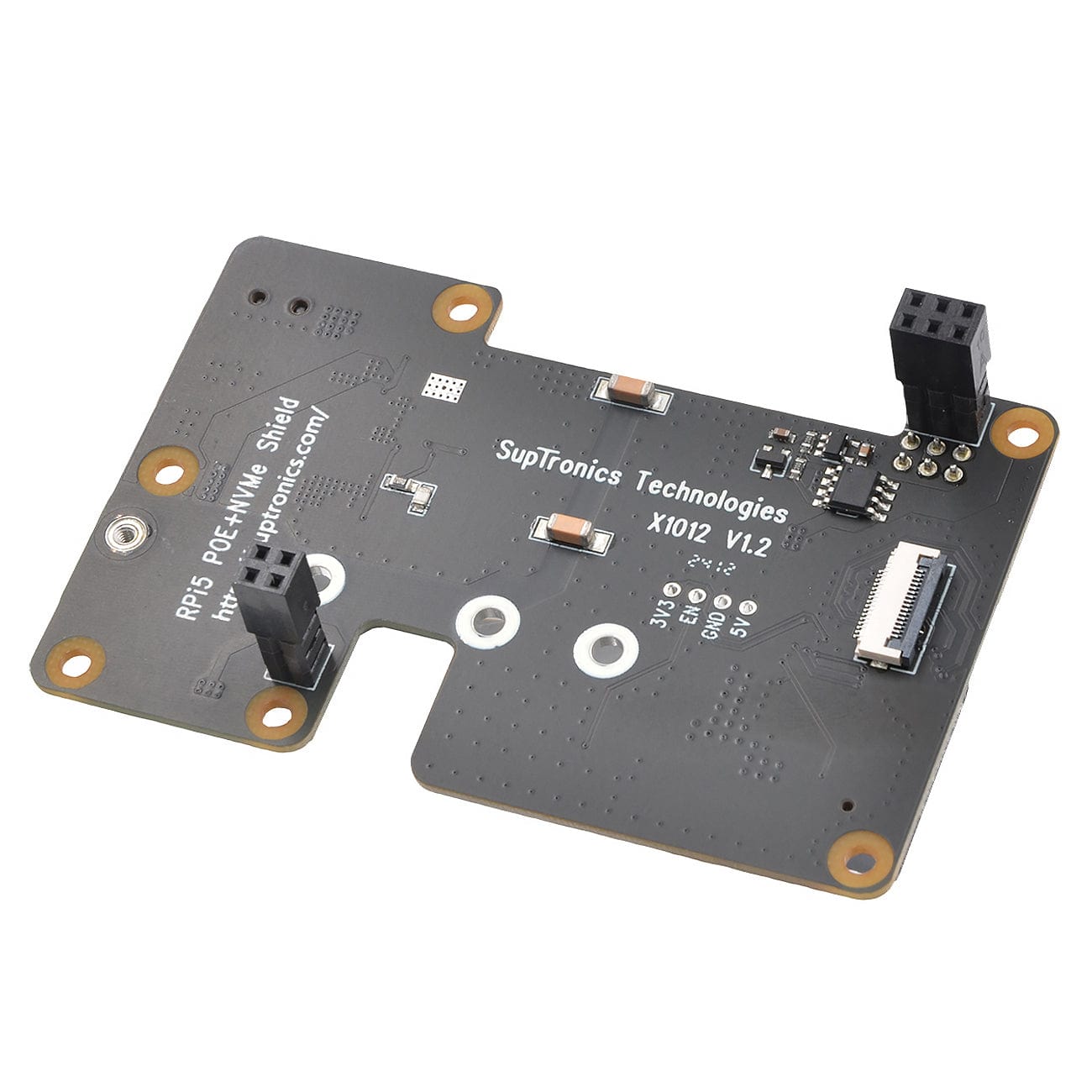

The SupTronics X1012 NVMe + PoE Add-on for Raspberry Pi 5 combines 802.3af/at PoE (5V 5A output) with support for M.2 NVMe SSDs. Combine PoE and NVMe storage in a single, compact board.
The SupTronicsX1012 NVMe + PoE Add-on is specifically designed to offer a reliable power source and enhance storage capabilities for Raspberry Pi 5.

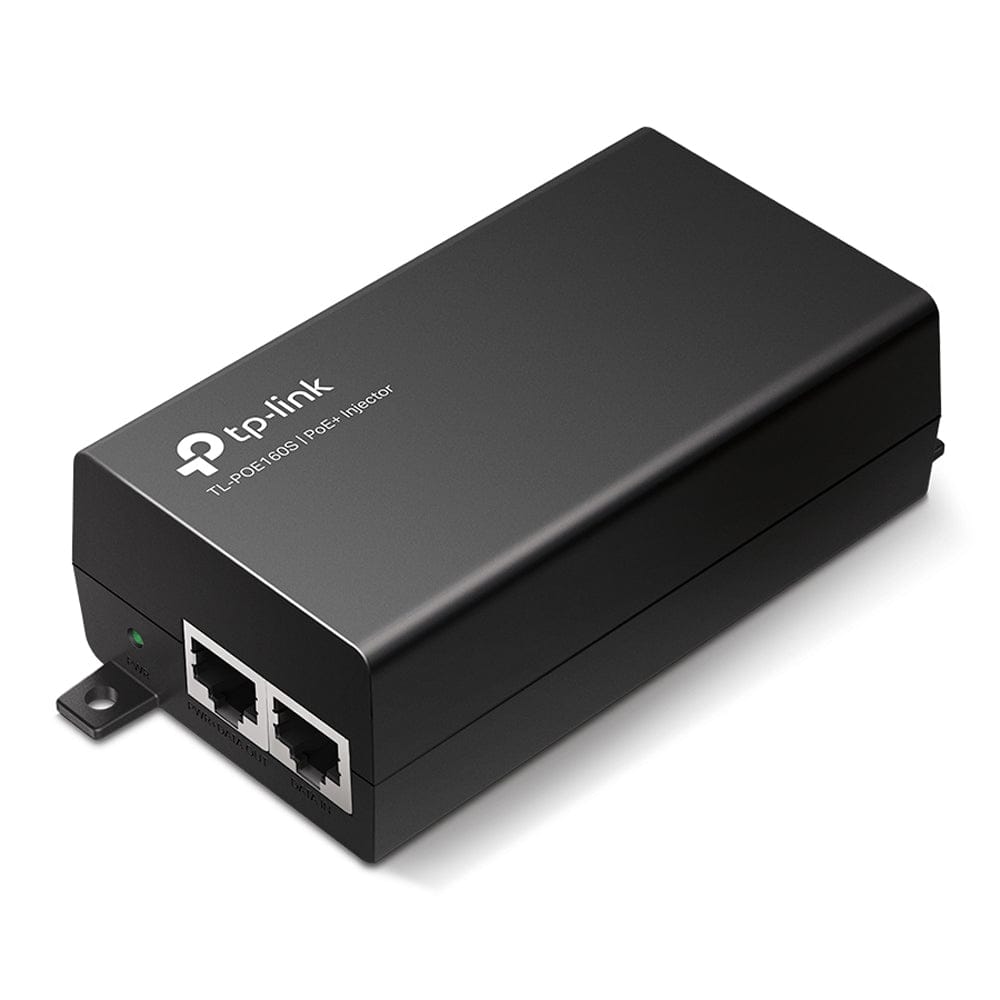

This add-on provides your Raspberry Pi 5 with 802.3af/at PoE compatibility, with an output of 5V 5A. You will need a power-injected Ethernet line, from a PoE router, switch or separate PoE injector. There is also an aux power jack for 35V-57VDC input.

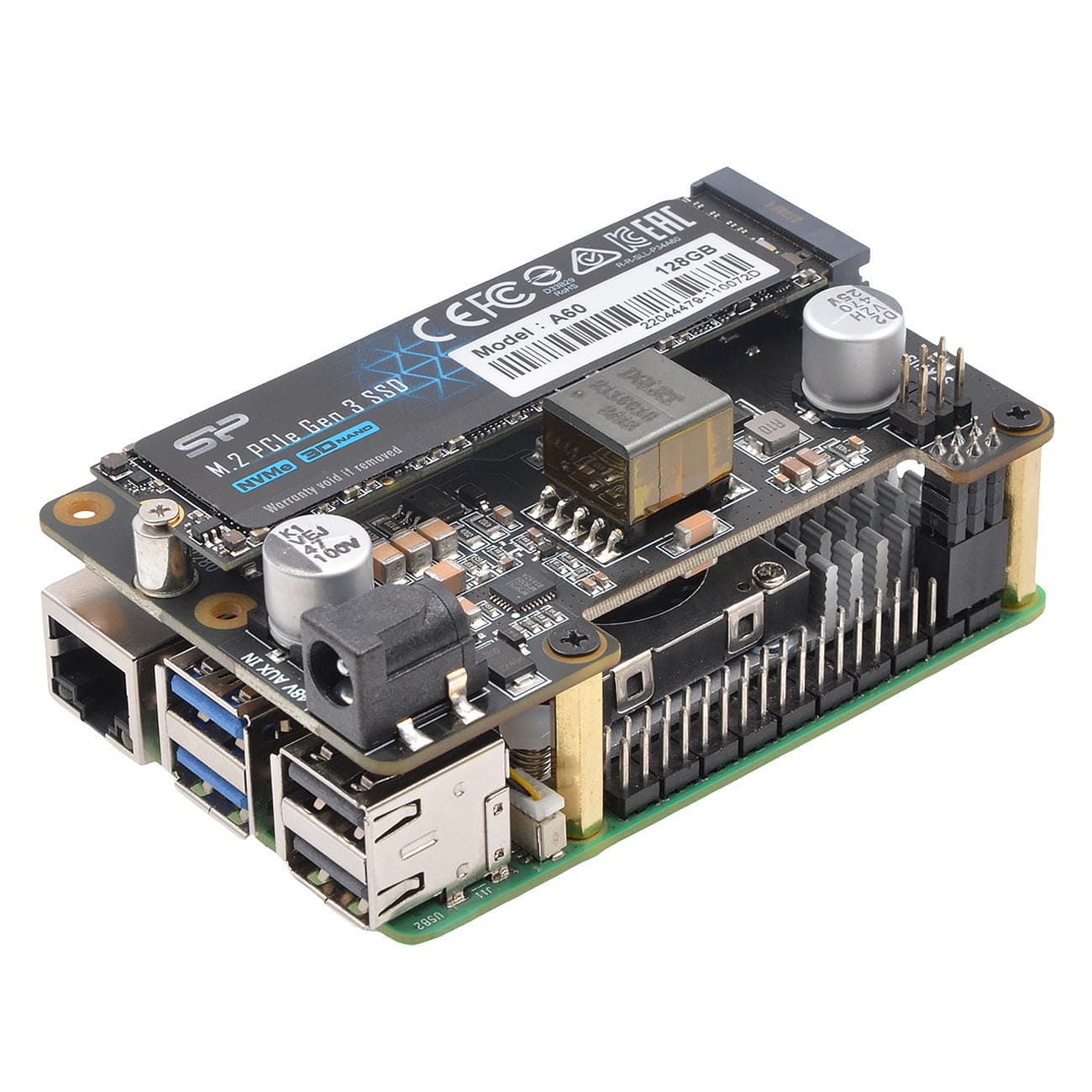

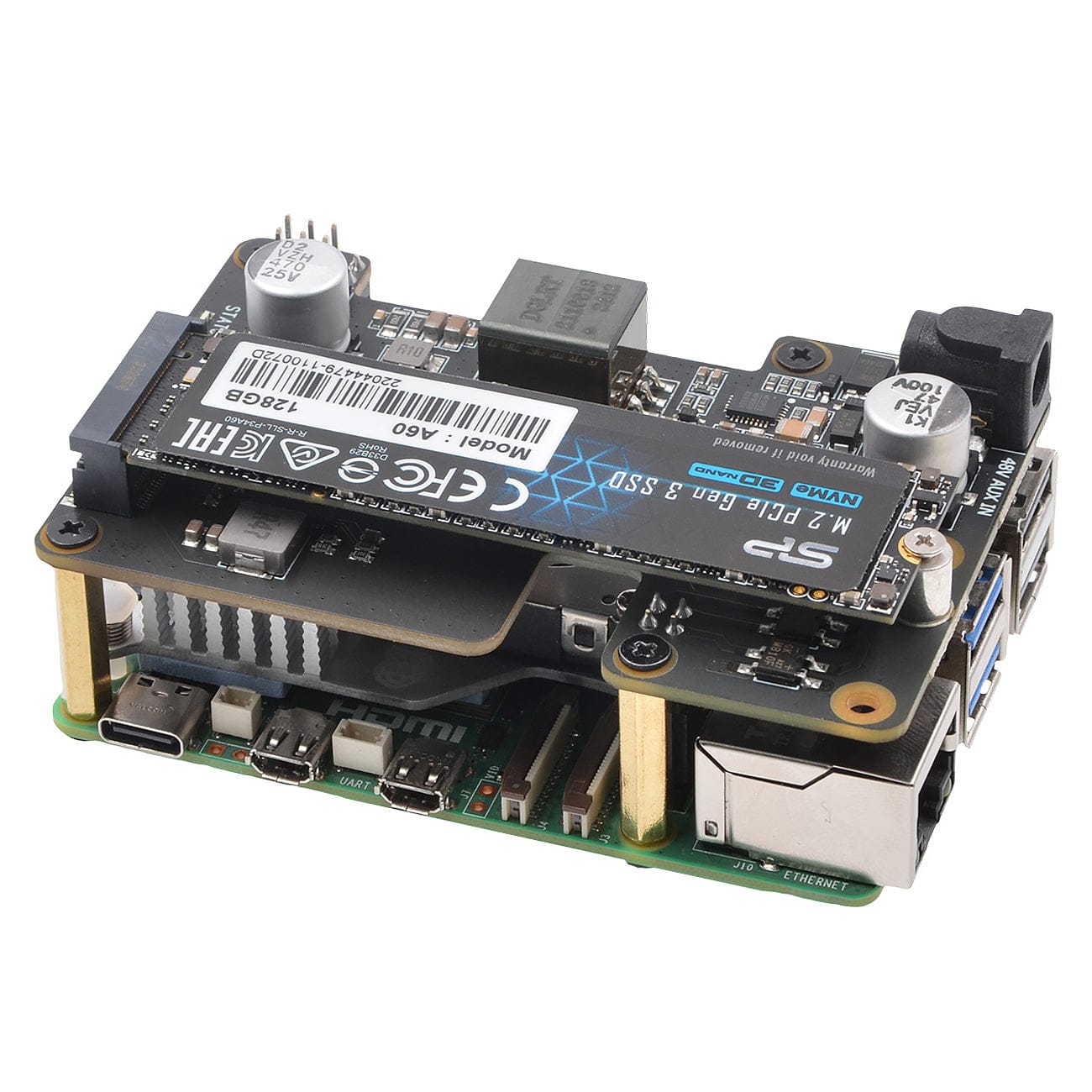

At the same time, it also provides the ability to mount an M.2 NVMe SSD for booting or storage. Despite the compact design, this add-on can accommodate various M.2 SSD lengths, including 2280, 2260, 2242, and 2230. It supports booting the operating system from your SSD, and the design is compatible with the Raspberry Pi Active Cooler.
SSD, Raspberry Pi and Active Cooler not included
Features
Compatible with Raspberry Pi 5
Optimal data storage + PoE solution for Raspberry Pi 5
PoE
Fully isolated switched-mode power supply
Compatible with 802.3af/at Specifications
Supports 48V Auxiliary Adapter Supply
Input voltage: 37–57V DC, Class 4 device
Output power: 5VDC / 5A
NVMe
Supports high-capacity M.2 NVMe solid-state drives up to 4TB
Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
Supports operating system booting from your SSD
Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps
Compatible with the Raspberry Pi Active Cooler

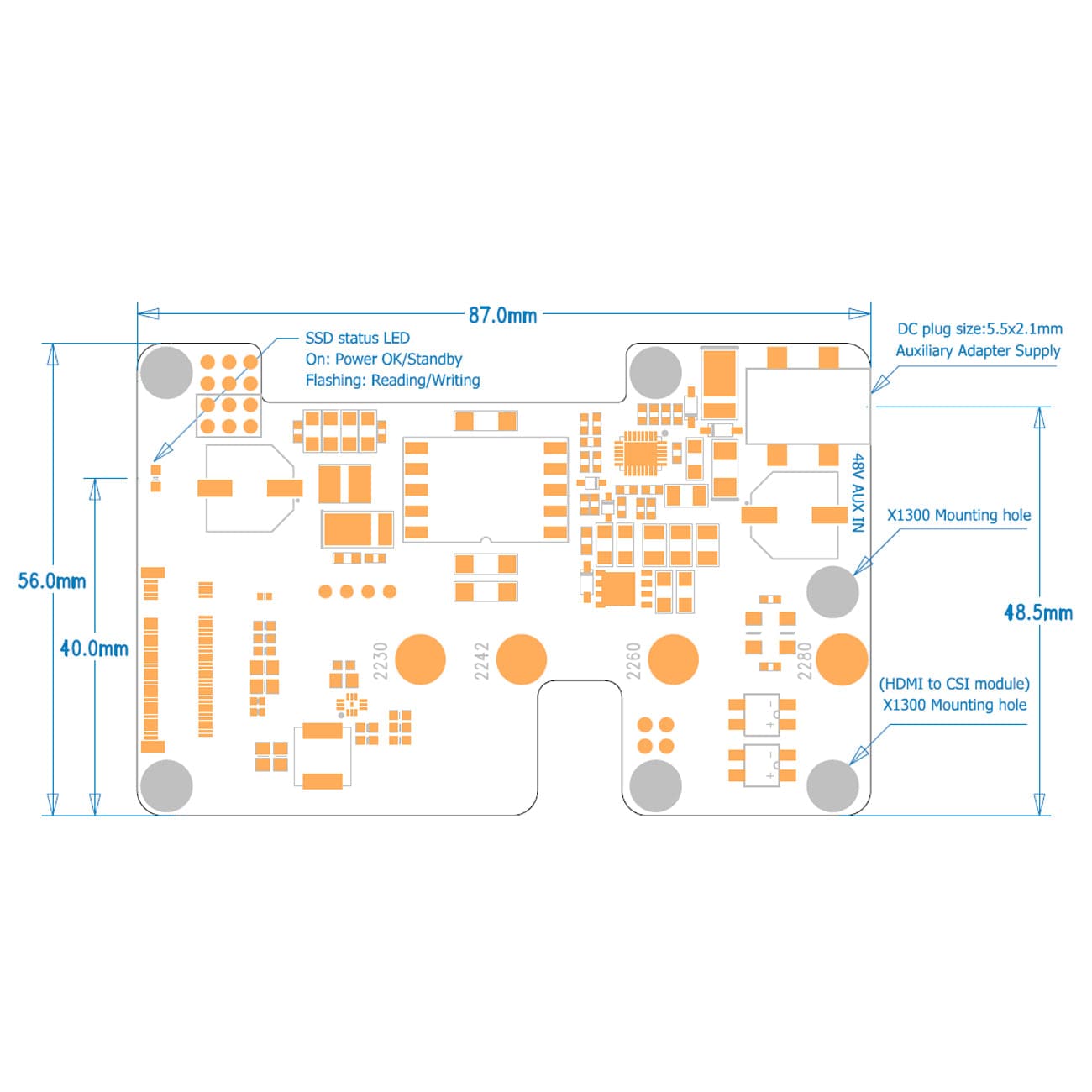

Blue LED indicator displays power and drive status
High-efficiency DC/DC step-down converter, providing up to 6A of power for your SSD
Specifications
Power supply
35–57VDC powering over Ethernet or 40–57VDC via auxiliary power jack
We recommend refraining from using the following NVMe SSD drives, which are equipped with a Phison controller due to their proven incompatibility:
WD Blue SN550/SN580 series
WD Green SN350 series
WD Black SN850 series
Other NVMe SSD drivers equipped with the same Phison controller
These specific models have demonstrated compatibility issues, and it is advisable to avoid them when considering NVMe SSD options for X10xx series NVMe add-ons. By steering clear of these drives, users can ensure a smoother and more reliable experience with their storage solutions.
A few other notes re SSD compatibility:
Compatible with M.2 NVMe SSDs
Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
Older NVMe drives with less efficient flash media may not perform as well as newer drives
New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they can be accessed in the Explorer
Package Contents
1x SupTronics X1012 NVMe + PoE Add-on for Raspberry Pi 5
1x 30mm PCIe cable
1x Screw pack
SSD, Raspberry Pi and Active Cooler not included
