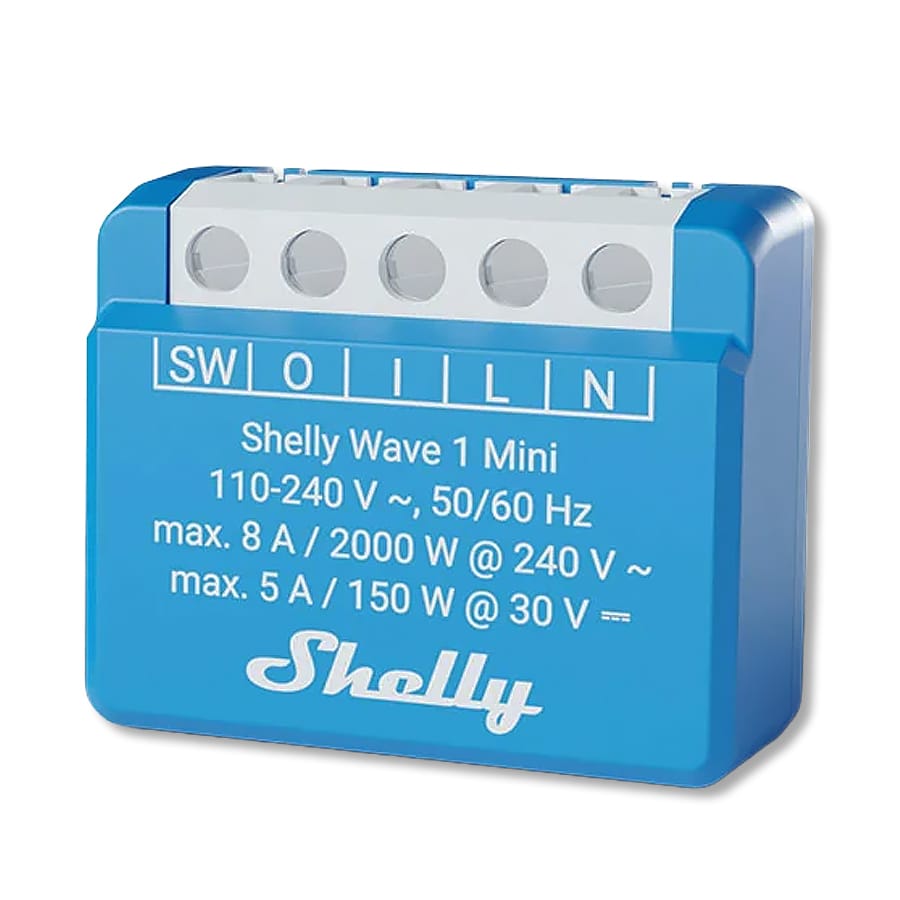

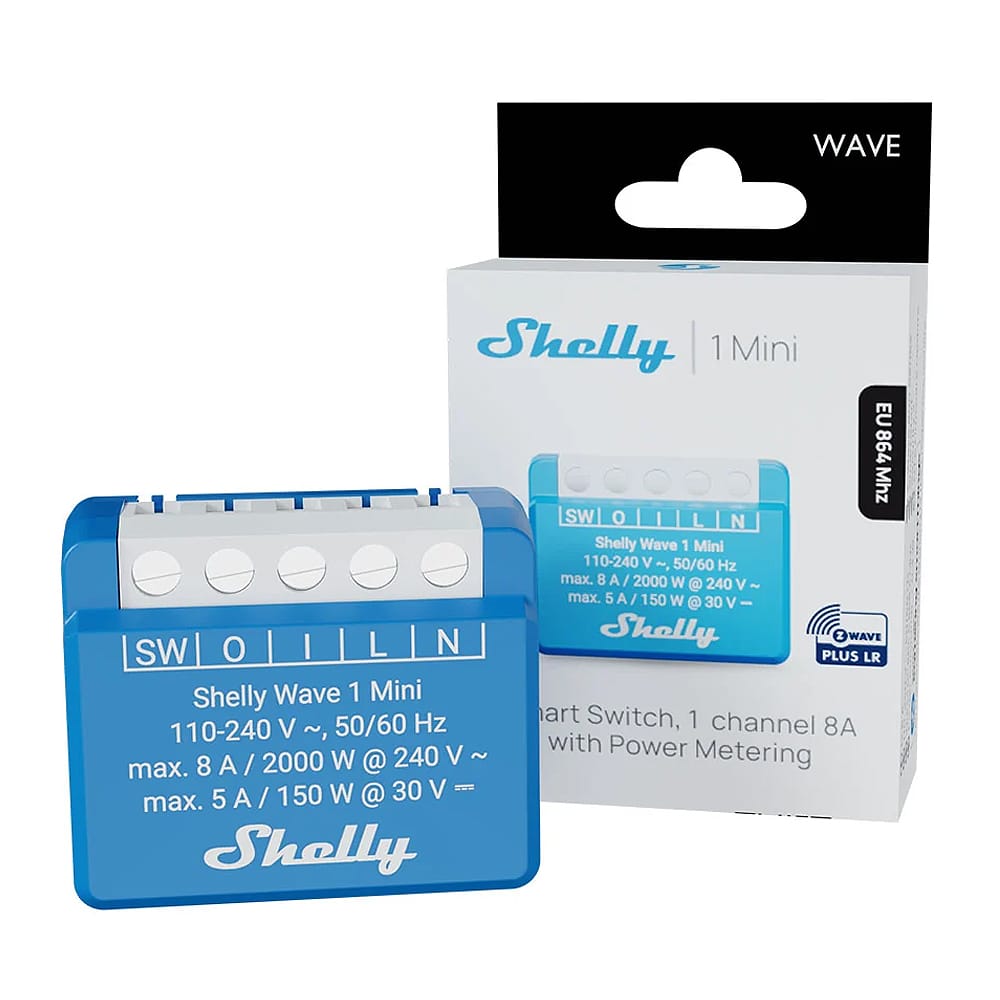

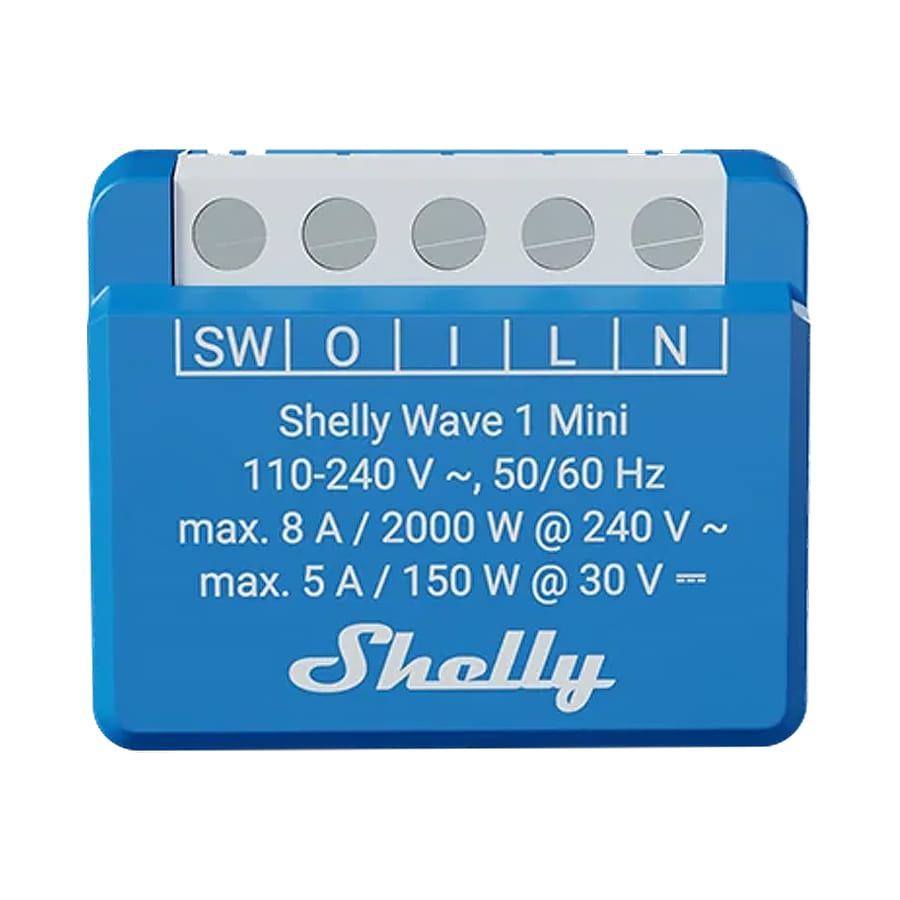

The ShellyWave 1 Mini LR is a compact, secure, energy-efficient Z-Wave smart dry-contact switch compatible with all certified Z-Wave gateways - and now fully supports Z-Wave Long Range (ZWLR) for extended coverage and reliability.
A perfect fit for even the smallest switch boxes and/or appliances, and still able to switch loads up to 8A 240V AC or 5A 30V DC. Easily connect various power supply loads, including gates, garage doors, lights, and irrigation systems. Thanks to its extended-range LR capabilities, your device can now communicate with the hub from over 1km away (line of sight) - perfect for large properties!
Once installed, include it in yourZ-Wavenetwork (Z-Wave gatewayis required) and control connected appliances with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note: You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
Highlights
Z-Wave operated: include the device to your Z-Wave network and control it remotely.
Z-Wave Long Range: the range of the device is exceeding 1 km (line of sight). ZWLR works as a star network.
Dry Contacts: connect different power supply loads (up to 8 A) to the device.
Wide range of voltage support: Shelly Wave i4 DC can be powered by 5–24 DC.
Custom schedules: Create personalized schedules aligned with your daily routine or synchronize with sunrise/sunset to manage your lighting (gateway required).
Smart scenes: set custom scenes by combining the device with any other Z-Wave devices (gateway required).
Works with all certified Z-Wave Gateways
Once installed, include it in your Z-Wave network (Z-Wave gatewayis required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as theHome Assistant ZWA-2.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub.For more information, please visit the official Z-Wave website:www. z-wavealliance.org
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
Supports up to 8A at 240VAC and 5A at 30VDC
Dry contacts (potential-free)
Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 km (line of sight)
Dual Z-Wave frequency options: choose between 864 MHz (ZWLR) or 868.4 MHz ( Z-Wave Plus)
Latest technology: Z-Wave 800 Series
Energy efficient: uses only up to 0.3 W of power
Easy set up with SmartStart - just scan and go
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Fast and simple installation in most electrical boxes and behind switches
Specifications
Power supply
110 - 240 V ̴ 50/60 Hz
Power consumption
< 0,3 W
External protection
10 A, tripping characteristic B or C 6 kA interrupting rating Energy limiting class 3
Max. switching voltage AC
240 V
Max. switching current AC
8 A
Max. switching power AC
2000 W
Max. switching power DC
150 W
Max. switching voltage DC
30 V
Max. switching current DC
5 A
Power measurement [W]
No
Overheating protection
Yes
Long range network
Distance (depends on local condition)
Up to 80m indoorsor up to 1000m outdoors
Z-Wave® repeater
No
Z-Wave® frequency bands
864 MHz
Mesh network
Distance (depends on local condition)
Up to 40m indoors
Z-Wave® repeater
Yes
Z-Wave® frequency bands
868.4 MHz
CPU
Z-Wave® S800
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW

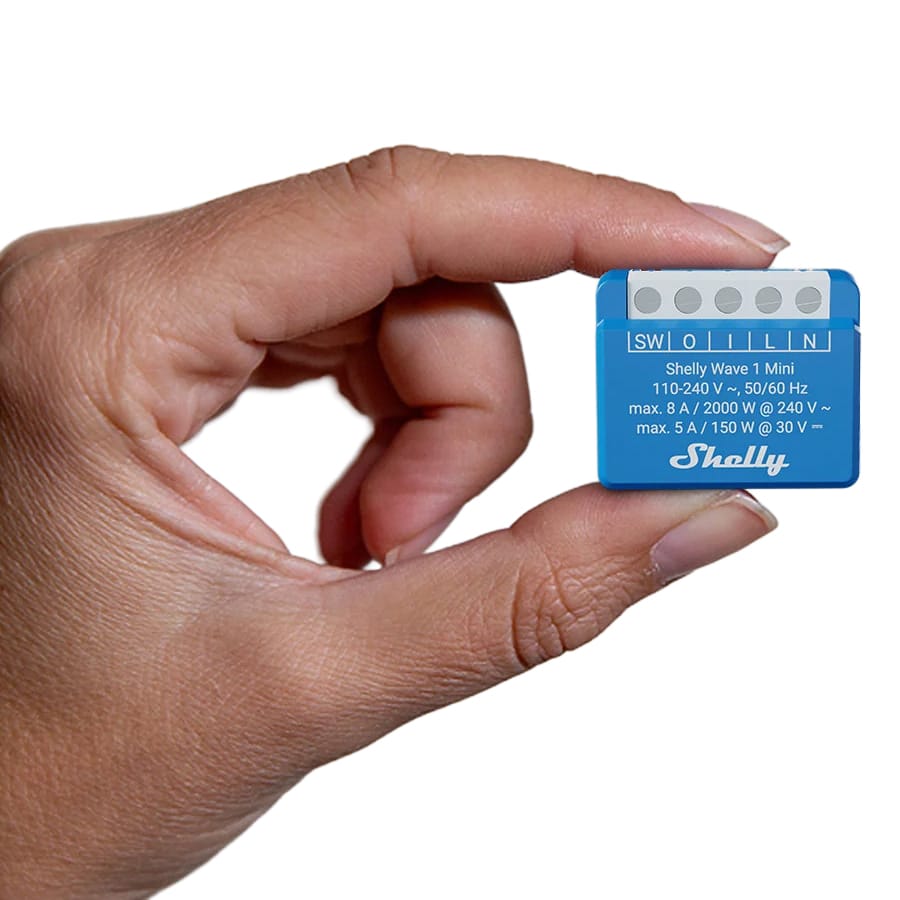

Size (H x W x D)
29x35x16 ± 0.5mm
Weight
19 ±1 g / 0.65 ± 0.04 oz
Mounting
In-wall box
Screw terminals max. torque
0.4 Nm / 3.54 lbin
Conductor cross section
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
