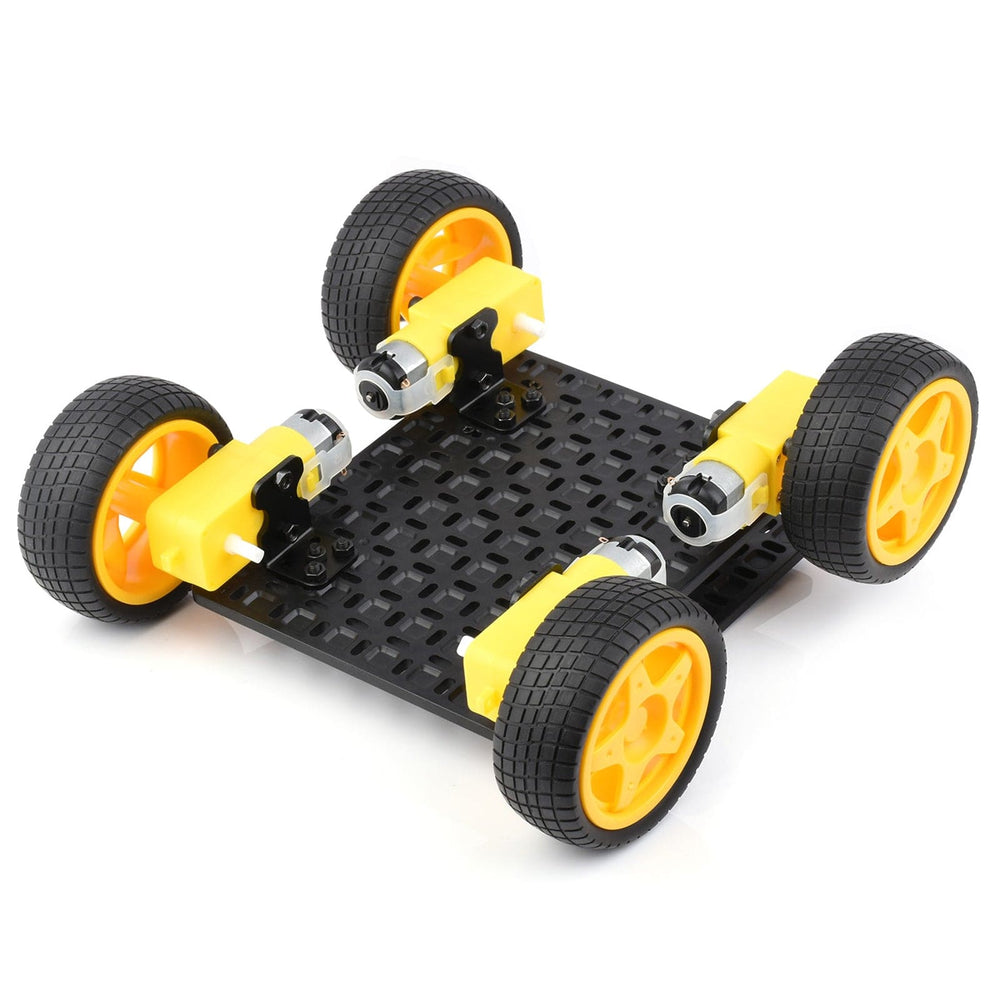

Robot Chassis Kit NS

WaveshareSKU: WAV-24417
Price:
Sale price £9.92
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £53.33 incl. VAT excl. VAT
The Pi HutCamJam EduKit 3 Motor Controller
Sale price £8.33 incl. VAT excl. VAT
CytronMaker Drive: Simplifying H-Bridge Motor Driver
Sale price £3.75 incl. VAT excl. VAT
DFRobot4xAA Battery Holder with Cover and Switch
Sale price £1 incl. VAT excl. VAT
ANSMANNX-Power 1.5V AA Alkaline Batteries (4-Pack)
Sale price £4.13 incl. VAT excl. VAT
WaveshareESP32 Robotics Driver Board
Sale price £22.50 incl. VAT excl. VAT
The Pi HutL298N Motor / Stepper Driver
Sale price £2.92 incl. VAT excl. VAT
WaveshareMotor & Servo Driver for micro:bit
Sale price £17.08 incl. VAT excl. VAT

We've got a great new range of robot chassis kits now available at The Pi Hut, with a selection of chassis materials and wheel options to choose from.

This is the most affordable NS version with normal (N) wheels and a normal (S) chassis - great as a foundation for your first robotics project with a simple, robust chassis design and grippy traditional wheels, yet with the flexibility to choose and mount your own electronics as you like. The kit even includes some basic tools to get you started!

The kit includes everything you need for the base of your robot - just add your own microcontroller, motor driver and power/batteries.

The lightweight double mounting plate chassis includes mounting holes to accommodate a wide variety of hardware to meet the differing needs of beginners, seasoned makers, robotics competition entrants and everyone in between, with a selection of standoffs to help you mount it.

The design is open source too - head to the resources section below to download design files to make your own additions (great for those with a 3D printer!).

Note: Assembly required. Chassis kit only - microcontroller, motor driver and power source not included.

Full range available

There are currently four kit versions in the range:

Features

  • Excellent starter chassis kit for robotics projects
  • Simple, robust chassis
  • Flexibility to add a range of boards and modules
  • Traditional grippy rubber wheels
  • Reliable and forgiving TT-style motors
  • Chassis material, motors, wheels, fixings and tools included
  • Add your own microcontroller, motor driver and power source
  • Open source design with files available

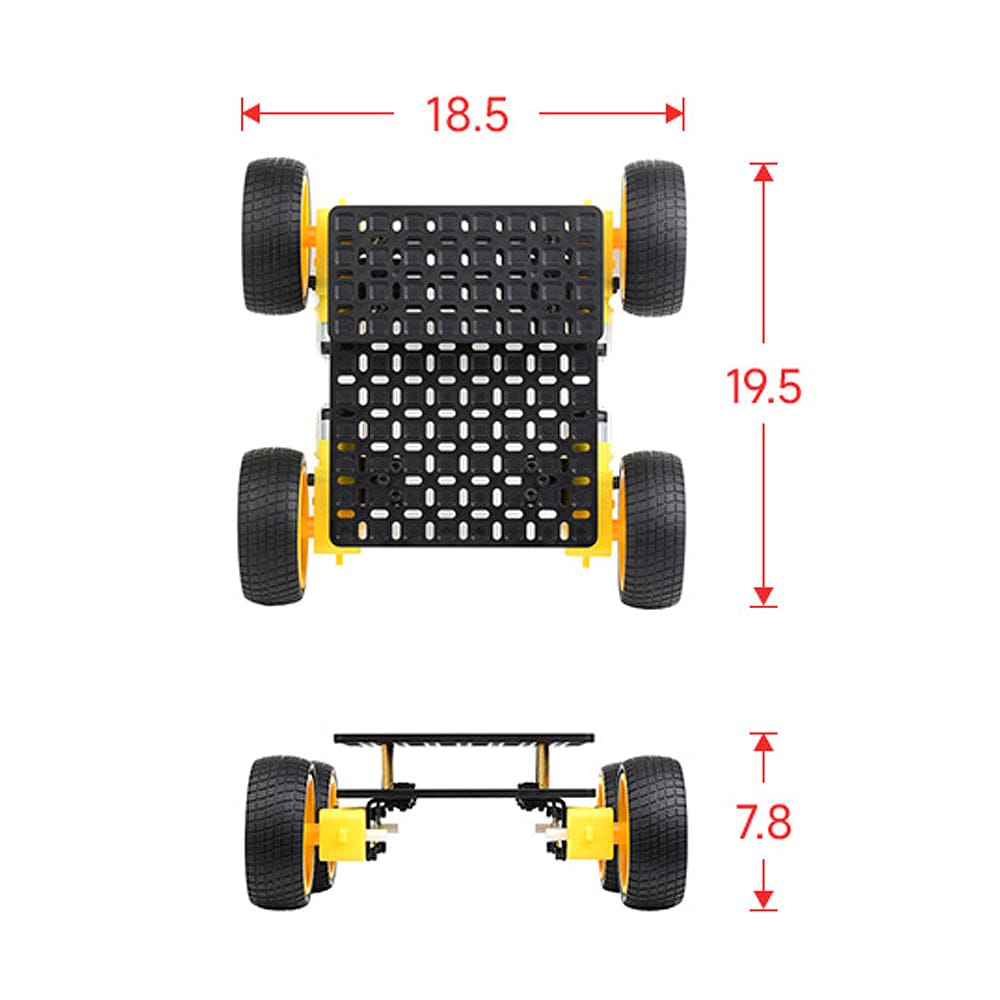

  • Constructed dimensions (LxWxH): 195mm x 185mm x 78mm

Motor Specifications

Make sure the motor driver you select for your project meets the specifications below:

  • Voltage range: 6-9V
  • RPM: 190RPM @6V
  • Current: 160MA

Assembly Guide

A step-by-step graphic tutorial is available here, or check out the video below.

The following video covers the NS and MS chassis kits (shows Mecanum wheels from the MS kit which are not included in this NS version, but the assembly process is the same):

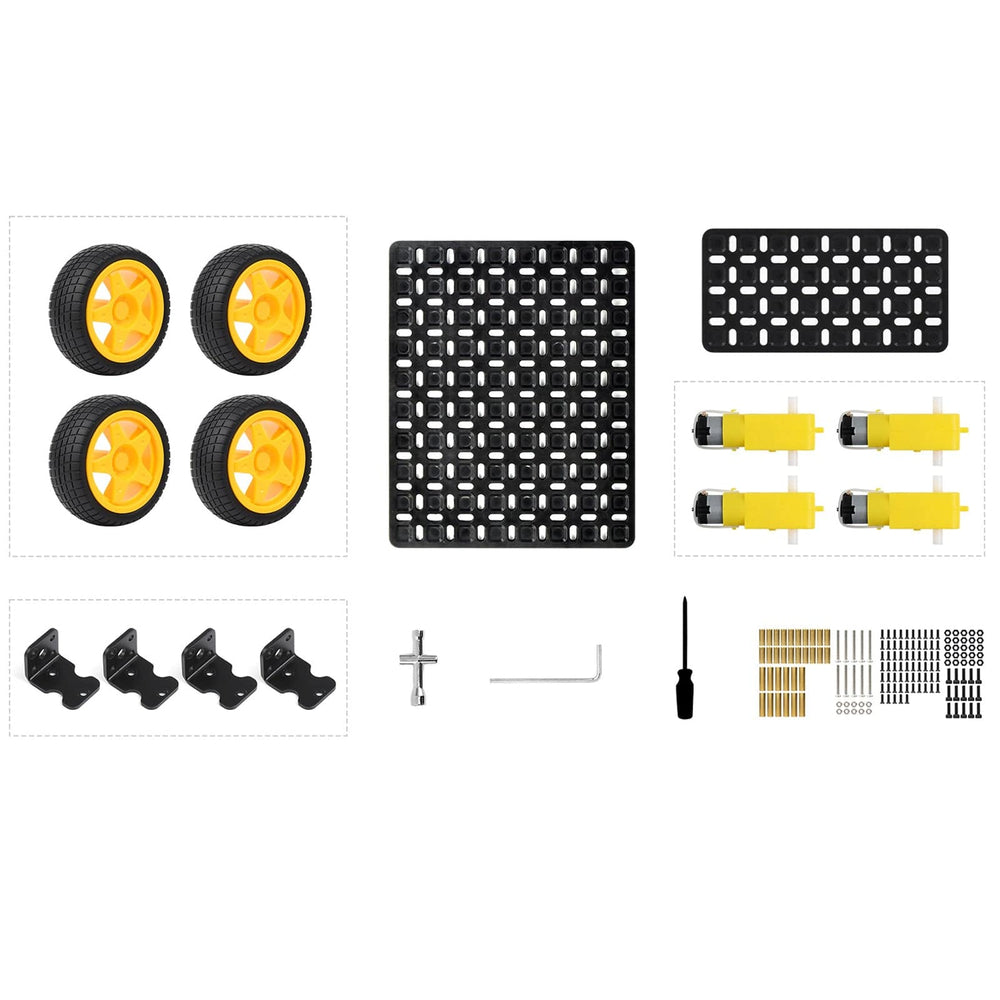

Package Contents

  • 4x Standard wheels
  • 1x Mobile robot mounting plate (large size)
  • 1x Mobile robot mounting plate (middle size)
  • 4x TT Motor
  • 4x TT motor bracket
  • 1x Mini cross wrench sleeve
  • 1x Allen wrench
  • 1x Screwdriver
  • 1x Screws pack

Chassis kit only - microcontroller, motor driver and power source not included.
