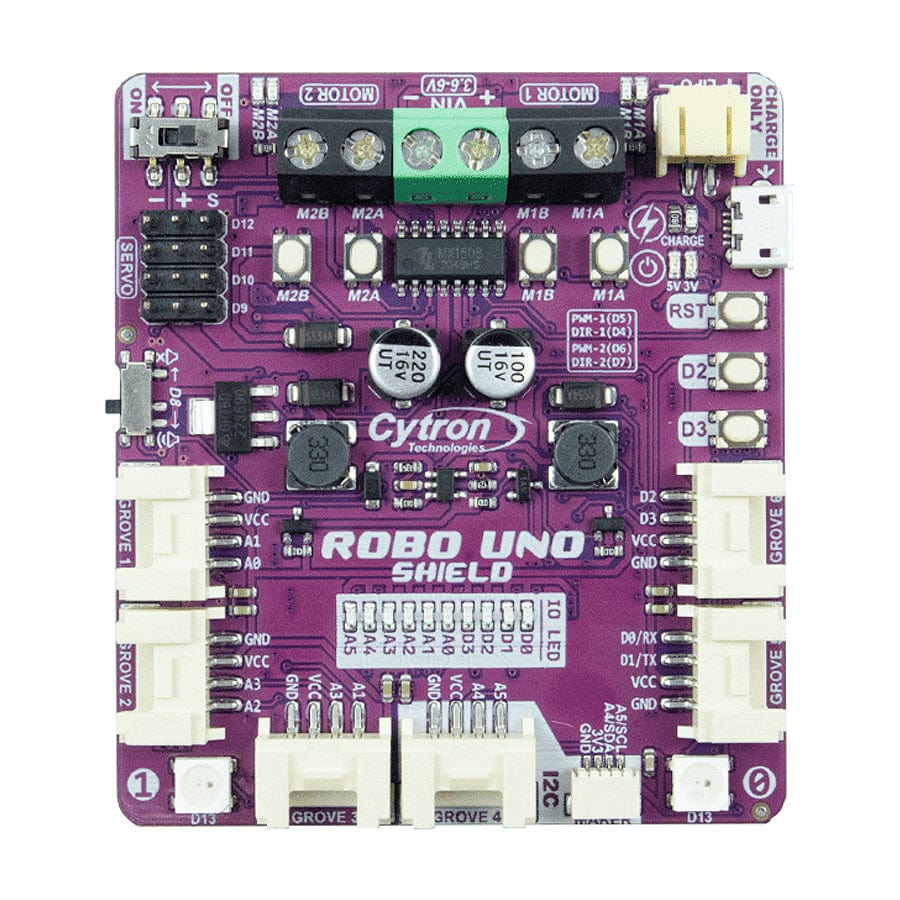

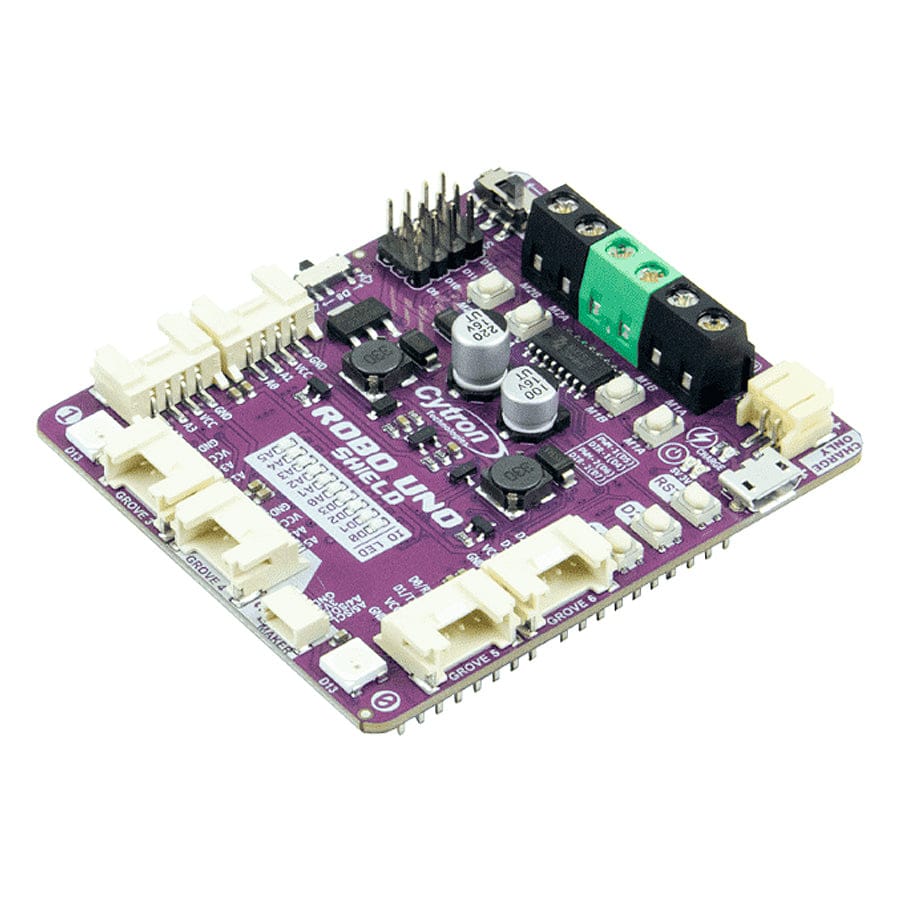

The CytronRobo UnoShield is a multifunctional robotics add-on board for the Arduino Uno and Uno-compatible boards. It simplifies motor and servo control, sensor integration and power management by reducing the need for external components or complex wiring.
Designed for educational and prototyping use, it includes dedicated ports for Grove and Qwiic/STEMMA QT, as well as built-in support for 2x DC motors and 4x servos. It also features automatic power selection, LiPo battery charging with protection, and direct compatibility with both Arduino IDE and mBlock programming platforms.
As always with Cytron's hardware - that's not all - it's packed with lots of other handy features such as IO indication LEDs, motor quick test buttons and more. Check out the video below and the features list to learn more!

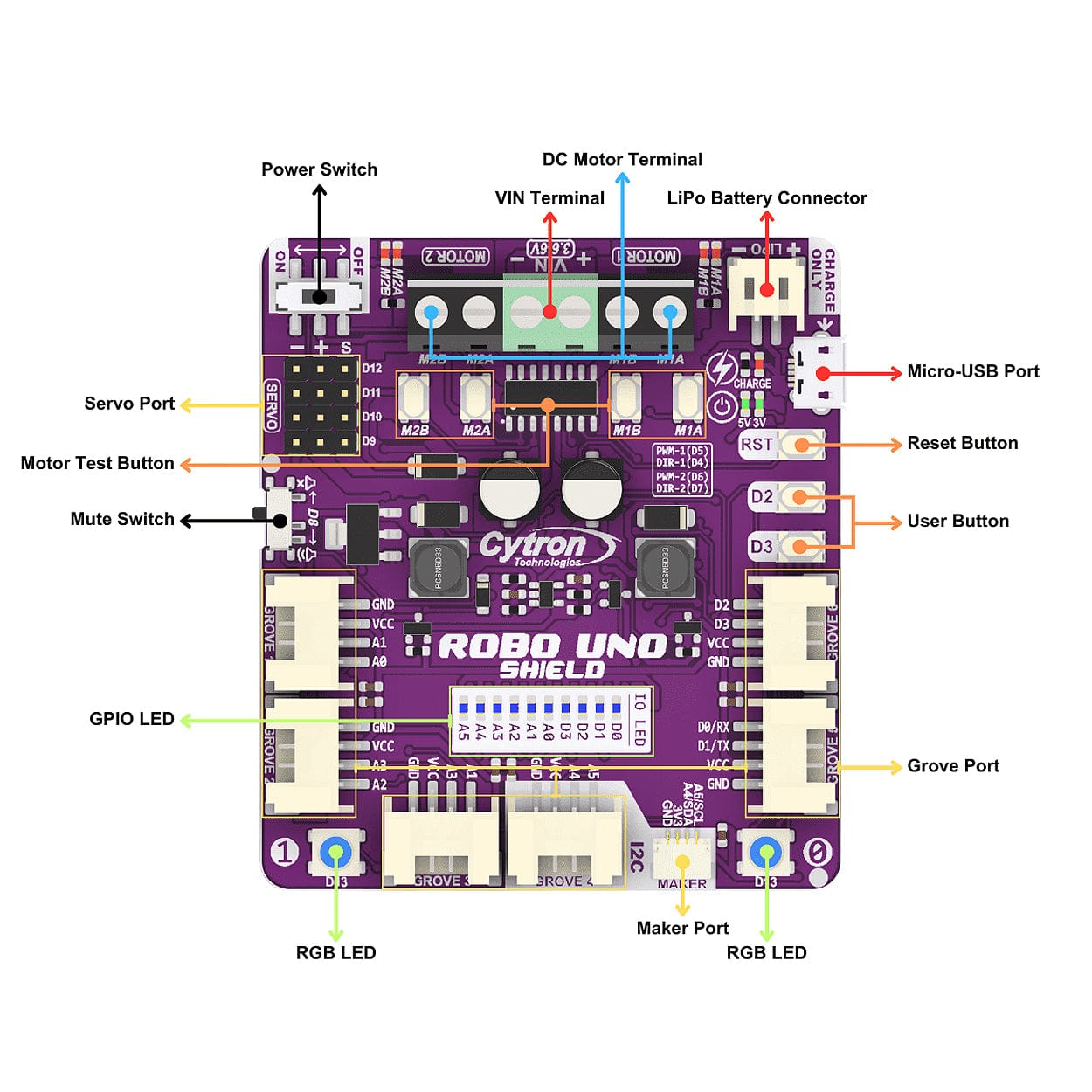

Features
Compatible with all Arduino Uno models and Uno-compatible boards
Supports 4x servos
Supports 2x DC motors
Maximum current 1.0A continuous / 1.5A peak (less than 5 seconds)

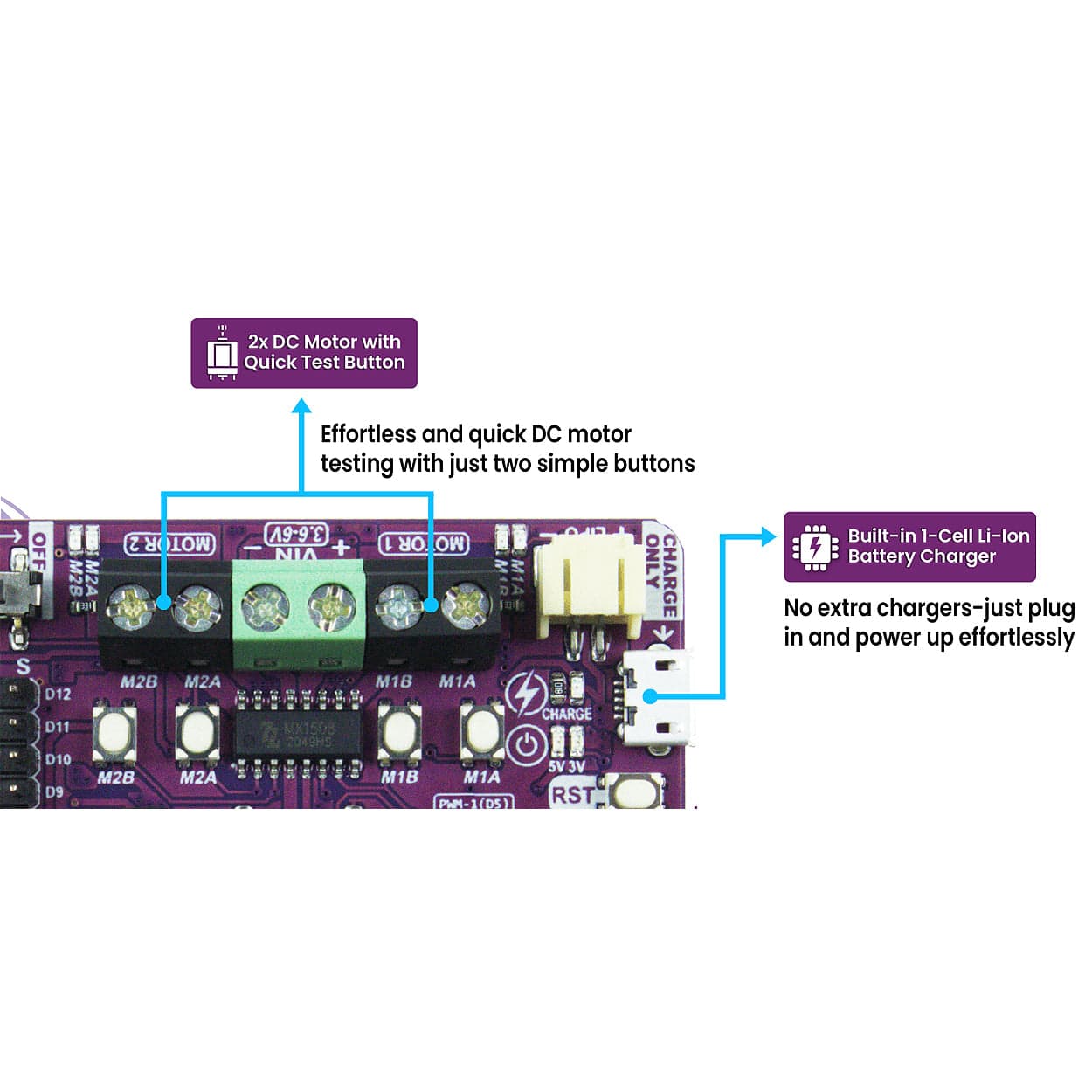

Motor quick-test buttons and indicator LEDs
Dual H-bridge motor driver with quick test buttons and LED indicators

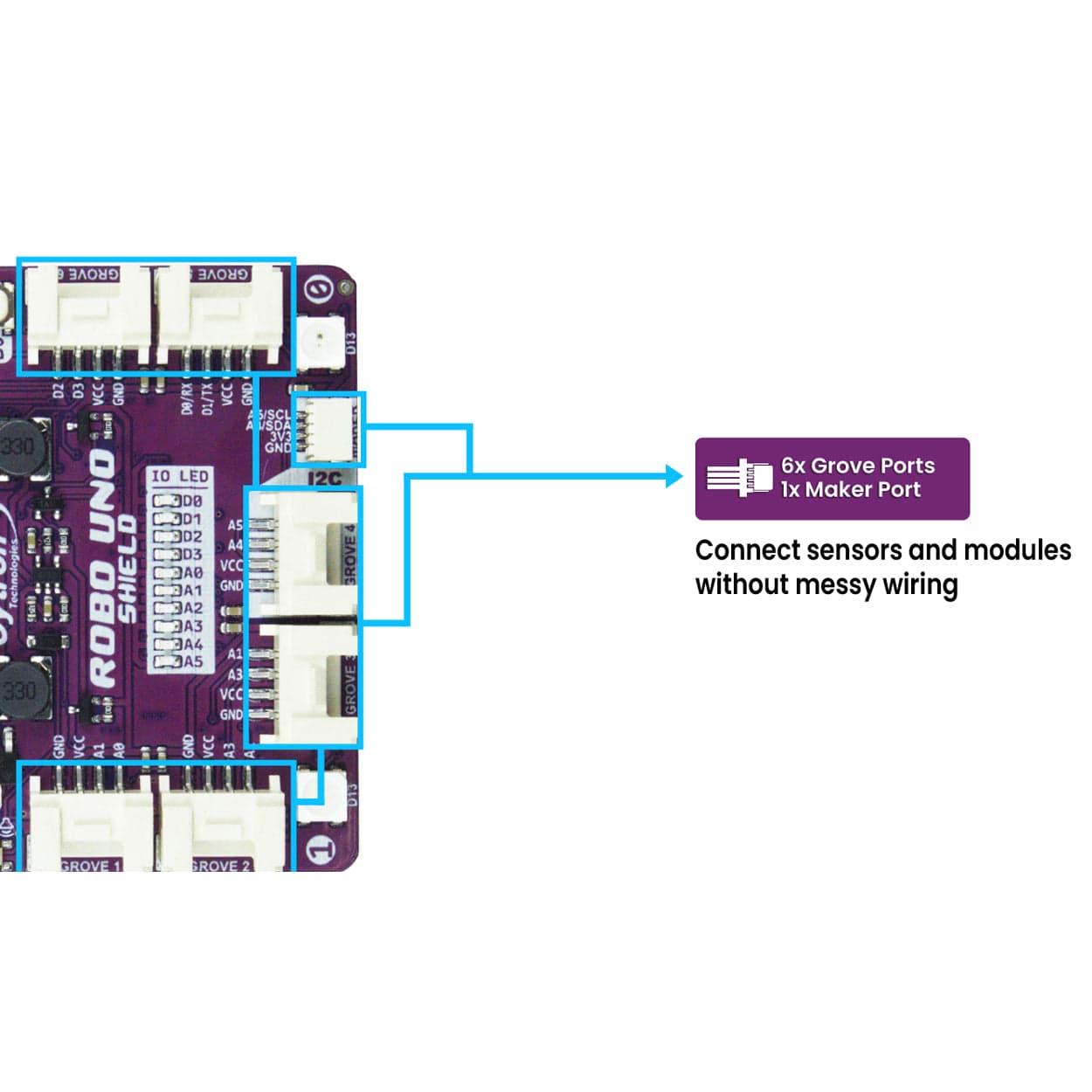

6x Grove ports
1x Qwiic/STEMMA QT port

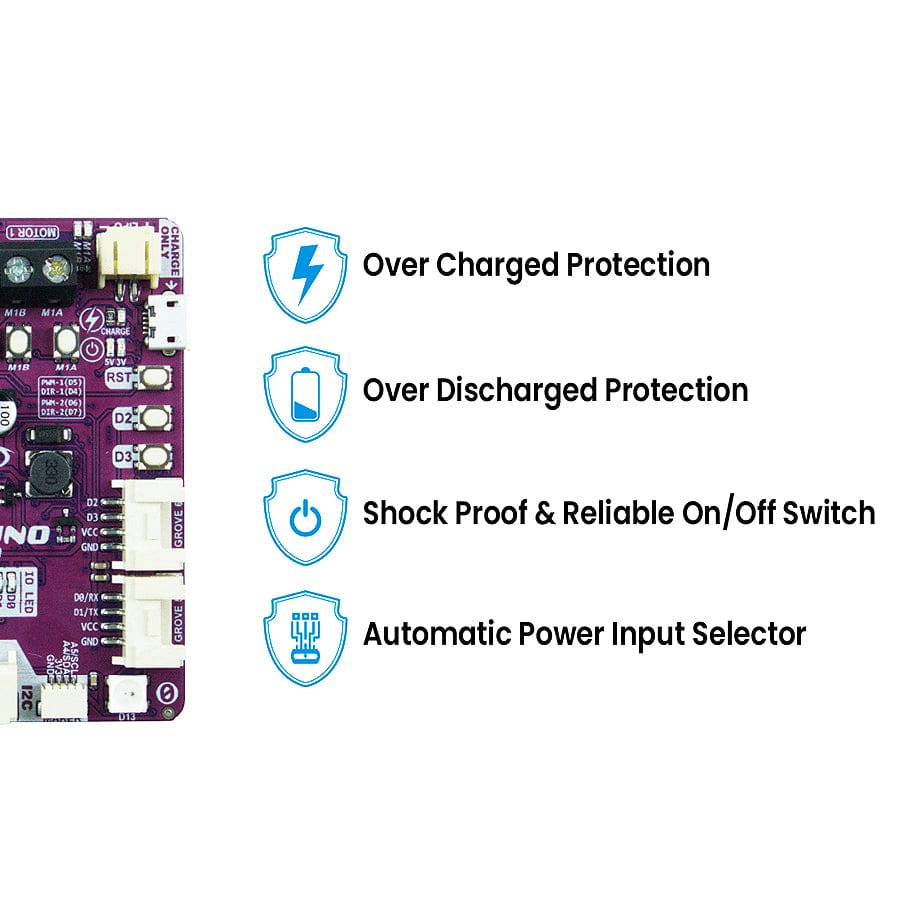

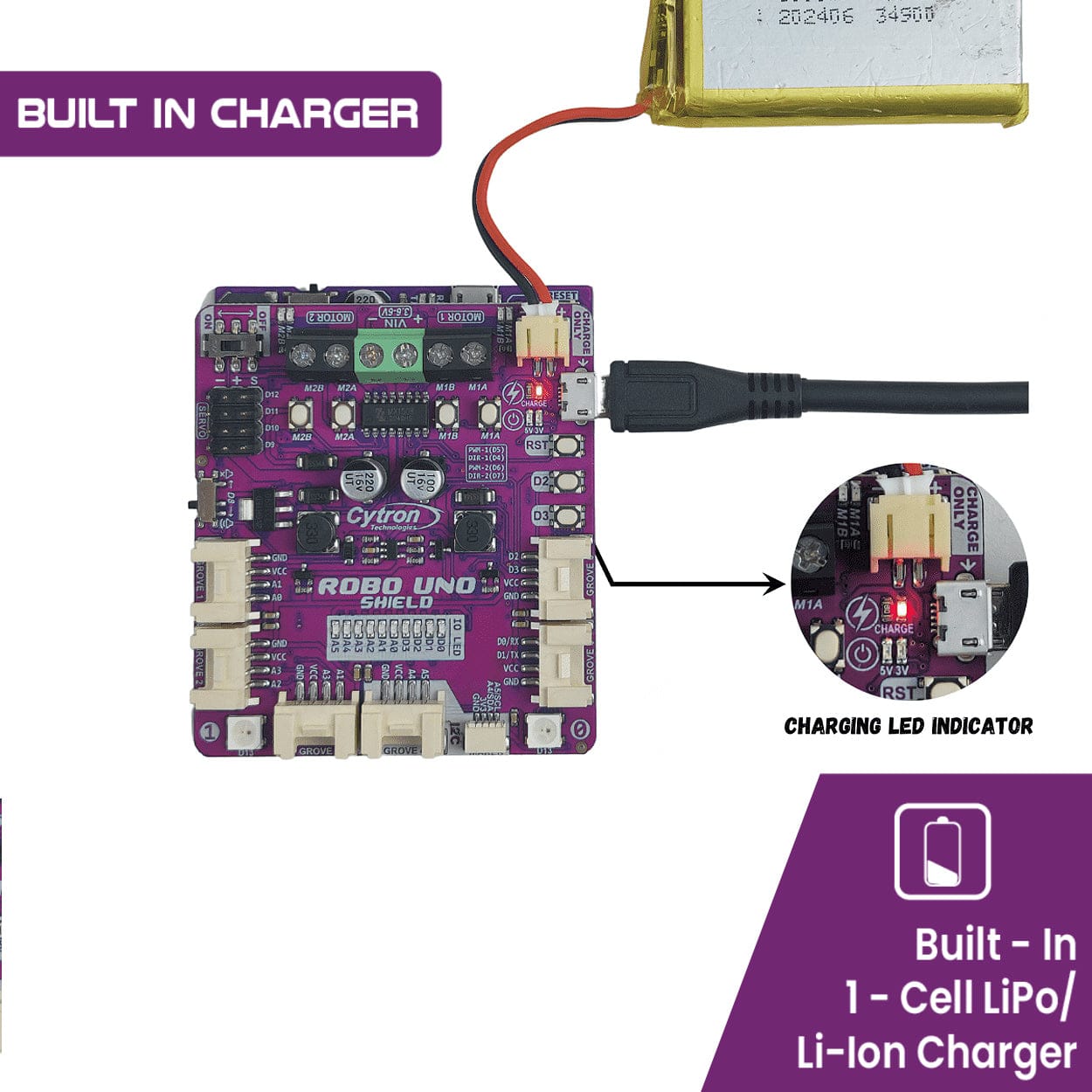

Built-in 1-cell LiPo/Li-Ion charging circuit with safety features
Overcurrent protection
Overvoltage protection
Short circuit protection
Overcharging protection
Over-discharging protection

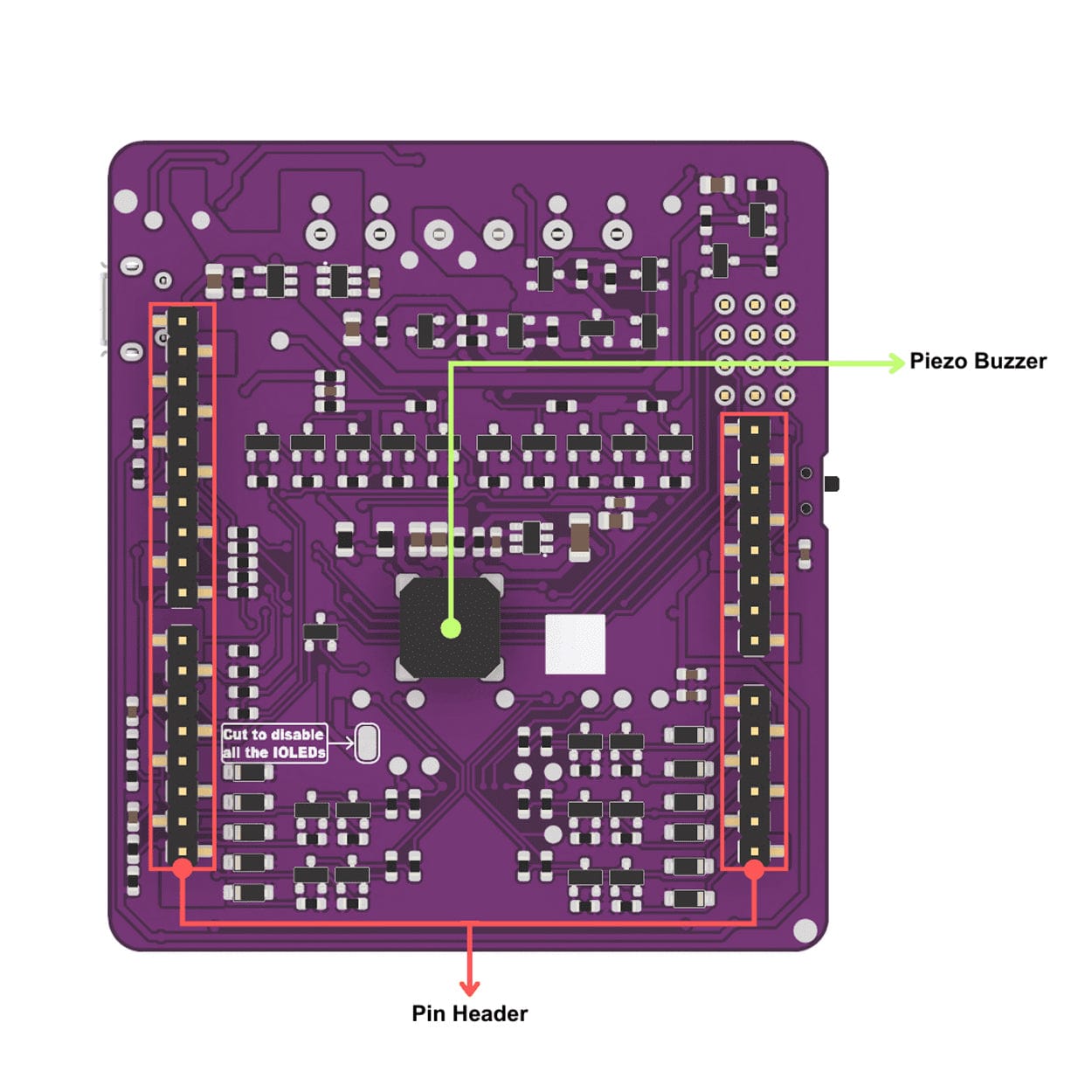

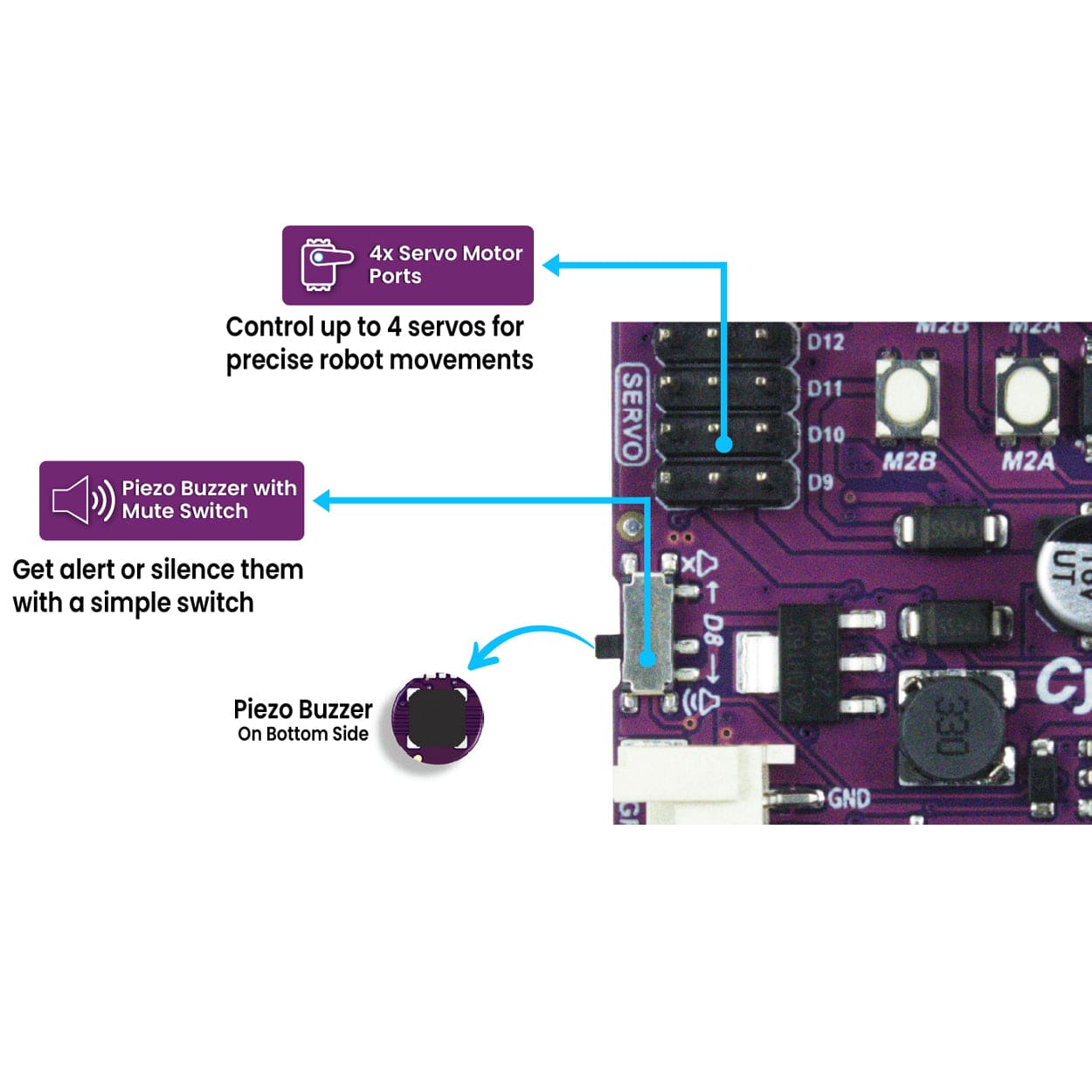

Piezo buzzer with mute switch

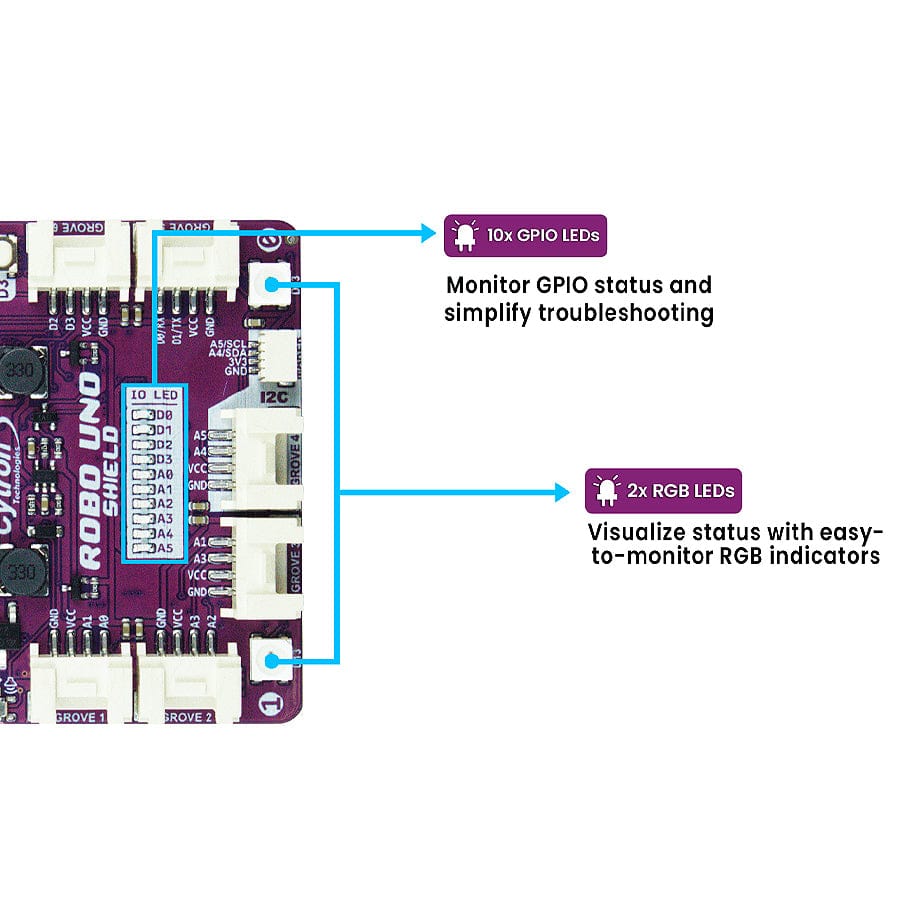

10x IO status LEDs
2x RGB LEDs

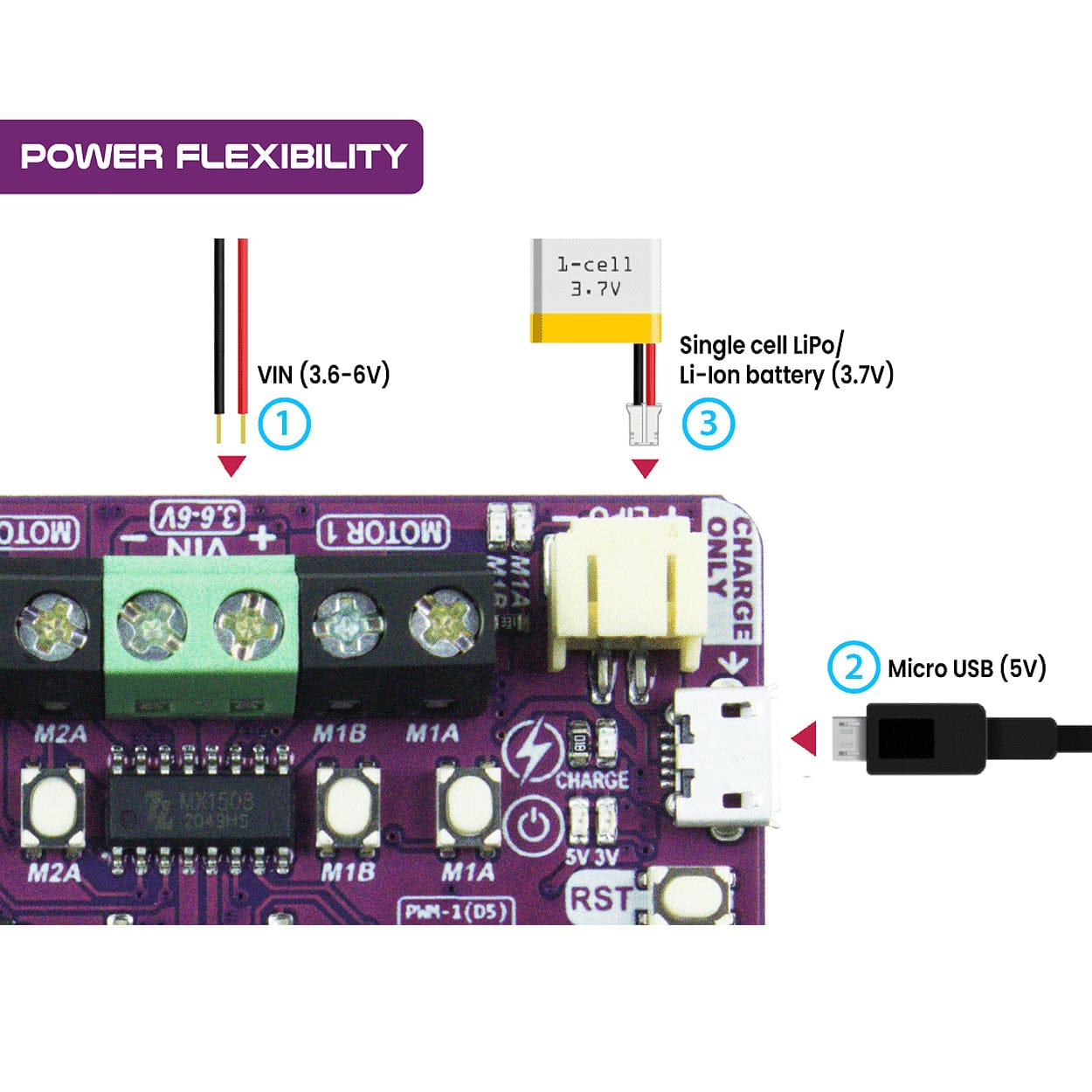

Automatic power selection:
LiPo/Li-Ion battery (3.7V)
VIN terminal block (3.6–6V)
Micro USB (5V)
Power on/off switch with status LED
VCC voltage automatically follows the microcontroller reset pin voltage
Supports Arduino IDE and mBlock programming
Specifications
Motor Driver
Dual-channel H-bridge
Motor Voltage
2.5V to 6V DC
Motor Current
1.0A continuous, 1.5A peak (under 5 seconds)
Power Inputs
VIN (3.6–6V), VBAT (3.7V LiPo/Li-Ion), VUSB (5V via micro USB)
Battery Charging
1-cell LiPo/Li-Ion with overcharge/discharge protection
