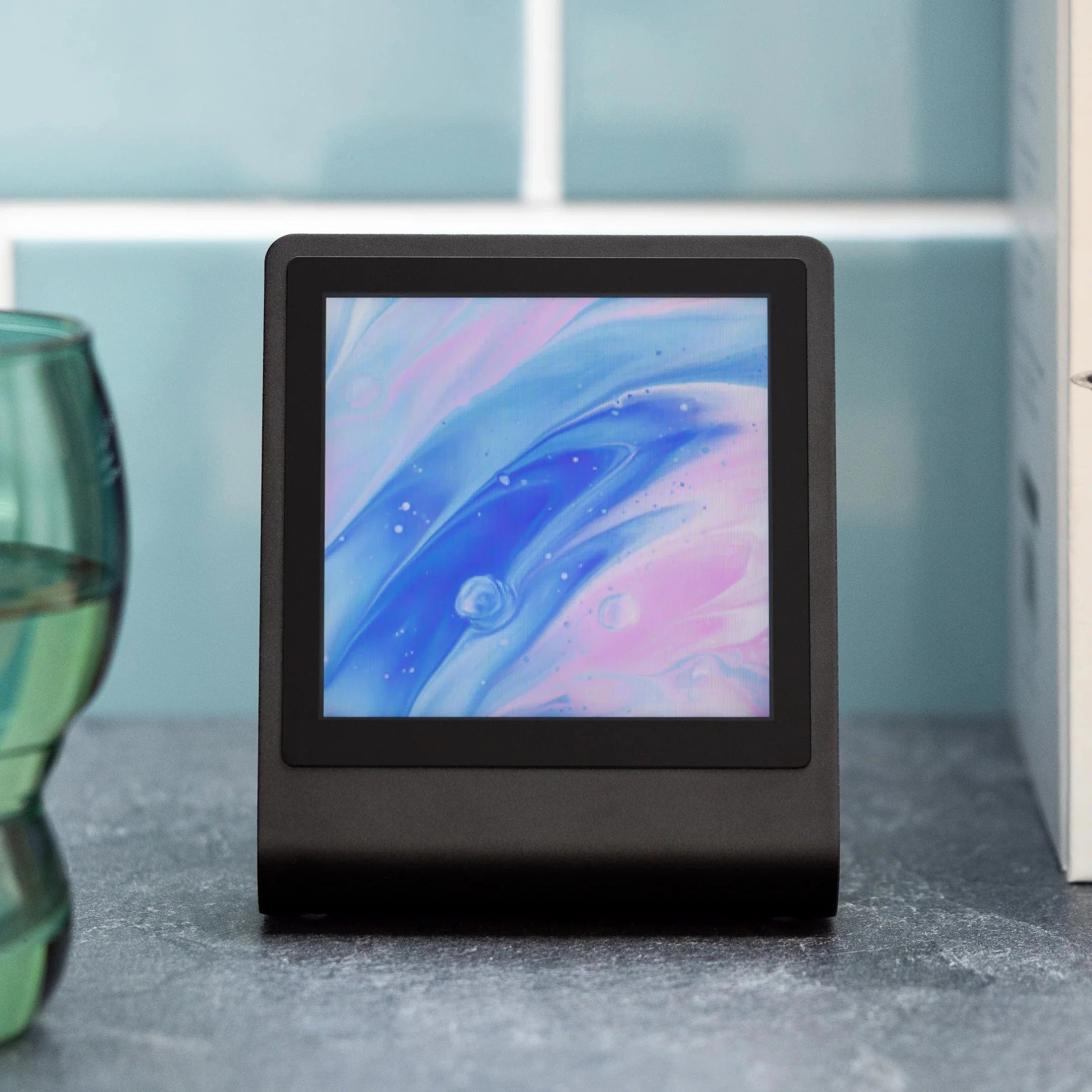

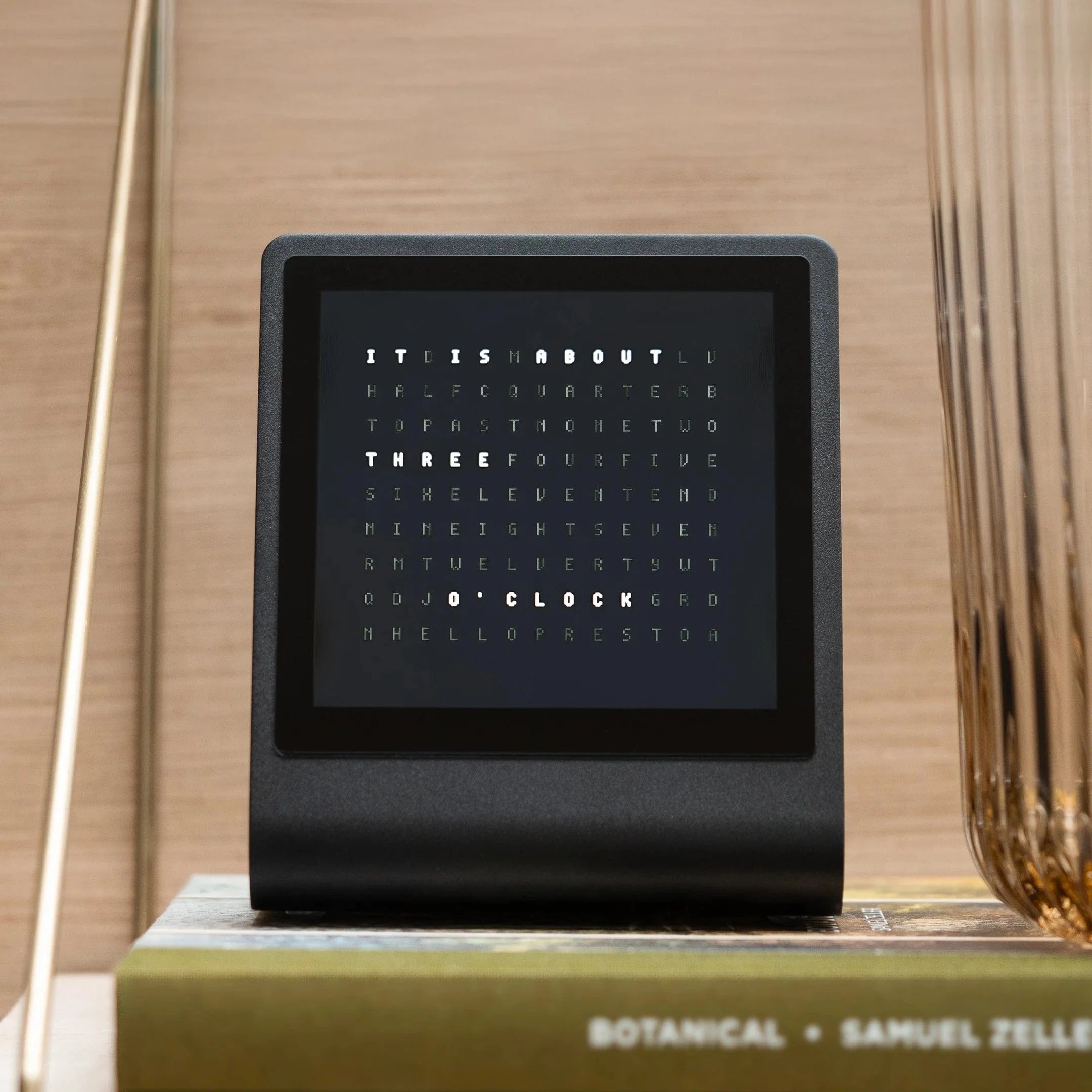

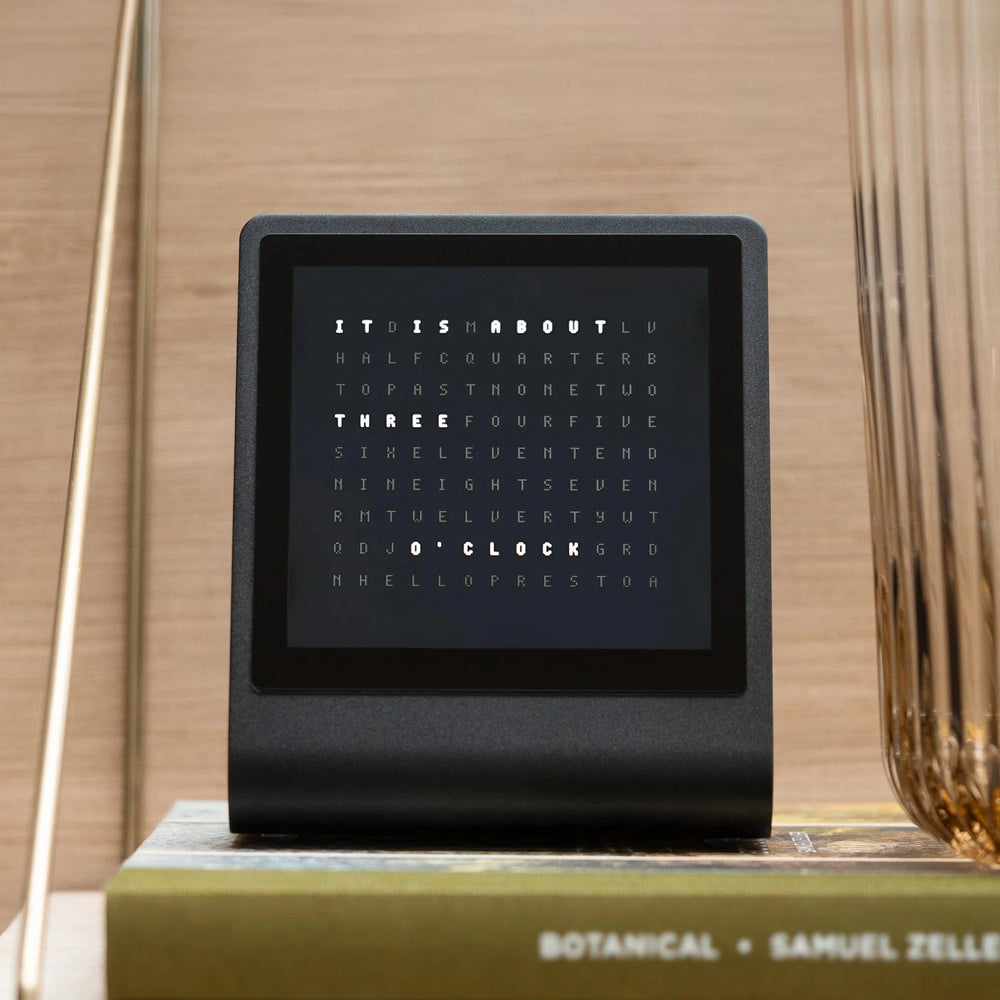

Your new RP2350-powered, connected desktop companion! Features a 4" square touchscreen, elegant black aluminium stand and RGB ambient lighting.
Presto is a swish, fully programmable display designed to keep precious digital information close to your fingertips. Make it do anything you want...
š Calendar updates? Check.

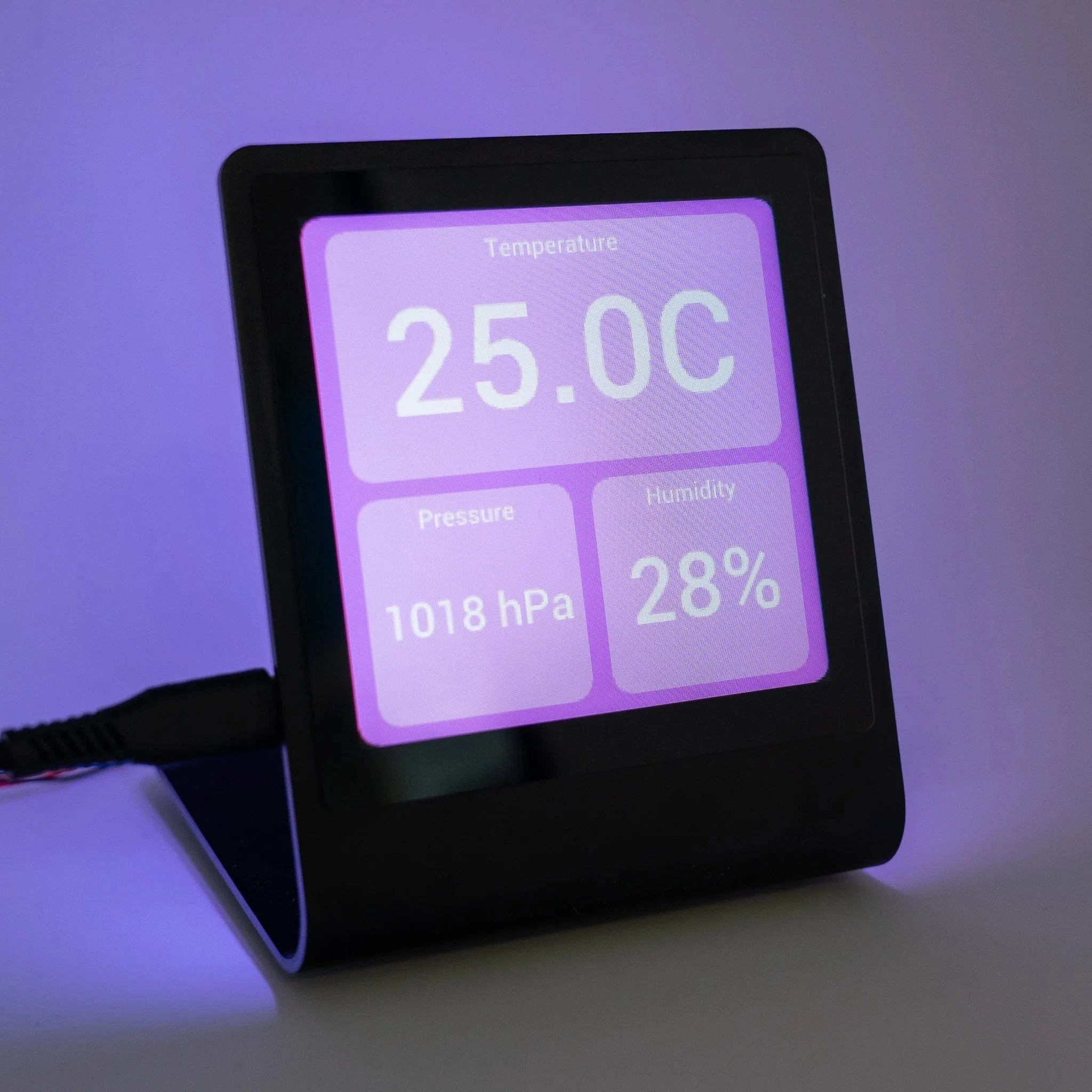

ā Weather reports? Sure!
š Photos of favourite humans or animals? Of course.
šØ Generative digital art? It would be rude not to.

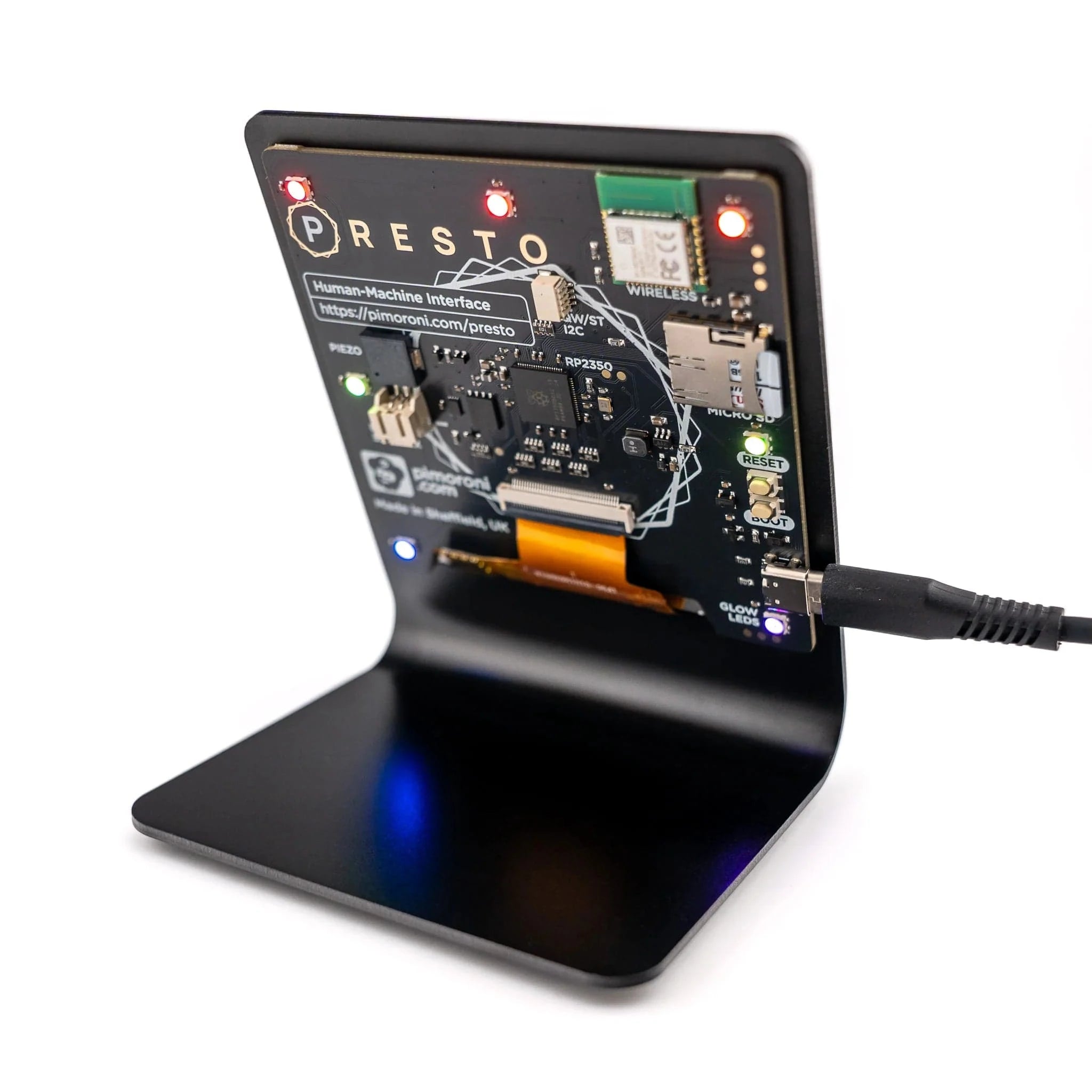

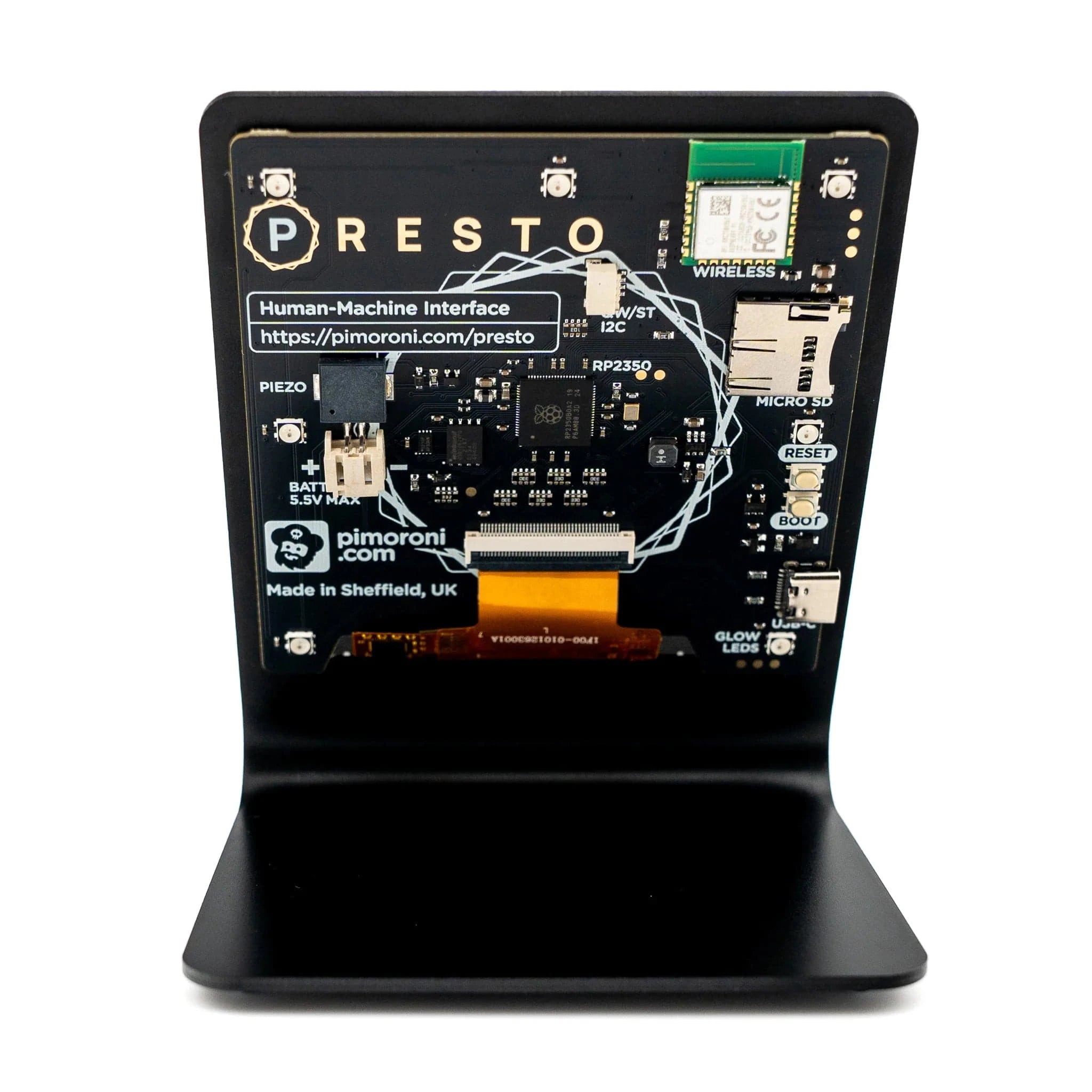

It features a tasty, full-colourĀ 4" square touchscreen IPS display, with all the power of Raspberry Pi's new RP2350B chip behind it. Also behind it is some sweet 7 zone RGB ambient lighting, aĀ piezo speakerĀ for alert boops, anĀ SD card slotĀ for adding storage and aĀ battery connector, so you can power Presto without having it tethered to USB. It also has a built-in RM2 wireless module forĀ 2.4GHzĀ wireless connectivity.

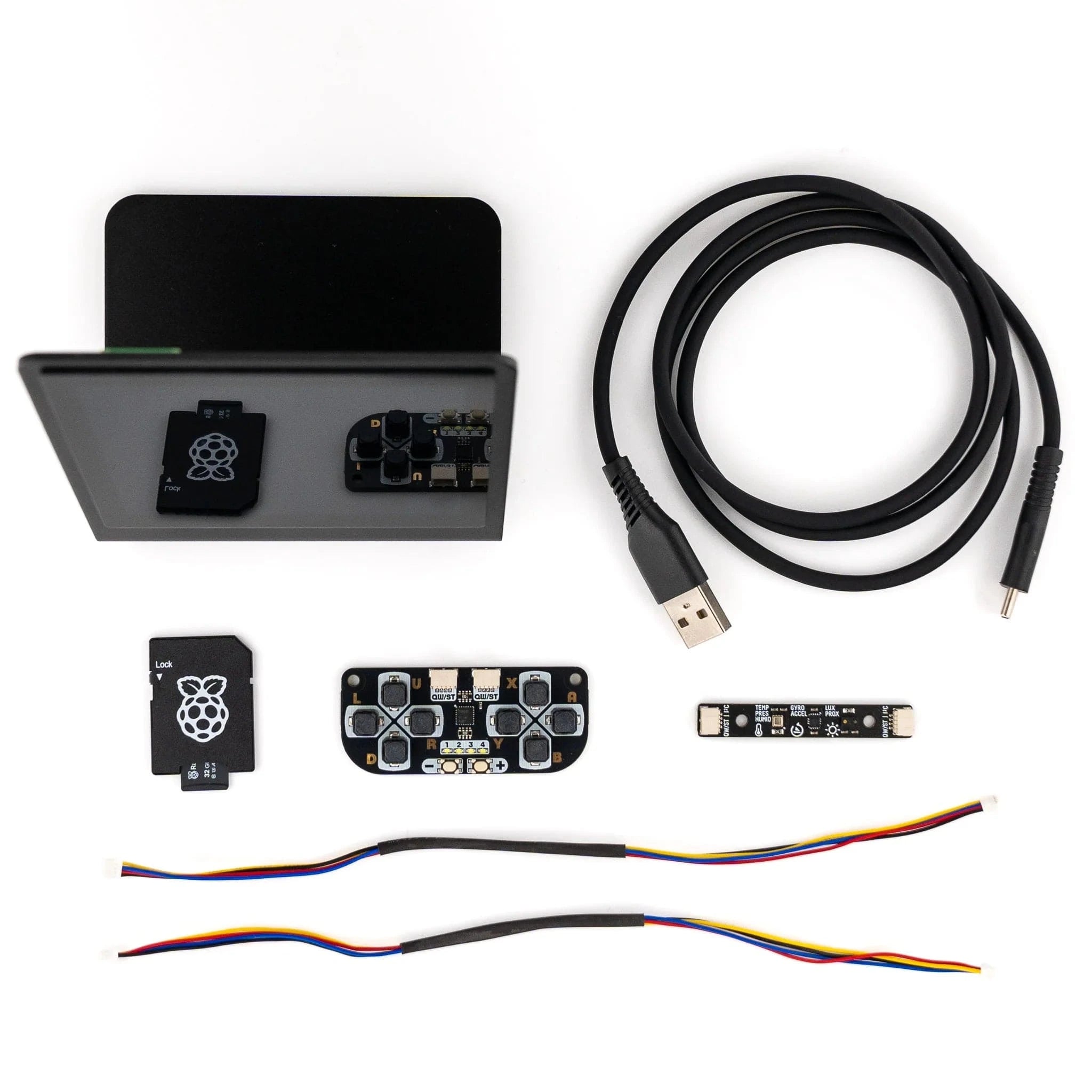

What's in the Starter Kit?
You can buy a Pimoroni Presto on its own (it comes fully assembled, with the screen pre-installed in the stand) or as part of a Starter Kit, which contains a cute little controller and some fun sensors to play with, as well as some extra bits we thought you'd find useful. TheĀ Starter KitĀ contains:
Pimoroni Presto

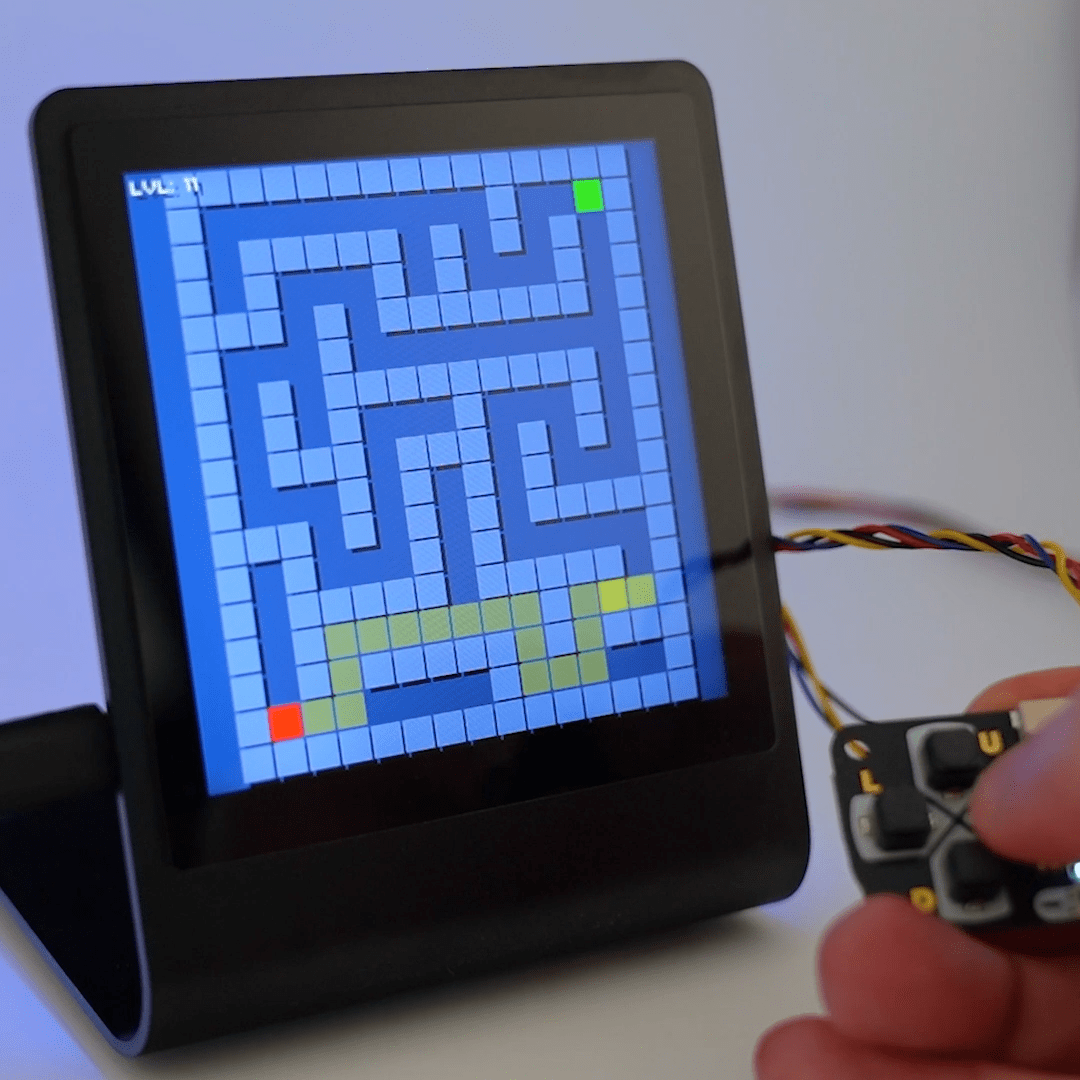

Qw/ST Pad (a tiny I2C game controller)
Multi-Sensor Stick (an all-in-one super sensor suite for environmental, light and movement sensing)
2x Qw/ST cables to connect everything up
32GB microSD card
A USB cable
Features
Powered by RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
16MB of QSPI flash supporting XiP
8MB of PSRAM
Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
4" square (480 x 480 pixel) IPS LCD screen with capacitive touch overlay

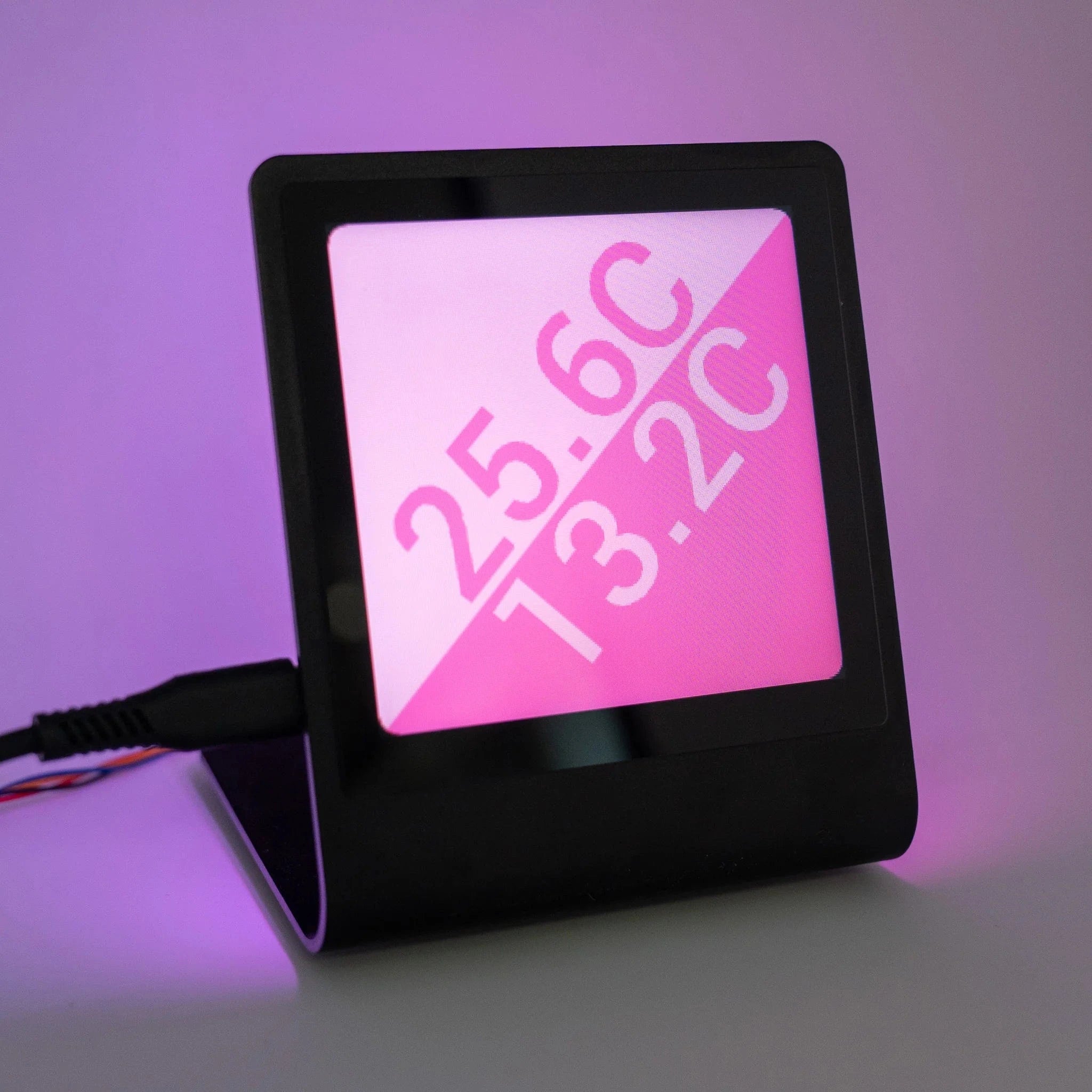

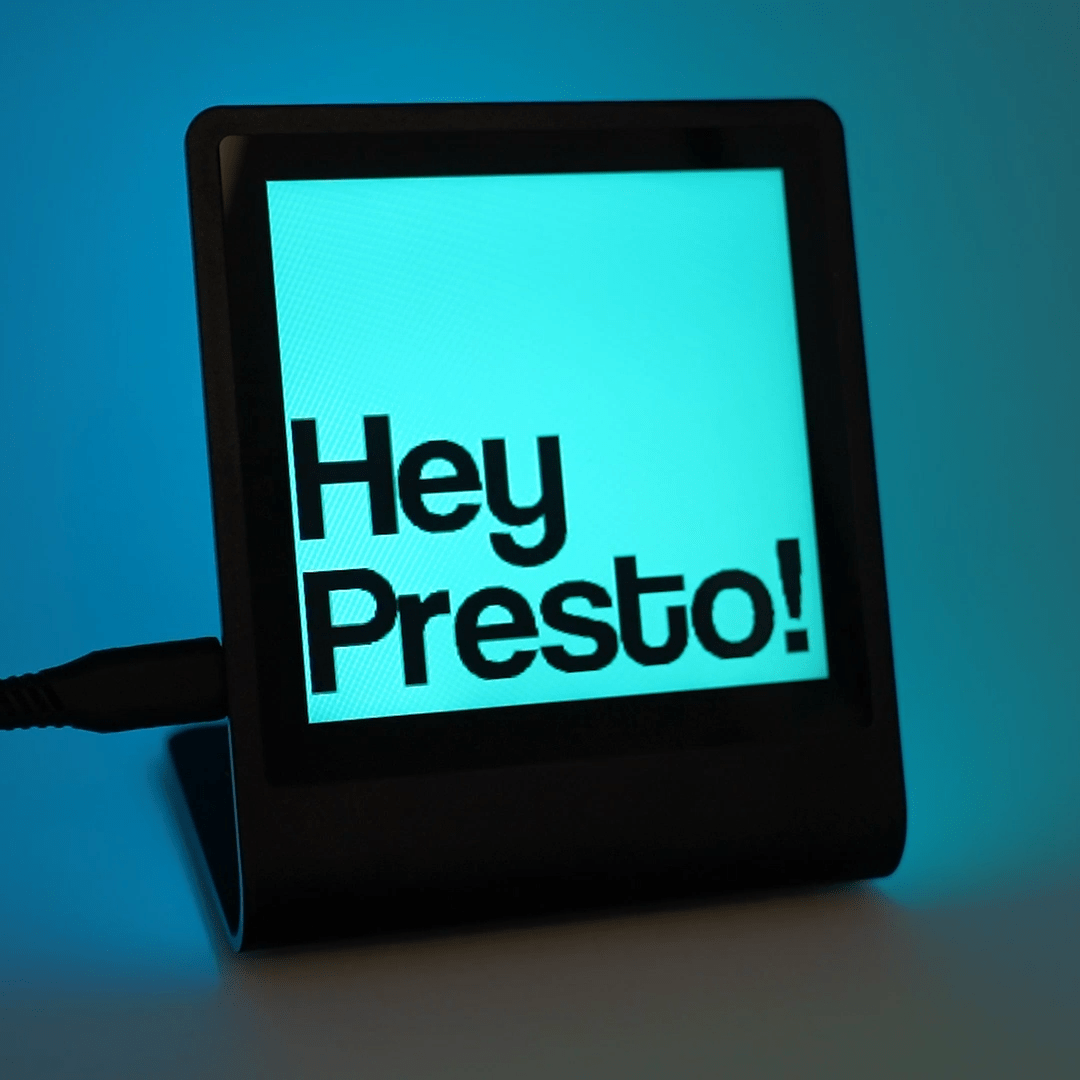

Rainbow ambient lighting, courtesy of 7x mini SK6812 (Neopixel-compatible) RGB LEDs
USB-C connector for programming and power
Piezo speaker
Reset and boot buttons (the boot button can also be used as a user button)
MicroSD card slot
Qw/ST (Qwiic/STEMMA QT) connector
2-pin JST-PH connector for adding a battery (3V - 5.5V)

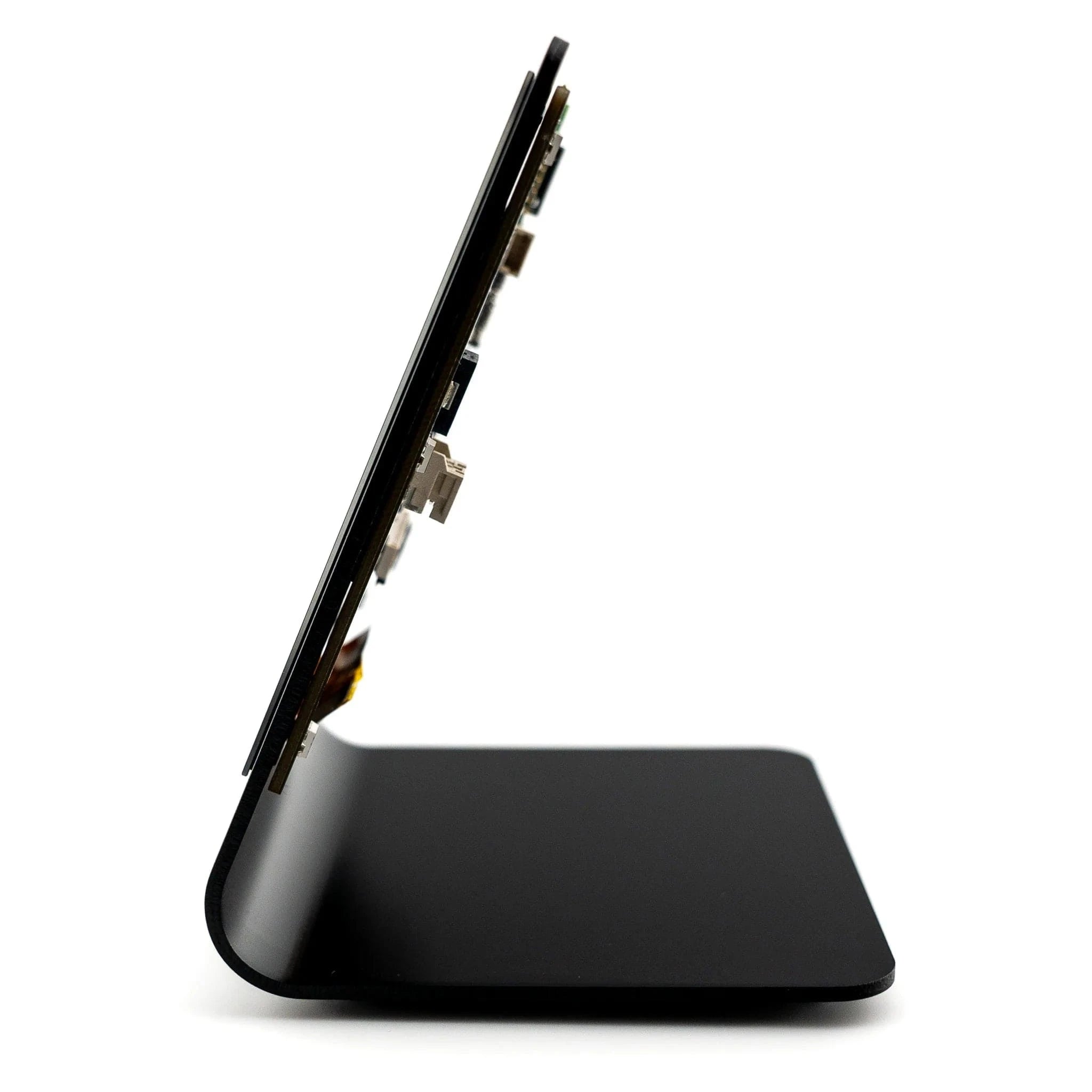

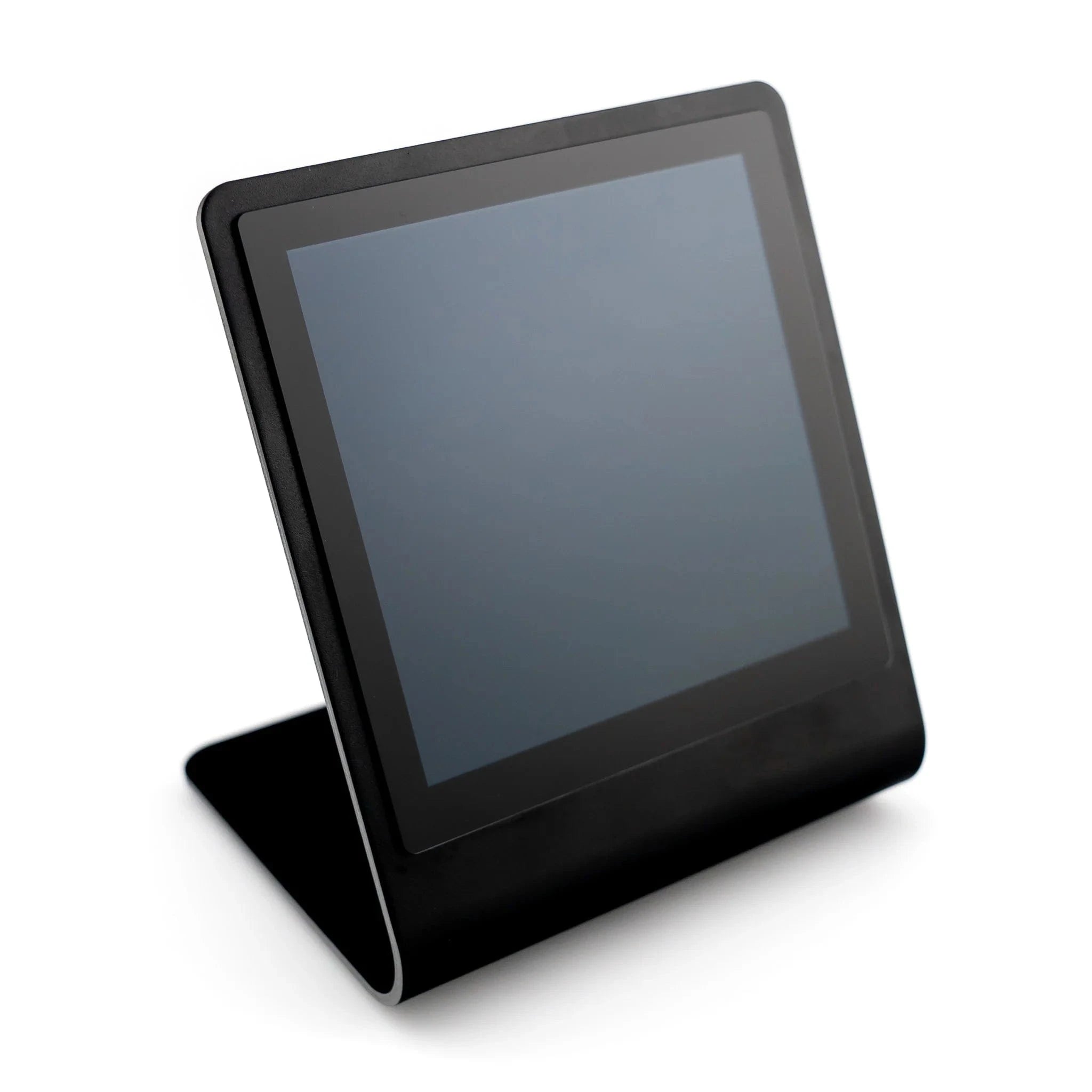

Pre-installed in a black anodised aluminium stand with rubber feet

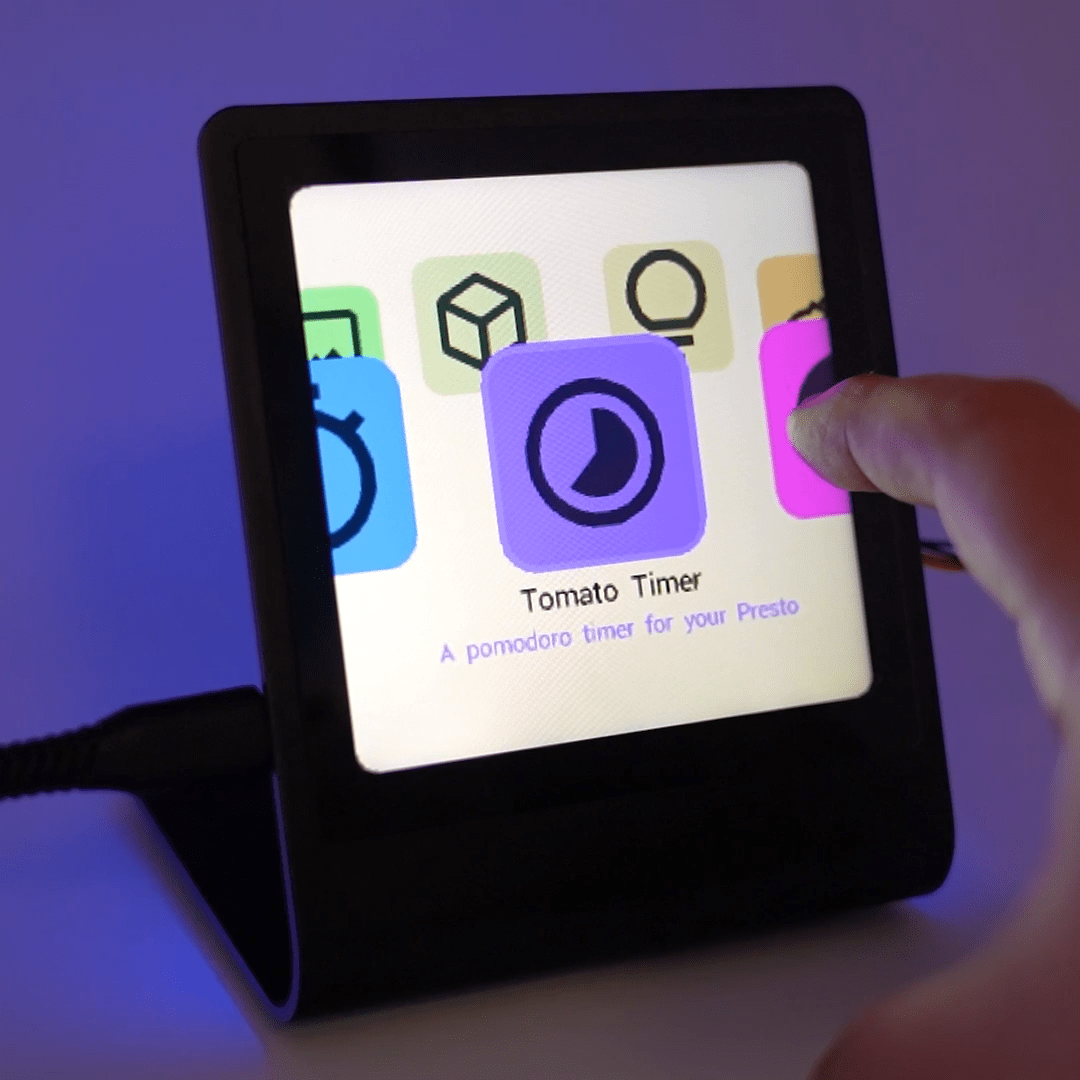

To make it as easy as possible to get started making things with Presto, it comes pre-loaded with MicroPython, a snazzy launcher and a selection of examples to inspire you. Check out our Learn guide for a beginner-friendly introduction:
Measurements: 110mm x 92mm x 80mm (H x W x D, approx)
Presto has no battery charging hardware onboard - Ā this is so you can use either alkaline or LiPo batteries safely. You'll need to charge up your LiPo battery with a separate battery charger - we likeĀ LiPo Amigo. LiPo Amigo Pro can charge your battery and power Presto at the same time (note that you'll also need one ofĀ these JST-PH cablesĀ to plug in your device).
The battery connector can be used to power Presto with batteries that provide between 3V and 5.5V. At the lower end of that voltage range, you'll start to see dimming of the backlight and less vibrant colours. We'd suggest using aĀ chunky LiPo, or aĀ 3x AA alkaline battery pack.
About RP2350
The RP2350 chip is the Double Quarter Pounder & Fries to the RP2040's Double Cheeseburger and can have one or more RISC-V burgers instead of either of the M33 ARMs, to stretch the metaphor.
In addition to the modern M33 ARM cores, there are sides of: more PIO capability, a variety of low power states for sipping electrons, a whole security system and some sprinklings of specialist digital video circuits to offload DVI/HDMI output.
You can expect a tasty boost in performance - our "real world" MicroPython tests are running up to 2x faster compared to RP2040, and floating point number crunching in C/C++ is up to 20x faster. The extra on-chip RAM will make a big difference when performing memory-intensive operations (such as working with higher resolution displays) and even more can be added thanks to external PSRAM support.
RP2350 comes in two flavours - A (standard) and B (all the pins). The B chip has a stonking 48 usable GPIO pins, including 8 ADCs and 24 PWMs, and features on some of our new products.Ā
