Pimoroni Pico LiPo 2 XL W

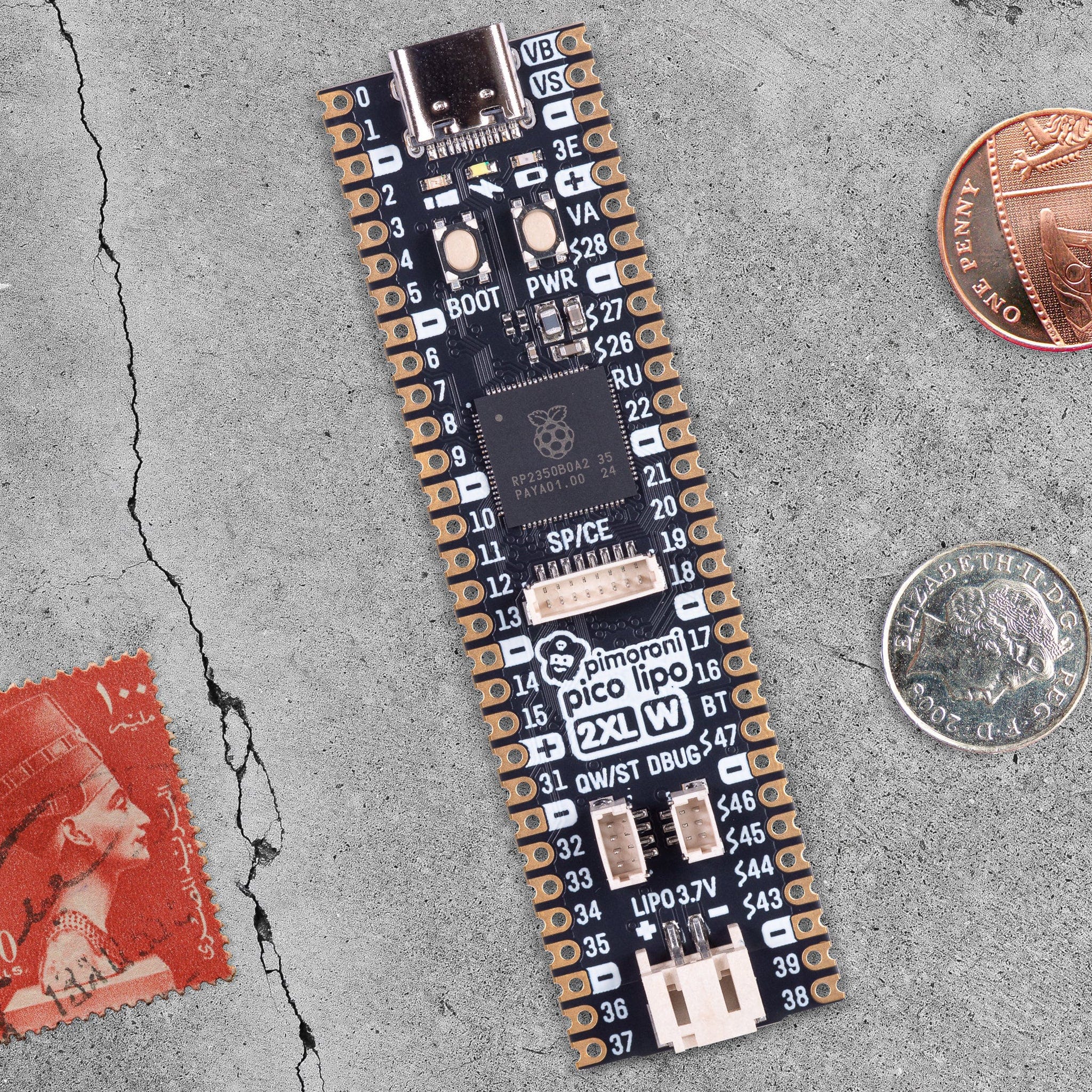

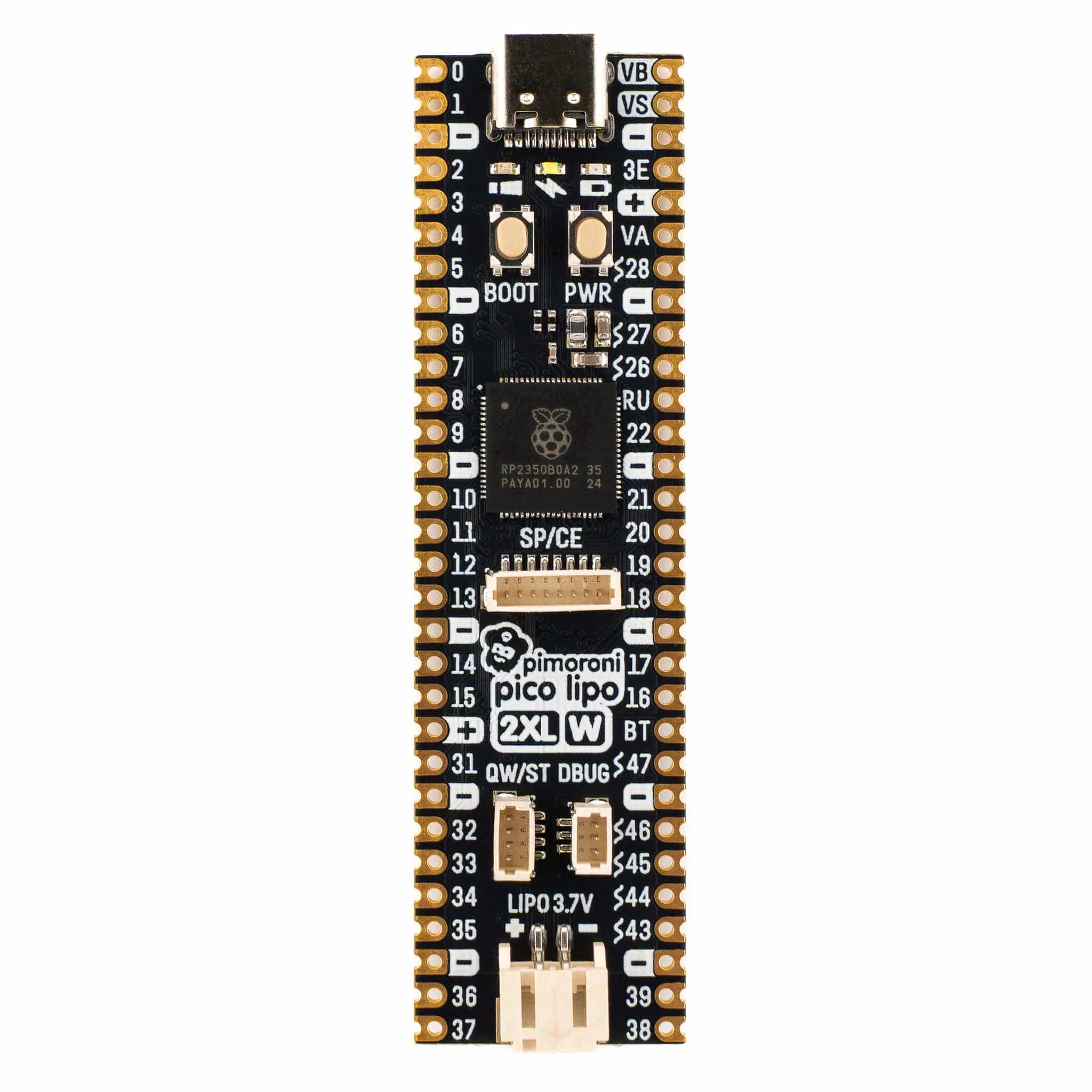

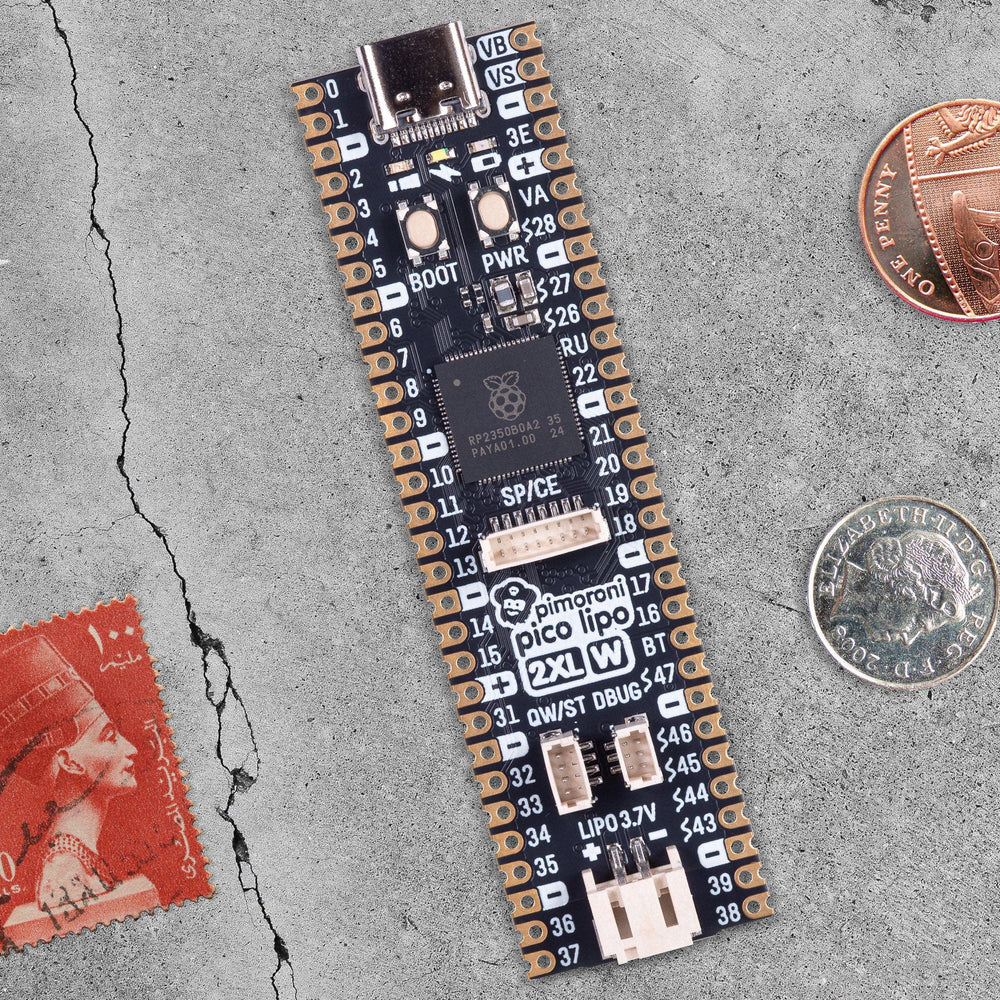

The Pimoroni Pico LiPo 2 XL W is an RP2350B development board with 8MB RAM, 16MB flash, USB-C, onboard LiPo/LiIon charging, wireless and Bluetooth via the Raspberry Pi Radio Module 2, Qw/ST and SP/CE connectors, debug header, and 40 exposed GPIO.

An elongated Pirate-brand RP2350-powered board with 16MB of flash, 8MB of PSRAM, USB-C, Qw/ST, 2.4GHz wireless / Bluetooth and built-in LiPo charging.

Psst - looking to use the mighty RP2350 microcontroller as the brains in your project, but want more features than are present on a vanilla Raspberry Pi Pico 2? Pimoroni Pico boards are souped-up dev boards, with all the tasty extras baked in

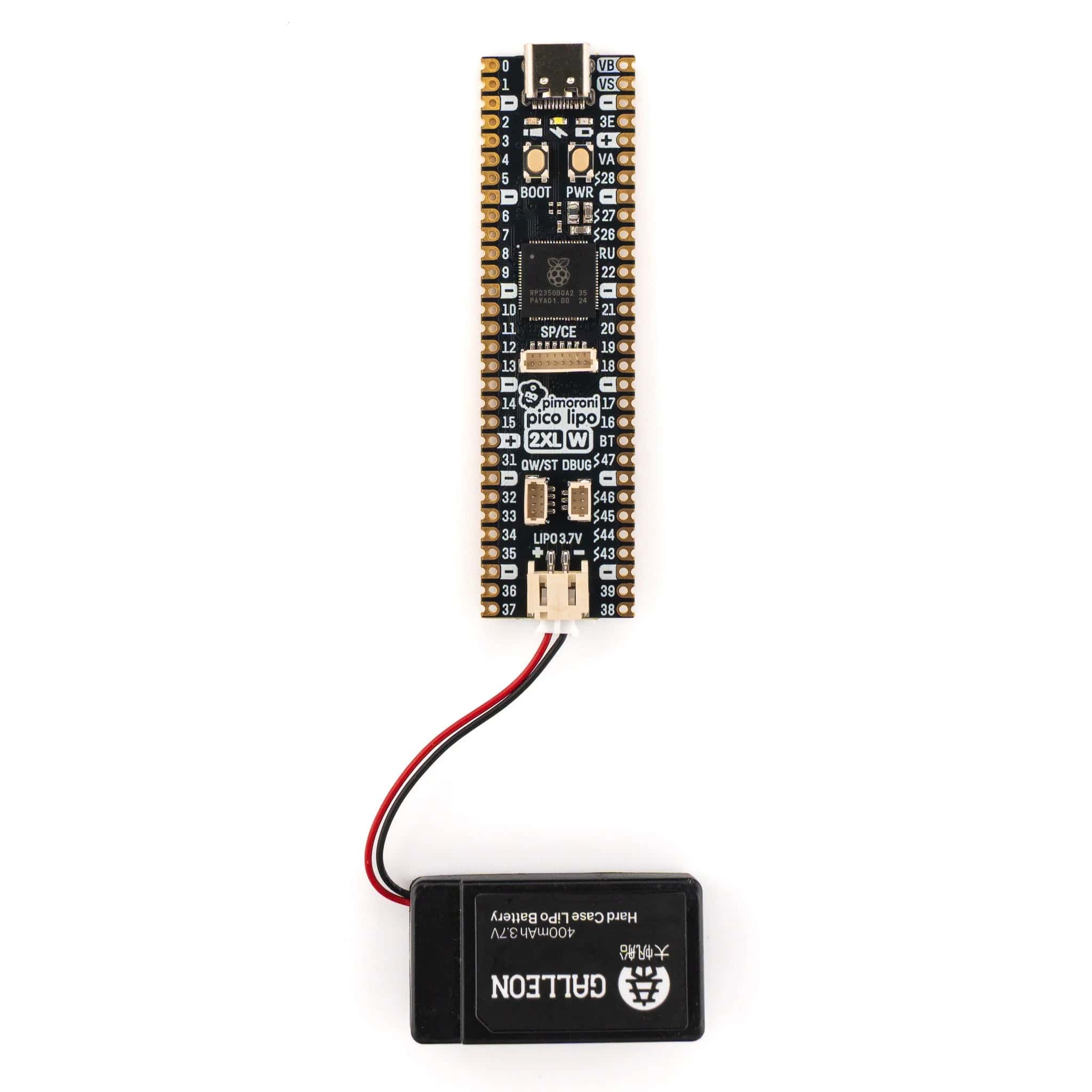

Pimoroni Pico LiPo 2 XL W is powered and programmable via USB-C and comes with an upgraded 8MB RAM, 16MB of flash storage and easy-to-read pin labels. It's got onboard LiPo/LiIon battery management - the inbuilt charging circuitry means charging your battery is as easy as plugging your board in via USB. There are two indicator LEDs connected to the battery circuit to keep you informed of the on/off state and charging status, and it's compatible with any of our LiPo, LiIon and high-capacity LiPo batteries. There's also a handy power button and a BOOT button, which can also be used as a user switch.

It's super easy to connect up to things without soldering, with a Qw/ST connector (for adding I2C sensors and breakouts), a SP/CE connector (for hooking up SPI/serial breakouts) and a debug connector (for if you prefer to program using a SWD debugger).

✨Pico LiPo 2 XL Wow

This XL W version is equipped with a Raspberry Pi Radio Module 2, which gives it 2.4 GHz wireless and Bluetooth connectivity. To make this work without compromising on features, we needed a few more pins, so we've taken the liberty of making this board a tad longer than a standard Pico (OK, 24mm) and used the RP2350B chip (the B stands for Big). In return for it taking up a little more room in your project, you get access to a mighty 40 exposed GPIO (spread over two 30-pin rows of headers).

If you'd prefer a similar board without the extended footprint, check out Pimoroni Pico LiPo 2

Features

• Powered by RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 16MB of QSPI flash supporting XiP
• 8MB of PSRAM
• Raspberry Pi Radio Module 2 provides 2.4GHz wireless and Bluetooth connectivity
• MCP73831 charger with 215mA charging current (datasheet)
• XB6096I2S battery protector (datasheet)
• USB-C connector for power, programming, and data transfer
• Qw/ST (Qwiic/STEMMA QT) connector for attaching I2C breakouts
• SP/CE connector for attaching SPI/serial breakouts
• 3-pin debug connector (JST-SH)
• Switch for basic input (doubles up as DFU select on boot)
• Power button
• Power, charging and user LED indicators
• On-board 3V3 regulator (max regulator current output 600mA)
• Input voltage range 3V - 5.5V
• 2-pole JST PH battery connector, with polarity marked on the board
• Two rows of 30 pins, exposing 40 GPIO
• Compatible with Raspberry Pi Pico add-ons, sort of. Be sure to attach them towards the USB end of the board!

Batteries, cables and headers are not included. If you're shopping for long pin headers, please see our headers collection.

Pinout and Schematic

Notes

• ⚠️ You should only use Pimoroni Pico LiPo 2 XL W with LiPo or LiIon batteries, and you should make sure that any project involving LiPos is sufficiently protected from being dented, bent, punctured or crushed.
• Measurements: approx 77mm x 21mm x 10mm (L x W x H, including connectors)
• The user LED is wired to WL_GPIO0 of the Radio Module 2 (RM2).
• As well as being useful for putting your Pico LiPo 2 into bootloader mode, you can also use the BOOT button as a user button. It's wired to GP30 and active low. This pin is also exposed on the right-hand header, where it can be activated by connecting a switch between it and ground.

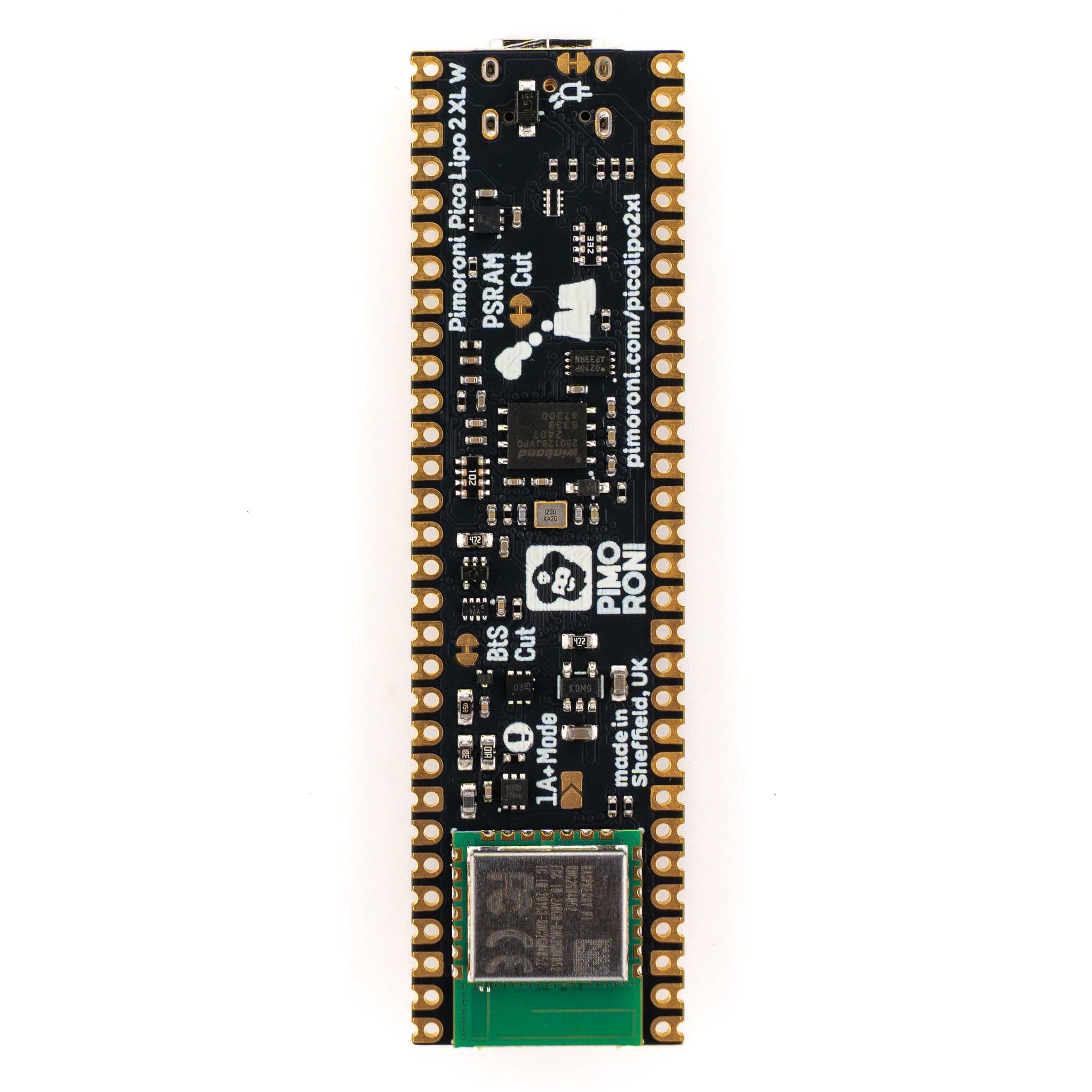

• Two of the ADC-capable pins are wired to internal functions of the board: GP43 senses battery voltage, GP47 controls PSRAM access. If your project does not use these functions but needs these pins, then cut the traces on the underside of the board labelled "BtS Cut" and "PSRAM Cut".
• VBus Sense is wired to WL_GPIO2 of the Radio Module 2 (RM2).
• For uses requiring very low power draw, the power LED can be disconnected by cutting the trace on the rear of the board labelled with an LED symbol, near the USB-C end.
• For high power draw uses over 800mA, the battery protector can be bypassed by soldering the trace labelled "+1A Mode". Make sure your battery can safely deliver this amount of current before doing this.

About RP2350

The RP2350 chip is the Double Quarter Pounder & Fries to the RP2040's Double Cheeseburger and can have one or more RISC-V burgers instead of either of the M33 ARMs, to stretch the metaphor.

In addition to the modern M33 ARM cores, there are sides of more PIO capability, a variety of low power states for sipping electrons, a whole security system and some sprinklings of specialist digital video circuits to offload DVI/HDMI output.

You can expect a tasty boost in performance - our "real world" MicroPython tests are running up to 2x faster compared to RP2040, and floating point number crunching in C/C++ is up to 20x faster. The extra on-chip RAM will make a big difference when performing memory-intensive operations (such as working with higher resolution displays), and even more can be added thanks to external PSRAM support.

RP2350 comes in two flavours - A (standard) and B (all the pins). The B chip has a stonking 48 usable GPIO pins, including 8 ADCs and 24 PWMs, and features on some of our new products.

Resources

• Pinout and Schematic
• Schematic

Package Contents

• 1x Pimoroni Pico LiPo 2 XL W
