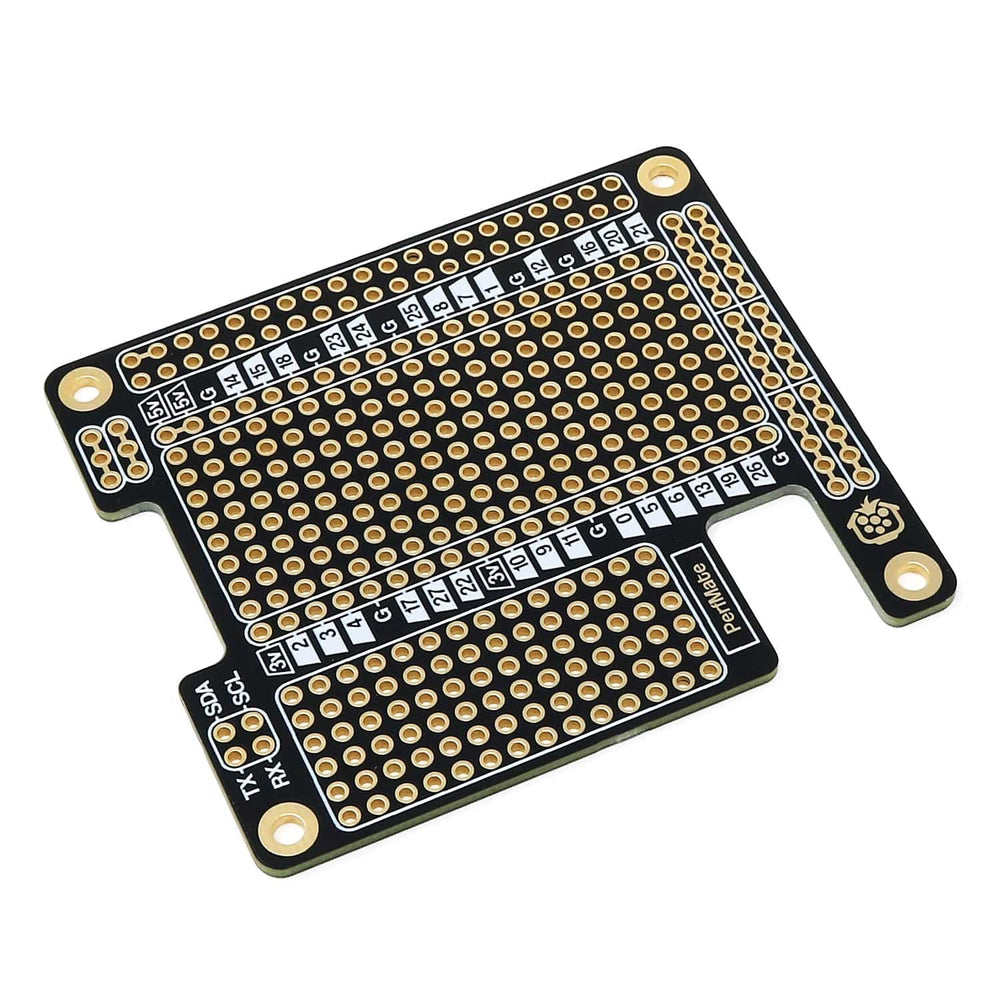

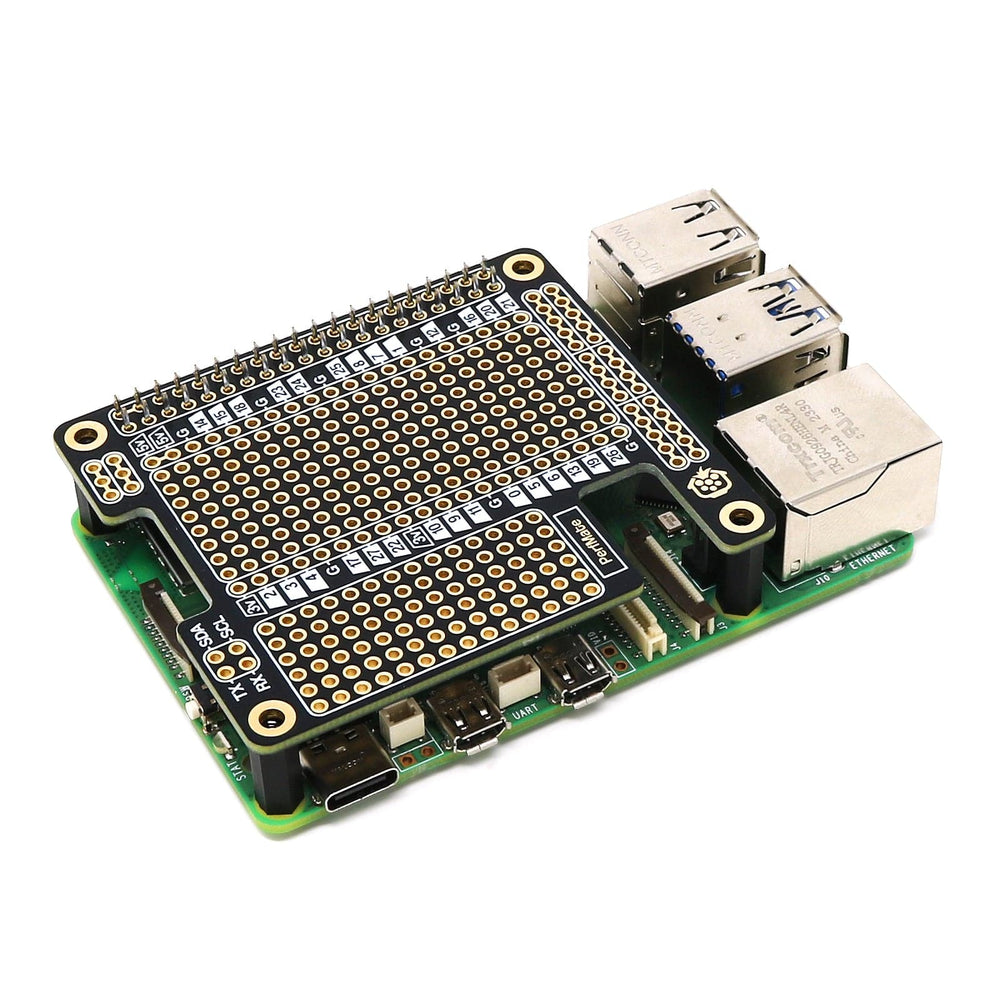

PerfMate for Raspberry Pi is a perfboard-style prototyping HAT for any 40-pin Raspberry Pi, designed to allow you to solder your custom breadboard circuit to a HAT-format board - ideal for projects that you want to make more permanent and reliable, moving from loose jumper wires and breadboards to a proper soldered HAT!

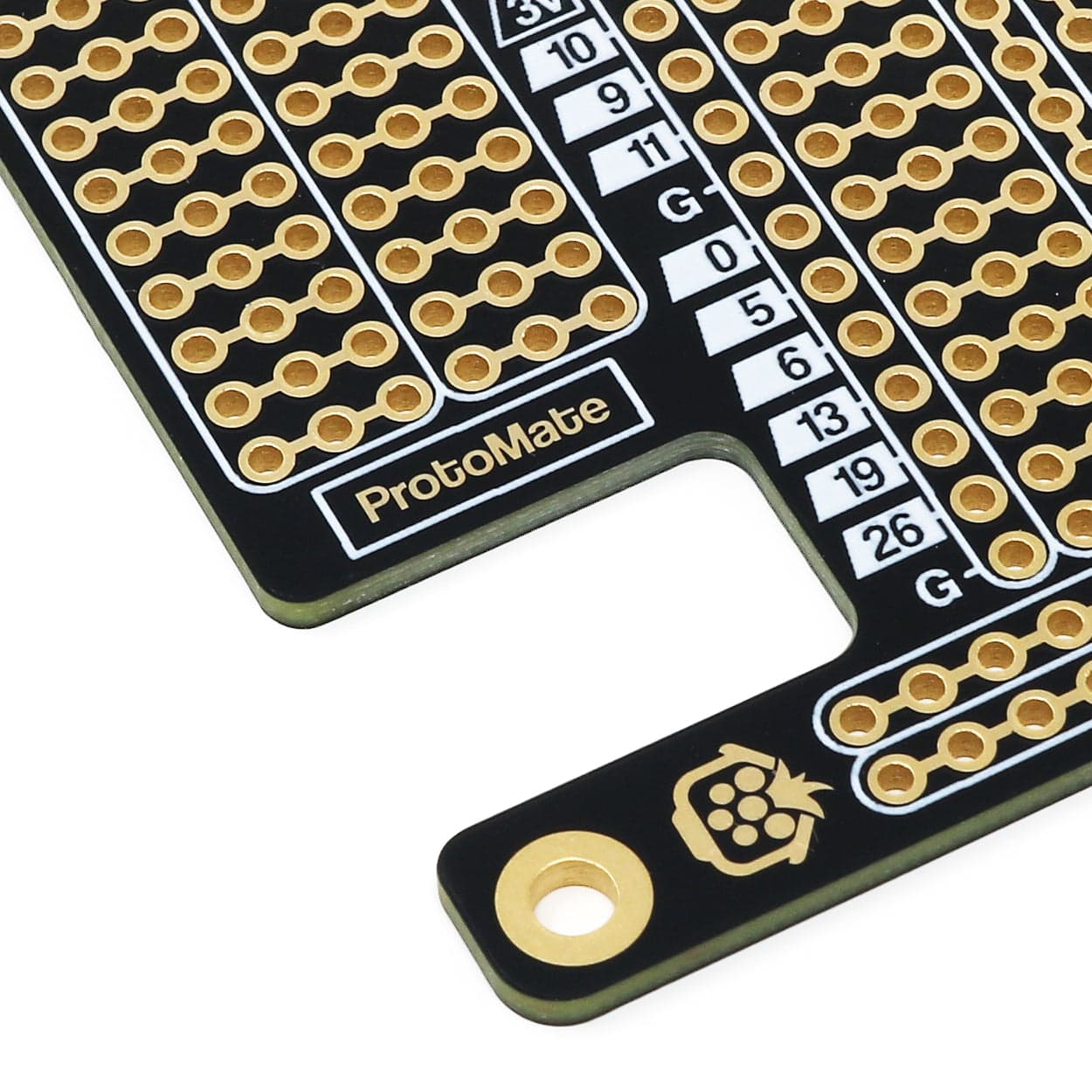

The PerfMate has two perfboard-style soldering areas (20x8 and 14x6), i.e. the pads/holes are not connected. Some customers prefer this style, and some prefer connected, breadboard-style 'lanes'. If breadboard-style is more your thing, check out the ProtoMate for Raspberry Pi instead.

The larger perf-style soldering area is surrounded by the Raspberry Pi GPIO. We've essentially split the usual 40-pin header in half, and added a 20x8 perfboard-style grid in the middle! The smaller soldering area is great for adding ICs - for example, the MCP23017 fits perfectly.

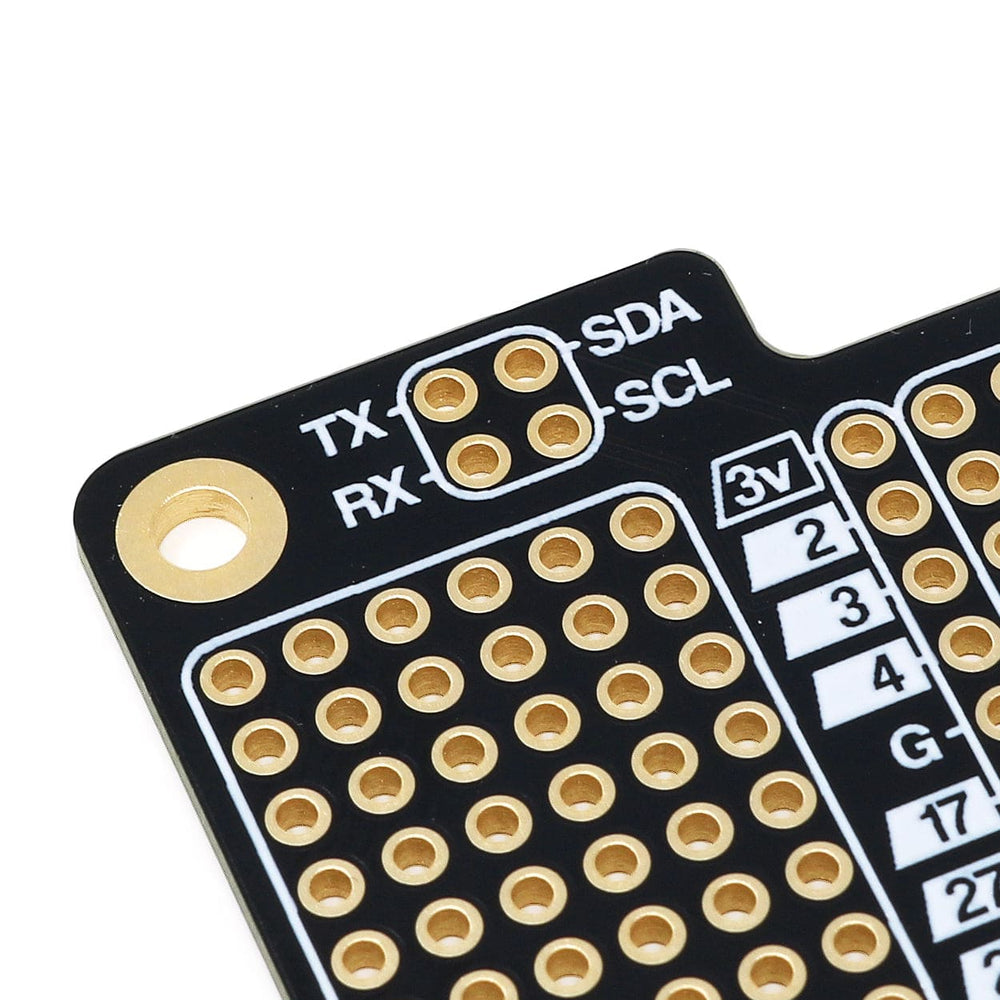

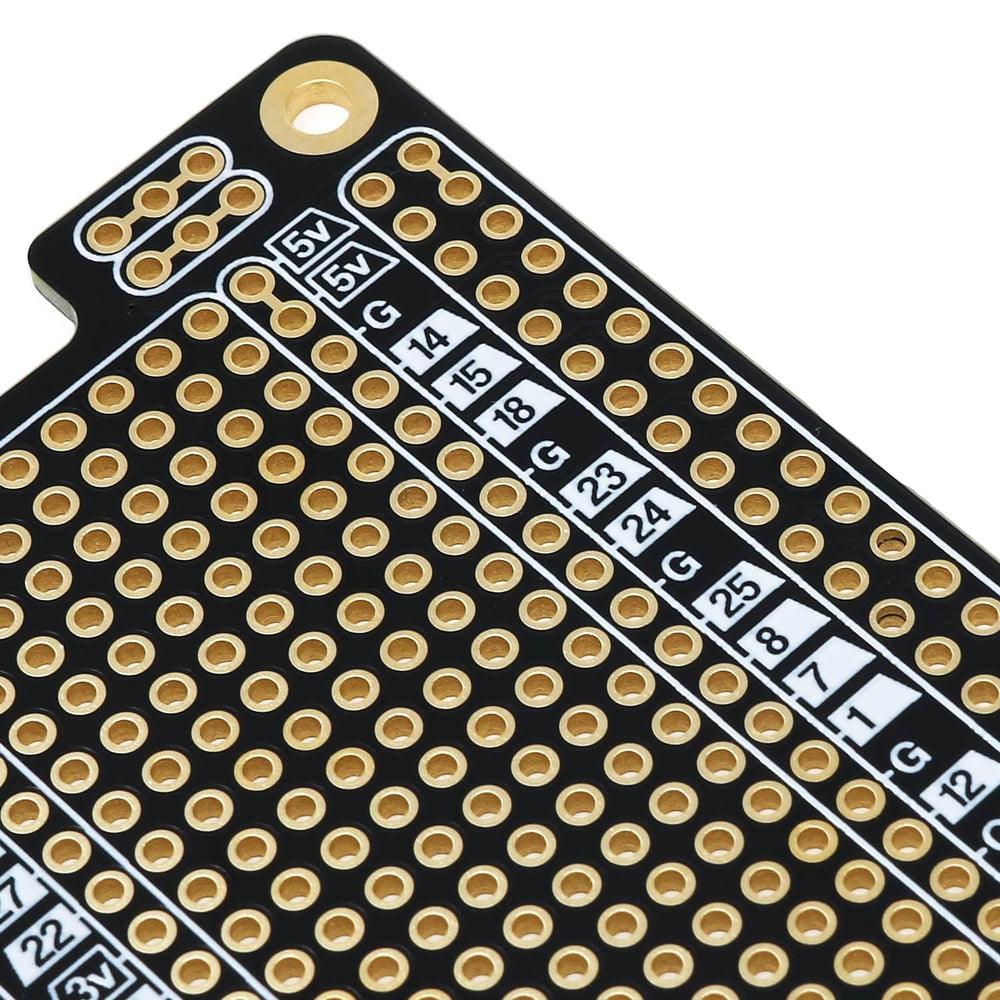

PerfMate also includes several rails on each side of the board, great for making banks of power pads for your project. These are connected in lanes, indicated by the gold pad bridges and white frames. You can cut the trace bridges between the rail pads if you want to disconnect them from each other. You'll also notice separate I2C and Serial breakout pads, a handy extra we added.

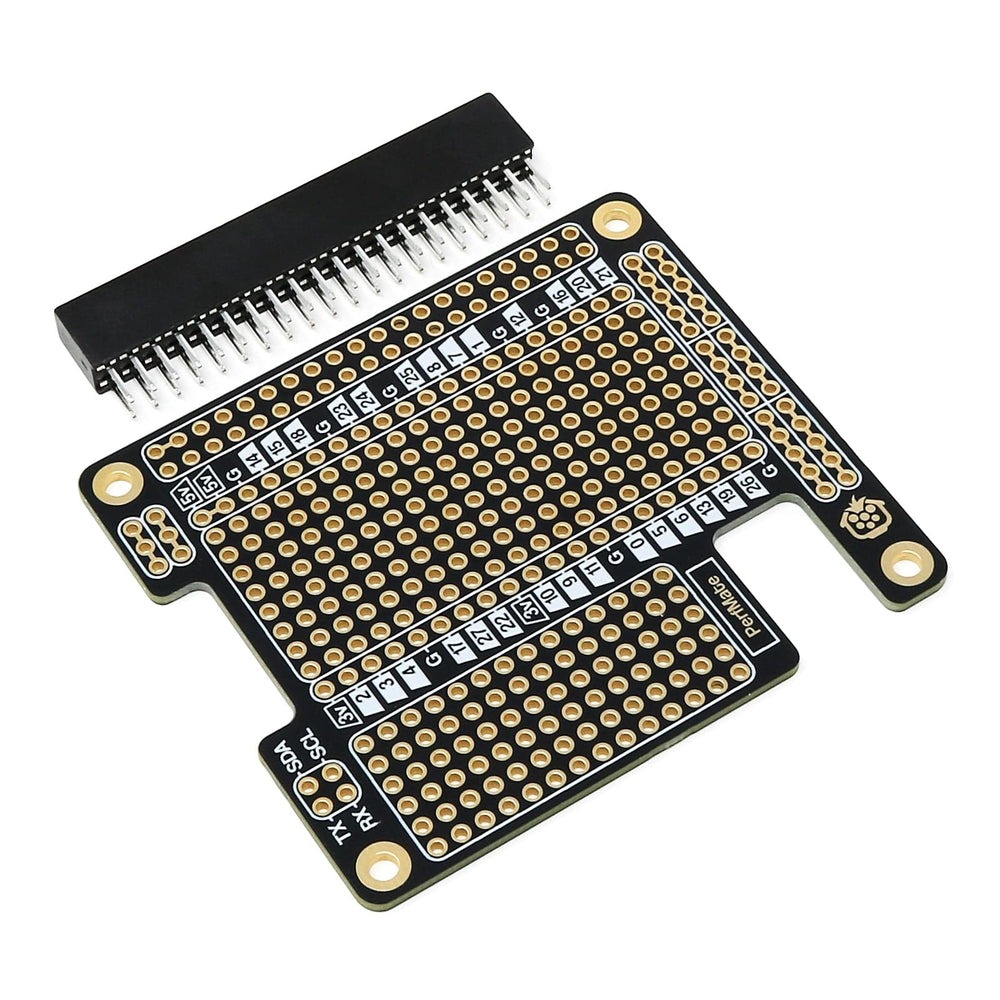

Plan your circuit and pins (then check it at least twice!), fit your components to the board, then solder them along with any prototyping wire connections. We include a free GPIO header with the PerfMate, and recommend soldering the header last to make it easier to get to the components from the underside.

Raspberry Pi and mounting hardware (standoffs) not included.

Key Features

Our product team spent time considering how to make the most out of a HAT-sized board:

🐫 Two perfboard-style soldering areas (20x8 + 14x6)

📌 All IO pins broken out

️🖥️ Useful I2C and serial pins broken out

🛤️ Rails each side of the board to make banks for regularly used pins (such as 5V/GND)

🪙 ENIG (Gold) PCB plating for oxidation resistance and durability

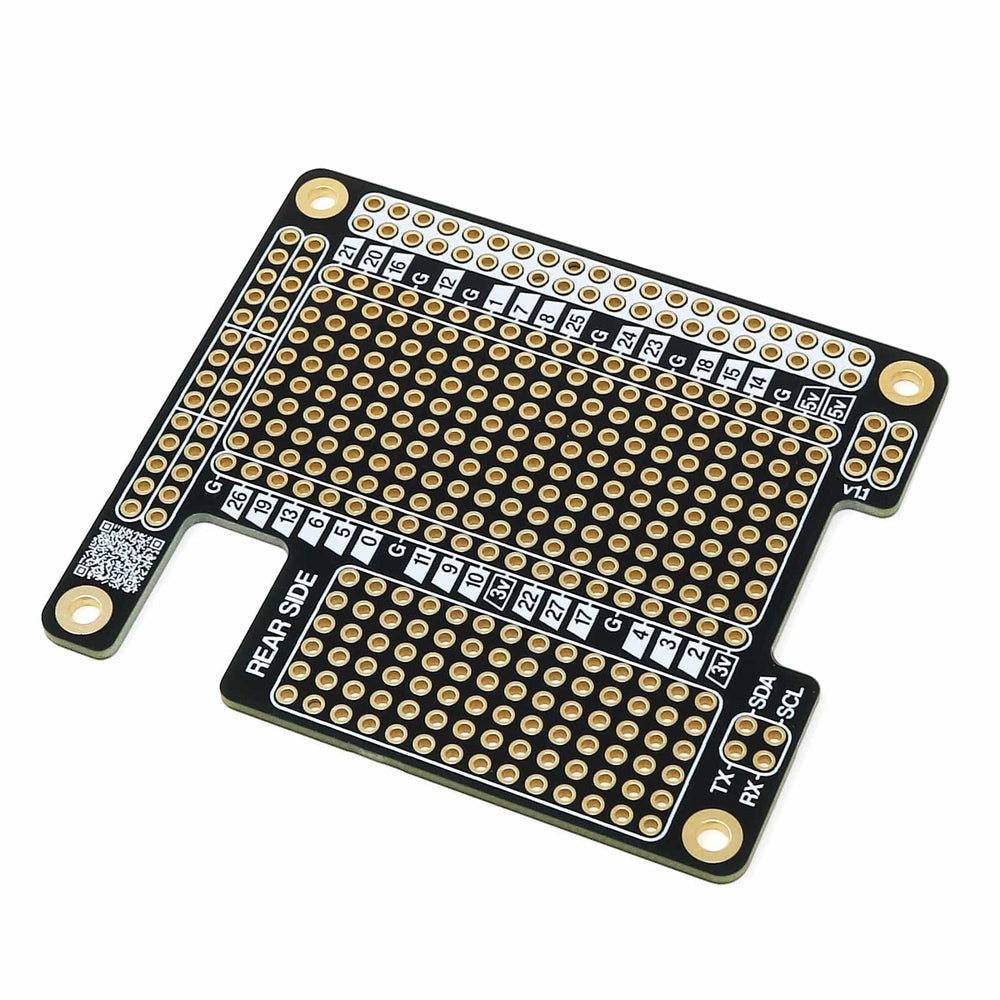

↕️ A big ol' REAR SIDE label to remind you which way up to solder the board

🔩 M2.5 mounting holes, matching those of the Raspberry Pi

💸 Free GPIO header included!

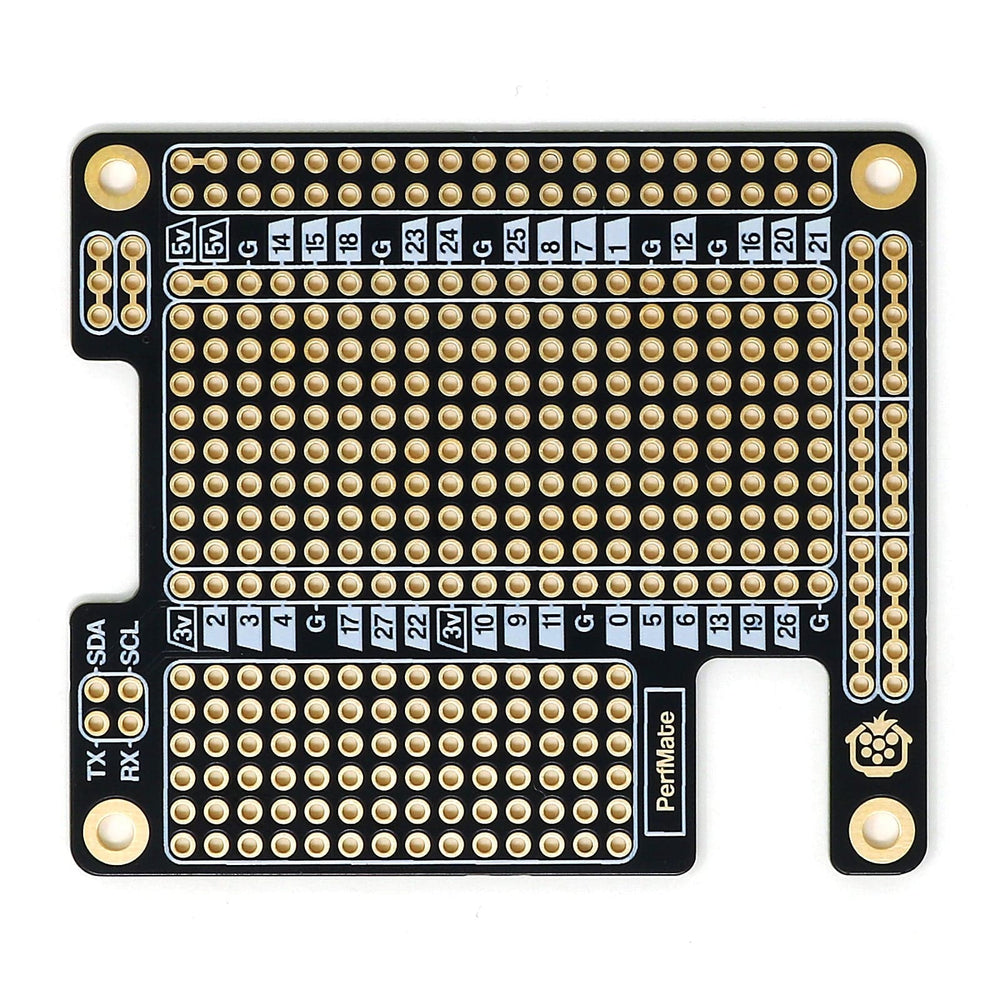

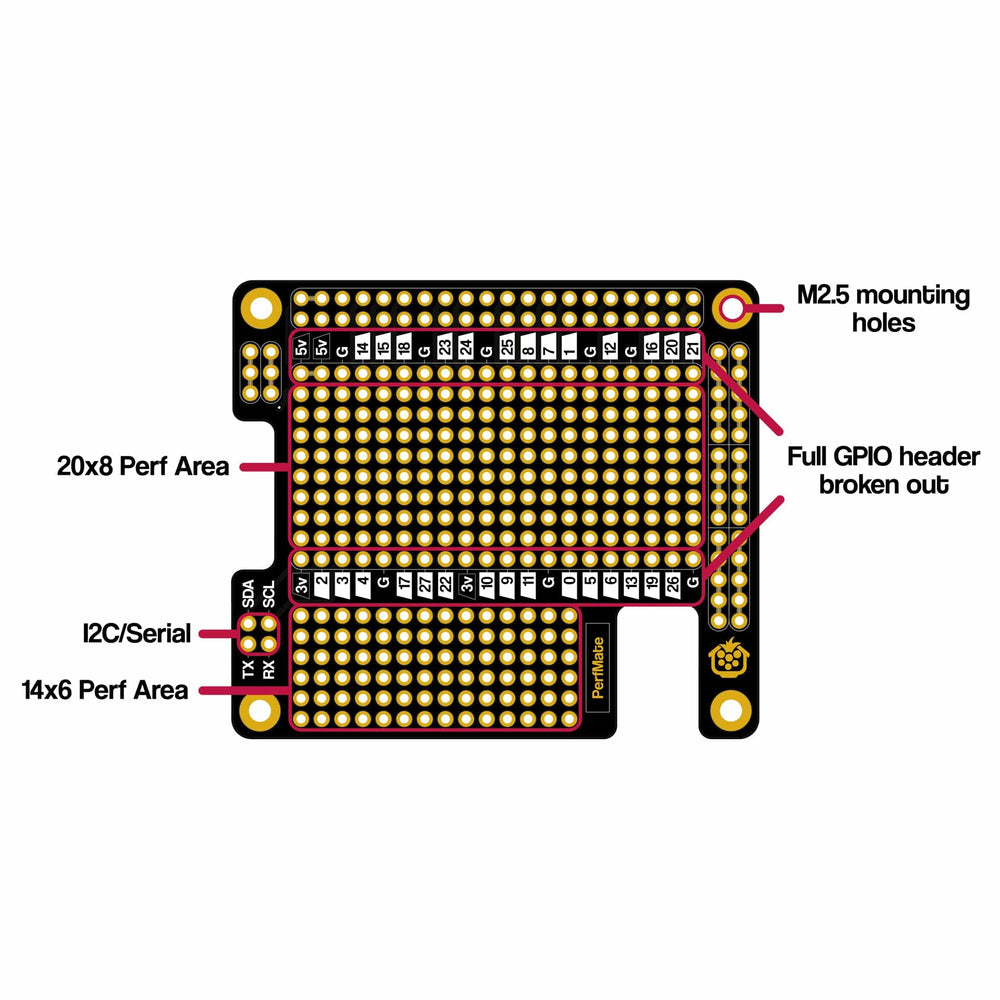

Board Layout

Resources

Recommended standoffs - 12mm female/female standoffs, with 5mm screws.

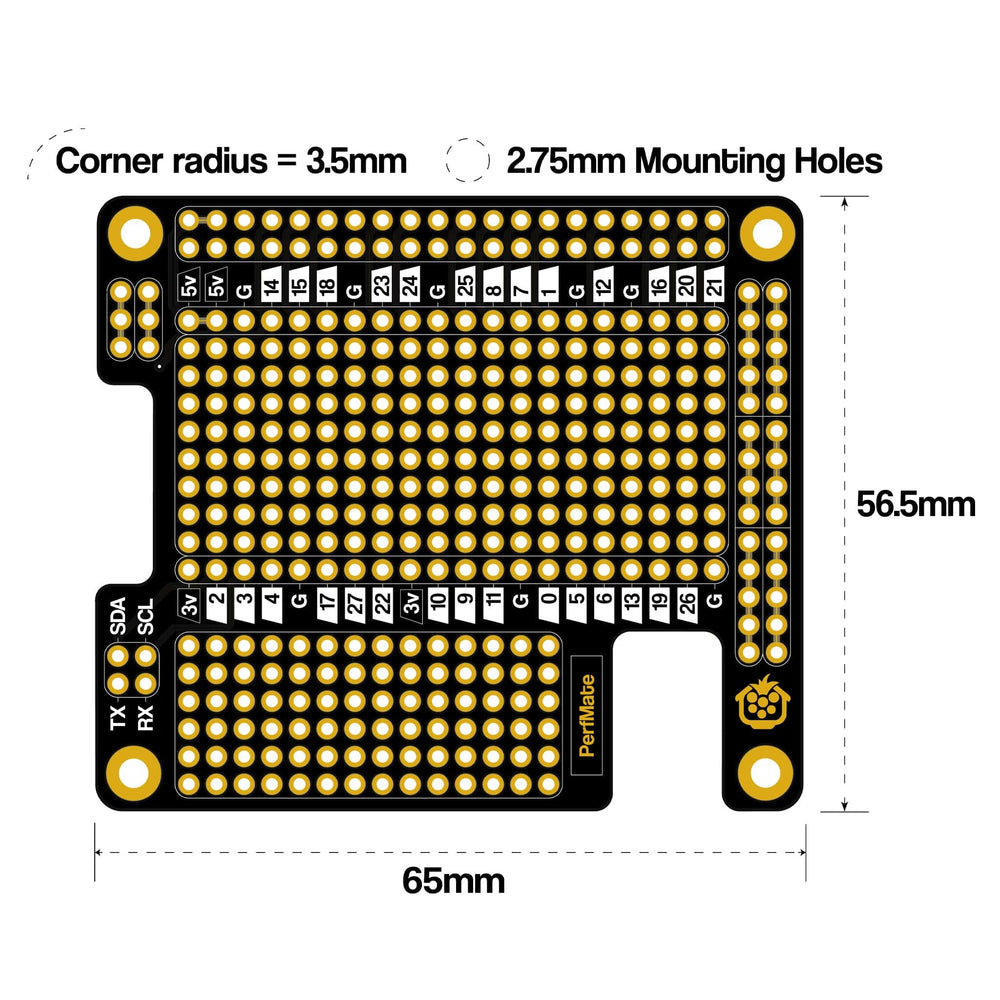

    Dimensions

    The board follows the official HAT mechanical outline and mounting hole size, including slots for camera/display cables:

    Package Contents

    • 1x PerfMate for Raspberry Pi PCB
    • 1x GPIO Header

    Raspberry Pi and mounting hardware (standoffs) not included.
