Olimex BB-L298 Dual Full-Bridge Motor Driver

OlimexSKU: 105377
Price:
Sale price £7.50
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

Robot Chassis Kit NS - The Pi HutRobot Chassis Kit NS - The Pi Hut
WaveshareRobot Chassis Kit NS
Sale price £11.90 incl. VAT excl. VAT
4 x AA Battery Holder with Premium Jumper Header Wires - The Pi Hut4 x AA Battery Holder with Premium Jumper Header Wires - The Pi Hut
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT
Micro Metal Gearmotor - The Pi HutMicro Metal Gearmotor - The Pi Hut
The Pi HutMicro Metal Gearmotor
Sale price £5 incl. VAT excl. VAT
DC Motor - 6V 60RPM with Hub & Bracket - The Pi Hut
ModMyPiDC Motor - 6V 60RPM with Hub & Bracket
Sale price £14 incl. VAT excl. VAT
TT Motor - 200RPM 3-6V - The Pi HutTT Motor - 200RPM 3-6V - The Pi Hut
The Pi HutTT Motor - 200RPM 3-6V
Sale price £2.60 incl. VAT excl. VAT

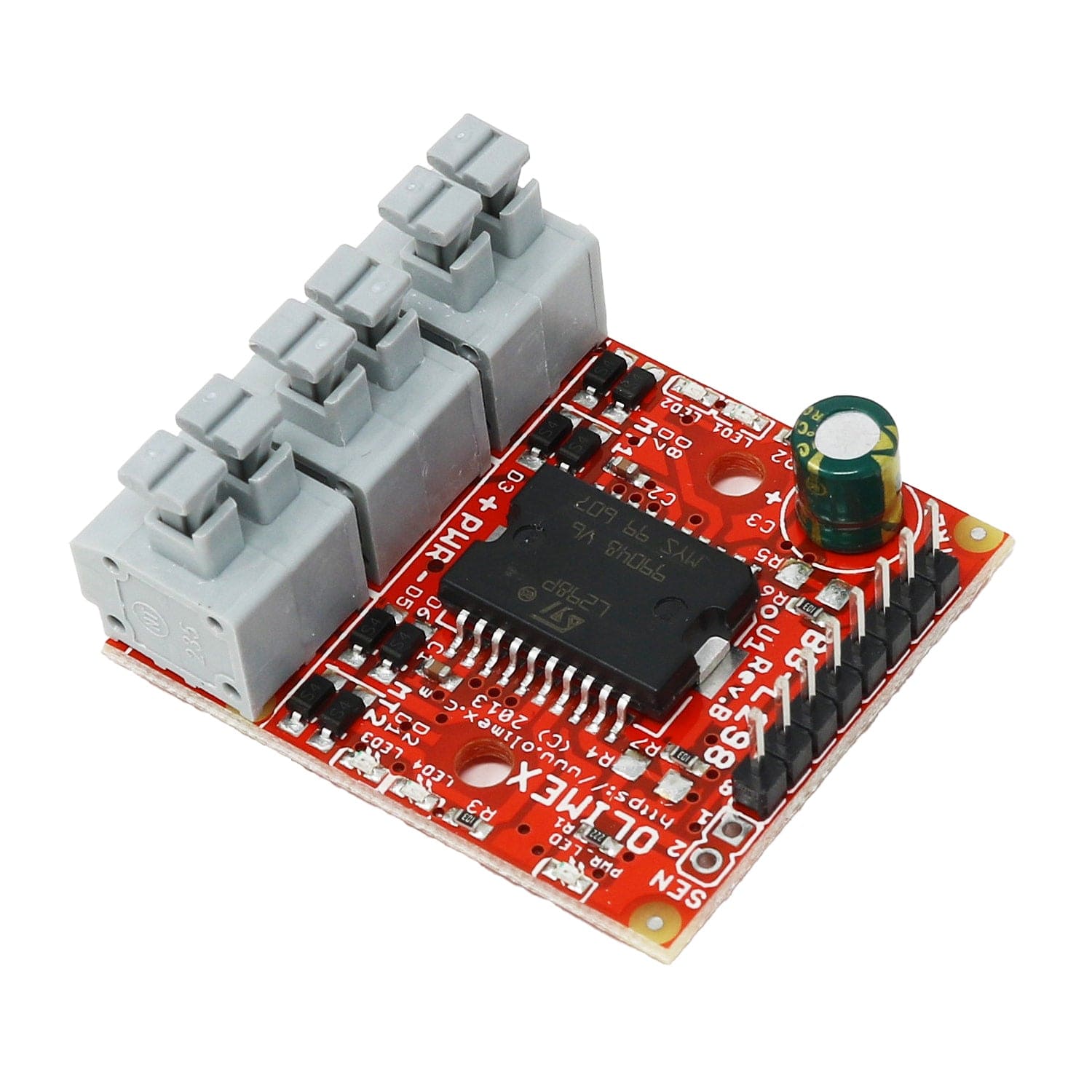

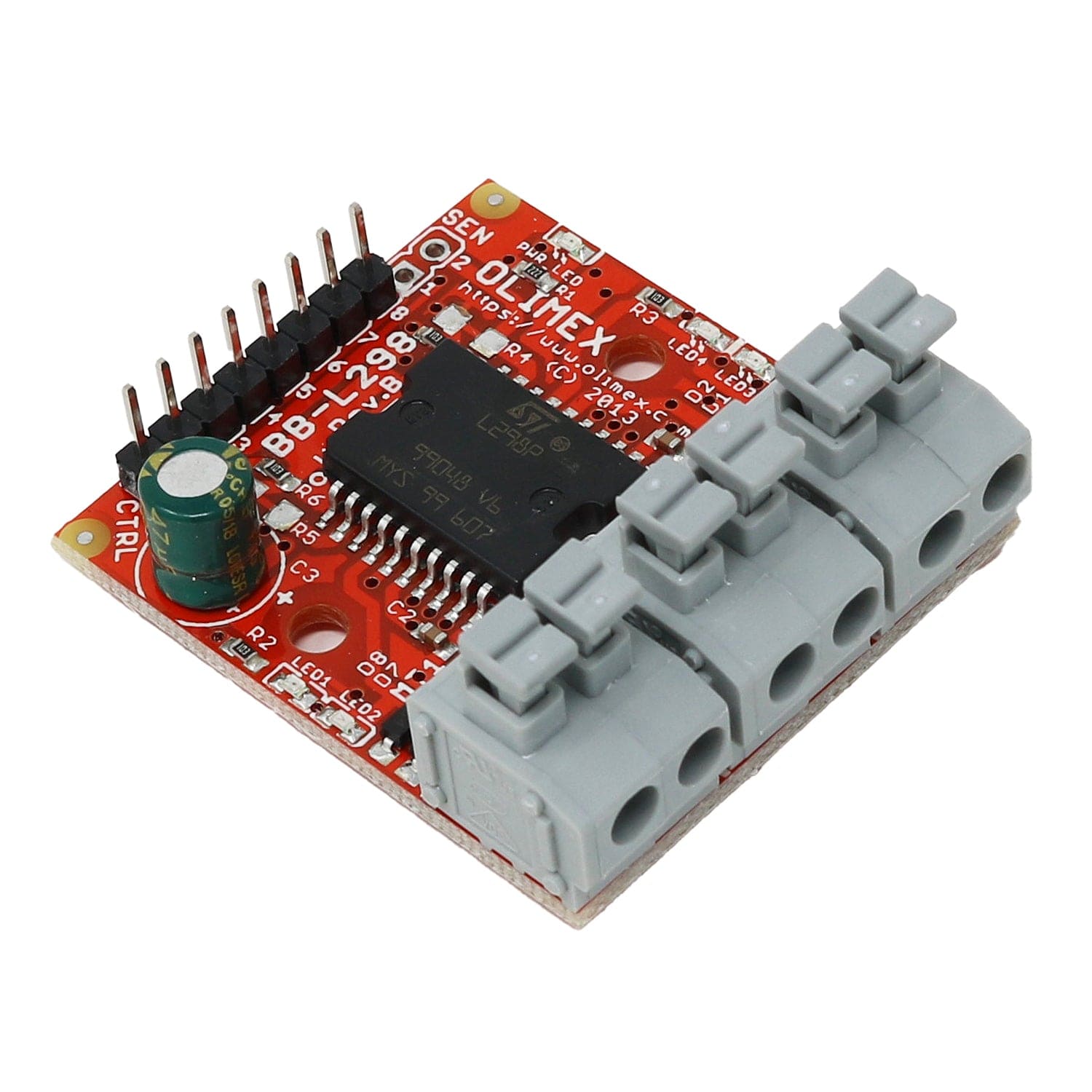

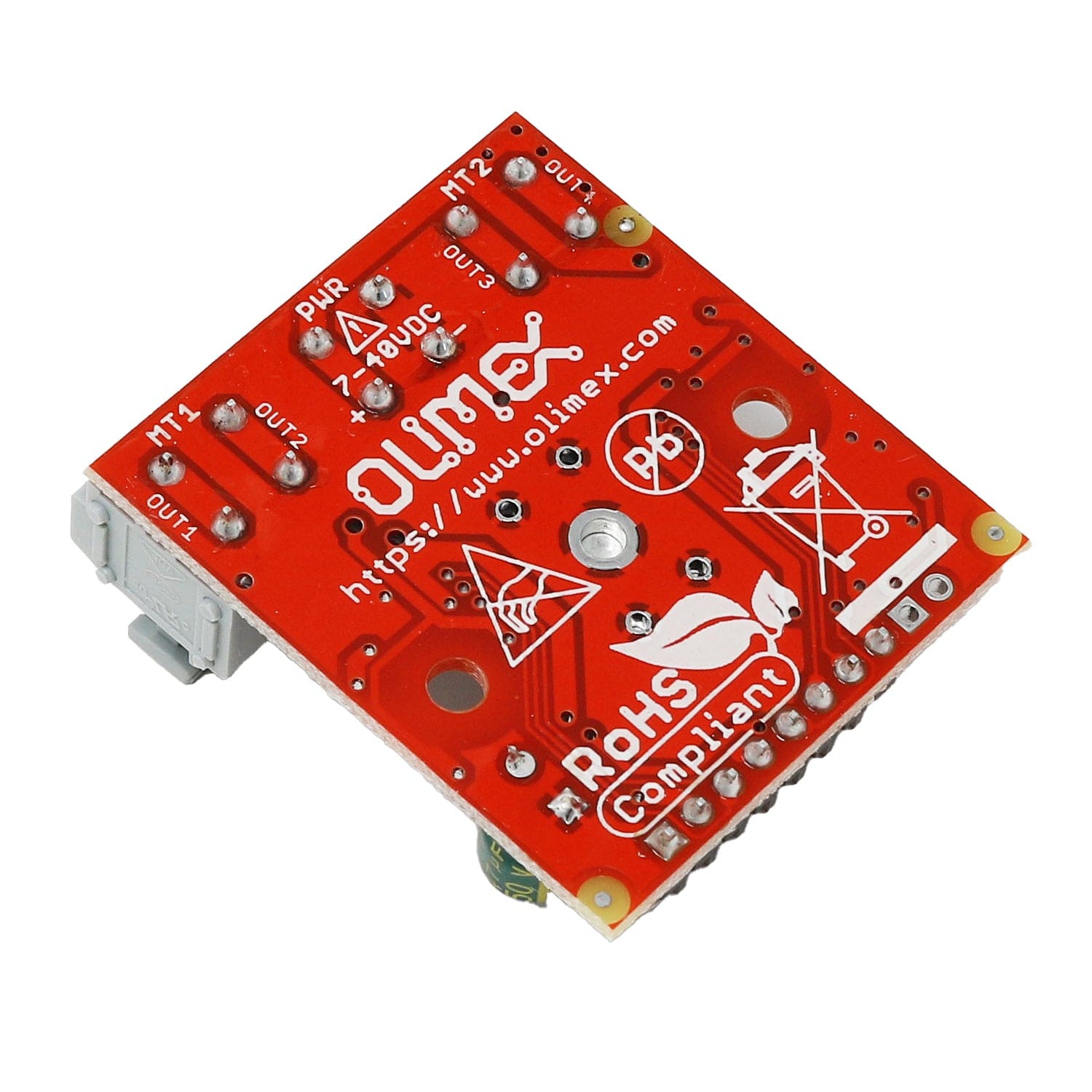

The Olimex BB-L298 is a dual full-bridge driver with up to 2.5A and 7-40V working voltages, compatible with a wide range of microcontrollers.

It's great for driving robot gear motors with reverse functions. Status LEDs help to visualise both the power supply status and driver direction. The power connectors are spring-type for quick connections without the need for tools. Inductive load protection diodes are included onboard too.

Whilst this simple motor driver does not have a user guide, usage is a case of simple GPIO control and an example Arduino IDE script can be found in the OLIMEXINO-328 package, allowing you to use this with a range of development boards including the Arduino UNO.

Features

  • Up to 2.5A loads
  • Able to drive two motors
  • 7-40VDC power supply
  • Power LED
  • Status direction LEDs for both channels
  • Can work with 5V Arduino boards (and other microcontrollers)

Resources

Documents

Hardware

Software

Package Contents

  • 1x BB-L298 Dual Bridge Driver
