DC Motor - 6V 60RPM with Hub & Bracket

ModMyPiSKU: MMP-0261
Price:
Sale price £14
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

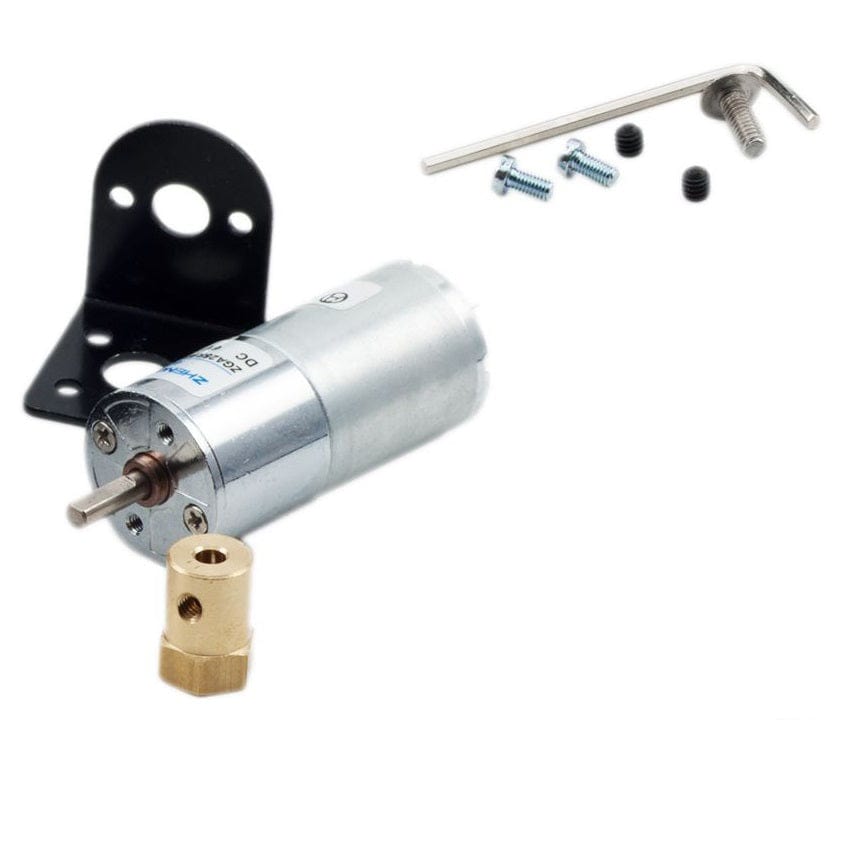

Want to build a Raspberry Pi rover, but need something with a little more oomph! These heavy duty, all metal geared 6V 60RPM DC motors are perfect for Raspberry Pi Rover designed to traverse rough terrain! Each kit comes complete with all the mounting hardware required to get you revving in no time: 1 x 6V 60RPM DC Motor with all meatal gearing, 1x 25mm mounting bracket, 1 x 4mm coupler in addition to all the screws required to put it all together! The wheels are available separately in different colours, so you really can pimp your Pi!

Features

  • 1 x 6V 60RPM DC Motor with integrated gearbox (metal gearing)
  • 1 x 4mm Coupler
  • 1 x 25mm Mounting Bracket
  • Assorted bolts for assembly
  • Bracket mounting hardware not included e.g. what you use to fix the bracket to your project.

Specification

  • Voltage VDC: 6V
  • No Load Speed: 60RPM
  • No Load Current: 0.03A
  • No Load Torque: 0.035kg/cm
  • Rated Speed: 46RPM
  • Rated Current: 0.22A
  • Rated Torque: 0.91kg/cm
  • Full Load Speed: 11RPM
  • Full Load Current: 0.5A
  • Full Load Torque: 2.2kg/cm
  • Full Load Power: 0.66W
  • Motor ID: ZGA25RP71i
  • Motor Dimensions: 53mm x 25mm x 25mm

Tutorials

6V 60RPM Motor, Wheel, Coupler & Mount Assembly Guide

Information

Zheng Motor Datasheet List
