M5Stack OLED Unit 1.3" 128 × 64 Display

M5StackSKU: U119
£8.33
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
£48.25 incl. VAT excl. VAT
M5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988) - The Pi HutM5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988) - The Pi Hut
M5StackM5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988)
£5.58 incl. VAT excl. VAT
M5Stack PIR Motion Sensor (AS312) - The Pi HutM5Stack PIR Motion Sensor (AS312) - The Pi Hut
M5StackM5Stack PIR Motion Sensor (AS312)
£4.25 incl. VAT excl. VAT
Notify me

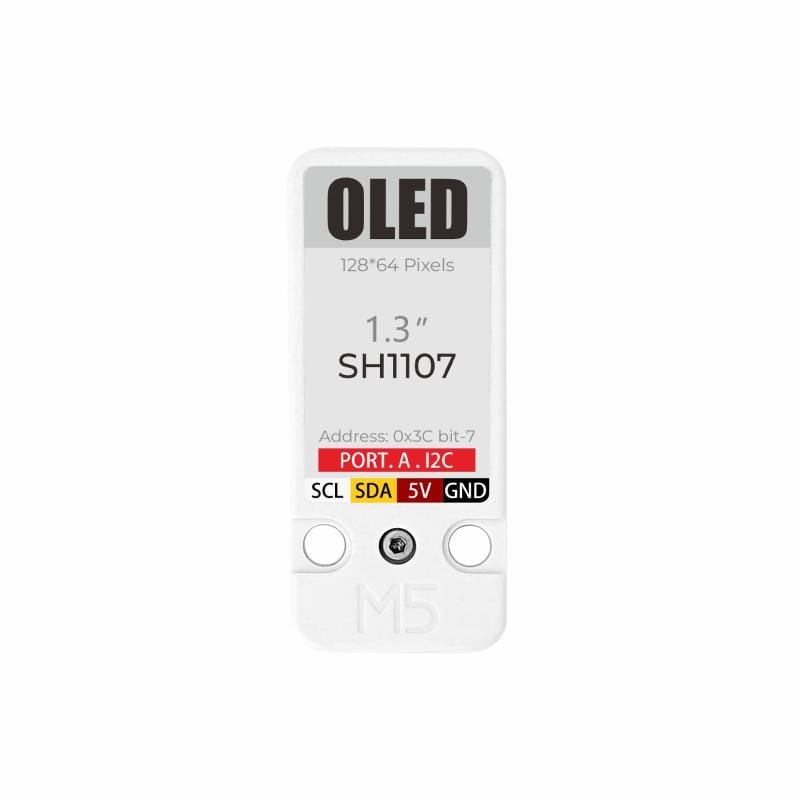

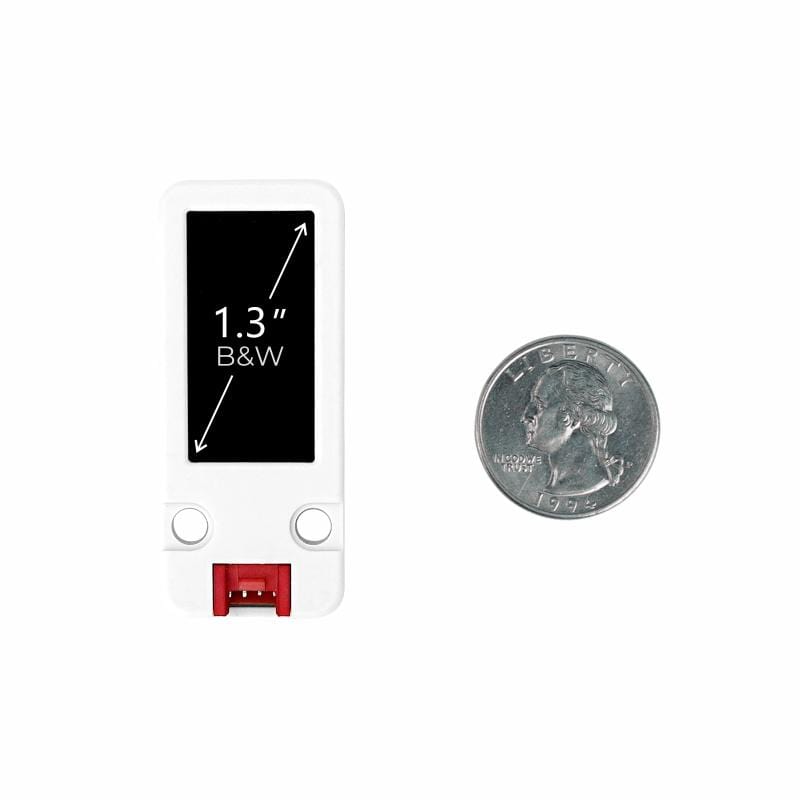

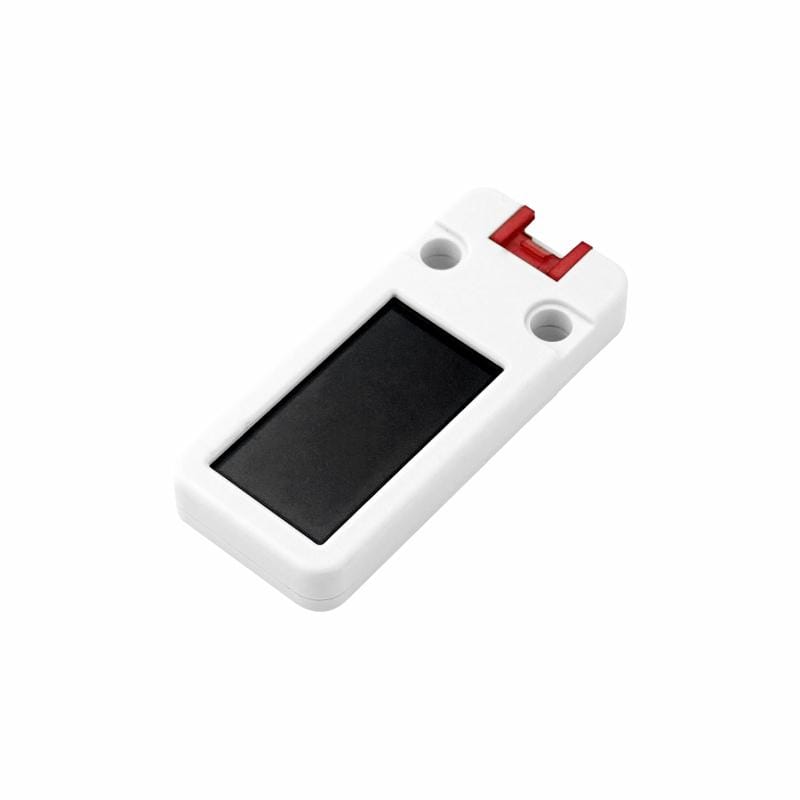

OLED Unit is a 1.3-inch OLED expansion screen unit. It has an SH1107 drive scheme, supports black/white display, and the resolution is 128 x 64. The driver chip uses the I2C communication interface, and the user can mount it to the I2C bus of the existing device when in use, which saves IO. The back of the screen is integrated with a magnetic design, which can easily be fixed on a metal surface.

Features

  • OLED display panel
  • SH1107 drive scheme
  • Display color: black/white
  • I2C communication interface
  • 128*64 resolution
  • Viewing angle: full viewing angle
  • Magnetic back design

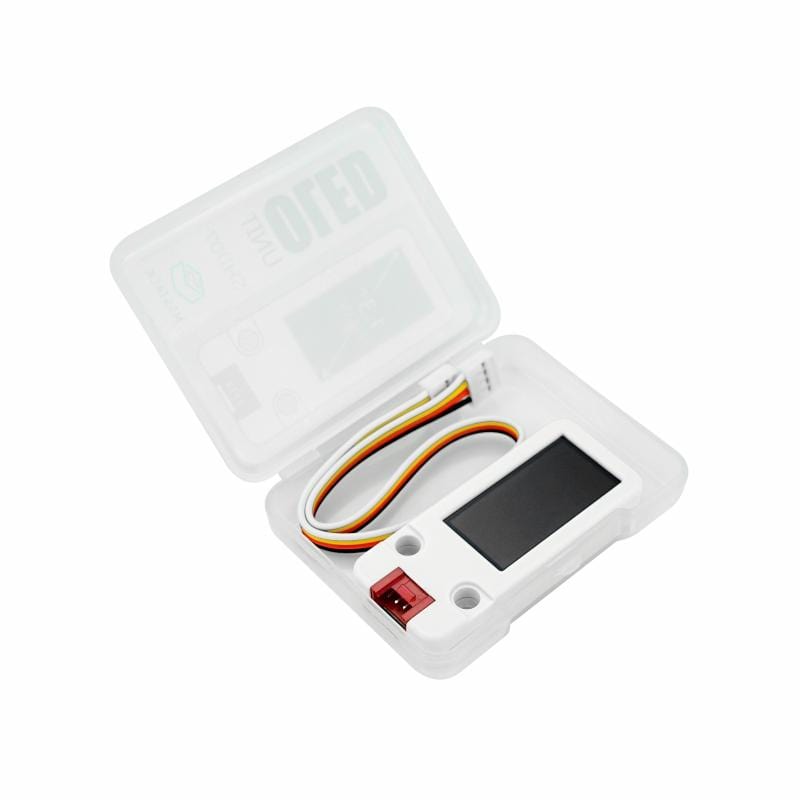

Package Contents

  • 1x Unit OLED
  • 1x HY2.0-4P Cable

    Specifications

    Specification Parameter
    Working Current 58mA
    Communication Protocol I2C address: 0x3C
    Display Size 14.7 x 29.42 (mm）
    Pixel Pitch 0.17 x 0.17 (mm）
    Pixel Size 0.15 x 0.15 (mm）
    Viewable Full view
    Operating Temperature 0°C to 60°C
    Net Weight 9.3g
    Gross Weight 20g
    Product Size 24 x 56 x 8mm
    Package Size 67 x 53 x 12mm
    Case Material Plastic (PC)

    Resources

  • Documents
    •
