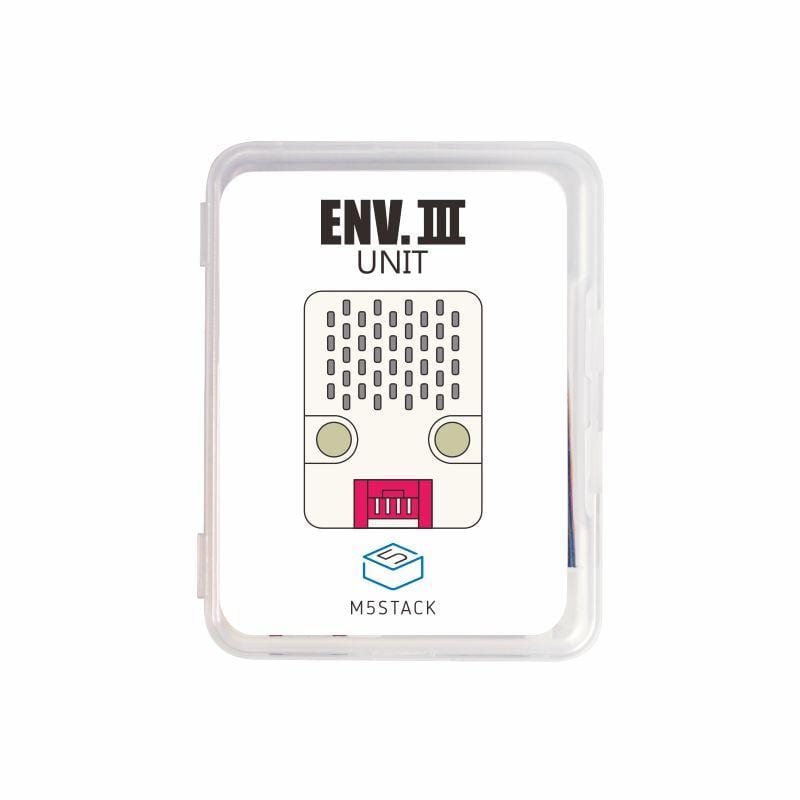

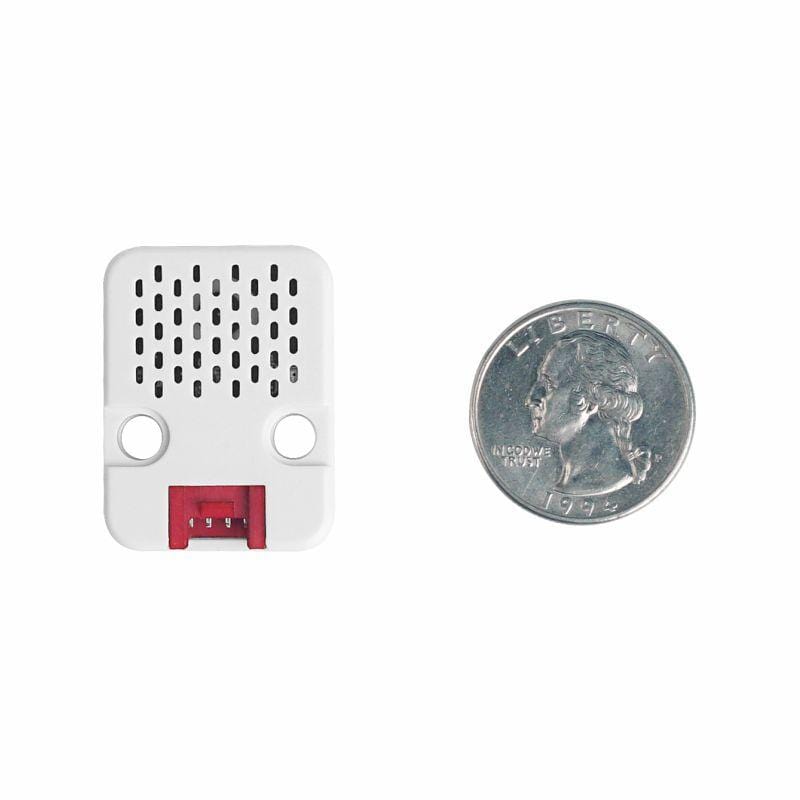

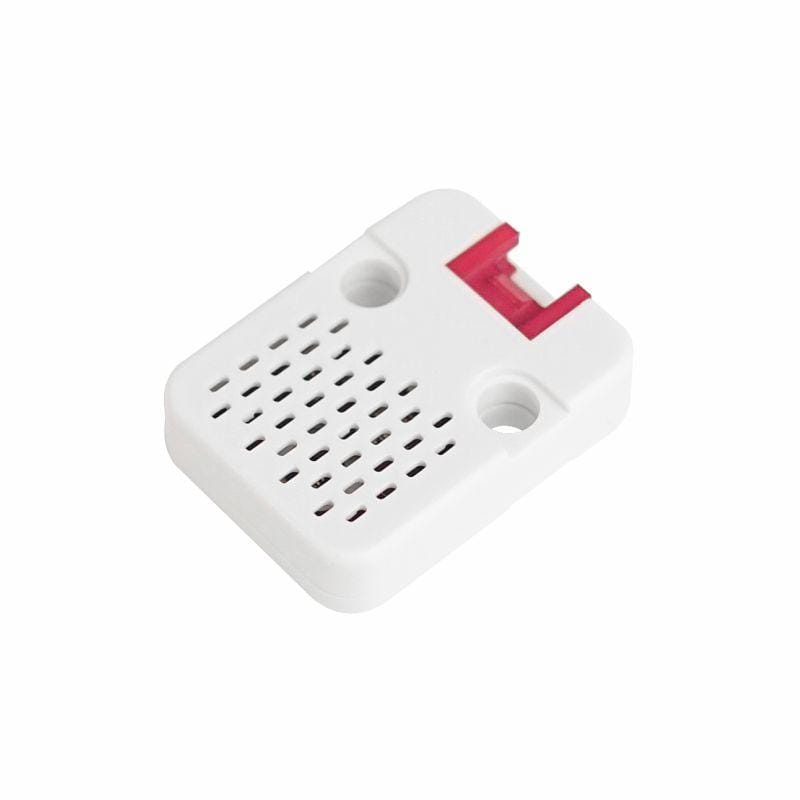

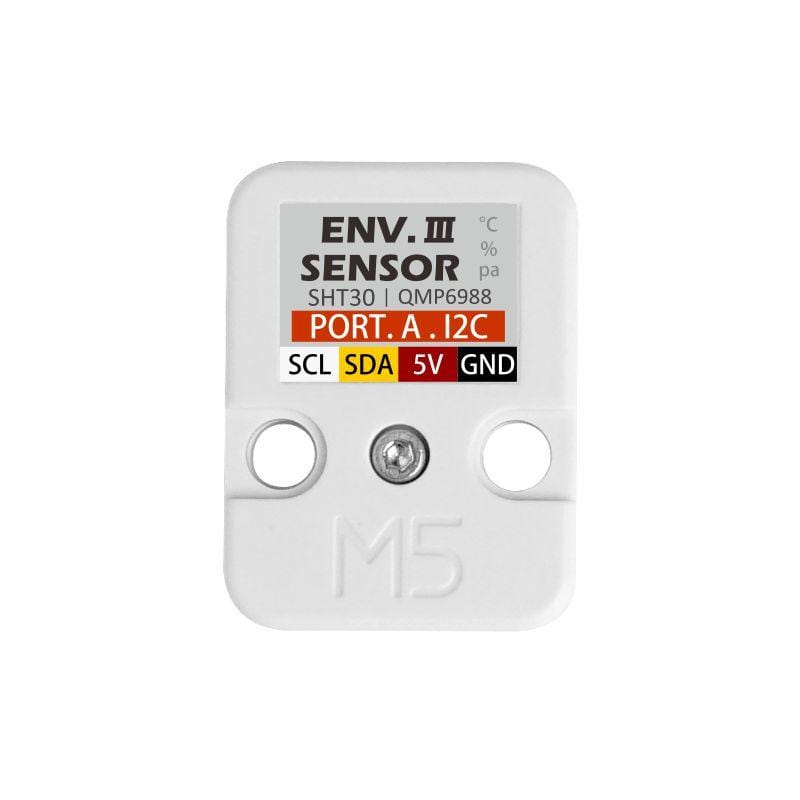

M5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988)

M5StackSKU: U001-C
£6.70
incl. VAT
excl. VAT
In stock

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3
£57.90 incl. VAT excl. VAT
M5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW) - The Pi HutM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW) - The Pi Hut
M5StackM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)
£7.30 incl. VAT excl. VAT
M5Stack Passive Buzzer Unit - The Pi HutM5Stack Passive Buzzer Unit - The Pi Hut
M5StackM5Stack Passive Buzzer Unit
£4.20 incl. VAT excl. VAT
Notify me

The ENV III unit is an environmental sensor that integrates the SHT30 and QMP6988 to detect temperature, humidity, and atmospheric pressure data. The SHT30 is a high-precision and low-power digital temperature and humidity sensor, and supports I2C interface (SHT30:0x44 , QMP6988:0x70). The QMP6988 is an absolute air pressure sensor specially designed for mobile applications, with high accuracy and stability, it is suitable for environmental data collection and detection projects.

Features

  • Simple and easy to use
  • High accuracy
  • I2C communication interface
  • HY2.0-4P interface, support platform UIFlow , Arduino
  • 2x LEGO compatible holes

Package Contents

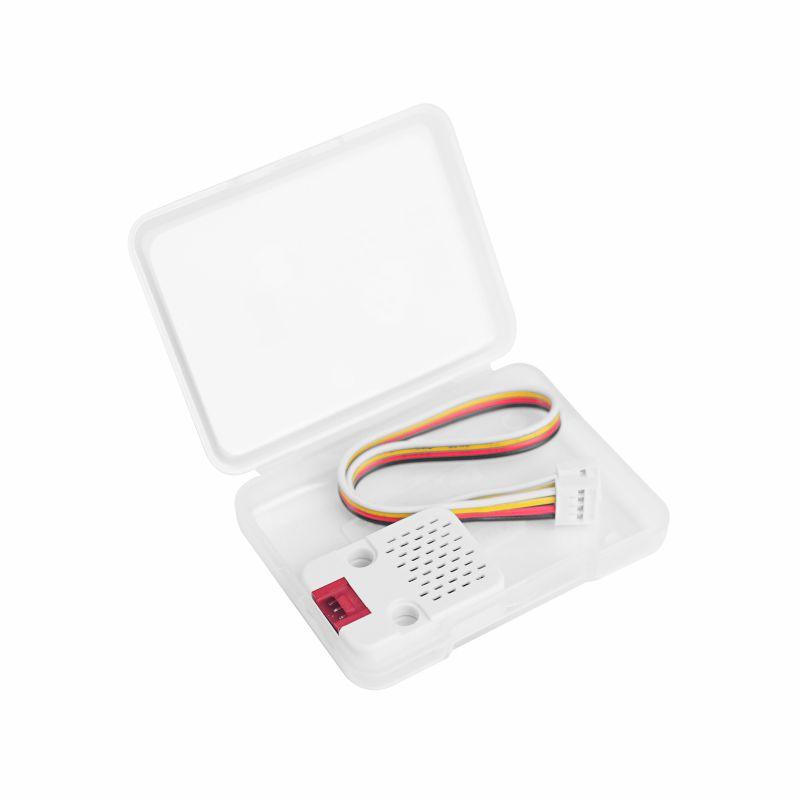

  • 1x ENV-III Unit
  • 1x HY2.0-4P Cable

    Specifications

    Resources Parameter
    Maximum temperature measurement range -40 ~ 120 ℃
    Highest measurement accuracy 0 ~ 60 ℃/±0.2℃
    Humidity measurement range/error 10 ~ 90 %RH / ±2%
    Maximum measured value of air pressure/resolution/error 300 ~ 1100hPa / 0.06Pa / ±3.9Pa
    Communication protocol I2C: SHT30(0x44), QMP6988(0x70)
    Working temperature 32°F to 104°F (0°C to 40°C )
    Net weight 5g
    Gross weight 17g
    Product Size 24.2*32.2*8.1mm
    Package Size 67*53*12mm
    Case Material Plastic ( PC )

    Resources

  • Documents
    •
