M5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)

M5StackSKU: U040-B
(1 Reviews)
Price:
Sale price £7.30
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

(4 Reviews)
M5StackM5Stack Core2 ESP32 IoT Development Kit
Sale price £42 incl. VAT excl. VAT
M5StackM5Stack Real Time Clock (RTC) Unit (HYM8563)
Sale price £4.50 incl. VAT excl. VAT

Description

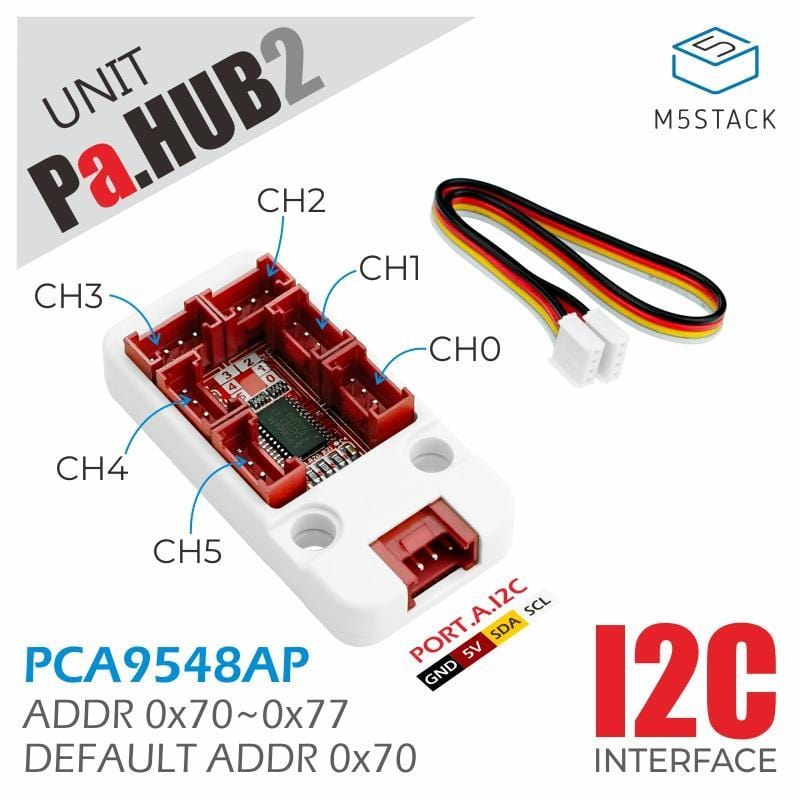

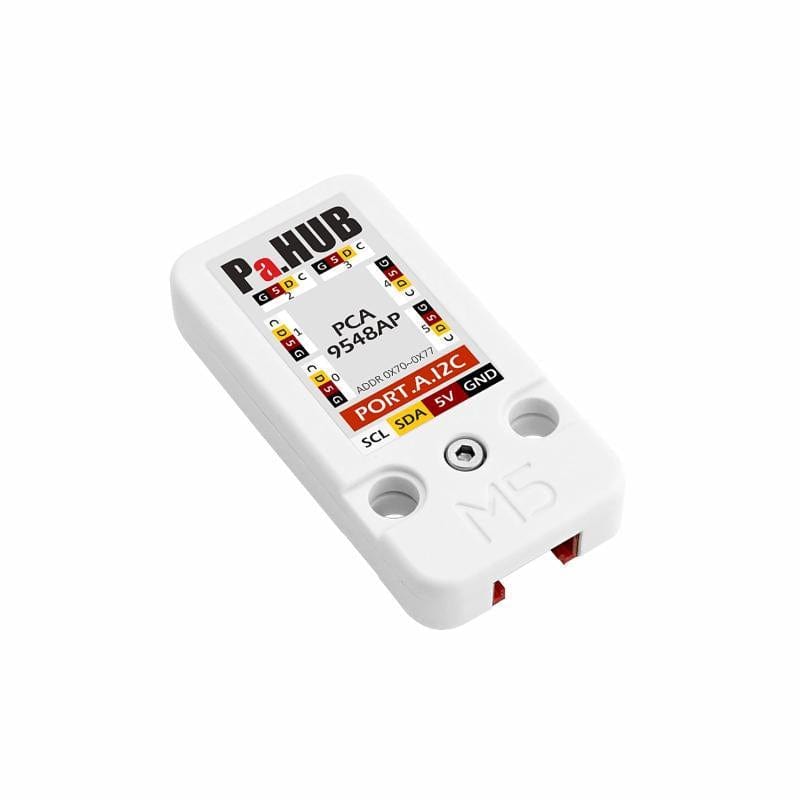

The PaHUB2 is an I2C Expandable Hub which can expand a single I2C HY2.0-4P interface and connects up to 6 I2C channels. It allows you to mount slave devices with the same I2C address (by polling control the different channels to achieve in-device coexistence). It has an embedded PCA9548AP-I2C multi-channel switch IC.

Note: When it's connected, the PaHUB2 will be polling control the different channels to achieve in-device coexistence. Please pay attention to the order of channels when programming.

Features

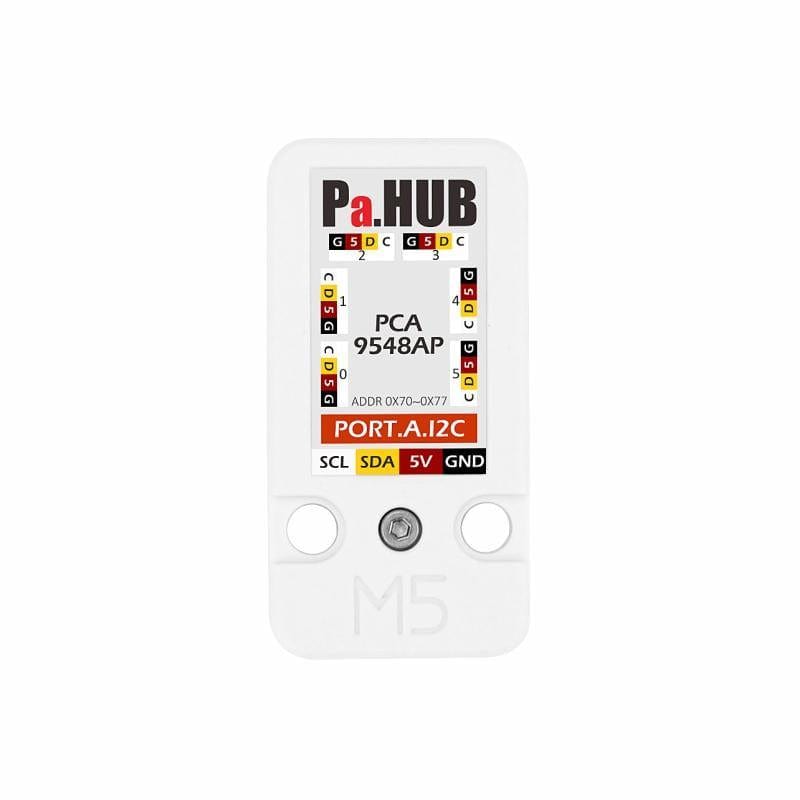

  • I2C HY2.0-4P PORTA expansion
  • 2x LEGO compatible holes
  • Support multiple nesting
  • 1-6 expansion

Please refer to the schematic and PCA9548AP data manual, the Unit can modify the I2C address of the device by adapting the level combination of A0~A2 pins. (The default address is 0x70)

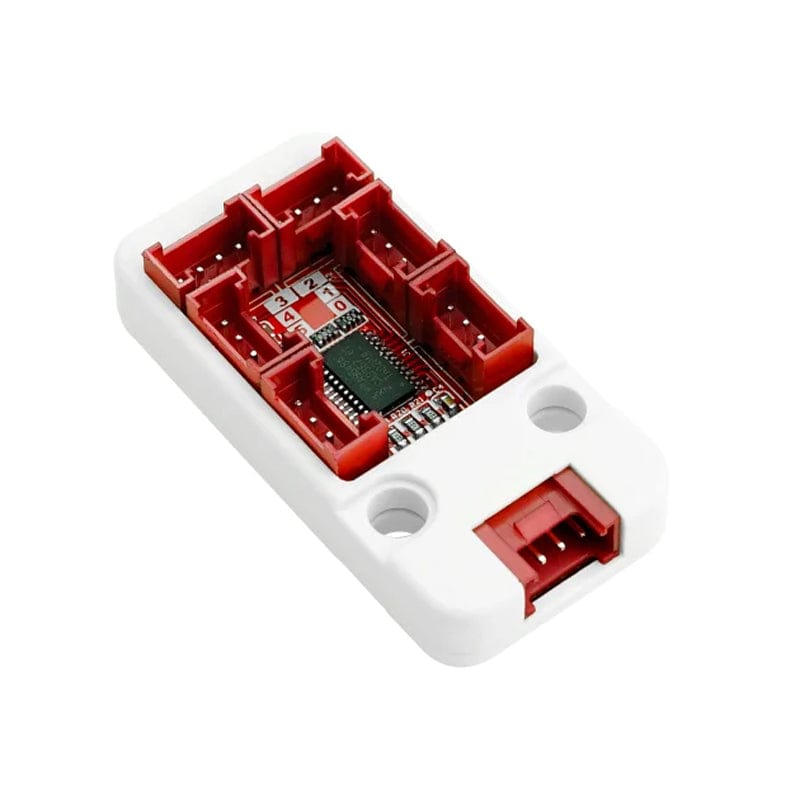

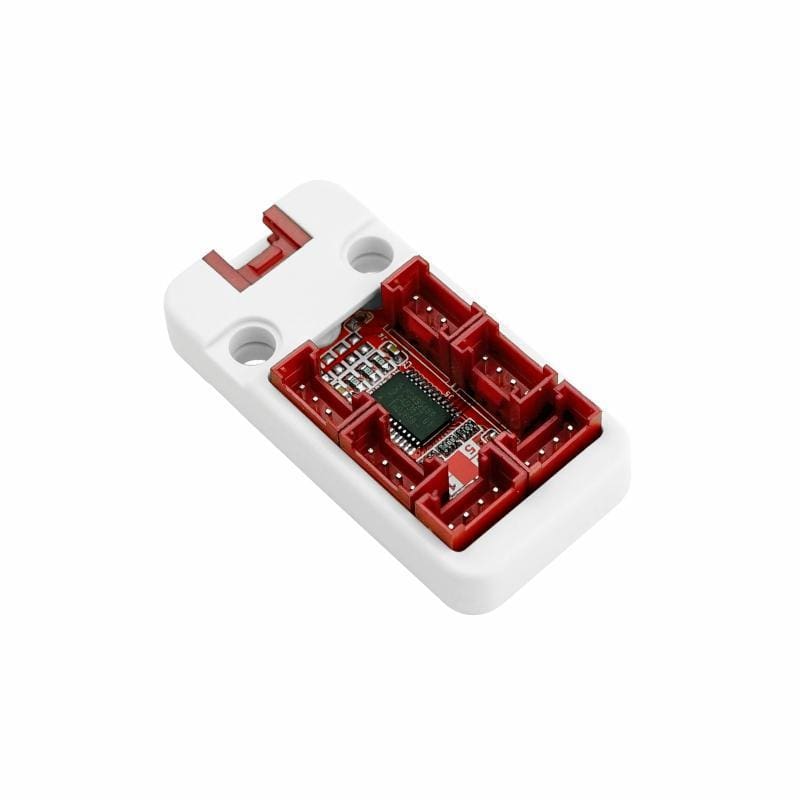

3 Position of Welding patch are reserved on the PCB board of the Unit, A0-A2 respectively, as shown in the figure below.

M5Stack I2C Hub Example

After welding the 0 ohm resistor, the corresponding pin will change from low level to high level. The pin level combination and its corresponding I2C address are shown in the table below.

A2 A1 A0 12c BUS SLAVE ADDRESS
L L L 112 (decimal), 70 (hexadecimal)
L L H 113 (decimal), 71 (hexadecimal)
L H L 114 (decimal), 72 (hexadecimal)
L H H 115 (decimal), 73 (hexadecimal)
H L L 116 (decimal), 74 (hexadecimal)
H L H 117 (decimal), 75 (hexadecimal)
H H L 118 (decimal), 76 (hexadecimal)
H H H 119 (decimal), 77 (hexadecimal)

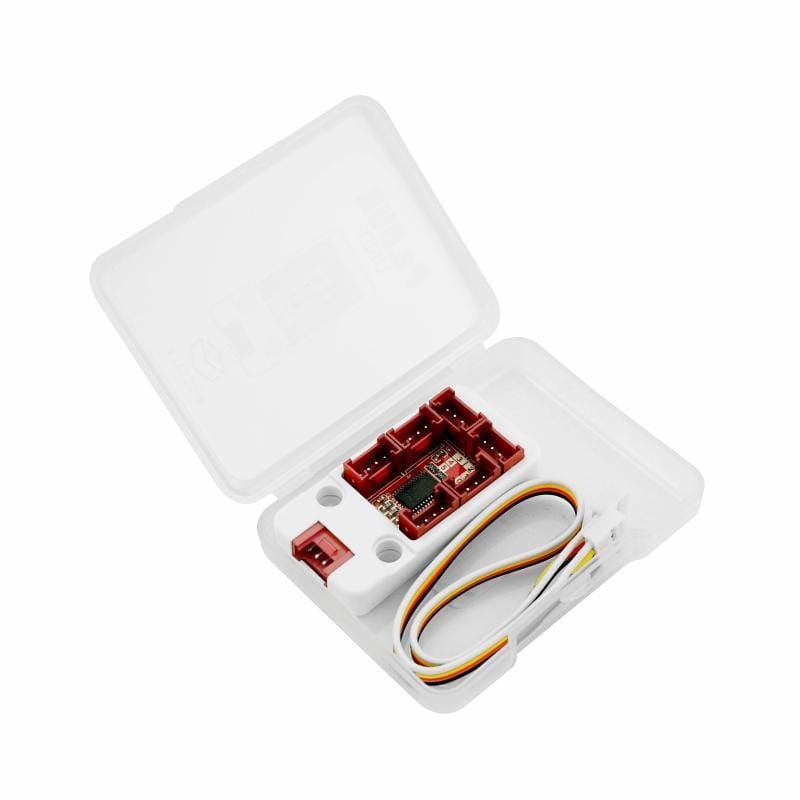

Package Contents

  • 1x Pahub2 Unit
  • 1x HY2.0-4P Cable

Specifications

Specifications Parameters
Channel Control IC PCA9548AP
Communication protocol I2C: 0x70
Net weight 7g
Gross weight 19g

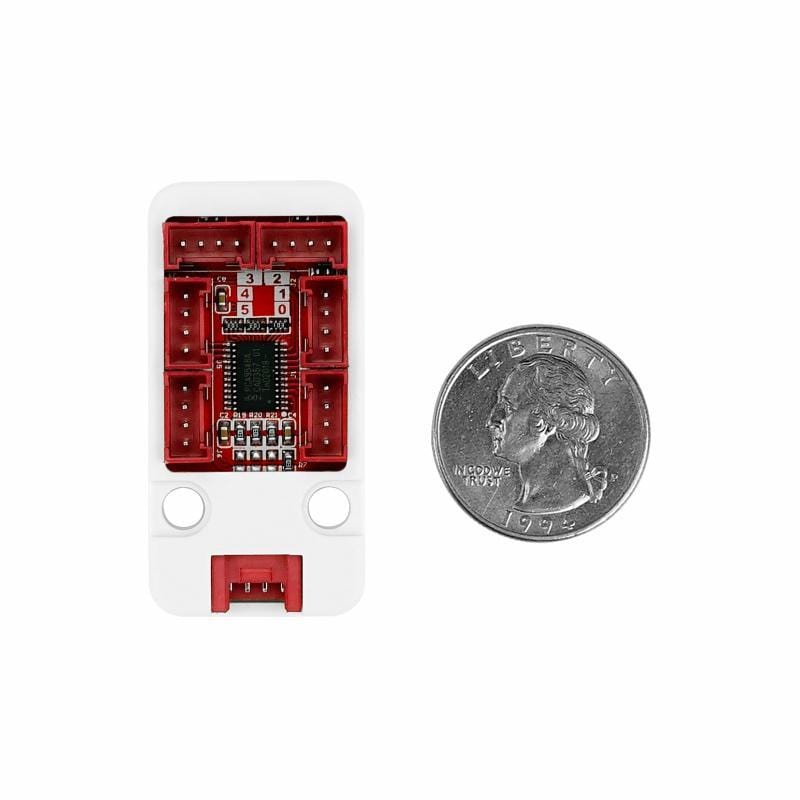

Product size 48 * 24 * 12mm
Packing size 67 * 53 * 12mm
