M5Stack Real Time Clock (RTC) Unit (HYM8563)

M5StackSKU: U126
£3.75
incl. VAT
excl. VAT
Only 8 units left

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
£48.25 incl. VAT excl. VAT
M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - The Pi HutM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - The Pi Hut
M5StackM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)
£7.25 incl. VAT excl. VAT
M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
£20 incl. VAT excl. VAT

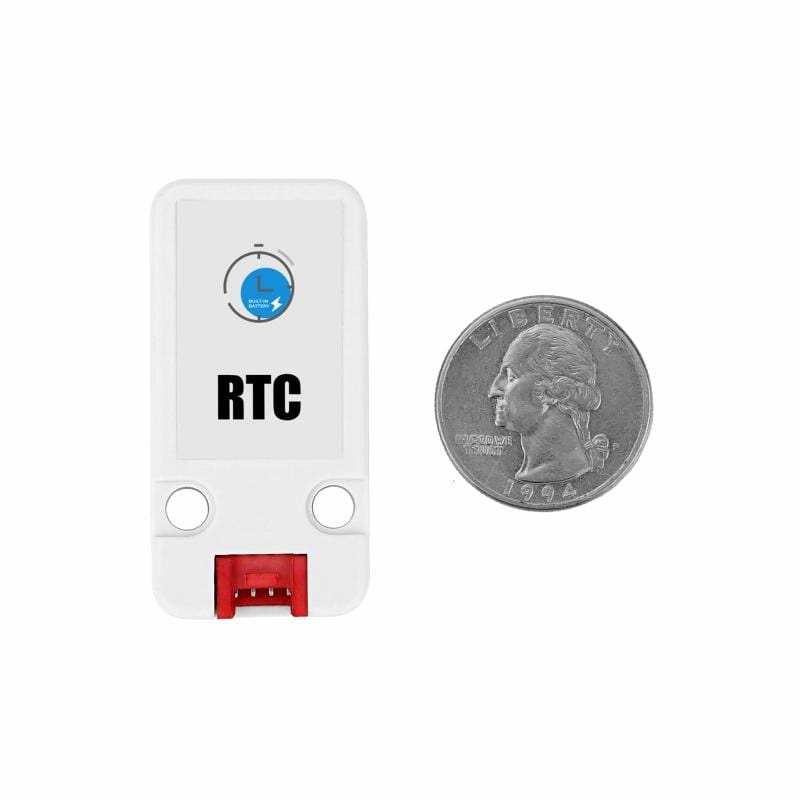

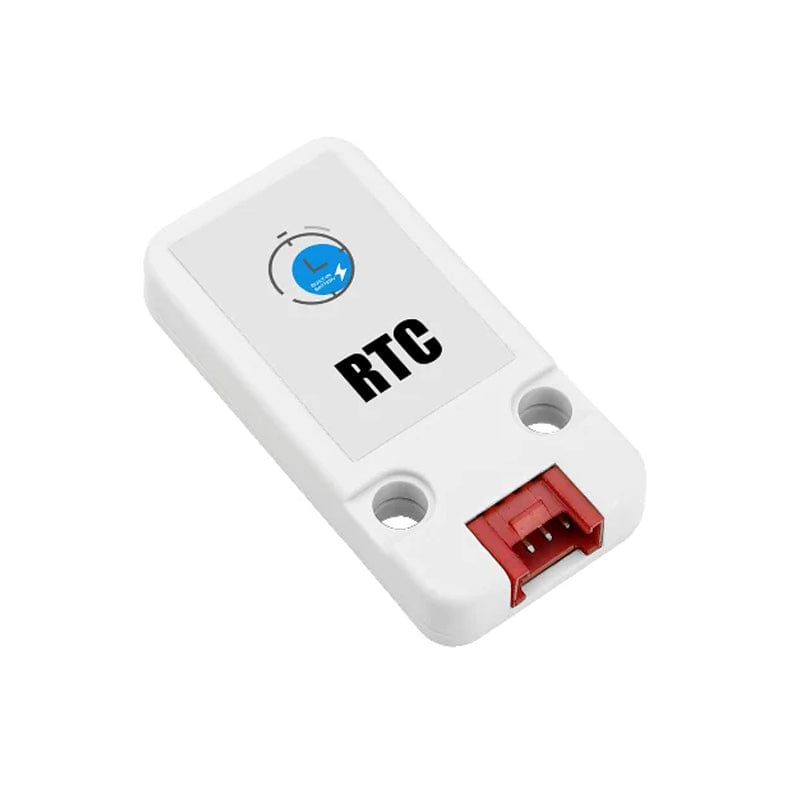

The RTC unit is a programmable real-time clock module, with integrated HYM8563 low-power CMOS real-time clock/calendar chip, using a I2C communication interface, a full-coverage case can effectively protect the circuit making its operation more stable.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

Features

  • Support second/minute/hour/day/month/year. time data reading and writing
  • 32.768kHz high-precision clock crystal, greatly reducing the time error
  • Low power consumption, coin battery can work continuously for years
  • With century mark
  • I2C communication interface

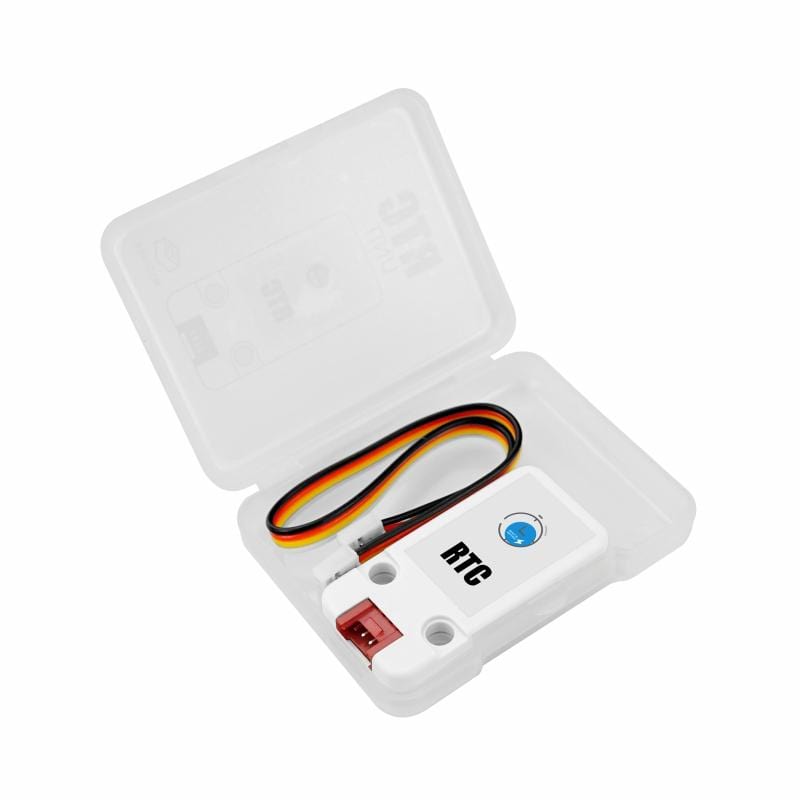

Package Contents

  • 1x Unit RTC
  • 1x Coin cell battery (38mAh)
  • 1x HY2.0-4P cable

    Specifications

    Specifications Parameters
    Clock chip HYM8563
    Crystal Frequency 32.768kHz

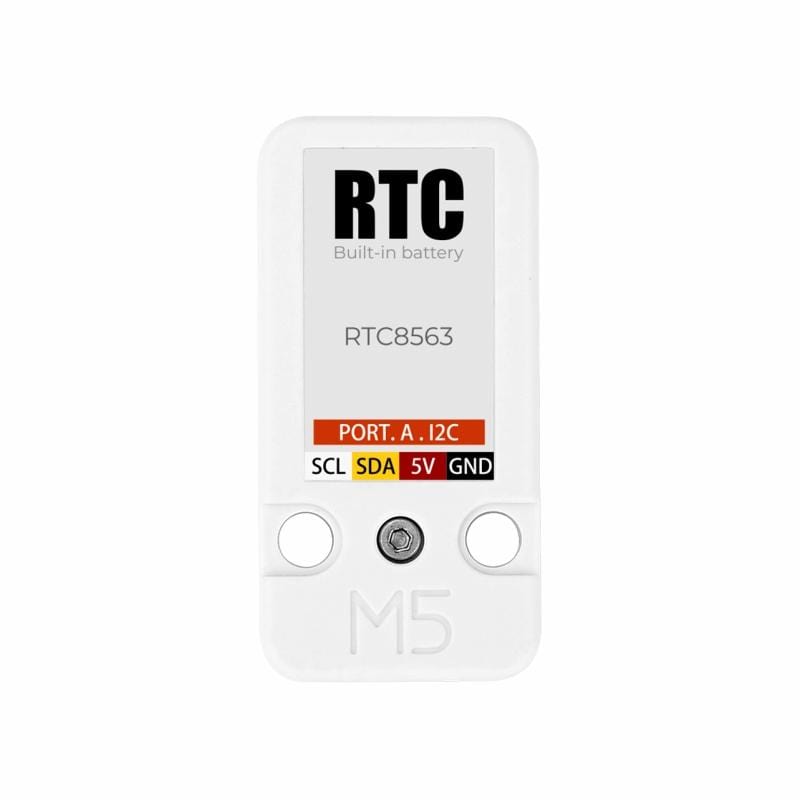

    Communication interface I2C, addr: 0x51, bus max speed 400Kbps
    Power supply voltage 5V DC
    Net weight 4.1g
    Gross Weight 8.3g
    Product Dimensions 48 x 24 x 8mm
    Package Size 67 x 53 x 12mm

    Resources

  • Documents
    •
