NEMA 17 Stepper Motor - 42mm x 60mm
Price:
Sale price
£18
Stock:
Quantity:
Awesome Extras
NEMA 17 motors are in many robotics applications from CNC machines to medical instruments, however in the maker world, we commonly see them being used in 3D printers.
We stock a range of NEMA 17 motors to ensure you have a suitable selection to choose from for your specific application, whether the focus is on weight, size or technical characteristics.

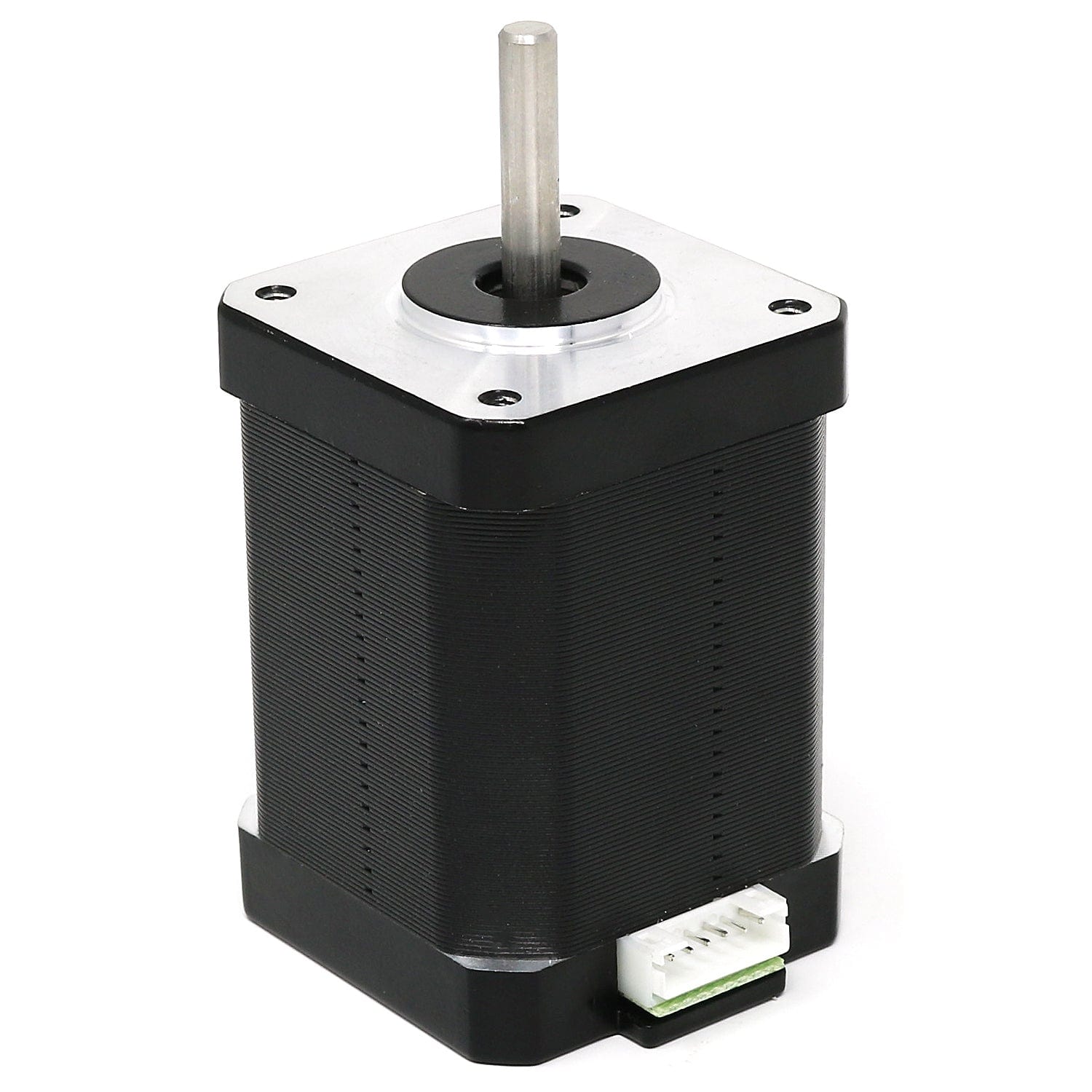

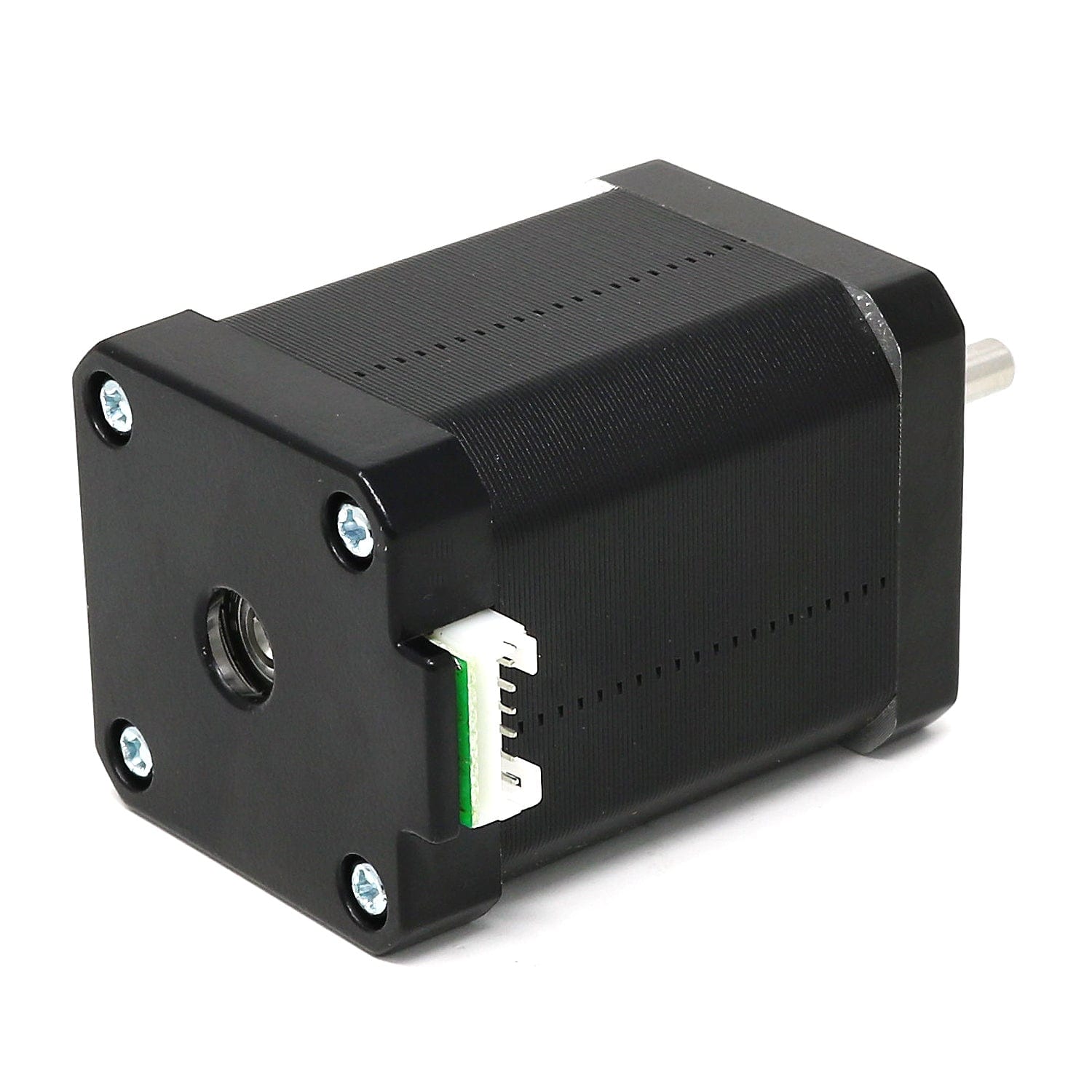

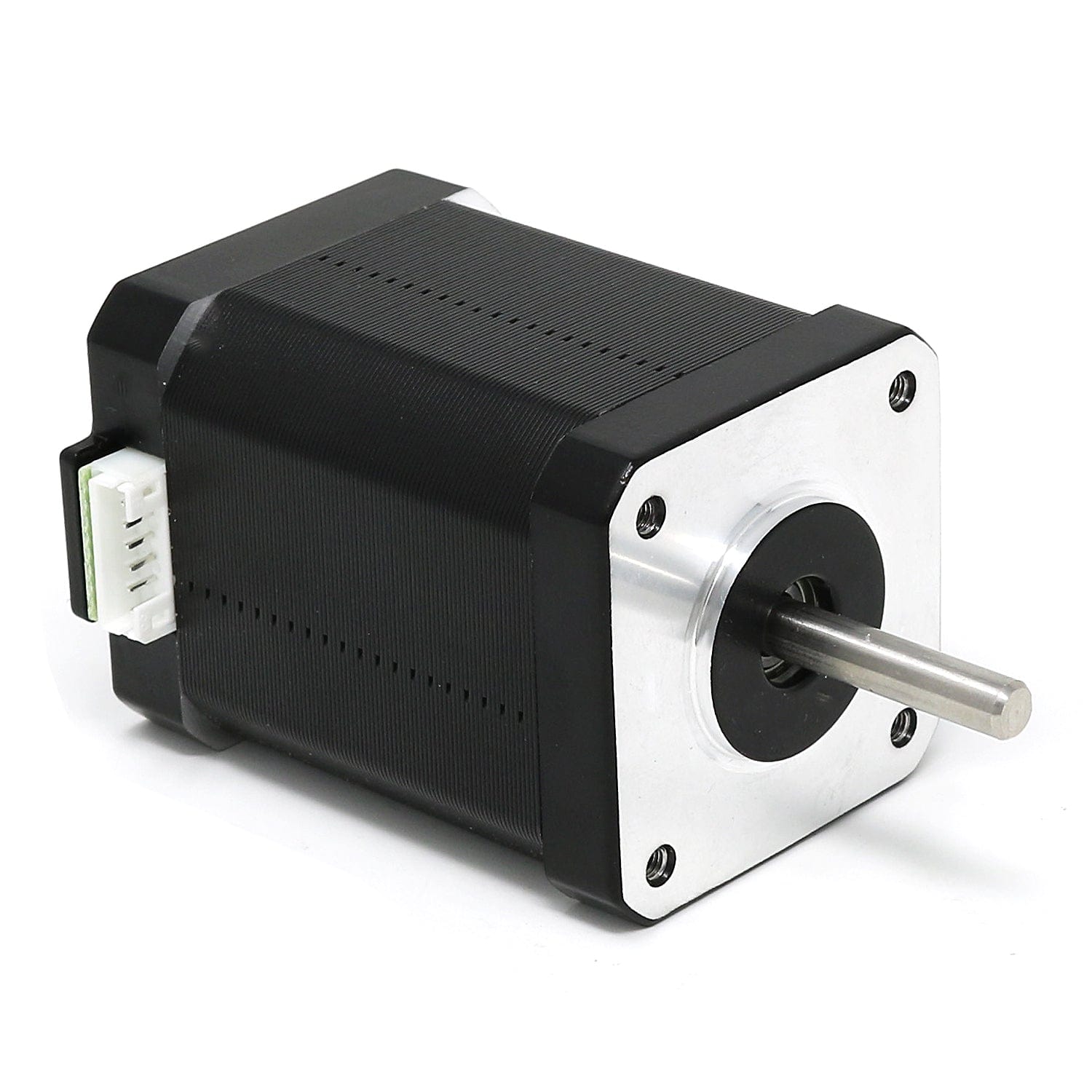

This particular motor is a NEMA 17 42mm motor with a 60mm tall body (42/60), D-shape shaft and cable connector. Full specifications and dimensions can be found below, along with a datasheet.
A short cable is included but please check the order of the wires as they may not match your intended application (for example, some 3D printer mainboards may require a different wire order).
Other versions
We also offer:
- NEMA 17 42mm motor with a 34mm tall body with fixed cable (42/34)
- NEMA 17 42mm motor with a 34mm tall body and cable connector (42/34)
- NEMA 17 42mm motor with a 40mm tall body and cable connector (42/40)
Specifications
| Rated Voltage | 5.1V |
| Current/Phase | 1.68A |
| Resistance/Phase | 1.65Ω |
| Induction/Phase | 6.2mH |
| Holding Torque | 6.5KG-cm |
| Number of leads | 4 |
| Moment of Inertia | 102g-cm2 |
| Weight | 0.5kg |
| Orientation Torque | 280g-cm |
| Length | 60mm |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80°C Max. (rated current, 2 phase on) |
| Ambient Temperature | -20°C-+50°C |
| Insulation Resistance | 100MΩ Min. , 500VDC |
| Dielectric Strength | 500VAC/ for 1 minute |
| Shaft Radial Play | 0.02 Max. (450g load) |
| Shaft Axial Play | 0.08 Max. (450g load) |
| Max. Radial force | 28N |
| Max. Axial force | 10N |
Dimensions
Resources
Package Contents
- 1x 42/60 NEMA 17 motor
- 1x Motor cable
