Stepper Motor Mount with Hardware - NEMA-17 Sized

(3 Reviews)
Price:
Sale price £9.10
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

(2 Reviews)
The Pi HutStepper Motor - NEMA-17 size - 200 steps/rev, 12V 350mA
Sale price £12.20 incl. VAT excl. VAT

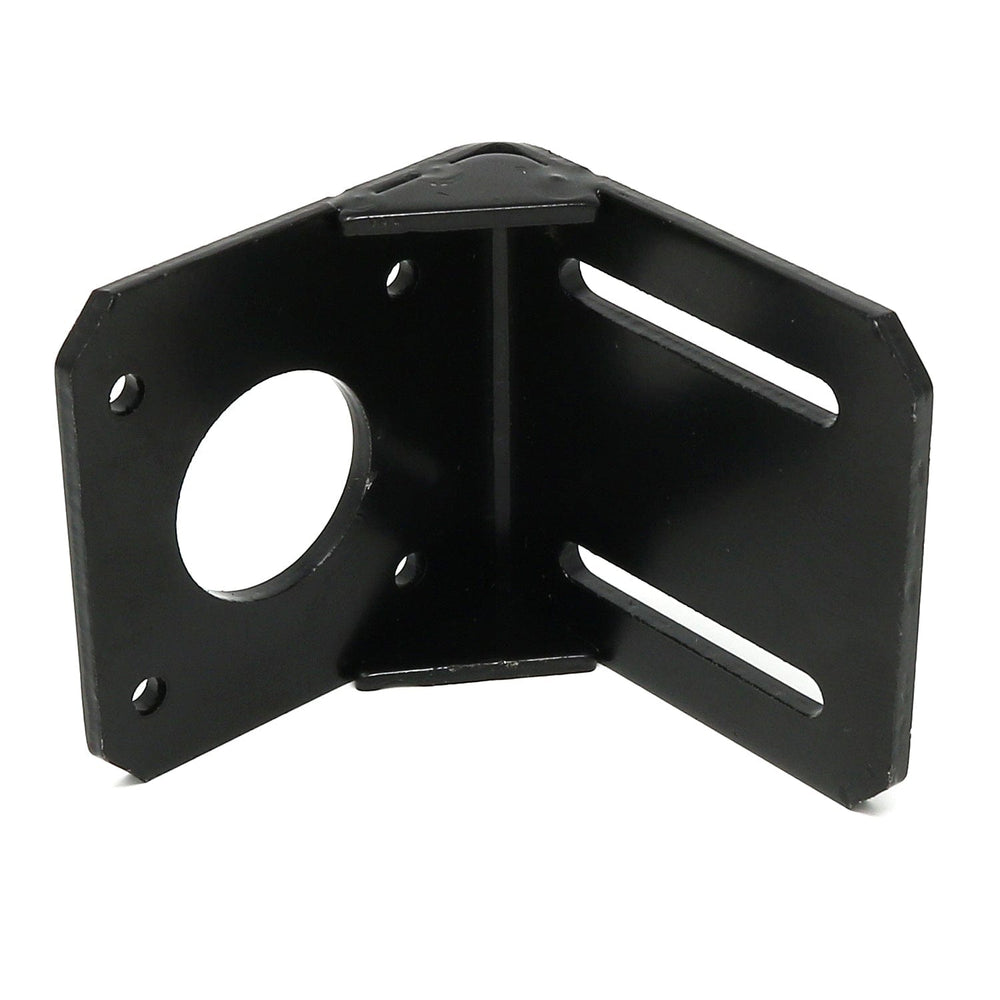

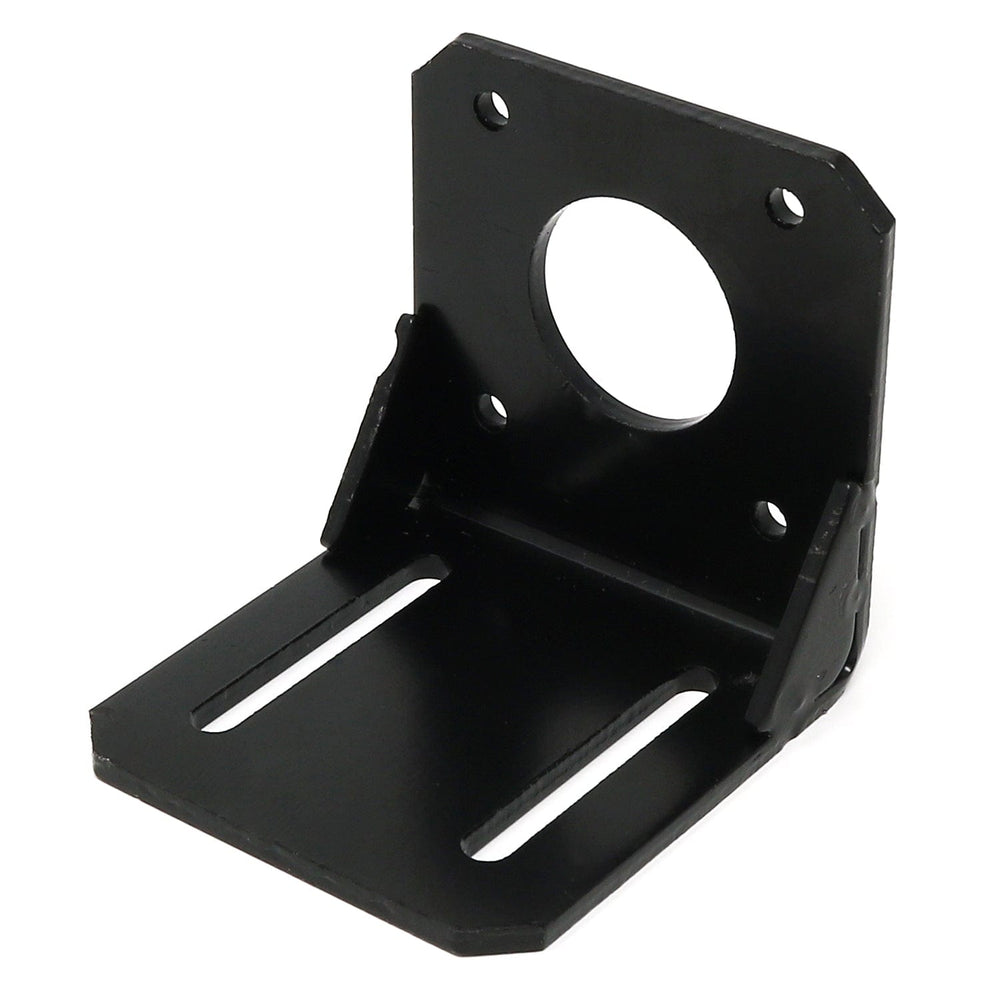

You have a stepper motor, but you need to attach it to your CNC project, eh? Not so easy if you don't have a stepper motor mount just like this fine one here! This mount will fit any NEMA-17 motor (with 31mm hole spacing) with four screws. There are two 30mm long slots, 30mm apart so you can easily attach it. Made of steel with welded 90-degree support triangles, its got a solid construction

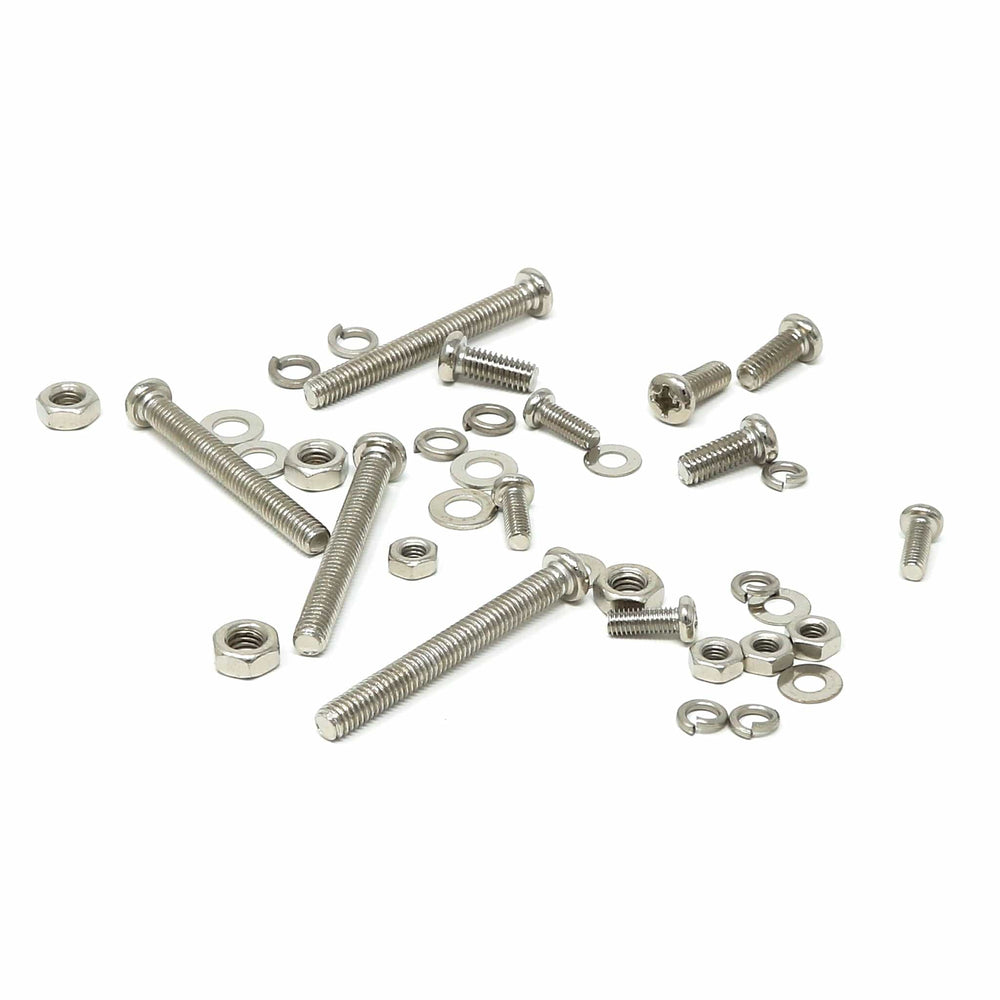

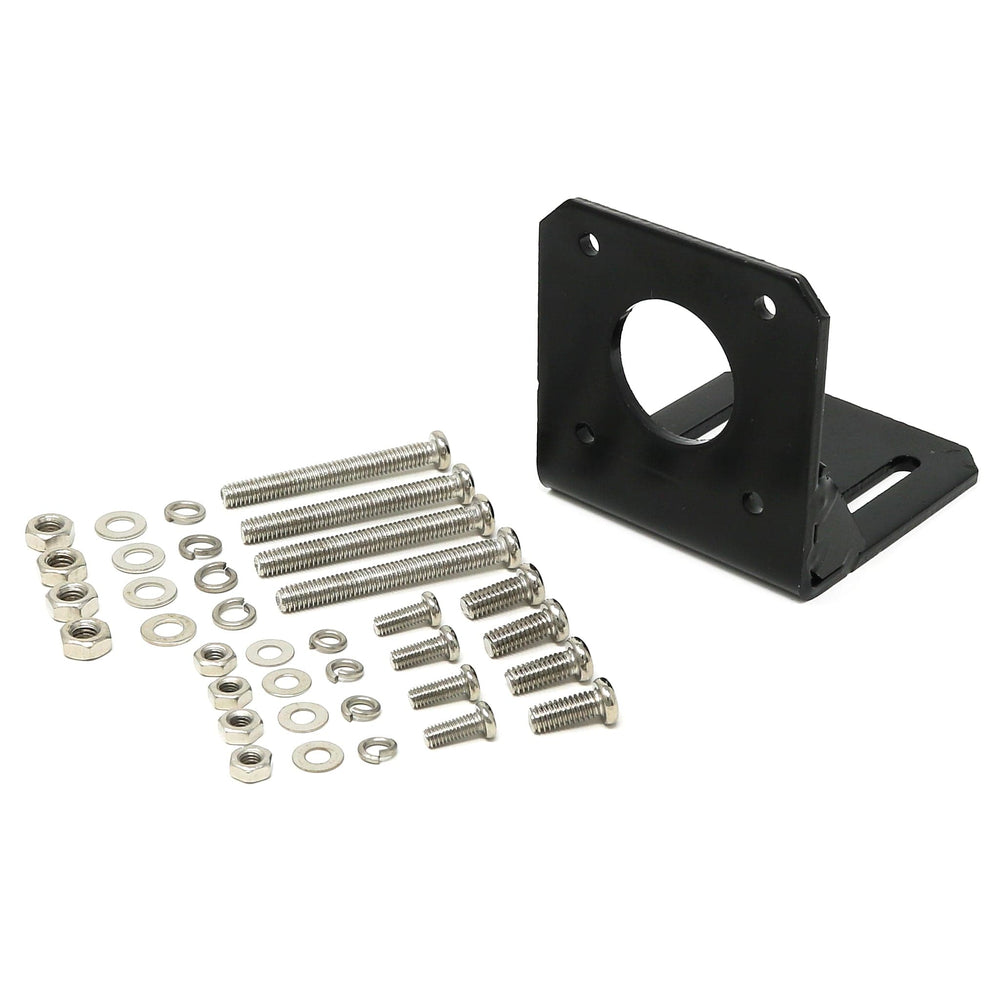

Comes with one mount and a bag of hardware for attachment:

  • 4 x 34mm long M4 Pan head
  • 4 x M4 washer + lock (spring) washer + hexnut
  • 4 x 9mm long M4 Pan head
  • 4 x 8mm long M3 Pan head
  • 4 x M3 washer and lock (spring) washer

Technical Details

Motor mount thickness: ~3mm +/- 0.1mm
