Nano Base Board B for CM5
Price:
Sale price
£17.30
Stock:
Quantity:
Awesome Extras
This CM5 carrier board from Waveshare gives you most of the essential ports and breakouts you'll need for most CM5 development projects, from screenage to servers and everything in between.

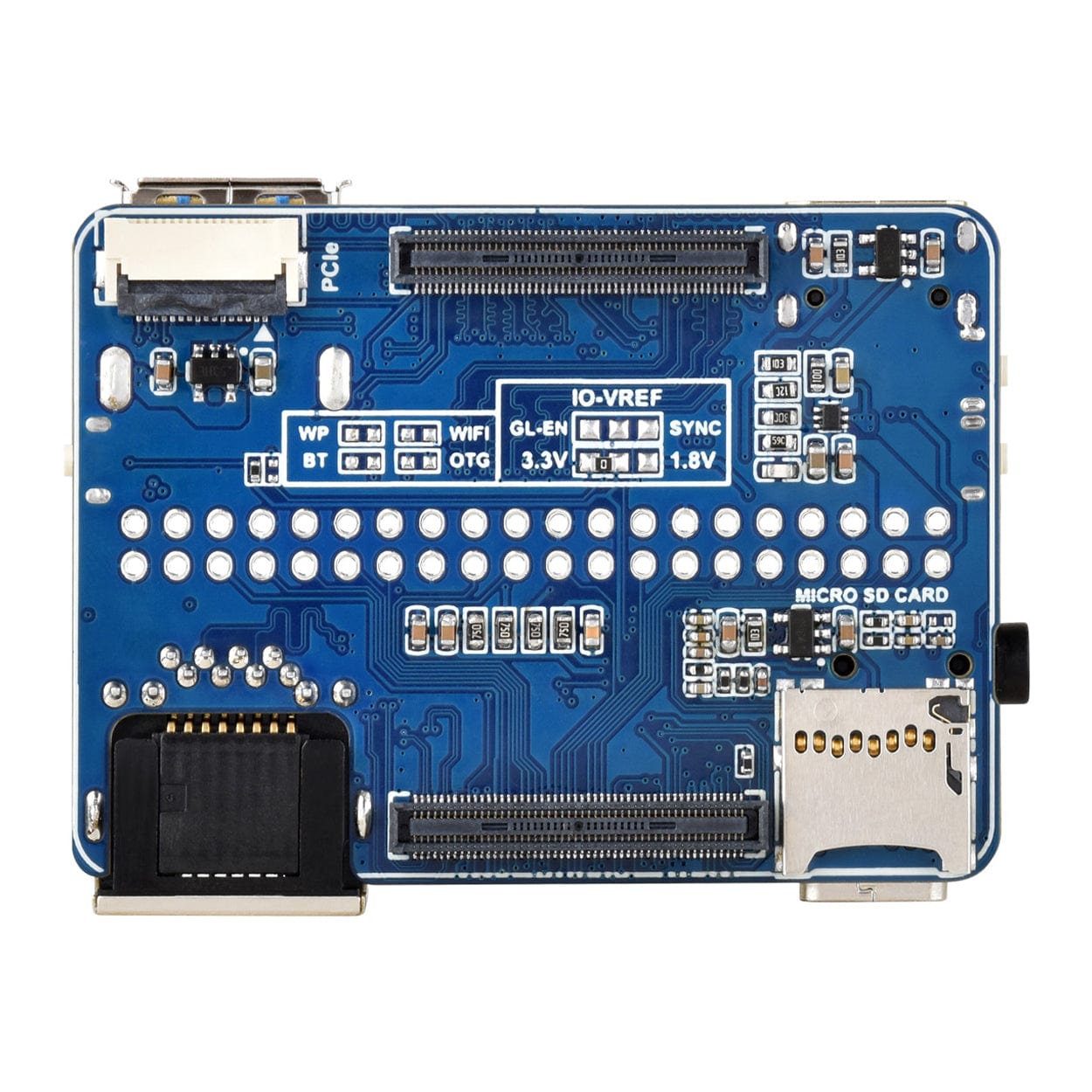

The board is ultra-compact - essentially the same footprint as the Compute Module 5 - yet packs in a long list of features. All the essentials are covered: power and programming are handled via USB-C, Mini-HDMI gives you display options, the Gigabit Ethernet port offers wired connectivity, and a USB 3.2 Gen1 port gives you options for peripherals or storage.
On top of that, you have RTC and fan headers, which match the spec used on Raspberry Pi 5, as well as a 3.5mm audio jack port, MicroSD slot and PCIe interface (again the same spec as the Pi 5 PCIe interface). A dual MIPI interface allows the connection of DSI displays or CSI cameras.
A few final features to note are the BOOT and power buttons, a user-programmable button, LED indicators and, of course, central pads to access the GPIO pins (with a colour-coded 40-pin header included, but requires soldering to the board).
CM5 not included.
Features
| CM5 socket | Suitable for all variants of Compute Module 5 |
| Networking | Gigabit Ethernet RJ45 connector |
| Connector | Raspberry Pi 40-pin GPIO interface × 1 |
| USB | USB 3.2 Gen1 Type A port × 1 |
| MIPI | MIPI 4-lane interface × 2 (22-pin 0.5mm FPC connector) |
| Video | Mini HDMI port × 1, supports 4K output |
| Audio | USB audio 3.5mm jack |
| Storage | MicroSD card socket for Compute Module 5 Lite (without eMMC) variants |
| Power input | DC 5V 5A |
| PCIe | 16-pin PCIe connector (PCIe Gen2/3 ×1) |

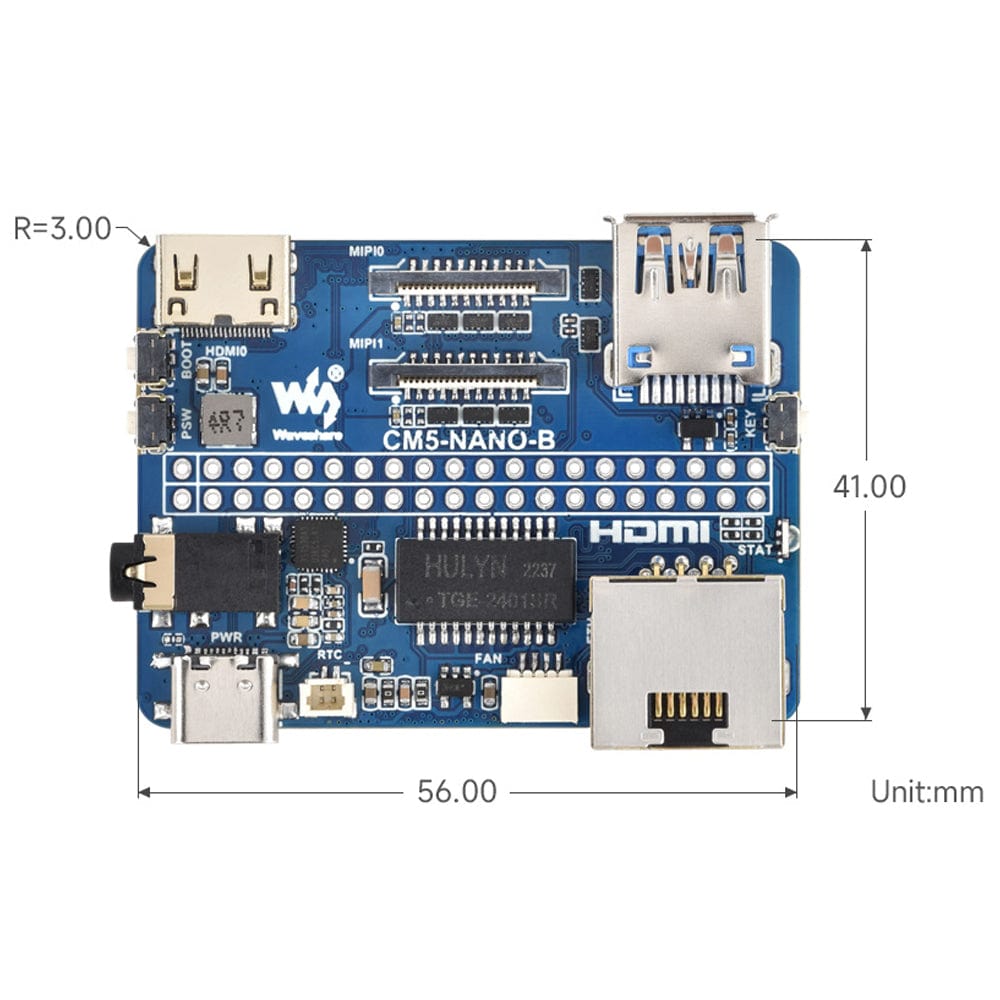

| Dimensions | 55 × 41mm |

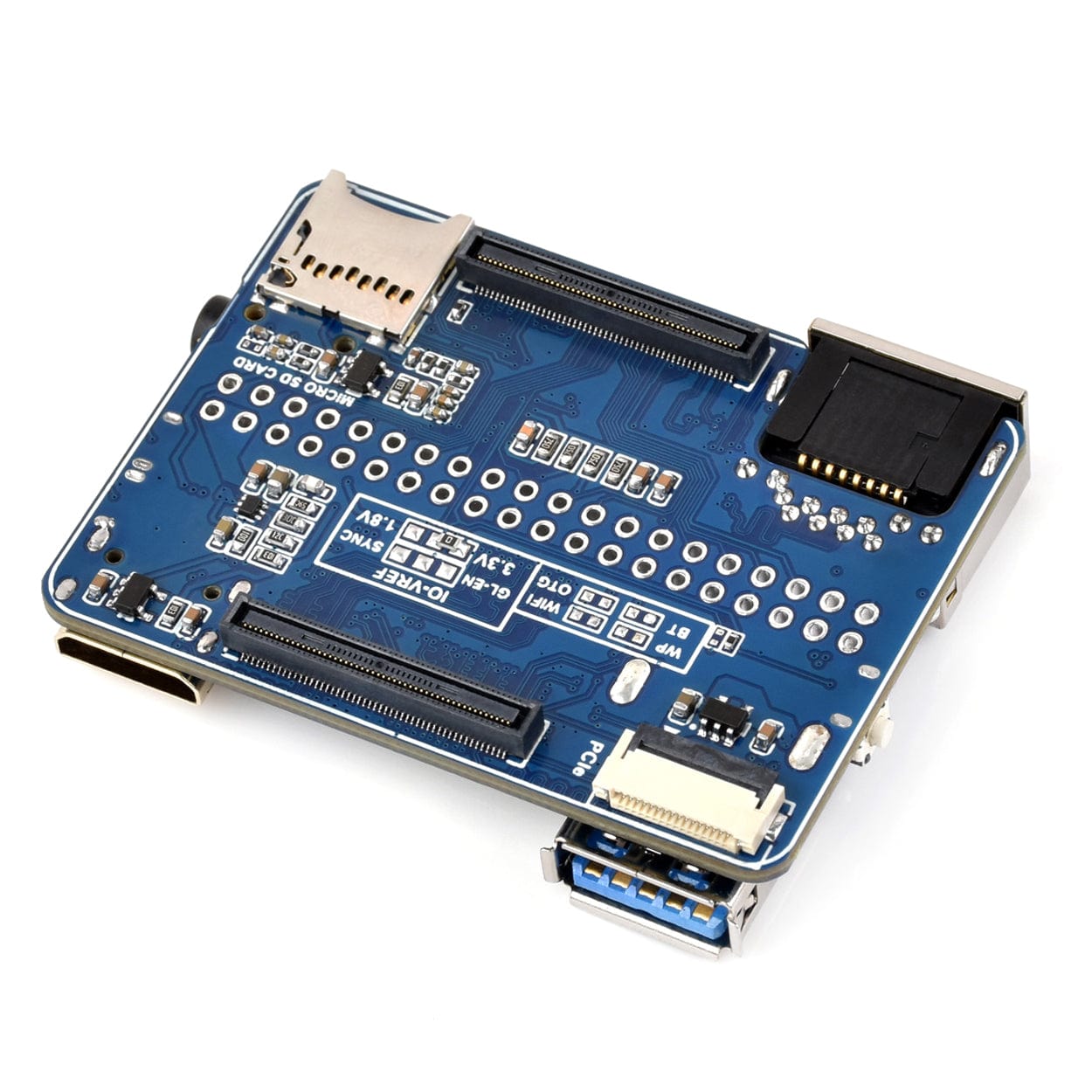

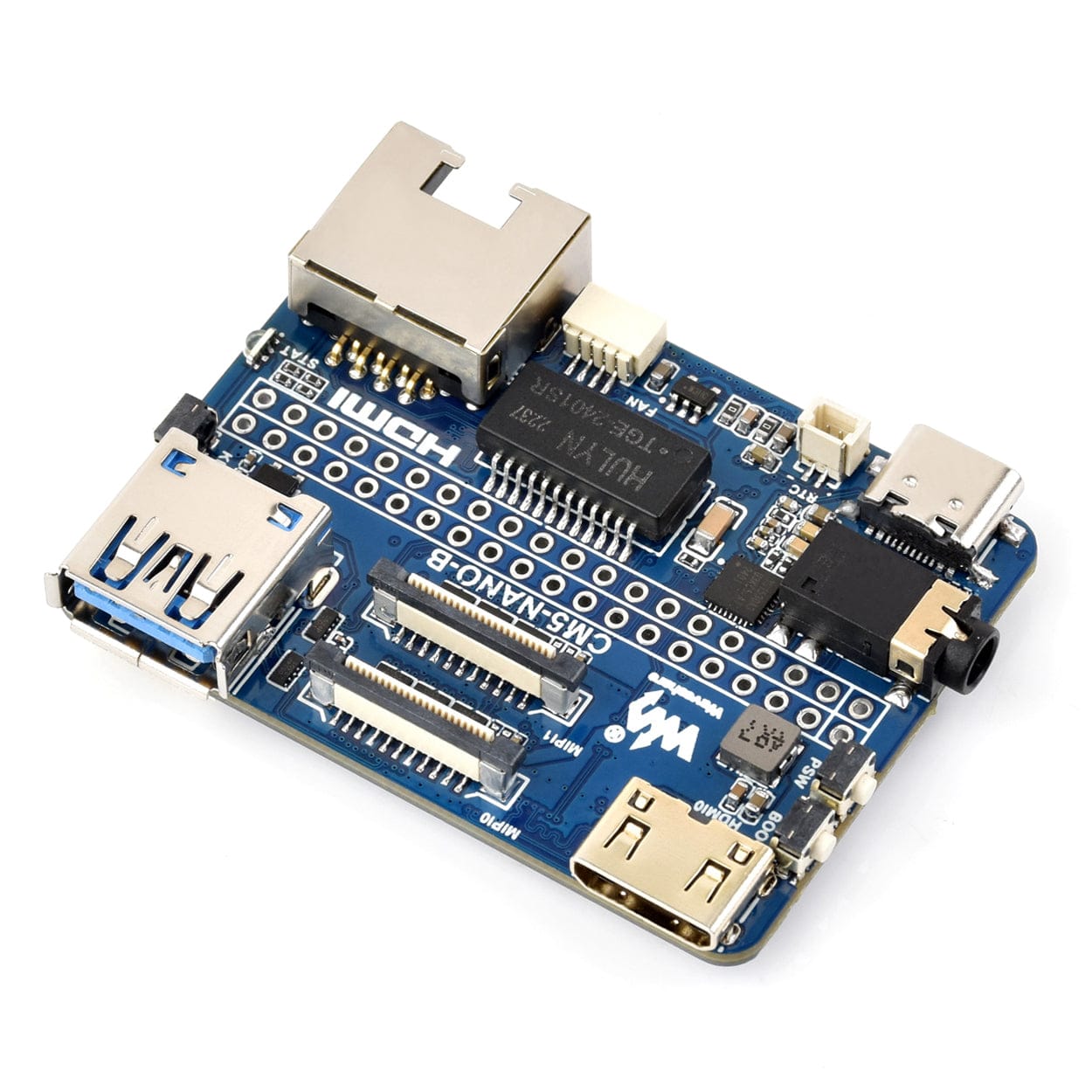

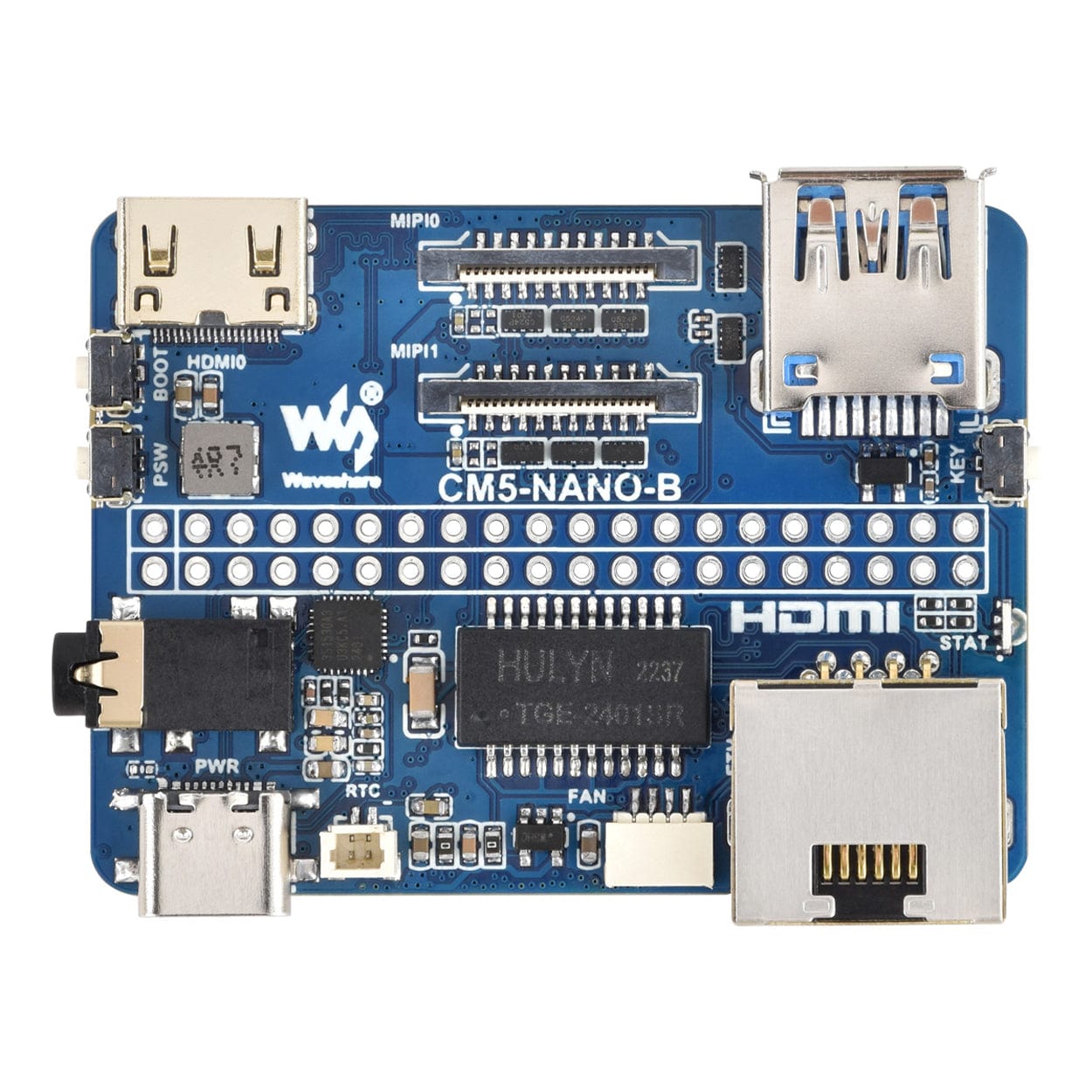

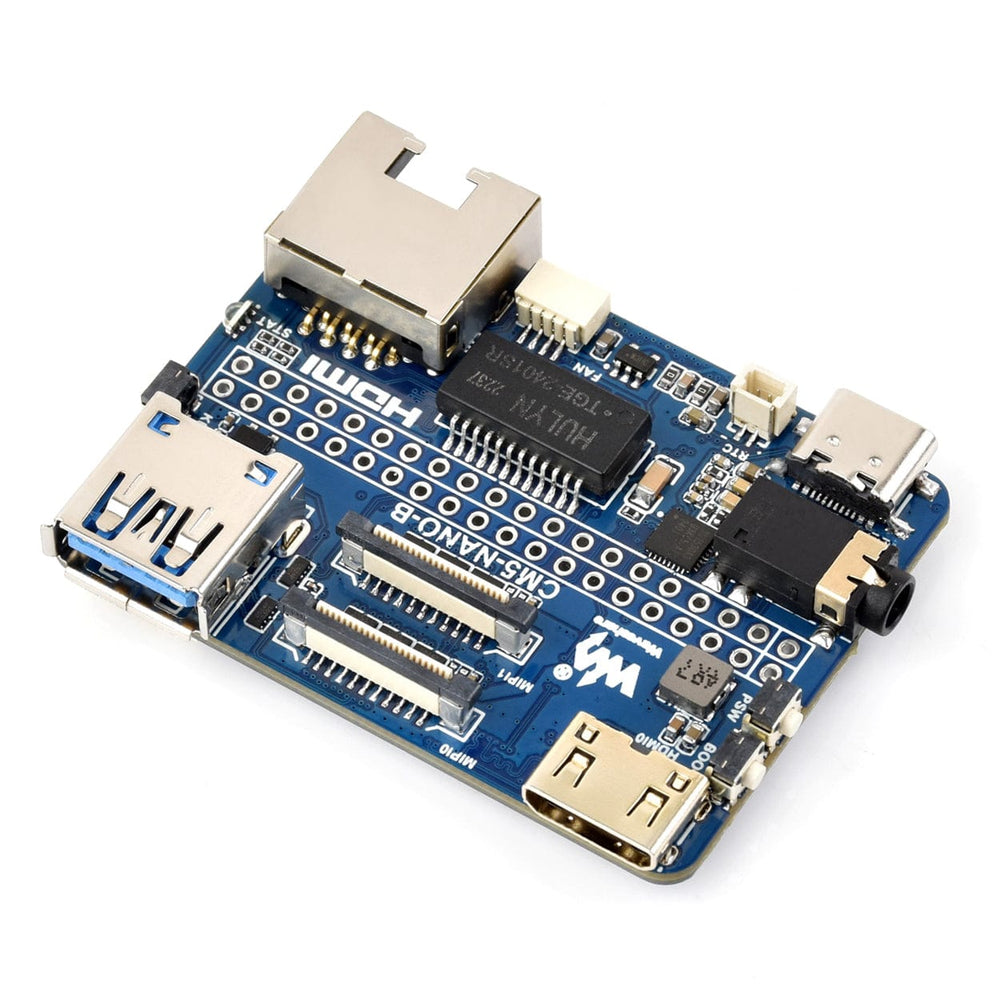

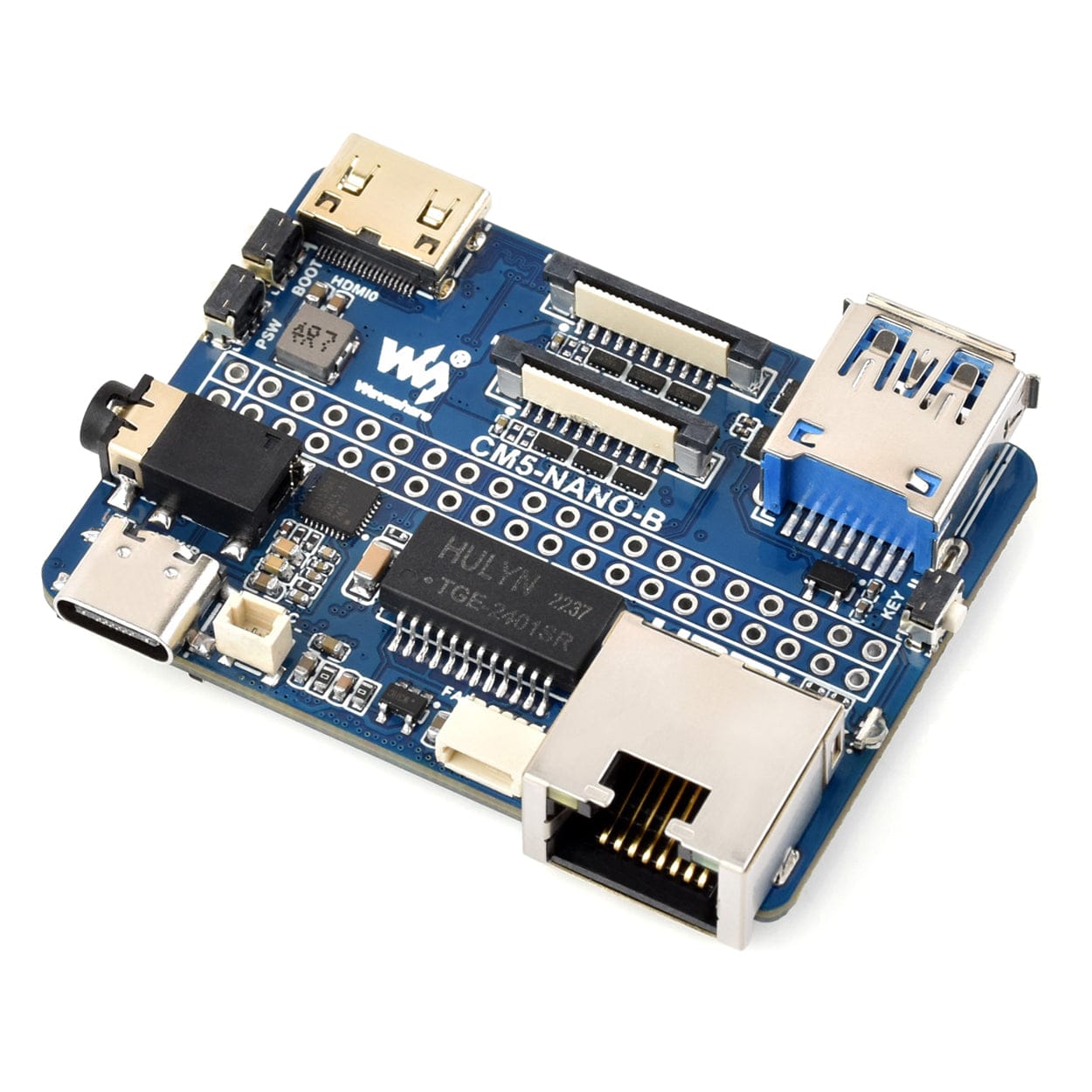

What's Onboard?
-

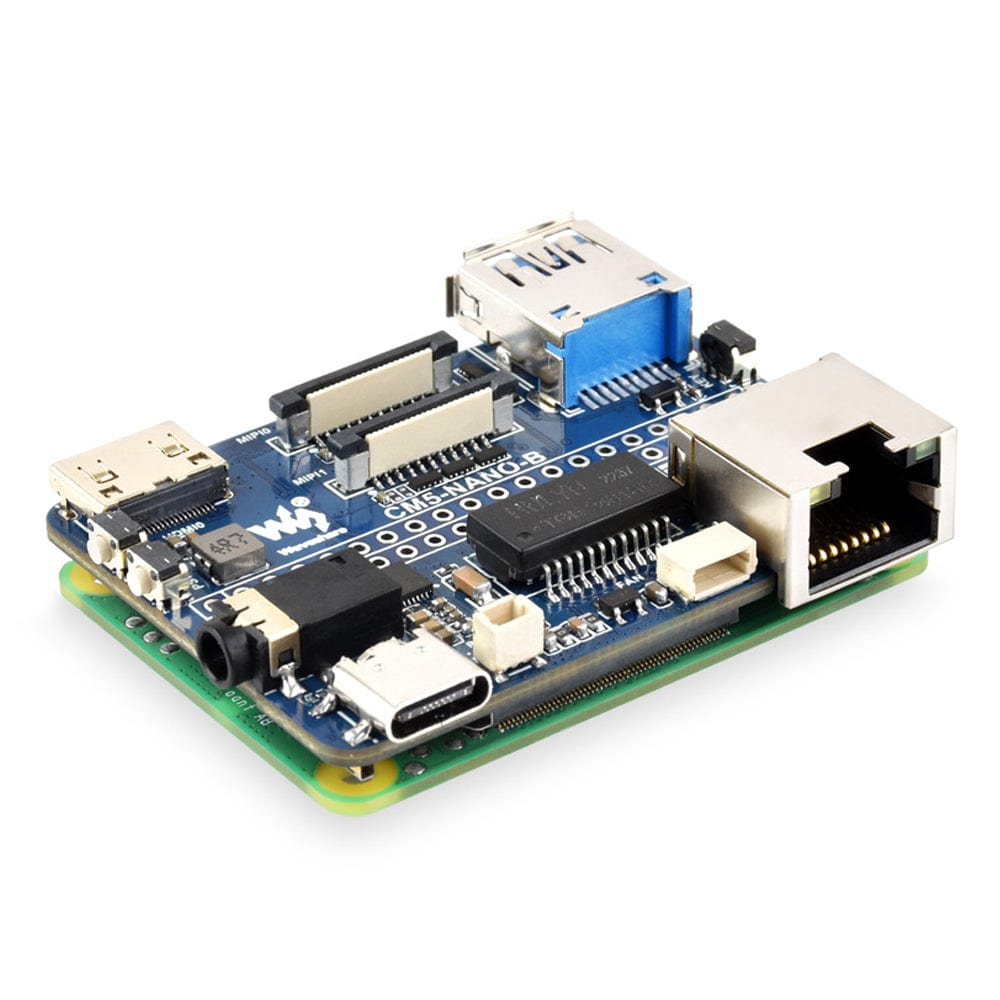

CM5 socket
- Supports all Compute Module 5 variants
-
PCIe interface
- 16-pin PCIe connector for Pi 5 PCIe adapter boards
-
TF card slot
- For pre-burnt image (Lite variant only)
-
Other function pins
- For extended features
-
Mini HDMI port
- 4K output
-
BOOT button
- Hold before powering on, release after to enter burn mode
-
PSW button
- Power button
-
3.5mm jack
- Audio output
-
Power / Programming
- 5V input or eMMC burning
-
2-pin RTC header
- JST-SH for RTC battery
-
Fan header
- 4-pin JST-SH PWM fan connector
-
RJ45 Ethernet
- Gigabit network port
-
Dual-colour LED
- Red: power
- Green: status
-
User button
- Connected to GPIO21
-
USB port
- USB 3.2 Gen1 for peripherals
-
Dual MIPI interfaces
- For DSI displays and CSI cameras
-
40-pin GPIO
- For HAT module connections
Resources
Package Contents
- 1x Nano Base Board B for CM5

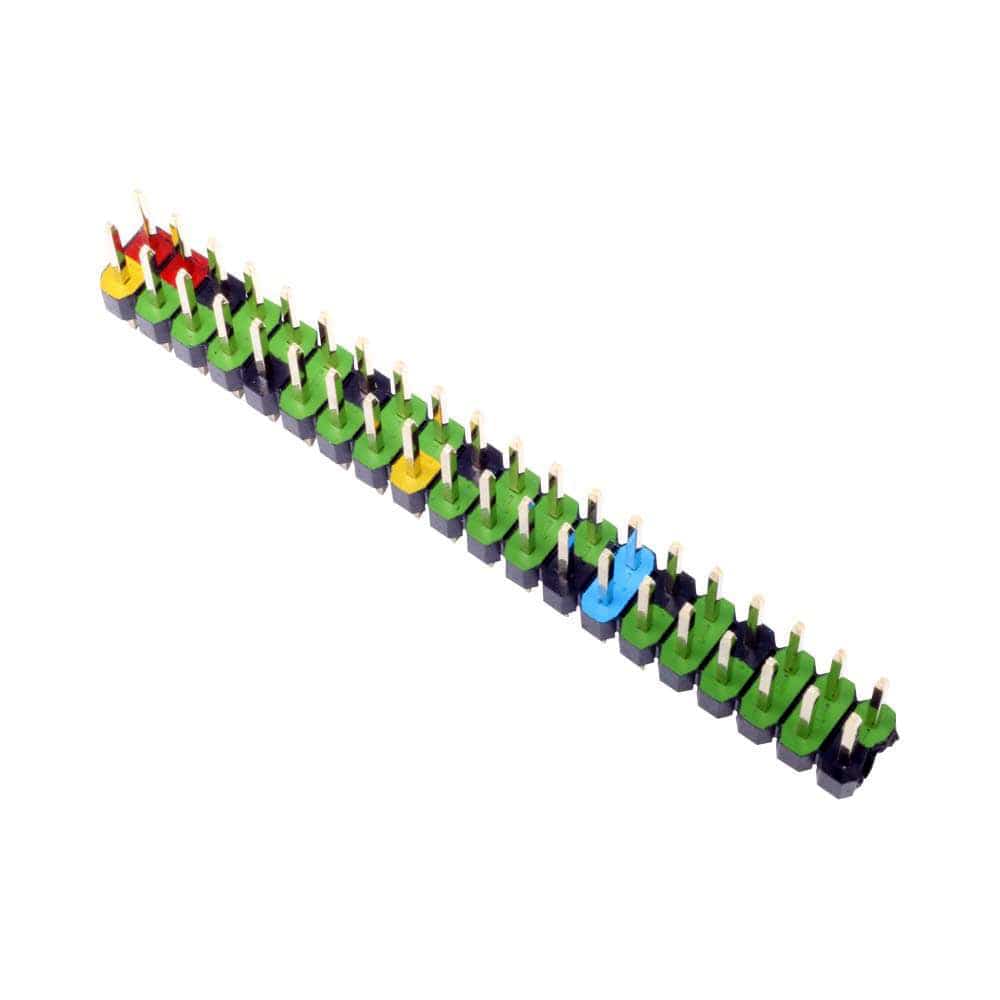

- 1x 40-pin colour-coded GPIO header
CM5 not included.
