MOTION 2350 Pro - Advanced Robotics Controller for Beginners
Price:
Sale price
£22.80
Stock:
Quantity:
Awesome Extras
The Motion 2350 Pro is an advanced robotics controller designed for beginners and intermediate users, packed with features and built around the Raspberry Pi RP2350 processor.
It has a strong DC motor driver capable of controlling up to four brushed DC motors, multiple servo and GPIO ports, and a USB host for plug-and-play with joysticks.
The board is preloaded with CircuitPython, offering a ready-to-use experience, and supports programming in Python, C/C++, and Arduino (soon). It's great for building complex robots with minimal electronic setup.
Features
- Supports a wide range of DC motors
- USB Type-C Connector (5V)
- On/Off Switch
- 8x Servo Motor
- Colour-coded servo ports
- 4-channel DC motor driver
- Status LEDs
- USB Host
- Control robot with wireless joystick
- 3x Maker Ports (compatible with Qwiic and Stemma QT)
What's on Board
Specifications
- Powered by Raspberry Pi RP2350
- Dual-core Arm Cortex-M33 processor
- 520KB internal RAM
- 150MHz Frequency Clock
- 2MByte Flash
- Robot Controller Board
- 4 x DC Motor Driver (with quick test buttons)
- 8 x Servo Motor
- 8 x 3V GPIO Breakout
- Input Power
- VIN Terminal: 3.6V - 16V
- USB Type-C: 5V
- Maximum DC Motor Current, each channel
- Continuous: 3A
- Peak: 5A
- 24 x Status indicator LEDs
- 8 x for Servo Port
- 8 x for 3V GPIO Breakout
- 8 x for DC Motor Driver
- 12 x Push Button
- 8 x Quick Test Button for DC Motor
- 2 x User Button
- 1 x BOOT Button
- 1 x RST Button, for reset
- 3 x Maker Port
- 2 x RGB LED (Neopixel Compatible)
- 1 x USB Host
- 1 x Piezo Buzzer (with mute switch)
- 1 x On/Off Switch (with MOSFET Shock-Proof Circuit)
- Preloaded with CircuitPython by default
- Programming Language
- CircuitPython
- MicroPython
- C/C++
- Arduino (coming soon)

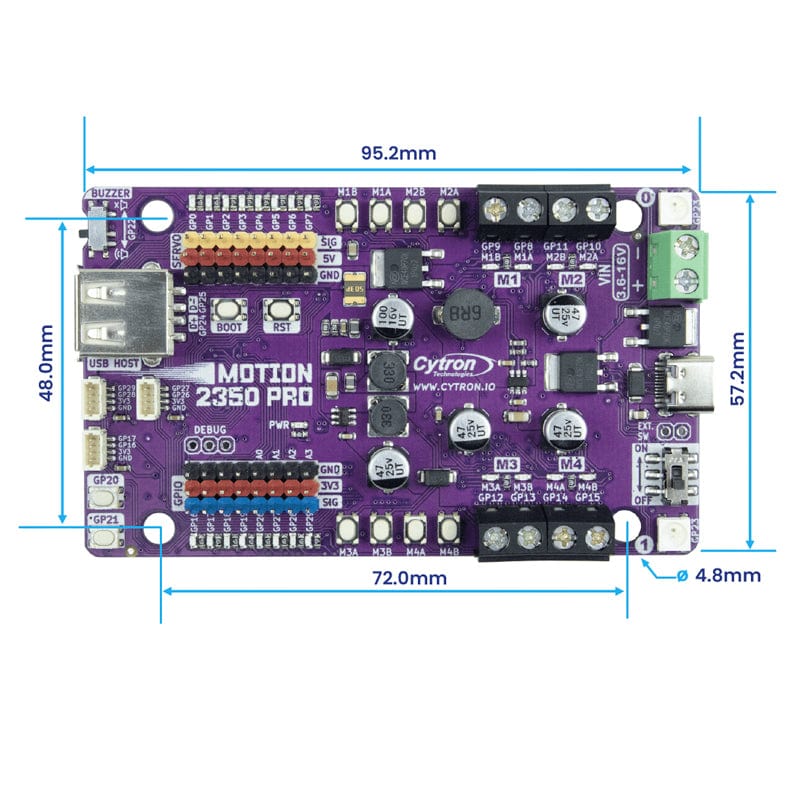

- Board Dimension: 95.2 x 57.2 x 8 (height) mm
Raspberry Pi Chip Comparison (Old vs New)
Resources
- MOTION 2350 Pro Datasheet
- MOTION 2350 Pro 3D CAD
- RP2350 Datasheet (pdf), by Raspberry Pi
- Getting Started with MOTION 2350 Pro, tutorial by Cytron Technologies
- CircuitPython mainpage
- MicroPython main page
- SDK C/C++, from Raspberry Pi
Pinout
Package Contents
- 1 x MOTION 2350 Pro
- 1 x STEMMA QT / Qwiic JST SH 4-pin Cable with Female Sockets (150mm)
- 2 x Grove to JST-SH Cable (200mm)
- 1 x Set of Silicone Bumper
- 4 x Building Block Friction Pin
- 1 x Mini Screwdriver
