The StickC PLUS SE is a more affordable variant of the StickC PLUS with the 6-Axis IMU removed for cost efficiency, yet maintains all other great features from the original in a new translucent orange casing.
The M5Stack StickC-Plus SE is a lightweight version of StickC PLUS. It retains the core features while removing the onboard 6-axis IMU sensor, offering better cost efficiency.

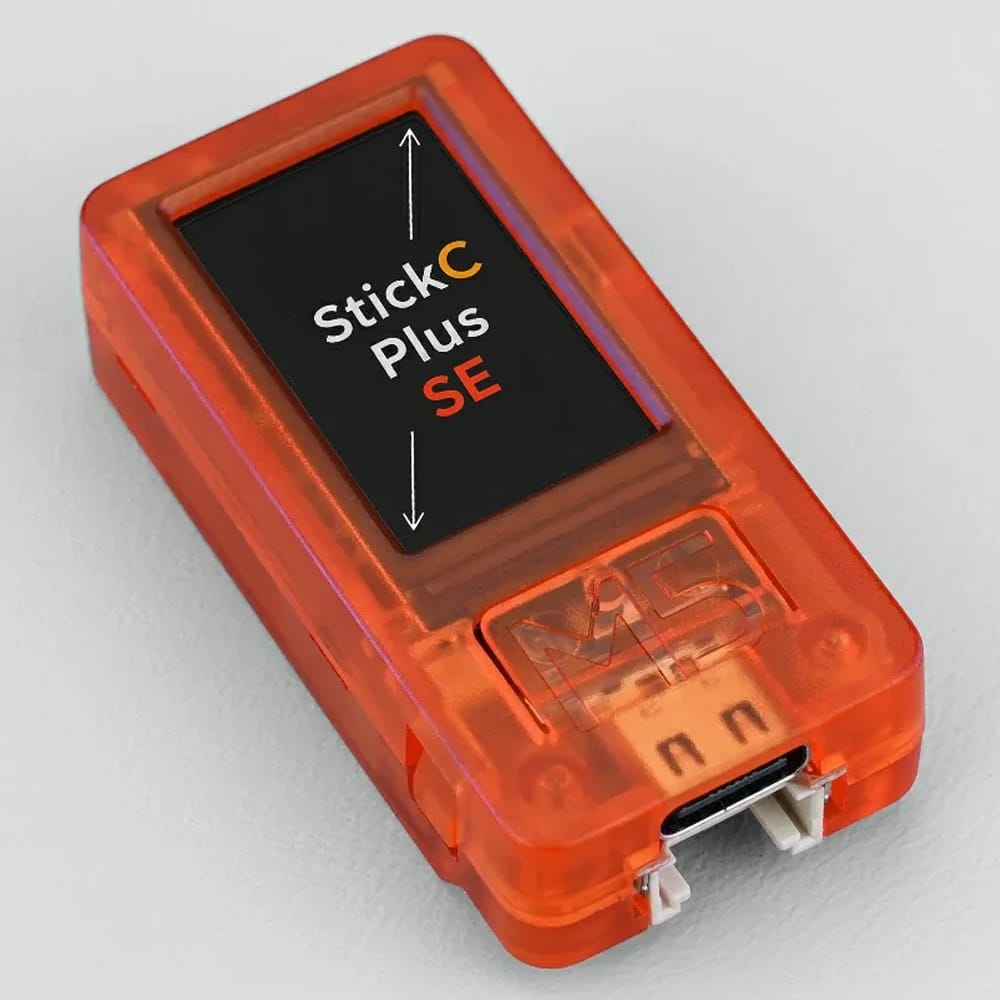

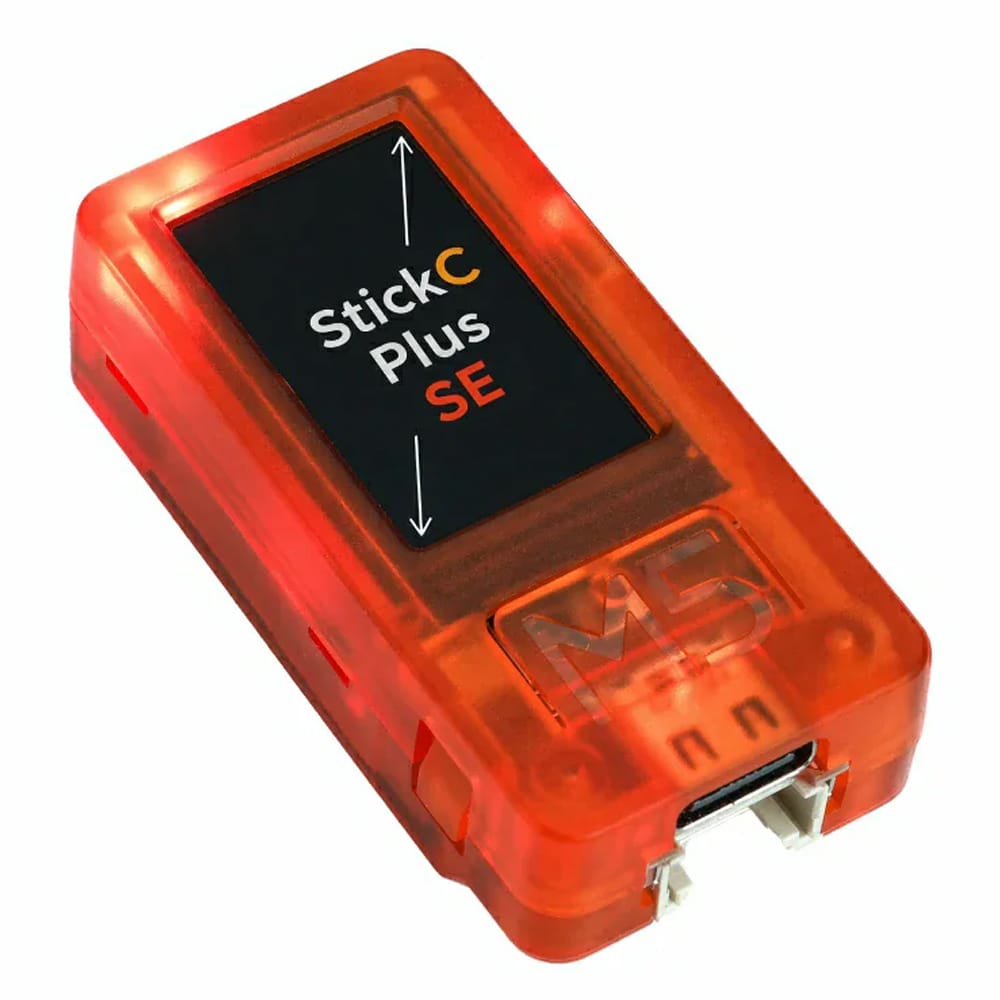

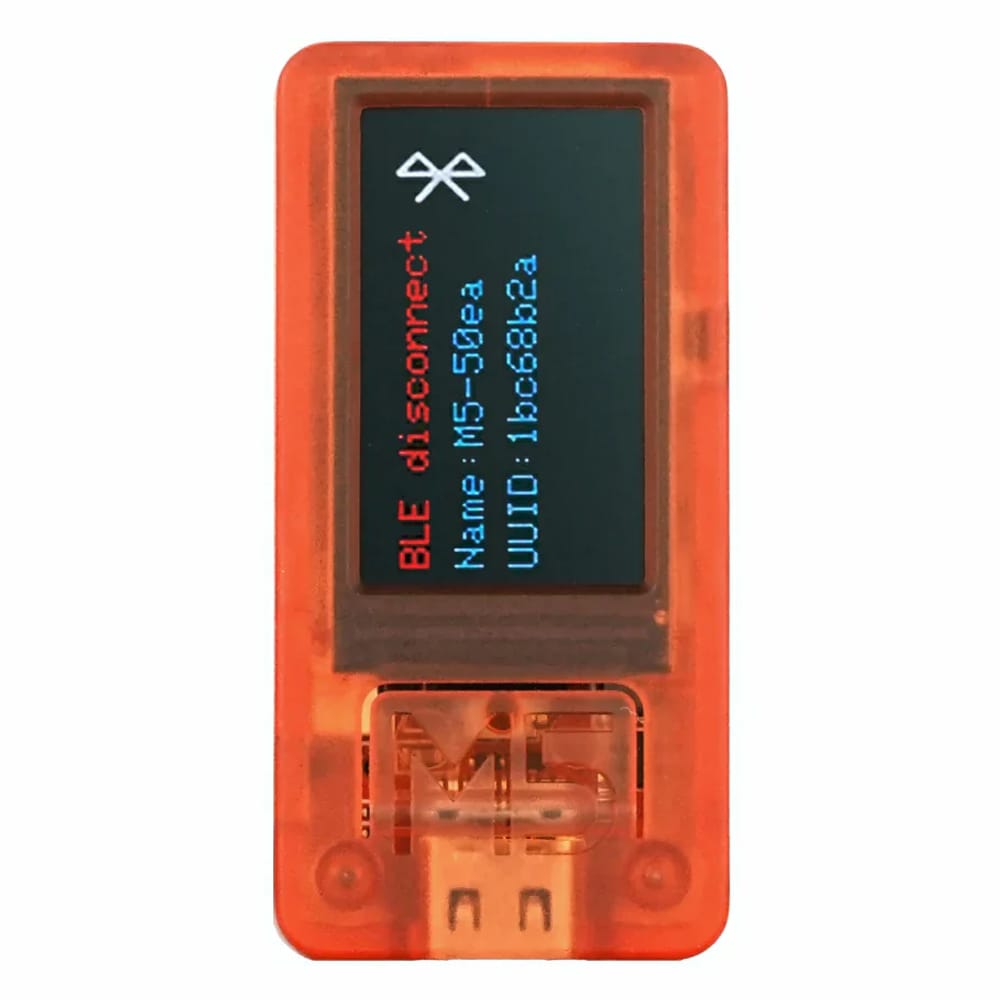

The enclosure features a new transparent orange design with a distinctive translucent appearance. Powered by the ESP32-PICO-D4 module, it supports 2.4 GHz Wi-Fi and integrates an infrared transmitter, RTC, onboard microphone, status indicator, customizable buttons, passive buzzer, and power management unit (PMU).
It features a 1.14" colour LCD with a 135 x 240 resolution for clear, detailed visuals. The built-in 120mAh battery and compatibility with Hat and Unit series expansion products provide flexible extensibility. This product is suitable for lightweight IoT development and simple creative projects that do not require motion sensing and prioritise cost efficiency.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
ESP32-PICO-D4 Controller with 2.4 GHz Wi-Fi
4MB Flash
520KB SRAM
2.4 GHz Wi-Fi

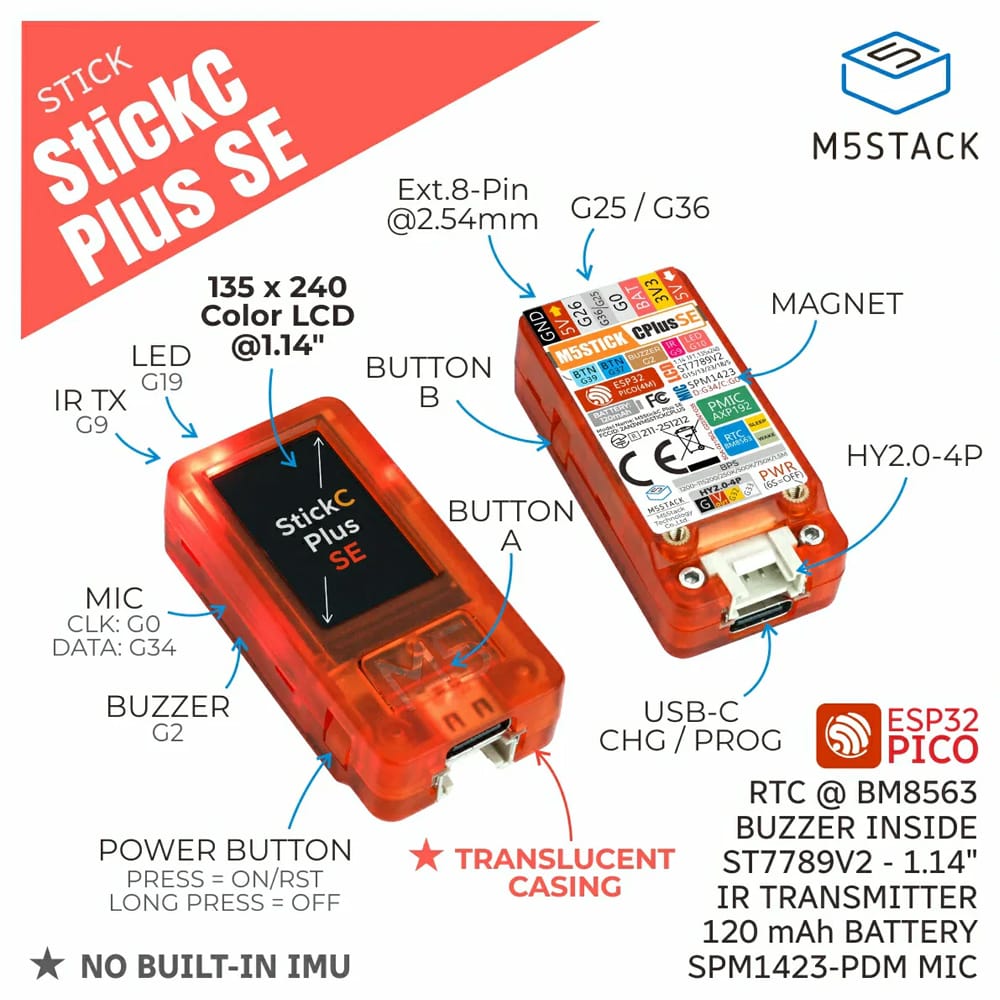

1.14" LCD, Buttons, IR, RTC, Microphone, and Buzzer
Onboard red status indicator
Integrated infrared transmitter
Built-in RTC module
Onboard microphone
Customizable buttons, LCD, power button, and reset button
120mAh Battery, PMU, Hat-Bus, and Unit Expansion
Built-in 120 mAh lithium battery
Integrated passive buzzer

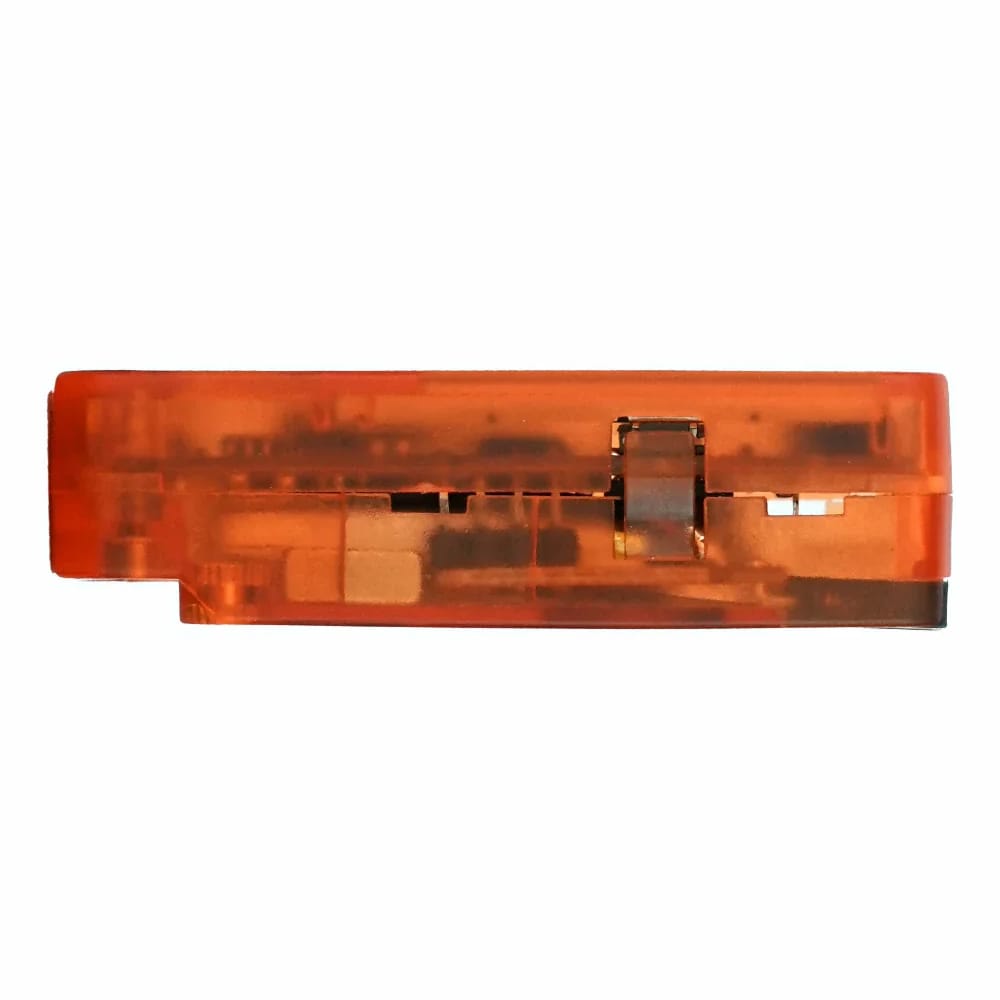

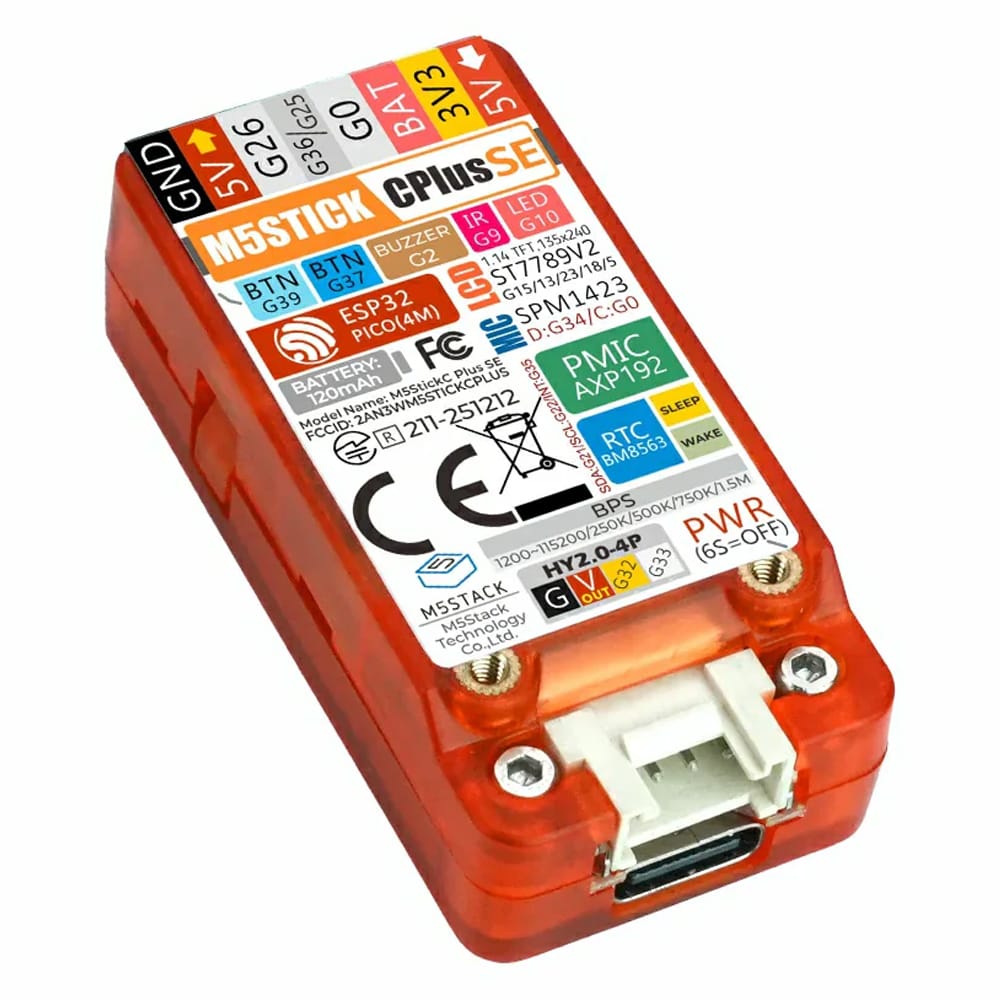

Magnetic back; transparent orange enclosure
UiFlow, Arduino, ESP-IDF, and PlatformIO Support
UiFlow1
UiFlow2
Arduino IDE
ESP-IDF
PlatformIO
Specifications
SoC
ESP32-PICO-D4 @ Xtensa® 32-bit LX6 dual-core processor, clock frequency 240MHz
Flash
4MB
SRAM
520KB
Wi-Fi
2.4 GHz Wi-Fi
Antenna
2.4G 3D Antenna
Input Voltage
5V@500mA
Battery
Built-in 3.7V 120mAh lithium battery
Power Management
AXP192
Expansion Interface

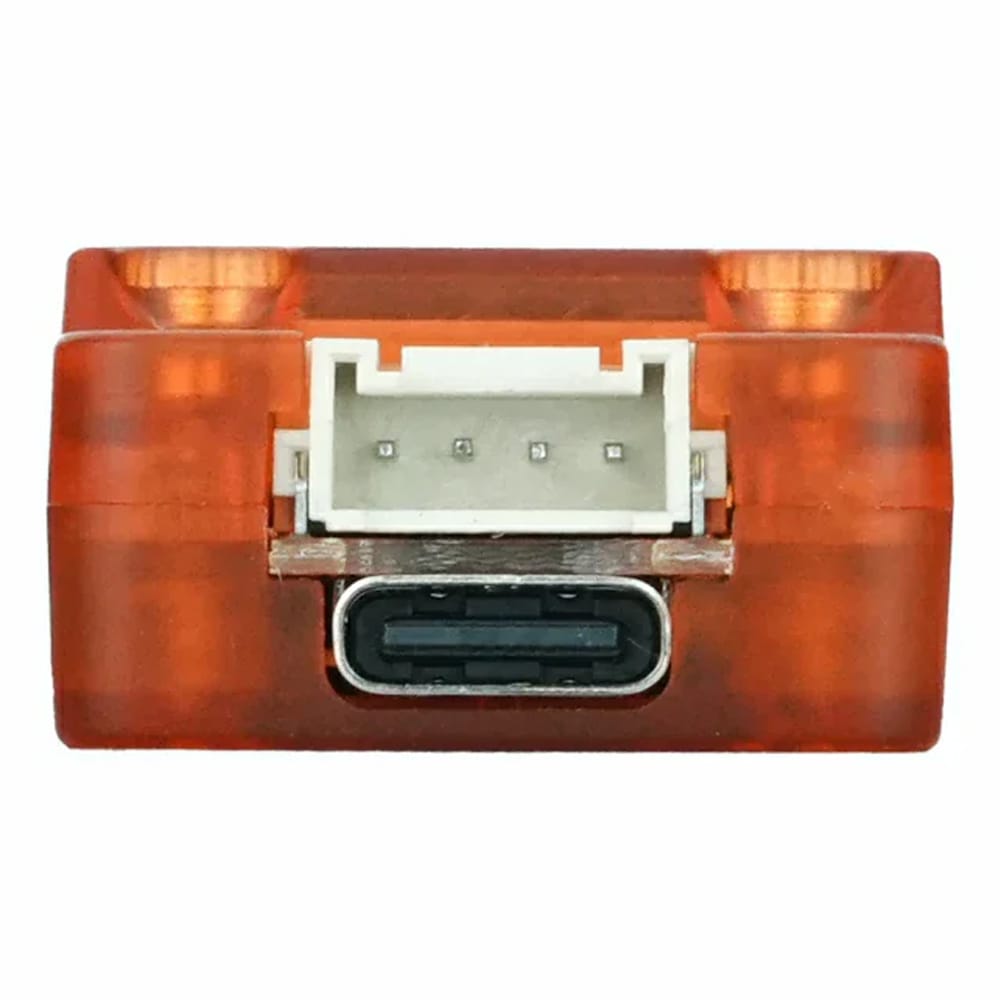

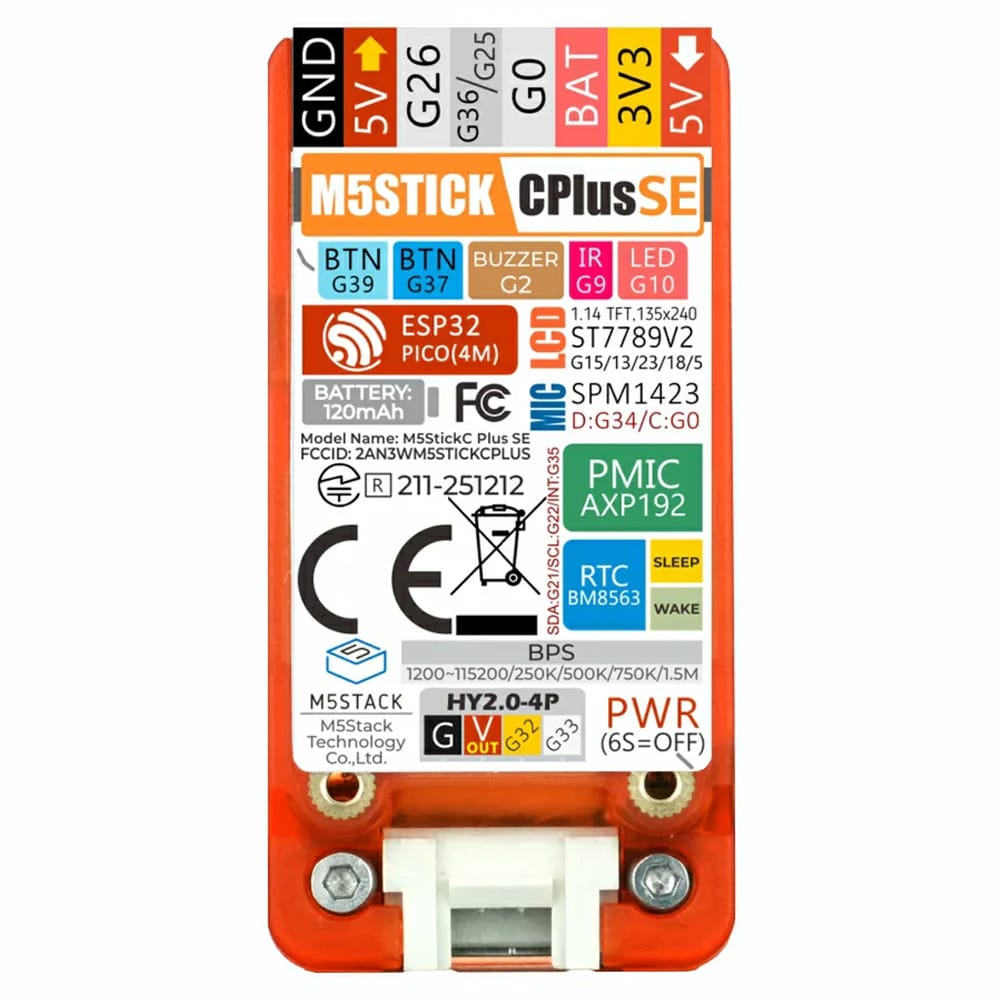

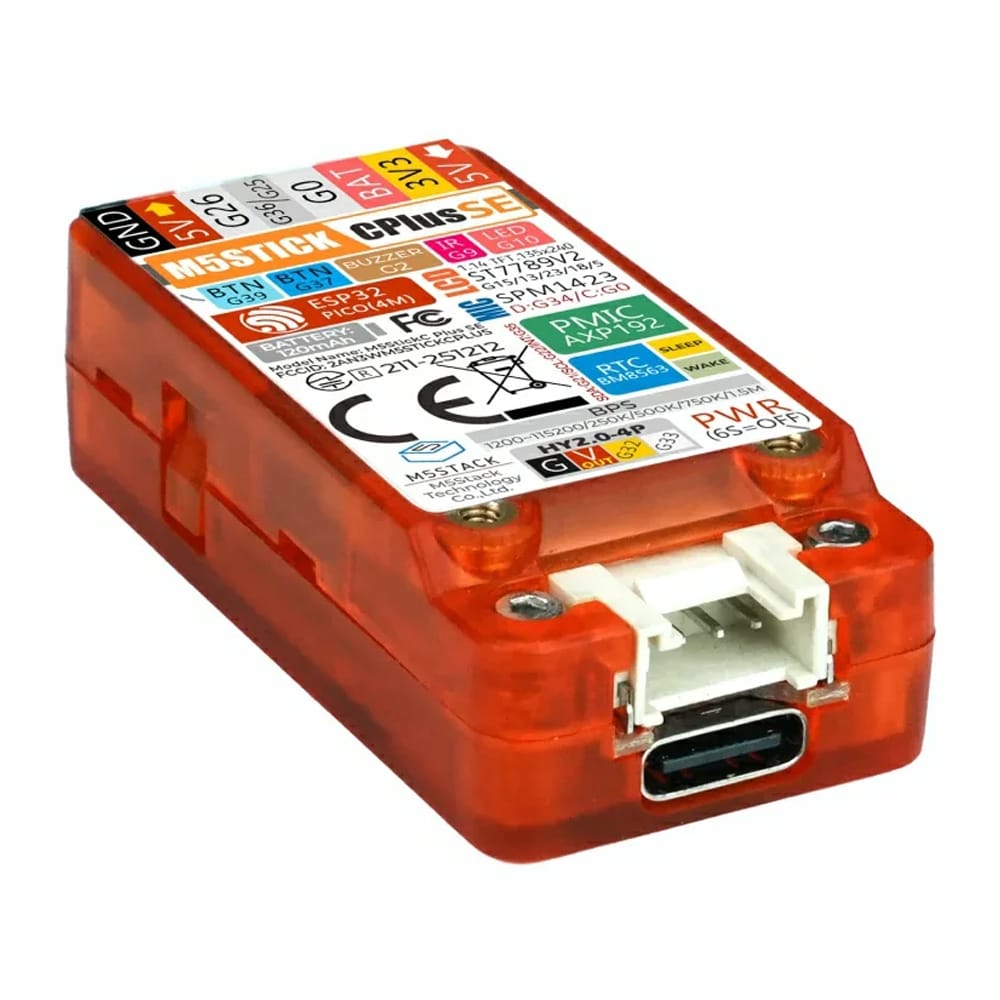

HY2.0-4P x 1, Hat-Bus 2.54-8P interface
LCD
1.14" colour TFT LCD, 135 x 240 resolution, ST7789v2 driver
