M5StickC Vibration HAT by M5Stack - The Pi Hut

M5StickC Vibration HAT

M5StackSKU: U159

£3.40

incl. VAT

excl. VAT

Only 4 units left

Awesome Extras

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit by M5Stack - The Pi Hut

M5Stack M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit

£24 incl. VAT excl. VAT

M5Stack M5StickC ToF HAT(VL53L0X) by M5Stack - The Pi Hut

M5Stack M5Stack M5StickC ToF HAT(VL53L0X)

£7.10 incl. VAT excl. VAT

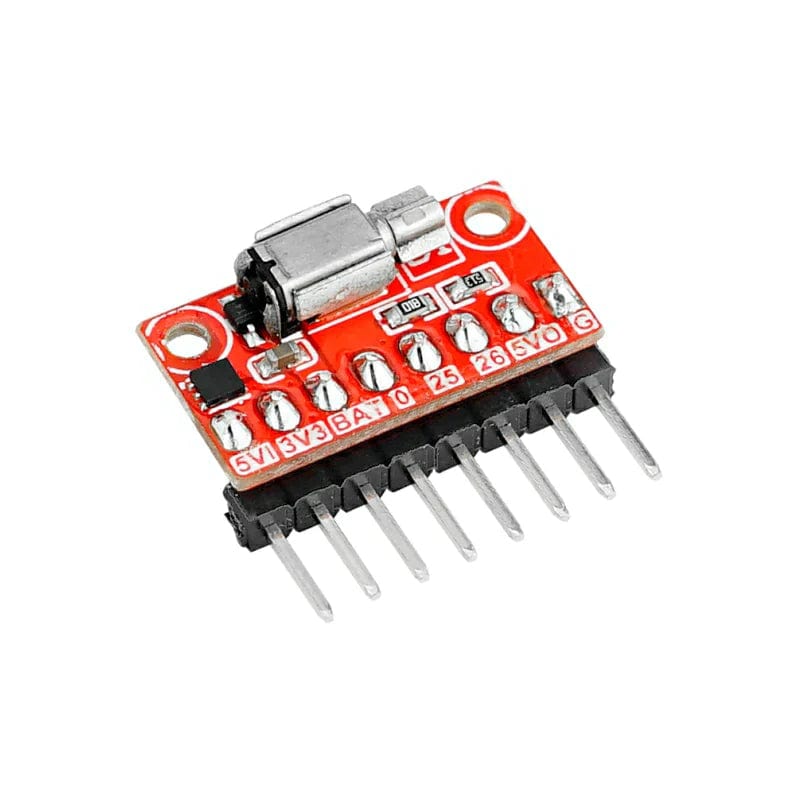

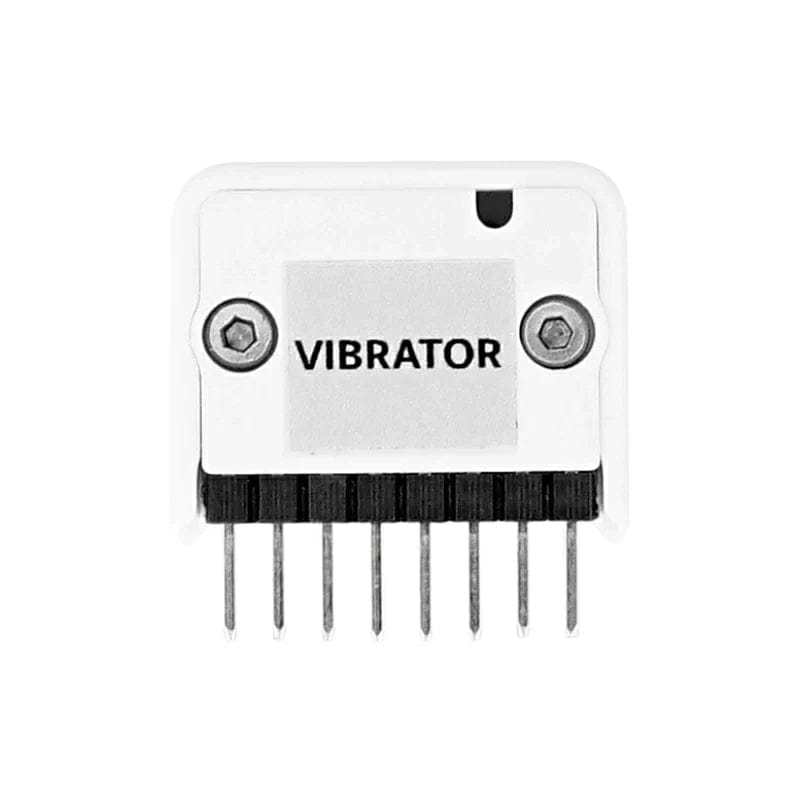

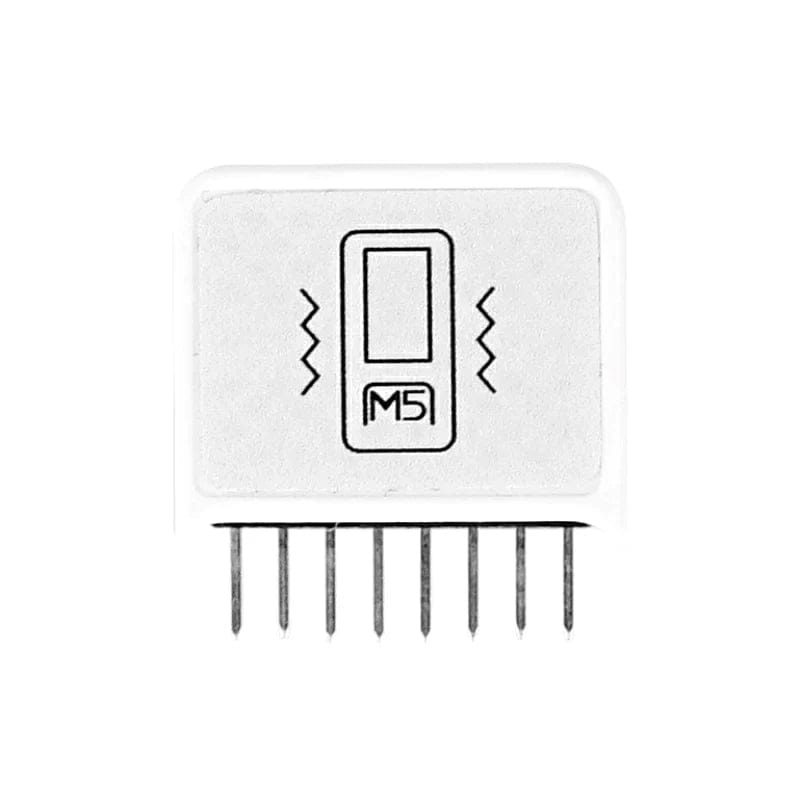

The M5StickC Vibration HAT is a motor designed for the M5StickC/C-Plus series. It is made of a cylindrical iron core patch Z3OC1T8219731 motor. The motor speed is 12000 RPM. It can produce various vibration effects, such as increasing or decreasing vibration level, producing a click effect, producing different buzzer effects, and even vibrating with a music/audio input. It can be applied to all kinds of electronic products, such as information prompts and touch feedback.

Features

Clockwise rotating motor
Rotational speed: 12000RPM
Compatible with StickC/C-PLUS
Supported platforms UIFlow, Arduino

Specifications

Resources	Parameters
Vibrator	Z3OC1T8219731 motor
Motor construction	4mm×3mm cylindrical core SMT motor
Motor Number of magnet poles	2-poles（inner magnet type）
Quota voltage	3.0V
Rated current	85mA
Rated speed	12000RPM
Using voltage	2.3V-4.5V
Operating conditions	0~95%RH , 0-40℃
Vibration Frequency	10 to 55Hz

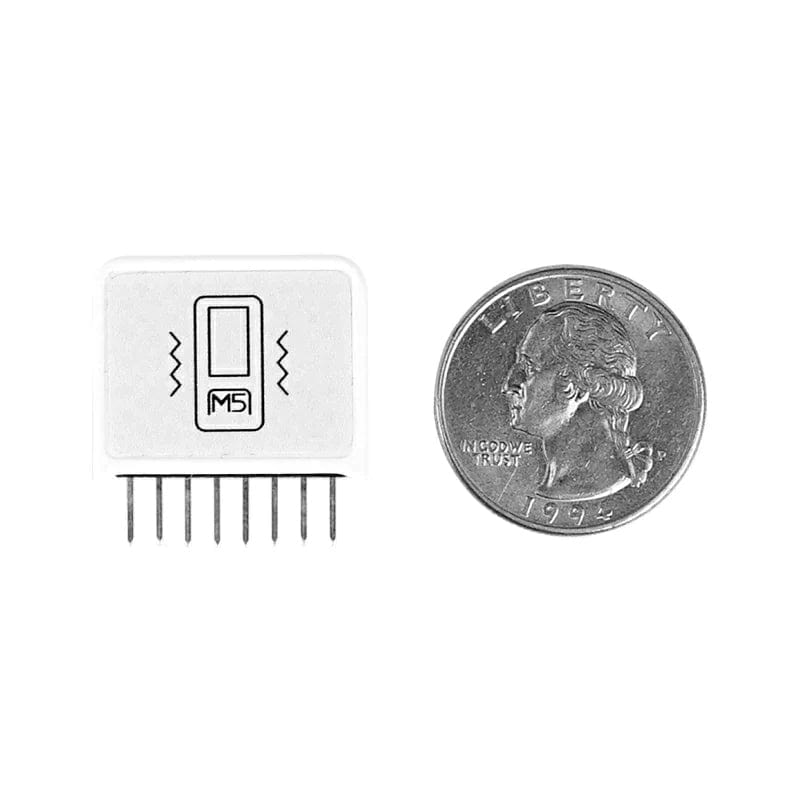

Product Size	24mm × 21mm × 14mm
Package Size	136mm × 92mm × 14mm
Product Weight	4.7g
Package Weight	7.1g

Resources

Package Contents

1x HAT-Vibrator
1x Double-sided sticker
