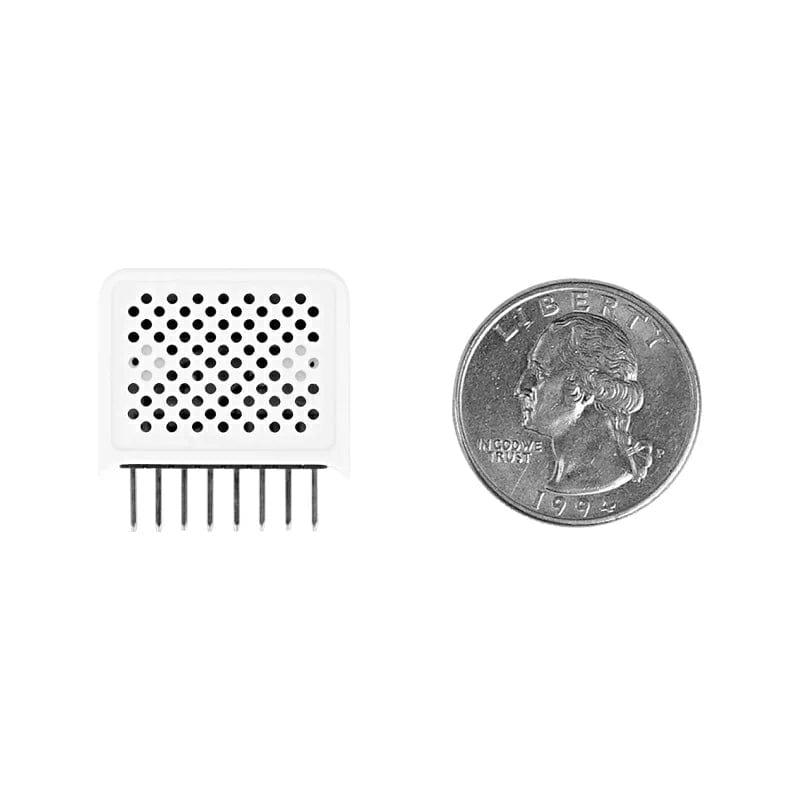

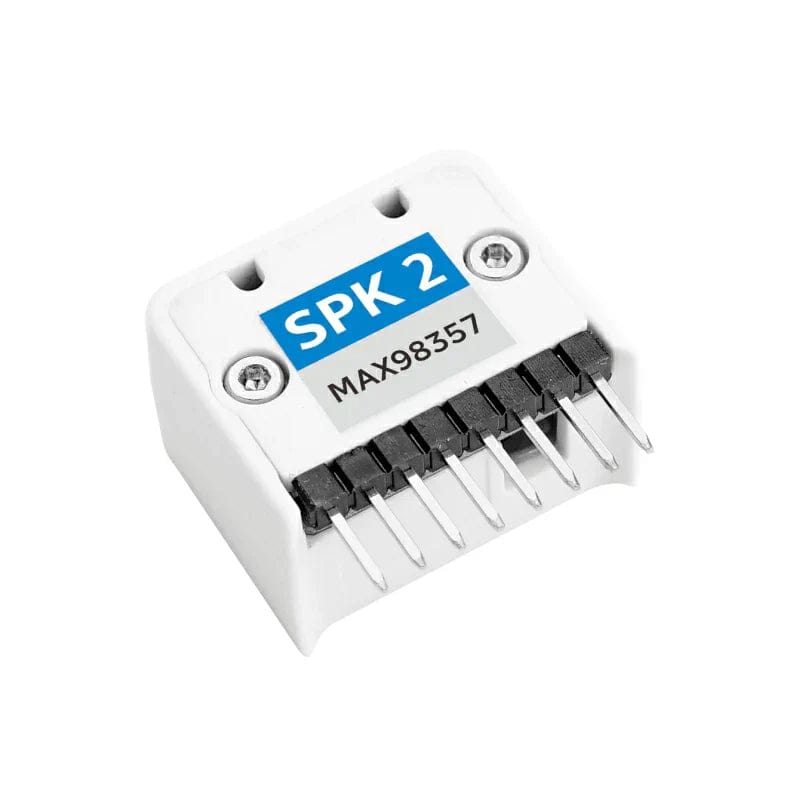

M5StickCPLUS Speaker 2 Hat (MAX98357)

Name: M5StickCPLUS Speaker 2 Hat (MAX98357)
Brand: M5Stack
SKU: U055-B
Price: 4.90 GBP
Availability: InStock

M5StackSKU: U055-B

£4.90

incl. VAT

excl. VAT

Only 4 units left

Awesome Extras

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut

M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut

M5Stack M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit

£24 incl. VAT excl. VAT

M5Stack M5StickC Hat - Ambient Light Sensor - The Pi Hut

M5Stack M5Stack M5StickC Hat - Ambient Light Sensor

£4.80 incl. VAT excl. VAT

The HAT-SPK2 is a speaker with the M5SticKC PLUS, that has a built-in MAX98357 digital audio I2S amplifier IC and 1W speaker, supporting 16-bit, a 32kHz to 192kHz sample rate audio input, built-in short circuit protection and over-temperature protection, suitable for a variety of audio applications.

Features

Hight Quality Audio Output: Supports 16-Bit, 32KHZ to 192KHZ sample rate audio
Multiple output modes: including mono and stereo, as well as audio input formats such as I2S, left-justified, and right-justified
Stability and reliability: Built-in short-circuit protection and over-temperature protection
Programming platforms: Arduino, UIflow

Specifications

Resources	Parameters
Power output	Maximum 20W
Signal-to-noise ratio	103dB
Distortion rate	0.001
Supply voltage	4.5v-5.5v
Operating temperature range	0-40°C
Enter the audio format	I2S, left-aligned, right-aligned
Sample rate	32kHz to 192kHz
Control interface	I2C, SPI, GPIO

Product Size	24mm × 18.6mm ×13.7mm
Package Size	136mm × 92mm ×13mm
Product Weight	4.6g
Package Weight	8.1g
