M5Stack M5StickC Hat - Ambient Light Sensor

Price:
Sale price £4.80
incl. VAT
excl. VAT
Stock:
Only 13 units left
Quantity:

Awesome Extras

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5Stack M5StickC ToF HAT(VL53L0X) - The Pi HutM5Stack M5StickC ToF HAT(VL53L0X) - The Pi Hut
M5StackM5Stack M5StickC ToF HAT(VL53L0X)
Sale price £7 incl. VAT excl. VAT

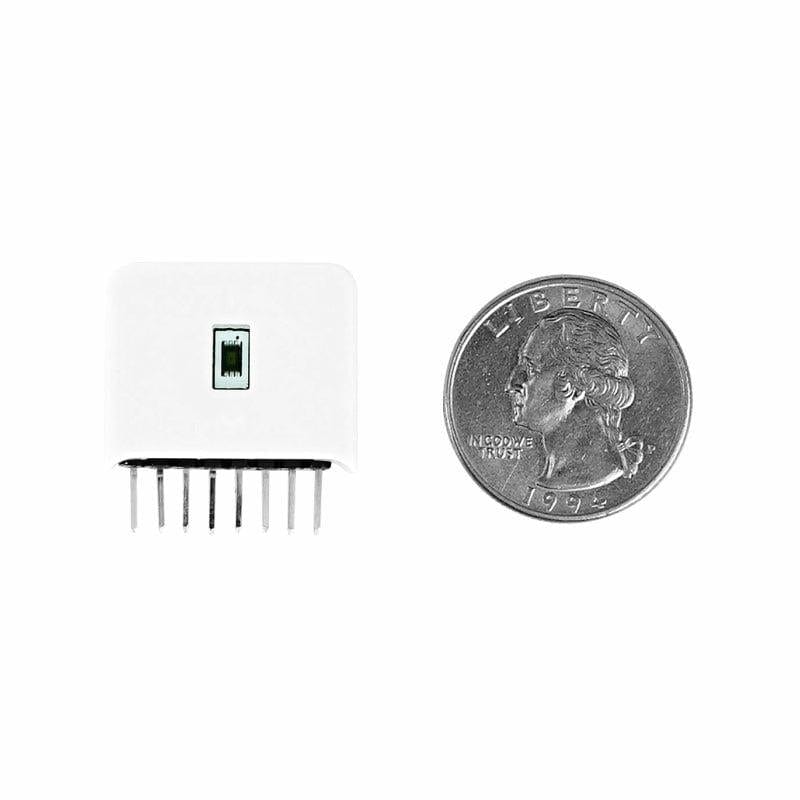

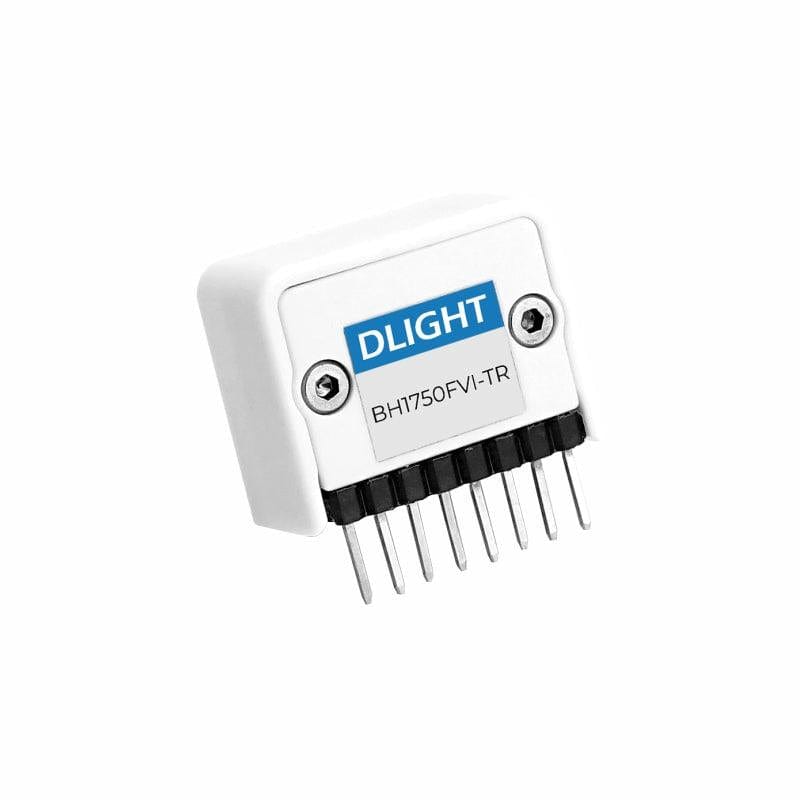

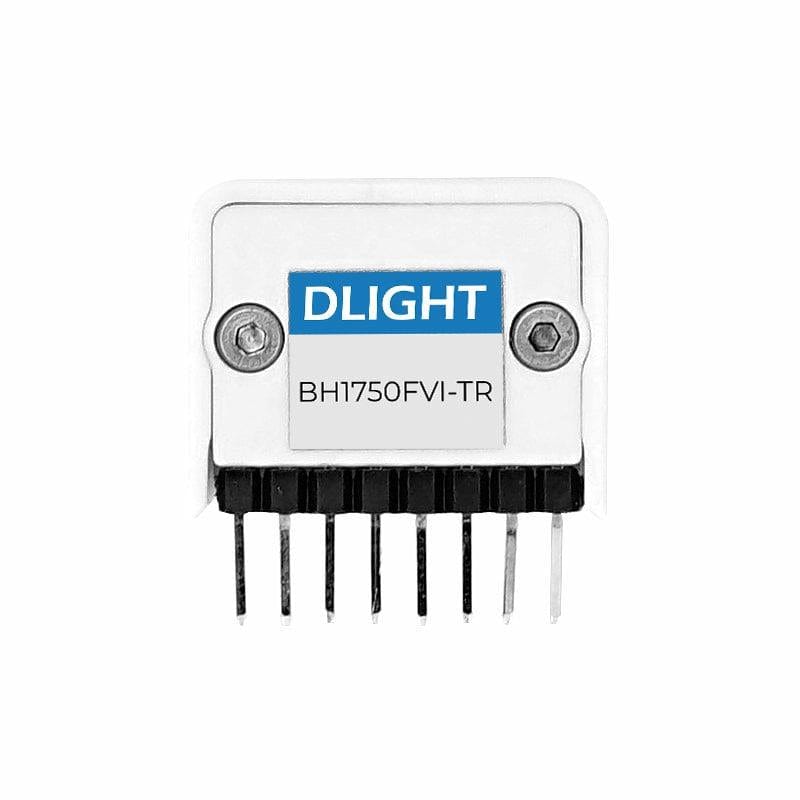

The M5Stack DLight HAT Digital Ambient Light Sensor extends the M5StickC/C Plus to have ambient light sensing capability.

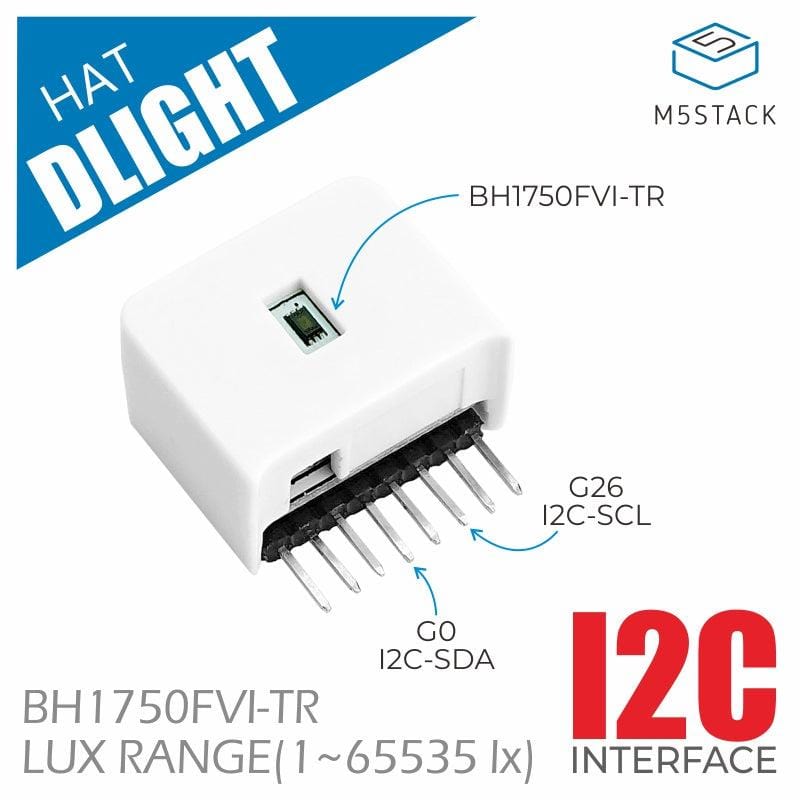

The unit adopts a BH1750FV sensor (I2C interface) with integrated 16-bit ADC and supports wide-range LUX and high resolution (1 - 65535 LX).

Compact in size and low power consumption, it's suitable for various light-sensing applications.

Features

  • Compatible with M5StickC/C Plus
  • Supports I2C interface (addr: 0x23)
  • Illumination digital conversion
  • Supports light source variations (incandescent, fluorescent, halogen, white LED, sunlight, etc)
  • Wide Range LUX (1-65535 lx)

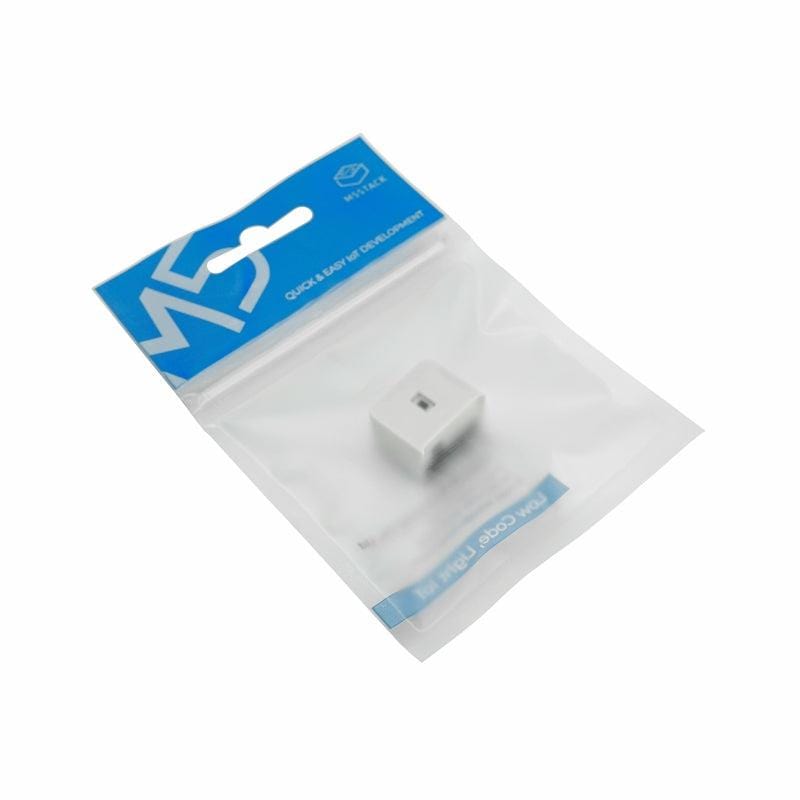

Package Contents

  • 1x DLight HAT

Applications

  • Smart Factory
  • Home Automation
  • Ambient light Sensing Scenario

Specification

Specifications Parameters
Sensor Model BH1750FVI
Illumination detection range 1-65535 lx
Communication interface I2C communication interface (addr: 0x23)
Typical peak sensitivity wavelength 560nm
Working current <3.3V@0.3mA
AD conversion depth 16bit
Net weight 4.8g
Gross weight 6.8g
Product Size 25 * 24 * 14mm
Package Size 93 * 138mm
