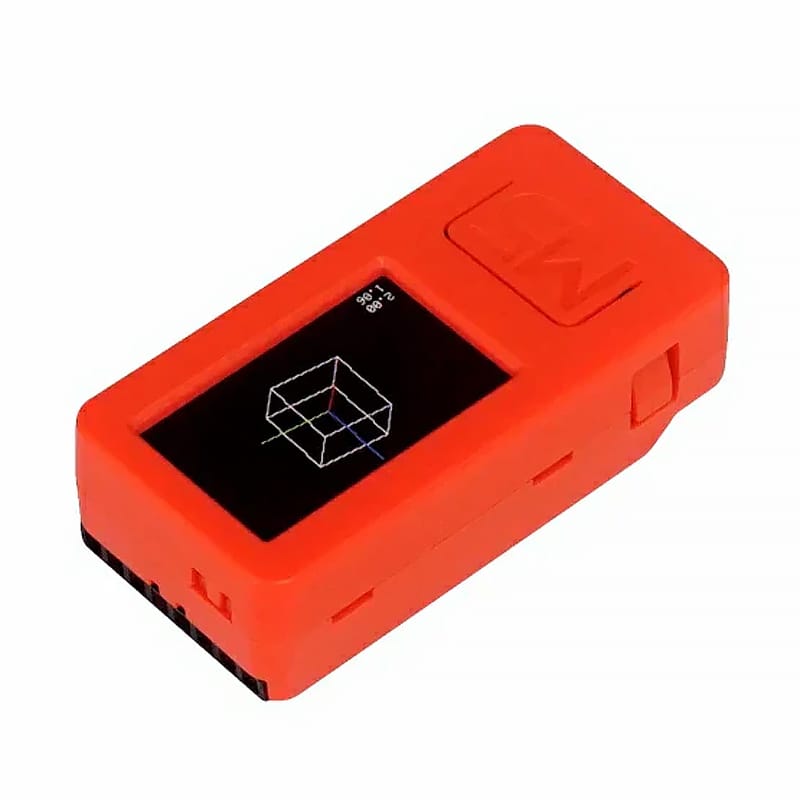

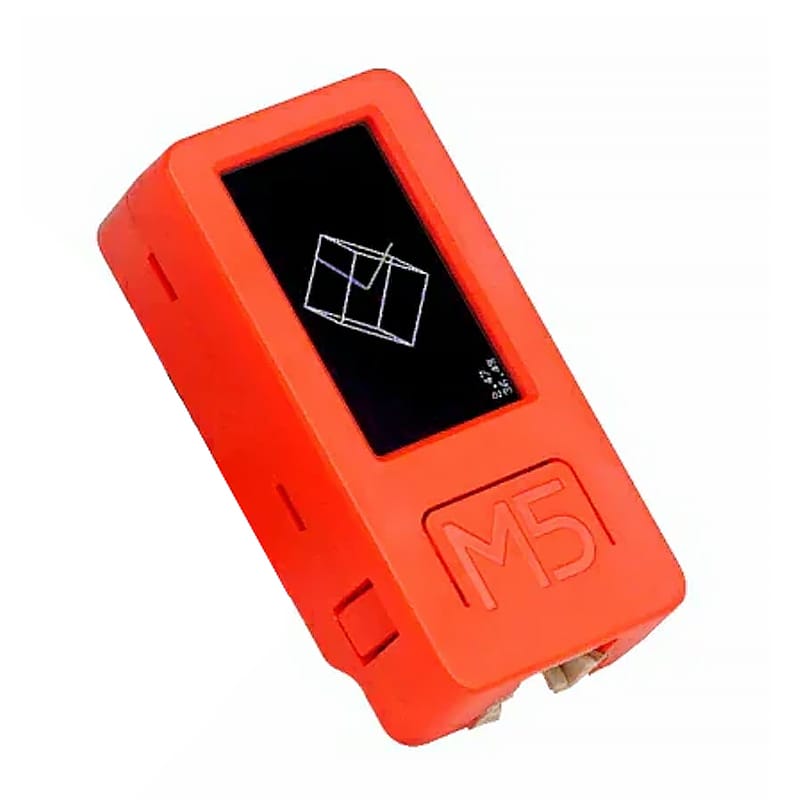

The M5StickC PLUSis powered by ESP32-PICO-D4 with Bluetooth 4.0 and WiFi and is an upgrade of the original M5StickC with a bigger screen. It is a portable, easy-to-use, open-source, IoT development board.
This tiny device will enable you to realize your ideas, enrich your creativity, and speed up your IoT prototyping. Developing with M5StickC PLUS takes away a lot of the pains from the development process.
M5StickC Plus is one of the core devices in M5Stack's product series. The compact body is integrated with rich hardware resources, such as infrared, RTC, Microphone, LED, IMU, Buttons, PMU etc.
Improvements from the regular StickC are a buzzer, bigger screen (1.14-inch, 135 * 240 resolution LCD Screen) and more stable hardware design. This revision increases the display area by 18.7% and the battery capacity from 95mAh to 120mAh. It also supports the HAT and Unit family of products.
Be sure to check out the Claude Desktop Buddy project, a small desk device that connects to Claude via Bluetooth, displays its working status, alerts users when authorisation is needed, and allows direct on-device responses. It's one of the most exciting examples of AI stepping out of the chat window into the physical world!
G36/G25 share the same port, when one of the pins is used, the other pin should be set as a floating input
For example, to use the G36 pin as the ADC input, Configuration the G25 pin as floating
Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
USB Drive problems: UnitV/M5StickV/M5StickC/ATOM may not work without drivers in some systems. Users can manually install FTDI driver to fix this problem.
Applications
Internet of things terminal controller
Wearable devices
Stem education product
DIY creation
Specification
Resources
Parameter
ESP32
240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual-mode Bluetooth
Flash Memory
4MB
Power Input
5V @ 500mA
Port
TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen
1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button
Custom button x 2
LED
RED LED
MEMS
MPU6886
Buzzer
built-in buzzer
IR
Infrared transmission
MIC
SPM1423
RTC
BM8563
PMU
AXP192
Battery
120 mAh @ 3.7V
Antenna
2.4G 3D Antenna
PIN port

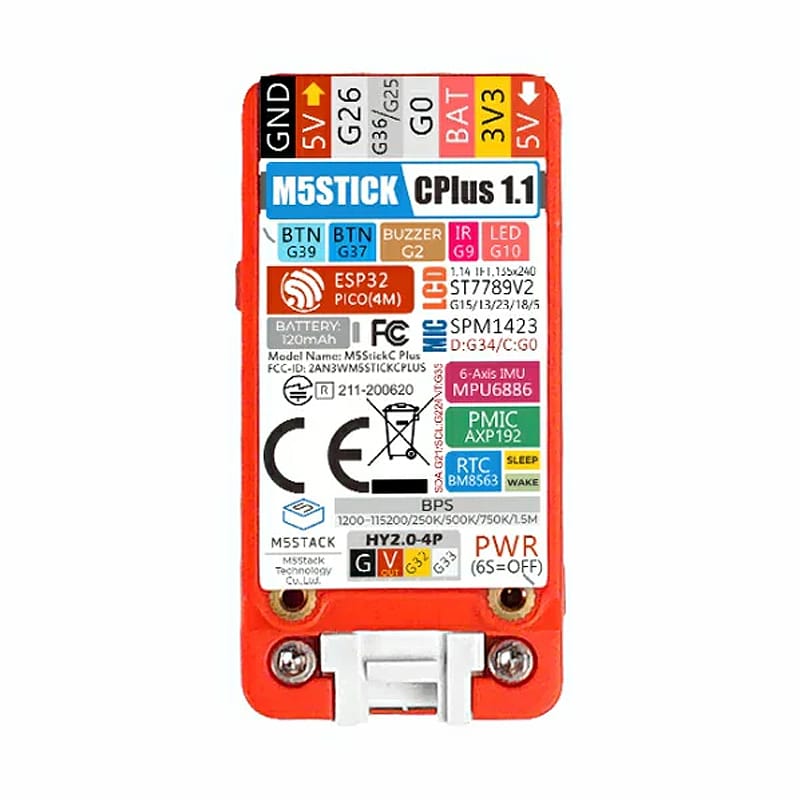

G0, G25/G36, G26, G32, G33
Operating Temperature
32°F to 104°F ( 0°C to 40°C )
Net weight
15g
Gross weight
21g

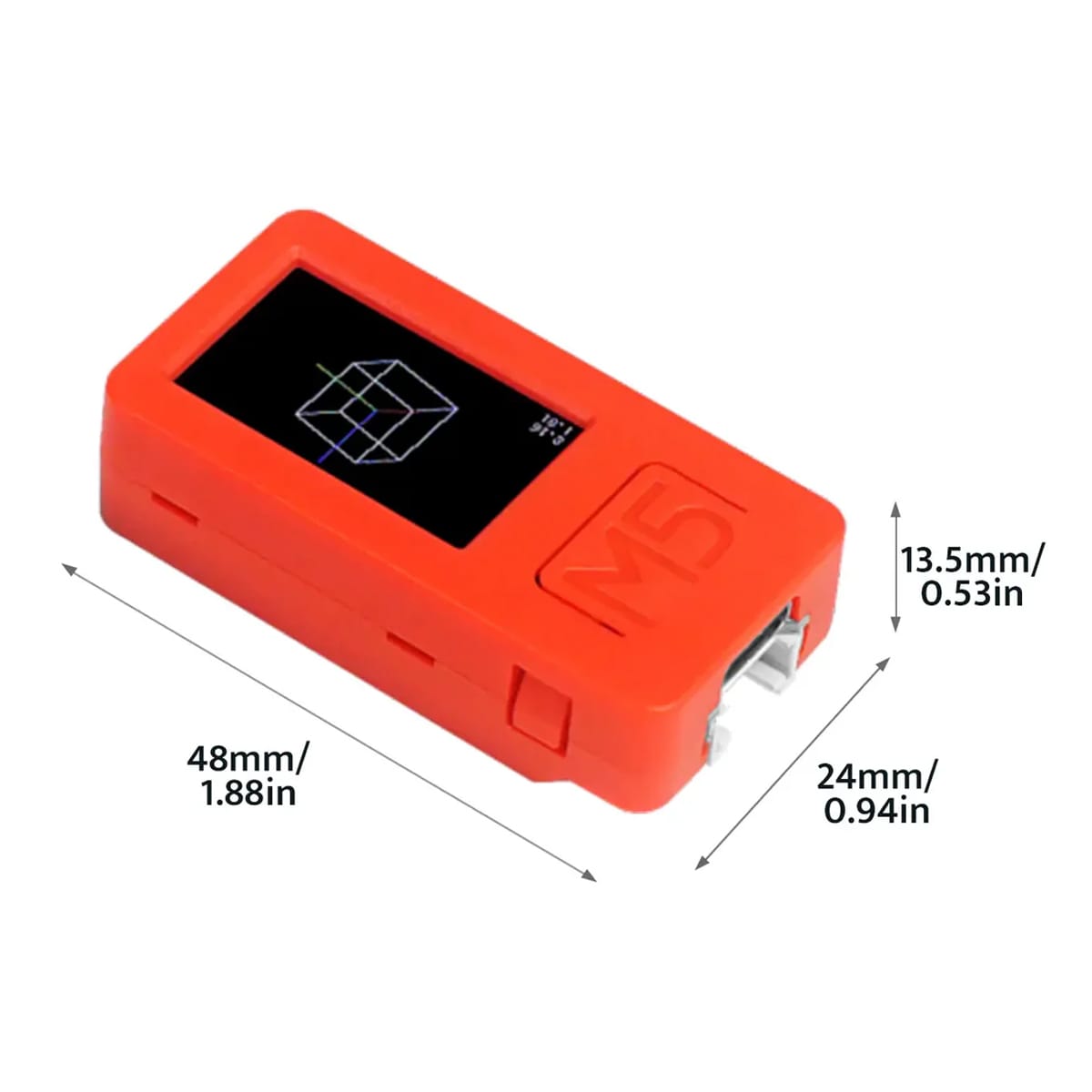

Product Size
48.2*25.5*13.7mm
Package Size
65*25*15mm
Case Material
Plastic ( PC )
