M5Stack M5StickC RS485 HAT AOZ1282CI

Price:
Sale price £4.50
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

RS485-HAT is a TTL to RS485 converter for M5StickC. Among M5stack products we have 5 items that include TTL to RS485, they are RS485 unit, RS485 HAT, PLC, LAN, BASE26 they have different input voltage, vary from 5V - 12V.

In this RS485-HAT, it consists of a 485 automatic transceiver circuit and a DC-DC buck circuit which can drop an input 12V to 5V.

RS485 is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems, widely used in the industrial field. multipoint systems are supported.

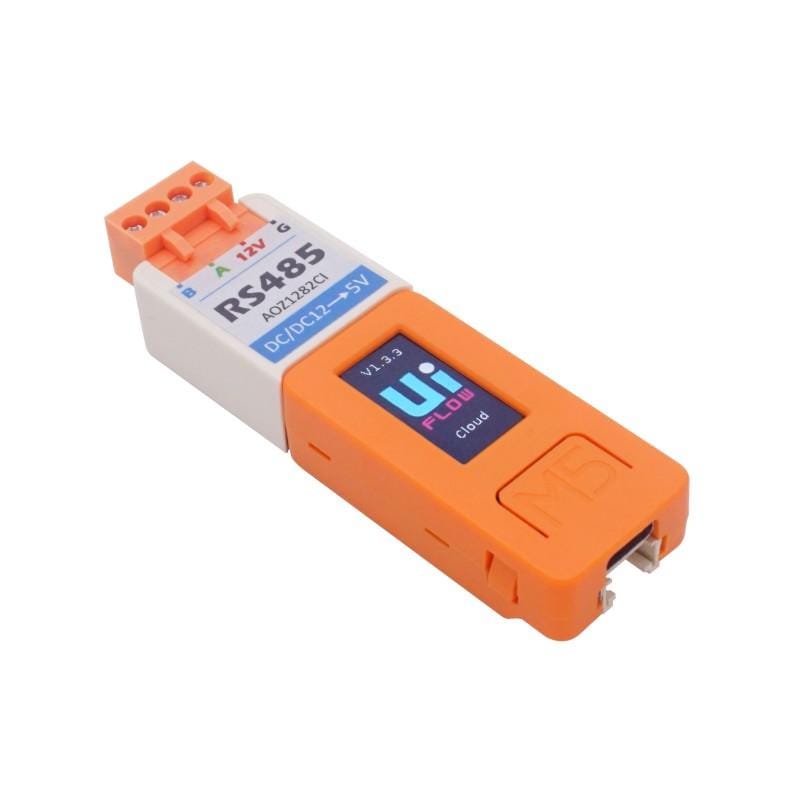

It is used to convert the TTL standard to the RS485 standard. If the outside serial device is RS485 standard, you can attach this hat on top of stickc, therefore, to implement the communication with RS485 device by TTL protocol.

Product Features

  • Built-in SP485EEN
  • The built-in automatic transceiver circuit
  • Built-in DC-DC buck circuit
  • AOZ1282CI
  • input DC 12 V
  • BandRate up to 115200
  • Program Platform: Arduino, UIFlow(Blockly, Python)

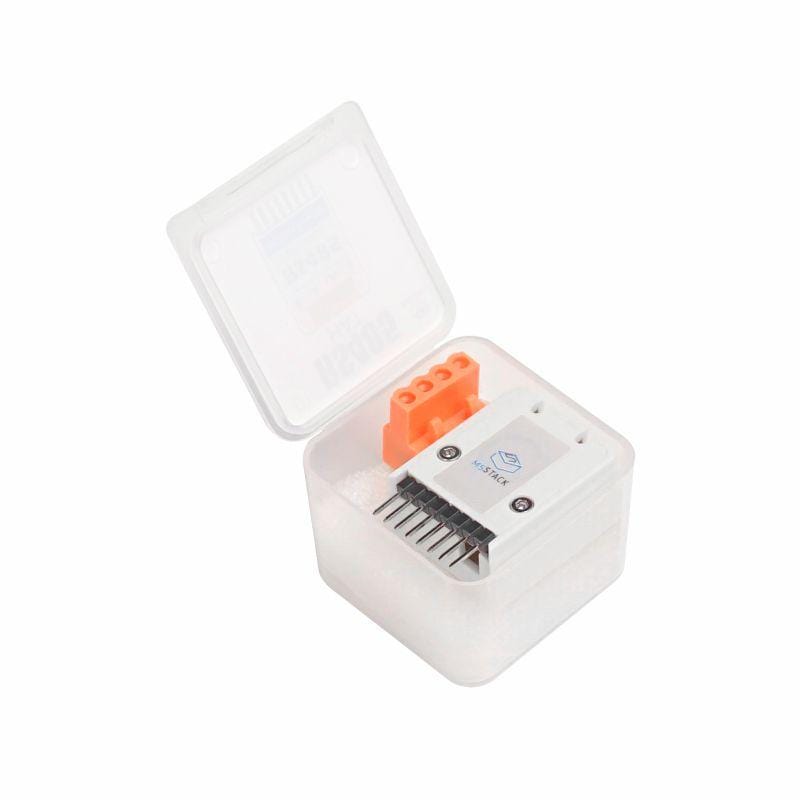

Include

  • 1x RS485 HAT

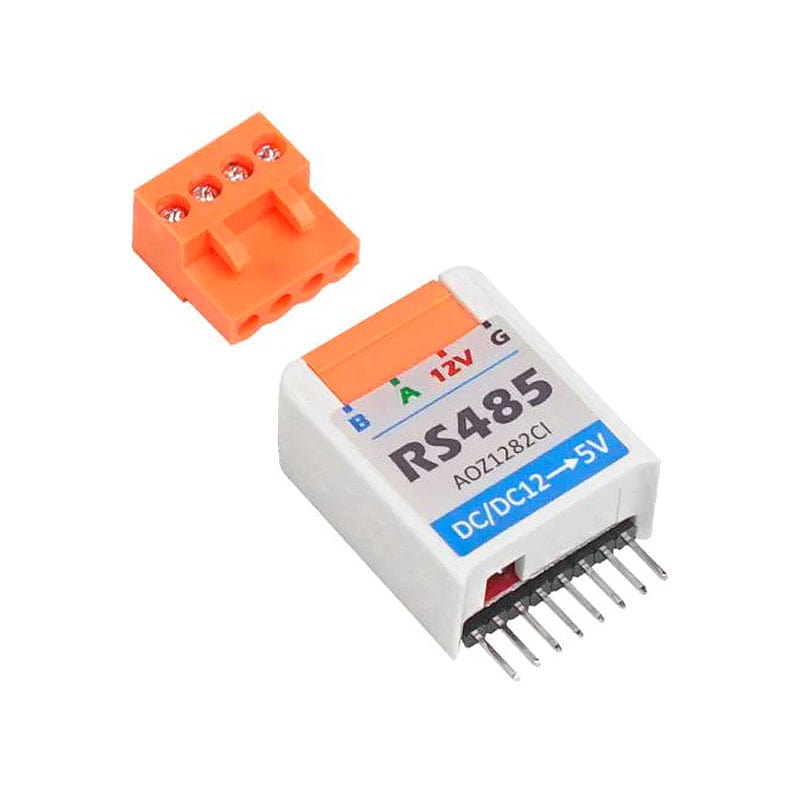

  • 1x 4 Pin 3.96 Pitch Terminal

Applications

  • RS485 multipoint systems
  • Serial communication in industrial field.

Specification

Resources Parameter
Net weight 7g
Gross weight 17g
Product Size 35*24*8mm
Package Size 40*42*30mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • M5Stick-C with Stepper and IMU
    This uses the stepper driven 6060 push and rs485. The movement is based on the tilt of the M5stick which is measured with the built-in IMU.
