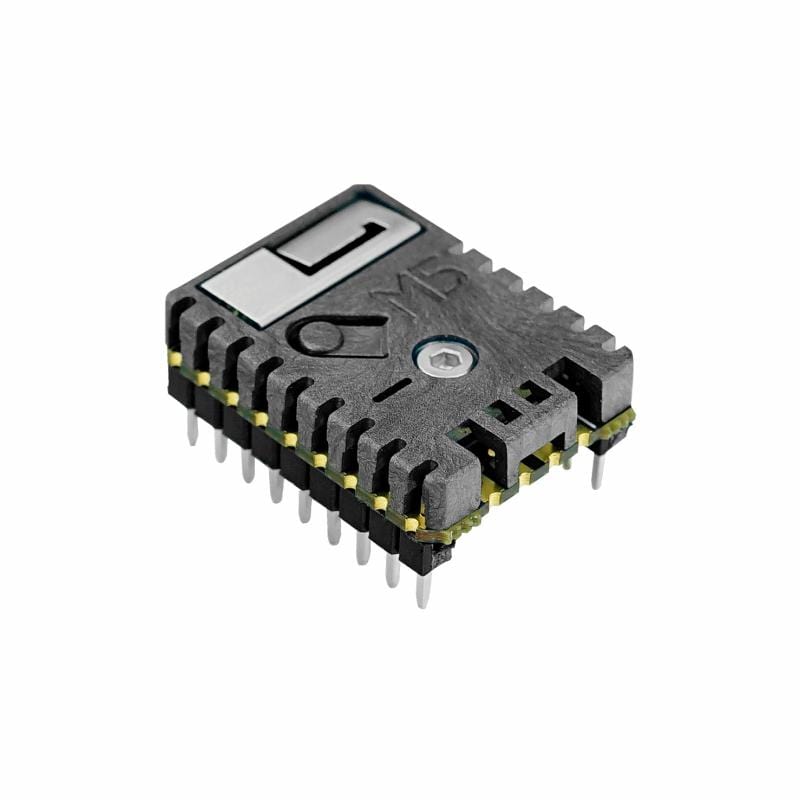

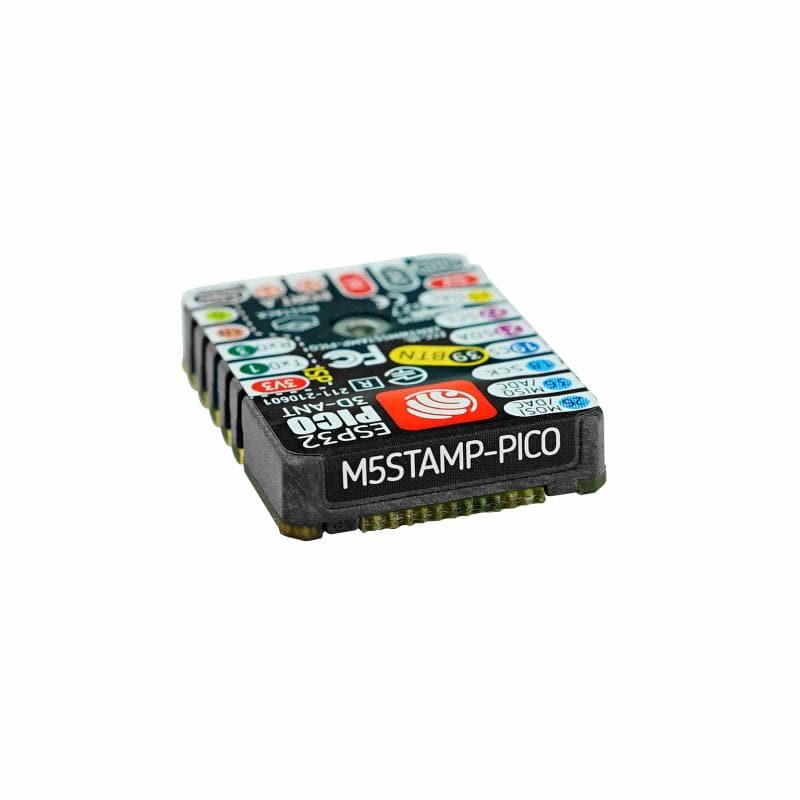

M5Stack M5Stamp Pico Mate with Pin Headers

Price:
Sale price £6
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3
Sale price £57.90 incl. VAT excl. VAT
USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
ATOM Lite ESP32 Development Kit - The Pi HutATOM Lite ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Lite ESP32 Development Kit
Sale price £9 incl. VAT excl. VAT

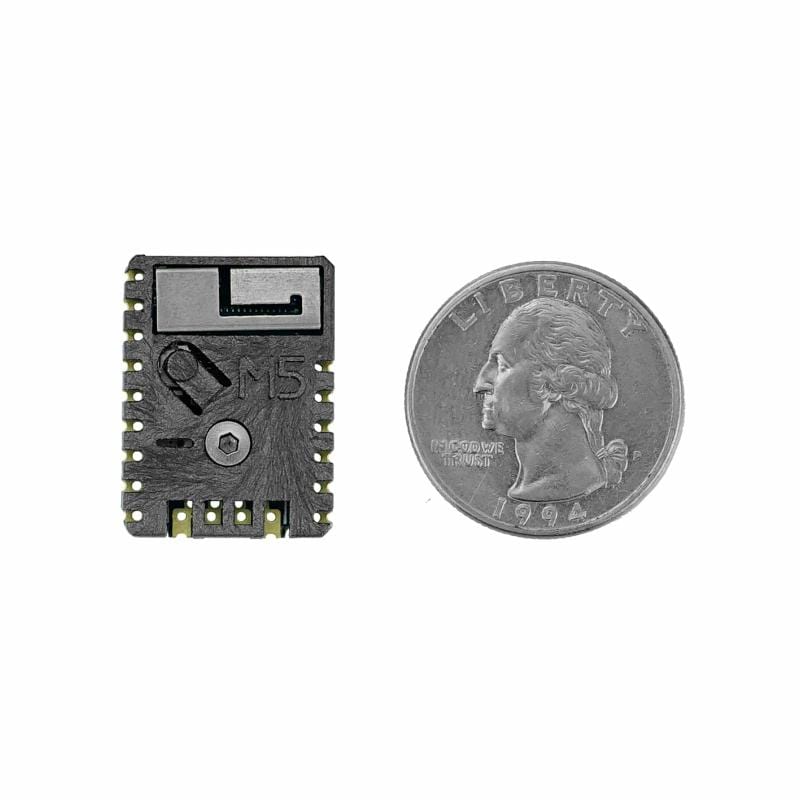

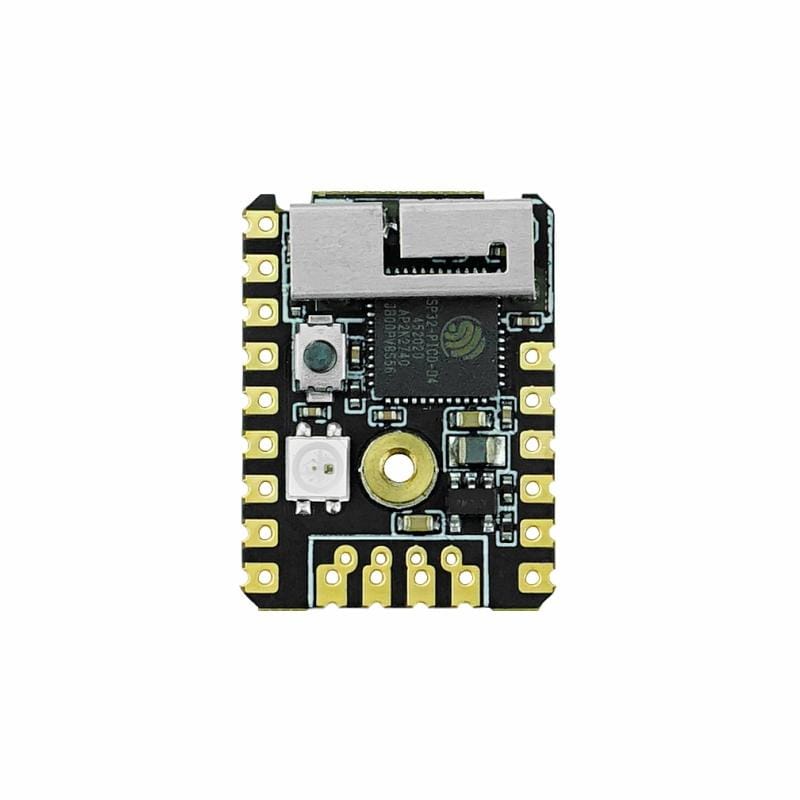

The Pico Mate features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. With low power consumption, it is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

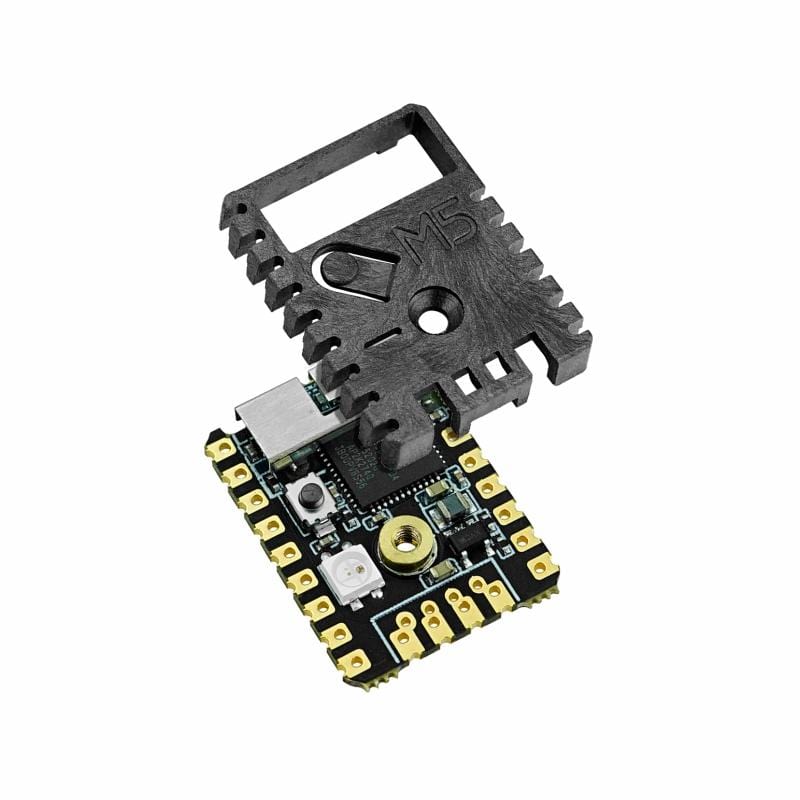

  • Multi Purpose: Five options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.

  • Low-Code Development: It supports UIFlow graphical programming platform, scripting-free, cloud push, and is fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.

  • Strong Expandability: Easy access to M5Stack's hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.

Product Features

  • Chip-set:ESP32-PICO-D4 (2.4GHz Wi-Fi and Bluetooth dual mode)
  • Support UIFlow graphical programming
  • Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
  • Integrated programmable RGB LEDs and buttons
  • Miniature module

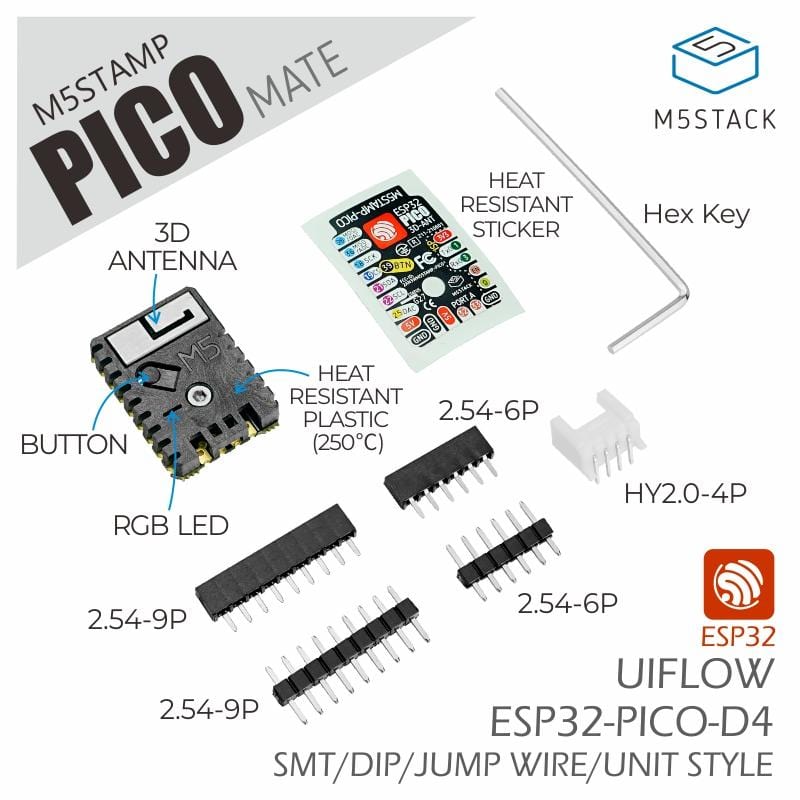

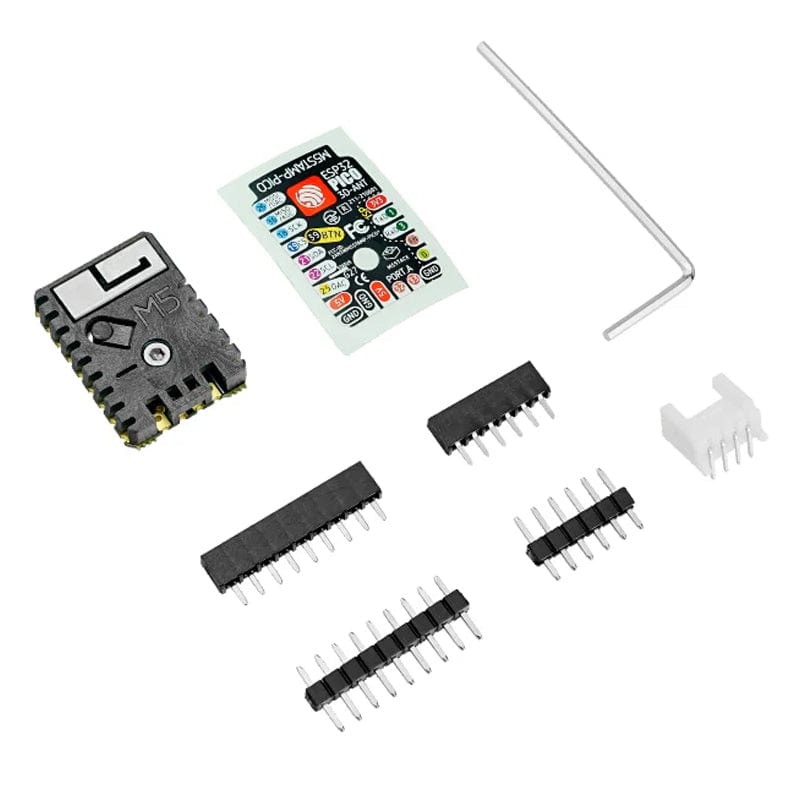

Package Contents

  • M5Stamp Pico Mate:
    • 1 x M5Stamp Pico
    • 1 x Sticker
    • 4 x Pin Headers

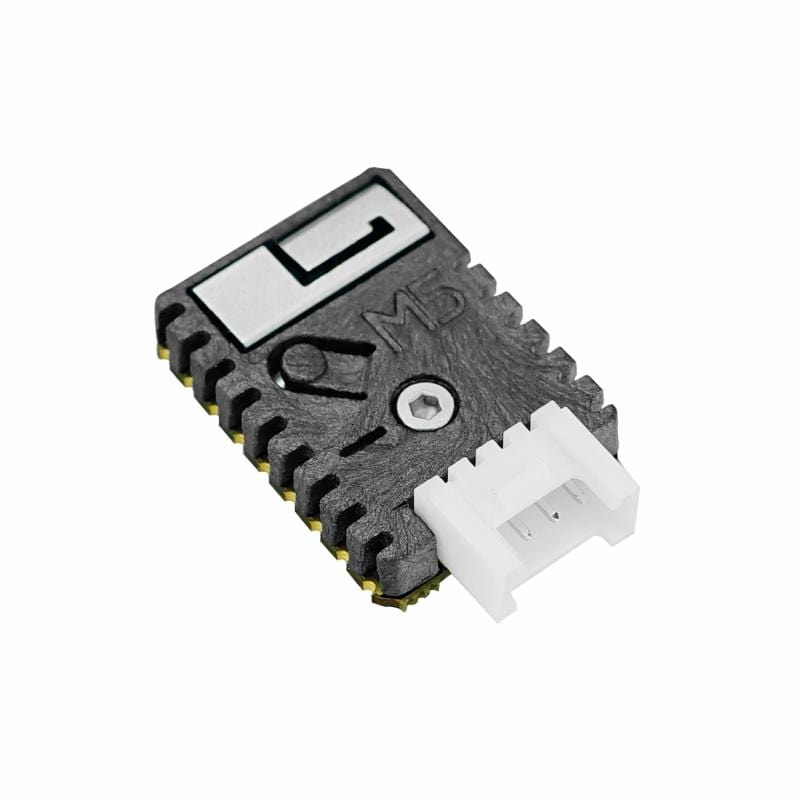

    • 1 x 90° Grove Connector
    • 1 x Hex Key

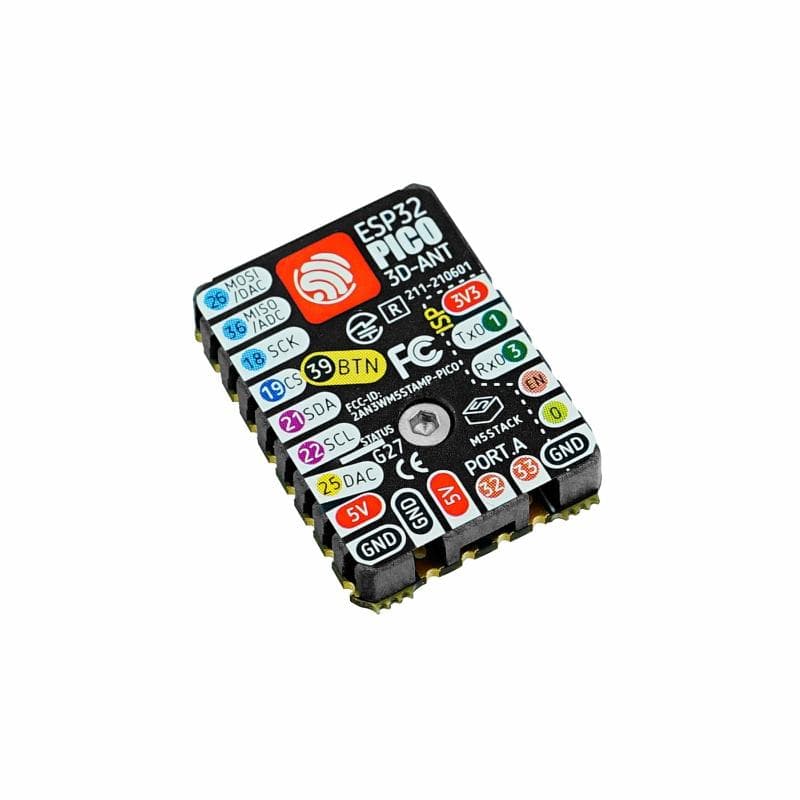

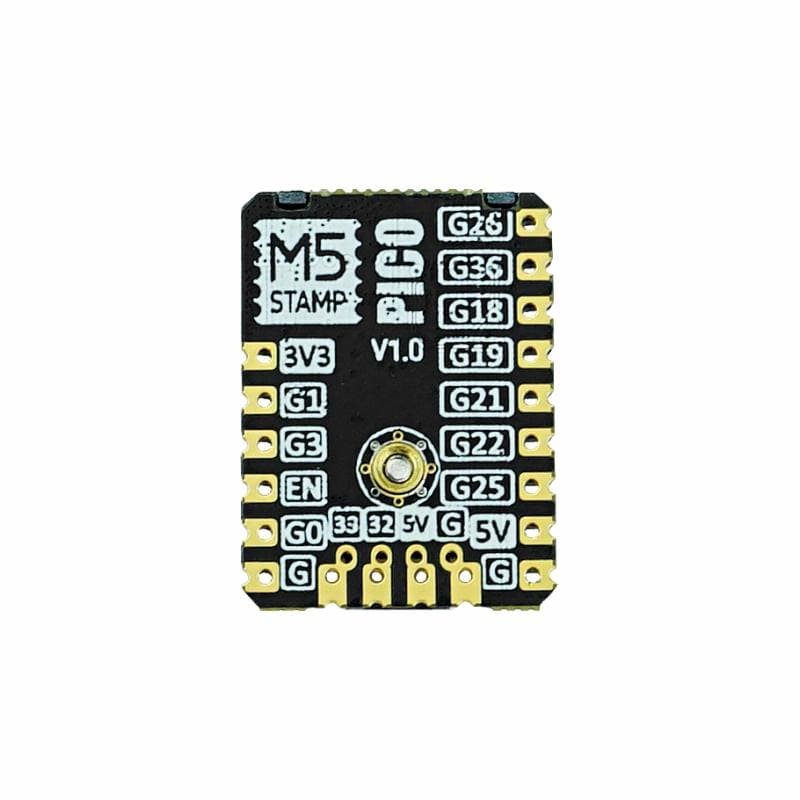

    Pinout

    Specifications

    Resources Parameter
    Master Control Resource ESP32-PICO-D4
    Flash 4MB
    Input Voltage 5V @ 500mA
    Power consumption Normal standby: 5V@29mA, WIFI STA mode: 5V@60mA, Bluetooth mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA
    Wireless communication distance AP Mode: 16m, BLE Mode: 110m, Class Bluetooth Mode: 90m
    UI Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
    Antenna Type 2.4G 3D Antenna
    WiFi 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz
    Bluetooth Blutooth V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity up to -97 dBm
    Module Resource Interface ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter
    IO interface x12 G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33
    IO interface spacing 2.54mm
    perating temperature 0°C to 60°C
    Net weight 2.6g
    M5Stamp Pico (5pcs) Gross weight 18g
    M5Stamp Pico Mate Gross weight 6g
    M5Stamp Pico DIY Kit Gross weight 12g
    Product Dimensions 18 x 24 x 4.4mm
    Package Size

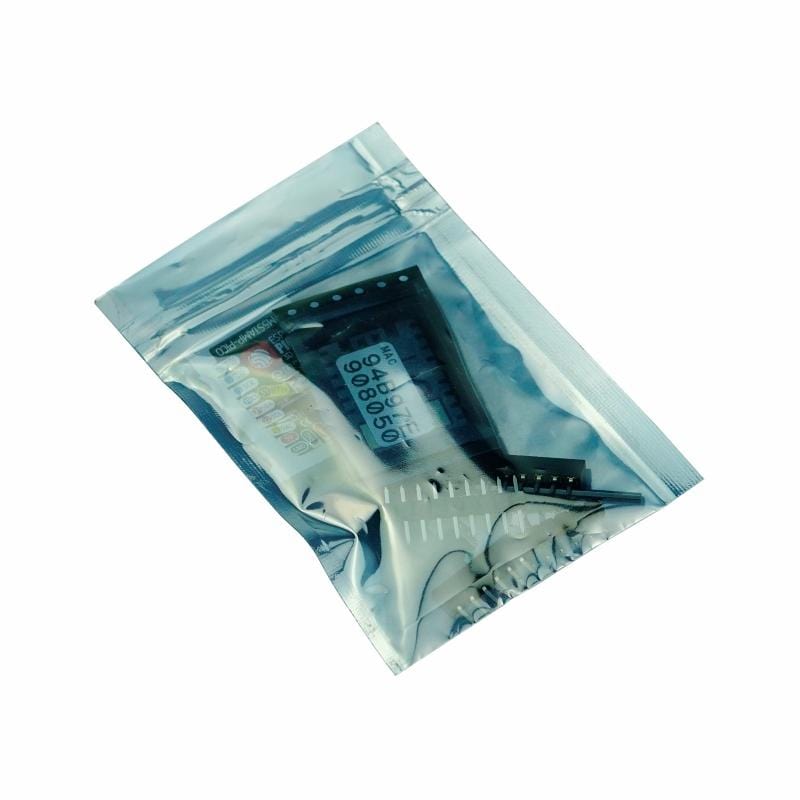

    85 x 55mm sealing bag (translucent)
