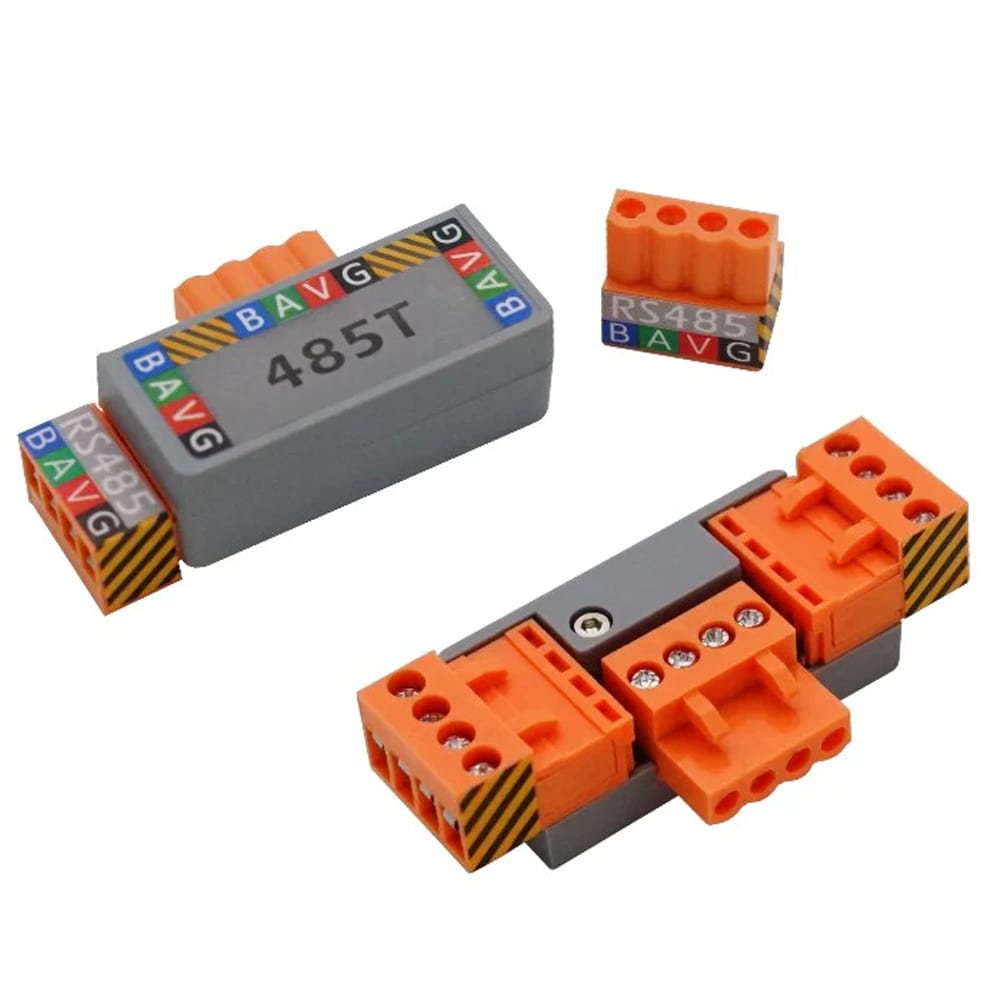

M5Stack RS485T T-Shaped Connector

The M5Stack RS485 Bus T-Shaped Connector splits a single RS485 bus into two channels, providing reliable point-to-point and multipoint communication for compatible 4-pin RS485 devices.

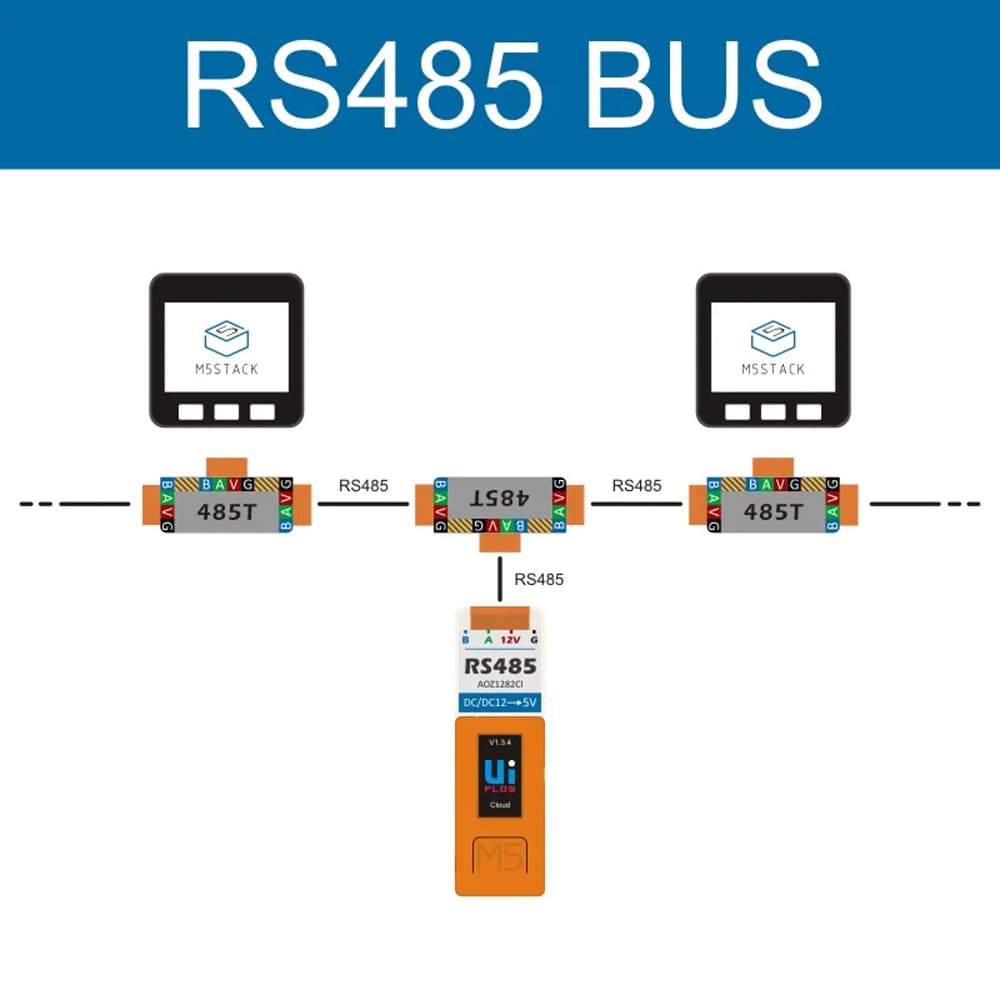

The M5Stack RS485 bus T-shaped connector can expand a single RS485 bus into two channels.

It provides reliable connections for point-to-point and point-to-multipoint communication. It features a power indicator LED, making the power status more intuitive.

It is suitable for RS485 devices with the same 4 Pin 3.96mm specification interface (such as PLC, PLC-M12, Base26, and Hat RS485 in the M5Stack ecosystem).

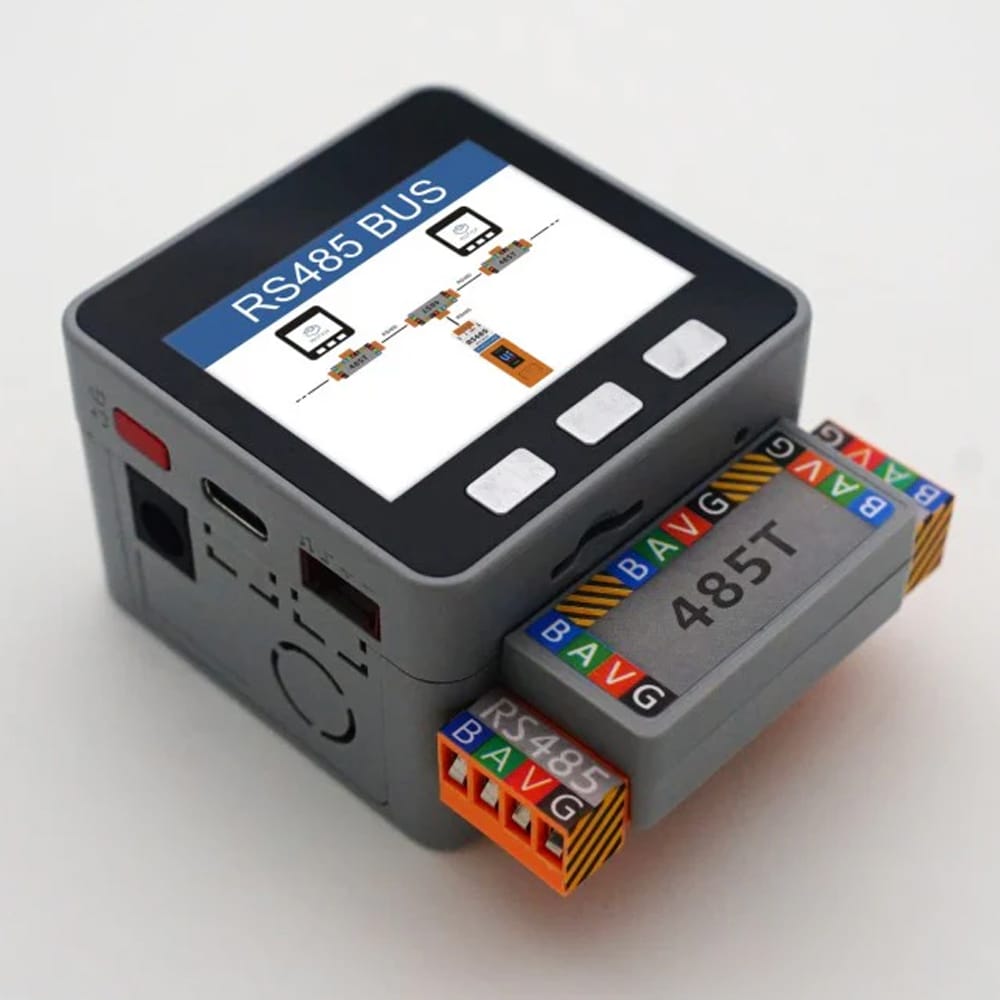

Please note: M5Stack Core is not included.

Features

• RS485 bus T-shaped connector for expanding single bus into two channels
• Supports point-to-point and point-to-multipoint communication

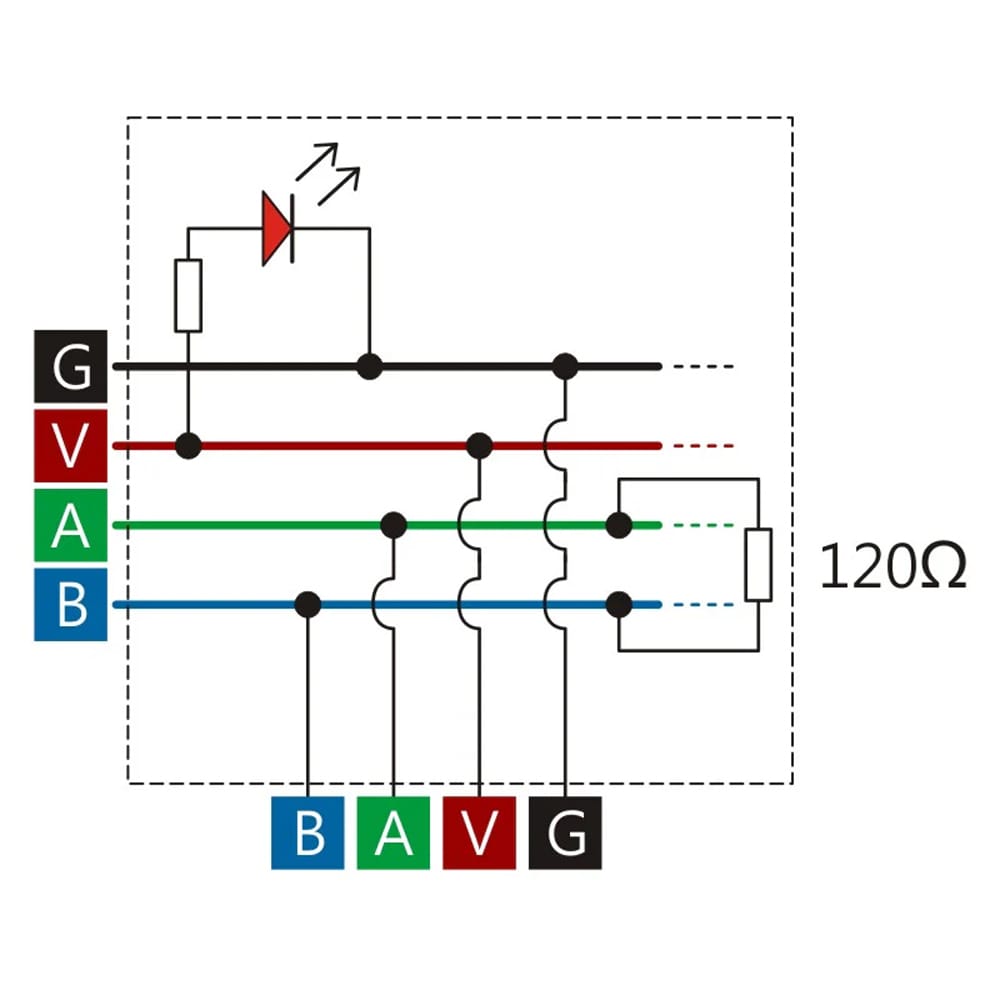

• Built-in red power indicator LED

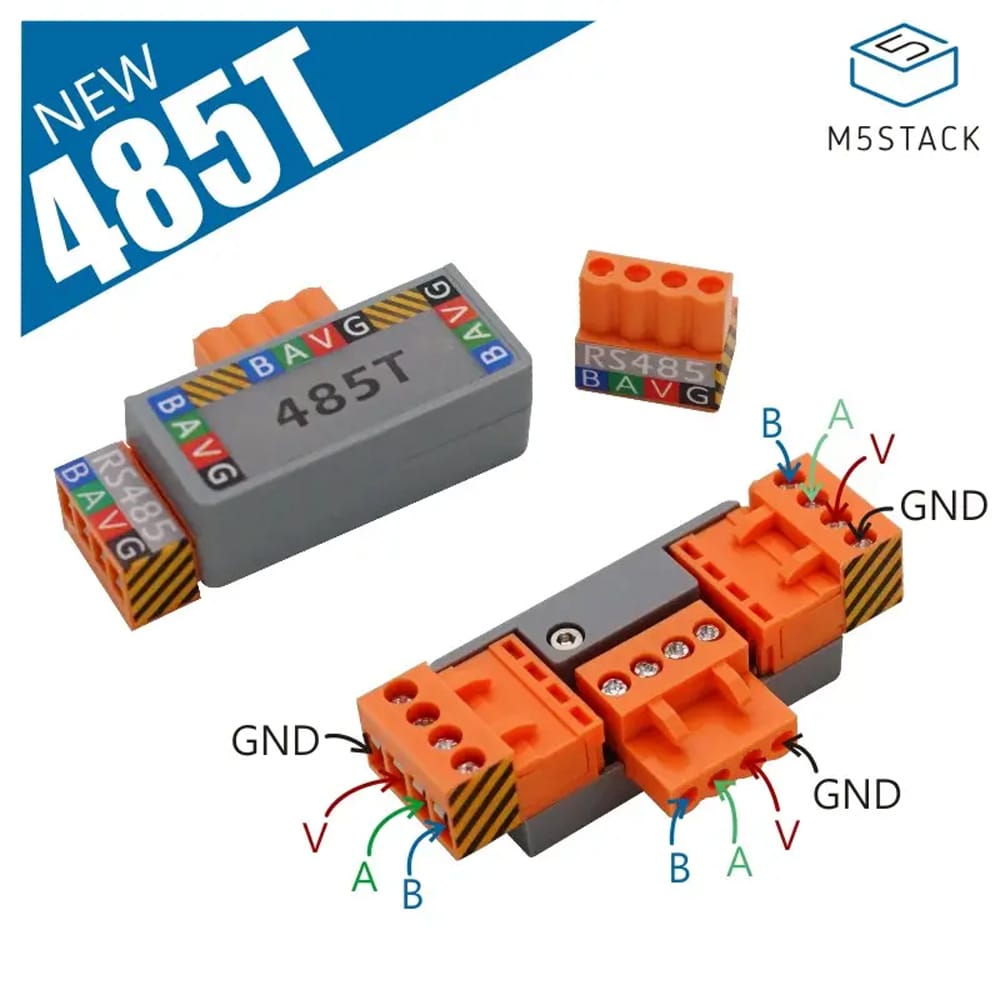

• 4 Pin 3.96mm terminal block interface
• Compatible with M5Stack ecosystem devices (PLC, PLC-M12, Base26, Hat RS485)
• Reliable connection for RS485 devices with matching interface specifications

Specifications

• Size: 56 x 26 x 17mm
• Weight: 15g

Resources

• Product documents

Package Contents

• 1x RS485T T-Shaped Connector

Please note: M5Stack Core is not included.
