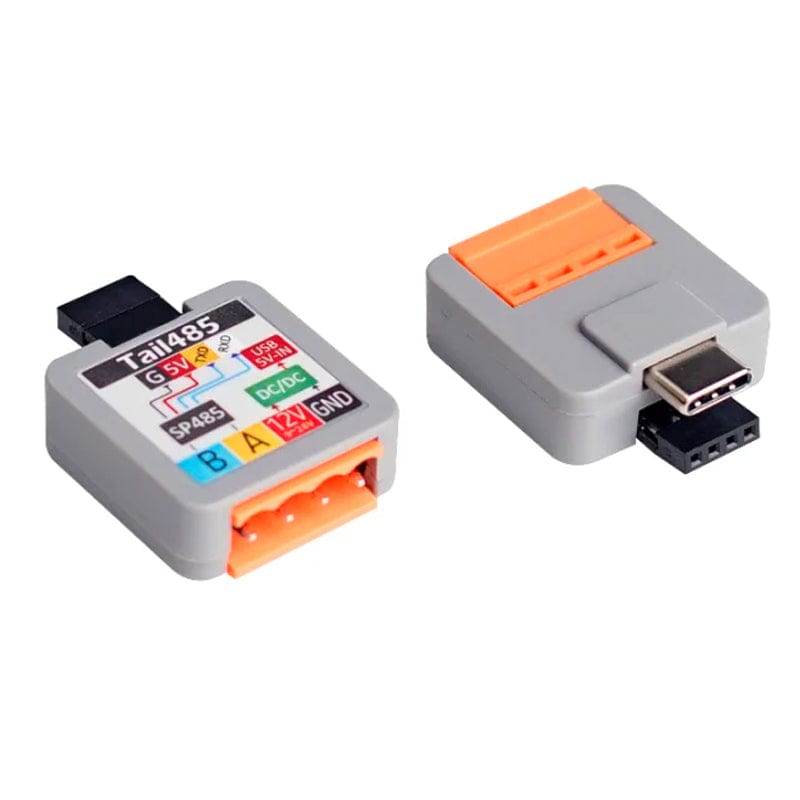

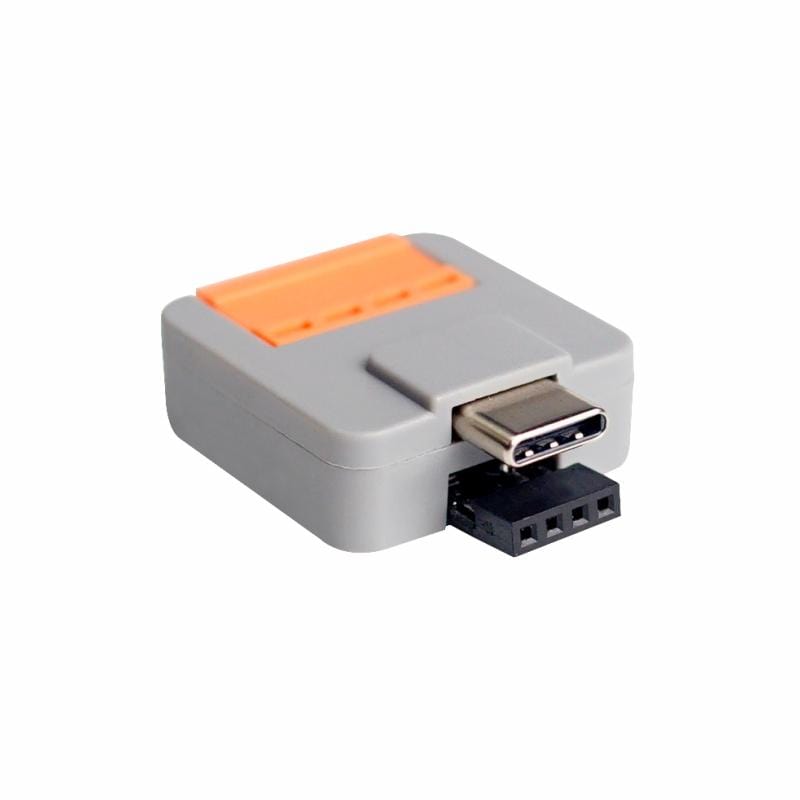

M5Stack ATOM Tail485 - RS485 Converter for ATOM

Price:
Sale price £7.10
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

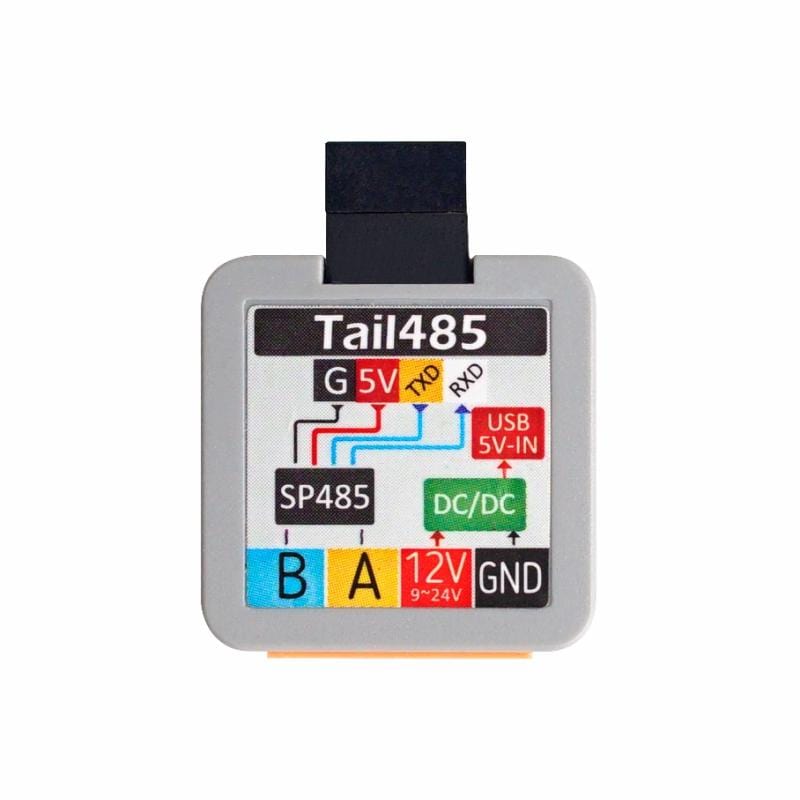

Tail485 is a RS485 converter designed for ATOM, which is used for converting RS485 signals to TTL. RS485 is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems, widely used in the industrial field. It facilitates long distance communication in electrically noisy environments. Multipoint systems are supported. When the project equipment needs to communicate and control through RS485, it is a good choice to use Tail485 for interface type switching. A DC / DC voltage regulator chip is integrated in the tail485 module, which can directly convert the 12V voltage of RS485 to 5V to supply power for USB typeC interface, avoiding the inconvenience of a separate power supply.

Product Features

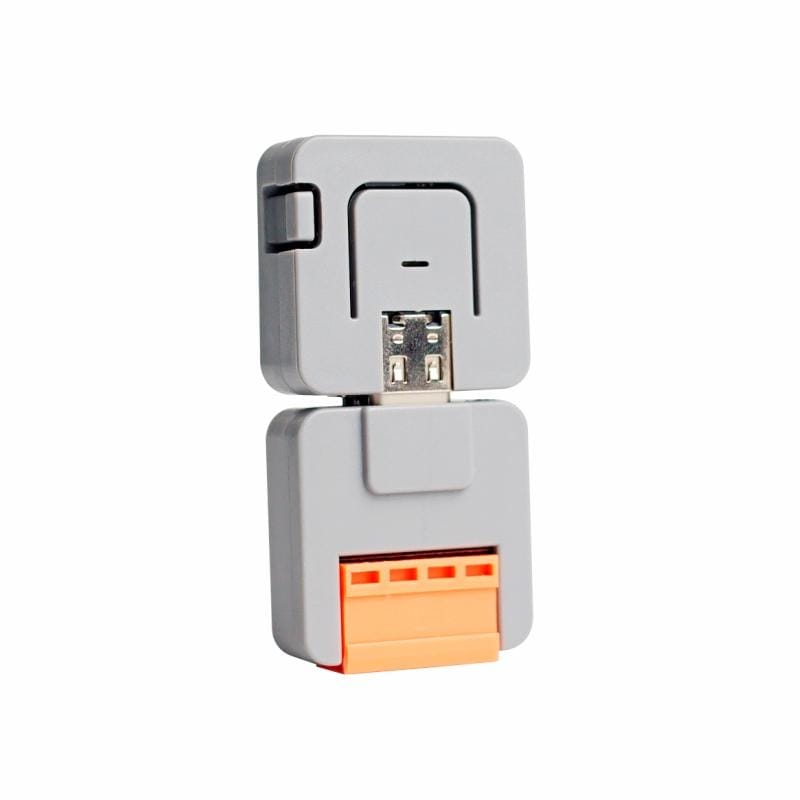

  • Adapted for ATOM Matrix/ATOM Lite form factor
  • Built in DC / DC
  • SP485EEN-L

Inclued

  • 1x Tail485

Application

  • RS485 Multipoint communication

Specification

Specification Parameter
External port VH-3.96 4P
Conversion level 5V12V
Line Transceiver IC SP485EEN-L
Step-down IC AOZ1282CI
Net weight 9g
Gross weight 9g

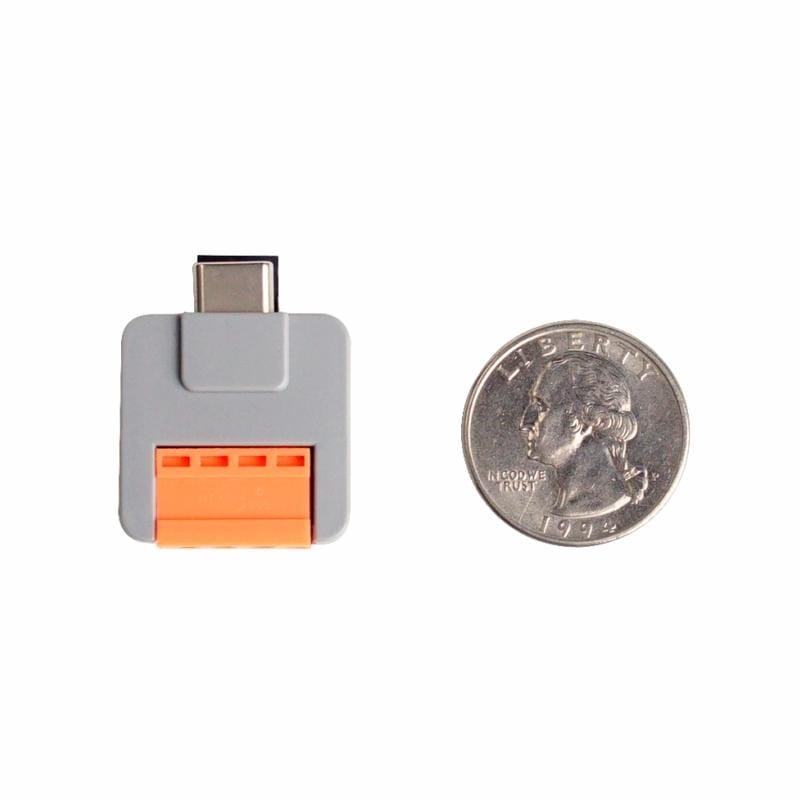

Product Size 54*96*10mm
Package Size 100*60*10mm
Case material Plastic ( PC )
