M5Stack COM.PROTO-MEAS 13.2 Multimeter Module

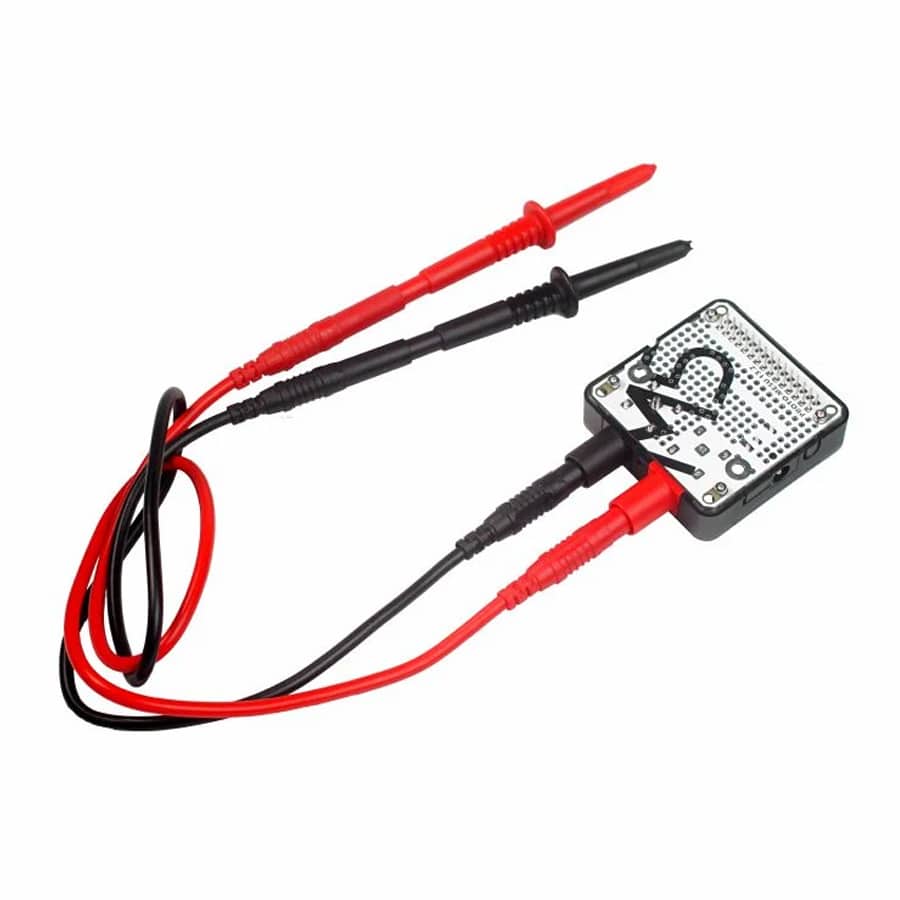

The M5Stack Module13.2 Proto-Meas is a stackable prototyping module for building simple current and voltage measurement circuits, with multimeter probes, matching sockets and a perforated board for custom components.

The M5Stack Module13.2 Proto-Meas is a stackable DIY proto module designed for measuring current and voltage, equipped with multimeter probes and matching sockets, makes it convenient for users to create a simple multimeter.

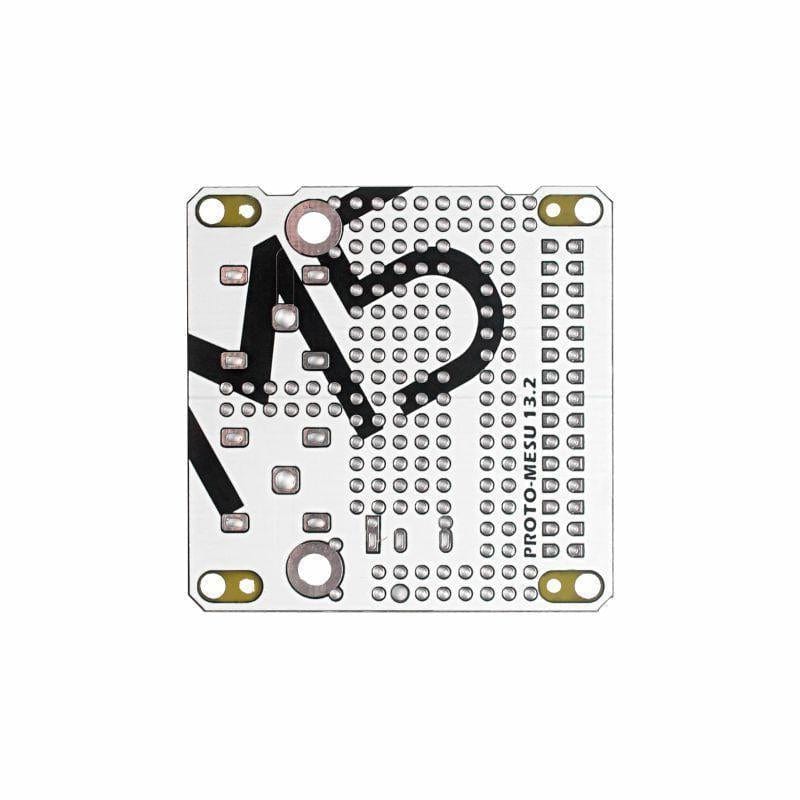

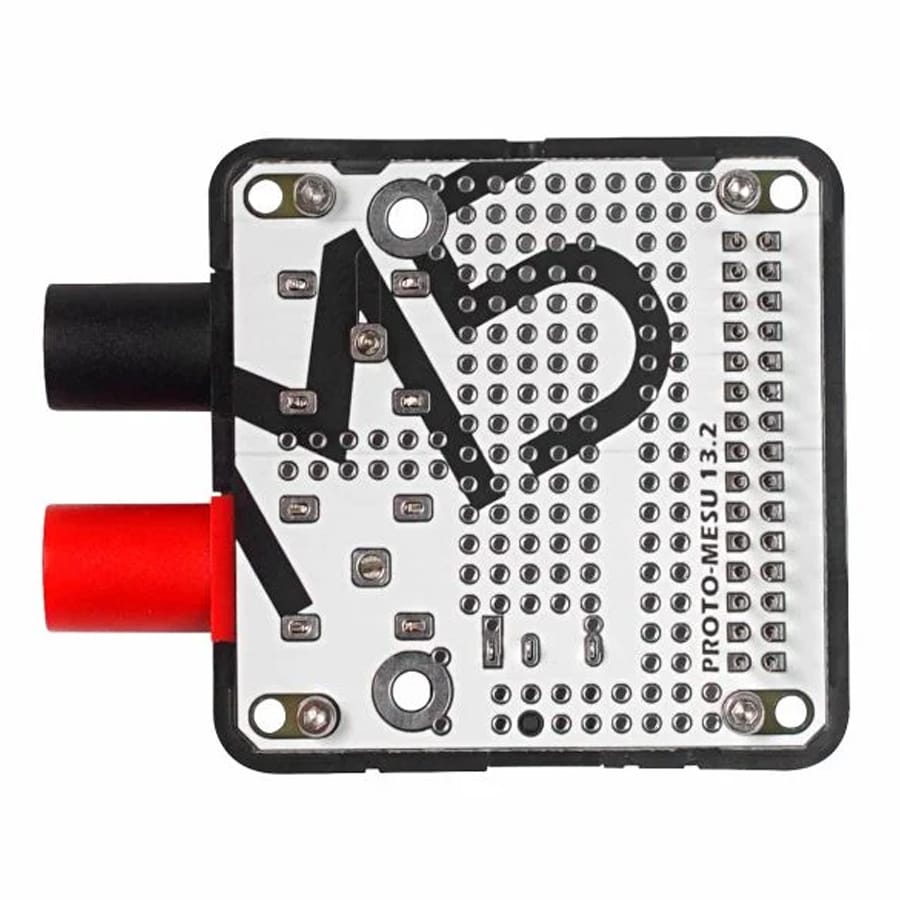

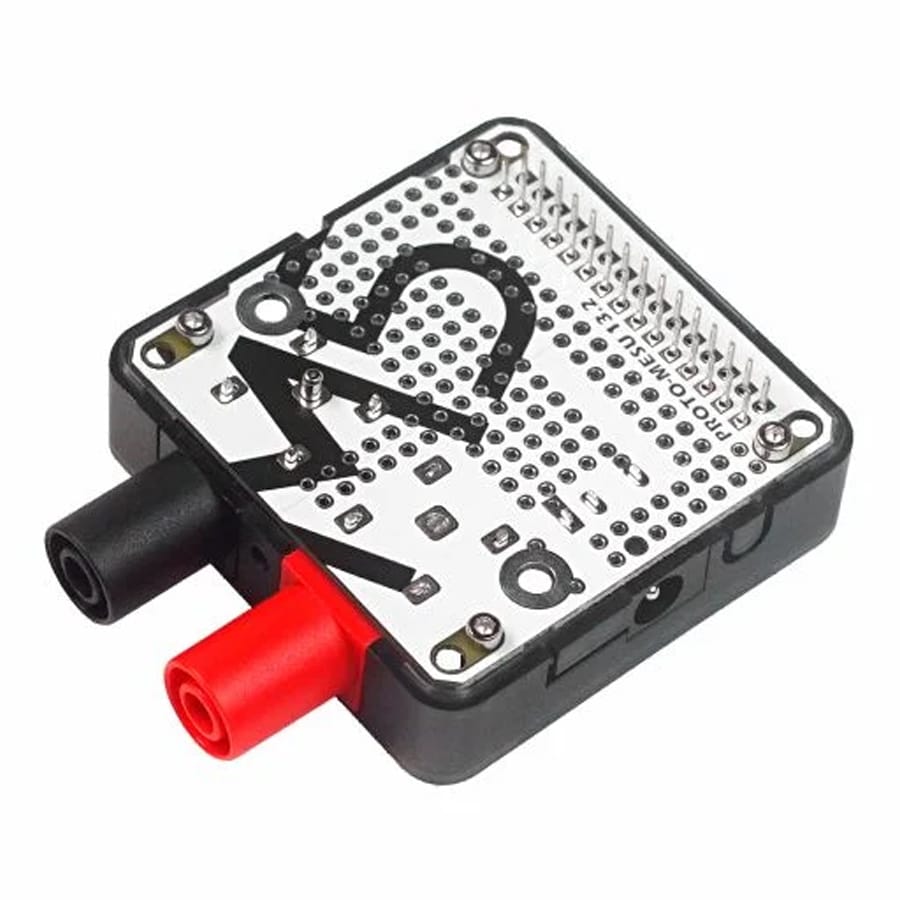

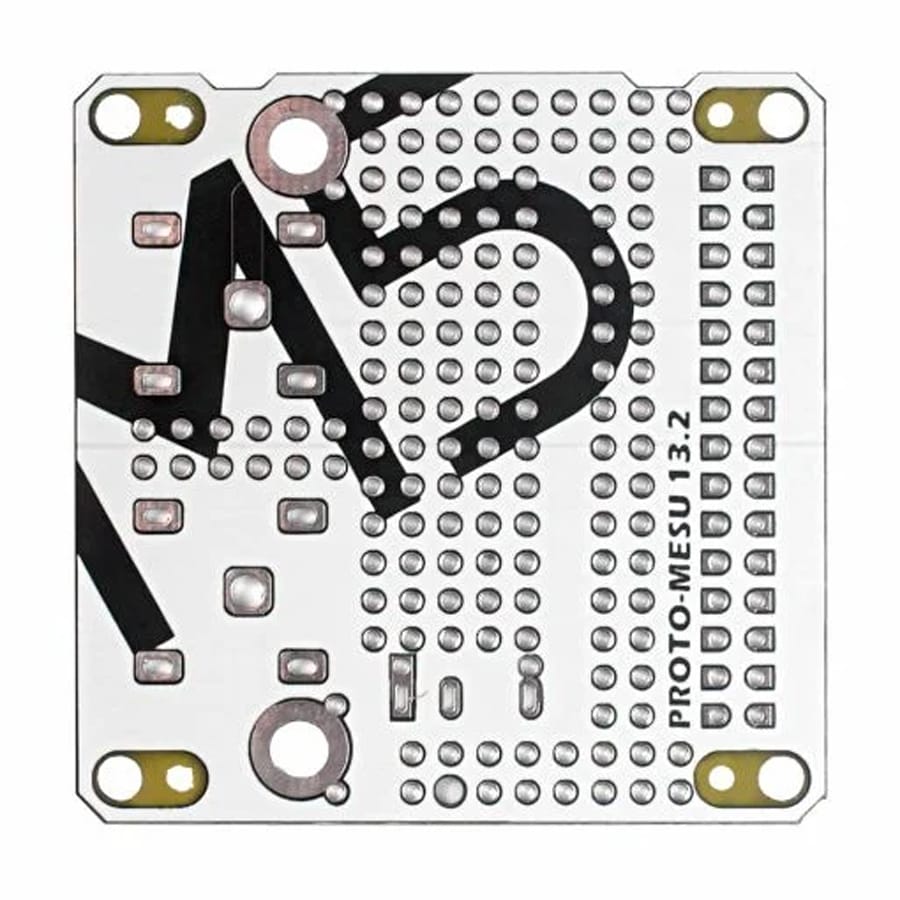

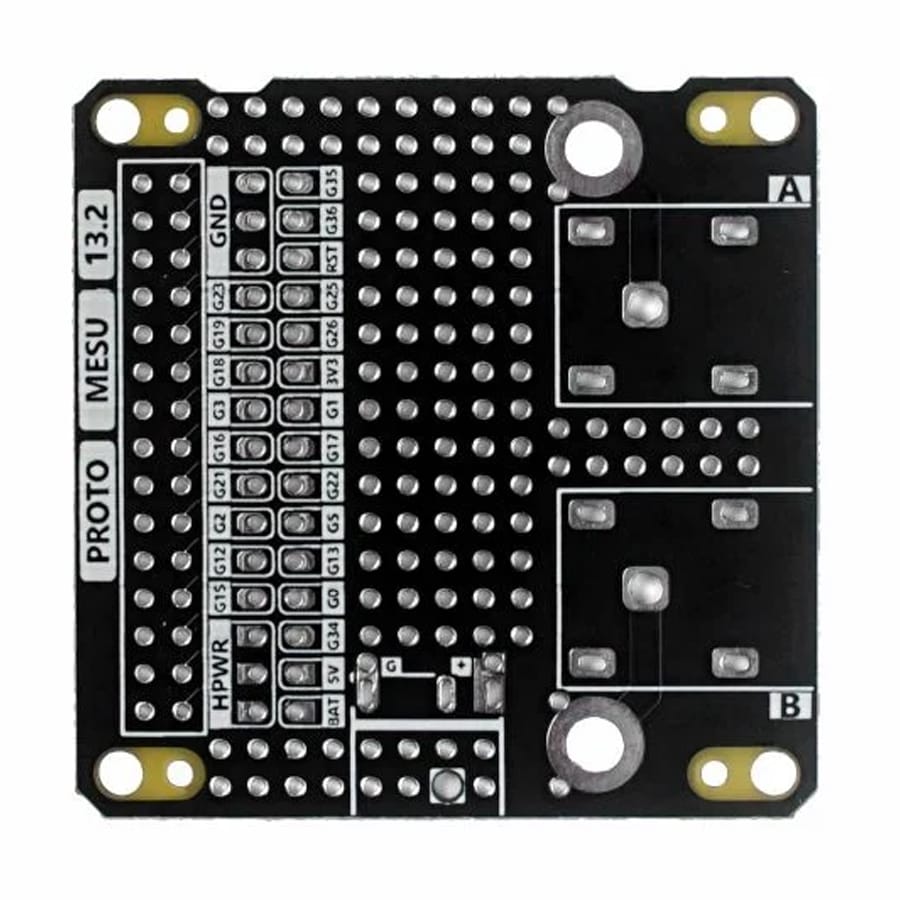

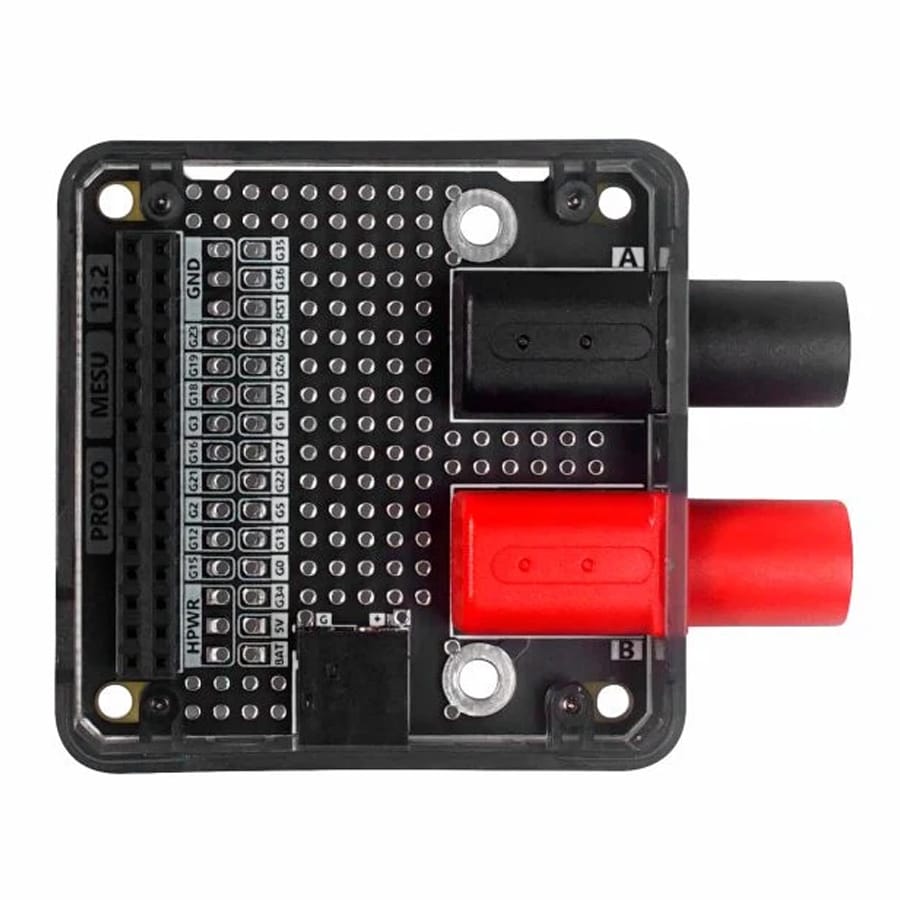

The module has a height of 13.2mm, and its perforated board design helps users quickly build circuits. The board features a DC power socket for external power supply.

Features

• Stackable design

• Main hole size: 0.039" (1mm CNC drilled)

• Hole spacing: 2.54mm

• Dedicated DC power port and socket

Specifications

• Net weight: 85g
• Gross weight: 123g
• Product size: 105 x 65 x 40mm
• Casing: PC

Resources

• Documentation

Package Contents

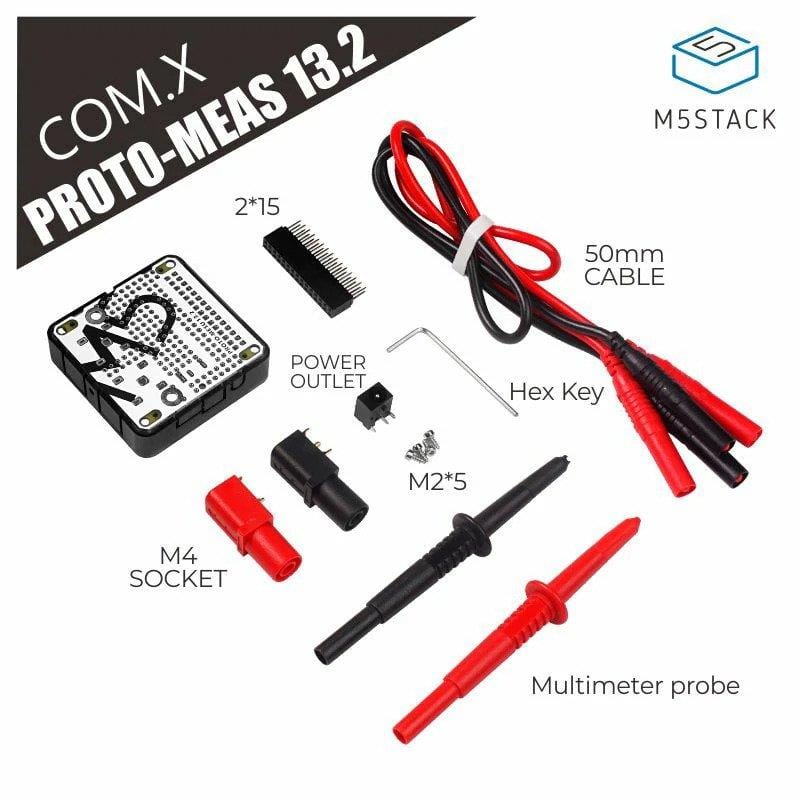

• 1x M5Stack COM.PROTO-MEAS 13.2 Multimeter Module
  • 1x M5-Bus

  • 2x Connecting wires

  • 1x Black probe and socket

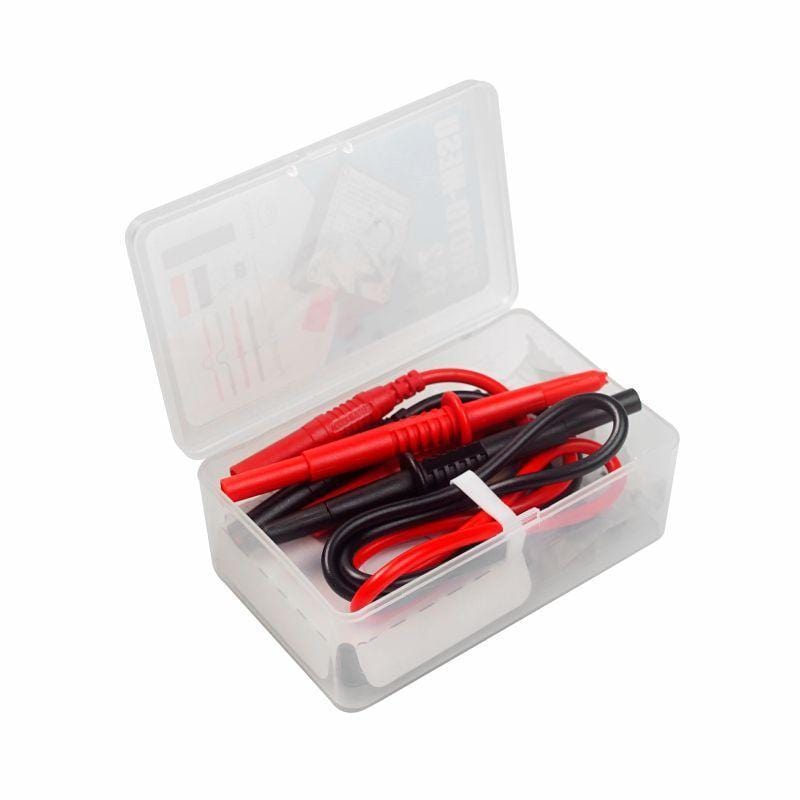

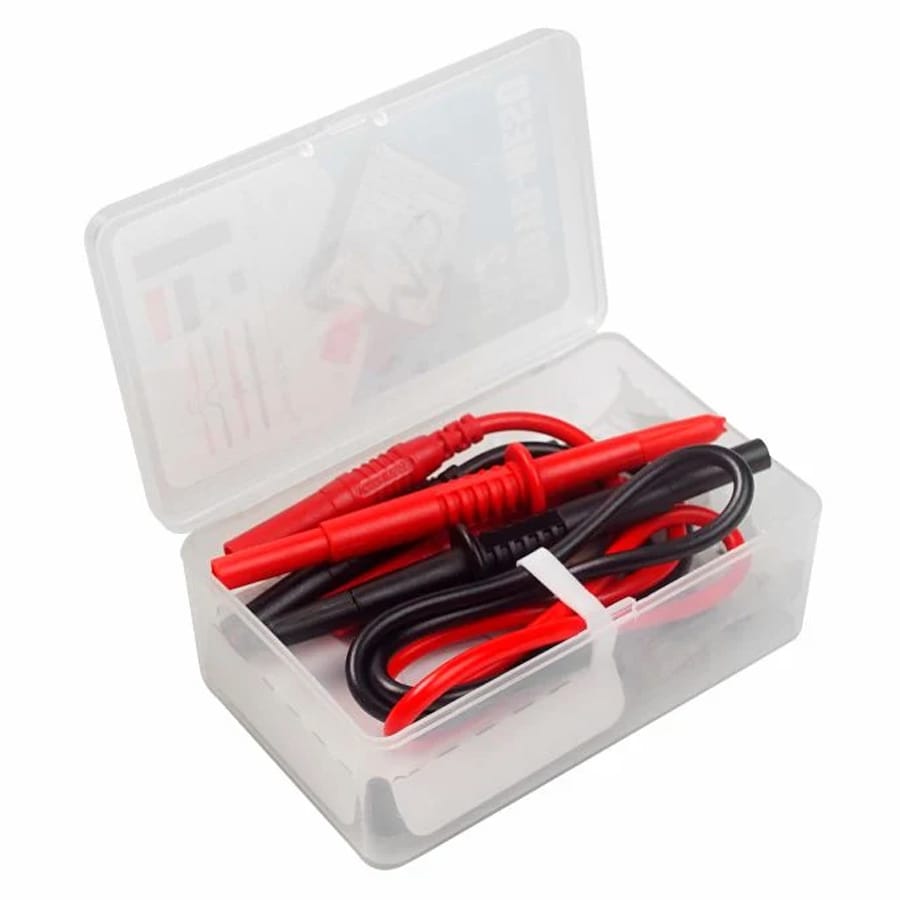

  • 1x Red probe and socket

  • 1x DC 5V power socket

  • 4x M2*5mm self-tapping screws

  • 1x M2 hex wrench
