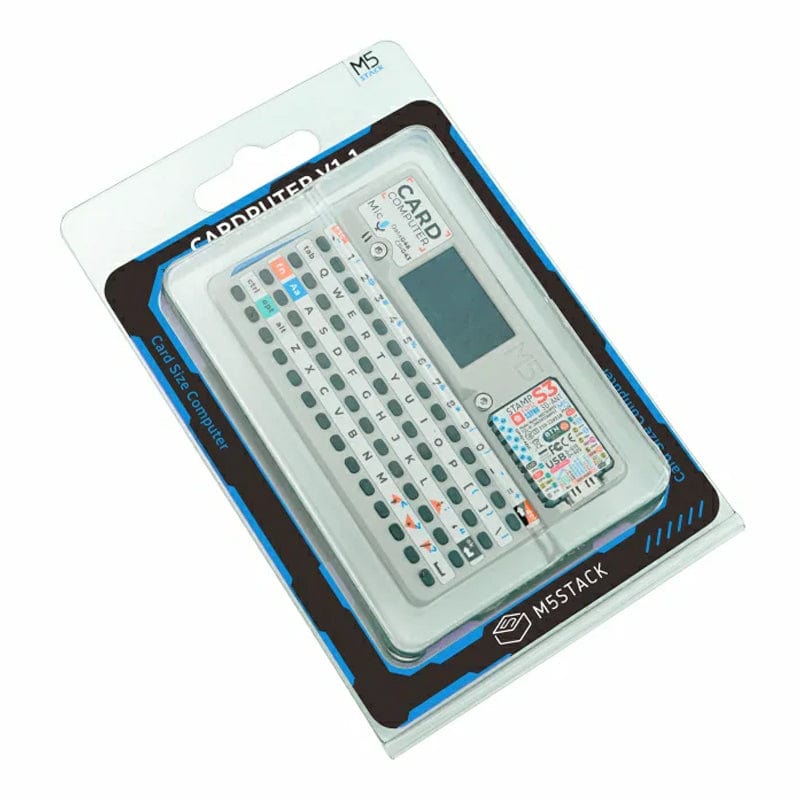

The M5Stack Cardputer v1.1 is a high-performance card computer designed for engineers, makers and hackers, offering a comprehensive upgrade over the original Cardputer.

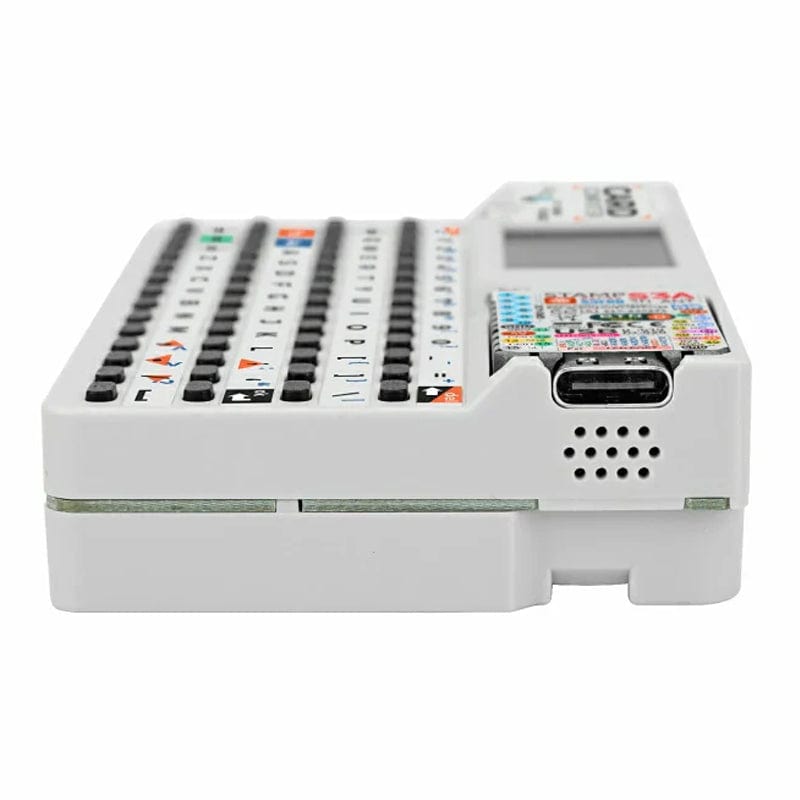

The new version features the brand new StampS3A main controller with USB-C, with an optimised antenna and button design for the core module, significantly enhancing system stability and user experience.
In terms of control interaction, the product is equipped with a 56-key keyboard and a 1.14" TFT screen for efficient display and operation. It includes an onboard SPM1423 digital MEMS microphone supporting recording and wake-up functions, and outputs audio through a cavity speaker. An infrared emitter provides external infrared control interaction capabilities.

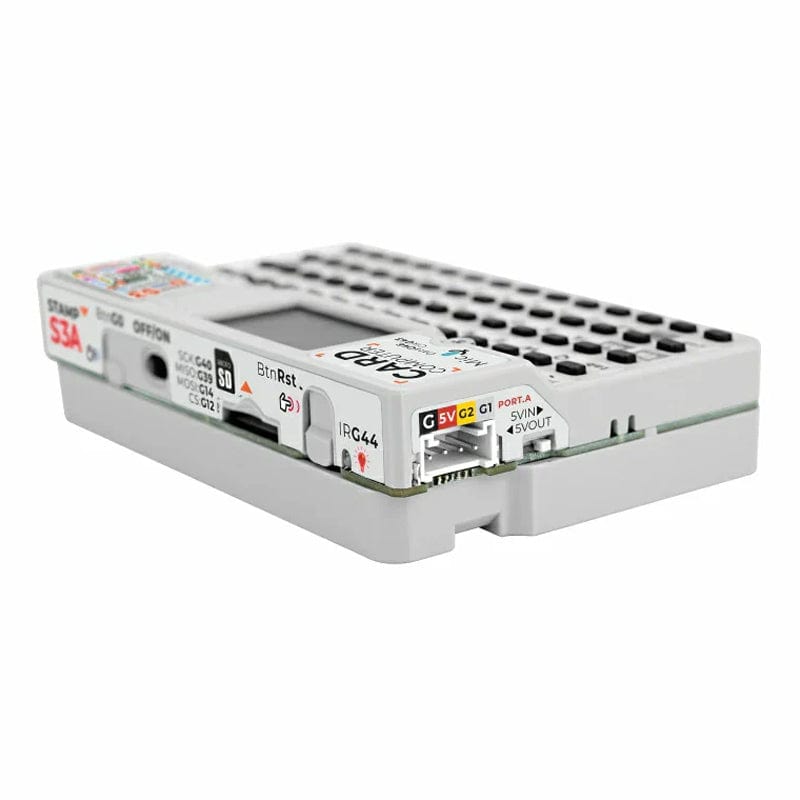

For expansion, the built-in Grove interface facilitates custom sensor expansion; for storage, a MicroSD slot is available for easy storage expansion.

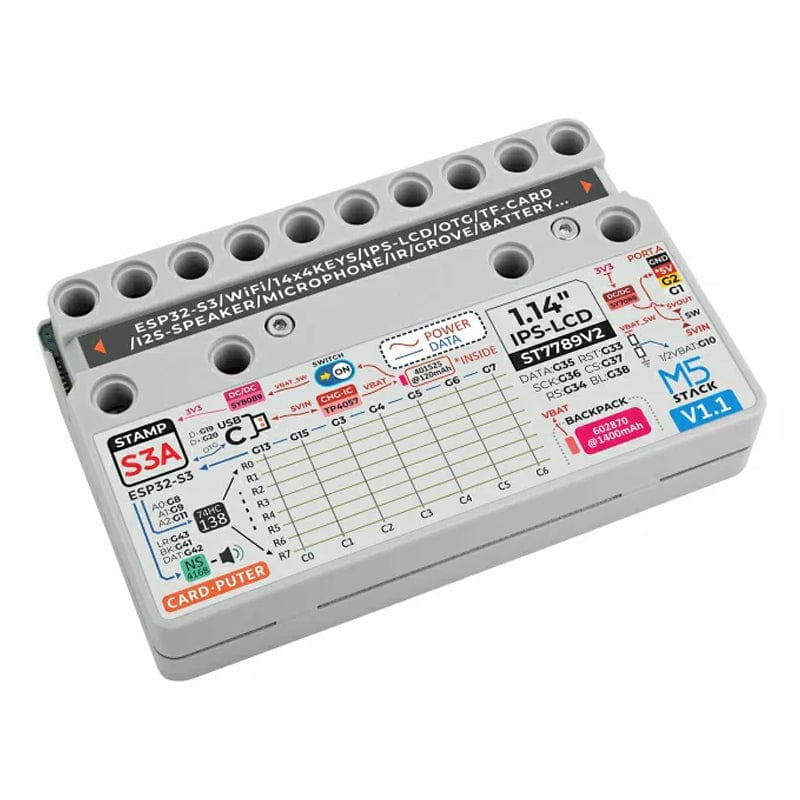

The system is powered by an internal 120mAh lithium battery and a base 1400mAh lithium battery power solution, integrating lithium battery charging and boost-buck circuits, greatly enhancing battery life. Structurally, the base includes magnets for metal attachment and is compatible with building brick hole expansion.
With a dedicated section on M5Burner for the Cardputer and endless community projects (some a little evil...), the Cardputer is an awesome tool for makers and hackers alike!
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

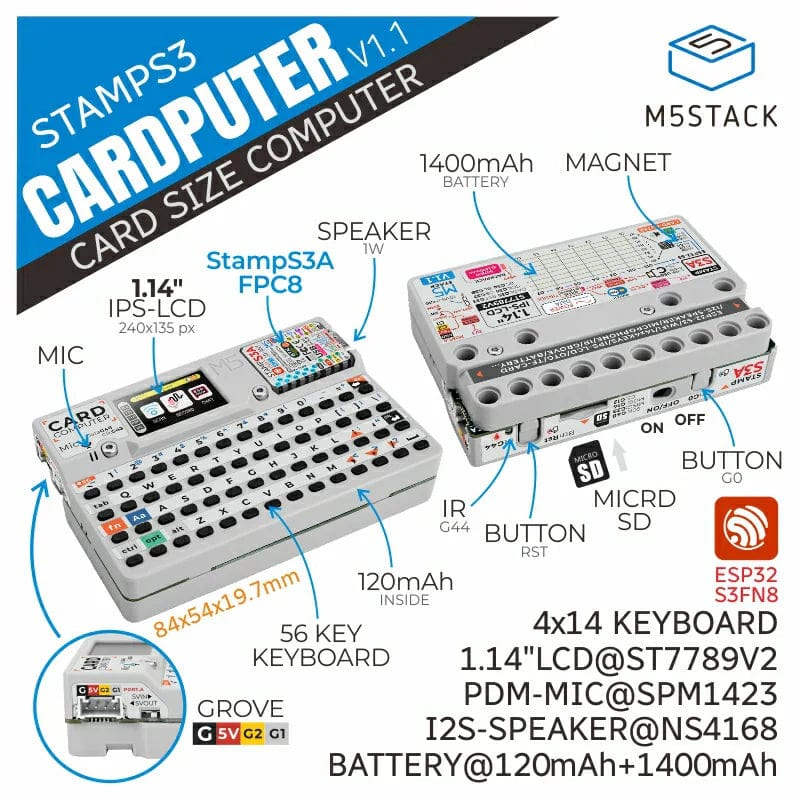

Features
StampS3A Microcontroller
56-key keyboard
1.14" TFT screen
Cavity speaker and SPM1423 digital MEMS microphone
Infrared emitter for infrared control interaction
Grove interface
Micro SD card slot
Built-in 120mAh and 1400mAh lithium battery in the base
Base with magnets
Compatible with building brick hole expansion
Development Platform
UiFlow2
Arduino IDE
ESP-IDF
PlatformIO
Cardputer vs Cardputer v1.1
Cardputer v1.1
Cardputer
Core Module
StampS3A
StampS3
RGB LED Control
RGB LED shares power with screen backlight, optimised control logic
Power is supplied when powered on
Antenna Design
Optimised antenna design for better signal reception
Standard antenna design
StampS3 Boot button
Optimised button feel, buttons are 4.0 × 3.0 × 2.0mm
