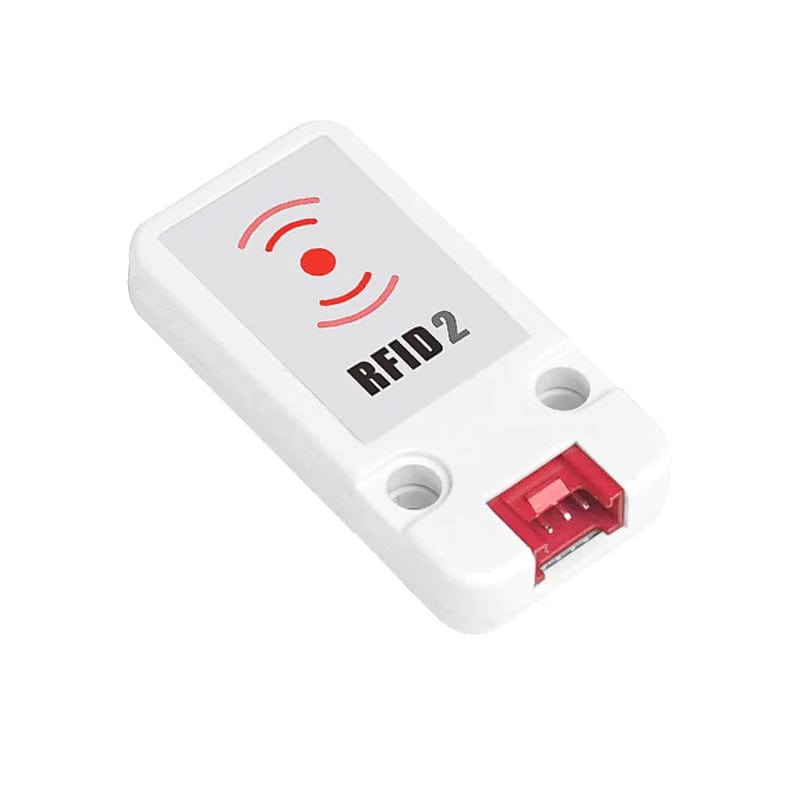

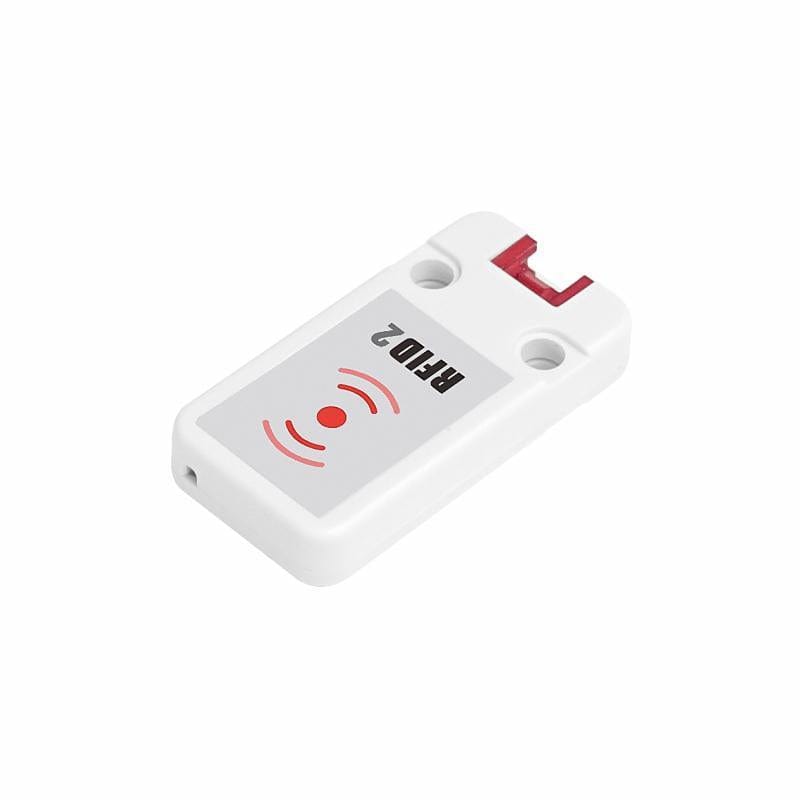

M5Stack RFID Unit 2 (WS1850S)

M5StackSKU: U031-B
(3 Reviews)
Price:
Sale price £4.80
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

(4 Reviews)
M5StackM5Stack Core2 ESP32 IoT Development Kit
Sale price £42 incl. VAT excl. VAT
(1 Reviews)
M5StackM5Stack Ultrasonic Distance Unit (RCWL-9600)
Sale price £4.50 incl. VAT excl. VAT
(7 Reviews)
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
Sale price £20 incl. VAT excl. VAT

Description

The RFID2 is a radio frequency identification unit from M5Stack. It has a built-in WS1850S chip, with a working frequency of 13.56MHz. Supports reading an RFID card, writing an RFID card, RFID card recognition, RFID card recording and encoding RF card.

Use magnetic field induction technology to create non-contact two-way information interaction and read/verify the information of proximity cards. It can be used in access control systems, check-in systems, warehouse goods entry, community vehicle entry and exit registration needs and more!

Note: RFID2 compared to the previous generation RFID UNIT only makes the replacement of the read and write IC (RC522->WS1850S), there is no difference in function.

Features

  • Operating frequency: 13.56 MHz
  • I2C data rate: Fast mode: up to 400 Kbit/s; High-speed mode: up to 3400 Kbit/s
  • Transceiver buffer: 64 bytes
  • Supported protocols: ISO14443A, MIFARE and NTAG
  • Working temperature: -20℃-85℃
  • Data storage:> 10 years
  • Reading distance: <20 mm
  • Development platform: Arduino, UIFlow(Blockly, Python)
  • 2x Building brick compatible holes

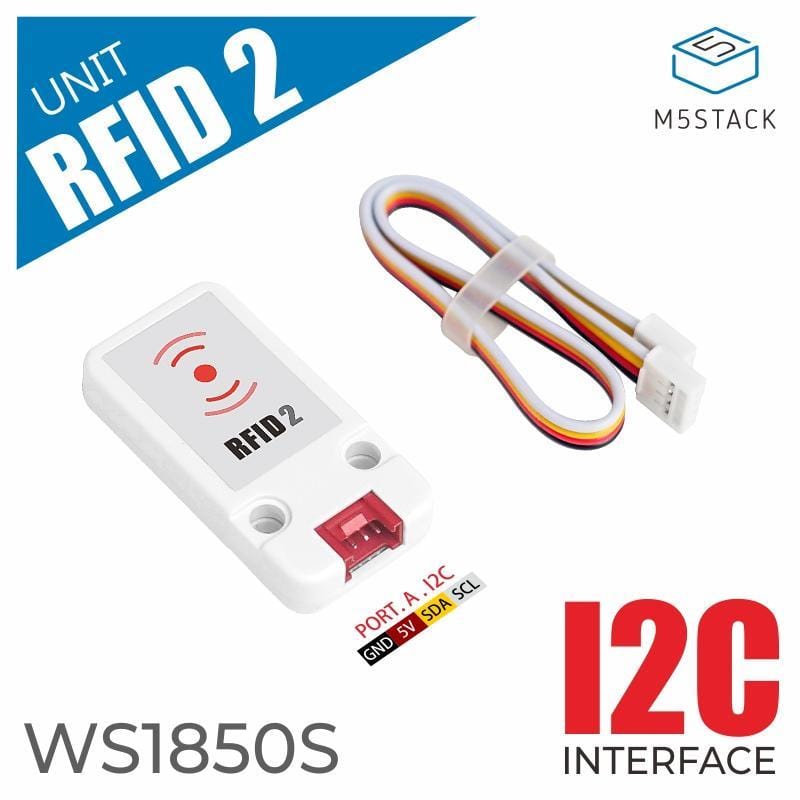

Package Contents

  • 1x RFID Unit
  • 1x HY2.0-4P cable

Specifications

Resources Parameter
Read and Write IC WS1850S
Operating frequency 13.56MHz

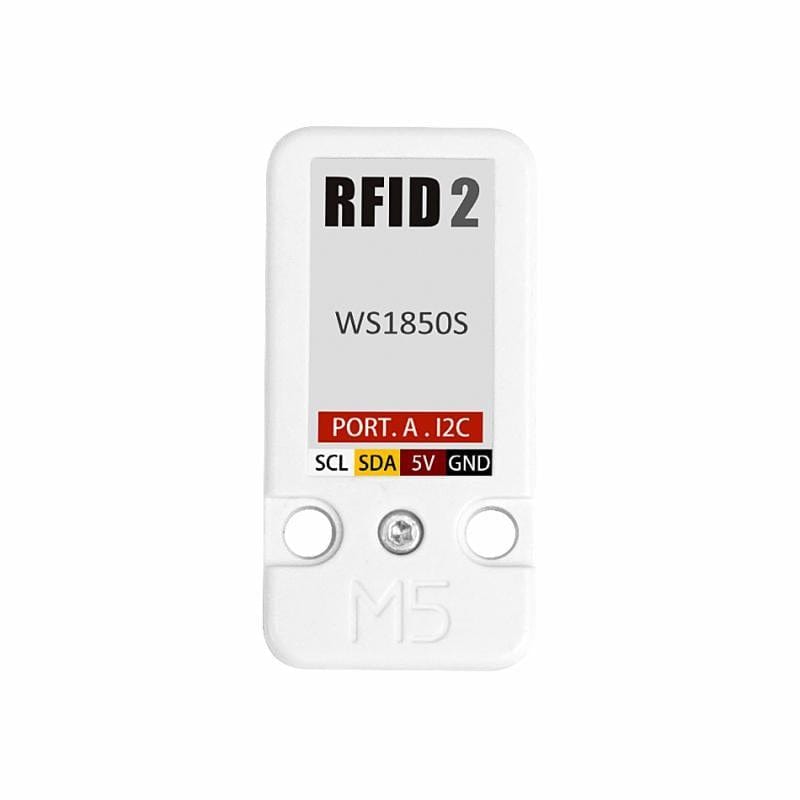

Communication protocol I2C: 0x28
Support protocol ISO/IEC 14443 Type A/Type B protocol
Net weight 6g
Gross weight 21g

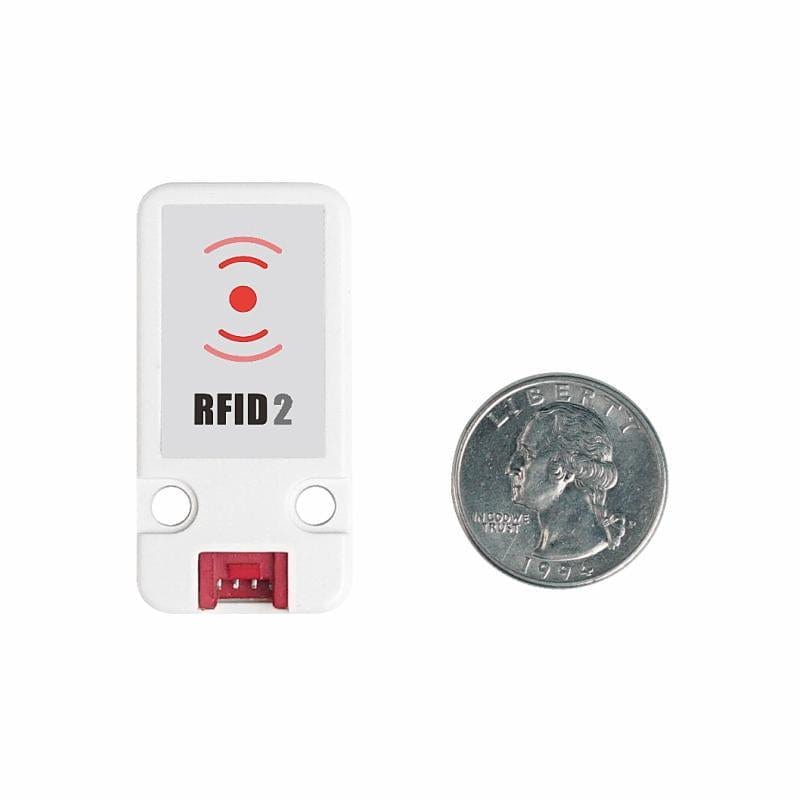

Product size 48 * 24 * 8mm
Packing size 67 * 53 * 12mm
