The M5Stack BUS Module is a stackable expansion board that lets you add custom circuits and access the M5-Bus for flexible prototyping, pin breakout, and integration with other M5Stack modules.

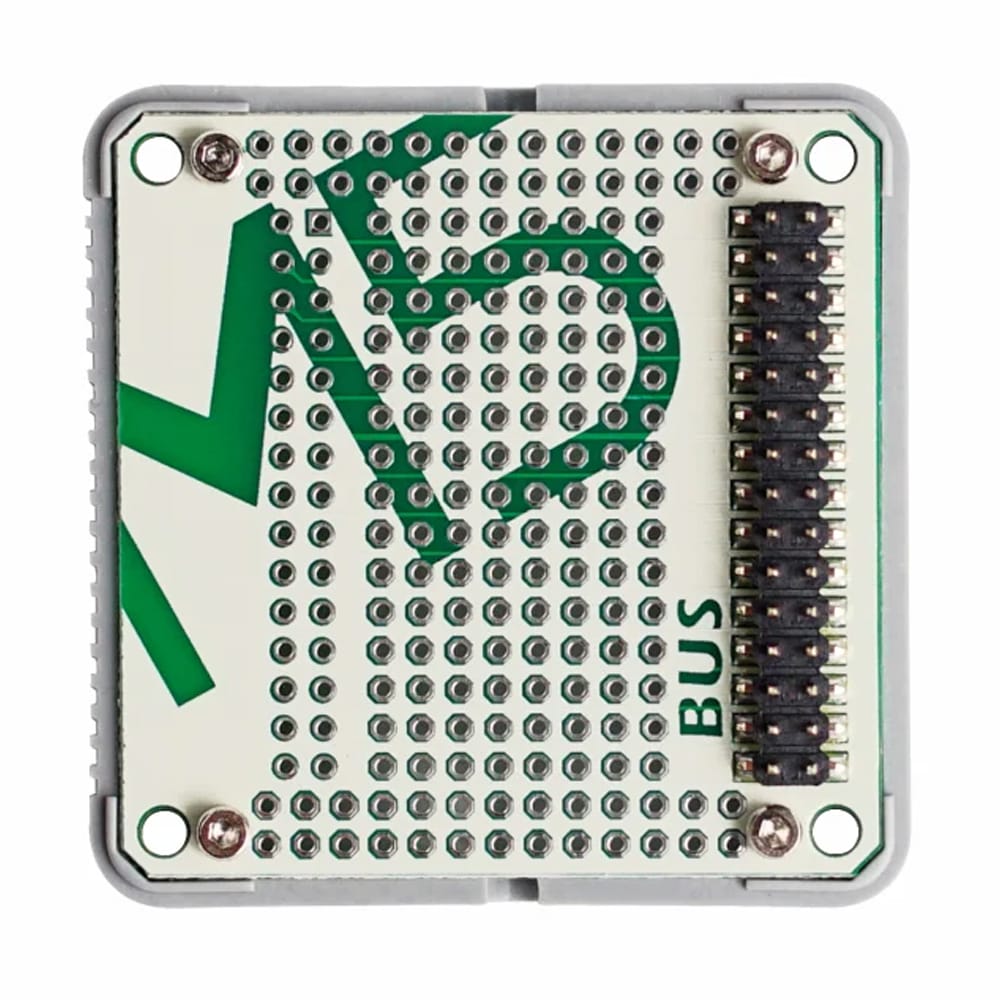

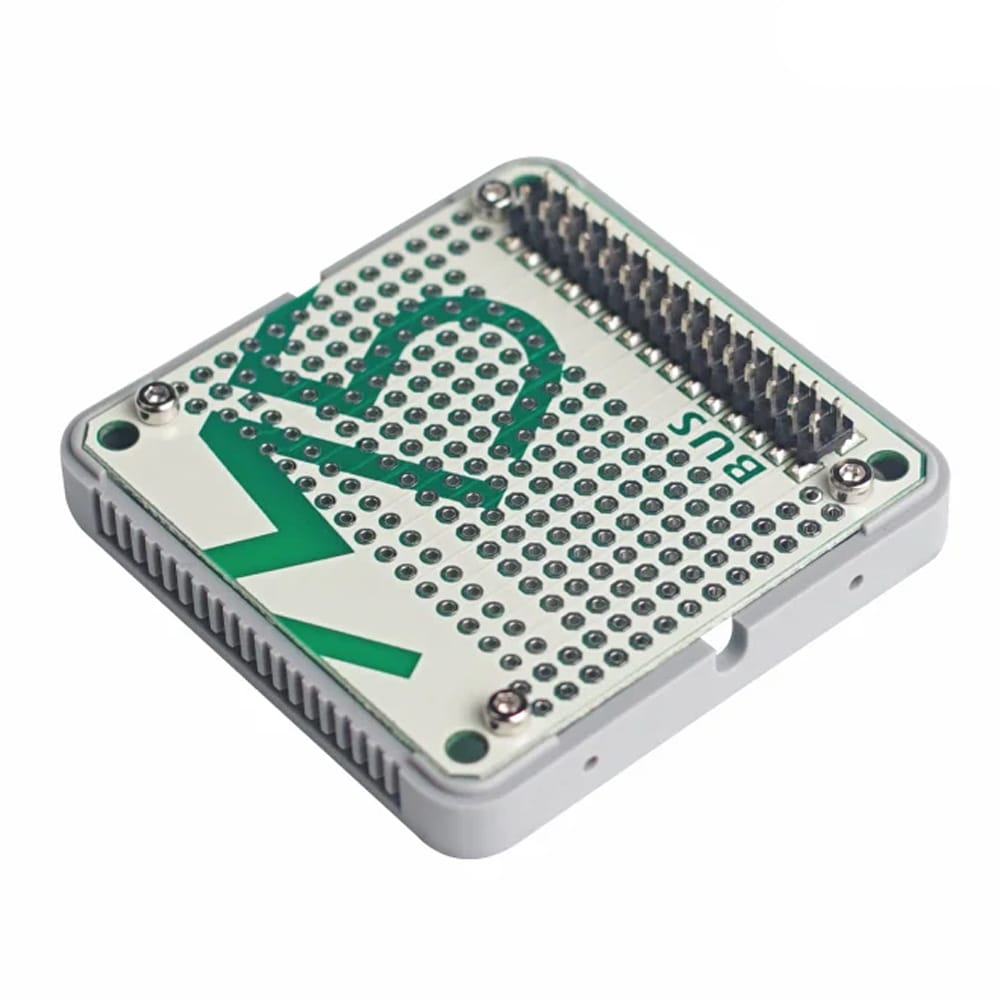

The M5Stack BUS Module is a bus expansion module in the M5Stack stackable module series. This module allows you to add some of your own circuit designs via a universal board and interact with the M5Core through the M5-Bus.

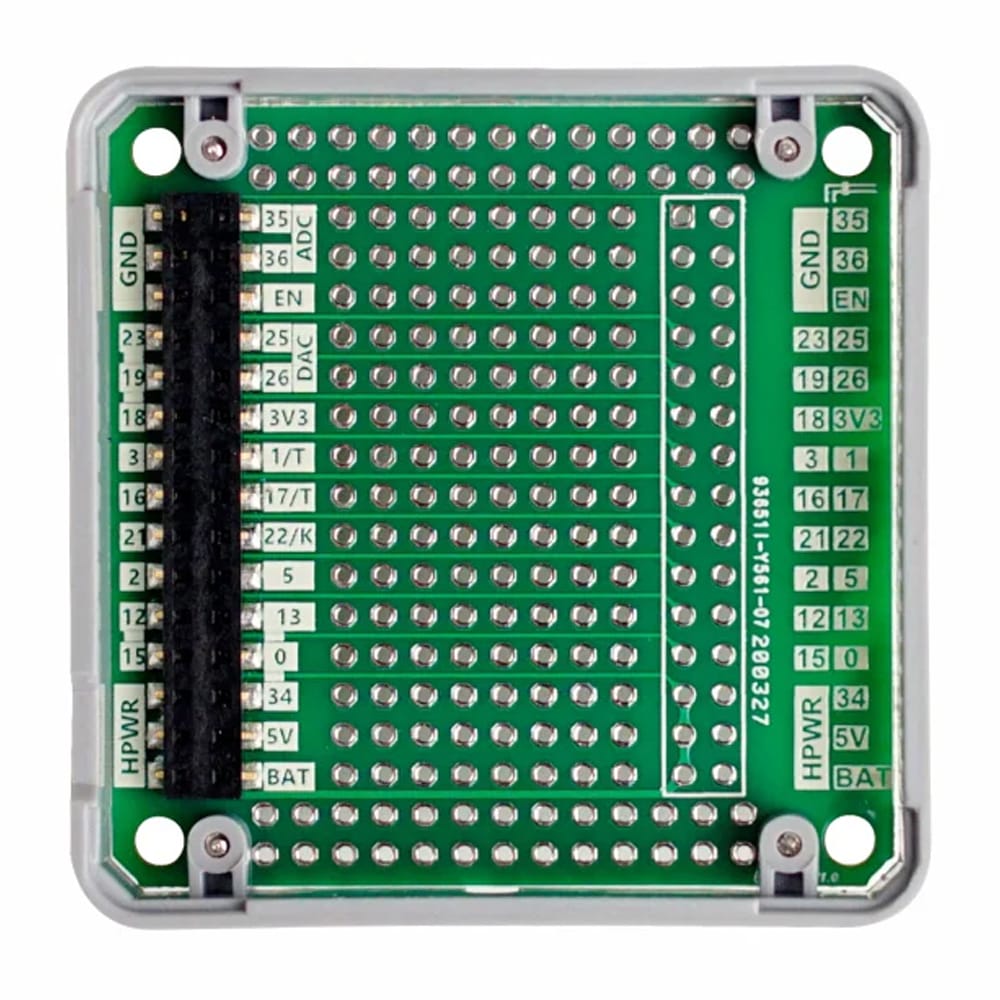

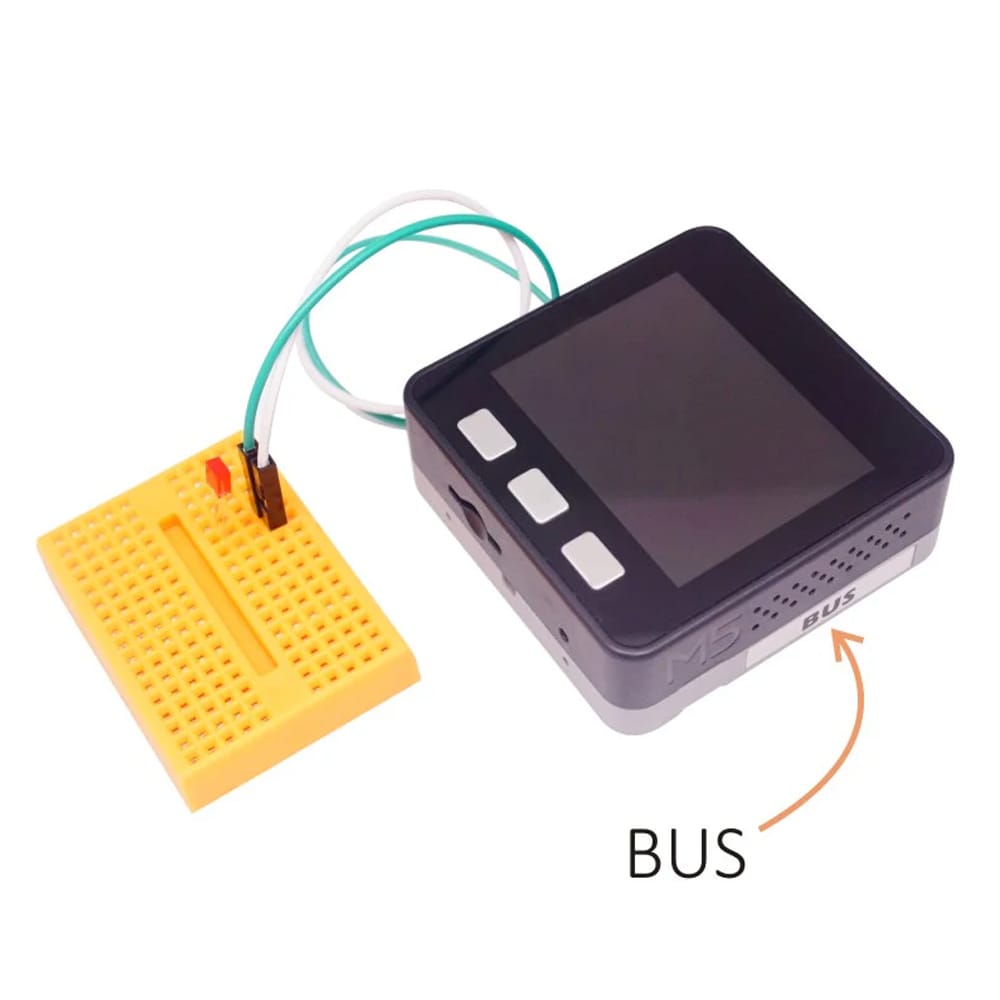

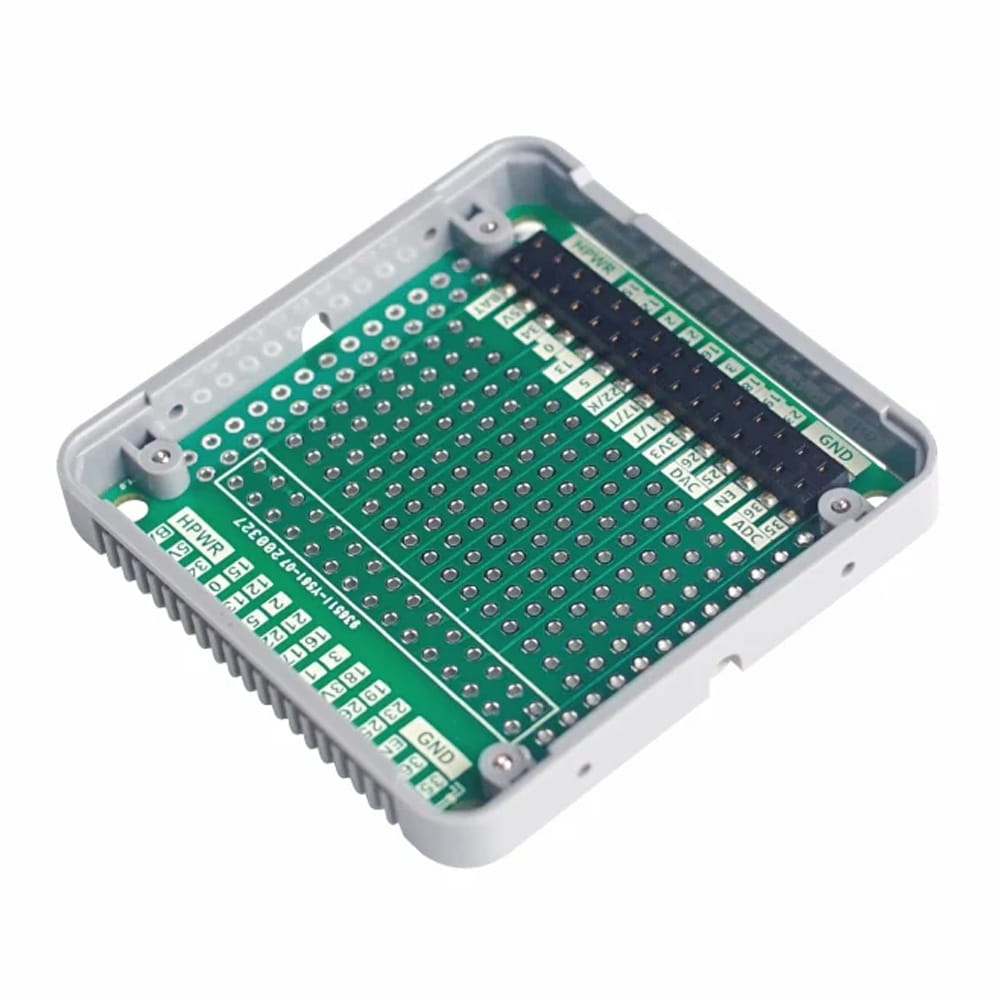

Like other M5 stackable modules, the Module Bus can be connected to modules on other layers via the M5-Bus. It also supports extending the M5-Bus to the other side of the module for pin breakout.

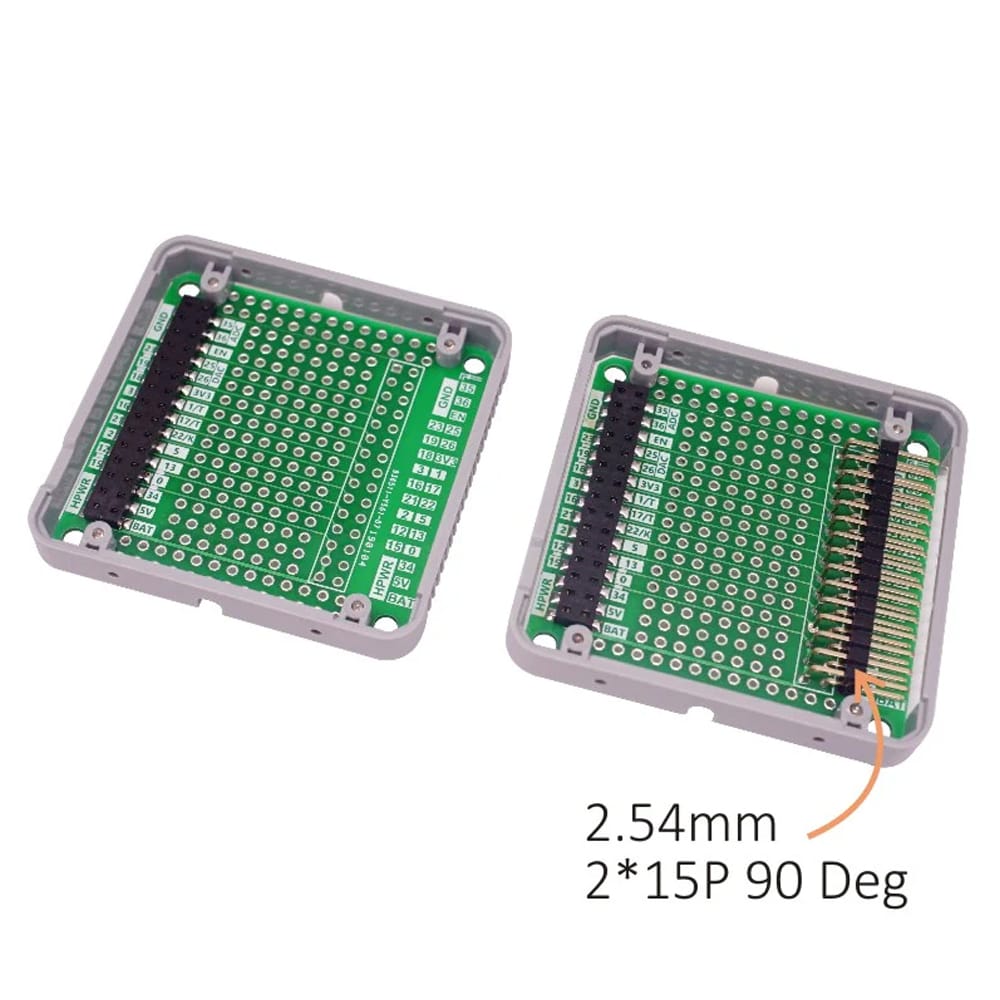

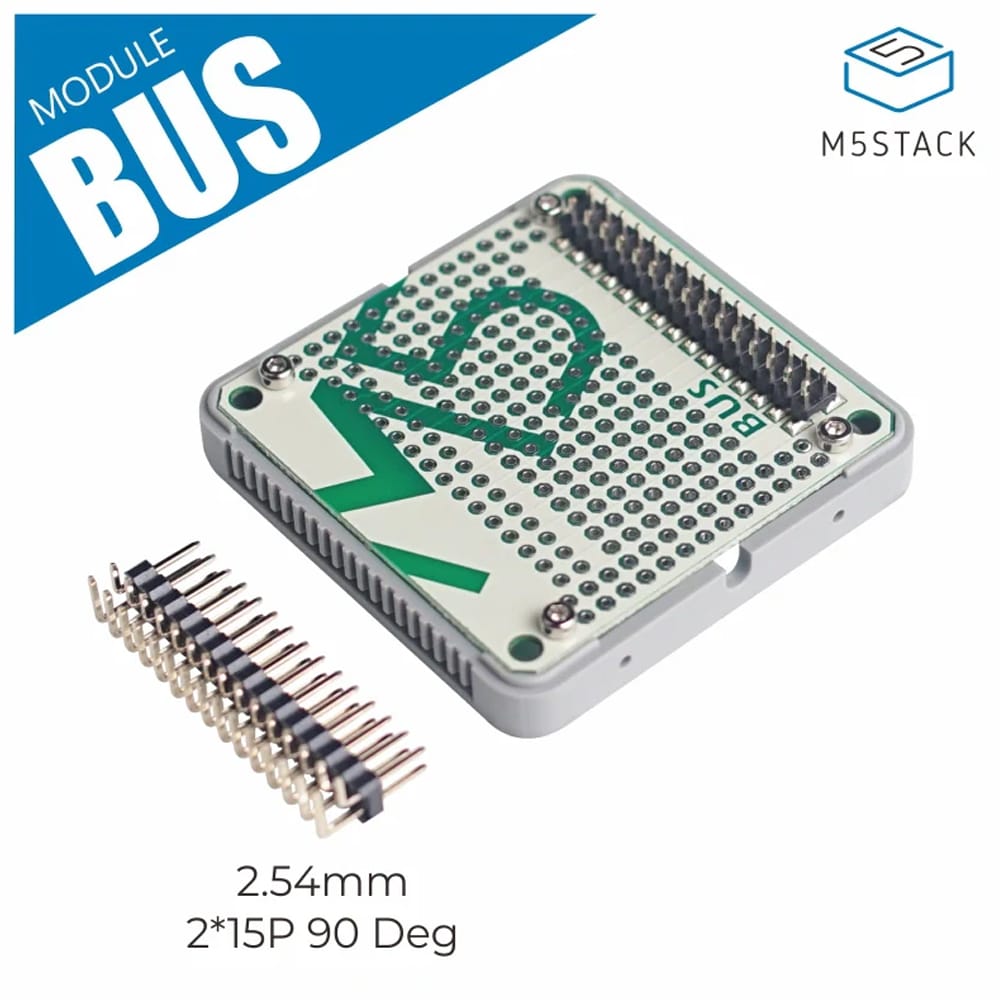

The module accessories include a 2x15 90-degree pin header. When using the pin breakout, you need to cut the grating on the side of the Module Bus to facilitate the connection of the pins with the external.
