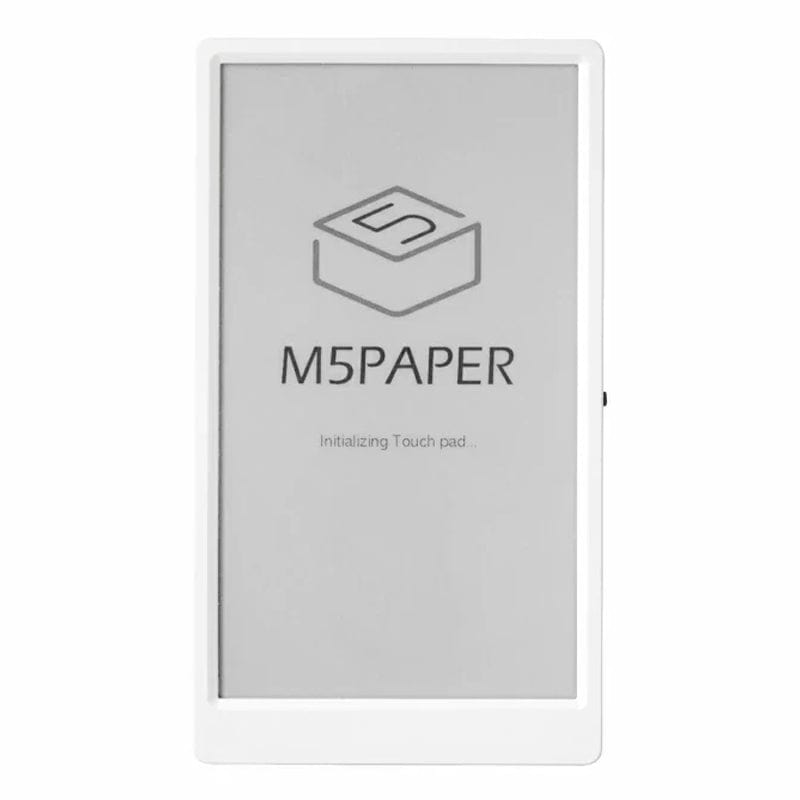

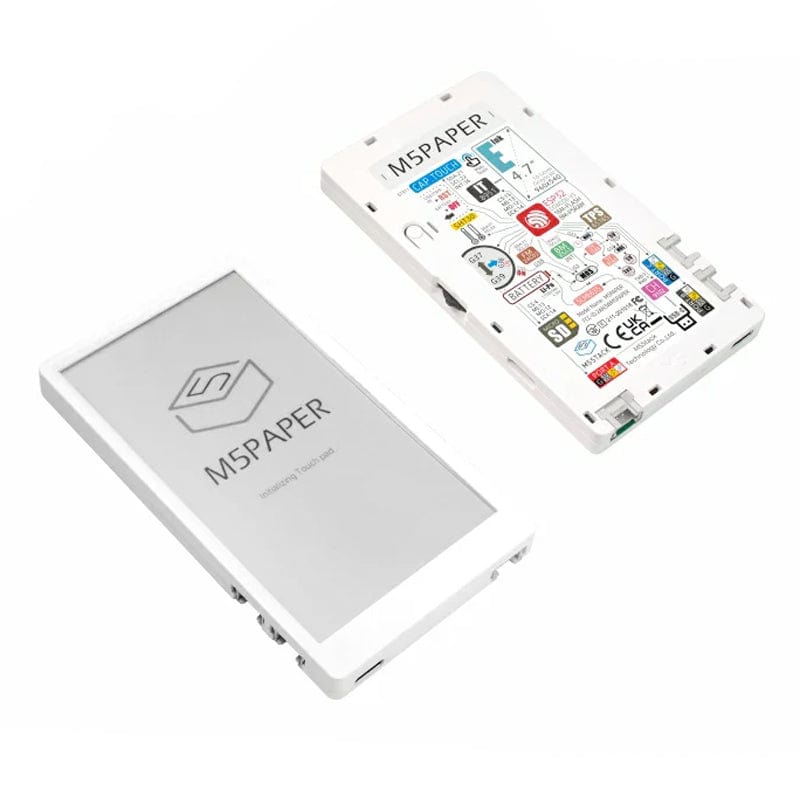

This M5Paper development kit has a touch-enabled 4.7" E-ink display with a resolution of 960 x 540 and support for 16 grayscale levels.

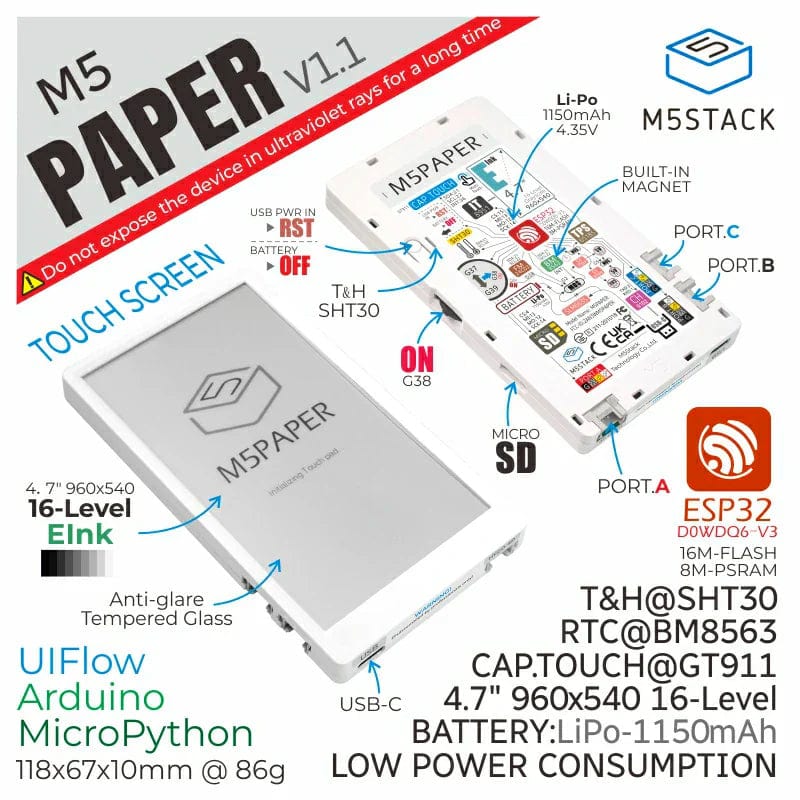

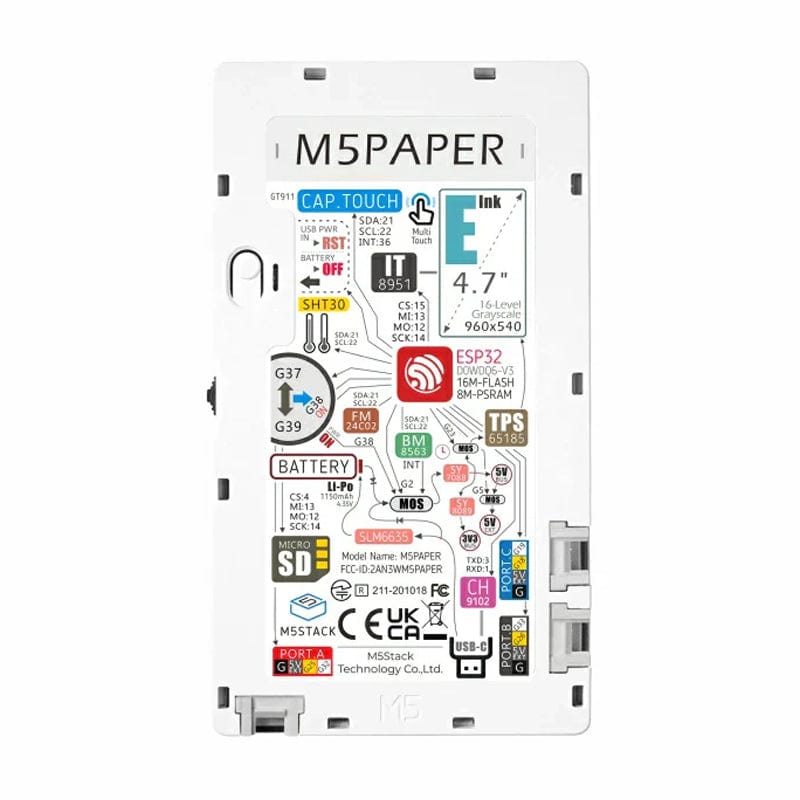

Powered by the ESP32-D0WDQ6-V3, it has a GT911 capacitive touchscreen with two-point touch and gesture controls. E-ink technology is easier on the eyes and consumes less power, making it ideal for prolonged use. It includes a multifunction button, SHT30 temperature and humidity sensor, physical buttons, and a microSD card slot.

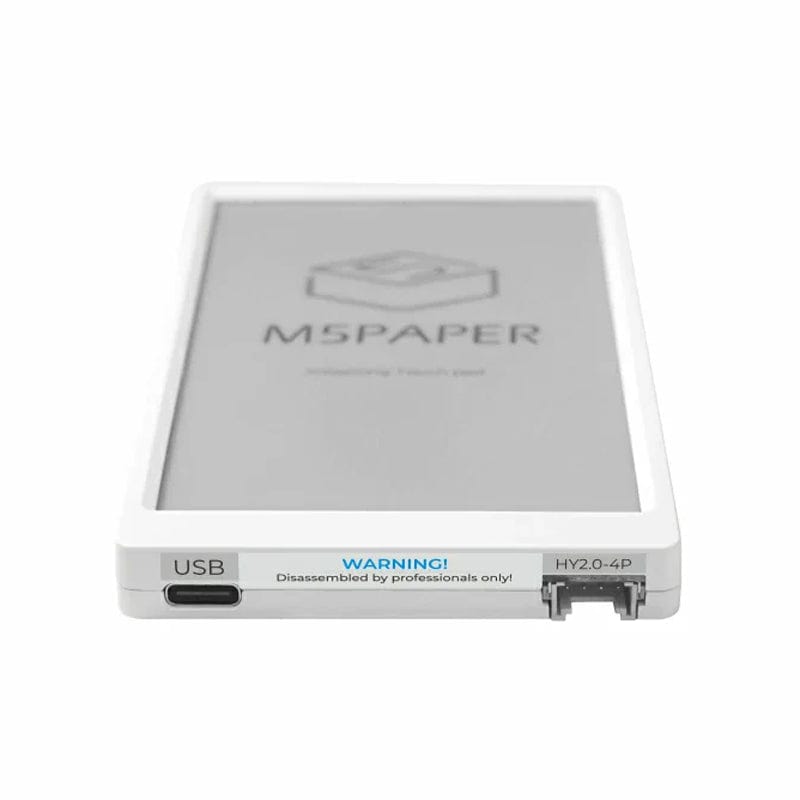

The internal FM24C02 EEPROM allows storage of important data even when the device is powered off, while the 1150mAh lithium polymer battery has extended usage. The real-time clock (RTC) functionality helps conserve battery life by enabling deep sleep mode and waking the device when necessary. There is a USB-C port for power and three HY2.0-4P expansion ports provide flexibility for building different projects.
Notes
1. Do not expose it to ultraviolet rays for a long time, otherwise, it may cause irreversible damage to the ink screen. 2. The low-power power management solution is different from CORE and StickC devices. When using it, the PWR button is used as the power-on button (long press for 2s). If you need to shut down the device, you need to use the software API or by pressing the reset button on the back. When using a USB power supply, it cannot be shut down. 3. During use, if the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
ESP32 Standard Wireless Functions Wi-Fi
Internal 16M Flash
Low Power Display
Multi-Point Touch Screen
180-degree Viewing Angle
Built-in Magnet
Internal 1150mAh Battery

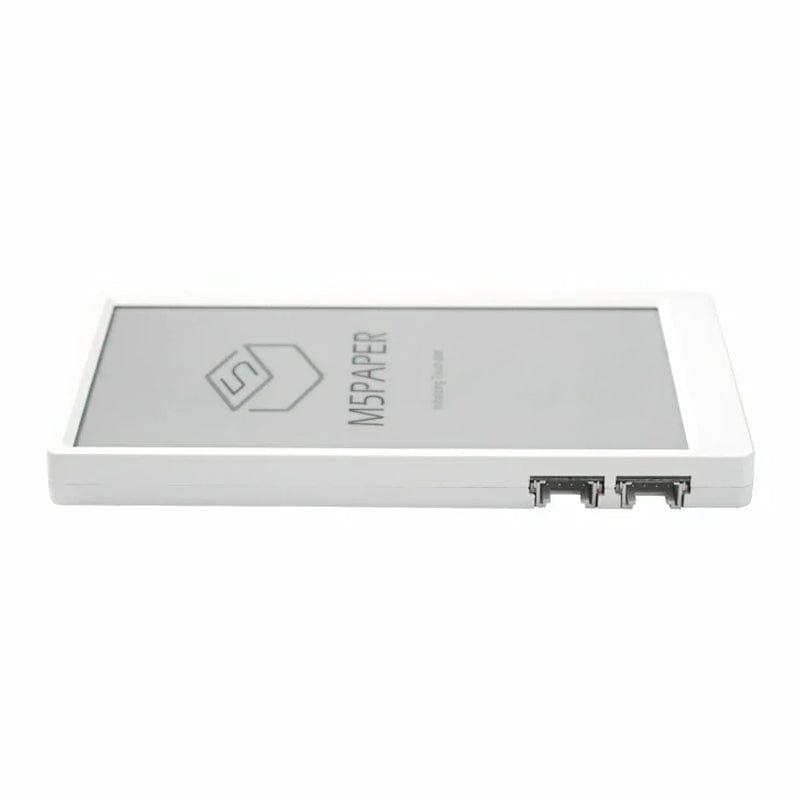

Expandable - HY2.0-4P 3x External Expansion Ports
Specifications
ESP32-D0WDQ6-V3
240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash
16MB
PSRAM
8MB
Input Voltage
5V @ 500mA
Ports

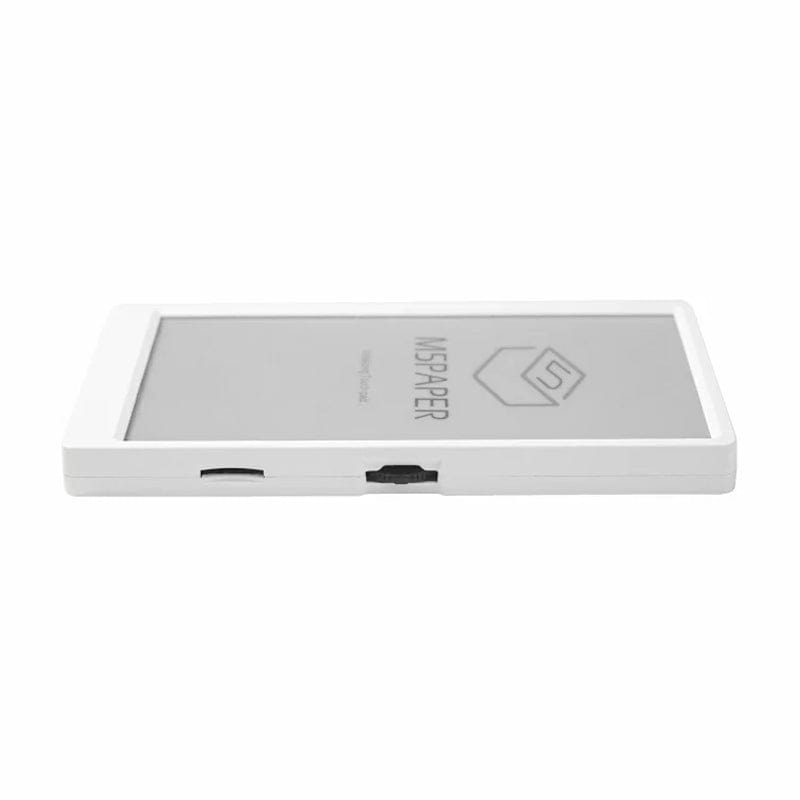

1x USB-C, 3x HY2.0-4P, TF-card (microSD) slot
E-Ink Display
540 x 960@4.7", Grayscale: 16 Levels, Display area: 58.32 x 103.68mm, Display Driver: IT8951E
