The M5Stack CoreInk combines an ESP32-PICO-D4 controller with a 1.54" low-power E-Ink display, offering an ideal platform for portable IoT dashboards, status displays, and battery-efficient embedded projects.

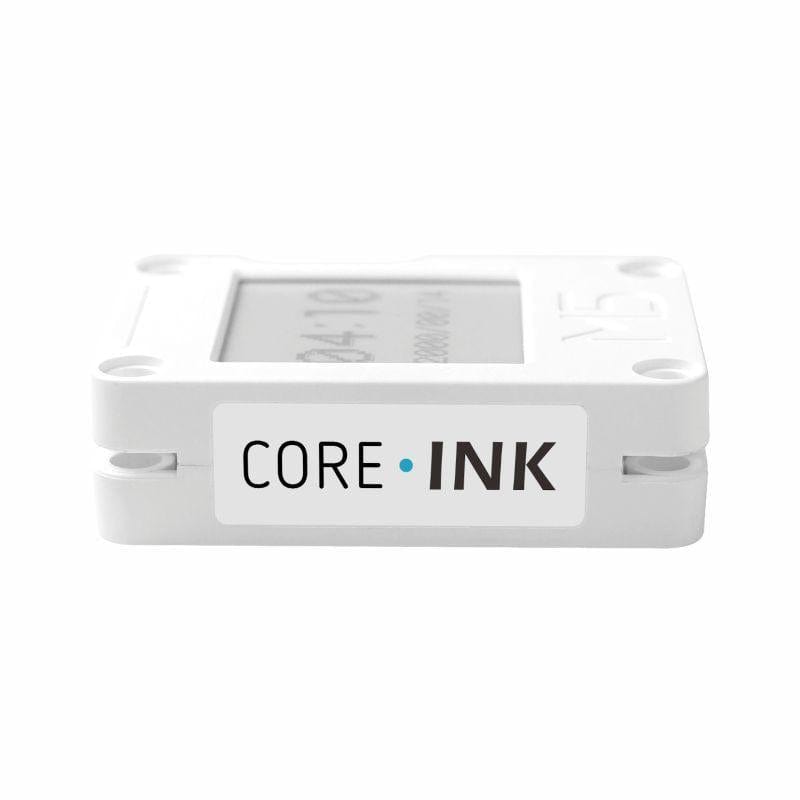

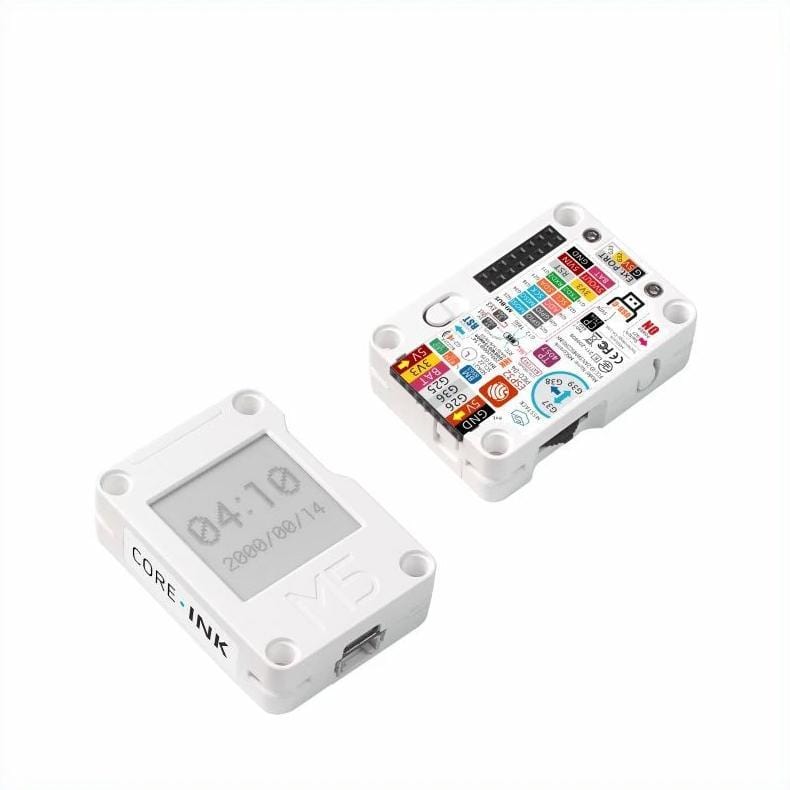

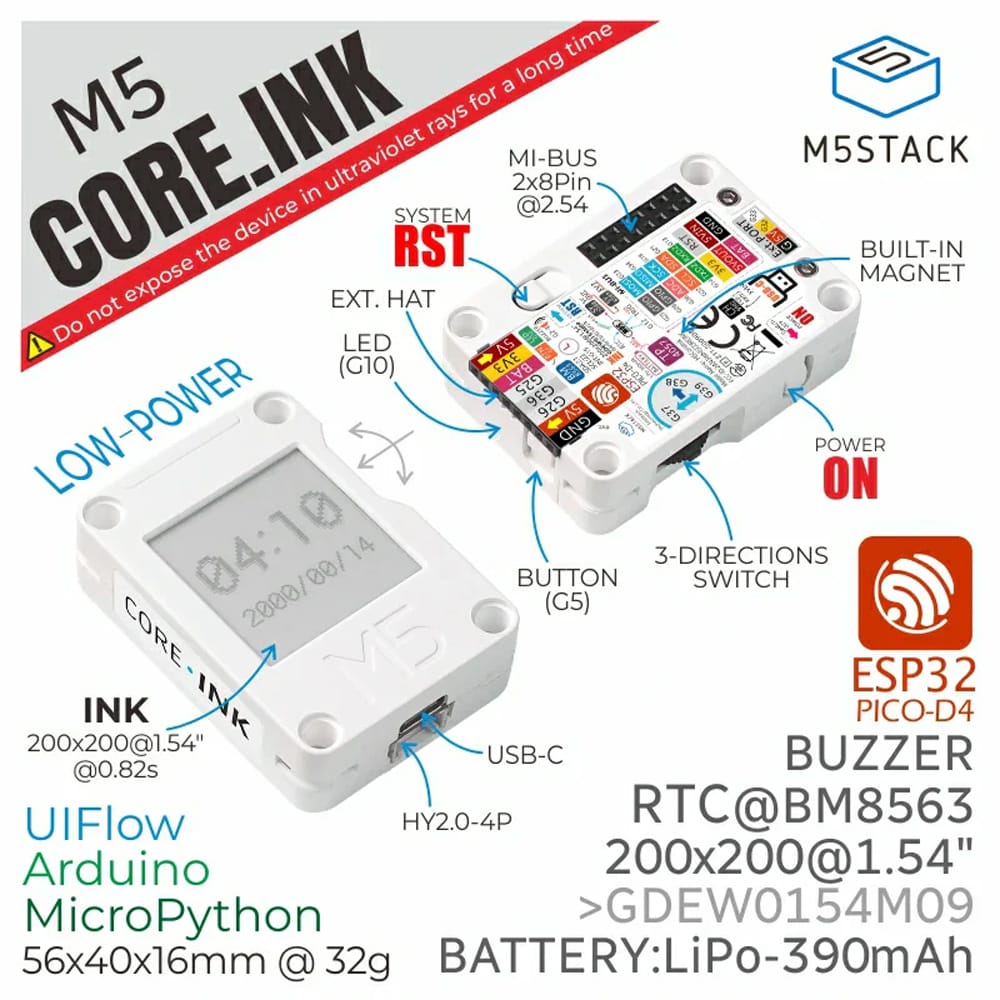

The M5StackCoreInk is a main control device with an E-Ink display launched by M5Stack, using the ESP32-PICO-D4 controller.

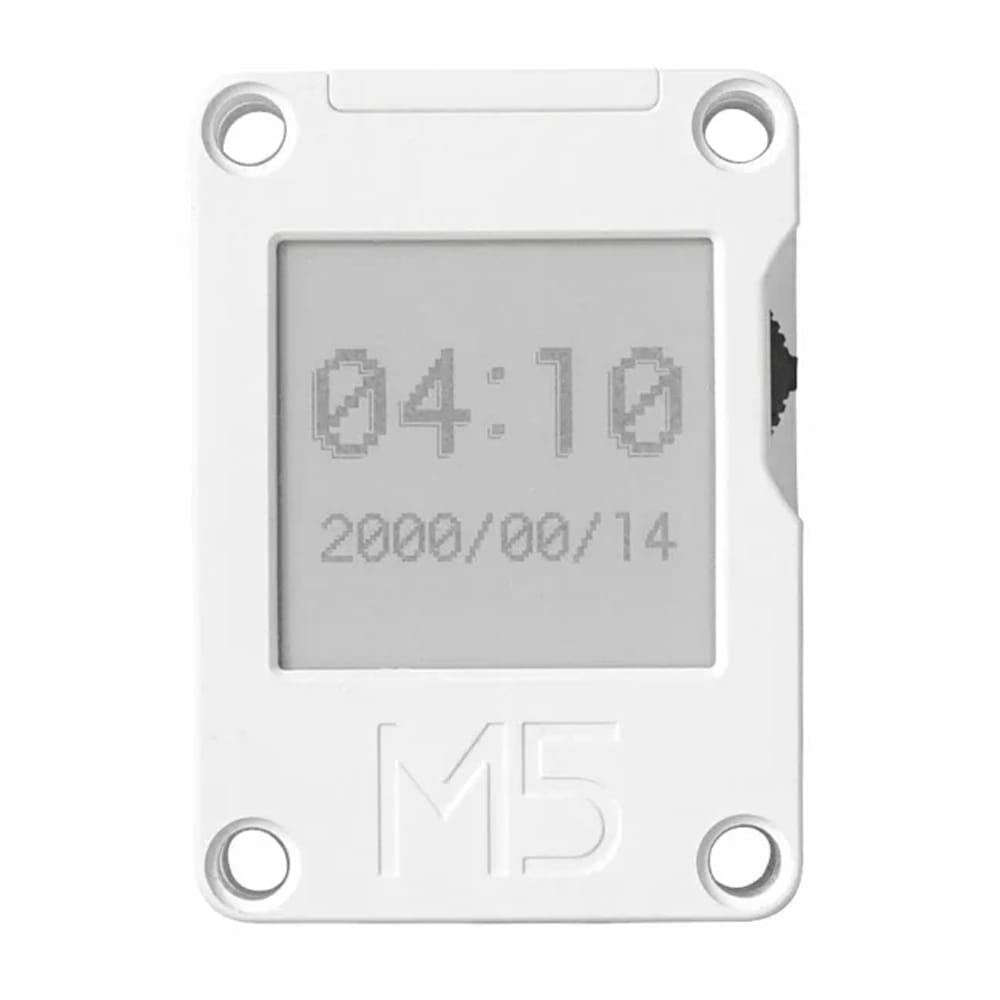

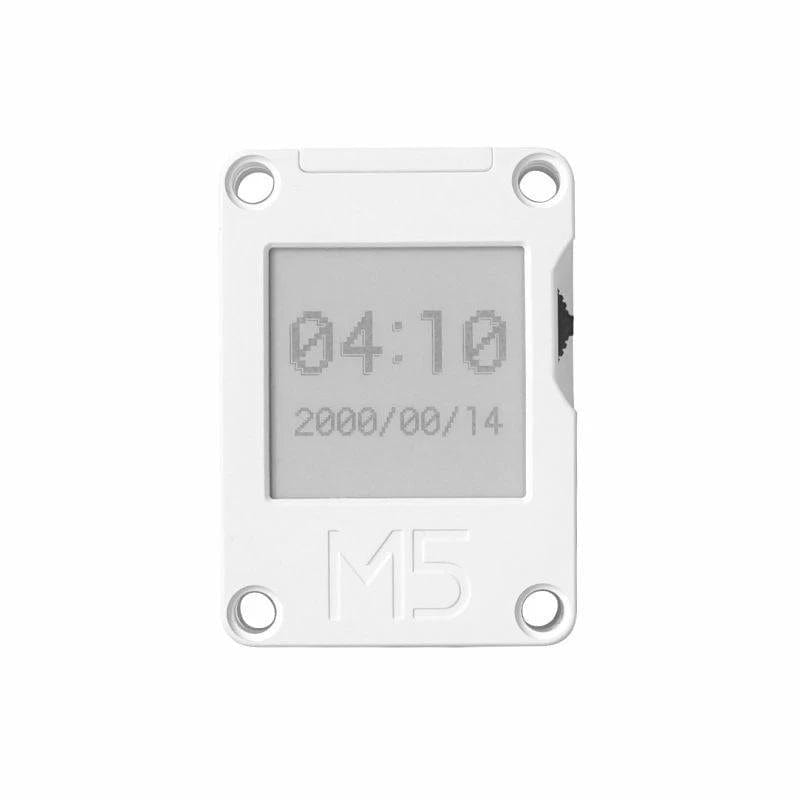

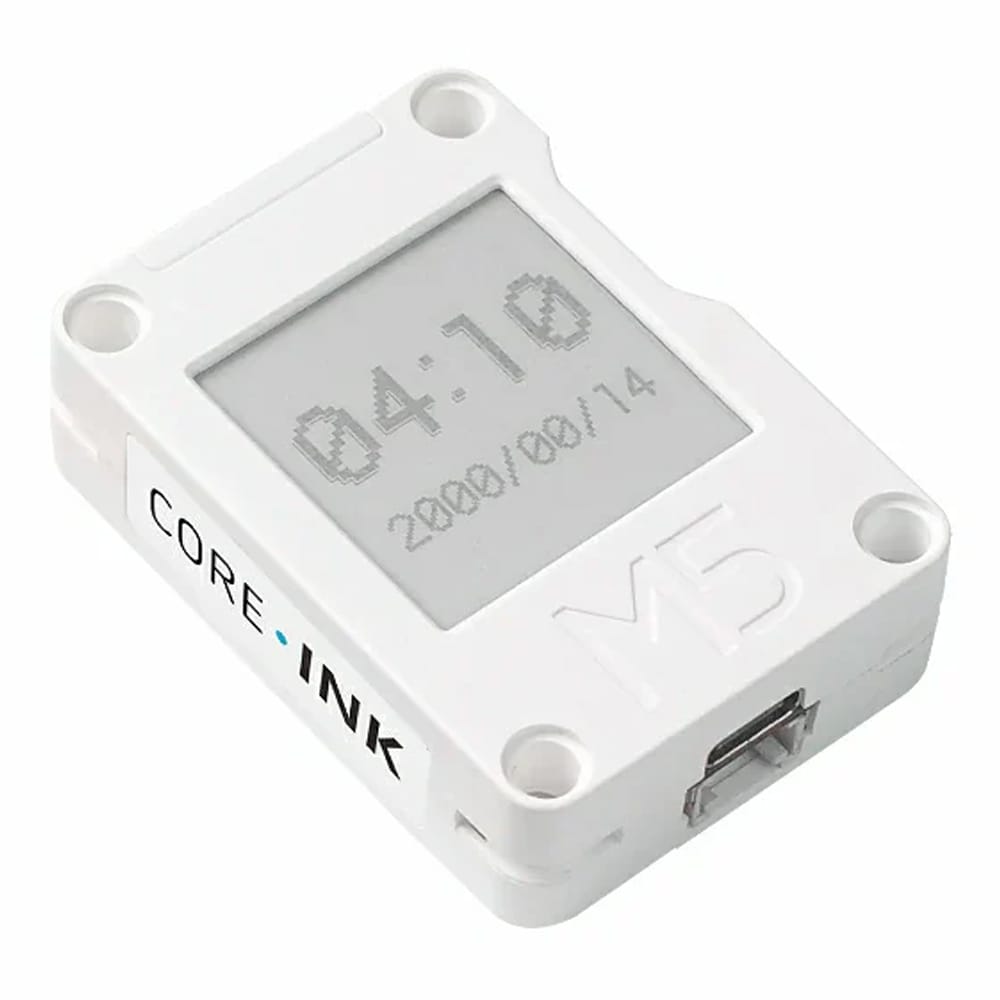

The front is embedded with a 1.54" E-Ink display with a resolution of 200x200, supporting black/white display. Compared to ordinary LCD screens, the E-Ink display provides a better text reading experience, with features such as low power consumption and image retention when powered off.

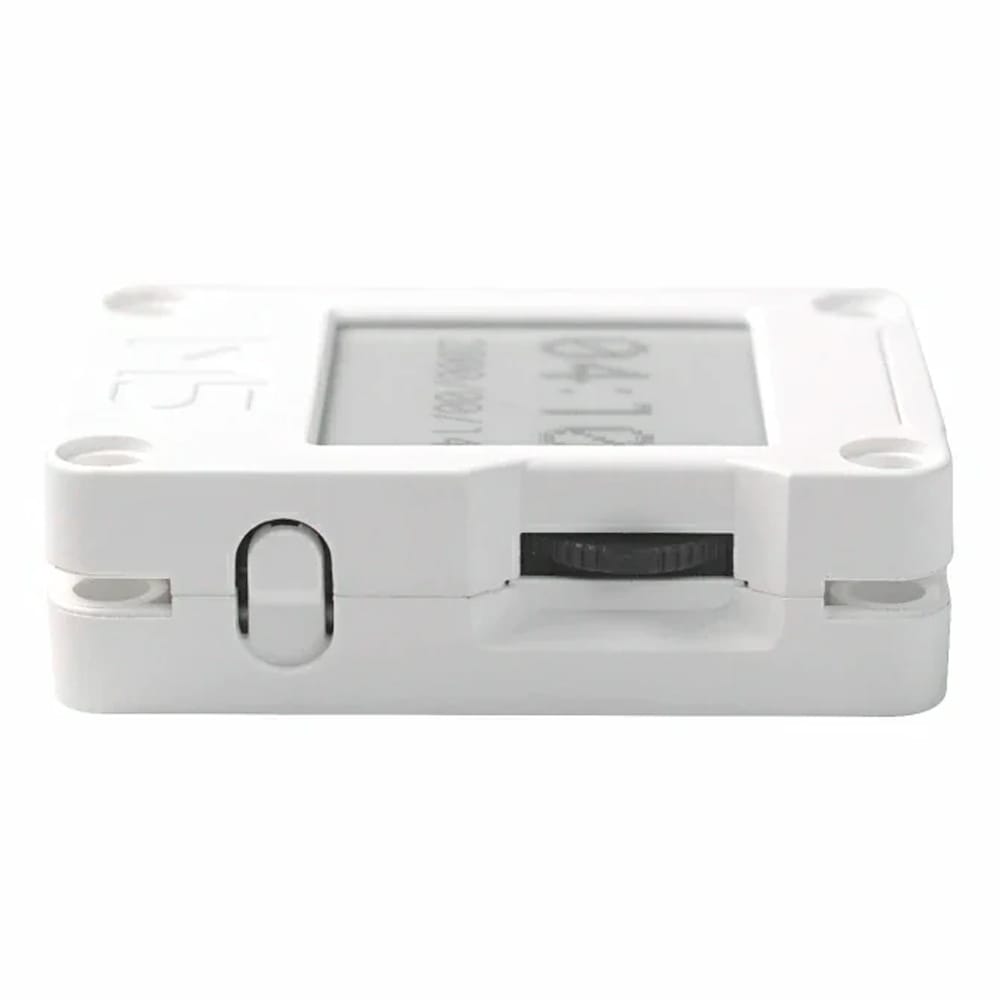

For human-machine interaction, it offers a rotary switch and physical buttons, integrated LED indicator, and buzzer. It has a built-in 390mAh lithium battery, combined with an internal RTC (BM8563) to achieve timed sleep and wake-up functions, providing excellent battery life.

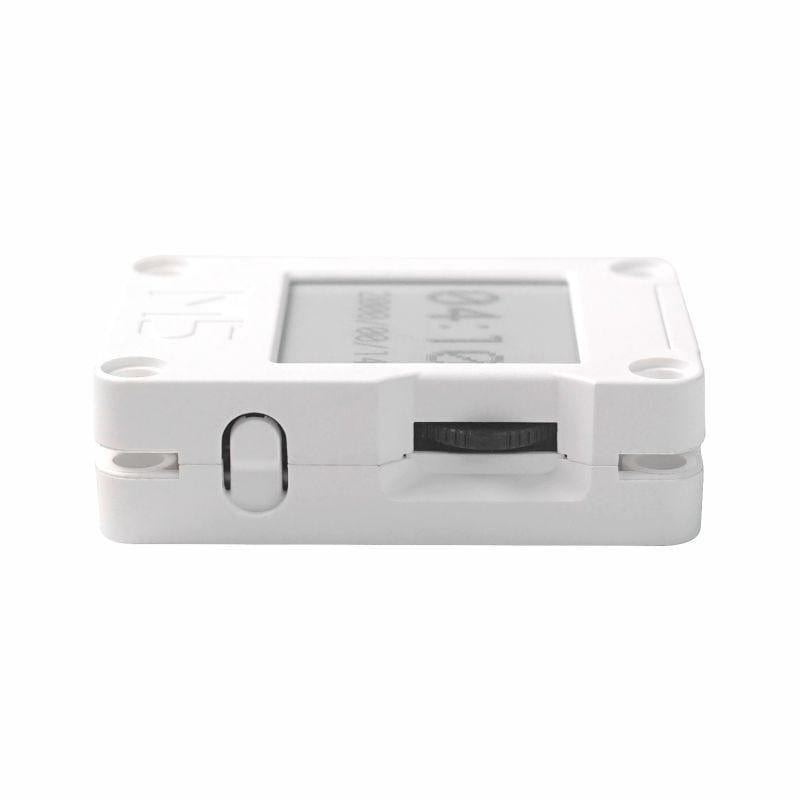

There are independent power and reset (RST) buttons on the left side and bottom of the device, making it easy to use and debug. It offers a variety of peripheral interfaces (HY2.0-4P, M5-Bus, HAT module interface) to expand various sensor devices, providing infinite possibilities for subsequent application development.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
Developed based on ESP32, supports WiFi
Built-in 4M Flash
Low power consumption display panel
Nearly 180-degree viewing angle
Human-machine interaction interface
Magnetic back design
Built-in lithium battery
Rich expansion interfaces
Development Platform
UiFlow1
UiFlow2
Arduino IDE
ESP-IDF
PlatformIO
Specifications
SoC
ESP32-PICO-D4 @ Dual-core processor, 240MHz main frequency
DMIPS
600
SRAM
520KB
Flash
4MB
Wi-Fi
2.4 GHz Wi-Fi
Input Voltage
5V @ 500mA
Interface

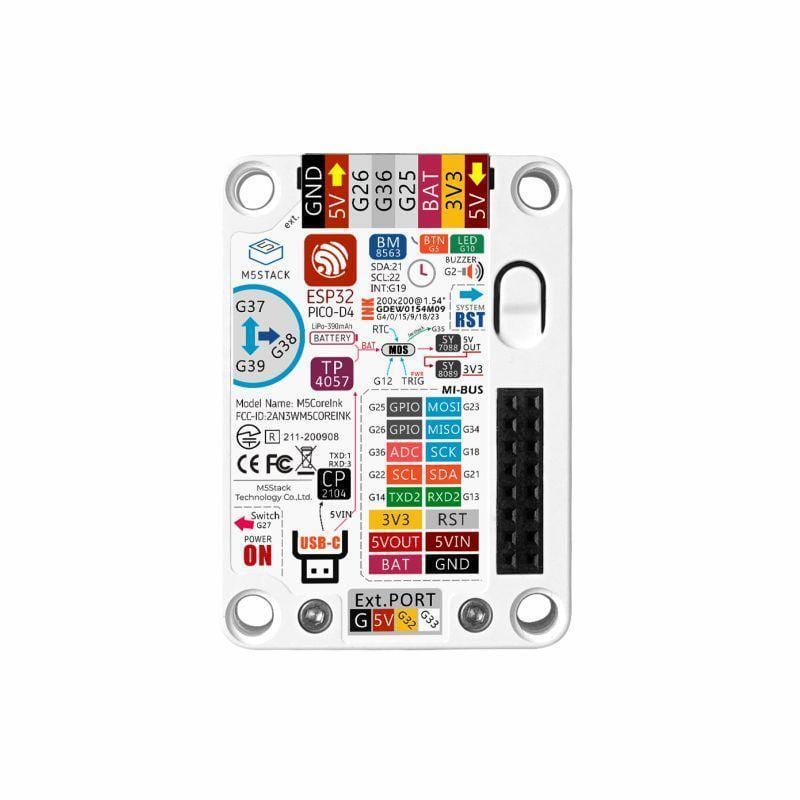

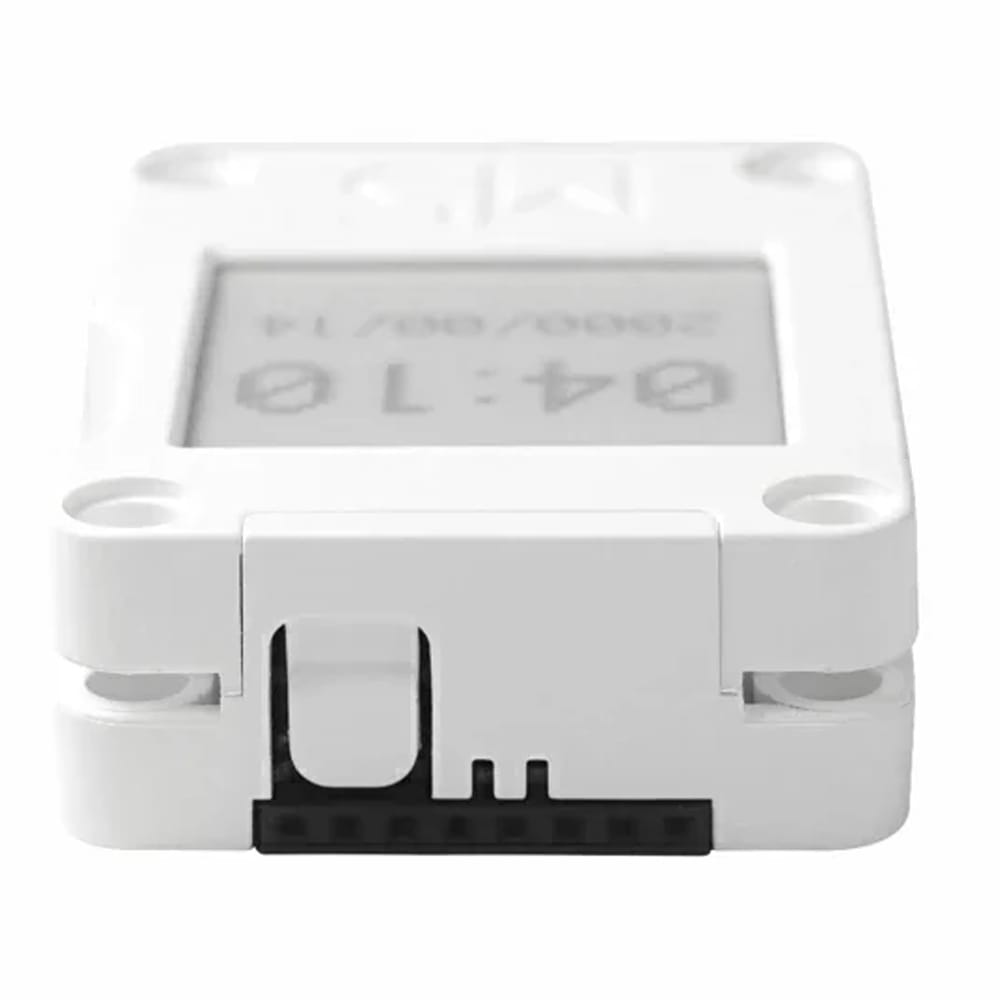

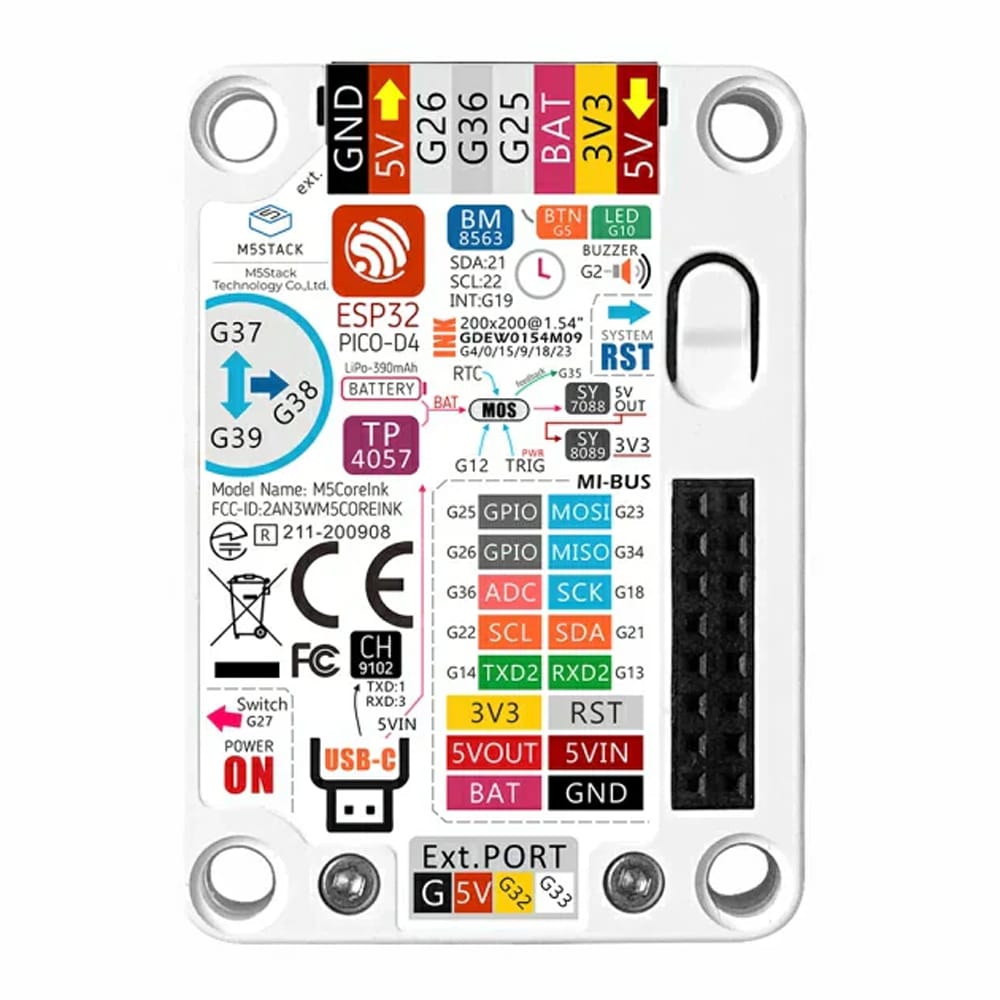

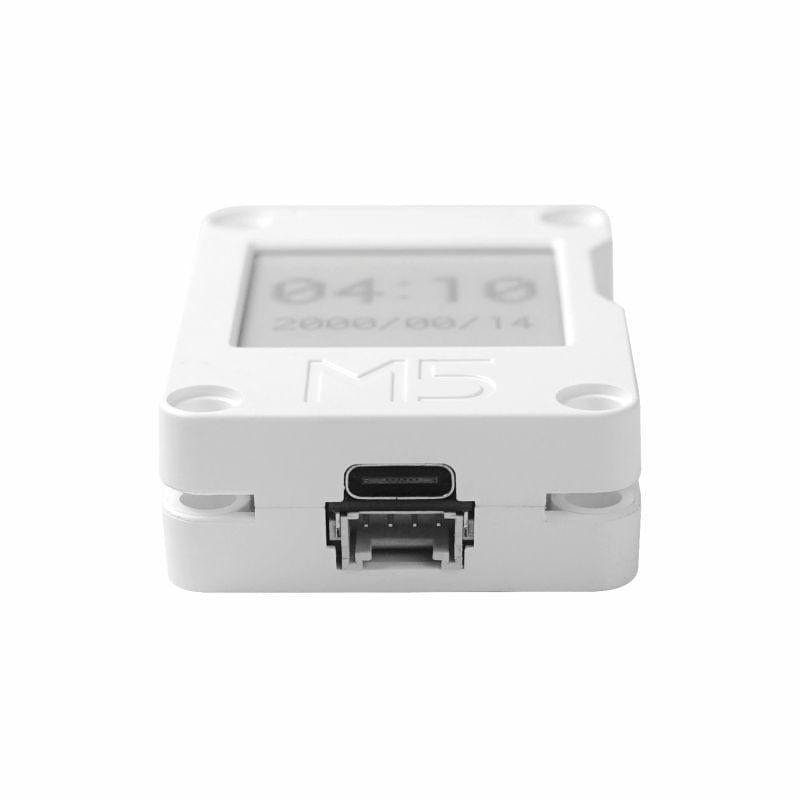

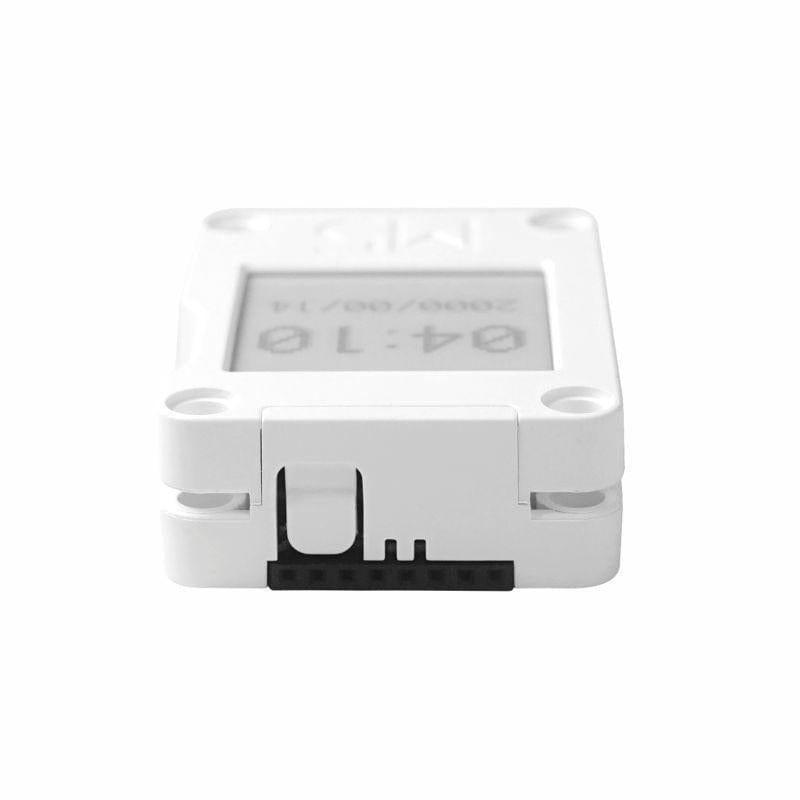

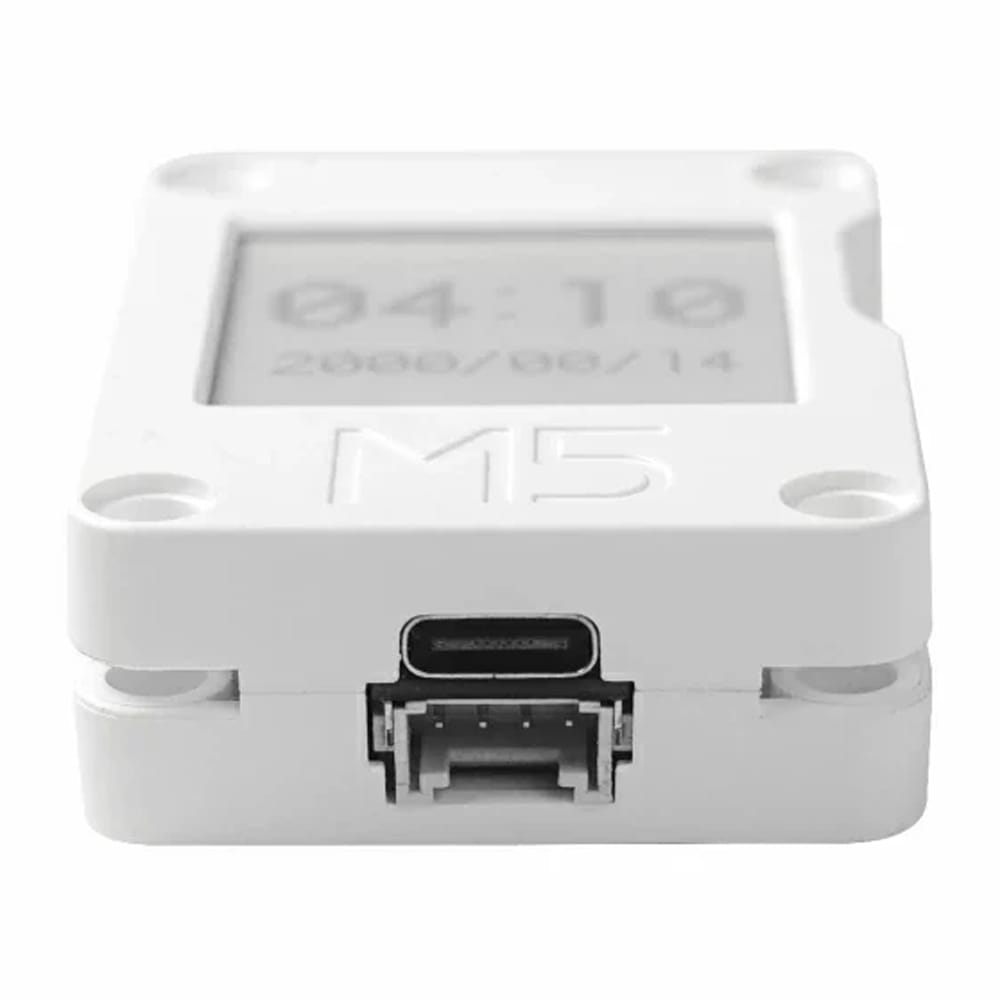

USB Type-C x 1, HY2.0-4P x 1, M5-Bus female connector, top HAT expansion interface
E-ink Screen
GDEW0154M09, SPI interface, 200 x 200@1.54", Dpi:184, 1-bit black/white display (Grayscale: 2), Viewing area size (mm): 27.6 x 27.6, Dot pitch (mm): 0.138 x 0.138, Refresh time (s): 0.82, Partial refresh time (s): 0.24
Physical Button
Programmable button x 1, reset button x 1, power button x 1
LED
Green LED x 1
RTC
BM8563
Buzzer
Passive buzzer * 1
Antenna
2.4G 3D antenna
Pin breakout
G25, G26, G36, G23, G34, G18, G21, G22, G14, G13
Battery
390mAh@3.7V
Operating Temperature
0 ~ 60°C
Case Material
Plastic ( PC )
Product Size

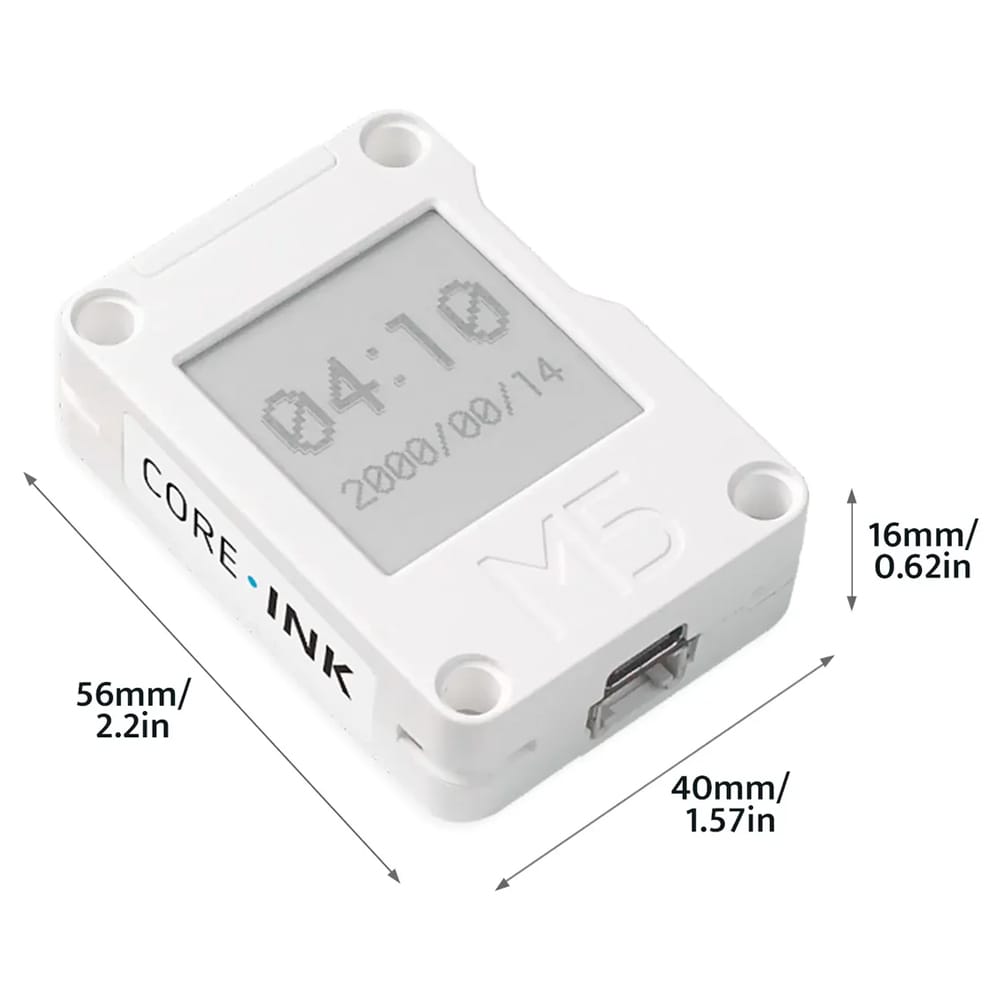

56.0 x 40.0 x 16.0mm
Product Weight
31.5g
Important Information
When using, please avoid high-frequency refreshing for a long time. It is recommended to refresh at intervals of (15s/refresh).
Do not expose to ultraviolet light for a long time, as this may cause irreversible damage to the E-Ink display.
CoreInk uses a low-power power management scheme different from CORE and StickC devices.
When using, the PWR button is used as the power-on button (long press for 2s). To shut down the device, you need to use the software API or press the reset button on the back.
