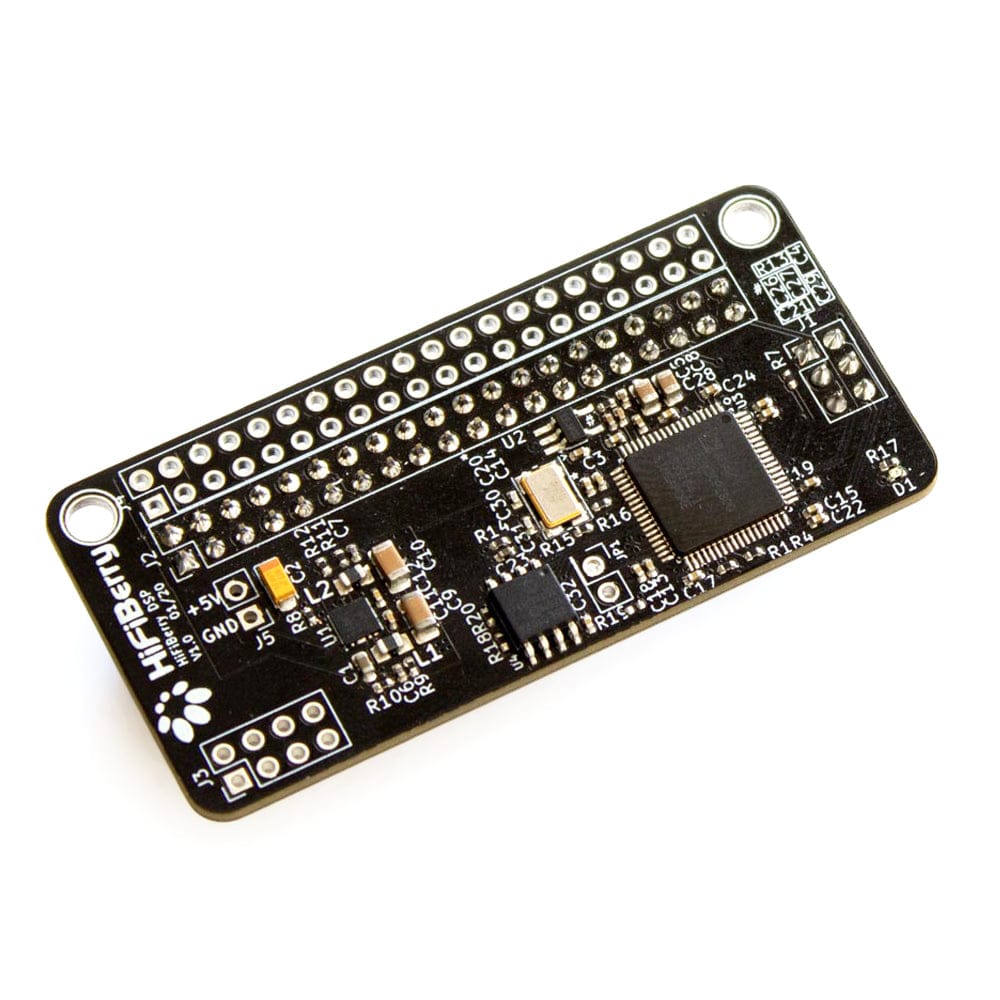

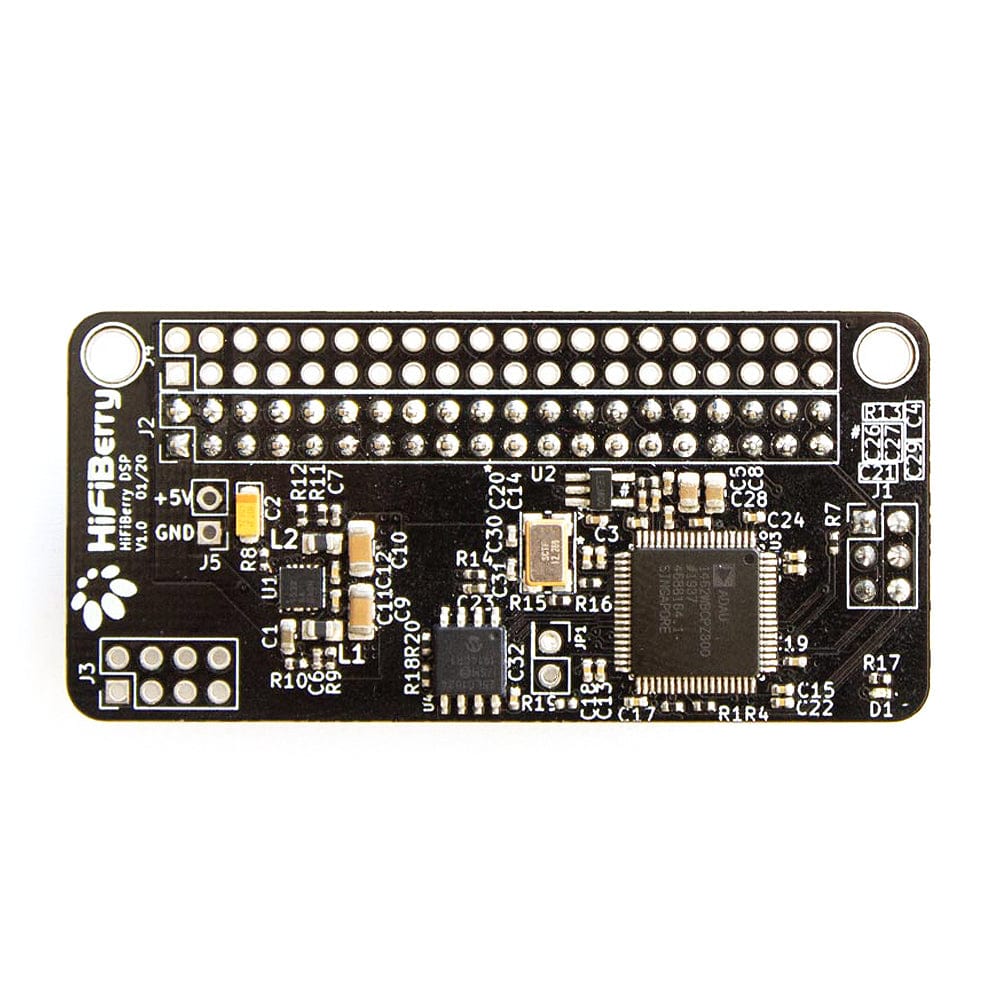

HiFiBerry DSP Add-on

The HiFiBerry DSP add-on board extends some HiFiBerry Raspberry Pi boards with a Digital Signal Processor for audio processing. The DSP can be programmed via Analog’s Sigma Studio or be used with pre-defined DSP programs.

The DSP add-on board adds digital signal processing capabilities to the following HiFiBerry sound cards:

• DAC2 HD
• DAC2 Pro
• DigiPro 2

It is directly supported in HiFiBerryOS, with other distributions you will need to install the DSP toolkit to program the DSP.

Please note:

• This board cannot be used standalone - one of the above HATs are required.
• The board will only fit the V2 Steel case when used in conjunction with the DSP mounting kit.

Features

• 300 MHz Digital Signal Processor (6144 instructions per sample incl. FFT and FIR accelerators)
• High-quality asynchronous sample rate converter that can upsample/downsample/mix audio sources
• Users can upload programs developed with Analog’s SigmaStudio
• Connects to the DSP header of selected HiFiBerry sound cards
• No soldering comes as a pre-fabricated kit.
• Directly powered from the Raspberry Pi, no additional power supply

Resources

• HiFiBerryOS Filter Designer
• DSP Toolkit
