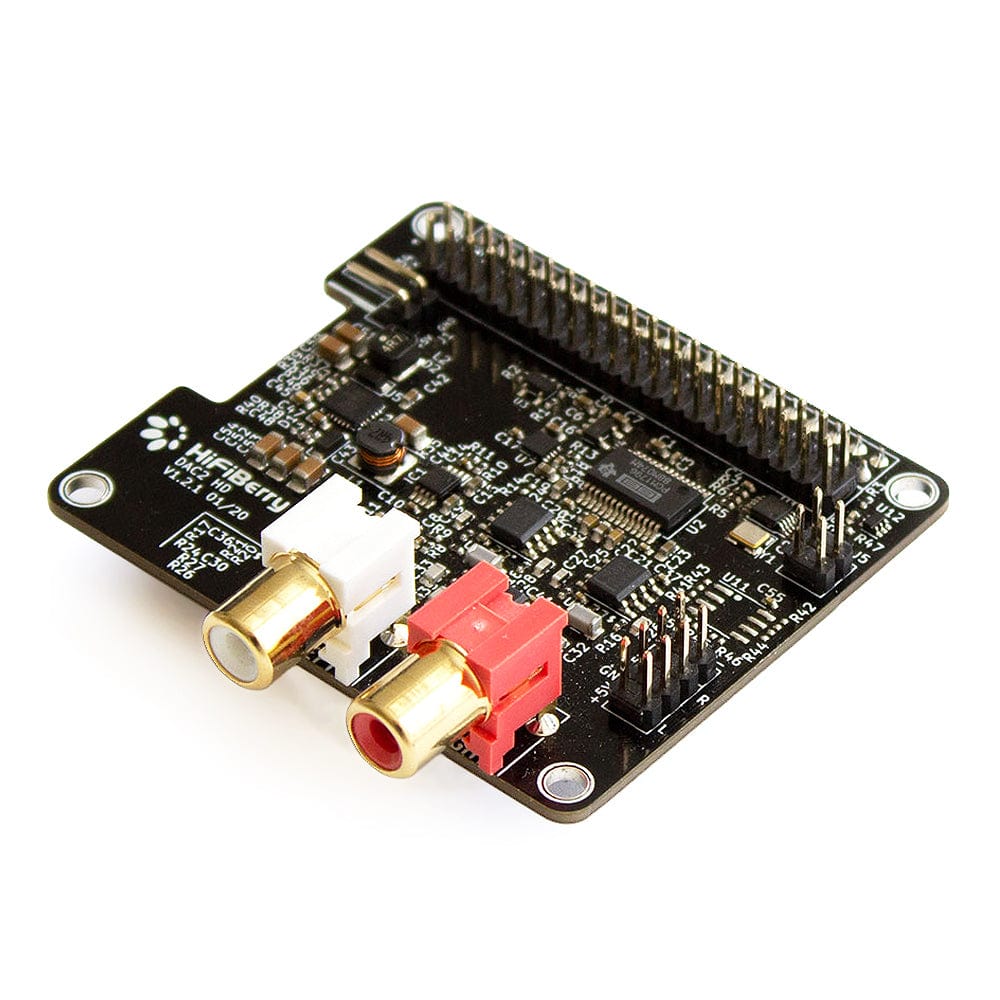

The HiFiBerry DAC2 HD is a high-end digital-to-analogue converter for the Raspberry Pi (newer models with 40 pin GPIO connector).
DAC2 Pro or DAC2 HD? If you’re just looking for the best audio quality – the answer is easy: the DAC2 HD. It offers lower distortions, higher signal-to-noise-range and higher dynamic range than the DAC2 Pro. If you’re on a budget, but still want a high-quality DAC, the DAC2 Pro might be your choice.
DSP Add-on for the DAC2HD now available!
60W Class-D Amplifier add-on now available!
Features
- Stereo output
- Dedicated 192kHz/24bit high-quality Burr-Brown DAC
- Custom current-to-voltage output stage with high-end filtering
- Four ultra-low-noise linear voltage regulators for optimal audio performance
- Low-jitter clock for optimised clock performance (independent from Raspberry Pi clock sources)
- Hardware volume control for DAC. You can control the output volume using “alsamixer” or any application that supports ALSA mixer controls.
- Supports HiFiBerry DSP add-on module
- Connects directly to the Raspberry Pi, no additional cables needed
-
No soldering - comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
- Compatible with all Raspberry Pi models with a 40-pin GPIO connector
- Directly powered from the Raspberry Pi, no additional power supply required
- HAT compliant, EEPROM for automatic configuration
- Gold plated RCA output connectors
- Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
- Requires at least Linux kernel 4.19.97
Configuration
Please ensure you have the most recent Raspberry Pi Linux Kernel (at least 4.19.97) by following this link: https://www.hifiberry.com/docs/archive/deploying-a-new-linux-kernel-onto-a-raspbian-based-system/
Overlay for config.txt:
dtoverlay=hifiberry-dacplushd
Specifications
|
| Maximum output voltage |
2.1Vrms |
|
| DAC signal-to-noise ratio |
123db |
typical |
| DAC THD+N |
-108db |
typical, 44.1kHz, -10dBFS |
| Frequency response |
10Hz-70kHz |
-3dB |
| Power consumption |
<1W |
|
| Sample rates |
44.1-192kHz |
|
| Bits/sample |
16, 32 |
Please note: The actual board look may vary. Layout and components might change without notice. HiFiBerry does not guarantee a specific PCB layout or specific components.
