Gravity: I2C H3LIS200DL Triple Axis Accelerometer Sensor (±100g/±200g)

DFRobotSKU: SEN0412
Price:
Sale price £13.30
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

The H3LIS200DL is a high-performance triple-axis linear accelerometer with an ultra-low power consumption of 10uA. It offers user-selectable scales of ±100g/±200g and is capable of measuring accelerations with output data rates from 0.5Hz to 1KHz.

Features

  • Selectable scales: ±100g/±200g
  • Change I2C address by the toggle switch
  • Easy-to-use Gravity interface, no need to solder

Applications

  • Shock detection and record
  • Free-fall detection
  • Vehicle crash test

Specification

  • Operating Voltage: 3.3V~5V
  • Operating Current: 10uA(low power mode)/0.3mA-0.4mA(Normal mode)
  • Interface: Gravity-I2C
  • I2C Address: 0x19 (Default)/0x18 (Optional)
  • Selectable Scale: ±100g/±200g
  • Frequency: 0.5Hz~1KHz
  • 8-bit Data Output
  • Operating Temperature: -40℃~+85℃
  • 10000g High Shock Survivability
  • ECOPACK, RoHS and “Green” compliant

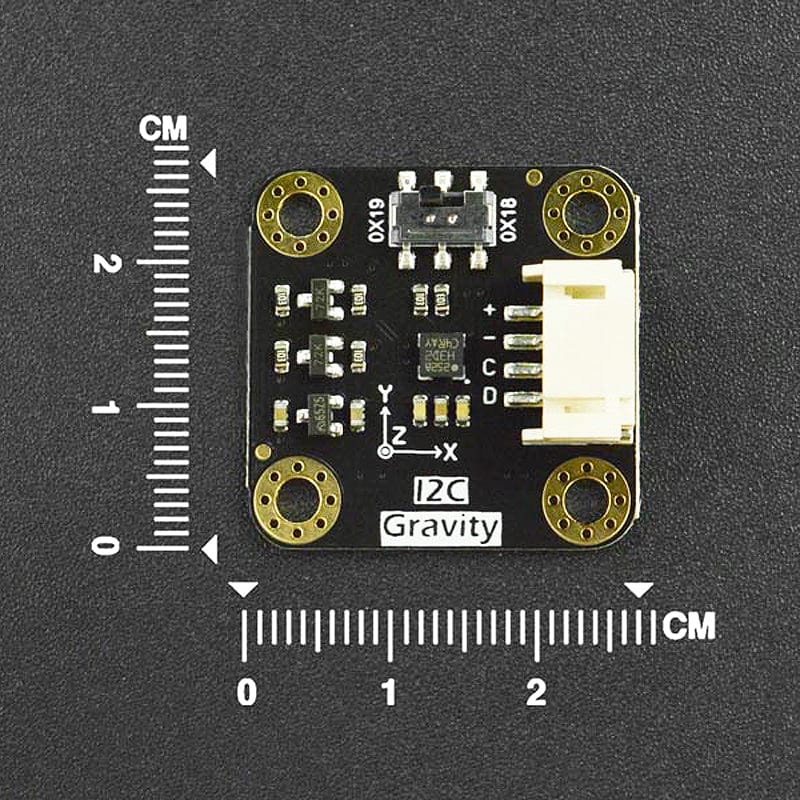

  • Module Size: 27*27mm/1.06*1.06”
  • Mounting Hole Size: inner diameter 3mm/outer diameter 6mm

Documents

Shipping List

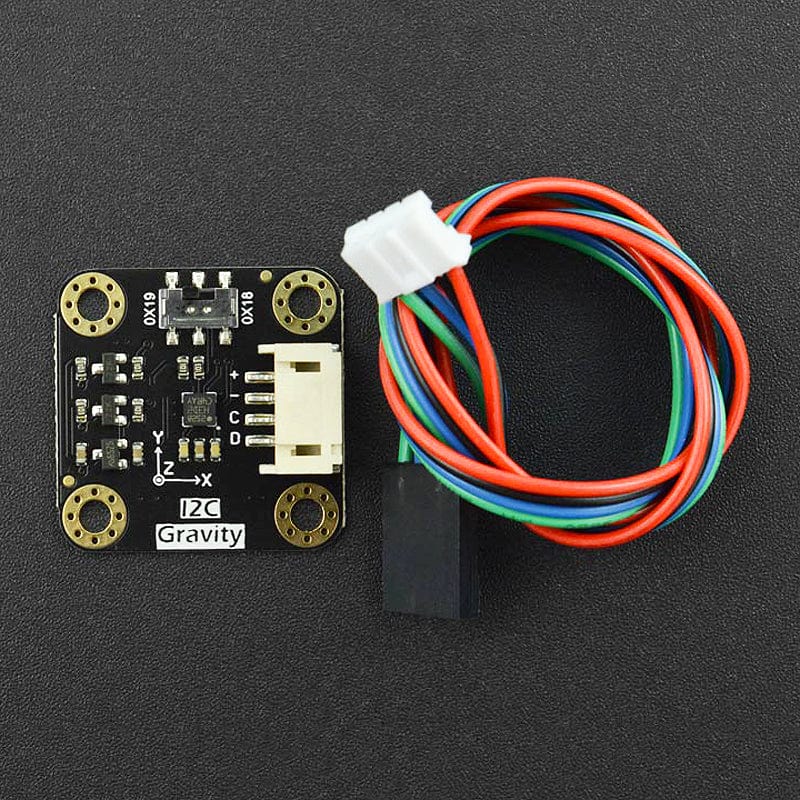

  • Gravity: I2C H3LIS200DL Triple Axis Accelerometer Sensor x1
  • Gravity-4P I2C/UART Sensor Connector x1
