ESP8266 1 Channel Relay Board

Price:
Sale price £11.90
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

STEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi HutSTEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi Hut
STEMMA QT / Qwiic JST SH 4-pin to Premium Male Headers Cable - The Pi HutSTEMMA QT / Qwiic JST SH 4-pin to Premium Male Headers Cable - The Pi Hut

The ESP8266 microcontroller is an excellent choice for IoT projects – it is low-cost, small, and well-supported. However, like most other microcontrollers, it cannot directly control high current or high voltage loads and is not directly compatible with breadboards or perfboards. This assembly allows the ESP8266 to operate within a 12V system, and switch higher voltage / higher current devices from a compact, easy-to-mount, package.

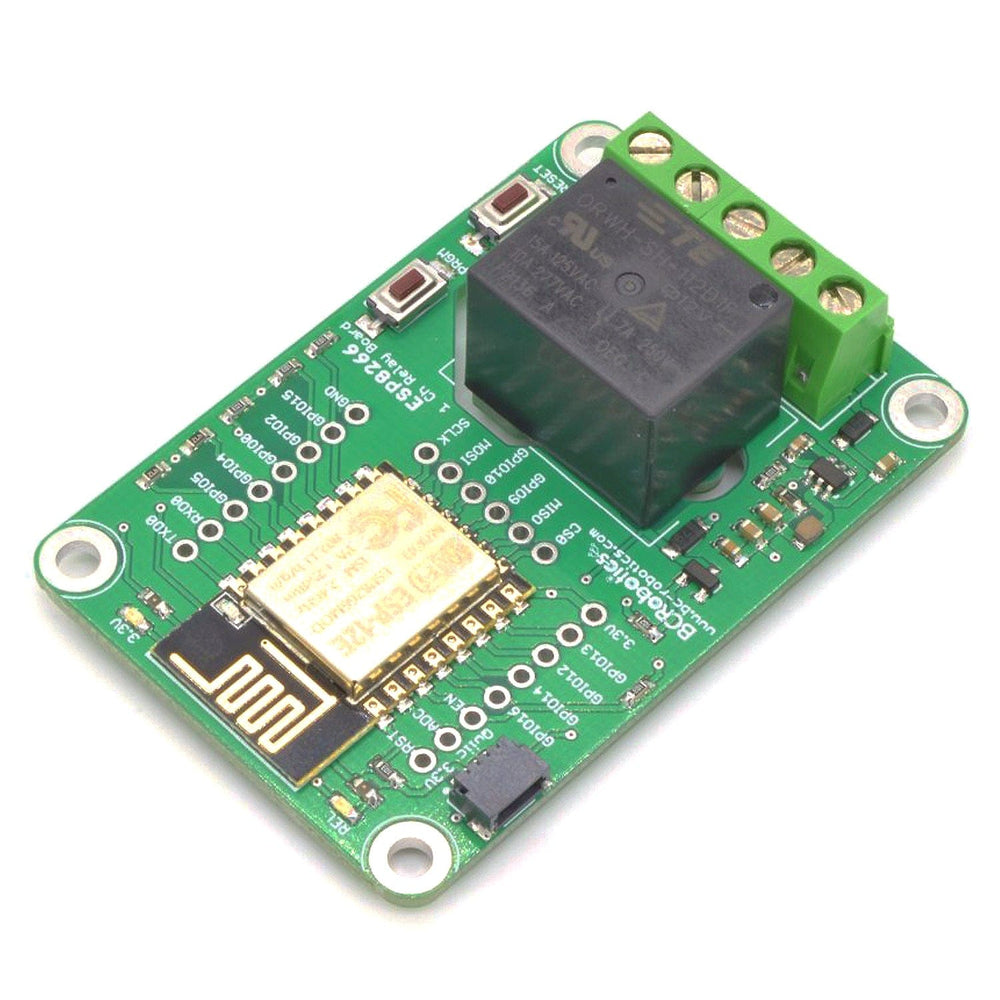

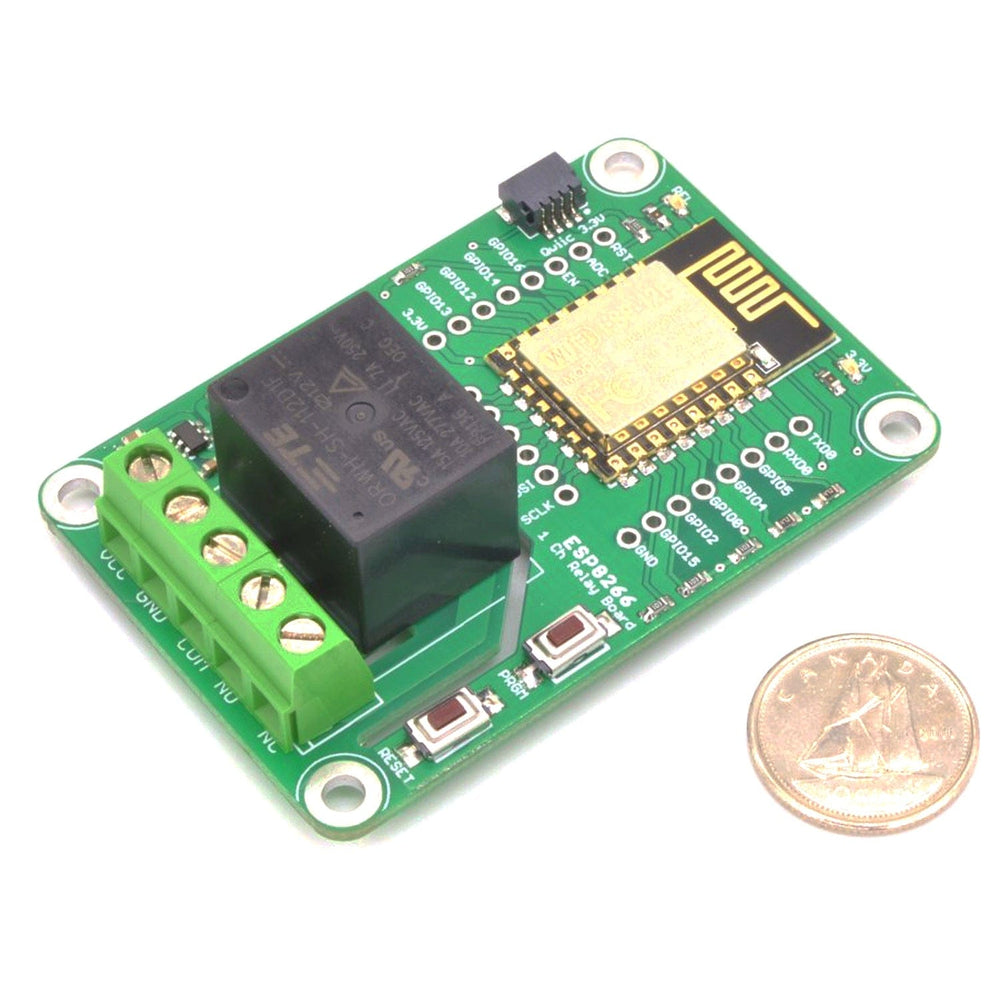

The ESP8266 1 Channel Relay Board is a ready-to-program IoT Relay module featuring the ESP8266 SMT module (ESP-12E), a high-quality 10A relay, a power supply circuit, and all of the necessary components for it to operate.

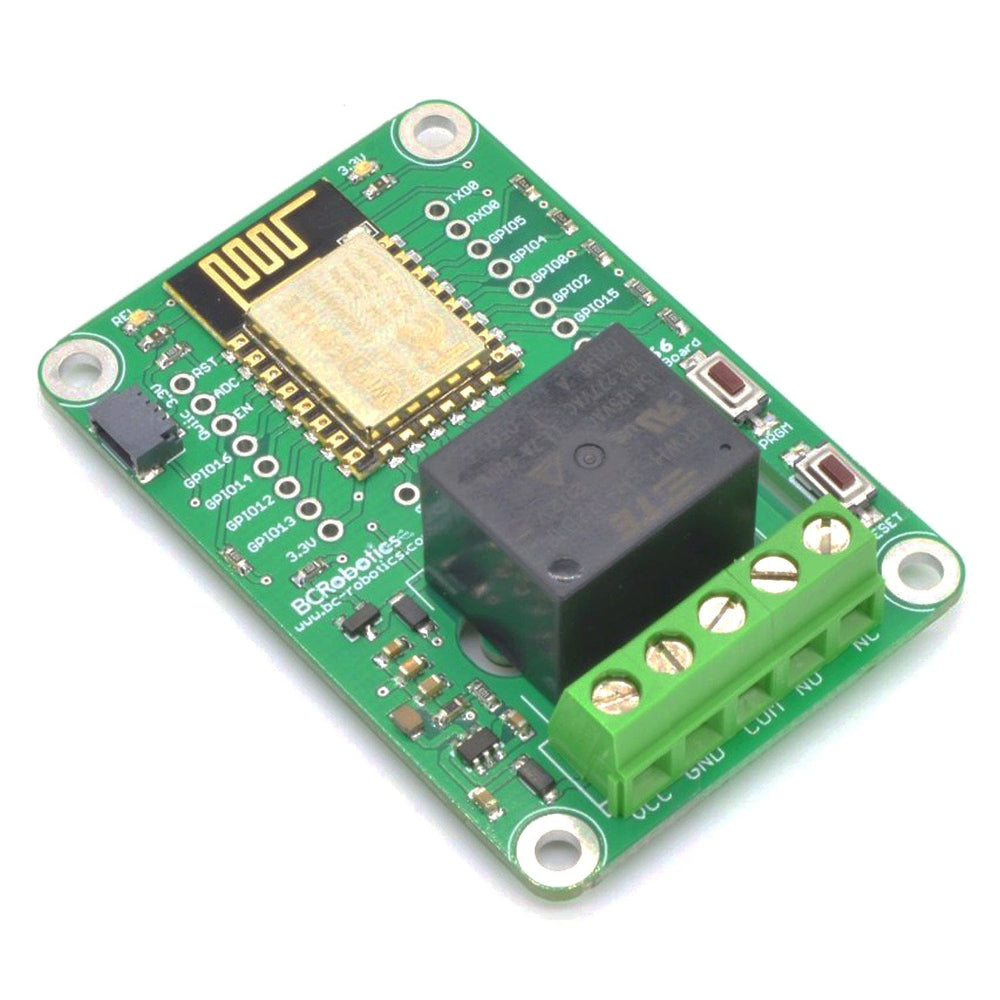

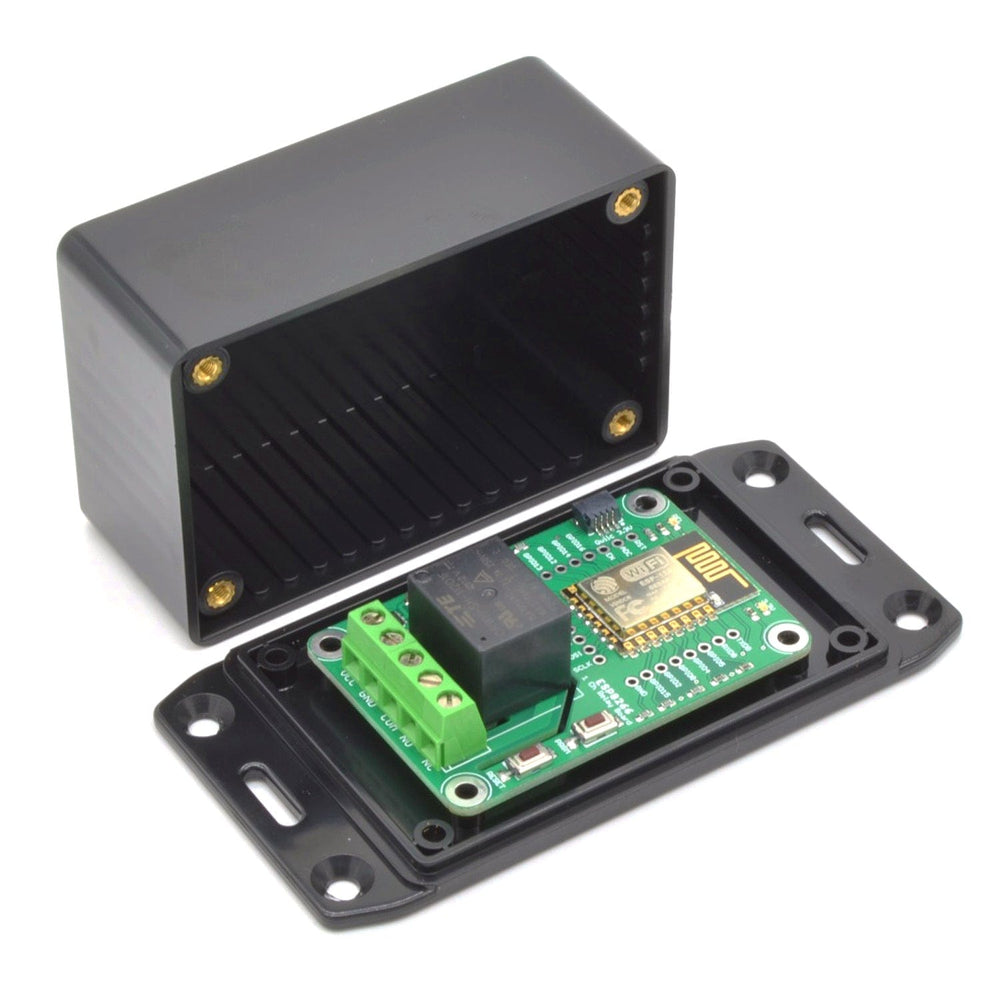

The board is designed to fit in a standard Hammond 1591L enclosure. Power input and relay contacts are all brought out to a large 5-pin screw terminal. Power is supplied through VCC / GND, while common, normally open, and normally closed relay contacts are brought out for the relay.

To add further functionality, we have also included a SparkFun Qwiic / Adafruit STEMMA QT connector for the easy addition of sensors.

NOTE: The case is NOT included.

Features

  • Fully assembled
  • Integrated WiFi
  • Input Voltage: 9 – 15VDC
  • Qwiic / STEMMA QT connector
  • 10A/250VAC per relay channel
  • 8A/30VDC per channel
  • Relay Contact Configuration: 1 Form C
  • LED to indicate activated relay
  • LED to indicate power
  • Integrated Reset and Program Buttons
  • Fits Hammond 1591L enclosure
  • Weight: 25g
  • Shipping Dimensions: 64 x 42 x 20mm

Package Contents

  • 1x ESP8266 1 Channel Relay Board
