ESP32-H2 Thread/Zigbee Gateway Unit

Price:
Sale price £6.30
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

M5StickC PLUS2 ESP32 Mini IoT Development Kit by M5Stack - The Pi HutM5StickC PLUS2 ESP32 Mini IoT Development Kit by M5Stack - The Pi Hut
M5StackM5StickC PLUS2 ESP32 Mini IoT Development Kit
Sale price £23.90 incl. VAT excl. VAT
M5Stack Core2 v1.1 ESP32 IoT Development Kit by M5Stack - The Pi HutM5Stack Core2 v1.1 ESP32 IoT Development Kit by M5Stack - The Pi Hut
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
Sale price £47.90 incl. VAT excl. VAT
M5Stack CoreS3 ESP32S3 by M5Stack - The Pi HutM5Stack CoreS3 ESP32S3 by M5Stack - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3
Sale price £57.50 incl. VAT excl. VAT
M5Stack M5 Box by M5Stack - The Pi HutM5Stack M5 Box by M5Stack - The Pi Hut
M5StackM5Stack M5 Box
Sale price £1.90 incl. VAT excl. VAT

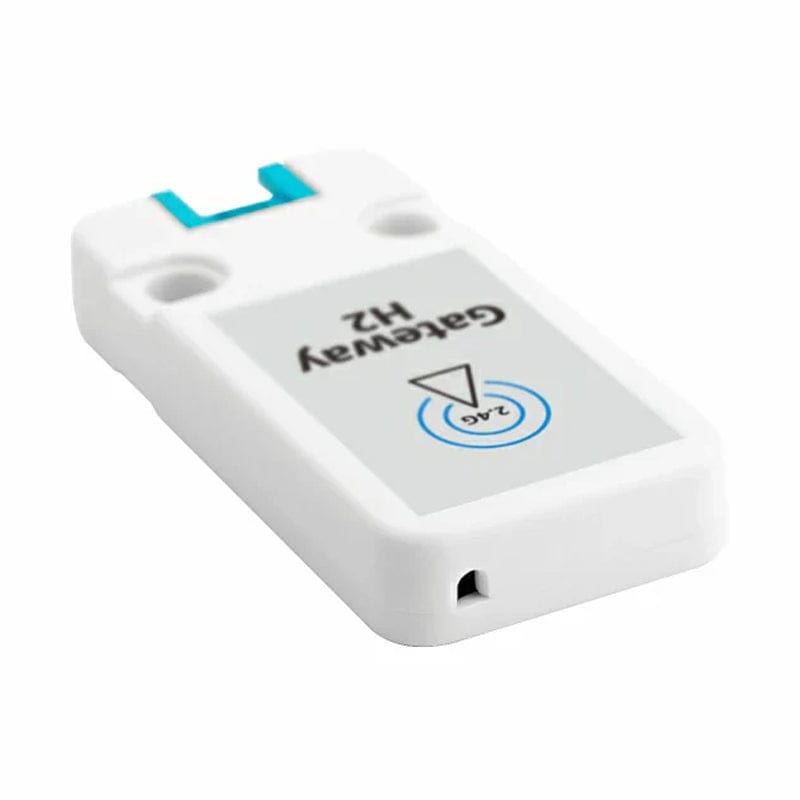

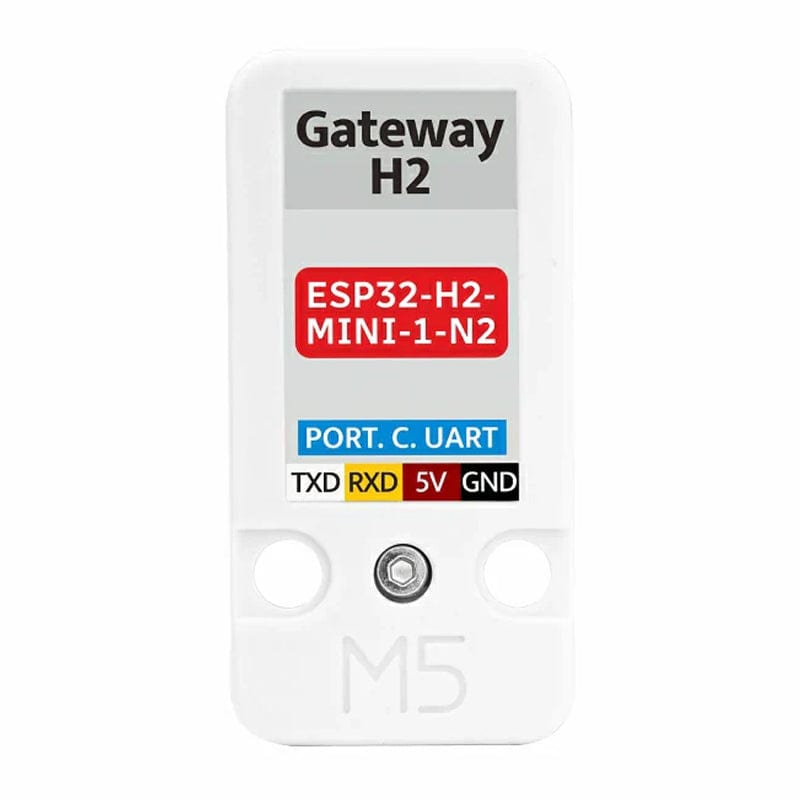

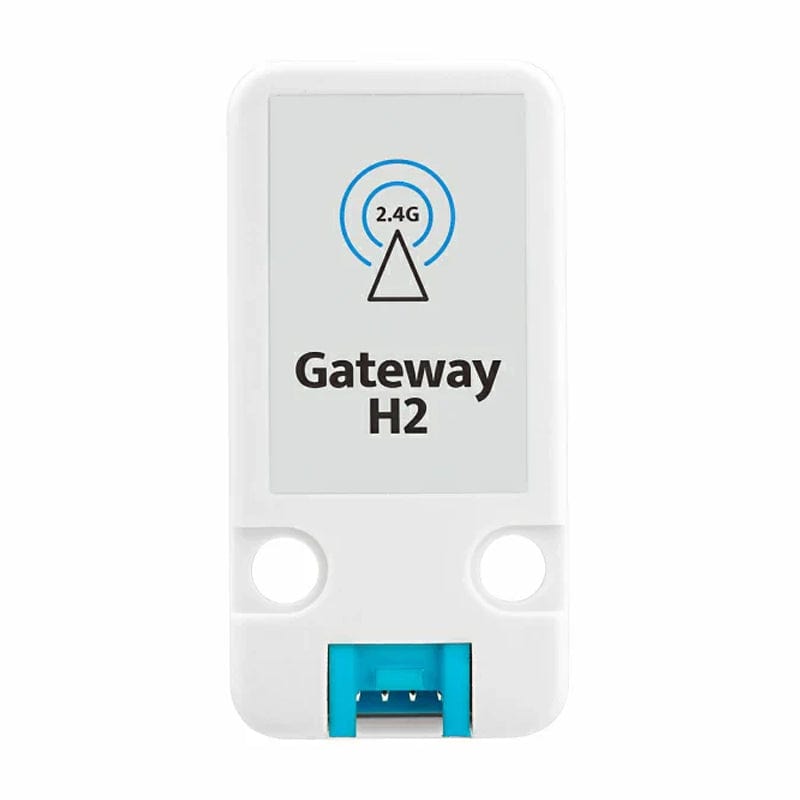

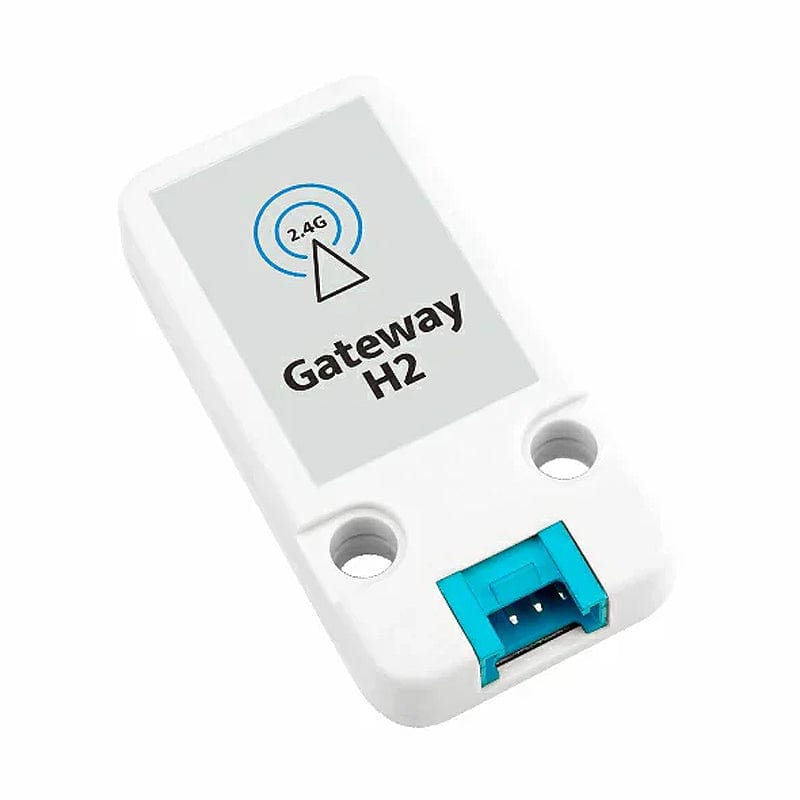

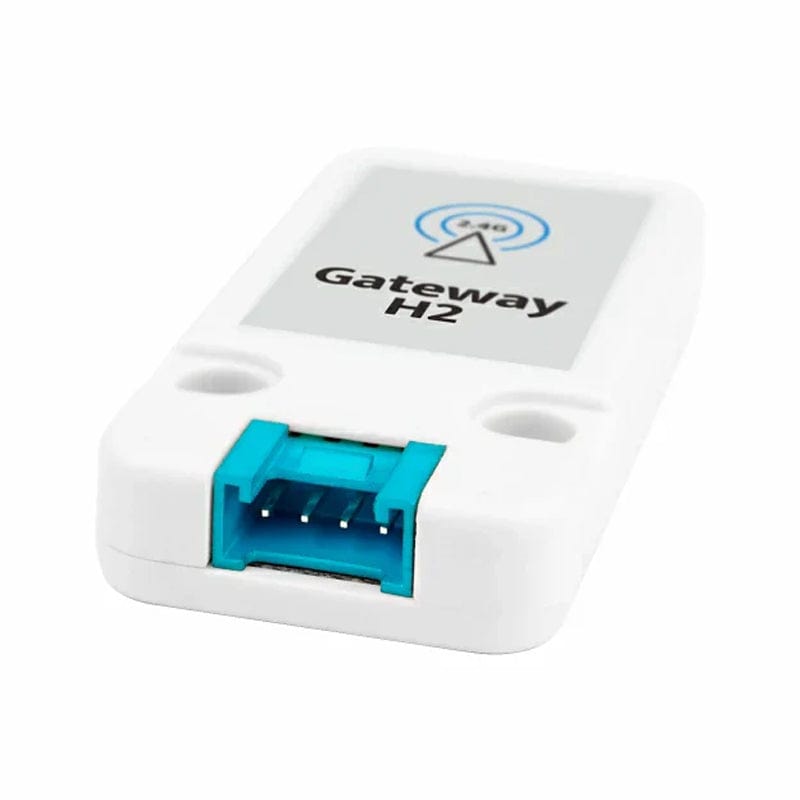

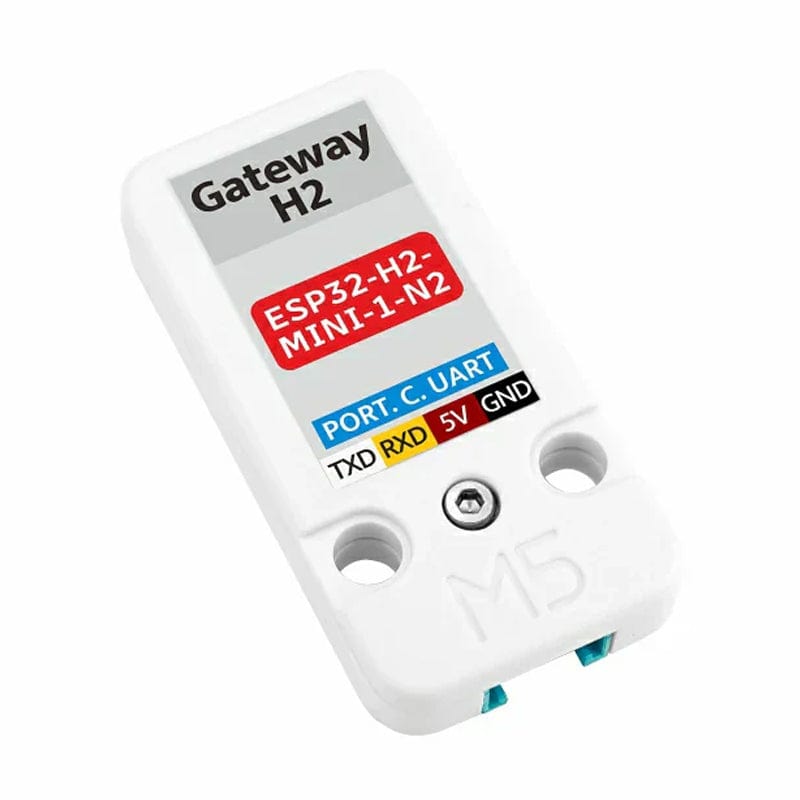

The M5Stack Unit Gateway H2 is an all-new form factor gateway unit built on the ESP32-H2-MINI-1-N2 chip.

It features a built-in 32-bit single-core MCU based on the RISC-V architecture and integrates IEEE 802.15.4 wireless communication, supporting ZigBee, Thread, and Thread-based Matter interconnection protocols.

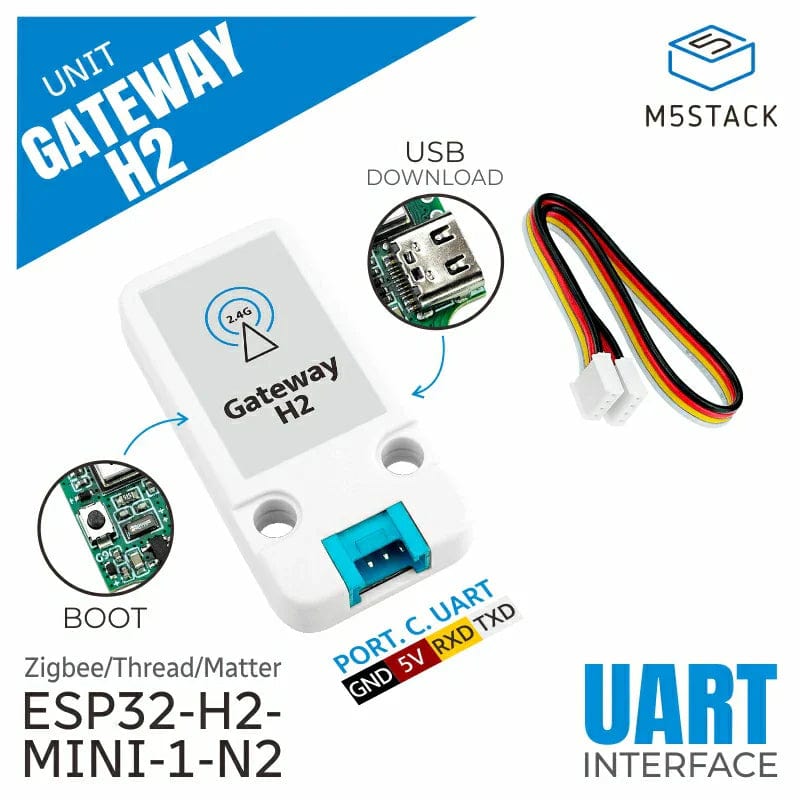

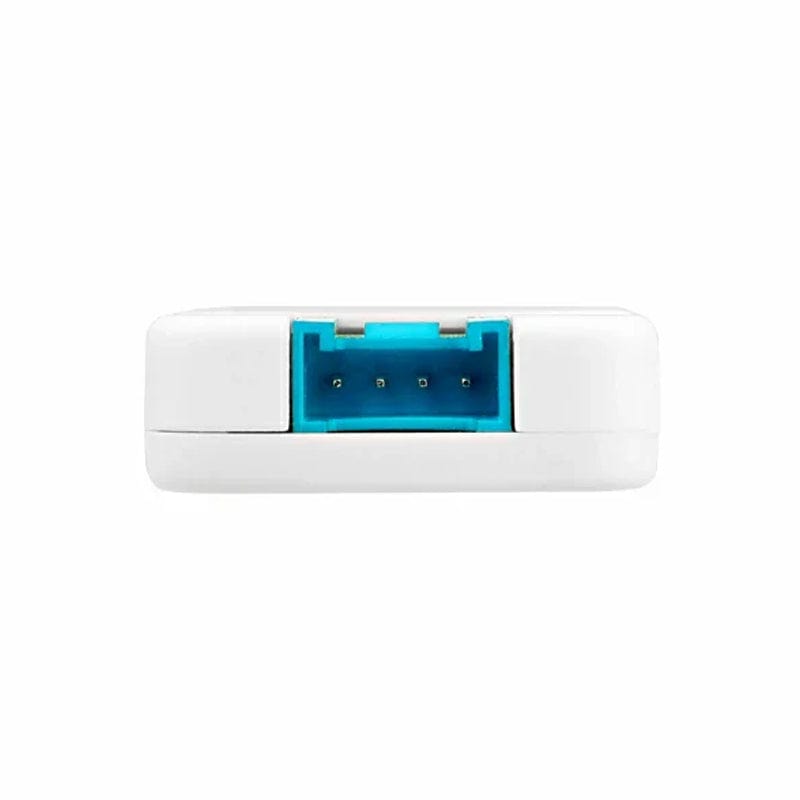

The product communicates with an M5 series host (such as an M5StickC PLUS 2) via serial (UART) through the Grove (Port C) interface to achieve data exchange. Unit Gateway H2 can flexibly serve as a gateway (such as a Thread Border Router) or a terminal device, working with the host to build cross-ecosystem interconnection, or operate independently in IoT applications.

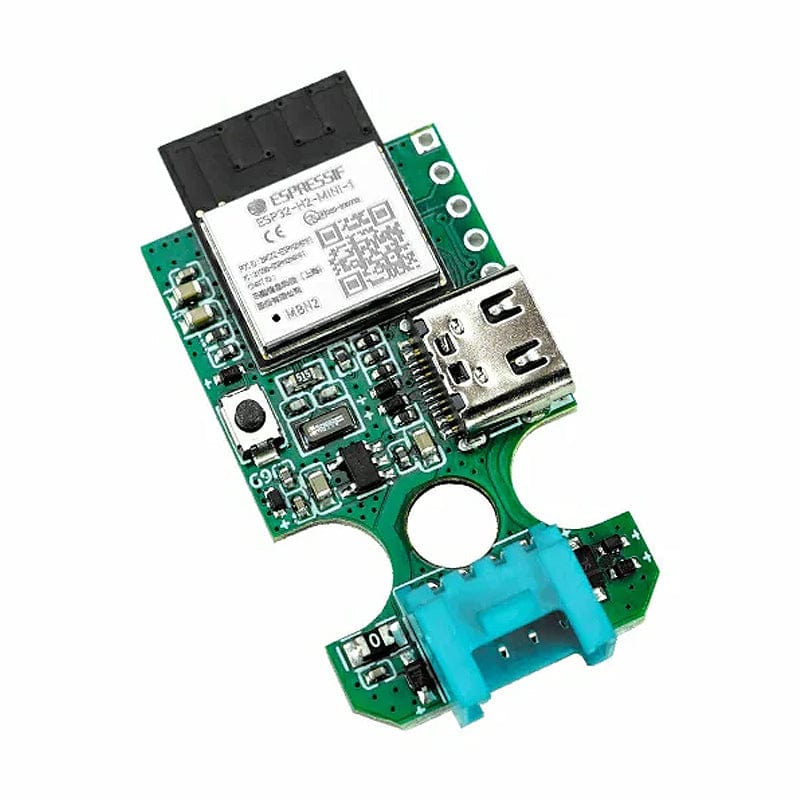

It reserves a standard program download interface and a Type-C interface for H2 chip firmware burning and debugging, and is equipped with a hardware encryption engine to meet the demands of high-security IoT applications.

Features

  • Supports wireless communication protocols such as ZigBee, Thread, and Matter
  • Integrated IEEE 802.15.4 technology
  • UART communication
  • Supports hardware encryption functionality
  • Low power consumption
  • Development platforms:
    • Arduino IDE
    • ESP-IDF

Specifications

SoC Built-in ESP32-H2 chip, RISC-V 32-bit single-core processor, clock up to 96 MHz @IEEE 802.15.4
Flash 2MB
Antenna Module onboard PCB antenna
Supported Protocol IEEE 802.15.4 (including ZigBee 3.0, Thread 1.3, Matter)
Power Consumption Operating current: (Thread networking) DC-5V@26.08mA
Standby current: DC-5V@16.16mA
Sleep current: (powered by Grove interface) DC-5V@92.7uA
Operating Temp. 0–40°C
Product Size 48.0 x 24.0 x 8.0mm
Product Weight 6.9g

Resources

Tutorials

Documentation

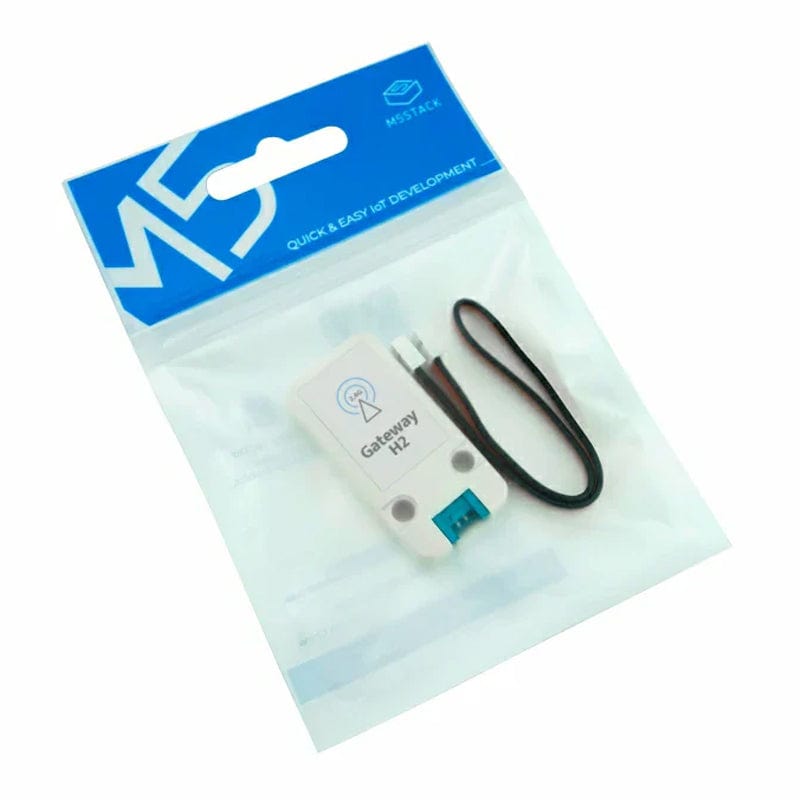

Package Contents

  • 1x ESP32-H2 Thread/Zigbee Gateway Unit
  • 1x Grove cable
