Enviro Weather (Pico W Aboard) - Board Only

A wireless climate and environmental monitoring system designed to make hooking up weather sensors a breeze (or a squall, or a gale), with a Raspberry Pi Pico W built-in!

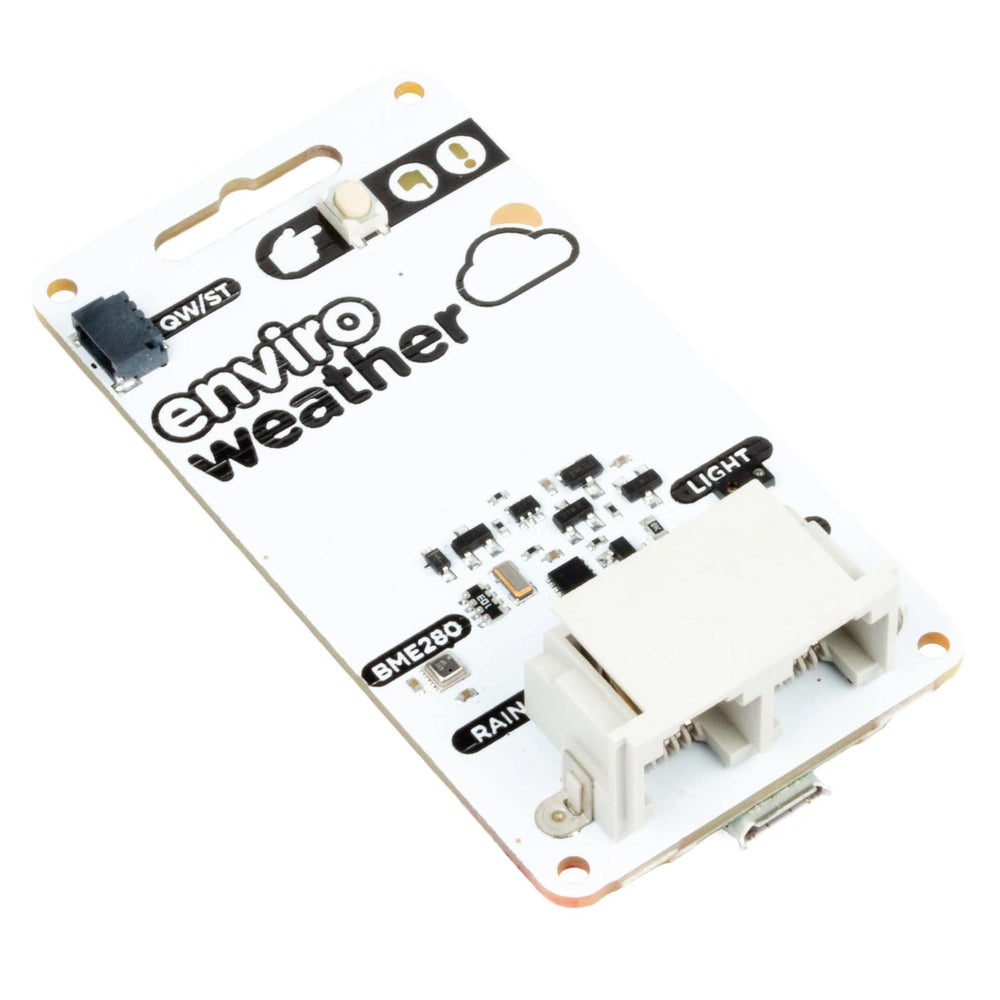

Enviro Weather is a super slimline all-in-one board for keeping a (weather) eye on the great outdoors. The onboard sensors can measure temperature, humidity, pressure and light. The sturdy RJ11 connectors (remember those?) will let you easily attach wind and rain sensors. We've designed this one to be installed outside in a suitable weatherproof enclosure (like a Stevenson screen) and connected to wirelessly - logging the data locally or piping it into databases, home automation dashboards or online citizen science projects.

Please note wind and rain sensors are sold separately. We also stock a full Enviro Weather (Pico W Aboard) Station Kit!

Enviro x Pico W Aboard

Our new Enviro (Pico W Aboard) range is designed with environmental monitoring/logging in mind. We wanted to make a range of Pico/RP2040-powered, all-in-one sensor boards that are compact, easy to install in places and straightforward to program. The wireless capability of Raspberry Pi Pico W lets Enviro integrate with other systems - so you could post your data into databases, home automation systems, or online citizen science efforts - the Internet's your lobster!

Because the least fun thing about adding lots of sensors to your environment is figuring out how to supply power to everything without tons of trailing wires, they are all designed to work well off battery power. Each Enviro board has an onboard RTC (Real Time Clock) so that they can periodically wake up from deep sleep, take a reading (and, optionally, connect to wifi) and then go back to sleep - giving you months of untethered battery life.

Enviro Features

• Raspberry Pi Pico W Aboard
• Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM
• 2MB of QSPI flash supporting XiP
• Powered and programmable by USB micro-B
• 2.4GHz wireless
• Deep sleep/wake function using RTC
• 1 x POKE (user) button
• Reset button (because we're not monsters)
• Battery connector (JST-PH connector, 5.5V max voltage)
• User/activity LED (dimmable via PWM, can only be lit when board is awake)
• Warn LED (attached to RTC)
• Qw/ST connector for attaching breakouts
• Fully assembled
• No soldering required.
• Enviro firmware
• Schematic (coming soon)

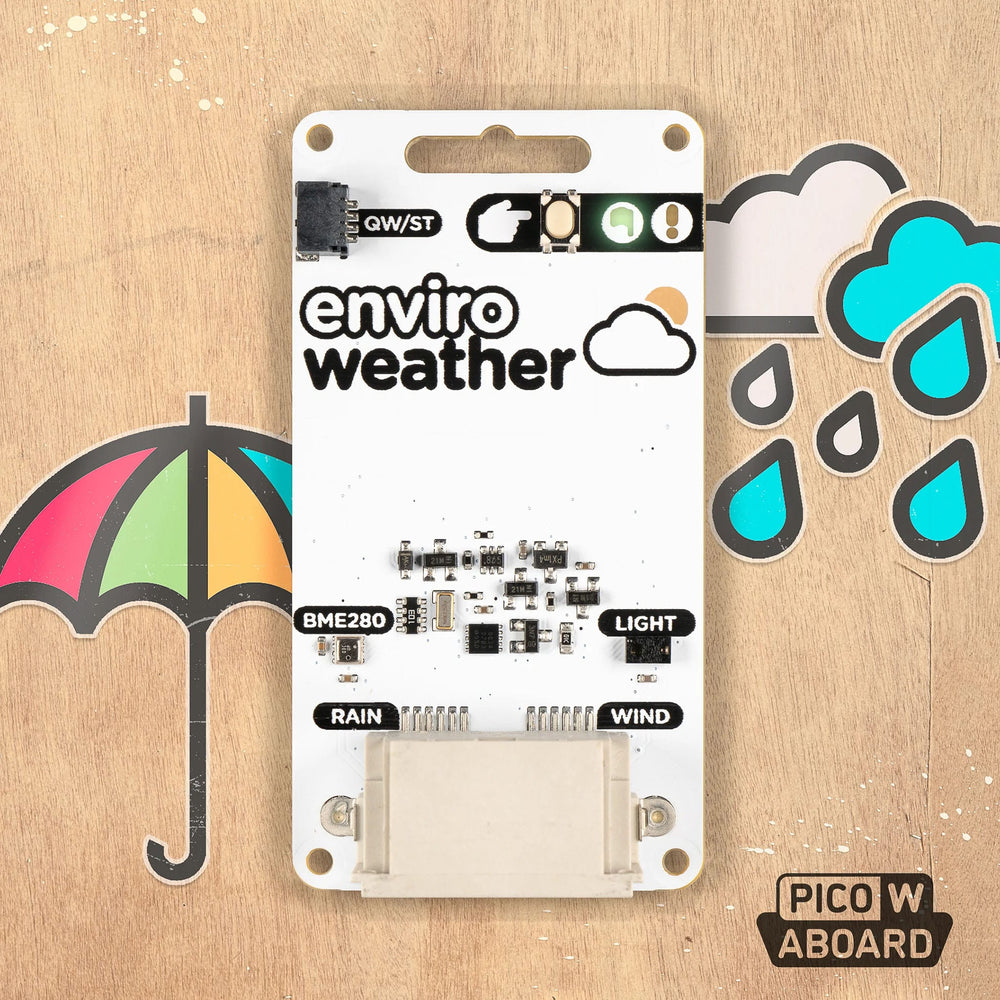

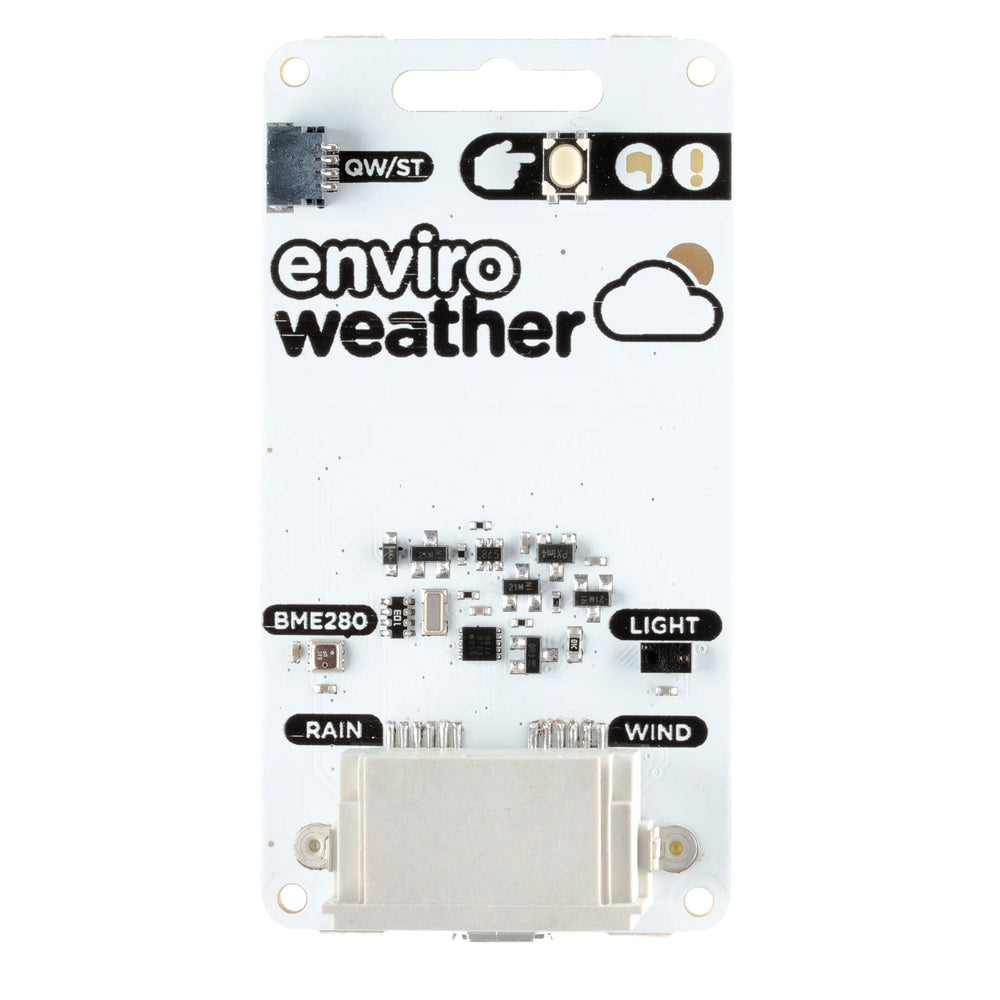

Enviro Weather Features

• BME280 temperature, pressure, humidity sensor (datasheet)
• LTR-559 light and proximity sensor (datasheet)
• RJ11 connectors for connecting wind and rain sensors

Software

Enviro ships with some super slick provisioning software that makes it really easy to set it up and connect to things, even if it's your first foray into environmental logging/IoT. Power it up and connect to the network called 'Enviro Weather Setup' with your phone, tablet or another wi-fi-enabled device - your Pico W will walk you through the rest!

• Getting Started Guide
• Enviro and InfluxDB/Grafana

• Getting Started with Enviro (Pico W Aboard)


Connecting Breakouts

The Qw/ST connectors on Enviro boards make it super easy to connect up I2C Qwiic or STEMMA QT breakouts. If your breakout has a QW/ST connector on board, you can plug it straight in with a JST-SH to JST-SH cable.

Breakout Garden breakouts that don't have a Qw/ST connector can be connected using a JST-SH to JST-SH cable plus a Qw/ST to Breakout Garden adaptor. Want to use multiple breakouts at the same time? Try this adaptor!

• List of breakouts currently compatible with our C++/MicroPython build.

Notes

• Measurements: 69 x 36 x 14 mm (L x W x H, approx)
• Enviro boards can enter a deep sleep mode where the Pico W, onboard sensors and sensors connected via Qw/ST are completely powered down. The only thing left running on the board is the RTC which can wake up the board again at a set date and time or on a timer. You can also wake up the board via the POKE button, or by connecting the USB cable (the board will never sleep if connected to USB power). Power consumption when asleep is 20uA.
• The RTC can also be used to keep track of the time and date (which means we don't need to waste power by making a wireless call to find out the time/date each time we log a sensor reading!)
• The Warn LED is connected to the RTC, so it can be lit even during deep sleep to notify you of problems. It is limited to three states - on, off, or 1hz blink (it's not possible to control the brightness).
• Most Enviro boards can be powered by a 2 x AAA battery pack, which fits neatly behind the board. Any battery pack that can supply between 2V and 5.5V will work though - 2 or 3 alkaline AA or AAA cells, 4 rechargeable NiMH cells or a single cell LiPo. If you're using a LiPo, bear in mind there's no battery charging included on Enviro boards, so you'll need a separate LiPo battery charger (like a LiPo Amigo) to be able to charge it.

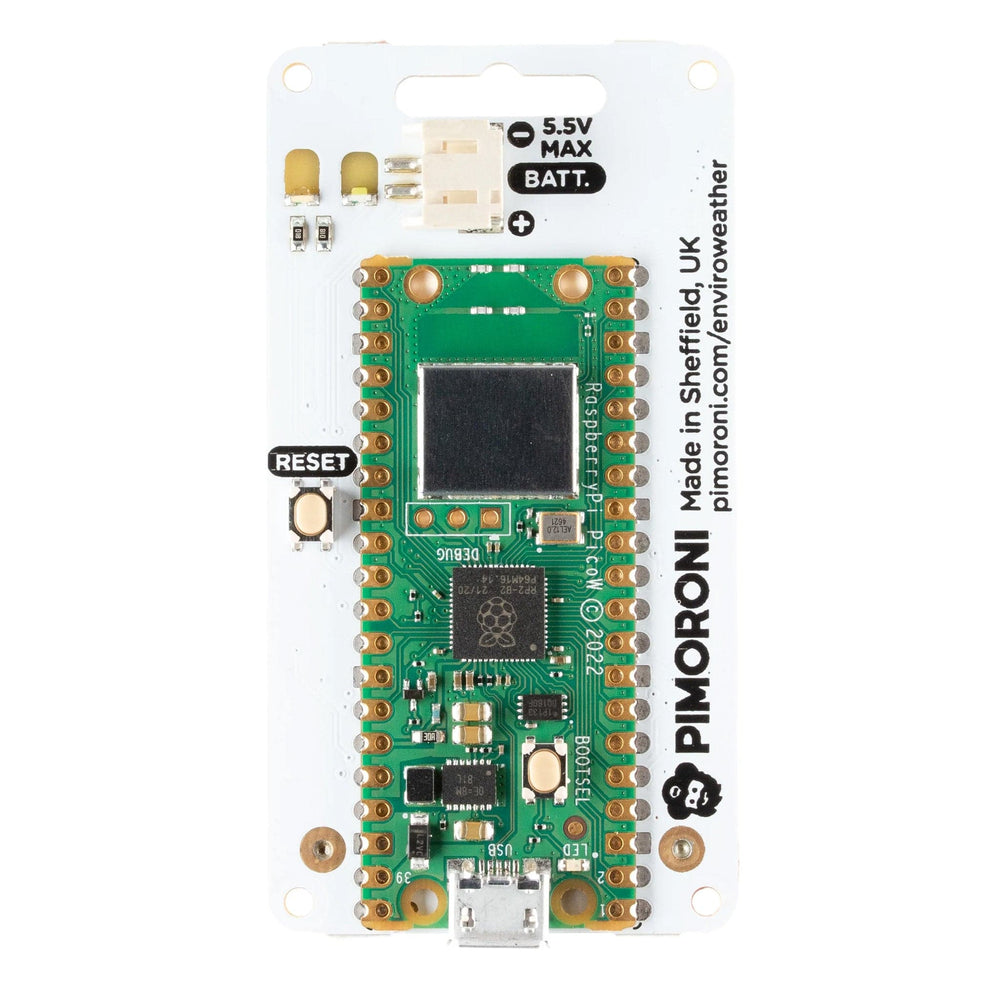

About Pico W Aboard

Our new Pico W Aboard products come with a built-in Raspberry Pi Pico W. This means you get all the advantages of an RP2040 microcontroller - a speedy fast dual-core ARM processor, a dynamic, growing ecosystem and a choice of different programming methods to experiment with. Most excitingly though, Pico W has wireless connectivity, so your Pico/RP2040 devices can communicate with each other, and the internet!

Wireless is very new to Pico/RP2040 - be aware that things will move fast and change! Software support (wireless examples, tutorials, CircuitPython support etc) will take a little while to catch up. If you're an absolute beginner to Pico/RP2040, you might have a better experience with wireless if you wait until everything is a little more settled.
