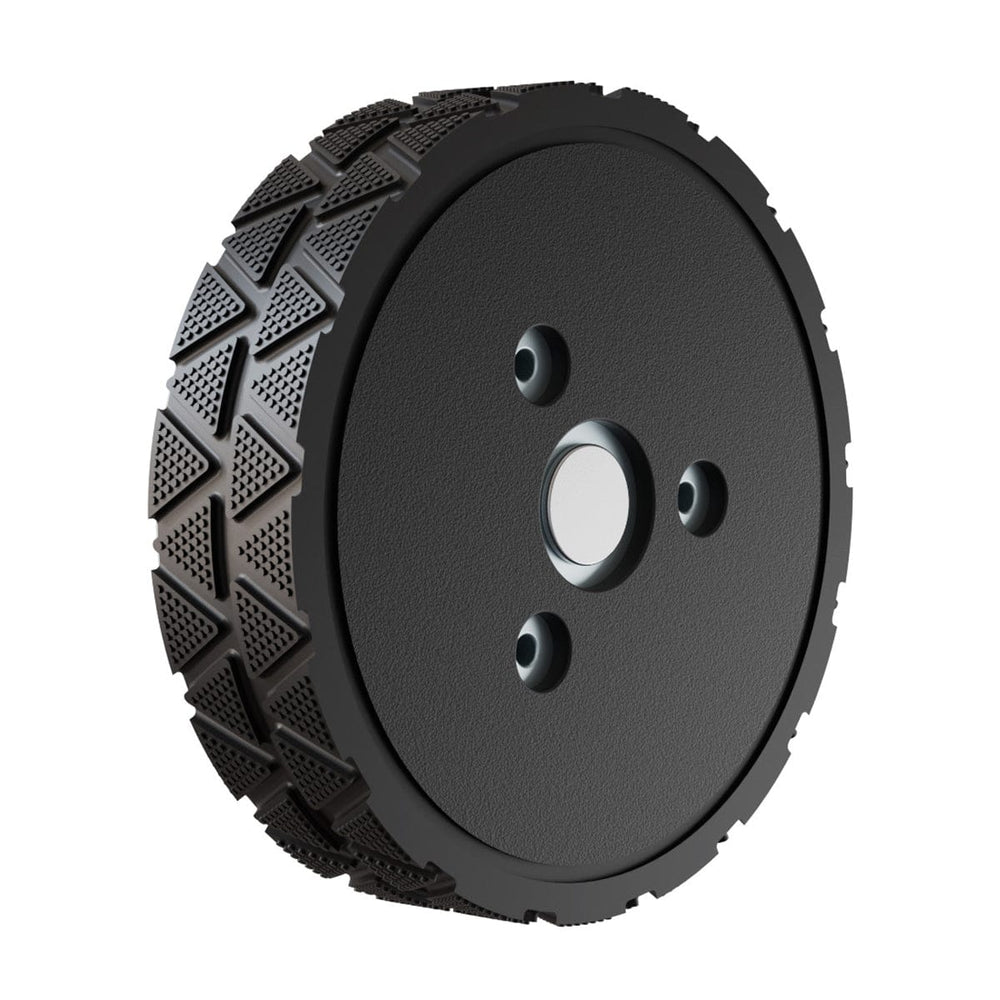

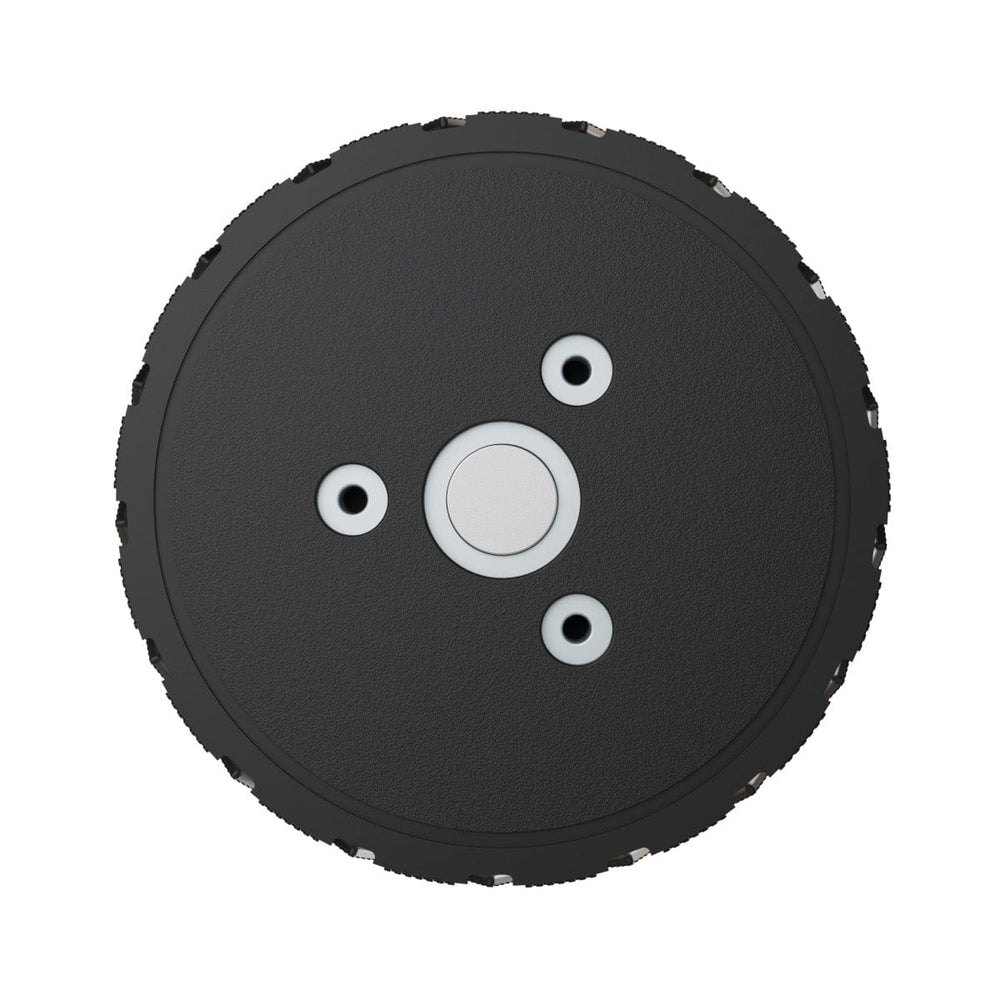

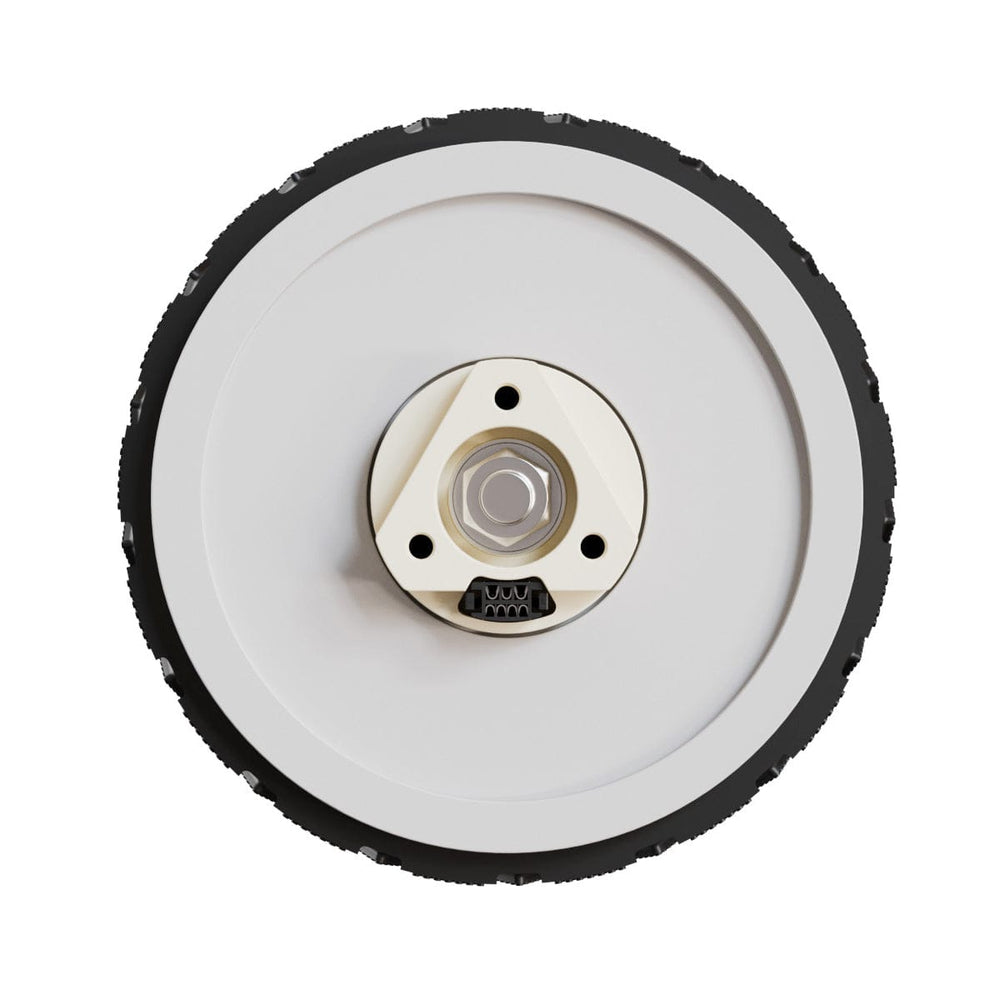

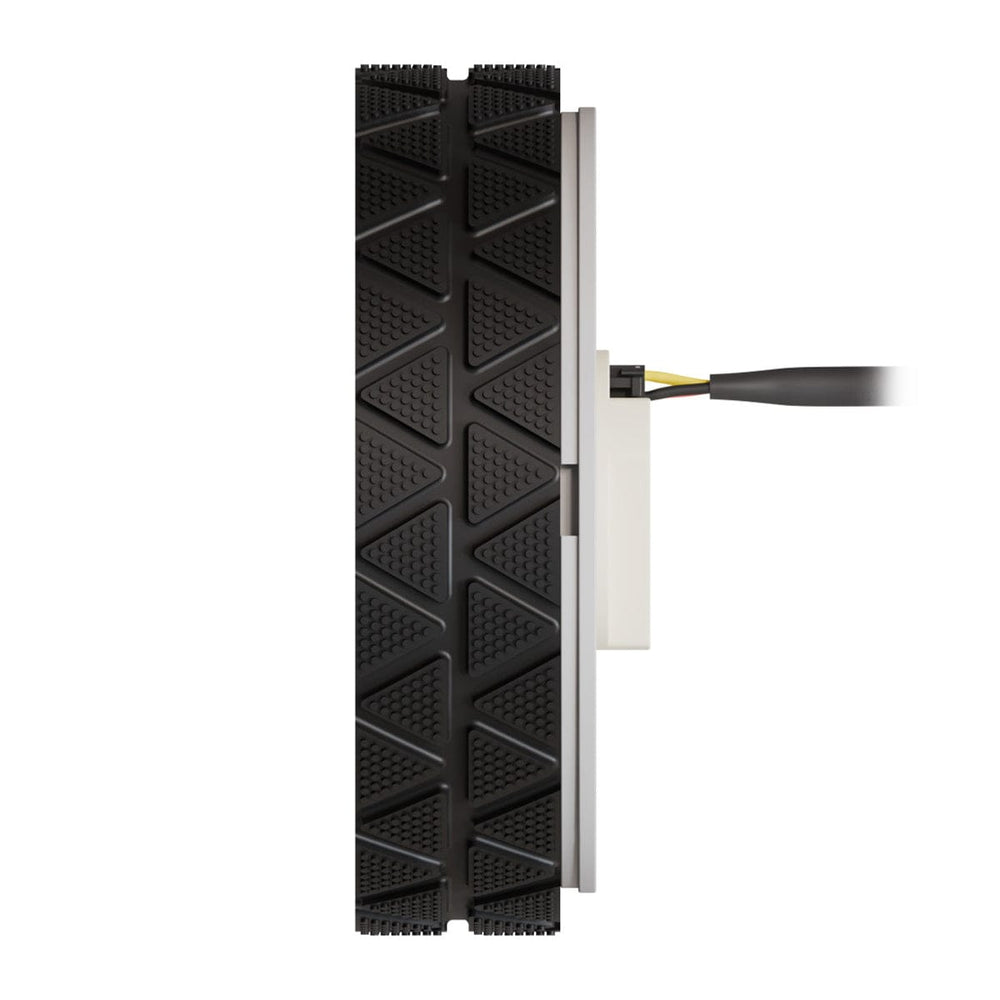

DDSM210 Direct Drive Servo Motor

WaveshareSKU: WAV-26620
Price:
Sale price £22.80
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

Awesome Extras

WaveshareESP32 Servo Driver with WiFi and Bluetooth
Sale price £17.30 incl. VAT excl. VAT
The Pi HutServo Extension Cable - 50cm / 19.5" long
Sale price £2.40 incl. VAT excl. VAT
WaveshareSerial Bus Servo Motor (20kg⋅cm)
Sale price £20.90 incl. VAT excl. VAT

This DDSM210 Servo Motor has been made to give a low-speed and high-torque performance, making it ideal for RC cars and robot DIY projects. Its low noise provides quiet functionality, and its high precision provides accurate movements. This all-in-one hub motor has a fast response time with direct drive technology, eliminating any delays.

The integrated motor and driver create a compact and highly integrated structure, perfect for streamlined projects. Supporting UART communication, it allows for easy retrieval of motor feedback information, including position, speed, current, and error codes. With the capability to control multiple motors simultaneously through just one UART bus, the DDSM210 offers convenience and efficiency for your robotics and RC car needs.

Features

  • Ultra low noise
  • High precision and no backlash
  • Fast response, direct drive without delay
  • Integrated motor and driver, compact structure and high integration
  • Supports UART communication, for obtaining motor feedback information such as position, speed, current, error code, etc
  • With Hall position detection, over-current protection, etc.
  • Supports electric brake
  • No drive mechanical friction, drive efficiency close to 99.99%

Specifications

No-load speed 210±11rpm
No-load current 0.15A
Rated speed 98rpm
Rated torque 0.25Nm
Locked-rotor torque 0.85Nm
Torque constant 0.23Nm/A
Locked-rotor current ≦3.8A
Operating temperature -25~45℃
Total weight 216g
Encoder resolution 12bit
Rated current 1.1A
Noise level ≦40dB(A)
Input voltage 9 ~ 28VDC
Speed constant 14rpm/V

Resources

Pinout

Package Contents

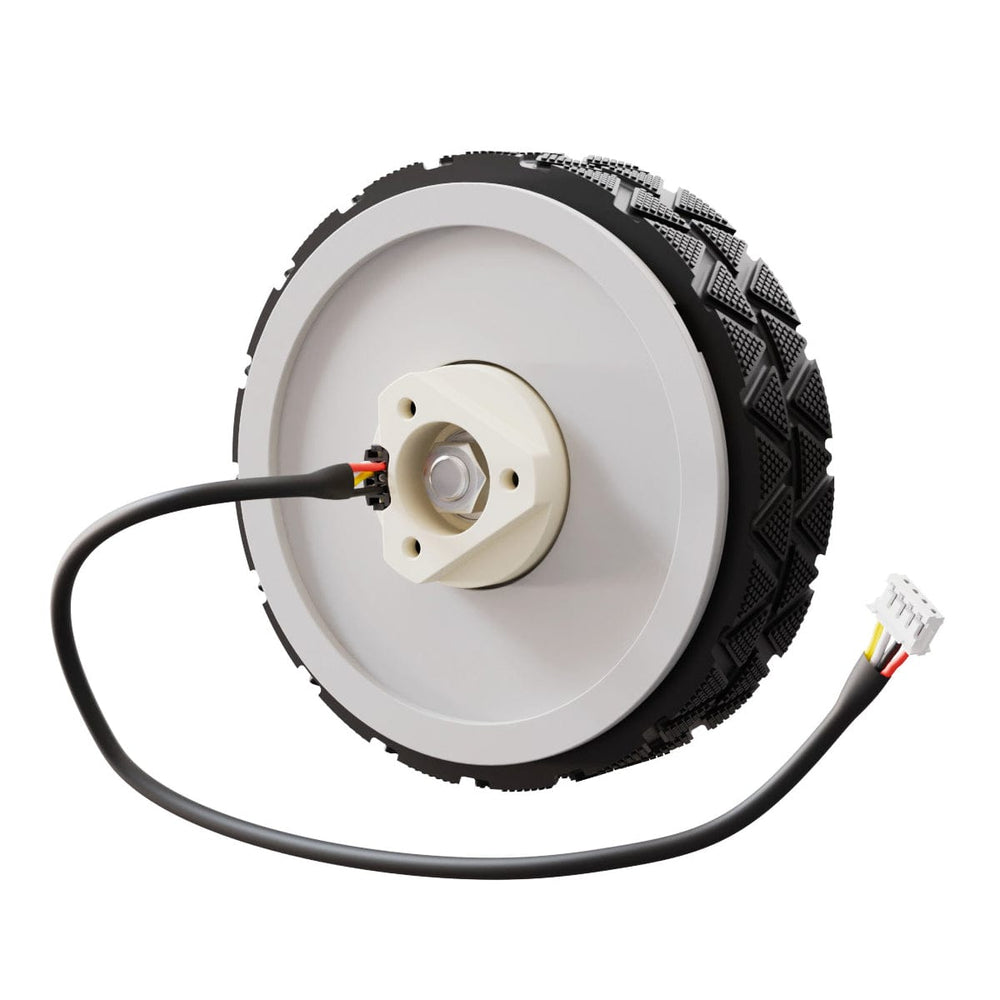

  • 1x DDSM210
  • 1x 4-pin cable
